Trans. Nonferrous Met. Soc. China 31(2021) 842-852

Kinetics of oxidation roasting of molybdenite with different particle sizes

Xiao-bin LI, Tao WU, Qiu-sheng ZHOU, Tian-gui QI, Zhi-hong PENG, Gui-hua LIU

School of Metallurgy and Environment, Central South University, Changsha 410083, China

Received 5 May 2020; accepted 18 October 2020

Abstract: The kinetics of oxidation roasting of molybdenum concentrate was studied by differential thermal- gravimetric experiments and non-isothermal analysis methods. The results show that high temperature is beneficial for oxidation of molybdenum concentrate. The initial oxidation temperature of the molybdenum concentrate is 450 °C, and the rapid oxidation occurs above 500 °C. The oxidation process conforms to the unreacted shrinking nucleus model. The early stage of the oxidation is controlled by chemical reaction with the apparent activation energy of 123.180 kJ/mol, while the later stage is controlled by internal diffusion with the apparent activation energy of 80.175 kJ/mol. Moreover, the oxidation rate is closely related to particle size of the concentrate. The smaller the particle size is, the larger the oxidation rate is.

Key words: molybdenite; oxidation; roasting; kinetics; particle size

1 Introduction

Molybdenum is widely used in materials and chemical industry [1,2]. Molybdenite is the main mineral of molybdenum, and its extraction is divided into pyro process and hydro process according to oxidation methods. The later mainly includes nitric acid leaching [3,4], pressure acidic/ alkaline leaching [5,6], sodium hypochlorite/ dichromate leaching [7,8], and electrochemical leaching [9]. The hydro process has advantages of strong adaptability to raw materials and low environmental pollution. However, it is not mature in industrial applications because of harsh equipment requirement and high operation costs. As for the pyrolytic process, it can be categorized  according to the types of additives, such as direct oxidation roasting, lime roasting [10], sodium/magnesium carbonate roasting [11-13], chlorination roasting [14-16], and hydrogen reduction [17-20]. Direct oxidation roasting using air as an oxidant is the prevalent method due to less investment and low operation costs, whereas the oxidation product MoO₃ readily sublimates above 600 °C causing loss of molybdenum. Moreover, low melting point eutectic with impurity metal oxides and sinter readily form, seriously deteriorating the roasting process. When roasted at relatively lower temperatures, the oxidation is slow, resulting in low conversion rate [21]. To address this problem, many scholars studied kinetics of oxidation roasting of molybdenum concentrates. GAN et al [22] reported the effects of calcium- based additives on the roasting of low-grade molybdenum concentrates. They found that the initial oxidation temperature of MoS₂ is 450 °C while the formations of CaMoO₄ and CaSO₄ occur above 500 °C. Increasing temperature accelerates CaMoO₄ formation but decreases both sulfur fixation rate and molybdenum retention rate. WILKOMIRSKY et al [23] studied calcination kinetics of molybdenite with particle size of 35-53 μm at different oxygen concentrations and temperatures. Their results show that the calcination is a first-order reaction, follows the unreacted shrinking core model, and is controlled by chemical reactions with activation energy of 104.0 kJ/mol. Additionally, YANG et al [24] examined the oxidation kinetics by the thermogravimetric-differential thermal experiments, and concluded that the oxidation is controlled by internal diffusion at low temperatures and by chemical reaction at high temperatures. But the boundary between the two steps was not studied in depth, and the effect of particle size on the shrinking core model was not considered.

In summary, the researches on kinetics of oxidaton roasting of molybdenum concentrates were mainly focused on the kinetic parameters and roasting mechanism. It is generally believed that the molybdenite oxidation conforms to the shrinking core model and is controlled by either internal diffusion or chemical reaction. However, few studies were conducted on the control steps and particle size effect. Practically, the particle size often has a great impact on the oxidation. Therefore, the kinetics of oxidation roasting of molybdenite with different particle sizes was studied in this  work through differential heat-thermogravimetry experiments. The research clarified the control  steps, boundary and particle size effect. The findings presented may provide further theoretical base for industrial direct oxidation of molybdenum concentrate.

2 Experimental

2.1 Materials

The molybdenum concentrate was provided by Chengdu Hongbo Molybdenum Co., Ltd., China. The main chemical compositions and X-ray diffraction pattern of the concentrate are shown in Table 1 and Fig. 1, respectively.

From Table 1, it can be seen that the concentrate has molybdenum content of 45.85% and S content of 31.01%. Other impurities mainly include Ca, Cu, Si, Pb, and P. XRD analysis shows that Mo and S exist mainly in the form of MoS₂ in the concentrate, and the impurity element Si mainly in the form of quartz. Other metal impurities are not detected in XRD analysis and may be in the form of oxides or sulfides.

Table 1 Main chemical compositions of molybdenum concentrate (wt.%)

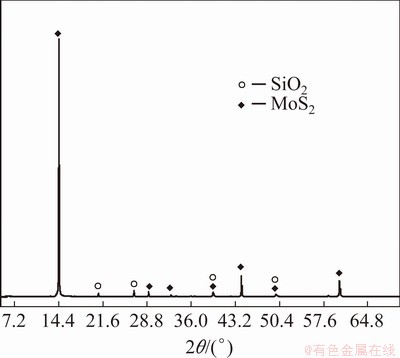

Fig. 1 XRD pattern of molybdenum concentrate

2.2 Experimental methods

The dried molybdenum concentrate was divided into different particle sizes of <75, 75-106, 106-150 and 150-250 μm. The SDTQ600 thermal analyzer was used to perform differential thermal- gravimetric analyses in air. The heating rate is 10 °C/min, and the temperature range is 25-800 °C. The thermogravimetric curve (TG) and heat flow curve (DSC) were obtained to compare the reaction behavior of the molybdenum concentrate with different particle sizes during roasting.

2.3 Selection of non-isothermal thermodynamic analysis methods

The oxidation process of molybdenite concentrate in thermal analysis experiments is a non-isothermal reaction process, and the reaction temperature is a function of time. For kinetic data processing methods of non-isothermal processes, the Kissinger method, FWO method and Coats- Redfern integral method are frequently used.

(1) Kissinger and FWO methods [25-27]

The derivation formulas of Kissinger method and FWO method are listed respectively as follows:

                     (1)

         (2)

where β is the heating rate, T_p is the peak temperature of the differential TG curve (DTG), A is the pre-exponential factor, R is the gas constant,  T is the thermodynamic temperature, g(a) is the integral form of reaction model with the maximum correlation coefficient, and E_a is the activation energy. By fitting the linear relationship between ln(β/) (or lg β) and 1/T via the least square method, E_a and A can be calculated by the slope and intercept of the line. The advantage of both the Kissinger method and the FWO method is that the influence of the reaction model is not taken into account in the calculation, but such a simplified processing may result in a larger error of the calculated value.

(2) Coats-Redfern integral method [28]

The Coats-Redfern integral method is the most commonly used method for studying the non-isothermal reaction mechanism functions, and the formula is

          (3)

where F(x) is reaction mechanism function.

x is the oxidation ratio at different temperatures in the non-isothermal process, and can be calculated by the mass changes in TG curves.

                              (4)

where w₀, w_T and w_∞ represent the initial mass, the mass at temperature T, and the mass after reaction completion of the concentrate, respectively.

For most conditions, E is much greater    than 2RT, namely  can be considered as a constant. For a particular F(x), a linear relationship between  and 1/T can be obtained by the linear fitting, and E and A can thus be calculated respectively according to the slope and intercept of the fitted line. As the influence of reaction mechanism on calculation results is fully considered when applying the Coats-Redfern integral method, the subsequent kinetic parameters are calculated by this method.

3 Results and discussion

3.1 TG-DSC analysis of molybdenite concentrate

Figure 2 shows the TG-DSC curves of oxidation of molybdenite concentrate with different particle sizes. TG curve shows that mass loss of concentrate occurs in two different temperature ranges with the temperature rising. At the low temperatures (350-550 °C), the concentrate mass changes little (<450 °C) and then decreases remarkably. Moreover, the mass change rate of small-size concentrate is much greater than that of the large-size one (>450 °C). At the high temperatures (550-800 °C), the mass change of the large-size concentrate increases sharply with the mass loss greater than 35% at 800 °C for 150-250 μm. The DSC curve shows that there is an obvious exothermic peak at 500 °C, indicating that the chemical reaction occurs at 500 °C.

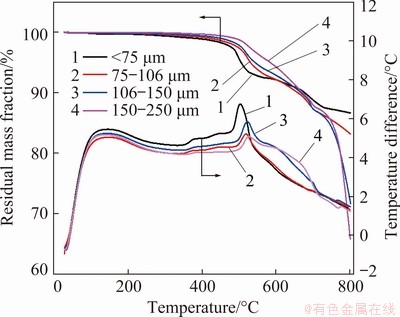

Fig. 2 TG-DSC curves of molybdenite concentrate

The physicochemical reaction in the roasting process is further analyzed, in which the chemical reaction is the REDOX reaction of MoS₂ as well as the reactions of molybdenum trioxide with impurity metal oxides to form molybdates:

MoS₂+7/2O₂=MoO₃+2SO₂                           (5)

MoO₃+MeO=MeMoO₄                            (6)

Thermodynamic calculation shows that these reactions can occur within 1000 °C. When MoS₂ is completely reacted, the theoretical mass reduction of molybdenite is 8.5%, which is well consistent with the mass change in the low temperature range. Additionally, the exothermic peak appears in this temperature range, further verifying that the oxidation of molybdenite occurs mainly in this range. The sublimation temperature of molybdenite trioxide is 600 °C, so the significant mass change in the high temperature range is mainly attributed to the sublimation of molybdenum trioxide.

In order to eliminate the influence of the sublimation on experimental results, 350-550 °C was chosen as the calculated temperature range. The oxidation ratio (x) and oxidation rate (dx/dt)  of molybdenite in the temperature range were calculated according to the mass changes of TG curves in Fig. 2.

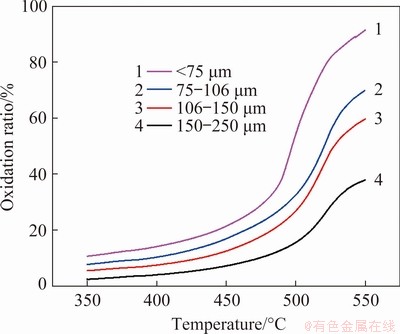

Fig. 3 Curves of oxidation ratio of molybdenite

As shown in Fig. 3, the initial oxidation temperature of molybdenite is approximately 450 °C. For a specific particle size, the oxidation ratio is accelerated first and then slowed down. Furthermore, the smaller the particle of the concentrate, the higher the oxidation ratio. For the same temperature, the oxidation ratio of small particle molybdenite is larger than that of the larger one. The oxidation ratio for particle size less than 75 μm reaches 92.80% at 550 °C. Similarly, the oxidation rate in Fig. 4 shows the same trend as the oxidation ratio. There is an obvious inflection point for the oxidation rate, and this inflection point is often accompanied by changes in the kinetic control steps, which need to be verified by the following calculations.

3.2 Non-isothermal kinetic analysis

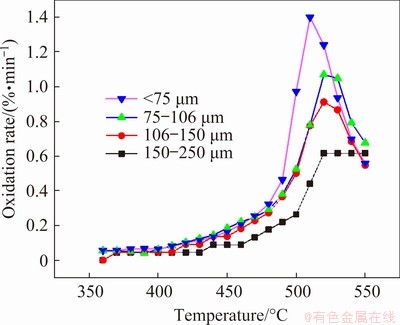

Fig. 4 Curves of oxidation rate of molybdenite

Fig. 5 EDS results of roasted products of molybdenite concentrate with different particle sizes roasted in muff furnace for different time

Figure 5 shows the EDS results of roasted products of the concentrate with different particle sizes. The results illustrate that the roasted products can be divided into three types: white products, mixed products and gray products. The compositions analyzed by the electron probe suggest that the white area is unreacted molybdenum sulfide, the mixed area is a mixture of sulfur, molybdenum and oxygen, and the gray area is molybdenum trioxide.

Figures 5(a, d) manifest that the original molybdenite concentrate is composed of white molybdenum sulfide. From Figs. 5(b, e, f), the concentrate roasted for a certain time consists of white area and mixture area. Moreover, the mixture seems to form a product layer on the periphery and wraps the unreacted white molybdenum sulfide. Since these mixtures are not dense, oxygen is easy to enter the particles during roasting and reacts  with molybdenum sulfide, and the reaction ratio can be further increased. In Fig. 5(c), as the fine concentrate is roasted for a relatively long time, the mixture is completely oxidized to molybdenum trioxide and a dense oxide film is formed on the surface of molybdenite sulfide. This makes the diffusions of oxygen and SO₂ difficult and thus the enclosed molybdenum sulfide is difficult to be oxidized, which will definitely inhibit the oxidation of molybdenite.

The gas-solid reaction that produces dense products can be treated with an unreacted shrink nucleus model. The main control steps of the reaction are external diffusion, internal diffusion and chemical reaction. The reaction kinetics equations of different control steps are given in Table 2.

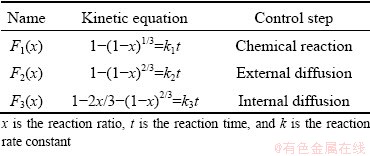

Table 2 Kinetic equations of reaction

According to the integral formula of Coats-Redfern, for its kinetic equation F(x), the better the linear relationship between calculated ln[F(x)/T²] and 1/T, the closer the kinetic model is to the actual situation. The reaction ratio x of oxidation roasting of molybdenite concentrate with different particle sizes in Fig. 3 is substituted into the mechanism function F(x) under different control steps in Table 2, and the linear fitting of ln[F(x)/T²]  to 1/T is performed within the temperature range of 450-550 °C. The fitting results for particle size of <75 μm are plotted in Fig. 6.

Figure 6 shows that when linear fitting is performed with different kinetic equations, the inflection points on the fitting curves appear at around 500 and 525 °C, revealing that the kinetic control steps during REDOX of the concentrate in different temperature ranges are not the same.

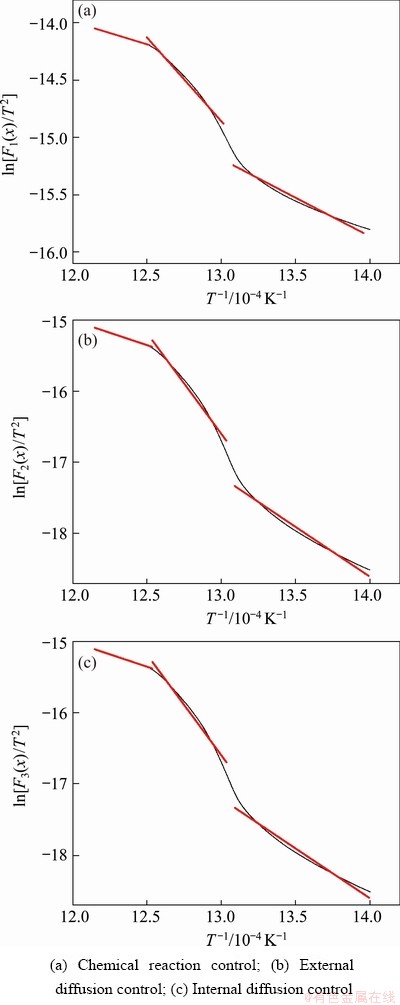

Fig. 6 Linear fitting results of ln[F(x)/T²] to 1/T under different control steps for concentrate particle size of <75 μm

Therefore, the kinetic equations in different temperature ranges are fitted linearly according to the inflection point. Considering the influence of unstable interval on the results during the transition of different control steps, the change within 450-490 °C is taken as the first step, the change within 500-525 °C as the second step, and the change within 530-550 °C as the third step. The fitting results of the maximum linear correlation coefficient are taken as the experimental result, and listed in Table 3.

Table 3 shows the activation energy E_a of molybdenite oxidation roasting for each particle size with different kinetic equations, where R^* denotes linear correlation coefficient. It is found that the correlation is good after linear treatment with external diffusion, chemical reaction or internal diffusion equation in different temperature ranges. Considering that the experiment was done in a thermal analyzer where the gas diffused quickly, the external diffusion is not a control step. At 450-490 °C, the oxidation ratio is low and the oxidation rate is accelerated, but the DSC curve shows no obvious exothermic peak in this temperature range. This implies that the oxidation reaction is in an induction phase and controlled by chemical reaction in this range. At 500-525 °C, the oxidation rate of molybdenite gets faster and there is an obvious exothermic peak on the DSC curve, suggesting that molybdenite is rapidly oxidized under chemical reaction control in this range. After a certain duration of chemical reaction, the surface product layer formed on molybdenite particles retards oxygen internal diffusion and the reaction rate drops sharply, where the reaction is diverted to internal diffusion control at 530-550 °C.

3.3 kinetics of oxidizing roasting of molybdenite concentrate

3.3.1 Calculation of thickness of product layer

The oxidation reaction is composed of several steps. When estimating the reaction behavior, it is necessary to know the critical conditions for the conversion of each control step, especially for the conversion from chemical reaction control to internal diffusion control. If molybdenite particles have the same size in all directions with the same chemical activity, they can be considered as spheres with a radius of r₀. As the oxidation goes on, the unreacted particle has a radius of r at time t. The chemical reaction rate v can be expressed by

                         (7)

where m is the mass of the unreacted nucleus at time t, k is the rate constant of surface chemical reaction, S is the reaction interface area (m²), C is the reactant concentration (mol/L), and n is the reaction order. For molybdenite concentrate, Cⁿ could be considered as a constant.

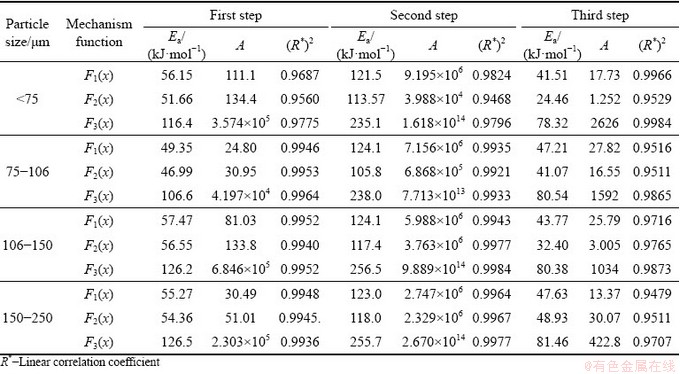

Table 3 Kinetic parameters of oxidation process of molybdenite concentrate

Then, the differential equation can be readily obtained as follows:

                        (8)

where ρ is the density of molybdenite concentrate. So,

                            (9)

where k, C₀ and ρ are all constants at the same temperature. Therefore, while molybdenum is oxidized under chemical reaction control, the thickness of product layer is the same at the same time. When the oxidation is changed into internal diffusion control from chemical control, the product layer is formed outside the nucleus. The thickness of the product layer is assumed to be δ and it can be calculated by the rate inflection point. For the concentrate with particle size of <75 μm, its particle size distribution is shown in Fig. 9, and its particle size distribution function is f(r). The temperature at its inflection point is 525 °C corresponding to the oxidation ratio of 81.55%, and the mass of molybdenite of <75 μm with a certain number of particles m₀ is

                       (10)

The mass of the unreacted nucleus is

                  (11)

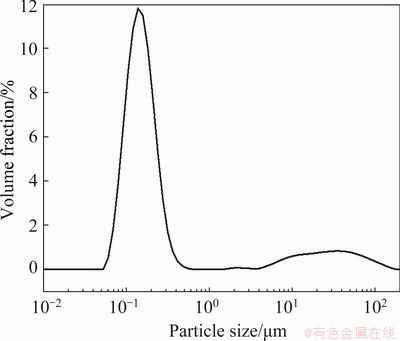

Fig. 9 Particle size distribution curve of molybdenite concentrate (<75 μm)

Considering the unreacted rate, m/m₀, is 0.1845, the thickness δ is thus calculated to be approximately 40 μm. Similarly, the thickness of molybdenite with different particle sizes can also be calculated. It is found that the product layer thickness for molybdenite with different particle sizes is 40-56 μm, disclosing that the surface energy and chemical properties of molybdenum concentrate with different particle size are almost the same and the same rules should be followed in the oxidation.

Based on the above theoretical calculation, duringthe oxidizing roasting of molybdenite concentrate with different particle sizes, the oxidation is controlled only by chemical reaction for particle size less than δ, and by chemical reaction and subsequent internal diffusion for particle size greater than δ.

3.3.2 Determination of kinetic equation of chemical reaction control

As can be seen from Table 3, when the oxidation is controlled by chemical reaction, the apparent activation energy of molybdenite concentrate with different particle sizes is basically the same, and their average value of 123.18 kJ/mol is taken as the activation energy of the chemical reaction. The kinetic equation of the chemical reaction for different particle sizes can be expressed as follows:

K_<75 μm=9.20×10⁶exp[-123180/(8.314T)]

K_75-106 μm=7.18×10⁶exp[-123180/(8.314T)]

K_106-150 μm=5.99×10⁶exp[-123180/(8.314T)]

K_150-250 μm=4.22×10⁶exp[-123180/(8.314T)]

According to the kinetic equation of chemical reaction control,

1-(1-x)^1/3=k₁t                          (12)

In combination with Eq. (9), for a single particle with the volume of V, k₁ can be expressed as

                          (13)

For molybdenum concentrate with dispersed particle size, r₀ is difficult to determine, so the specific surface area of S₀/V₀ can be used to represent the relationship between k₁ and particle size distribution, as shown in Eq. (14):

                                (14)

where S₀ (total surface area) and V₀ (total volume) for molybdenite concentrate with different particle size distribution can be calculated by Eqs. (15) and (16), respectively. The diagram of k₁ versus S₀/V₀ is shown in Fig.10.

                         (15)

                       (16)

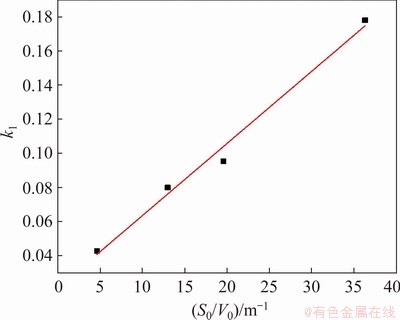

Fig. 10 Diagram of k₁ vs S₀/V₀ under chemical reaction control at 525 °C

In Fig. 10, the correlation coefficient of the fitting line is 0.984, and the relation between k₁ and S₀/V₀ is

k₁=2.17×10⁵(S₀/V₀+5.02)exp[-123180/(8.314T)]    (17)

Therefore, the kinetic equation of chemical reaction control is

1-(1-x)^1/3=2.17×10⁵(S₀/V₀+5.02)×exp[-123180/(8.314T)]t               (18)

3.3.3 Determination of kinetic equation of internal diffusion control

Table 3 shows that the apparent activation energy of internal diffusion for different sizes is basically the same. Similarly, the average value of 80.175 kJ/mol is taken as the activation energy of the internal diffusion, where K can be expressed as follows:

K_<75 μm=2626exp[-80175/(8.314T)]

K_75-106 μm=1592exp[-80175/(8.314T)]

K_106-150 μm=1034exp[-80175/(8.314T)]

K_150-250 μm=422.8exp[-80175/(8.314T)]

According to the kinetic equation (Eq. (19)) of internal diffusion control,

1-2x/3-(1-x)^2/3=k₂t                      (19)

The internal diffusion rate constant k₂ can be expressed as Eq. (20) for individual particles:

                    (20)

where a is a proportional coefficient.

Likewise, the item (S₀/V₀)² can be used to represent the relationship between k₂ and particle size distribution:

k₂=k′(S₀/V₀)^2n′exp[-E/(RT)]                (21)

where k′ is the frequency factor, n′ is the shape factor of molybdenum concentrate particles. After calculation of S₀ and V₀, the diagram of ln k₂ versus ln (S₀/V₀) is then plotted, as shown in Fig. 11.

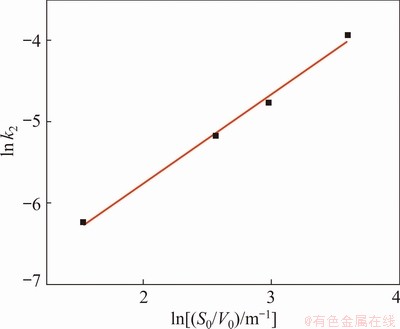

Fig. 11 Diagram of ln k₂ vs ln (S₀/V₀) under internal diffusion control at 525 °C

Figure 11 shows that the correlation coefficient of the fitting line is 0.9915, the frequency factor k′ is 61.83, the shape factor n′ is 0.55, and the correlation formula between k₂ and (S₀/V₀)² is

k₂=61.83(S₀/V₀)^1.1exp[-80175/(8.314T)]     (22)

Therefore, the kinetic equation of internal diffusion control is as follows:

1-2x/3-(1-x)^2/3=61.83(S₀/V₀)^1.1·exp[-80175/(8.314T)]t       (23)

3.3.4 Critical conditions for control step changes

When the kinetic control step is changed from chemical reaction control to internal diffusion control, the internal diffusion rate and chemical reaction rate are the same, and the derivative of oxidation ratio x with respect to time t of the two kinetic equations are respectively obtained as follows:

                      (24)

               (25)

The oxidation ratio of the chemical reaction is x₀ at this time, so,

                (26)

Obviously, x₀ increases with the increase of k₂/k₁. For molybdenite concentrate, the ratio of k₂/k₁ is related to the particle size and reaction temperature. The smaller the particle size of molybdenite concentrate is, the larger the specific surface area is, and the larger the oxidation ratio controlled by chemical reaction will be at the same temperature. For any reaction, the chemical reaction rate is obviously faster than the internal diffusion reaction rate, so reducing molybdenite concentrate size can increase the proportion of chemical reaction and effectively improve the oxidation ratio of molybdenite. For the same particle size, with  the increase of temperature, the oxidation ratio controlled by chemical reaction x₀ decreases, but the overall reaction ratio significantly increases at high temperatures. Therefore, during the oxidizing roasting of molybdenite, the roasting temperature should be increased on the premise of minimizing volatilization.

3.3.5 Verification of kinetic model

To verify the developed kinetic model, a roasting experiment was conducted using the actual molybdenite concentrate. 5 g concentrate was roasted in a muffle furnace and its oxidation ratio curves were measured at 500 and 550 °C. At the same time, the particle size distribution of the concentrate was measured to calculate the specific surface area, and the oxidation ratio curves at 500 °C and 550 °C were calculated by the developed kinetic equation. The comparison of the measured and the calculated results is given in Fig. 12.

Figure 12 shows that the measured values by experiments are in good agreement with the calculated ones by the kinetic model in the early and late stages of the reaction. In the middle stage, the measured values are higher than the calculated ones, which mainly is attributed to two reasons. First, when molybdenite is roasted in the muffle furnace, a large amount of concentrate is oxidized, leading to local overheating, so the reaction rate is accelerated. Secondly, when the control steps of the oxidation are changed, there is a transitional interval, where the reaction rate is between the two conditions and higher than the internal diffusion rate. Generally, the proposed kinetic model is basically consistent with the actual roasting process, which may provide a theoretical basis for the optimization design and numerical simulation of the oxidizing roasting process of molybdenite concentrate.

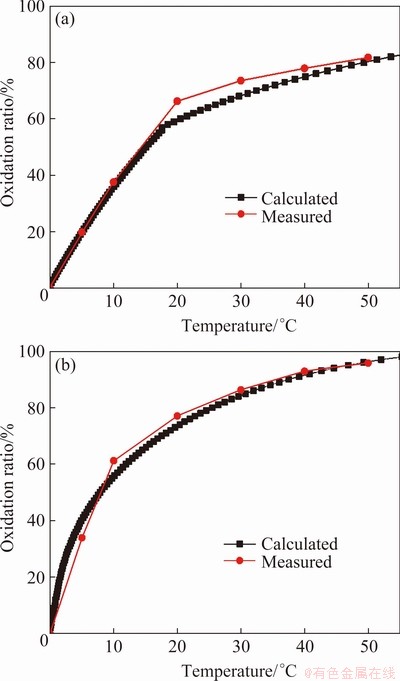

Fig. 12 Comparison of measured and calculated oxidation ratios of molybdenite roasted at 500 °C (a) and 550 °C (b)

4 Conclusions

(1) Molybdenite begins to oxidize at 450 °C, and is oxidized rapidly above 500 °C under chemical reaction control with the apparent activation energy of 123.18 kJ/mol, and the rate constant k₁ of 2.17×10⁵(S₀/V₀+5.02)exp[-123180/ (8.314T)]. The oxidation rate correlates negatively to the molybdenite particle size.

(2) When the reaction rate reaches 1-[(1/4-k₂/(2k₁))^1/2+1/2]³, the oxidation is controlled by the internal diffusion with the apparent activation energy of 80.175 kJ/mol and the constant k₂ of 61.83(S₀/V₀)^1.1exp[-80175/(8.314T)]. In this stage, reducing molybdenite particle size accelerates the internal diffusion of oxygen.

(3) Increasing roasting temperature is conducive to both the oxidation rate and desulfurization rate of molybdenite. The particle size determines the oxidation behavior of molybdenite concentrate. Reducing the particle size can effectively strengthen the oxidation roasting.
