Oxidation behaviors of wrought nickel-based superalloys in various high temperature environments
Changheui JANG1, Daejong KIM1, 2, Donghoon KIM1, Injin SAH1, Woo-Seog RYU2, Young-sung YOO3
1. Korea Advanced Institute of Science and Technology, 291 Daehak-ro, Yuseong-gu, Daejeon, 305-701, Korea;
2. Korea Atomic Energy Research Institute, 150 Deogjin-dong, Yuseong-gu, Daejeon 305-600, Korea;
3. Korea Electric Power Research Institute, 103-16 Munji-dong, Yuseong-gu, Daejeon 305-380, Korea
Received 23 September 2010; accepted 2 December 2010
Abstract: Oxidation characteristics of Alloy 617 and Haynes 230 at 900 oC in simulated helium environment, hot steam environment containing H2 as well as in air and pure helium conditions were investigated. Compared to air condition, the oxidation rate of Alloy 617 was not significantly affected in helium and hot steam environments, while Haynes 230 showed lower oxidation rate in helium environment. On the other hand, the oxide morphology and structure of Alloy 617 were strongly affected by the environments, but those of Haynes 230 were less dependent on the environments. For Haynes 230, a Cr2O3 inner layer and a protective MnCr2O4 outer layer were formed in all environments, which contributed to the better oxidation resistance. As the mechanical properties, such as creep and tensile properties, were significantly affected by the oxidation behaviors, surface treatment methods to enhance oxidation resistance of these alloys should be developed.
Key words: oxidation; nickel-based superalloys; very high temperature reactor (VHTR); impure helium; hot steam
1 Introduction
Among the generation-IV reactor types which had been selected by international forum [1], the very high temperature reactor (VHTR) is the most promising near-term deployable reactor type along with a sodium-cooled fast reactor (SFR). VHTR has very attractive characteristics of passive safety features, higher thermal efficiency and high operating temperature. Because of high operating temperature, in addition to electricity generation, the heat can be used for various industries such as chemical process, and steel making [2]. Especially, if the VHTR is combined with either high temperature steam electrolysis (HTSE) or sulfur-iodine (S-I) process, massive production of hydrogen could be achieved economically and clean. Though both processes require high temperature up to 900 °C to achieve better efficiency, HTSE is less dependent on temperature than S-I process. The rapid development of solid oxide fuel cell (SOFC) technologies will certainly be applied to HTSE system for near-term application [3].
Among the variety of materials reviewed, several Ni-based superalloys are seriously considered the materials for high temperature structural components [4]. Currently, wrought Ni-based superalloys, Alloy 617 and Haynes 230, are considered for intermediate heat exchanger (IHX) and hot gas duct (HGD) due to excellent high temperature corrosion resistance against various environments such as oxidation, carburization, and decarburization conditions. In these materials, the protective external Cr oxide prevents the direct interaction between metal and environments. However, despite the excellent oxidation resistance, when the materials are exposed to high temperature for prolonged period of nuclear power plant operation, oxidation at the surface would be significant. Then, oxidation would contribute to the mechanical property degradation of Ni-based superalloys by metal loss, internal oxide, carburization, decarburization, and so on.
In primary system of VHTR, the pressurized helium gas with impurities such as CO, CO2, CH4, H2, H2O, and N2 will be used as a reactor coolant. In HTSE system, high temperature steam or steam and hydrogen mixture gases will be used to produce hydrogen [5]. Therefore, the oxidation resistance and their performance of oxide layer in impure helium and hydrogen added steam environments at high temperatures are the most important factors to consider in assessing materials damage and integrity. Therefore, in this study, high temperature oxidation behaviors of Alloy 617 and Haynes 230 are evaluated in air, pure helium, impure helium, steam, and steam with hydrogen environments.
2 Experimental
2.1 Materials
Commercial wrought Ni-based superalloys, such as Alloy 617 and Haynes 230, were used in this study. The chemical compositions of both the superalloys were analyzed by inductively coupled plasma mass spectroscope (ICP-MS) and summarized in Table 1. Alloy 617 was solid-solution hardened by Mo and Co, and Haynes 230 was hardened by W. Final solution annealing was performed at 1 175 °C, and water quenching or rapid air cooling was carried out. This heat treatment condition provides a coarse grain structure for the best creep-rupture strength. The typical microstructures are shown in Fig. 1. As shown in Fig. 1, Cr-rich or W-rich carbides are spread along the grain boundary.

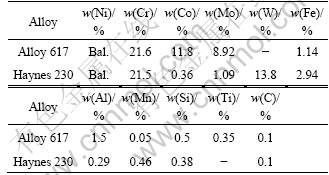

Table 1 Chemical compositions of Alloy 617 and Haynes 230
2.2 Experimental procedures
Coupon type specimens with 12 mm in diameter and 1 mm in thickness were used for oxidation tests. The specimens were oxidized in air, pure helium (contains (2-3)×10-6 H2O and O2), controlled helium and steam environments at 900 °C. The controlled helium conditions were selected to simulate various oxidation/carburization conditions expected in VHTR and listed in Table 2. The controlled helium gases, He-K1 and He-K2, were maintained using impurity controlled, once through helium loop with a flow rate of 500 mL/min [6]. Steam oxidation tests were conducted in pure steam and steam 20% (volume fraction) H2 mixture environments at 900 °C. The flow rates of steam and steam 20% H2 mixture were 20 mL/min at room temperature. The details of experimental set-up and procedures were described previously [6-7].
After the specimens were exposed to various conditions, oxide evolution as function of time and gas conditions was characterized using X-ray diffraction (XRD) analysis. Oxide morphology and cross section microstructure were analyzed to understand the microstructure changes and oxidation mechanism. Scanning electron microscope (SEM) and energy dispersive spectroscope (EDS) were used to observe microstructure and to measure the chemical compositions of each precipitate.
Fig. 1 Typical microstructures of as-received Ni-based superalloys: (a) Alloy 617; (b) Haynes 230
Table 2 Compositions of helium gases with impurities
3 Results and discussion
3.1 Oxidation in air and pure helium
Figure 2 shows the mass gain per unit area versus time plots of both Ni-based superalloys after the isothermal oxidation at 900 °C for up to 1 000 h in air and pure helium. As shown in the figure, the oxidation rate generally follows the well-known parabolic rate law. The parabolic rate constant of Alloy 617 is considerably higher than that of Haynes 230 in both conditions. Though both alloys are known chromia forming alloys with similar chromium content, the difference in rate constant indicates that other elements influence the oxidation behaviors of the alloys.
In air, as the oxygen activity is high enough, the oxygen molecules are rather evenly adsorbed on entire surface and form oxides. As a result, the oxide grains on the surface have a nodular-type structure for both alloys (Fig. 3). From SEM observation (Fig. 4) and XRD analysis (not shown here), the mixture of triple oxide layers and double layers was formed on the surface of Alloy 617 in air condition (Fig. 4(a′)), consisting of inner Cr2O3 layer covered by outer Ni-rich oxides such as NiO and NiCr2O4 [8]. Below the surface oxide layers, internal and inter-granular Al2O3 is well developed due to the preferential oxidation of Al in Alloy 617. The extensive development of internal oxide could be the proof of the poor protectiveness of surface oxide layers for Alloy 617. On the other hand, the surface oxide layers are mainly comprised of MnCr2O4 and Cr2O3 for Haynes 230, as shown in Fig. 4(b′). The existence of outermost MnCr2O4 layer was considered an effective barrier to oxygen diffusion into metal surface and consequently enhanced the oxidation resistance of the alloy [8]. The change of slope for Haynes 230 observed in Fig. 2 is the direct result of that. The parabolic rate constants were calculated and shown in Table 3.

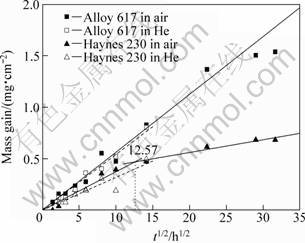

Fig. 2 Oxidation kinetics of Alloy 617 and Haynes 230 at 900℃ in air and pure helium [8]
Fig. 3 Surface oxide morphologies after ageing for 1 000 h in air: (a) Alloy 617; (b) Haynes 230

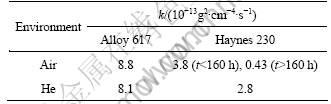

Table 3 Parabolic rate constants of Alloy 617 and Haynes 230 at 900 °C
3.2 Oxidation in controlled helium
As shown in Fig. 5, the parabolic rate constants in impure helium gases are almost the same as those in air for Alloy 617. From the SEM/EDS analysis, the oxidized surface of Alloy 617 is covered with the isolated nodular structure of MnCr2O4 on the top of Cr2O3 (Fig. 6). As mentioned in the previous section, Cr2O3 alone was not enough to provide effective diffusion barrier. Consequently, the oxidation kinetics in the controlled helium gases, He-K1 and He-K2, are the same as those in air for Alloy 617. On the other hand, the oxidation resistance is considerably increased for Haynes 230 in controlled helium gases as shown in Fig. 5. As shown in Fig. 7, continuous MnCr2O4 layer covers the chromia layer in both conditions for Haynes 230. It is the dense MnCr2O4 oxide layer compared to static air that makes the oxidation resistance better in impure helium gases [6].

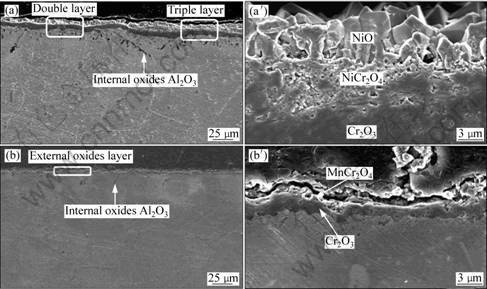

Fig. 4 Evolution of oxide layers at 900 °C in air for 1 000 h: (a), (a′) Alloy 617; (b), (b′) Haynes 230
In the controlled helium environments, it has been known that H2O and CO2 molecules are rapidly dissociated because of low oxygen partial pressure, and the formation of cellular oxides for Alloy 617 and platelets for Haynes 230 is enhanced. The formation of platelet oxides is more evident for Haynes 230 containing Mn than for Alloy 617. The whiskers are known to be the main source of cellular or platelet-type oxide morphology, and frequently appeared in H2O- and CO2-containing environment [9-12].
Fig. 5 Oxidation kinetics of Alloy 617 and Haynes 230 after being oxidized at 900 °C for 500 h in impure helium gases

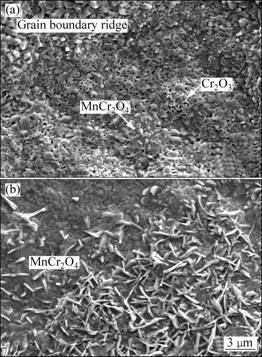

Fig. 6 Surface oxide morphologies of Alloy 617 (a) and Haynes 230 (b) after ageing at 900 °C for 500 h in He-K1 [6]
Fig. 7 Evolution of oxide layers of Alloy 617 (a) and Haynes 230 (b) after ageing at 900 °C for 500 h in He-K1
3.3 Oxidation in hot steam
Figure 8 shows the mass gain curves of the alloys during isothermal oxidation at 900 oC in steam with and without hydrogen. The mass gain curves followed a parabolic rate law under all conditions with distinctive slope changes for Haynes 230 in 100-200 h. The oxidation rate of alloy 617 was faster than that of Haynes 230 under all conditions. For both alloys, the oxidation rate was not significantly different in both air and steam conditions. On the other hand, the oxidation rates clearly increased with the addition of hydrogen to hot steam for both alloys. The difference of oxidation rate would be inferred from the oxide microstructures in different environments.
Alloy 617 oxidized in steam and steam + 20% H2 were made up of oxide structures consisting of external layer, sub-layer, and internal oxides. Again, the external layers consisted of polygonal MnTiO3 oxide particles and an underlying continuous Cr2O3 oxide layer identified through XRD and EDS analyses. Below the outer Cr2O3 layer, Cr2O3 sub-layer and Al2O3 internal oxide were formed along the grain boundaries (Fig. 9). Unlike the oxides formed in air, Ni oxides were not formed because of low oxygen partial pressure. Also, sub-layer Cr2O3 was formed because oxygen inward diffusion occurred in low oxygen partial pressure conditions such as steam environments [13-14]. In the case of Haynes 230, the oxide layer consisting of outer MnCr2O4 and inner Cr2O3 oxide layer and Cr2O3 sub-layer was formed (Fig. 9). In the case of air condition, MnCr2O4 oxide layer formed on the surface of Haynes 230 effectively lowered the oxidation rate. Also MnCr2O4 grain formed in steam was denser than that formed in air, which explains the lower oxidation rate in steam condition.
When hydrogen was added to steam, the surface oxide morphology changed into platelet shape (Fig. 10). It has been known that hydrogen is easily absorbed and ionized to proton, and effectively increases the Cr cation defect in oxide [15]. Increased Cr defects in turn promote cation diffusion to surface through screw dislocation tunnel in oxide. As a result, platelet oxides were formed and the oxidation rate in steam +20% H2 was enhanced.

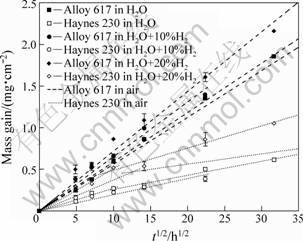

Fig. 8 Oxidation kinetics of Alloy 617 and Haynes 230 after being oxidized at 900 °C for 1 000 h in steam conditions
The oxidation characteristics, such as parabolic rate constant, transitional and steady-state oxide phases, and surface morphology of Alloy 617 and Haynes 230 in various high temperature environments are summarized in Tables 4 and 5.
3.4 Impact of oxidation on mechanical properties
When superalloys are exposed to high temperature conditions expected in VHTR, diffusion and subsequent oxidation within a hundred micrometers from the surface practically control the materials-environment interactions. To maintain long-term integrity of components made of wrought nickel-based superalloys, the development of protective oxide layer on the outermost surface is of uttermost importance. Though Alloy 617 has been known to have excellent oxidation resistance by forming Cr2O3, the oxide layer did not provide sufficient protection in several VHTR relevant environments such as impure helium and steam conditions as we discussed above. Consequently, Alloy 617 was subjected to internal oxidation, decarburization and carburization depending on environments. When Al2O3 internal oxides were formed below the surface layer in Alloy 617, the tensile stress in perpendicular direction would easily break them, as shown in Fig. 11, resulting in reduced creep resistance. Moreover, through the interactions with elements diffusing through the not-so-protective surface oxide, Cr-rich M23C6 type carbides are decomposed into Cr and C, which results in loss of grain boundary carbides [16-17]. Once the decarburization happens, carbides in the materials matrix disappear and the creep or creep-fatigue property decreases [18-19]. On the other hand, carburization conditions could cause significant low temperature embrittlement [20]. Recently, it was reported that a long-term exposure to decarburizing/ oxidizing and carburizing conditions caused loss of ductility for both Alloy 617 and Haynes 230, as shown in Fig. 12, though the main contributing factors to the embrittlement are different [17]. Therefore, more protective oxide layers on the surface of alloys are needed to maintain the adequate mechanical properties for the lifetime of the reactor, or up to 60 years in VHTR environments.

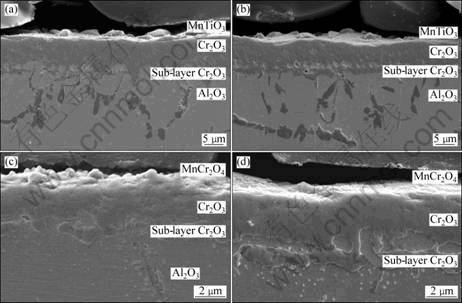

Fig. 9 Evolution of oxide layers of Alloy 617 in H2O (a), Alloy 617 in H2O+20% H2 (b), Haynes 230 in H2O (c), and Haynes 230 in steam+20% H2 (d) for 1 000 h

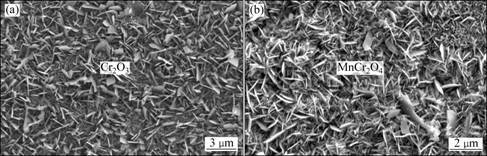

Fig. 10 Surface oxide morphologies of Alloy 617 (a) and Haynes 230 (b) oxidized for 24 h in steam +20% H2

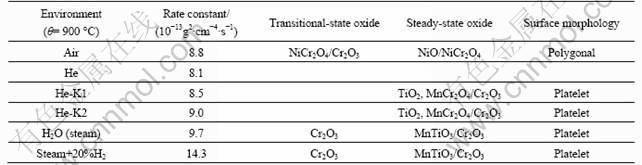

Table 4 Summary of oxidation characteristics of Alloy 617 in various environments

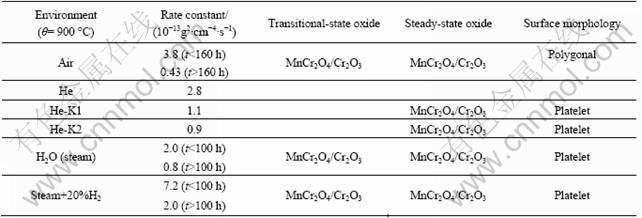

Table 5 Summary of oxidation characteristics of Haynes 230 in various environments
3.5 Surface treatments for oxidation resistance
It has been known that Al2O3 would provide excellent protection against most environments. In addition to its stability at higher temperature, Al2O3 has higher band gap energy, thus the diffusion rate of the cations through alumina is much smaller than through chromia [21]. However, the minimum Al concentrations to form external Al2O3 oxide layer are rather high in Ni-Cr-Al ternary system. In addition, adding more Al would have detrimental effects on mechanical properties. For example, Haynes 214 containing about 4% Al was not as strong and creep-resistant as Alloy 617. Alternatively, surface could be coated with Al2O3 by various methods like chemical vapor deposition (CVD), thermal spray, and pack cementation. However, once such oxide coating breaks down by external loading during plant operation, localized oxidation would cause more severe damage to the components. Therefore, advanced surface treatment methods have to be developed to provide not just oxidation resistance but the self-healing capability when it was damaged during the operation.

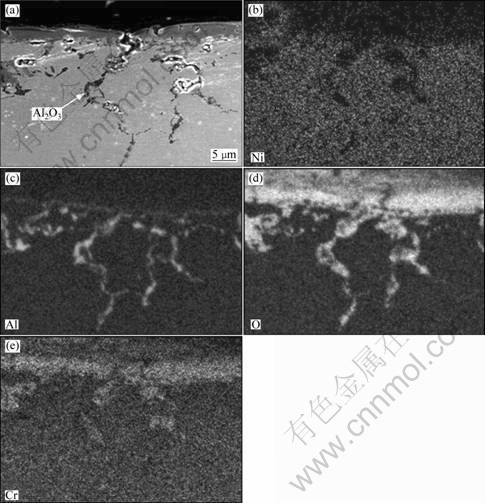

Fig. 11 Failure of oxide layer (a) and elements mapping (b, c, d, e) on surface of creep specimen of alloy 617 tested in helium at 900 °C under 70 MPa
Fig. 12 Change in tensile properties after ageing at 900 °C in simulated VHTR environments for 500 h
4 Conclusions
1) The oxidation kinetics of Alloy 617 was almost the same in air, pure helium, and controlled environments. In steam condition, the addition of hydrogen increased the oxidation rate of Alloy 617. On the other hand, the oxidation kinetics of Haynes 230 strongly depended on the environments. The addition of hydrogen in steam environment increased the oxidation rate of Haynes 230.
2) The oxide morphology and structure of Alloy 617 were strongly affected by the environments, while those of Haynes 230 were less dependent on the environments.
3) The oxidation resistance of Haynes 230 was consistently better than that of Alloy 617. The formation of MnCr2O4 outer layer on top of Cr2O3 inner layer was considered the main contribution factor to such improved oxidation resistance of Haynes 230.
4) As the oxidation behaviors and the protectiveness of surface oxide layer affect the mechanical properties of wrought nickel-based superalloys, advanced surface treatment methods have to be developed to maintain the adequate mechanical properties during the long-term operation.
Acknowledgements
This study was supported by the MEST/NRF (Nuclear R&D Program, 2005-2004718 and 2009- 0083392) of Korea. Part of the funding was provided by the Second Phase BK21 Program of the same Ministry, the Korea Electric Power Research Institute (KEPRI), and the Korea Hydro and Nuclear Power Company (KHNP).
References
[1] RYSKAMP J M. Next generation nuclear plant high-level functions and requirements [R]. INEEL/EXT-03-01163, 2003.
[2] CARRE F, YVON P, LEE W J, DONG Y, TACHIBANA Y, PETTI D. VHTR–ongoing international projects [C]//GIF Symposium. Paris: OECD Nuclear Energy Agency, 2009: 93-102.
[3] SINK C, SAKABA N, YVON P, SHIN Y J, DOMINGUEZ M T, SUPPIAH S. Status of ongoing research and results: Hydrogen production project for the very high temperature reactor system [C]//GIF Symposium. Paris: OECD Nuclear Energy Agency, 2009: 109-112.
[4] GREENE C A. Materials behavior in HTGR environments [R]. NUREG/CR-6824 (ANL-02/37), 2003.
[5] NEIDER R. Predictions on an HTR coolant composition after operational experience with experimental reactors [C]//IWGGCR-2. Juelich: International Atomic Energy Agency, 1980: 144-152.
[6] KIM D, SAH I, KIM D, RYU W S, JANG C. High temperature oxidation behaviors of nickel-base superalloys in impurity controlled helium environments [J]. Oxid Met, 2011, 75: 103-119.
[7] KIM D, KIM D, KOO J, YOON D J, JANG C. Hot steam corrosion characteristics of Ni-base superalloys for intermediate heat exchangers of Htse system [C]//Proceeding of the 3rd Topical Meeting: Nuclear Fuels and Structural Materials for the Next Generation Nuclear Reactors. San Diego, USA: American Nuclear Society, 2010: 863-864.
[8] KIM D, JANG C, RYU W S. Oxidation characteristics and oxide layer evolution of Alloy 617 and Haynes 230 at 900 °C and 1100 °C [J]. Oxid Met, 2009, 71: 271-293.
[9] RAYNAUD G M, RAPP R A. In situ observation of whiskers, pyramids and pits during the high-temperature oxidation of metals [J]. Oxid Met, 1984, 21: 89-102.
[10] HANSEL M, QUADAKKERS W J, YOUNG D J. Role of water vapor in chromia-scale growth at low oxygen partial pressure [J]. Oxid Met, 2003, 59: 285-301.
[11] PIERAGGI B, ROLLAND C, BRUCKEL P. Morphological characteristics of oxide scales grown on H11 steel oxidised in dry or wet air [J]. Mat High Temp, 2005, 22: 61-68.
[12] ZHENG X G, YOUNG D J. High-temperature corrosion of Cr2O3-forming alloys in CO-CO2-N2 atmospheres [J]. Oxid Met, 1994, 42: 163-190.
[13] ESSUMAN E, MEIER G H, ZUREK J, HANSEL M, SINGHEISER L, QUADAKKERS W J. Enhanced internal oxidation as trigger for breakaway oxidation of Fe-Cr alloys in gases containing water vapor [J]. Scrip Mat, 2007, 57: 845-848.
[14] ZUREK J, YOUNG D J, ESSUMAN E, HANSEL M, PENKALLA H J, NIEWOLAK L, QUADAKKERS W J. Growth and adherence of chromia based surface scales on Ni-base alloys in high- and low-p(O2) gases [J]. Mat Sci Eng A, 2008, 477: 259-270.
[15] NORBY T. Proton conduction in oxides [J]. Sol St Ion, 1990, 40-41:857-862.
[16] REN W, SWINDEMAN R. A review on current status of Alloys 617 and 230 for Gen IV nuclear reactor internals and heat exchangers [J]. J Pre Ves Tech, 2009, 131: 179-193.
[17] KIM D, SAH I, JANG C. Effects of high temperature aging in an impure helium environment on low temperature embrittlement of Alloy 617 and Haynes 230 [J]. J Nuc Mat, 2010, 405: 9-16.
[18] HUCHTEMANN B. The effect of alloy chemistry on creep behaviour in a helium environment with low oxygen partial pressure [J]. Mater Sci Eng A, 1989, 121: 623-626.
[19] TOTEMEIER T C, TIAN H. Creep-fatigue–environment interactions in Inconel 617 [J]. Mater Sci Eng A, 2007, 468-470: 81-87.
[20] WRIGHT R, SIMPSON J, WERTSCHING A, SWANK W D. High temperature behavior of candidate VHTR heat exchanger alloys [C]// Proceedings of the 4th International Topical Meeting on High Temperature Reactor Technology HTR2008. Washington DC: American Society of Mechanical Engineers, 2008.
[21] WALLWORK G R, HED A Z. Some limiting factors in the use of alloys at high temperatures [J]. Oxid Met, 1971, 3: 171-184.
