Trans. Nonferrous Met. Soc. China 28(2018) 1094-1102

Effect of deformation mode, dynamic recrystallization and twinning on rolling texture evolution of AZ31 magnesium alloys

Li-li GUO¹, Fumio FUJITA²

1. Engineering Research Center of Continuous Extrusion, Dalian Jiaotong University, Dalian 116028, China;

2. Department of Metallurgy, Graduate School of Engineering, Tohoku University, Aoba, Sendai, 980-8579, Japan

Received 20 March 2017; accepted 18 September 2017

Abstract: In order to obtain quantitative relationship between (0002) texture intensity and hot rolling conditions, conventional rolling experiments on AZ31 magnesium alloys were performed with 20%-40% reductions and temperatures within the range of 300-500 °C. Shear strain and equivalent strain distributions along the thickness of the rolled sheets were calculated experimentally using embedded pin in a rolling sheet. Rolling microstructures and textures in the sheet surface and center layers of the AZ31 alloys were measured by optical microscopy (OM), X-ray diffractometry (XRD) and electron back scatter diffraction (EBSD). Effects of the rolling strain, dynamic recrystallization (DRX) and twinning on the texture evolution of the AZ31 alloys were investigated quantitatively. It is found that the highest (0002) basal texture intensities are obtained at a starting rolling temperature of 400 °C under the same strain. Strain–temperature dependency of the (0002) texture intensity of the AZ31 alloy is derived.

Key words: magnesium alloy sheet; hot rolling; texture; dynamic recrystallization; twinning

1 Introduction

Magnesium and its alloys have considerable potential as structural materials in various industrial fields, such as automobile and electronic products [1]. However, these metals have not yet been fully developed because of their limited cold formability and ductility. The poor cold formability of existing magnesium alloys is mainly caused by their strong basal texture [2], because basal texture induces high normal anisotropy in a sheet and increases the difficulty in deformation accompanied by thickness reduction. This characteristic remarkably restricts the applications of these alloys in the form of sheets [3-5].

It is well known that shear deformation can modify (0001) basal texture. Normal rolling includes two deformation modes, namely, compression and shear. The compression strain is uniform along the sheet thickness direction. The shear strain is the largest on the sheet surface but zero at the sheet center. Consequently, deformation modes lead to different textures at various thickness locations of rolled sheet. However, some studies on texture evolution during rolling are characterized by the absence of deformation mode and quantitative rolling strain [6,7]. On the other hand, rolling temperature is another important parameter that can influence the textural evolution in AZ31 alloys. High rolling temperature has a remarkable effect on weakening the basal texture intensity [5]. The weakening of the basal texture at high temperature deformation has been suggested to be caused by dynamic recrystallization (DRX) or rotational dynamic recrystallization (RDRX) [8,9]. Nevertheless, these rolling tests are conducted in multi-passes with different reductions per pass, resulting in differences not only in the strain but also in the rolling temperature at various sheet thickness locations. Consequently, various temperatures and strain conditions lead to different DRX microstructures which may influence the microtextural evolution. Weakening the (0002) basal texture intensity and improving grain refinement by DRX during hot rolling process are some of the main purposes. However, little information is available under the quantitative rolling conditions required to obtain controlled texture in AZ31 alloy during hot rolling process.

In this study, in order to examine the quantitative relationship between the basal texture intensity and the hot rolling conditions, finite difference (FD) simulations were used to estimate the rolling strain and temperature distributions in the sheet thickness direction [10]. Normal rolling experiments were conducted in a wide range of temperatures and strains. Moreover, the effects of deformation mode, DRX, and twinning on the texture evolution of AZ31 alloy during hot rolling process were investigated.

2 Methods of experiment and calculation

2.1 Experimental method

An as-cast magnesium alloy pin with a diameter of 2.8 mm was embedded into the mid-width location of sheets with the central axis parallel to the normal direction (ND) to evaluate the shear strain distribution through the sheet thickness [11]. Starting sheets of magnesium alloys (5.6 mm in thickness, 40 mm in width, and 150 mm in length) were used in the present study. The sheets had a typical rolling texture with the c-axis lying parallel to the ND. The starting sheets were held for 30 min at 300, 350, 400, 450, and 500 °C in an electric furnace. Then, normal rolling was conducted at different reductions of approximately 22%, 30%, 35%, and 39% in one pass, as mentioned in previous studies [11].

The specimens for the OM, XRD, and EBSD examinations were cut from the center of the rolled sheets. Digital microscopes (Keyence) and VHX-900 and VH-5000 software were used for microstructural analysis. Specimens for EBSD measurement were electropolished in HNO₃ solution. Measurements were taken at two different locations (center and surface locations) in the transverse direction (TD) plane. The areas, all 200 μm in length in the ND and 150 μm in width in the rolling direction (RD), were automatically scanned with a step size of 0.8 μm for all specimens using TSL OIM (orientation imaging microscopy) Data Collection Ver. 5.31 in Philips XL30-FEG-SEM. X-ray texture analysis was performed using the Schulz reflection method to obtain an incomplete (0002) pole figure and texture intensities using Rigaku RINT2000. The measurements were made with a Rigaku diffractometer using Cu K_α radiation at 40 kV and 100 mA, and conducted in the surface planes along the thickness direction.

2.2 Strain calculation

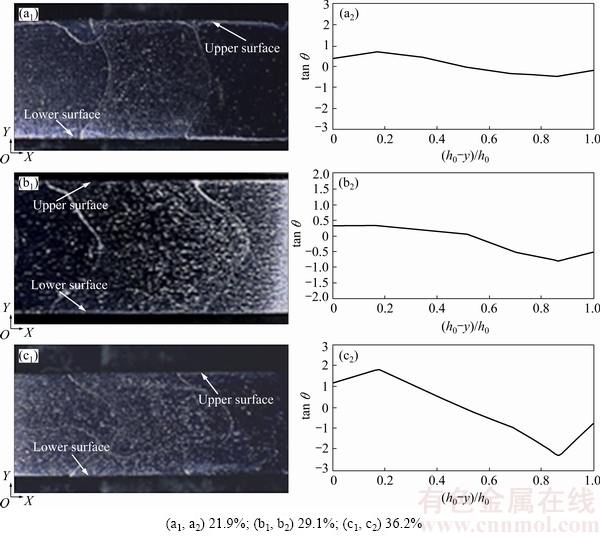

Fig. 1 OM images of embedded pin interface and average tan θ after one pass rolling at 300 °C and different rolling reductions

The optical micrographs of the embedded pin interface and its inclination distributions rolled at various reductions and 300 °C are shown in Fig. 1. The pin, embedded perpendicularly to the ND plane before rolling, was sheared towards RD after one pass rolling at each rolling reduction. Then, the angle of the pin inclination (tan θ) was calculated from the x and y coordinates of the contour lines, which were smoothed by least square method, as shown in Figs. 1(a₂), (b₂) and (c₂). From the thickness values of the initial material (h₀), the rolled sheet (h_out), and the angle of the pin inclination (tan θ), the total reduction shear strain (γ) was calculated based on the rolling theories by integrating the shear strain in the roll bite. The distributions of the shear strain (γ) and equivalent strain () were calculated by Eqs. (1) and (2) [10].

The redundant shear strain was calculated as follows:

                           (1)

where γ₁ and γ₂ are the redundant shear strains before and after the neutral point within the roll bite, h is the height of the rolled sheet in the roll bite, R is the radius of the roll, x_n is the length of the roll bite, x_n1 is the position of neutral point in the roll bite, α is a ratio of the redundant shear strain to the compression strain and is represented by the rolling parameters as follows:

    (2)

The equivalent strain () under the plane strain condition is simply expressed as follows:

                       (3)

where ε_c is the compression strain.

The equivalent strain and redundant shear strain distributed in the sheet thickness under different rolling conditions (rolling temperature and reductions) were successfully measured by the method stated above. The changes in the equivalent and shear strains with reduction ratio of the near-surface layer (h/h₀=0.15) and the center layer (h/h₀=0.5) in the sample rolled at 300 °C are shown in Fig. 2. The redundant shear strain of the center layer is almost zero, and slight change in this strain is observed with changes in the reduction ratio. By contrast, redundant shear strain near the surface layer shows the highest strain at each rolling reduction and increases more quickly as the rolling reduction rises. The equivalent strain of the near-surface layer also increases sharply compared with that at the center layer.

3 Results and discussion

3.1 Texture evolution in different deformation modes

The (0002) and  pole figures in the surface and center layers of AZ31 alloys rolled at various reductions and 300 °C are shown in Fig. 3. The basal plane (0002) is parallel to the normal plane of the  rolled sheet, and the  direction is aligned perpendicularly to the RD in the center layer rolled at 300 °C and 36% reduction. The following differences are found between the surface and center layers:

1) In the surface layer, the (0002) texture of samples rolled under different reductions shows basal poles inclined at 5°-15° toward the RD. These results are consistent with those reported in the literatures. This phenomenon is considered to be related to the shear deformation [12]. In the center layer, double peak textures appear at ±(10°-15°) along the RD in the samples rolled with large reductions (29.1% and 36.2%). However, in the 22% rolled sample, the (0002) basal texture shows a single-peak texture similar to that of the surface layer. Here, a symmetrical splitting of the (0002) basal is the main feature of texture in the center layer at 300 °C rolling.

2) In addition, the (0002) basal texture intensity increases significantly in the surface layer with the rolling reduction, contrary to its slight decreasing in the center layer.

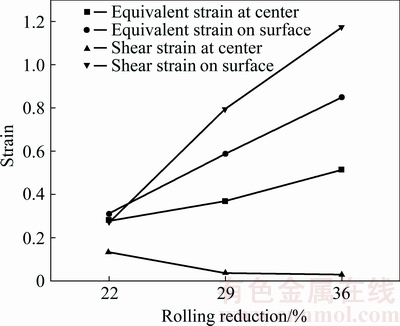

Fig. 2 Variation of equivalent strain and shear strain with reductions of AZ31 sheets rolled at 300 °C

Figure 4 illustrates the lattice rotation under three different deformation modes, namely, uniaxial compression in Fig. 4(a), planar strain compression in Fig. 4(b), and a combination of the planar strain compression and redundant shear in Fig. 4(c). Figure 4(a) shows the lattice rotation in the simplest model of a single crystal. We draw the initial basal plane with an inclination of approximately 45° with respect to the compression axis. When the compression stress acts on the object, the rotation of the normal slip plane is toward a position with the c-axis parallel to the compression axis, according to the rotation principle for a single crystal lattice  [13].  However,  grains  in  the  polycrystalline material present various orientations, as shown in the left hand of Fig. 4(b). The maximum shear stress occurs in the symmetrical direction of 45° with respect to the compression axis (right hand of Fig. 4(b)), because the sheet center layer is under planar strain compression. This kind of shear stress causes the random distribution grains in the center layer to rotate simultaneously towards the same direction (ND) from two sides when the basal slip operates. Here, we assume that all grains in the center layer rotate finally to the direction in which the c-axis is parallel to the compression axis. Further deformation may not continue under this condition, because Schmid factors of basal slip are almost zero in this orientation. Therefore, many slip planes apparently become stabilized at this symmetric orientation, as shown in the right hand of Fig. 4(b). Moreover, AGNEW et al [14] demonstrated in their simulation study that double twins and increased activity of the non-basal ＜c+a＞ slip mode may result in the double-peak texture. Similarly, a third case is considered, which consists of not only the planar strain compression but also the redundant shear stress. The direction of the maximum shear stress under such stress state is changed away from 45° symmetric orientation to the shear direction. Hence, the redundant shear changes the direction of the main shear stresses in the surface layer of rolled sheets (right hand of Fig. 4(c)). Consequently, grains of the surface layer rotate towards RD by rigid rotations. A simulation study verified that this shear component could considerably change the orientation of the grains and the stability characteristics of texture in pure magnesium during asymmetric rolling [15].

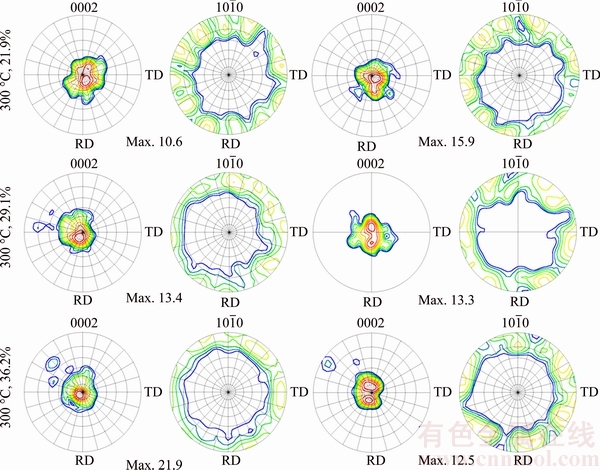

Fig. 3 (0002) and  pole figures of AZ31 alloys rolled at 300 °C with various reductions, measured in surface and center layers

Fig. 4 Schematic illustration of lattice rotation under three different types of deformation modes

3.2 Effect of rolling temperature on (0002) rolling texture

FD simulation was used in the previous study to show that, although the temperature of the sheet surface is decreased by over 100 °C during the journey from the entrance to the exit, few differences in rolling temperature history may be observed in the same thickness layer when sheets are heated to the same starting rolling temperature but rolled at different thickness reductions [11]. Therefore, the starting rolling temperature can be used here. XRD is used to measure the macrotexture to obtain the accurate values of (0002) texture intensity. Figure 5 presents the (0002) incomplete pole figures of the surface layers of AZ31 sheets rolled at 300-500 °C under various reductions. Maximum intensity values are shown in each pole figure. All (0002) basal planes align parallel to the RD-TD plane. The (0002) pole spreads slightly to RD at 300 °C, 350 °C and each strain level, but this pole spreads to TD at 450 °C and large strain level. The maximum (0002) basal texture intensity changes with the increase of starting rolling temperature and equivalent strain. The (0002) pole intensity increases with the increase of the deformation strain and peaks at the intermediate temperature of 400 °C and small, moderate and large strain levels. Data obtained at nearly the same equivalent strain but different rolling temperatures are selected in this study to isolate the temperature effect on the (0002) rolling texture. Changes in the (0002) pole intensity with the starting rolling temperature are shown in Fig. 6. The (0002) pole intensity increases from 300 to 400 °C and sharply decreases with further increase in rolling temperature at each strain level. The sharpest decrease in the (0002) pole intensity is found at the largest strain level of approximately 1.4, although the rolling temperatures between the two samples differ by only 50 °C. Therefore, it is worthwhile to examine the microtexture and microstructure of the two samples rolled at 400 and 450 °C.

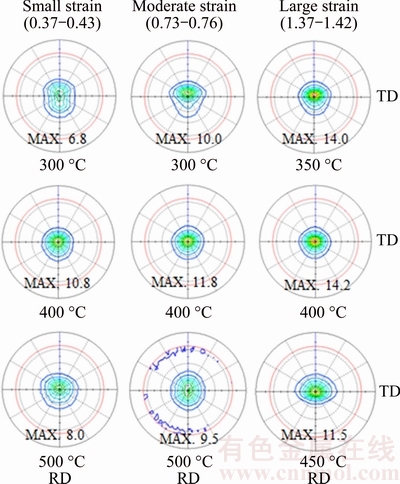

Fig. 5 (0002) incomplete pole figures of surface layers of AZ31 sheets rolled at 300-500 °C and small, moderate and large strain levels

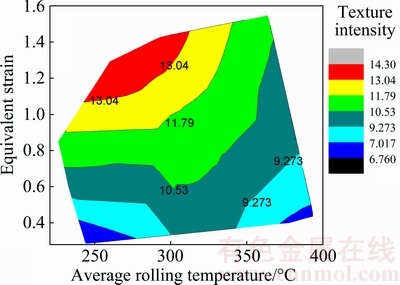

Fig. 6 (0002) pole intensity vs rolling temperature at small, moderate and large strain levels

The (0002) and  pole figures of AZ31 alloys rolled at 400 and 450 °C with 39% reduction measured by EBSD are shown in Figs. 7(a) and (b), respectively. The (0002) basal texture component spreading at 30°-40° away from ND to TD is observed in the 450 °C rolled sample. This result is in good agreement with the macrotexture measured by XRD, shown in Fig. 5. However, in the sample rolled at 400 °C, the (0002) basal pole is accumulated in the range of less than 30° with respect to ND. Such texture change and its relationship with the microstructural evolution are discussed as follows. We determine the possibility that DRX, mechanical twinning, and non-basal slip could cause the weakening (0002) basal texture intensity at high rolling temperature. Firstly, the influence of DRX on the texture evolution is examined. The new grains from DRX have basal planes rotated 30°-40° away from the rolling plane [16,17]. Thus, improving the DRX fraction can scatter the (0002) basal intensity to some extent. Figures 7(c) and (d) present the OIM grain boundary maps of AZ31 alloy rolled at 400, 450 °C with 39% reductions, respectively. No differences in the DRX fractions are found between the samples rolled at 400 and 450 °C. The high angle grain boundary (HAGB) fractions of the samples processed at 400 °C, 450 °C and 39% reduction are 69.6% and 65%, respectively   (Table 1). These parameters demonstrate that texture randomization may not be attributed to DRX fraction at high rolling temperature. Microstructures obtained from samples rolled up to medium strain level are also examined.

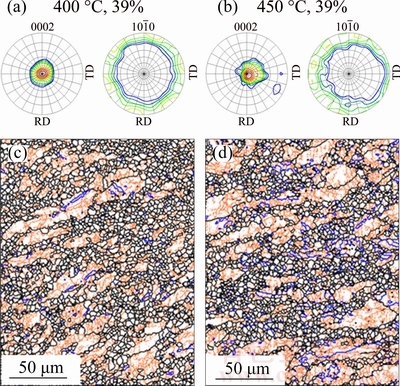

Fig. 7 (0002) and  pole figures of AZ31 alloys rolled at 400 °C (a) and 450 °C (b) with 39% reduction, and OIM grain boundary maps of AZ31 alloy rolled at 400 °C (c) and 450 °C (d) with 39% reduction

Figure 8 shows the optical micrographs of the surface layer of AZ31 alloy rolled to the medium strain level of approximately 0.8 at 300, 400 and 500 °C with 35% reduction. The number of DRX grains and the DRX grain size apparently differ among the three optical micrographs. A small number of DRX grains are observed in the samples rolled at 300 °C and 500 °C (Figs. 8(a) and (c), respectively), contrary to the large number of DRX grains in the sample rolled at 400 °C (Fig. 8(b)). Therefore, DRX fraction is not responsible for the reduced (0002) basal texture intensity of AZ31 alloys at high rolling temperatures. The sheet rolled at high temperature does not result in a larger fraction of DRX because of the following factors which may be related to the dynamic recovery (DRV) mechanism at high rolling temperatures. An increased level of DRV has been reported with increasing rolling temperatures in AZ31 magnesium alloys [18]. DRV and DRX are competing processes because both are driven by the energy stored during deformation [19]. Once DRX occurred and the deformation substructure was consumed, no further recovery could then occur. Consequently, at 500 °C rolling, DRV consumed more stored energy during deformation, which led to decreasing fraction of DRX. The fractions of rolling temperature and strain are two dominant factors for DRX and DRV. Hence, the temperature becomes an important factor when the rolling strain is almost at the same level. Consequently, a decrease in DRX at high rolling temperature can be expected.

Fig. 8 Optical micrographs of surface layer of AZ31 alloy rolled at 300 °C (a), 400 °C (b) and 500 °C (c) with 35% reduction

Furthermore, an average misorientation between each pair of neighboring grains is calculated in the range of 0° to 70° (excluding the 86° mechanical twin). The results are listed in Table 1. The average misorientation angles of 400 °C and 450 °C rolled samples are 27.6° and 25.8°, respectively. Little difference is found between the two samples, confirming that DRX is not the main cause of the weakening (0002) basal texture.

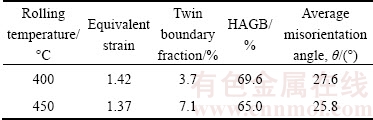

Table 1 Comparison of microstructure parameters of samples rolled at 400 °C and 450 °C with 39% reduction

3.3 Effect of twinning on (0002) rolling texture

Twinning deformation modes play an important role in the deformation of hexagonal magnesium because of the limited number of slip systems for dislocation slip.  (86.3°) twin is easily activated by the c-axis tension because of a lower critical resolved shear stress (CRSS). This kind of twinning reorients the c-axis of the twin nearly parallel to the compression  axis [20], contributing to the weakening of the basal texture. The (86.3°±15°) twin boundaries and their fractions are analyzed by EBSD (Figs. 9(a) and (b)). The  twined grains and their accompanying crystal orientations in (0001) crystallo- graphic texture are shown and highlighted by black color in Fig. 9(c). The twined grains change the orientation of the rolled grains and scatter the (0001) basal textures. The twin boundary fraction of the sample rolled at 450 °C is 7.1%, approximately twice as much as that of the sample rolled at 400 °C (3.7%). Thus, the larger fraction of 86.3°  mechanical twinning  is one reason for the reduced (0002) basal pole intensity.

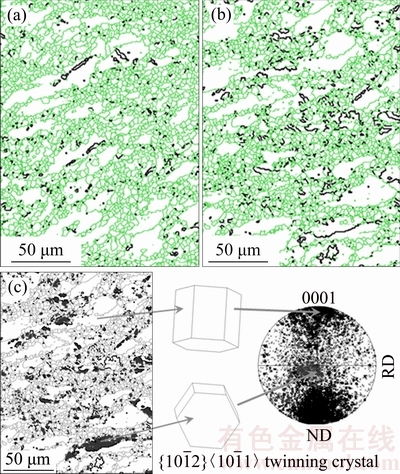

Fig. 9 (86.3°±15°) twin boundary maps (marked as black lines) of AZ31 alloy rolled at 400 °C (a), 450 °C (b) with 39% reduction, and twined grains and companying crystal rotations in (0001) pole figure (c) analyzed by EBSD

However, this result may be disputed because mechanical twinning occurs easily at low-temperature deformation because twinning has lower threshold stress than ＜c+a＞slip in the temperature range of 100-200 °C. Nevertheless, mechanical twinning is also strongly influenced by initial grain size. Previous experimental results show that twinning is easier to operate at larger grain sizes [21]. Therefore, the lower (0002) basal texture intensity found in the current work is most likely due to the fact that larger grain size at high temperature rolling results in higher activation of mechanical twinning.

The CRSS for non-basal slip systems of prismatic slip and pyramidal ＜c+a＞ slip decreases markedly when the deformation temperature is higher than 400 °C. Thus, non-basal slip systems are operated easily at high temperature rolling which can reduce (0002) basal texture intensity. Several studies have shown that the main component of texture 33°-38° away from the basal pole is observed in samples deformed at high temperature and low strain compression [22]. This phenomenon is also attributed to the change in the activation balance between the basal and non-basal slip systems. Previous work studied the role of non-basal slip in magnesium alloy AZ31B by computer simulation using a viscoplastic self-consistent model [23,24]. The polycrystal simulation results indicate that an increased activity of non-basal ＜c+a＞dislocation provides a self-consistent explanation for the observed changes in the anisotropy with increasing temperature. Thus, the increased activity of non-basal ＜c+a＞slip systems at high temperature rolling may be responsible for the weakening of the (0002) basal texture.
