Cu对挤压剪切ZK60合金显微组织、力学性能及织构演变的影响
来源期刊:中国有色金属学报(英文版)2020年第6期
论文作者:代帅 王峰 王志 刘正 毛萍莉
文章页码:1511 - 1523
关键词:Mg-Zn-Cu-Zr合金;挤压剪切工艺;显微组织表征;力学性能;织构演变;强化机制
Key words:Mg-Zn-Cu-Zr alloy; extrusion-shearing process; microstructure characterization; mechanical properties; texture evolution; strengthening mechanism
摘 要:采用金属型铸造方法制备Mg-6Zn-xCu-0.6Zr(x=0,0.5,1.0)(质量分数,%)合金,并对其进行均匀化热处理与挤压剪切成形。采用OM、SEM/EDS、XRD、TEM、EBSD及拉伸试验研究合金的显微组织及力学性能。结果表明:在挤压剪切过程中,硬质相MgZnCu能够增强粒子激发形核(PSN)效应及阻碍高温下动态再结晶(DRX)晶界的迁移。挤压剪切ZK60+0.5Cu合金具有最优的强度-塑性组合(抗拉强度396 MPa、屈服强度313 MPa和伸长率20.3%),这归因于强烈的晶界强化及{0001} 基面Schmid因子的提高。相比于ZK60合金,ZK60+ 1.0Cu合金伸长率的降低与MgZnCu相引起的微孔聚集有关。
Abstract: As-cast Mg-6Zn-xCu-0.6Zr (x=0, 0.5, 1.0, wt.%) alloys were fabricated by permanent mold casting; then, the alloys were subjected to homogenization heat treatment and extrusion-shearing (ES) process. The microstructure and mechanical properties of the alloys were evaluated by OM, SEM/EDS, XRD, TEM, EBSD and tensile tests. The results show that the hard MgZnCu phase in Cu-added alloy can strengthen particle-stimulated nucleation (PSN) effect and hinder the migration of dynamic recrystallization (DRX) grain boundary at an elevated temperature during ES. The ZK60+0.5Cu alloy shows an optimal tensile strength–ductility combination (UTS of 396 MPa, YS of 313 MPa, and δ=20.3%) owing to strong grain boundary strengthening and improvement of Schmid factor for {0001} basal slip. The aggregation of microvoids around the MgZnCu phase mainly accounts for the lower tensile elongation of ZK60+1.0Cu alloy compared with ZK60 alloy.
Trans. Nonferrous Met. Soc. China 30(2020) 1511-1523
Shuai DAI1,2, Feng WANG1,2, Zhi WANG1,2, Zheng LIU1,2, Ping-li MAO1,2
1. School of Materials Science and Engineering, Shenyang University of Technology, Shenyang 110870, China;
2. Key Laboratory of Magnesium Alloys and the Processing Technology of Liaoning Province, Shenyang 110870, China
Received 13 September 2019; accepted 20 April 2020
Abstract: As-cast Mg-6Zn-xCu-0.6Zr (x=0, 0.5, 1.0, wt.%) alloys were fabricated by permanent mold casting; then, the alloys were subjected to homogenization heat treatment and extrusion-shearing (ES) process. The microstructure and mechanical properties of the alloys were evaluated by OM, SEM/EDS, XRD, TEM, EBSD and tensile tests. The results show that the hard MgZnCu phase in Cu-added alloy can strengthen particle-stimulated nucleation (PSN) effect and hinder the migration of dynamic recrystallization (DRX) grain boundary at an elevated temperature during ES. The ZK60+0.5Cu alloy shows an optimal tensile strength–ductility combination (UTS of 396 MPa, YS of 313 MPa, and δ=20.3%) owing to strong grain boundary strengthening and improvement of Schmid factor for {0001} basal slip. The aggregation of microvoids around the MgZnCu phase mainly accounts for the lower tensile elongation of ZK60+1.0Cu alloy compared with ZK60 alloy.
Key words: Mg-Zn-Cu-Zr alloy; extrusion-shearing process; microstructure characterization; mechanical properties; texture evolution; strengthening mechanism
1 Introduction
Magnesium (Mg) alloys are desirable candidates as the lightest structural materials in aerospace and automotive industries owing to their low density and high specific strength [1,2]. However, for as-cast Mg alloy, insufficient mechanical properties severely restrict widespread applications of alloy [3,4]. Several studies have clarified the possible effect of hot deformation and microalloying on microstructural evolution and strength of Mg alloy [5-7]. Trace addition of rare earth (RE) elements is essential to improve the microstructure and mechanical properties of extruded Mg-Zn-Zr alloys, such as Y [8], Er [9], Ce [10] and Yb [11]. Among these RE elements, addition of Y can effectively act as a heterogeneous nucleation site of α-Mg based on the lattice match theory because of the same hcp structures and similar lattice parameters between Y and Mg atoms, thus enabling the strong grain refining effect on the as-cast alloy. The particles with predominant thermal stability formed in the billet during casting can induce strong particle-stimulated nucleation (PSN) during hot plastic deformation; for example, addition of Sn [12], Ca [13] and Al [14] enables the formation of hard second phases coexisting with α-Mg matrix (e.g., Mg2Sn, Mg2Ca and Mg17Al12 phases). Interestingly, the Ca element even weakens the basal texture in a similar manner as RE elements. The Al element favors the precipitation of massive nanosized Mg2Sn precipitates in the Mg-1Zn-4Al-7Sn (wt.%) alloy system, introducing strong precipitation strengthening, and the corresponding mechanical properties show a slight increase compared with Al-free alloy. Previous studies have confirmed that the addition of Cu could significantly increase the eutectic temperature and improve the castability of Mg-Zn alloys [15,16], and it is reasonable to subject Mg-Zn-Cu alloy to a higher solution treatment temperature. More recently, Cu is proven to be the most effective element to improve the age- hardening response of ZK60; the addition of 0.5 wt.% Cu results in a significant improvement of tensile properties after an isothermal ageing at 180 °C [17]. Additionally, the ternary MgZnCu phase can be observed with the Cu addition, which is a Laves phase of C15 MgCu2 type with a high melting point and superior thermal stability [18]. Herein, underlying PSN mechanism can be inferred in the Mg-Zn-Cu alloy system during plastic deformation. The electromagnetic interference (EMI) and shielding effectiveness (SE) significantly increase with increasing Cu content of extruded alloy [19]. Notably, the addition of Cu with a large atomic radius can increase the lattice parameter of Mg doped via first-principles calculations, and the c/a ratio of Mg decreases, which makes the prismatic planes {1010} have the same close- packing degree as the basal plane (0001) [20]. Therefore, the activation of prismatic slip system facilitates severe plastic deformation of Mg alloys.
In equal channel angular pressing (ECAP), activation of extra shear forces in die corner is beneficial to obtaining fully DRX grain structures via rotating coarse unDRX grains while weakening the basal texture intensity [21]. Except for the extrusion process parameters such as temperature, ram speed and extrusion ratio, the ECAP route is a dominating factor in the formability of Mg alloy [22-24]. Multipass ECAP can be successfully achieved along the Bc route, i.e., the longitudinal axis of samples is rotated by 90° between two passes. The alloy with superior ductility is commonly conducted on Bc route, because an increase in Schmid factor for pyramidal slip favors the activation of the slip system [25]. In addition, the external angle of die corner cannot be ignored. The bimodal structure consisting of DRX grains with a diameter of 2.4 μm and unDRX grains with a diameter of 10.9 μm is obtained as the ZK60 alloy subjected to four-pass ECAP owing to insufficient shear forces induced by a low external angle of 37° [26]. A novel plastic deformation including the initial forward extrusion and subsequent shearing process (ES) is proposed in the three-dimensional finite element (3D FEM) simulation, which can improve equivalent strain and volume fraction of DRX grains [27].
A novel ES steel die with an extrusion ratio of 11.56, an internal angle between two channels of 90°, and an external angle of 0°, can avoid cracking of samples under sufficient equivalent strain provided. In this study, the effect of Cu addition on the microstructural evolution and mechanical properties of ES ZK60 alloy was evaluated. The strengthening mechanism was also elucidated to facilitate the application of ES Mg-Zn-Cu-Zr alloys.
2 Experimental
As-cast Mg-6Zn-xCu-0.6Zr (x=0, 0.5, 1.0, wt.%) alloys were prepared from high-purity Mg, Zn and Cu (99.95%), and Mg-30Zr (wt.%) master alloys. First, pure Mg was melted at 700 °C in an electric resistance furnace under a protective gas mixture of 99.5% N2 and 0.5% SF6 (vol.%). The Zn, Cu and Mg-30Zr master alloys were added to pure Mg melt after ~1.5 h, and the melting temperature was increased to 720 °C. The temperature was maintained at 720 °C for 30 min to ensure that the alloying elements were completely dissolved. Subsequently, the melts were cooled to 700 °C and poured into a preheated metal mold (d75 mm × 75 mm). Inductively coupled plasma mass spectrometry (ICP-AES) was used to confirm the chemical compositions of as-cast billets, and the corresponding results are given in Table 1. Billets with a dimension of d68 mm × 68 mm were machined from the ingot, and homogenization treatment was performed at 400 °C for 20 h for Cu-added alloys and 380 °C for 15 h for Cu-free alloy (T4). Water quenching was performed to obtain a supersaturated solid solution favorable for the subsequent ES process. The ingots were extruded into bars of 20 mm in diameter at 400 °C under an extrusion ratio of 11.56 and an extrusion speed of 40 mm/min. The detailed schematic illustrations of the ES dies and samples are shown in Fig. 1.

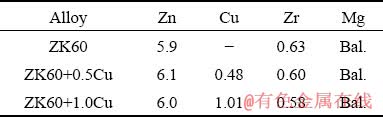

Table 1 Chemical composition of alloys (wt.%)

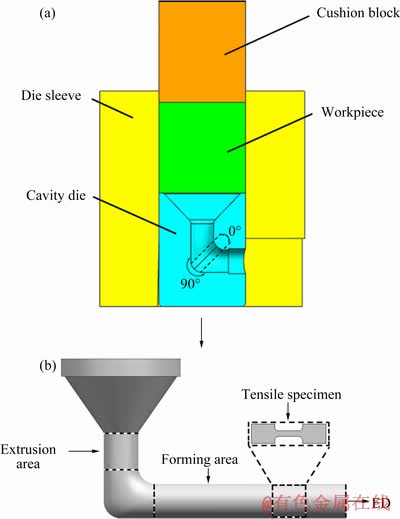

Fig. 1 Schematic illustrations of ES die (a) and ES sample model (b)
The as-cast and as-homogenized samples for microstructure observation were polished and etched with 4 vol.% nitrate alcohol solution, while the as-extruded samples were etched with glacial acetic acid containing 40 mL alcohol, 5 mL acetic acid, 3 g picric acid, and 5 mL distilled water. The microstructural evolution and phase analysis were performed using a Zeiss Axio Observer A1 optical microscope (OM), Hitachi S-3400N scanning electron microscope (SEM) equipped with an energy-dispersive X-ray spectrometer (EDS), D/max Ш A X-ray diffractometer (XRD), and JEM-2100 transmission electron microscope (TEM) operating at 200 kV. For TEM imaging, disk-shaped specimens with a thickness of 50 μm and a diameter of 3 mm were fabricated via the metallographic technique. Then, the disk-shaped specimens were placed in a 3.5 kV Gatan 691 ion beam at 4° until a pinhole appeared near the center. Electron backscattered diffraction (EBSD) analysis was conducted using a Gemini SEM 300 equipped with an HKL-EBSD system operating at 15 kV with a step size of 0.2 μm. The EBSD samples were mechanically and electrochemically polished in an electrolyte composed of 10% perchloric acid and 90% ethanol at 10 V and -30 °C for 60 s. Tensile samples with a gauge length of 10 mm and a thickness of 2 mm were obtained from the forming area in the ES bar using an electric spark machine. Tensile tests were performed at ambient temperature using a WDW-100 universal testing machine at an initial strain rate of 1×10-3 s-1 with load direction parallel to extrusion direction (ED).
3 Results and discussion
3.1 Microstructural characteristics of as-cast and as-homogenized alloys
The microstructures of as-cast alloys are shown in Fig. 2. Further grain refinement is achieved with Cu addition. With Cu addition, the amount of globular-shaped particles within grain interiors decreases. Additionally, the morphology of stripe-shaped particles along grain boundary changes from a discontinuous dendritic structure into a continuous network, and apparent grain boundary coarsening is observed (Figs. 2(a, c, e)). The results of EDS analysis (Table 2) show that the globular-shaped and short stripe-shaped particles are both MgZn2 phases in the Cu-free alloy (Fig. 2). A certain amount of globular-shaped MgZn2 phases observed within grain interiors can be ascribed to solidification and precipitation during casting, consistent with previous results in Mg-Zn alloy systems [28-30]. The coarse elongated MgZnCu phases are clearly observed in Cu-added alloys, with the size and fraction both gradually increasing with increasing Cu addition, but it is opposite for MgZn2 phases (Figs. 2(b, d, f)). Therein, the typical fishbone-shaped MgZnCu phases are dominant in ZK60+1.0Cu alloy (Fig. 2(f)).

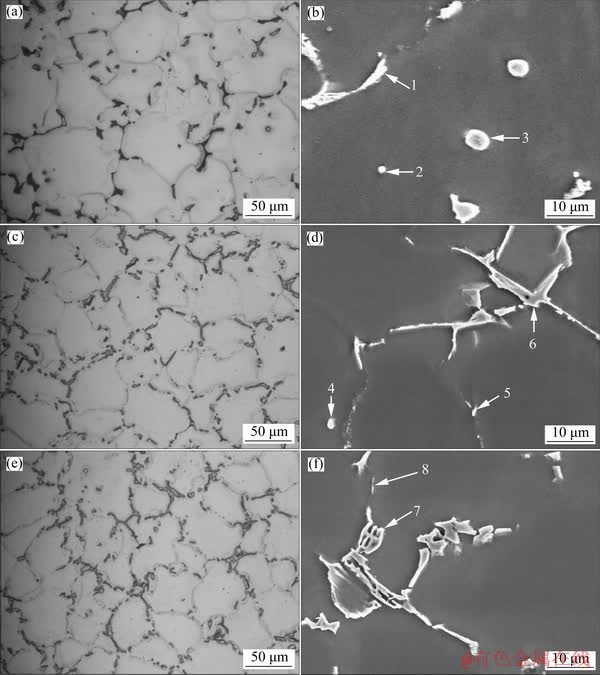

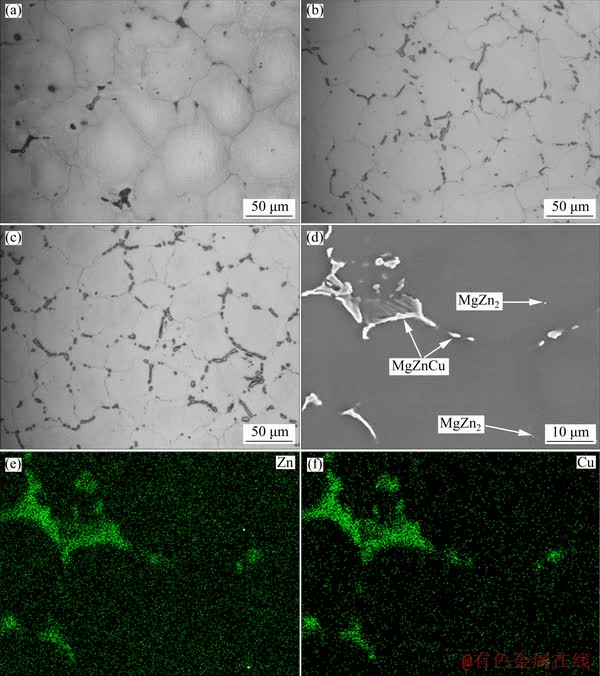

Fig. 2 Optical microstructures (a, c, e) and SEM images (b, d, f) of as-cast ZK60 (a, b), ZK60+0.5Cu (c, d) and ZK60+1.0Cu (e, f) alloys

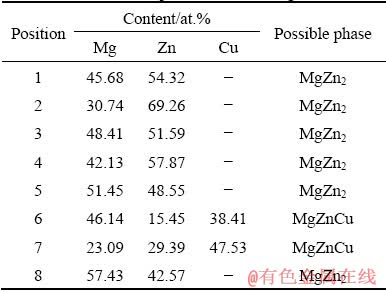

Table 2 EDS results of phases shown in Fig. 2
The microstructures of as-homogenized alloys are shown in Fig. 3. Most intermetallics are
dissolved into α-Mg matrix, and grain boundaries become unclear after solid solution treatment (Figs. 3(a–c)), particularly for ZK60 alloy (Fig. 3(a)). In the Cu-added alloy, the volume fraction of residual particles in α-Mg matrix increases with increasing Cu content (Figs. 3(b, c)). The EDS elemental mappings show that the residual particles mainly contain Cu and Zn of ZK60+1.0Cu alloy (Figs. 3(d–f)), which can be considered to be MgZnCu and MgZn2 phases. Because the MgZn2 phase has hp12 crystal structure with poor thermal stability [31], it is not surprising that substantial MgZn2 phase is dissolved into α-Mg matrix.
Fig. 3 Optical microstructures of as-homogenized ZK60 (a), ZK60+0.5Cu (b) and ZK60+1.0Cu (c), SEM image (d) and corresponding EDS elemental mappings of Zn (e) and Cu (f) of as-homogenized ZK60+1.0Cu alloy
Fig. 4 XRD patterns of as-cast (a) and as-homogenized (b) alloys
Figure 4 shows the XRD patterns of as-cast and as-homogenized alloys. In the as-cast alloys, the XRD pattern of Cu-free alloy includes peaks of α-Mg and MgZn2 phases, while the XRD pattern of Cu-added alloys shows extra peaks of MgZnCu phase (Fig. 4(a)). The peak intensity of MgZnCu phase increases and that of MgZn2 phase decreases with increasing Cu addition. This can be ascribed to the low solubility of Cu in the α-Mg matrix (0.31-0.55 wt.% in pure Mg at 400 °C [32]). After solid solution treatment, the peak intensity of MgZn2 phase sharply decreases while no obvious change is observed in MgZnCu phase (Fig. 4(b)).
3.2 Microstructural characteristics and texture evolution of ES alloys
The optical micrographs of ES ZK60+0.5Cu alloy at the die corner are shown in Fig. 5. The relationship of equivalent strains (ε) in Regions 1, 2, and 3 is ε1≈ε2<ε3, as shown in Fig. 5(a). A large equivalent strain is the main factor of fine and uniform microstructure observed in the ES alloy. So, the typical bimodal structure consisting of long serrated unDRX grains and veined ultrafine DRX grains not observed in Region 3 is reasonable. Our previous study showed that the difference in microstructures at Regions 1 and 2 with approximately equivalent strains owing to the extension twinning forming in Region 1 could act as the nucleation site of DRX [33]. This shows the diverse effect of different regions at the die corner on DRX and Region 3 with the optimal grain refining effect.
Figure 6 shows the microstructures of ES alloys. Grain refinement can be observed after ES, and the DRX grain size first decreases and then increases. The volume fraction of bimodal structure in the forming area decreases compared with the extrusion area. This shows that DRX is sensitive to the die corner, where the extra shear forces further induce DRX.
In the forming area, the EDS results show that the extrusion streamline is composed of a broken MgZn2 phase parallel to ED in the Cu-free alloy (Fig. 7(a)). The irregular block-shaped and strip- shaped MgZnCu phase is mainly distributed in DRX area in the Cu-added alloys; a spot of spherical-shaped particles with a size of ~500 nm can be observed to be MgZn2 phases (Figs. 7(b, c)). The high interfacial energy between MgZnCu phase and α-Mg matrix increases the stress accumulation during plastic deformation [34], thus increasing the contribution of PSN to the DRX.

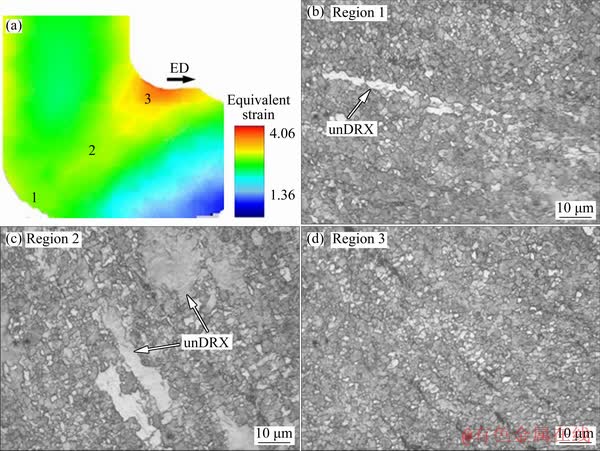

Fig. 5 Schematic diagram of equivalent strain obtained using DEFORMT M-3D software (a) and optical microstructures of ZK60+0.5Cu alloy in die corner (b-d)

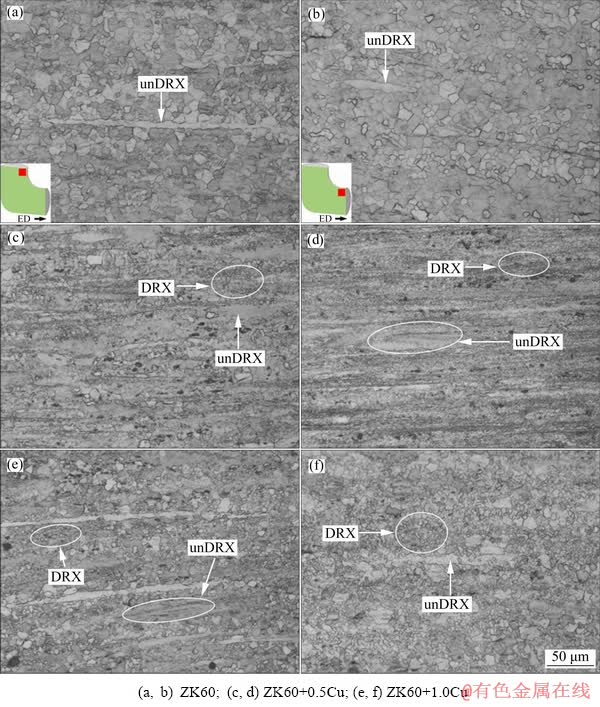

Fig. 6 Optical microstructures of ES alloys in extrusion area (a, c, e) and in forming area (b, d, f)
Fig. 7 SEM images of ES ZK60 (a), ZK60+0.5Cu (b) and ZK60+1.0Cu (c) alloys in forming areas
Figure 8 shows the TEM images of ES ZK60+1.0Cu alloy in the forming area. According to the results of diffraction spots analysis (Fig. 8(a)), the MgZnCu phase has a cubic structure, and the lattice parameter is 0.71. Meanwhile, a large stress accumulation around hard MgZnCu phase induces dislocation climb, accounting for the dislocation pile-up (as indicated by red ellipse in Fig. 8(a)). The dispersely distributed nanosized MgZn2 precipitates within grains interior are characterized by selected area electron diffraction (SAED), exhibiting strong pinning effect of dislocation movement (as indicated in Fig. 8(b)). Sub-boundaries are observed in adjacent DRX grains (as indicated by red arrow in Fig. 8(c)). MgZnCu phases aligned along the triangular sub-boundaries can act as effective pinning obstacles against fine DRX grain growth at elevated temperatures (Fig. 8(c)), conducive to obtain ultrafine grain alloy in ES.
Figure 9 shows EBSD results (perpendicular to the ED) for a comparative analysis of inverse pole figure orientation maps (IPF-Y), microtexture, and variations in the average grain size of ES alloys in the extrusion and forming areas. The average grain sizes of ZK60, ZK60+0.5Cu, and ZK60+1.0Cu alloys in the extrusion and forming areas are 12.44, 2.99 and 5.61 μm; 21.02, 1.63 and 3.20 μm, respectively. The actual temperature increases by ~50 °C near the die corner under the joint action of deformation heat and friction heat generated during ES, resulting in the growth of DRX grains in the extrusion area [35]. The variation in average grain size during ES is related to the degree of DRX grain growth and recrystallization of initial coarse unDRX grains in the extrusion area. The MgZnCu phase distributed at triangular sub-boundaries can act as a barrier to the migration of DRX grain boundaries, and the extra shear forces in die corner further strengthen PSN effect induced by hard MgZnCu phase compared to conventional forward extrusion. On the other hand, the grain refinement of Cu-added alloys can be ascribed to an increase in the volume fraction of grain boundaries in the ingot that can also act as nucleation sites for DRX [36]. Therefore, coarser DRX grains of ES alloy are observed in the forming areas than in extrusion areas, especially for ZK60 alloy, and the average grain size of Cu-added alloys in the forming area is less than that in extrusion area. A few tension twins with misorientation angle of ~86° from parent grain are clearly observed in the alloys (Figs. 9(a–d, f)). Further DRX existing in the Cu-added alloys depends on the orientation maps observation and the reduced maximum intensities of ED pole figures in the forming area. In fact, it has been reported that the occurrence of further DRX is accompanied with a weaker texture of extruded Mg alloy [37,38]. The maximum intensities of texture of ZK60, ZK60+0.5Cu, and Zk60+1.0Cu alloys in the extrusion and forming areas are 17.4, 14.4 and 16.0; 30.3, 8.3 and 10.6, respectively. Furthermore, the significant DRX of ZK60+0.5Cu alloys obtained via ES can be confirmed based on reduced maximum intensities (as indicated by pole figures in Figs. 9(b, e)). Basal poles of most grains nearly perpendicular to the ED in the extrusion area are also observed, and the Cu-added alloys exhibit typical basal fiber texture (as indicated by pole figures in Figs. 9(b, c)). Compared to the extrusion area, the angle between basal poles of most grains and ED changes to some extent, and the basal fiber texture of ZK60+0.5Cu alloy in the forming area disappears, with basal poles tilting away from the ED by ~45°(as indicated by pole figures in Fig. 9(e)).

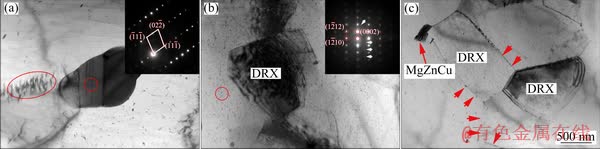

Fig. 8 Representative TEM images of ES ZK60+1.0Cu alloy in forming area

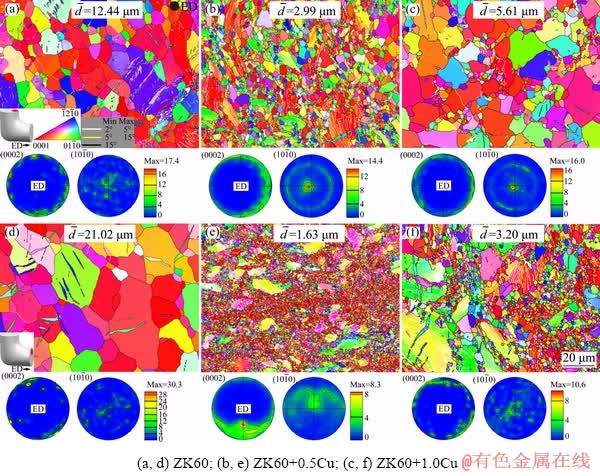

Fig. 9 EBSD results including IPF-Y, (0002) and pole figures in extrusion (a-c) and forming (d-f) areas

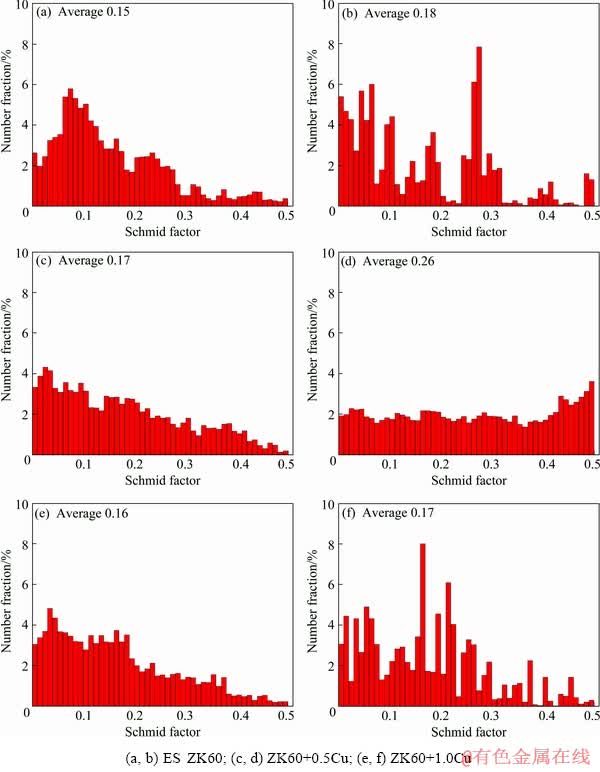

Fig. 10 Distribution of Schmid factor for basal slip of alloys in extrusion (a, c, e) and forming (b, d, f) areas
The distribution of Schmid factor for basal slip during tensile test at ambient temperature along ED is shown in Fig. 10. In the extrusion area, the distributions of Schmid factor are mainly concentrated between 0 and 0.2 (Figs. 10(a, c, e)), where the average Schmid factors of ZK60, ZK60+0.5Cu, and ZK60+1.0Cu are 0.15, 0.17 and 0.16, respectively. The proportions of Schmid factor between 0.2 and 0.5 increase to some extent for the alloys in the forming area (Figs. 10(b, d, f)), particularly for ZK60+0.5Cu. The corresponding average Schmid factor even reaches up to 0.26. The basal slip is a dominant deformation mode after yield point during the tensile test conducted at room temperature of Mg alloy; in general, a high Schmid factor induces better plasticity [39].
3.3 Mechanical properties of ES alloys
Figure 11 shows the mechanical properties of ES alloys in the forming area, including ultimate tensile strength (UTS), yield strength (YS) and elongation to failure (δ). The addition of Cu remarkably improves the strength of alloys, and the optimal strength-ductility combination of ZK60+0.5Cu alloy (UTS of 396 MPa, YS of 313 MPa, and δ of 20.3%) is mainly dependent on the finest DRX grains of 1.63 μm and the largest Schmid factor for basal slip of 0.26. The grain size is crucial for the mechanical properties of extruded Mg alloys in view of other strengthening mechanisms due to the high value of slope ky in the Hall-Petch formula [40]. Normally, The ZK60 alloy with a large grain size should possess inferior strength compared to this study because of strong texture hardening effect and precipitation strengthening induced by substantial MgZn2 precipitates during ES. The excessive Cu addition decreases ductility compared to ZK60 alloy, indicating that hard MgZnCu phase can cause a variation in the fracture mode of ZK60+1.0Cu alloy.

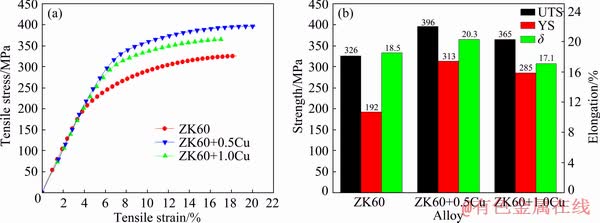

Fig. 11 Stress-strain curves (a) and tensile properties (b) of ES alloys in forming areas

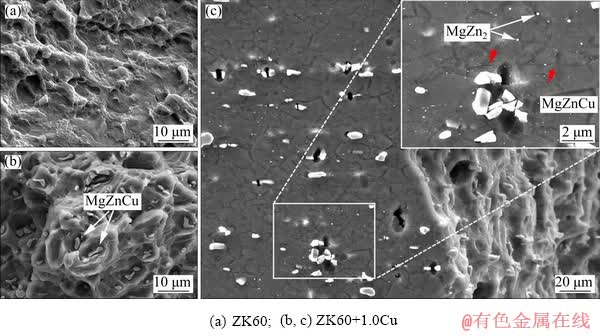

Fig. 12 SEM images of tensile fracture surface (a, b) and microstructure of ES alloys in forming area (c)
The microvoids and tensile fracture surfaces of ES ZK60 and ZK60+1.0Cu alloys in the forming area are shown in Fig. 12. A distinct increase in the number of dimples is observed with Cu addition, as similarly observed in the cleavage planes (Figs. 12(a, b)). This indicates that the fracture mode varies from quasi-cleavage to ductile type. Furthermore, large MgZnCu phases located at deep dimples are also observed (Fig. 12(b)). A great deal of microvoids formed around MgZnCu phase, and fine spherical MgZn2 aligned at grain boundaries are observed in ZK60+1.0Cu alloy (Fig. 12(c)), confirming that severe stress accumulation caused by hard MgZnCu phase can act as the nucleation sites of microcracks when the Cu-added alloy is subjected to tensile test at ambient temperature. This observation well explains that the tensile elongation of ZK60+1.0Cu alloy is less than that of ZK60 alloy. Some previous studies [41,42] reported that contraction twins and - double twins formed within large DRX grain interior could also act as microcrack sources of extruded Mg-Al-Zn alloy under tensile loading along ED. Herein, the type of twins observed near microcrack is still not clear (as indicated by red arrow in Fig. 12(c)), which needs further investigation in the future.
4 Conclusions
(1) The main phase composition is converted from α-Mg and MgZn2 phases to α-Mg, MgZn2 and MgZnCu phases with the addition of Cu to ZK60 alloy. With the increase in Cu content, the volume fraction of MgZnCu phase gradually increases. For the as-homogenized alloy, most MgZn2 phases are dissolved in the α-Mg matrix, but not in the MgZnCu phases.
(2) The hard MgZnCu phase observed can strengthen PSN effect that further induces the DRX of ES Cu-added alloys, and the extra shear forces caused by die corner can also promote DRX. Adversely, the high temperature generated from die corner under the joint action of deformation heat and friction heat accounts for the growth of DRX grains; however, the MgZnCu phases distributing along the triangular DRX grain boundaries act as obstacles for the migration of grain boundaries, in favor of obtaining ultrafine grain alloys.
(3) The ES ZK60+0.5Cu alloy has the optimal strength-ductility combination (UTS of 396 MPa, YS of 313 MPa, and δ of 20.3%), which can be ascribed to strong grain boundary strengthening and high Schmid factor for basal slip. In addition, decrease in ductility is related to the aggregation of microvoids around the hard MgZnCu phase of excessive Cu-added alloy.
