摘 要:利用梯级粉末烧结法成功制备出轻质高阻尼的多孔TiNiCu形状记忆合金,并对其组织、相变行为、阻尼性能以及力学性能进行深入研究。研究发现,所制备的多孔TiNiCu合金的表观密度随着Cu含量的增加而降低;在降温和升温过程中,由于多孔Ti50Ni40Cu10合金基体中相变的滞后和叠加而使其相变温度区间宽化,相变峰弱化;而多孔Ti50Ni30Cu20合金基体中发生B2-B19相变而使其具有窄的相变温度区间以及较高的相变峰;多孔Ti50Ni40Cu10合金的形状回复率低于多孔Ti50Ni50合金的,而多孔Ti50Ni30Cu20合金的形状回复率则高于多孔Ti50Ni50合金的。研究还表明,多孔TiNiCu合金的内耗值随着Cu含量的增加而增大,其中多孔Ti50Ni30Cu20合金的一个显著特性是具有很高的等效内耗,其最大等效内耗值是多孔Ti50Ni50合金的5倍。
Abstract: Porous TiNiCu ternary shape memory alloys (SMAs) were successfully fabricated by powder metallurgy method. The microstructure, martensitic transformation behavior, damping performance and mechanical properties of the fabricated alloys were intensively studied. It is found that the apparent density of alloys decreases with increasing the Cu content, the porous Ti50Ni40Cu10 alloy exhibits wide endothermic and exothermic peaks arisen from the hysteresis of martensitic transformations, while the porous Ti50Ni30Cu20 alloy shows much stronger and narrower endothermic and exothermic peaks owing to the B2-B19 transformation taking place easily. Moreover, the porous Ti50Ni40Cu10 alloy shows a lower shape recovery rate than the porous Ti50Ni50 alloy, while the porous Ti50Ni30Cu20 alloy behaves reversely. In addition, the damping capacity (or internal friction, IF) of the porous TiNiCu alloys increases with increasing the Cu content. The porous Ti50Ni30Cu20 alloy has very high equivalent internal friction, with the maximum equivalent internal friction value five times higher than that of the porous Ti50Ni50 alloy.
Trans. Nonferrous Met. Soc. China 23(2013) 2029-2036
Hong-jie JIANG, Chang-bo KE, Shan-shan CAO, Xiao MA, Xin-ping ZHANG
School of Materials Science and Engineering, South China University of Technology, Guangzhou 510640, China
Received 28 January 2013; accepted 14 May 2013
Abstract: Porous TiNiCu ternary shape memory alloys (SMAs) were successfully fabricated by powder metallurgy method. The microstructure, martensitic transformation behavior, damping performance and mechanical properties of the fabricated alloys were intensively studied. It is found that the apparent density of alloys decreases with increasing the Cu content, the porous Ti50Ni40Cu10 alloy exhibits wide endothermic and exothermic peaks arisen from the hysteresis of martensitic transformations, while the porous Ti50Ni30Cu20 alloy shows much stronger and narrower endothermic and exothermic peaks owing to the B2-B19 transformation taking place easily. Moreover, the porous Ti50Ni40Cu10 alloy shows a lower shape recovery rate than the porous Ti50Ni50 alloy, while the porous Ti50Ni30Cu20 alloy behaves reversely. In addition, the damping capacity (or internal friction, IF) of the porous TiNiCu alloys increases with increasing the Cu content. The porous Ti50Ni30Cu20 alloy has very high equivalent internal friction, with the maximum equivalent internal friction value five times higher than that of the porous Ti50Ni50 alloy.
Key words: porous TiNiCu alloys; powder metallurgy; martensitic transformation; damping behavior
1 Introduction
TiNi shape memory alloys (SMAs) have attracted significant interests due to their unique shape memory effect (SME), superelasticity and high damping performance [1-4]. These excellent physical and mechanical properties associated with the reversible martensitic transformation allow the commercial applications of TiNi SMAs in many fields, such as aerospace, biomedical and mechanical engineering [5,6].
Generally, the most commonly used TiNi and TiNi-based alloys represent the major family of shape memory alloys [7]. Adding a third alloying element, such as Hf, Zr, Nb, Cu and Fe into TiNi binary shape memory alloys can alter the transformation temperatures, transformation hysteresis and mechanical/ thermomechanical properties of the binary TiNi alloys. In general, selection of the third alloying elements is based on the application interests of TiNi-based alloys. It has been known that TiNi-based alloys possess high damping capacity [8,9], thus have high potential for engineering applications, such as vibration control and energy absorption devices. Among the TiNi-based alloys, TiNiCu ternary alloys have attracted great interests due to their high damping capacity, stabilized superelasticity characteristics against cyclic deformation and less composition sensitivity over the transformation temperatures in applications [10-12]. It has been demonstrated that adding Cu to TiNi alloy causes good stability of martensitic transformation temperature, narrow transformation hysteresis, good fatigue property and high damping property [12-15]. However, it is found that when Cu content is higher than 10% in mole fraction, the TiNiCu ternary alloys fabricated by the conventional melting and casting approaches exhibited the reduction in ductility [16], thus leading to certain limitations for industrial application of high Cu content and high damping TiNiCu alloy. So far, several studies have attempted to adopt the nonconventional techniques, including powder metallurgy (PM) [17], melt-spinning (MS) [18] and twin roll casting (TRC) [19]. The porous TiNiCu alloys prepared by the powder metallurgy technique possess lightweight and higher damping capacity over the porous TiNi alloy and thus show the great potential for commercial applications. The previous study employed powder metallurgy technique mainly focused on the sintering temperature, sintering time and porosity of the TiNiCu alloys. In contrast, relatively less attention has been paid to characterization of the mechanical behavior of porous TiNiCu ternary shape memory alloys, in particular the damping performance and mechanisms. In the present study, the powder metallurgy method was utilized to fabricate porous TiNiCu alloys; further, the microstructure, martensitic transformation behavior and damping performance of alloys as well as mechanical properties and shape recovery rate were characterized systematically.
2 Experimental
Titanium powder (50 μm, 99.9% purity), nickel powder (61 μm, 99.9% purity) and copper powder (75 μm, 99.7% purity) were weighed according to the designed compositions of Ti50Ni50, Ti50Ni40Cu10 and Ti50Ni30Cu20, and mixed for 24 h by an automatic motor-driven blender. Then, the sufficiently blended powders were cold compacted into short-bar green samples (16 mm×20 mm, diameter × height) and cuboid green samples (5 mm×7 mm×25 mm, thickness×width× length) respectively, with a compact stress of 200 MPa. The compacted green samples were heated to 1100 °C and held for 3 h in a quartz tube furnace under the protective flowing argon gas (99.99% purity) followed by water quenching. Finally, all samples were subjected to an aging treatment at 450 °C for 1 h followed by water quenching. In addition, a dense Ti50Ni30Cu20 alloy was prepared by melting the compacted green samples in a non-consumable vacuum arc melting furnace (WK-1 model).
The porosity of the fabricated samples was measured by the relative density method through comparing with the dense one of the same composition, while the open porosity was determined by the drainage method. The pore features, microstructures and compositions of the fabricated samples were characterized by scanning electron microscopy (Quanta 200 and Nova NanoSEM, FEI) equipped with an energy-dispersive X-ray spectroscope (INCA X-act, Oxford). Phase constituents and martensitic transformation behavior of the alloys were analyzed by a Philips X’pert XRD and a differential scanning calorimeter (DSC Q200, TA), respectively. Mechanical properties of the TiNiCu alloys, including the compressive strength, superelasticity, residual deformation and shape recovery rate, were evaluated using a Shimadzu universal testing machine (AG-X 100 kN) with a strain rate of 3.33×10-3 s-1 at room temperature (25 °C). Test specimens used for mechanical tests were cylinder-shaped with geometry of 6 mm×12 mm (diameter×height). The internal friction behavior of the TiNiCu alloys with the test specimen geometry of 1.2 mm × 4 mm × 25 mm (thickness×width×length) was characterized using a dynamic mechanical analyzer (DMA Q800, TA) in the single-cantilever mode at a constant amplitude of 10 μm and 0.1 Hz vibration frequency in the temperature ranging from -120 °C to 120 °C with a constant heating/cooling rate of 5 °C/min.

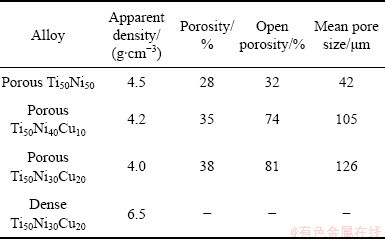

Table 1 Apparent density and pore parameters of fabricated porous TiNi and TiNiCu alloys
Fig. 1 Second electron (SE) images of porous alloys
3 Results and discussion
3.1 Microstructure and phase constituents of porous TiNiCu ternary alloys
The apparent density and pore characteristic parameters of the fabricated porous Ti50Ni50 and TiNiCu alloys are shown in Table 1. Clearly, the porosity, open porosity and average pore size of the porous TiNiCu alloys increase with increasing Cu content, while the apparent density of alloys decreases. It is worth noting that the porous Ti50Ni30Cu20 alloy shows the lowest density of 4.0 g/cm3, 38% lower than that of the dense Ti50Ni30Cu20 alloy (6.50 g/cm3). Figure 1 shows the second electron (SE) images of the porous Ti50Ni50, Ti50Ni40Cu10 and Ti50Ni30Cu20 alloys. It can be seen from Fig. 1(a), that there are many small and closed pores in the porous Ti50Ni50 alloy, which evenly distribute in the matrix of the alloy. On the other hand, in porous Ti50Ni40Cu10 and Ti50Ni30Cu20 alloys, there are many large pores shown in Figs. 1(b) and (c), and most of them connect each other, leading to high open porosity of 74% and 81% respectively as shown in Table 1. This is because that the diffusion rate of Cu atoms in Ti is higher than that of Ni atoms in Ti, which consequently leads to a significant increase of the volume of pores with increasing Cu content [17]. Moreover, as the melting point of Cu (1084 °C) is lower than the sintering temperature (1100 °C), under the sintering condition Cu particles can completely melt and penetrate into Ni and Ti powers, leading to increase in the reaction rate, reduction in the unreacted residual particles, connection of pores and densification of the matrix of the alloy. As a result, the addition of Cu in the TiNi based alloy tends to increase the porosity and thus decrease the apparent density of the alloy.
The backscattered electron (BSE) images of the porous Ti50Ni40Cu10 and Ti50Ni30Cu20 alloys are shown in Fig. 2, and Table 2 shows the energy spectrum analysis results of precipitates in the alloys. In Fig. 2, a large number of dark Ti-rich particles and bright (Ni,Cu)-rich particles exist in the matrix of the alloy as confirmed by EDS analysis. It can be seen from Table 2 that the dark Ti-rich particles have low Cu content and the bright (Ni,Cu)-rich particles have high Cu content in both porous Ti50Ni40Cu10 and Ti50Ni30Cu20 alloys. With increasing Cu content, the relative concentration of Ni reduces and Ti content hardly changes in both the dark Ti-rich particles and bright (Ni,Cu)-rich particles. This is because that the solid solution of Cu only replaces Ni atom, as a result, the Ni content reduces and the Cu content increases in the dark Ti-rich and bright (Ni,Cu)-rich particles. Nevertheless, the mole ratio of “Ni+Cu” to Ti is unchanged in the TiNiCu alloys.

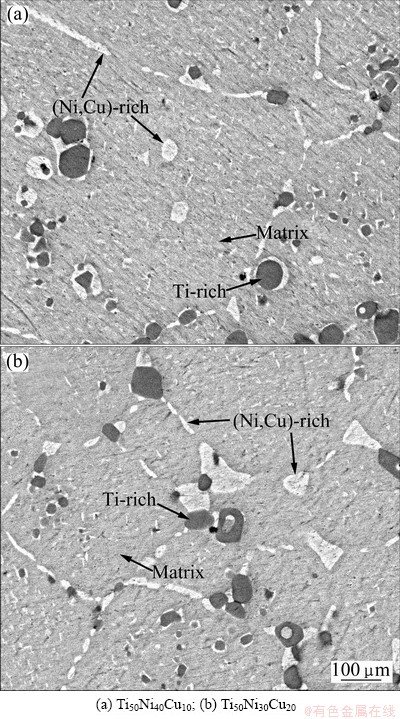

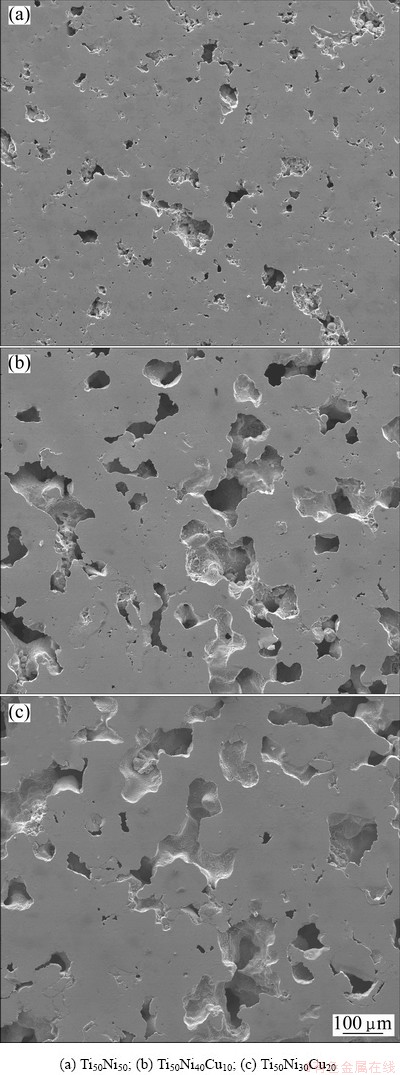

Fig. 2 Backscattered electron (BSE) images of porous alloys
The XRD patterns of the porous Ti50Ni50, Ti50Ni40Cu10 and Ti50Ni30Cu20 alloys are shown in Fig. 3. The porous Ti50Ni50 alloy mainly consists of TiNi, Ti2Ni and TiNi2 phases, as shown in Fig. 3(a). The main phases of the porous Ti50Ni40Cu10 and Ti50Ni30Cu20 alloys are Ti(Ni,Cu), Ti2(Ni,Cu) and Ti(Ni, Cu)2, as shown in Figs. 3(b) and (c), where the dark Ti-rich particles are Ti2(Ni,Cu) and the bright Ni-rich particles are Ti(Ni,Cu)2. Clearly, the microstructure and phase constituents of the Ti50Ni50 binary alloy have changed significantly after adding Cu element.
Table 2 Energy spectrum analysis results of precipitate particles in porous TiNiCu alloys

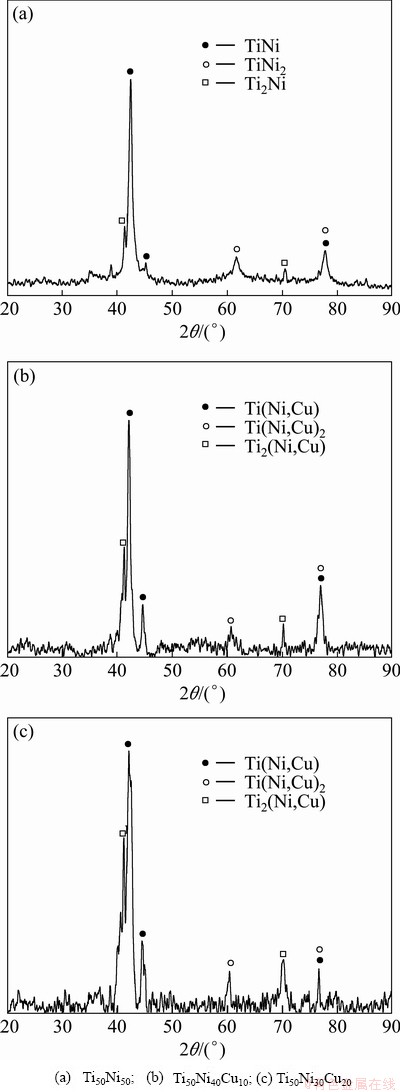

Fig. 3 XRD patterns of porous alloys
3.2 Phase transformation behavior of porous TiNiCu ternary alloys
Figure 4 shows DSC curves of the porous Ti50Ni50, Ti50Ni40Cu10 and Ti50Ni30Cu20 alloys. Table 3 gives the transformation temperatures of the alloys. During cooling, Ms, Mf and PC represent the martensite transformation start temperature, martensite transformation finish temperature and transformation peak temperature, respectively. During heating, As, Af and PH represent the austenite transformation start temperature, austenite transformation finish temperature and transformation peak temperature, respectively. In Fig. 4(a), for porous Ti50Ni50 alloy only one phase transformation peak appears during heating and cooling, which corresponds to the B2→B19' and B19'→B2 phase transformation, respectively. In Fig. 4(b), two types of phase transformations take place in the porous Ti50Ni40Cu10 alloy, which are B2-B19′ and B2-B19-B19′ during heating and cooling, respectively. In Fig. 4(c), only one phase transformation peak appears in the porous Ti50Ni30Cu20 alloy during heating and cooling, which is corresponding to the one-step B2→B19 and B19→B2 phase transformation, respectively.

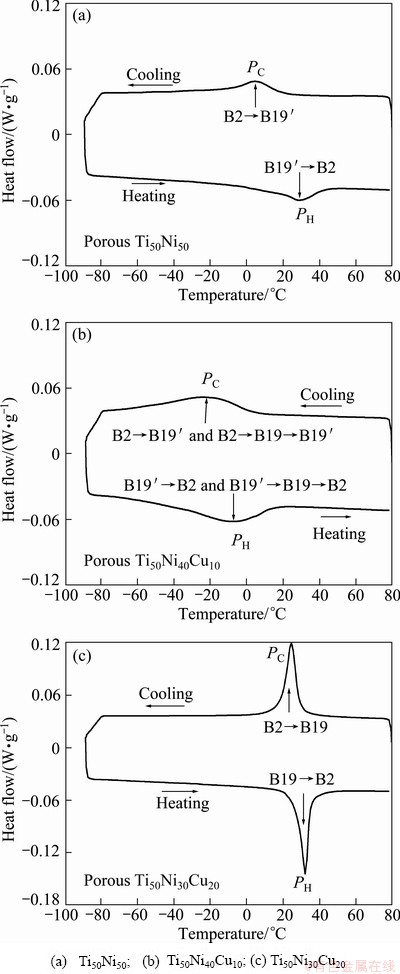

Fig. 4 DSC curves of porous alloys

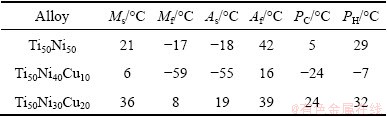

Table 3 Transformation temperatures of fabricated porous TiNi and TiNiCu alloys
It can be seen from Fig. 4 and Table 3 that DSC curves of the porous Ti50Ni40Cu10 alloy shows wider endothermic and exothermic peaks compared with DSC curves of the porous Ti50Ni50 alloy. However, in contrast, the DSC curves of the porous Ti50Ni30Cu20 alloy shows much stronger and narrower endothermic and exothermic peaks. This can be understood by the Cu-content dependent transformation path in the Ti-Ni-Cu alloys. It has been reported that the addition of Cu contributes to the phonon softening of the Ti-Ni-Cu alloys and thus alters the intrinsic stability of the possible transformation products, which finally leads to a two-stage transformation of B2-B19-B19′, or even ends it at the stage of B2-B19 with a relative high Cu content [7]. Furthermore, the internal strain introduced by coherent Ti(Ni,Cu)2 precipitates in the matrix of Ti-Ni-Cu alloys also promotes the B2-B19 transformation of the Ti-Ni-Cu alloys [20]. In the present study, as for the porous Ti50Ni40Cu10 alloy, the Cu content in the matrix of the alloy is between 6.35% and 9.47% (see Table 2); the variation of Ni concentration in different micro-regions not only induces the change of martensitic transformation modes characterized by B2-B19′ and B2-B19-B19′ transition in the matrix of the alloy [13], but also brings about the discontinuous (or asynchronous) martensitic transformation, leading to the temperature hysteresis of martensitic transformation in the matrix of the alloy. So, the alloy shows broad transformation temperature ranges and weak transformation peaks during heating and cooling. On the other hand, for the porous Ti50Ni30Cu20 alloy, only one-step B2-B19 transformation takes place in the matrix of the alloy with Cu concentration higher than 17.59% (see Table 2) [13]. Since the twin boundaries in B19 are much easier to move than those in B19′ [21], the martensitic transformation proceeds more easily and faster in the matrix of the alloy. Therefore, the porous Ti50Ni30Cu20 alloy shows narrow transformation temperature ranges and sharp transformation peaks.
3.3 Mechanical properties of porous TiNiCu ternary alloys
Figure 5 shows the stress—strain curves of porous Ti50Ni50, Ti50Ni40Cu10 and Ti50Ni30Cu20 alloys subjected to five compressive cycles (C1-C5) at a strain level of 4%. The maximum compressive strengths of porous Ti50Ni50, Ti50Ni40Cu10 and Ti50Ni30Cu20 alloys are 285, 231 and 182 MPa, respectively. Clearly, the compressive strength of the porous TiNiCu alloys decreases with increasing Cu content. This is because the TiNiCu ternary alloy has Ti(Ni, Cu)2 phase in the matrix, whose Vickers microhardness decreases with increasing Cu content [22]. In addition, the pinning effect of these Ti(Ni, Cu)2 phases on motion of dislocations and interfaces as well as deformation of the TiNiCu alloy matrix becomes weaker with increasing Cu content, resulting in lower compressive strength of the alloy. Furthermore, the porosity ratio and pore size of porous TiNiCu alloys increase with increasing Cu content (as shown in Table 1), leading to the decrease of the volume fraction of the matrix in the porous TiNiCu alloys and finally resulting in the decreasing compressive strength of the porous TiNiCu alloys. Also, it can be seen from Fig. 5 that after the first compression loading cycle, which actually functions as training, the residual strains for the porous Ti50Ni50, Ti50Ni40Cu10 and Ti50Ni30Cu20 alloys are 1.0%, 1.3% and 2.0%, respectively, which increases with increasing the Cu content. Figure 5 also demonstrates that after the first compression loading cycle, a stable linear superelasticity has been attained in the porous TiNiCu alloys.

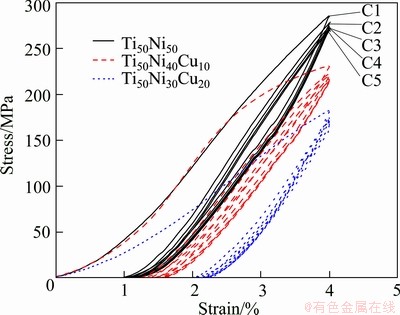

Fig. 5 Strain—stress curves of porous Ti50Ni50, Ti50Ni40Cu10 and Ti50Ni30Cu20 alloys under strain level of 4%
At a strain lever of 4%, the shape recovery rates of the porous Ti50Ni50, Ti50Ni40Cu10 and Ti50Ni30Cu20 alloys are 57.1%, 46.7% and 61.9%, respectively. Clearly, the porous Ti50Ni30Cu20 alloy possesses the highest shape recovery rate and Ti50Ni40Cu10 stays the lowest. This interesting scenario can be explained as follows. As mentioned above, the B2-B19 martensitic transformation takes place dominantly in the Ti50Ni30Cu20 alloy, while the multi-step transformation of B2-B19′ and B2-B19-B19′ occurs in the Ti50Ni40Cu10 alloy. It is the discontinuous (or asynchronous) martensitic transformation occurring in the alloy that leads to the discontinuity of shape recovery behavior of the alloy. The twin boundaries in B19 phase move much easier than those in B19′ phase, making the B2-B19 martensitic transformation take place more easily and faster in the matrix of the alloy, and consequently resulting in a higher shape recovery rate of the porous Ti50Ni30Cu20 alloy. Moreover, the relatively soft Ti(Ni, Cu)2 phase particles, whose microhardness decreases with Cu content [22], can weaken the pinning effect of Ti(Ni, Cu)2 particles on movement of dislocations and sliding of interfaces in the matrix of the Ti50Ni30Cu20 alloy. Consequently, the martensitic transformation proceeds more easily in the matrix of the alloy and the recovery resistance of the alloy decreases, and finally the shape recovery rate of the porous Ti50Ni30Cu20 alloy can be further increased.
3.4 Damping behavior of porous TiNiCu ternary alloys
Figure 6 shows the results of internal friction (IF) versus temperature for the porous Ti50Ni50, Ti50Ni40Cu10 and Ti50Ni30Cu20 alloys, where the internal friction tests were performed using a vibration frequency of 0.1 Hz and amplitude of 10 μm. Apparently, the maximum values of internal friction peaks, denoted by Pa, of the porous Ti50Ni50, Ti50Ni40Cu10 and Ti50Ni30Cu20 alloys appear at -76.83 °C, -73.89 °C and 7.84 °C, and correspondingly the IF values of Pa are 0.035, 0.120 and 0.160, respectively. Further, during heating, the maximum values of internal friction peaks, denoted by Pb, of the porous Ti50Ni50, Ti50Ni40Cu10 and Ti50Ni30Cu20 alloys appear at 31.76 °C, -26.13 °C and 47.78 °C, corresponding to the IF values of 0.032, 0.113 and 0.169, respectively. Clearly, the internal friction peak value of porous TiNiCu alloys increases with increasing Cu content. Noticeably, the maximum IF value of the porous Ti50Ni30Cu20 alloy is 357 % higher than that of the porous Ti50Ni50 alloy. However, the porous Ti50Ni40Cu10 alloy shows the lower IF level and the broadest IF temperature range among three types of alloys.

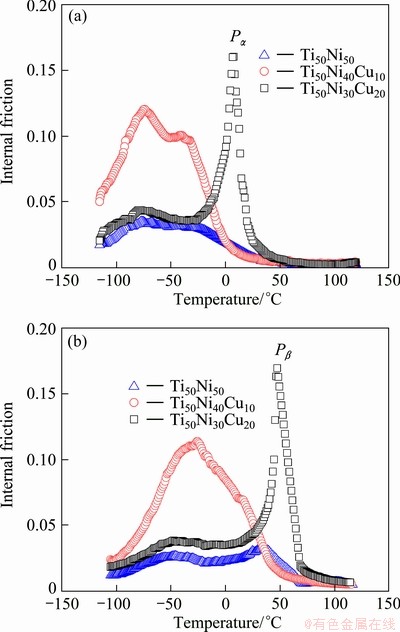

Fig. 6 Curves of internal friction vs temperature for porous Ti50Ni50, Ti50Ni40Cu10 and Ti50Ni30Cu20 alloys measured at 0.1 Hz on cooling (a) and on heating (b)
In our previous studies [23,24], a parameter named equivalent internal friction () was proposed to characterize the effective internal friction of the materials with different porosities in a normalized way, which is expressed by the following equation , where Q-1 is the measured internal friction, and P is the porosity. Figure 7 shows the equivalent internal friction curves of the porous Ti50Ni50, Ti50Ni40Cu10 and Ti50Ni30Cu20 alloys under 10 μm amplitude and 0.1 Hz vibration frequency. The maximum values of for three alloys are 0.049, 0.185 and 0.273, respectively, in which the porous Ti50Ni30Cu20 alloy has the highest equivalent internal friction, five times higher than that of the porous Ti50Ni50 alloy.
The internal friction (or damping) mechanisms in the porous TiNiCu alloys are intrinsically related to the martensitic transformation and interface behavior. During the thermal (heating and cooling) and mechanical (vibration) loading process, in the porous Ti50Ni30Cu20 alloy the B2→B19 transformation exhibits a dramatic lattice-softening phenomenon and twin boundaries in B19 phase move much easier than those in B19′ phase (which was also reflected in the DSC curve with sharp and strong transformation peaks), resulting in a higher damping capacity. Furthermore, it is known that the movement of interfaces and twin boundaries can be impeded by the precipitate particles [25]. The relatively soft Ti(Ni,Cu)2 particles formed in the TiNiCu alloy with a higher Cu content would weaken the pinning effect of Ti(Ni,Cu)2 particles on the motion of interfaces and dislocations in the alloy matrix. This in turn would promote the conversion of external vibration energy into internal energy, consequently leading to a high damping capacity of the alloy. As a result of the above factors, the porous Ti50Ni30Cu20 alloy exhibits much higher maximum equivalent internal friction value than the porous Ti50Ni50 alloy. In addition, for the porous Ti50Ni40Cu10 alloy, both the single-step B2-B19′ and multi-step B2-B19-B19′ transformations (as shown in Fig. 4) take place in the matrix of the alloy at different temperatures, which give rise to the discontinuous character of martensitic transformation. As a result, the porous Ti50Ni40Cu10 alloy shows a wide IF temperature range.

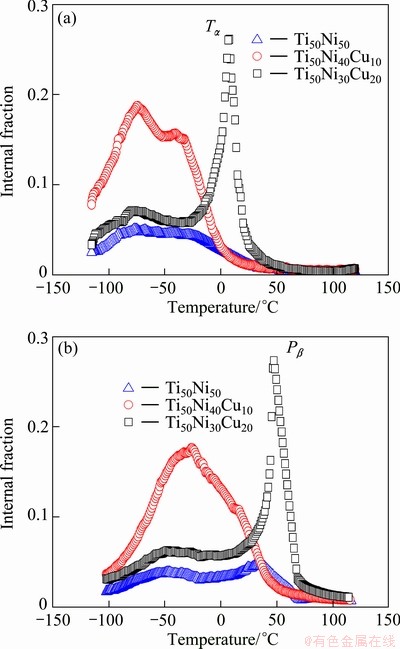

Fig. 7 Curves of equivalent internal friction vs temperature for porous Ti50Ni50, Ti50Ni40Cu10 and Ti50Ni30Cu20 alloys measured at 0.1 Hz on cooling (a) and on heating (b)
4 Conclusions
1) Porous TiNiCu ternary shape memory alloys were successfully fabricated by powder metallurgy process. The apparent density of the porous TiNiCu ternary alloy decreases with increasing Cu content and is obviously lower than that of the dense TiNiCu ternary alloy.
2) The porous Ti50Ni40Cu10 alloy shows wide endothermic and exothermic peaks arisen from the hysteresis of both B2-B19′ and B2-B19-B19′ transformations. The porous Ti50Ni30Cu20 alloy exhibits much stronger and narrower endothermic and exothermic peaks owing to occurrence of the single-step B2-B19 transformation easy.
3) The porous Ti50Ni30Cu20 alloy exhibits a higher shape recovery rate than the porous Ti50Ni50 alloy, while the porous Ti50Ni40Cu10 alloy shows a lower shape recovery rate than the porous Ti50Ni50 alloy.
4) The internal friction of porous TiNiCu ternary alloys increases with increasing Cu content. The porous Ti50Ni30Cu20 alloy has very high equivalent internal friction, with the maximum equivalent internal friction value, five times higher than that of the porous Ti50Ni50 alloy.
