Trans. Nonferrous Met. Soc. China 22(2012) 711-716

Electrochemical behavior of Pb(II) in LiCl-KCl-MgCl₂-PbCl₂ melts on Mo electrode

ZHANG Mi-lin, CHEN Li-jun, HAN Wei, YAN Yong-de, CAO Peng

Key Laboratory of Superlight Materials and Surface Technology (Ministry of Education),

College of Material Science and Chemical Engineering, Harbin Engineering University, Harbin 150001, China

Received 14 April 2011; accepted 23 June 2011

Abstract: Cyclic voltammetry and chronopotentiometry were used to study the reaction mechanism of Pb(II) and the co-deposition of Pb, Mg and Li on molybdenum electrodes in LiCl-KCl-PbCl₂-MgCl₂ melts. The diffusion coefficient of lead ions in the melts was determined by different electrochemical techniques. The results obtained by cyclic voltammetry and chronopotentiometry indicated that the underpotential deposition of lithium on pre-deposited Pb leads to the formation of a liquid Li-Pb alloy, and the Mg-Li-Pb alloys are formed after the addition of MgCl₂. X-ray diffraction confirmed that in the Mg-Li-Pb alloy, PbLi₃, Mg₂Pb and Li₇Pb₂ phases exist by galvanostatic electrolysis at 6.21 A/cm² for 2 h at 873 K and the phases can be controlled by changing the concentration of PbCl₂ and MgCl₂.

Key words: LiCl-KCl system; cyclic voltammetry; chronopotentiometry; diffusion coefficient; molten salts electrolysis

1 Introduction

Pb and its alloys are used in most of automotive, nuclear shielding material and industrial batteries. Indeed, lead alloys are usually used instead of pure lead for alloying with insignificant amounts of some metals can greatly improve the corrosion characteristics of the material [1].

Researches on the electrochemical and aging behaviors of Mg-Pb, Ag-Pb, Ca-Pb, Sn-Pb, Al-Pb, etc, alloys have been studied. BUI et al [2] studied the electrochemical properties and corrosion resistance of Pb-Ag and Pb-Ca, and Pb-Ag-Ca alloys with different content of the alloying components, and compared them with those of the anodes used in the electro-extraction of Zn, binary cast, alloy of a Pb-Ag 1% composition. ABRAMOV et al [3] produced an alloy with uniform distribution of the Pb-phase over the height of the ingot to study its mechanical and antifriction properties. The Mg in Mg-Pb alloys used as cathode was analyzed by increasing the current density from 0.48 to 1.98 A/cm² during the electrolysis [4,5]. In the Mg-Pb system the solid solutions both in the Mg and Pb terminal exist, but there is little research about it [5]. Adding different quantity of Pb to AZ61 or AZ91 had been studied. The result showed that the addition of a small Pb can clearly suppress the precipitation of Mg₁₇Al₁₂ and the diffusion of Mg and Al atoms, but the addition of excessive Pb will decrease the corrosion resistance and flame-retarded property of Mg-Al alloy[6]. MUKHOPADHYAY and SHARON [7] discussed the effects of Sn-doping in Pb-Sn alloy oxide, and various parameters on the semiconductor-electrolyte junction behavior by Butler-Gartner model.

At present, the primary methods to prepare metal and its alloys include metal casting, thermic reduction method and molten salt electrolysis method [8]. However, the metal casting and thermic reduction process have many disadvantages, such as complicated production process, high-energy consumption, serious metal burning and inhomogeneous alloy composition. On the contrary, molten salt electrolysis process is an effective method for the preparation of metal and its alloys. Firstly, the process can be carried out with the simple apparatus. Secondly, the high-melting point metals can be produced at a low temperature. Thirdly, the composition of alloys can be controlled easily [9]. So, it is necessary to study the electrochemical behavior of metal ions in the melts. Our group have published a series of papers on this topic. For example, Mg-Li alloys with different contents via a two-electrode cell in the eutectic LiCl-KCl were electrolyzed at 693-783 K [10], the electrochemical behaviors of Mg-Li, Zr, Zn, and Al alloys on Mg or Mo electrode in the LiCl-KCl melts were investigated and produced [11-14].

In the present work, the electrochemical behavior of Pb(II) on molybdenum electrode was studied in the LiCl-KCl-PbCl₂-MgCl₂ melts at 873 K with a series of electrochemical techniques, such as cyclic voltammetry and chronopotentiometry. The Mg-Li-Pb alloys were prepared by galvanostatic electrolysis at 6.21 A/cm² and 873 K for 2 h, and analyzed with X-ray diffraction (XRD).

2 Experimental

2.1 Materials

The LiCl and KCl used in the experiments were dehydrated at 573 K and 873 K for about 24 h before electrolysis to remove residual water. Pre-electrolysis was conducted at -2.00 V (vs Ag/Ag⁺) for 4 h to remove the metal ion impurities in the melts. Solutions of Pb(II) and Mg(II) were prepared by direct additions of solid PbCl₂ (analytical grade) and MgCl₂ (analytical grade). The electrolysis was carried out under the protection of a carefully purified and dehydrated argon atmosphere.

A graphite rod (d6 mm×10 mm) with high purity and density was used as a counter electrode. The working electrode was molybdenum wire (d1 mm×10 mm). The lower end of the molybdenum working electrode was polished thoroughly with SiC paper and electropolished in HCl aqueous solution, and then cleaned in ethanol using ultrasound. The reference electrode was Ag wire (diameter 1 mm), which was also electropolished in the HCl aqueous solution, and then cleaned in ethanol using ultrasound, immersed in the LiCl-KCl eutectic melts containing AgCl (0.075 mol/kg) in a Pyrex tube.

2.2 Preparation of Mg-Li-Pb alloys

The Mg-Li-Pb alloys were prepared by galvanostatic electrolysis containing different contents of PbCl₂ and MgCl₂ at 6.21 A/cm² and 873 K for 2 h. Mg-Li-Pb alloy was a small liquid drop with spherical shape clung on the molybdenum electrode at the beginning. When the nucleation of Mg-Li-Pb alloy on molybdenum electrode grew to some extent, the liquid Mg-Li-Pb alloy departed from the molybdenum electrode due to the effect of surface tension. Majority of Mg-Li-Pb alloys existed in the form of liquid alloys with spherical shape in melts. After electrolysis, the Mg-Li-Pb alloys were extracted from the melts. All of the samples were washed in hexane (99.8% purity) in an ultrasonic bath to remove salts, and then stored in a glove box for analysis.

2.3 Electrochemical apparatus and auxiliary techniques

All of the electrochemical studies, such as cyclic voltammetry pulse techniques and chronopotentiometry, were performed with IM6e electrochemical workstation and the measurement was controlled with the IM6e software package (Zahner Co., Ltd). The Mg-Li-Pb alloy samples obtained by the electrolysis were analyzed by XRD (Multi Flex TTR-III; Rigaku Industrial Corp. Ltd.) using Cu K_α radiation at 40 kV and 150 mA and inductively coupled plasma-atomic emission spectrometry (ICP-AES).

3 Results and discussion

3.1 Cyclic voltammetry

Figure 1 shows typical cyclic voltammograms of the LiCl-KCl-PbCl₂-MgCl₂ melts on a molybdenum electrode. Curve 1 represents the voltammogram before the addition of PbCl₂ and MgCl₂, only one couple of cathodic and anodic signals (φ/φ′) which correspond to the deposition and dissolution of liquid Li are observed. Curves 2 and 3 show the voltammograms measured in the LiCl-KCl-PbCl₂(1%) and LiCl-KCl-PbCl₂(1%)- MgCl₂(3%) melts, respectively. Three couples of cathodic and anodic signals are observed except the deposition and dissolution signals of liquid Li (φ/φ′). The deposition potential of Pb is more positive than that of  Mg in a chloride system [15]. Peaks of C-C′ and B-B′ in the forward scan are ascribed to the deposition and dissolution of Pb and Mg, respectively. In curve 1, the reduction of Li(I) starts at about -2.34 V; in curve 2, the reductions of Pb(II) and Li(I) start at -0.35 V and -2.31 V. The deposition potential of Li before and after the addition of PbCl₂ has nearly no change. Peak couples of a-a′ and b-b′ in curve 2 are thought to be the deposition and dissolution signals of Li-Pb compounds, and their deposition potentials are -2.19 V and -2.08 V, respectively. After the addition of MgCl₂, the reductions of Pb(II), Mg(II) and Li(I) start at -0.21 V, -1.50 V and -2.19 V. The deposition potentials of Li and Pb are more positive than those obtained before the addition of MgCl₂. The potential shift is due to a lowering activity of the deposited metal in other foreign substrate. The foreign substrate is probably Mg-Pb alloys pre-deposited on the molybdenum electrode. Peaks of a-a′ and b-b′ disappear in curve 3, which are probably hid by the huge current signals of cathode and anode, A-A′.

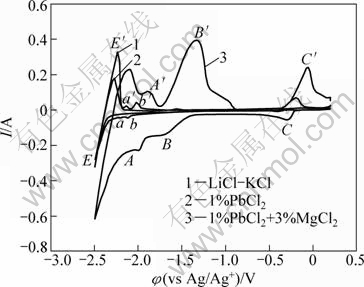

Fig. 1 Cyclic voltammograms on Mo electrode before and after addition of different concentrations of PbCl₂ and MgCl₂ (scan rate: 0.1 V/s)

Cyclic voltammograms at various scan rates were obtained on a molybdenum electrode in the LiCl- KCl-PbCl₂ (1%, 6.92×10^-5 mol/cm³) at 873 K in the potential range from 0 to -0.5 V (vs Ag/Ag⁺) (Fig. 2). There are only one couple of current peaks in the voltammogram and no significant difference in shape among the voltammograms at various scan rates. However, for a reversible electrode reaction involving the deposition of an insoluble substance, |φ_p-φ_p/2| (φ_p is the peak potential; φ_p/2 is the half-peak potential) should have a value of 0.7725RT/(nF) or 0.021 V [16]. But in this case, the value of |φ_p-φ_p/2| was found to exceed 0.021 V. Besides, the cathodic peak shifted a little towards the negative potential with the increase of scan rates, which indicates that the reduction process of Pb(II) may be not completely reversible [17]. Based on the result of the cyclic voltammograms obtained on the molybdenum electrode, it seems that the electroreduction of Pb(II) proceeds via one step process at 873 K.

Figure 3 gives the plot of I_p against ν^1/2. It can be

seen that I_p and ν^1/2 show a linear relationship, which indicates that the electrode process of Pb(II) is controlled by the mass transfer. The diffusion coefficient can be calculated by the Berzins-Delahay equation for soluble- insoluble systems[15]:

            (1)

where n is the number of exchanged electrons; F is Faraday’s constant (96.485 kC/mol); S is the electrode surface area in cm²; c₀ is the solute concentration in mol/cm³; D is the diffusion coefficient in cm²/s¹; ν is the potential sweep rate in V/s; R is the mole gas constant; and T is the thermodynamic temperature in K.

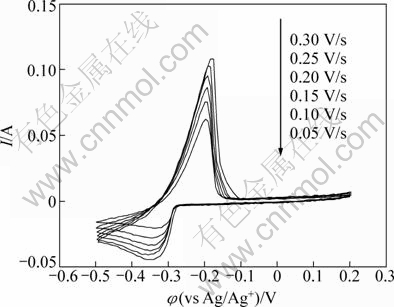

Fig. 2 Cyclic voltammograms on Mo electrode in LiCl-KCl- PbCl₂ melts with various scan rates (S_Mo=0.3219 cm²)

The calculation of the diffusion coefficient using  Eq. (1) yields D_Pb(II)=2.81×10^{-5 cm2}/s.

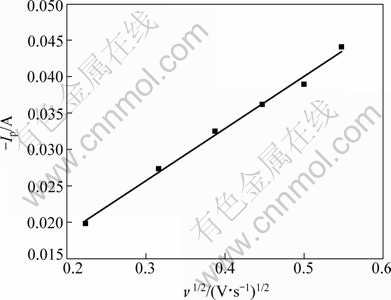

Fig. 3 Variation of cathodic peak current with scan rate (S_Mo=0.3219 cm²)

3.2 Chronopotentiometry

Chronopotentiometric experiments were carried out to further study the electrochemical behavior of Pb(II). Figure 4 presents the chronopotentiograms on a Mo electrode in LiCl-KCl-PbCl₂(1%, 6.92×10^-5 mol/cm³) at 873 K. The first plateau (1) is associated with the reduction of Pb. When the cathodic current is -140 mA, four potential plateaus are seen in the potential from 0 V to -2.5 V. Plateaus (2) and (3) are associated with the Li-Pb alloys. The plateau at -2.37 V is due to the reduction of lithium ions. It is obvious that the potential ranges for deposition of Li, and Pb are the same as those observed in the cyclic voltammograms in Section 3.1.

Figure 5 gives the plot of I against τ^-1/2. It can be seen that I and τ^-1/2 show a linear relationship. The diffusion coefficient of Pb(II) in the eutectic LiCl-KCl can be calculated with the Sand’s equation [17]:

                        (2)

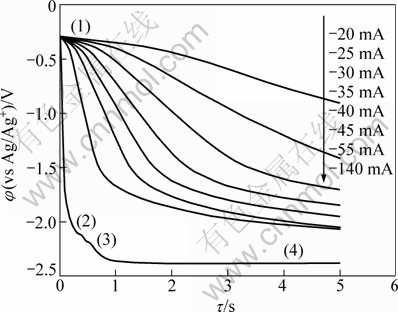

Fig. 4 Chronopotentiograms on Mo electrode in LiCl-KCl- PbCl₂ with various currents (S_Mo=0.3219 cm²)

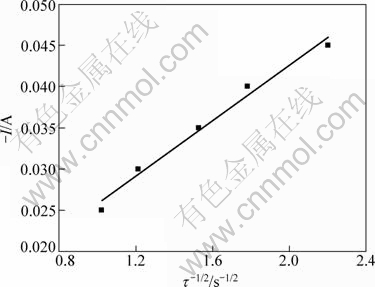

Fig. 5 Plot of I vs τ^{-1/2 in} LiCl-KCl-PbCl₂ melts (S_Mo=0.3219 cm²)

where τ is the transition time measured in the chrono- potentiograms determined by the duration of reduction of Pb(II) between -25 mA and -45 mA using the method described in Ref. [18]. The calculation of the diffusion coefficient of Pb(II) using Eq. (2) yields D_Pb(II)= 1.95×10^{-5 cm2}/s, which is in the same scalar with the value obtained by cyclic voltammetry.

Figure 6 shows chronopotentiograms obtained at different currents for LiCl-KCl-MgCl₂ (3%)-PbCl₂(1%)  melts (c(PbCl₂)=6.70×10^-5 mol/cm³, c(MgCl₂)= 5.88×10^-4 mol/cm³) at 873 K. Between -25 mA and -65 mA of cathodic current, the curves exhibit two potential plateaus, which are associated with the reduction of Pb and Mg. Three potential plateaus are seen in the potential from 0 to -2.5 V in the chronopotentiogram when the cathodic current was -250 mA. The potentials of -1.56 V (1), -1.98 V (2) and -2.16 V (3) are corresponded to the cathodic peaks of B and A, and the Li(I) electroreduction potential of the cyclic voltammograms (Fig. 1), respectively. The potential plateau of the electroreduction of Pb(II)/Pb disappeared at the larger current density (0.932 A/cm²).

It is obvious that the potential ranges for deposition of Pb, Mg and Li correspond to those observed in the cyclic voltammograms (Fig. 1).

Figure 7 gives the plot of I against τ^-1/2. It can be seen that I and τ^-1/2 show a linear relationship. The diffusion coefficient of Pb(II) in the LiCl-KCl-MgCl₂, D_Pb(II)=2.26×10^{-5 cm2}/s can be calculated with Eq. (2), which is in good agreement with the above results. Mg(II) has no obvious influence on the diffusion coefficient of Pb(II) in this system.

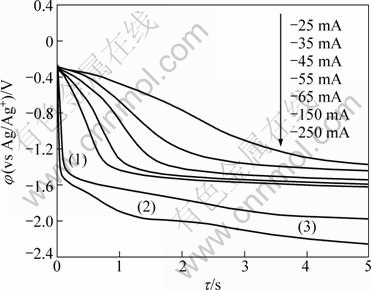

Fig. 6 Chronopotentiograms in LiCl-KCl-MgCl₂-PbCl₂ melt (S_Mo=0.3219 cm²)

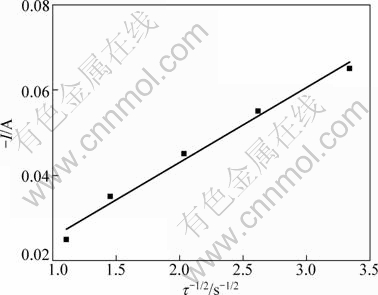

Fig. 7 Plot of I vs τ^-1/2 for reduction of Pb(II) in LiCl- KCl-MgCl₂ (S_Mo=0.3219 cm²)

3.3 Galvanostatic electrolysis and characterization of deposits

In order to confirm the formation of Mg-Li-Pb alloys, galvanostatic electrolysis was conducted in the LiCl-KCl containing MgCl₂ and PbCl₂ with different concentrations on molybdenum electrodes at 6.21 A/cm² for 2 h at 873 K. The conditions are based on the same method to produce Mg-Li alloys [11].

Figure 8 shows the XRD patterns of Mg-Li-Pb alloys obtained by galvanostatic electrolysis from the LiCl-KCl melts containing (6%-7%) MgCl₂ and (0.2%-0.5%) PbCl₂. All Mg-Li-Pb alloys contain β-Li phase. However, with the increase of PbCl₂ concentration (from 0.2% to 0.5%) in LiCl-KCl-MgCl₂ (6%) melts at a constant current, a new Pb phase appears in Fig. 8(b). Phase structure of the Mg-Li-Pb alloys obviously become complicated (PbLi₃, Mg₂Pb and Li₇Pb₂ phases appear) from the result of XRD, as the concentration of MgCl₂ was increased. From these results, the phases variation of the Mg-Li-Pb alloys depends on the change of MgCl₂ and PbCl₂ concentrations.

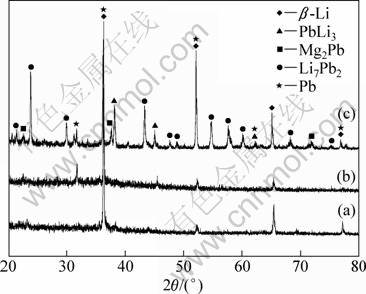

Fig. 8 XRD patterns of deposits obtained by galvanostatic electrolysis on Mo electrodes at 873 K in LiCl–KCl melts containing: (a) 6% MgCl₂ and 0.2% PbCl₂; (b) 6% MgCl₂ and 0.5% PbCl₂; (c) 7% MgCl₂ and 0.5% PbCl₂

In order to obtain the contents of Mg, Li and Pb in the alloys, we carried out the ICP analysis of the alloys. The ICP analyses of all samples obtained by galvanostatic electrolysis are listed in Table 1. The ICP results show that the chemical compositions of Mg-Li-Pb alloys are consistent with the phase structures of the XRD patterns. By galvanostatic electrolysis, the lead content of Mg-Li-Pb alloys increases with increasing PbCl₂ concentration in LiCl-KCl-MgCl₂ melts. The higher the MgCl₂ concentration in the LiCl-KCl melts with equivalent PbCl₂ concentration at a constant current, the lower the lithium content of Mg-Li-Pb alloys. Based on these results, it can be concluded that the lithium and lead contents of Mg-Li-Pb alloys can be adjusted by changing the MgCl₂ and PbCl₂ concentrations.

Table 1 ICP analyses of samples obtained by galvanostatic electrolysis (6.21 A/cm²) on Mo electrode (S=0.3219 cm²) in LiCl-KCl melts containing different MgCl₂ and PbCl₂ concentrations at 873 K for 2 h

4 Conclusions

1) The electrochemical behavior of Pb(II) was studied by cyclic voltammetry and chronopotentiometry. Cyclic voltammograms showed that the reductions of Pb(II) were detected at -0.35 V and -0.21 V in LiCl-KCl melt before and after the addition of MgCl₂, respectively.

2) The diffusion coefficients of Pb(II) ions in the LiCl-KCl before and after the addition of MgCl₂ were determined by cyclic voltammetry and chrono- potentiometry to be approximately.

3) Mg-Li-Pb alloys have been successfully prepared by co-deposition at current density 6.21 A/cm² at temperature 873 K for 2 h. XRD patterns indicated that the main phases of the alloys are β-Li. Pb, PbLi₃, Mg₂Pb and Li₇Pb₂ appeared when the concentrations of MgCl₂ and PbCl₂ increased.

4) The lithium and lead contents of Mg-Li-Pb alloys can be controlled by changing MgCl₂ and PbCl₂ concentrations.

References

[1] CAILLERIE J L, ALBERT L. Lead-calcium alloy development: Quality improvement [J]. Journal of Power Sources, 1997, 67: 279-281.

[2] BUI N, MATTESCO P, SIMON P, STEINMETZ J, ROCCA E. The tin effect in lead-calcium alloys [J]. Journal of Power Sources, 1997, 67: 61-67.

[3] ABRAMOV V.O, SOMMER F, ORLOV D. Properties of Al-Pb base alloys applying electromagnetic forces and ultrasonic vibration during casting [J]. Materials Letters, 1995, 23: 17-20.

[4] DEMIRCI G, KARAKAYA ?. Collection of magnesium in an Mg-Pb alloy cathode placed at the bottom of the cell in MgCl₂ electrolysis [J]. Journal of Alloys and Compounds, 2007, 439: 237-242.

[5] DEMIRCI G, KARAKAYA ?. Electrolytic magnesium production and its hydrodynamics by using an Mg-Pb alloy cathode [J]. Journal of Alloys and Compounds, 2008, 465: 255-260.

[6] BALASUBRAMANI N, SRINIVASAN A, PILLAIB U T S, PAI B C. Effect of Pb and Sb additions on the precipitation kinetics of AZ91 magnesium alloy [J]. Materials Science and Engineering A, 2007, A457: 275-281.

[7] MUKHOPADYAY I, SHARON M. Investigation of semiconducting parameters of Pb-Sn alloy oxide-electrolyte interface by Butler Gartner model [J]. Original Research Article solar Energy Materials and Solar Cells, 1997, 45: 141-149.

[8] LIN Zhen-han. Handbook of re?nement and metallurgy of nonferrous metal [M]. Beijing: Metallurgical Industry Press, 1999: 111-128. (in Chinese)

[9] POLYAKOVA L P, TAXIL P, POLYAKOV E G. Electrochemical behaviour and codeposition of titanium and niobium in chloride-?uoride melts [J]. Journal of Alloys and Compounds, 2003, 359: 244-255.

[10] YAN Y D, ZHANG M L, HAN W, CAO D X, YUAN Y, XUE Y, CHEN Z. Electrochemical formation of Mg–Li alloys at solid magnesium electrode from LiCl-KCl melts [J]. Electrochimica Acta, 2008, 53: 3323-3328.

[11] ZHANG M L, CHEN Z, HAN W, HOU Z Y, YAN Y D. Electrodeposition of Li and electrochemical formation of Mg-Li alloys from the eutectic LiCl-KCl [J]. Journal of Alloys and Compounds, 2008, 464: 174-178.

[12] CHEN Z, ZHANG M L, HAN W, WANG X L, TANG D X. Electrodeposition of Zr and electrochemical formation of Mg-Zr alloys from the eutectic LiCl-KCl [J]. Journal of Alloys and Compounds, 2008, 459: 209-214.

[13] YAN Y D, ZHANG M L, XUE Y, HAN W, CAO D X, WEI S Q. Study on the preparation of Mg-Li-Zn alloys by electrochemical codeposition from LiCl-KCl-MgCl₂-ZnCl₂ melts [J]. Electrochimica Acta, 2009, 54: 3387-3393.

[14] YAN Y D, ZHANG M L, XUE Y, HAN W, CAO D X, HE L Y. Electrochemical study of Mg–Li–Al alloys by codeposition from LiCl-KCl-MgCl₂-AlCl₃ melts [J]. Journal of Applied Electrochemistry, 2009, 39(3): 455-461.

[15] BERZINS T, DELAHAY P. Oscillographic polarographic waves for the reversible deposition of metals on solid [J]. Journal of the American Chemical Society, 1953, 75: 555-559.

[16] ?DEGARD R, BJ?RGUM A, STERTEN ?, THONSTAD J, TUNOLD R. Kinetics of aluminium deposition from aluminium chloride-alkali chloride melts [J]. Electrochemica Acta, 1982, 27(11): 1595-1598.

[17] BARD A J, FAULKNER L R. Electrochemical methods fundamentals and applications [M]. New York: John Wiley & Sons, 1980: 156-163.

[18] LAITY R W, MCINTYRE J D E. Chronopotentiometric diffusion coefficients in fused salts I. Theory [J]. Journal of the American Chemical Society, 1965, 87: 3806-3812.

[19] ZHANG Mi-lin, YAN Yong-de, HOU Zhi-yan, FAN Lu-an, CHEN Zeng, TANG Ding-xiang. Preparation of Mg-Li alloys by electrolysis in molten salt at low temperature[J]. Chinese Chemical Letters, 2007, 18: 329-332.
