Trans. Nonferrous Met. Soc. China 25(2015) 1353-1366

Microstructural approach to equal channel angular processing of commercially pure titanium—A review

Peiman Shahbeigi ROODPOSHTI, Nasim FARAHBAKHSH, Apu SARKAR, Korukonda Linga MURTY

North Carolina State University, USA

Received 3 September 2014; accepted 14 January 2015

Abstract: A review on severe plastic deformation (SPD) technique of equal channel angular pressing (ECAP) process of commercially pure titanium (CP-Ti) alloys was presented with a major emphasize on the influence of ECAP parameters that include channel and curvature angles, processing route, temperature of operation, pressing speed, internal heating, number of pass through the die and back pressure. Various ECAP characteristics such as microstructure, strain inhomogeneity and mechanical properties are considered to achieve the maximum homogeneity, equilibrium grain refinement and mechanical improvement of CP-Ti. Investigations show that a pressing speed of 1-3 mm/s at 450 °C with route B_C along with channel and curvature angles of 90°and 20° respectively with backpressure can lead to the most homogeneous ultrafine microstructure.

Key words: equal channel angular pressing (ECAP); commercially pure titanium (CP-Ti); backpressure; channel angle; curvature angle; pressing speed

1 Introduction

Titanium-based alloys with high specific strength play a significant role in various industries. Their excellent corrosion resistance, durability at elevated temperature, high specific strength, acceptable castability, good weldability, excellent biocompatibility [1] and lower density have introduced them as one of the ever-increasing interesting materials in automotive, aerospace and predominantly in biomedical as dental implants [1-8]. It is prevalent to add some alloying elements to hexagonal close packed (HCP) materials for improving their mechanical properties [9-14]; however, because most of the common alloying elements used in Ti alloys, such as Al and V in the popular Ti-6Al-4V alloy, are toxic [6,15] and may cause some illnesses, there is a high demand to use commercially pure (CP-Ti) Ti [3,16,17]. As a rule of thumb, the microstructure and mechanical properties of materials should meet some requirements to make them suitable for use as structural biomaterials to replace hard tissues[18-21]. Among all severe plastic deformation (SPD) methods [22-31], ECAP process (came to operation in Russia during the 1970s by SEGAL et al [32,33]) is conventional to produce homogeneous ultrafine grain microstructure with high angle grain boundaries [3,6,14,34-48], which helps to enhance the mechanical properties of materials and improve their adhesion to living cells and their proliferation [1,8,49]. Ultrafine-grained structure can result in lower friction coefficient and higher wear resistance. This is mainly due to the reduction of the adhesion component of friction coefficient [50]. Unlike many other ways of ultra-fine grain materials production [51], it can produce large bulk materials with acceptable density [22,35,52-57]. In ECAP process, one can apply various uniform strains on the material while preserving the original dimensions [36-38,58,59] reaching elevated strength and ductility [60]. Titanium, like other HCP metals [9], demonstrates low ductility, especially at lower temperatures due to their limited number of slip systems [6]. These alloys are categorized as difficult-to- work alloys [3,61-64]. Previous studies indicate that the ECAP processes of these alloys have been carried out at relatively high temperatures, low pressing speeds and high die angles. ECAP process is widely used for grain refinement of Ti, Cu, Ni, Mg, Al and Fe alloys [22,64-73].

It is conventional to develop nanostructure of CP-Ti for medical use by combining ECAP with a wide range of metal forming techniques including extrusion, rolling or forging [16,49,74]. VALIEV and RUSLAN [75] showed that a combination of ECAP and thermo mechanical treatment (TMT) on CP-Ti can lead to grain refinement from 300-400 nm to 100 nm after ECAP. This combination can improve the strength of material with the decreased ductility.

2 ECAP process

Although there are many reports of using the ECAP process for metallic powder consolidation [76-81], we emphasize here the grain refinement of solid metals. Figure 1 illustrates the principle of ECAP schematically. Two channels meet each other with a channel angle of f and curvature angle of Ψ. To avoid the grinding between each pass, it is conventional to design the entrance channel of the die bigger than its exit channel [82]. A sample, in the form of rod or bar can be pressed into the die [49]. The sample experiences a simple shear strain while passing through the mentioned angles. This process can be repeated several times to reach the desired microstructure.

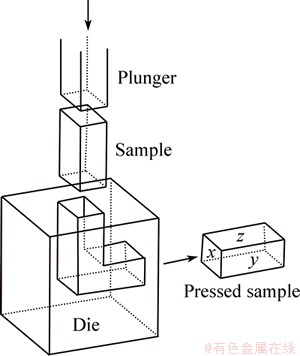

Fig. 1 Schematic of ECAP process [83]

During the deformation process, some flow lines appear in the material with their direction highly dependent on the position of the specimen. Figure 2 shows a CP-Ti sample in the middle of the 4th pass (i.e., upper left side and lower right side of the sample experienced 3 and 4 passes respectively, 3P and 4P) and different parts of the sample are labeled by A to H. Figure 3 reveals the higher magnification of 4 different positions of the sample. White arrows help us to follow the direction of the flow lines. These lines show that the radius of the flow lines increases gradually from some parts near the channel angle (position E, Fig. 3(b)) to the center of the specimen (position F, Fig. 3(c)). It has a horizontal U shape at the position G [3]. Complicated flow lines appear close to the surface of the specimen due to the effect of friction. Further analysis shows that grain refinement (i.e., applied strain) strongly depends on these positions [58] with the center of the billet exhibiting the most homogeneous microstructure.

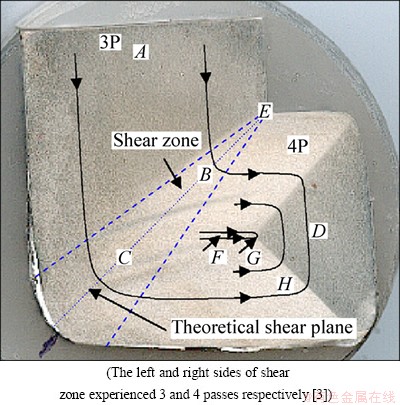

Fig. 2 Cross section of CP-Ti

3 Experimental

Experimental parameters play a critical role in altering the microstructure, strain inhomogeneity and mechanical properties of the ECAP-processed materials, as explained below [49,68,74,84].

3.1 Channel and curvature angles

Channel angle (f) and curvature angle (Ψ), shown in Fig. 4(a), play a significant role in the total applied stress/strain during ECAP [49,68]. The lower the angles, the higher the imposed strain per pass [64,85]. The previous studies show that f=90°-120° and Ψ=0-20° are the most practical angles for various alloys such as titanium [6,59,65,86-88]. According to Eq. (1) [85], these angles result in an approximate strain of 0.5-1.0 in the first pass [68,85,89] (Fig. 4(b)).

       (1)

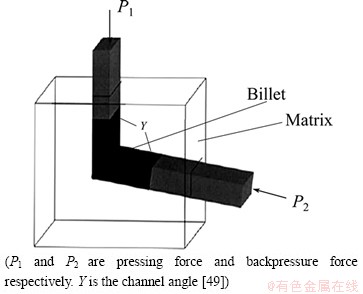

where N is the number of pass and ε_N is the total amount of strain after N passes.

3.2 Processing routes

Processing routes can directly influence the microstructure [22,55,84,90]. During multiple ECAP passes, it is possible to rotate the sample along its longitudinal direction [35]. Among four different routes, demonstrated in Fig. 5, B_C is the most conventional one to reach a homogeneous microstructure for most alloys [34,35,57,65,68,90-92], such as CP-Ti [5,16,35,59, 62,87,93,94], where the sample is rotated by 90° in the same direction between each passes [90]. In route A there is no rotation, B_A has a rotation of 90° in alternate direction between passes and in route C the sample should experience a rotation of 180° between consecutive passes [49,85,92,94].

Fig. 3 Optical micrographs of 4 different positions

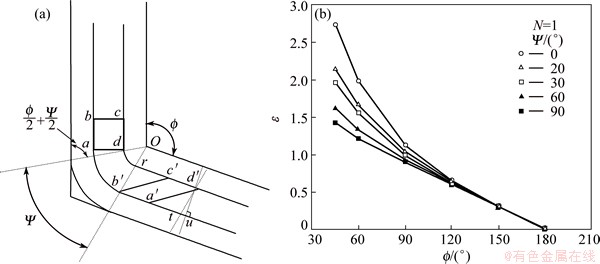

Fig. 4 Angles in ECAP (a) (f is the angle of intersection of two channels and Ψ is the angle subtended by the arc of curvature at the point of intersection [85] and variation of equivalent strain of single pass, with channel angles of 45°-180° and curvature angles of 0°-90°(b) [89]

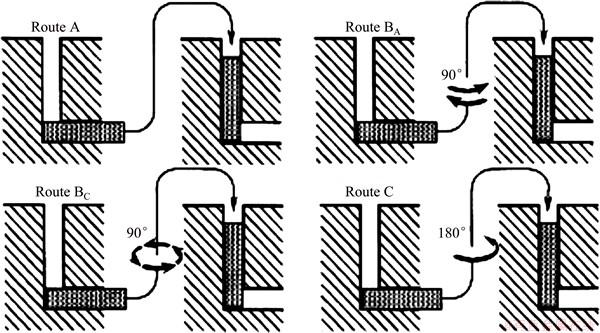

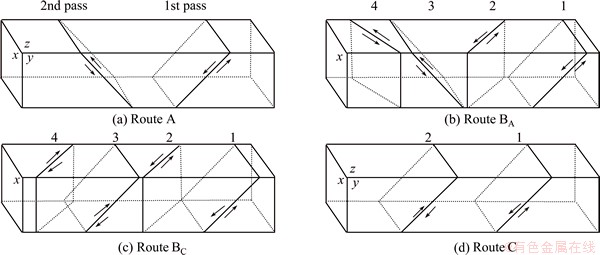

Fig. 5 Four processing routes in ECAP [90]

Previous studies show that various processing routes can activate different slip systems which lead to a wide range of microstructures. Figure 6 shows slip systems in X, Y and Z planes and the numbers 1, 2, 3 and 4 are related to the first, second, third and fourth passes respectively. It is clear that some routes are redundant strain processes. For example, in route C, the strain after every even number of process is restored. Route B_C has similar situation and slip in the third and fourth passes can cancel the slip of the first and second passes respectively [49].

Fig. 6 Active slip system on X, Y and Z planes due to various processing routes [49]

Fig. 7 Optical microstructures of CP-Ti after first pass (a) and second pass (b) in route A, second pass in route B (c), and second pass in route C (d) [59]

SHIN et al [59] revealed the dependency of processing routes on active slip systems in CP-Ti. They showed that is the primary twinning deformation after the first pass [59,63]. By the end of the second pass in route A, deformation is controlled by basal slip and micro-twinning, and in route B, prism slip is active while in route C, there are prism and pyramidal slip systems with alternating twin bands. Figure 7(a) shows the microstructure of CP-Ti after the first pass. The flow line has an inclination of 30° to the longitudinal direction. After the second pass, the microstructure becomes highly dependent on the processing route. In route A, a higher amount of inclination with more homogeneous line space appears (Fig. 7(b)). Figure 7(c) demonstrates the micrograph of the material after the second pass with route B. Flow lines have essentially the same alignment as for the first pass although the line spacing is decreased. The second pass of route C produces more homogeneous microstructure because of the restoration of the shear deformation after every even pass (Fig. 7(d)) [59].

Figure 8 reveals the transmission electron microscopy (TEM) microstructure of CP-Ti after the first pass with corresponding selected area diffraction (SAD) pattern. Some parallel bands with a width of ~0.07 pm are clear. These bands are finer than slip bands appeared in cubic metals [59,67,95,96] and have lower dislocation density [59,95] . The SAD pattern (Fig. 8(b)) shows that the zone axis of  has a mirror spot with respect to the  plane which introduces adjacent bands as twin structure of . This indicates that unlike cubic materials [59,94,97-99], the CP-Ti deforms primarily via twinning mechanism [59].

Fig. 8 TEM microstructure of CP-Ti after first pass (a) and corresponding SAD pattern (b) [59]

TEM microstructure of CP-Ti proves the evidence of some differences between various processing routes after the second pass. Figure 9(a) shows a reduction in the width of the twin band after the second pass by route A. Although the SAD pattern reveals a small rotation of the band after the second pass, the twin planes are still . TEM microstructure of titanium after the second pass of route B is completely different (Fig. 9(b)) and instead of layers (mentioned in route A), there are some equiaxed grains with high dislocation density. The SAD pattern with clustered diffraction spots reveals that these grains have low angle grain boundaries [100]. After the second pass via route C, the  twin plane is slightly misaligned (but less than that in route A) and dislocation density is highly increased (Fig. 9(c)) [59]. Various studies show that although there is always a mixture of low and high angle grain boundaries, the ratio of high angle to low angle grain boundaries increases with increased number of passes.

Fig. 9 TEM microstructure with corresponding SAD pattern for CP-Ti after second pass via route A (a), route B (b) and route C (c) [59]

3.3 Temperature of operation

As a rule of thumb, ECAP is easier at elevated temperatures. However, higher temperatures can raise the rate of recovery and consequently, the dislocation annihilation will be more extensive leading to low angle grain boundary formation [91,101,102]. Increasing the temperature can increase the grain size as well [62,69,91, 101-103] and decrease the dislocation density which leads to lower strength improvement [16,93]. The maximum ultrafine grain microstructure is reachable at lower temperatures due to the inhibition of possible recrystallization [62]. The lower temperatures can easily provide smaller grain size [62] and high-angle grain boundaries [49] which result in superior mechanical properties [62]. Previous studies showed that, segmented failures can happen for CP-Ti under cold work condition [64]. SEMIATIN et al [64] showed that failure occurs at room temperature at all strain rates (i.e., from 0.025 to 25 mm/s) with a channel angle of 90° (Fig. 10). Although there are studies performed at room temperatures (with high channel angle and low pressing speed) [4,63,93, 104], various investigations show that carrying out ECAP at a temperature of 450 °C can lead to fully dense CP-Ti with ultrafine grains [16,17,87,100,105,106] (There is almost no recrystallization at this temperature) [106]. Figure 11 shows the influence of the temperature on the microstructure and grain size. CP-Ti processed at 450 °C for 8 passes has a grain size of 1.0 μm while at 590 °C a grain size of 4.8 μm is obtained.

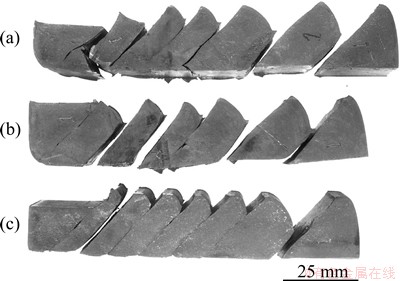

Fig. 10 CP-Ti samples after ECAP process at room temperature and channel angle of 90° with different pressing speeds of 0.025 mm/s (a), 0.25 mm/s (b) and 25.0 mm/s (c) [64]

Fig. 11 EBSD microstructures of CP-Ti after 8 passes at 450 °C (a) and 590 °C (b) [106]

3.4 Pressing speed

Pressing speed can strongly influence the deformation mechanism of CP-Ti. Titanium alloys with HCP crystal structure can deform by twinning or slip mechanism depending on external conditions (such as strain, temperature and strain rate) and microstructure (such as grain size) [16,107]. KIM et al [107] showed that a decrease in the pressing speed from 2.8 mm/s to 0.8 mm/s on the ECAP process of pure Ti at 450 °C can increase dislocation density in the twin bands which makes a transition from twinning to dislocation slip mechanism. Figure 12 shows no evident of micro twins at low pressing speeds.

3.5 Internal heating

During ECAP, the internal temperature of the die increases. This effect is more prominent in stronger materials [49] and at higher pressing speeds [108]. The effect of internal heating on CP-Ti ECAP process has not been reported but it could result in in-situ annealing.

Fig. 12 SEM micrographs of CP-Ti samples after 1 pass with pressing speed of 2.8 mm/s (a) and 0.8 mm/s (b) [107]

3.6 Number of passes through die

ECAP process has the advantage of increasing the amount of strain by increasing the number of passes while the original cross section remains unchanged [55]. Increasing the number of passes can lead to strong grain size refinement [74]. After the first pass, a pure shear deformation occurs in CP-Ti alloys and grains get elongated in longitudinal direction [93]. Investigations at different temperatures [88,93] show appearance of a large number of twins in the elongation direction after the first pass (Fig. 13) [93]. The existence of twinning depends on initial grain size, pressing speed and interstitial impurity of the material [6]. After some passes, ductility and strength increase simultaneously. This phenomenon is due to the increased fraction of high angle grain boundaries and the improved homogeneity of the microstructures [88,109]. Figure 14 depicts appearance of low angle bands after the first pass. By increasing the number of passes, the width of shear bands decreases [59,93]. In next steps, differently oriented shear bands meet each other and some cells appear, leading to sub-grain formation. Sub-grains wall contains a large number of dislocations and SAD patterns reveal that these new grains have high angle grain boundaries [93] (Fig. 15).

During high temperature deformation of high stacking fault metals, continuous dynamic recrystallization will occur, which is an important mechanism of grain refinement. Based on the previous studies, CP-Ti can reach its equilibrium grain refinement and saturated mechanical properties after 4 to 6 passes at temperatures of 200-450 °C [17,88] depending on the initial grain size, processing route and plane direction (transverse or longitudinal). It has been reported that grain coarsening appears after 8 passes [4,17,35, 106,107].

Fig. 13 Microstructures of CP-Ti

Fig. 14 TEM analysis of CP-Ti after one pass

It is conventional to lubricate samples with graphite [87,93] or MoS₂ [6,16,63-65,74,87] between each pass or employing a die with movable wall to minimize friction between the billet and die walls [110-114].

Fig. 15 TEM microstructure and SAD pattern of CP-Ti after four passes [93]

3.7 Backpressure

Back pressure plays a critical role in ECAP process of low ductility alloys [56,57,115]. Although increasing the number of passes up to an optimum number can raise the total strain leading to improvement of mechanical properties, it is practically impossible to apply a large number of passes in difficult-to-work alloys [36]. In fact, during ECAP, after a few passes, cracks appear on the sample [6,60]. The number of passes depends upon the material. Increasing the temperature, because of the possible recrystallization, is not a practical solution [62]. It is also not recommended to increase the angle of the die corner, since it decreases the total amount of plastic deformation [58]. Application of back pressure during ECAP has been introduced as an alternative way to improve the properties of the materials. Under backpressure, materials have shown to be able to tolerate more passes. As soon as the billet passed the angles, the compressive mean stress changes to tensile (leading to crack initiation), while in the presence of backpressure, a negative (compressive) stress is applied during the whole process [115]. This compressive hydrostatic pressure causes a shear stress and by comparison, such a stress generates less damage [56,57] due to application of uniform stress-strain state in the material [116].

In summary, backpressure can influence the microstructure and final shape of the billet as follows:

1) Improve the uniformity of the material which leads to enhanced mechanical properties [58];

2) Increase the level of strain at each single pass and consequently improve the plastic deformation [58];

3) Enhance the workability (the total number of passes that the billet can tolerate without flaw initiation) [49,115];

4) Reduce the pore size and damage accumulation produced during the ECAP process [56,117];

5) Omit the corner gap (Dead zone, Fig. 16) [49,55, 58,115].

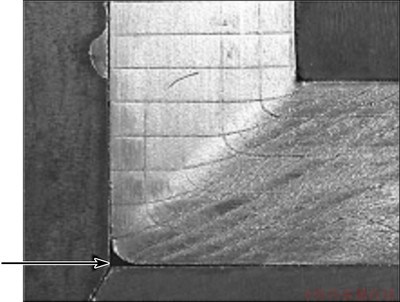

Fig. 16 Gap appearing between die and specimen in absence of backpressure [115]

In spite of the above advantages, high levels of backpressure may cause strain accumulation around the corner, which leads to a severe localized deformation and less strain uniformity [58].

During last two decades, many numerical investigations have been done on the influence of a wide range of ECAP parameters on the final characteristics of the material [55,92,112,118-124]. SON et al [58] tried to simulate three types of applying backpressure (Fig. 17) on CP-Ti. In type I, type II and type III, a frictional force, a plunger and a movable die apply backpressure to the work-piece, respectively.

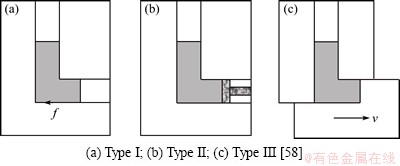

Fig. 17 Schematic illustration of three different types of backpressure

Figure 18 shows the influence of various amounts of frictional force on strain accumulation of the specimen. Although by increasing the severity of the frictional condition, there is almost no corner gap, a large amount of strain accumulation around the corner will appear, leading to inhomogeneity in the material [58]. The influence of various amounts of type II backpressure on strain distribution of CP-Ti is illustrated in Fig. 19, where it is clear that by increasing the amount of backpressure, there is still some strain accumulation; however, it is less than that in type I. Figure 20 shows the effect of type III backpressure on strain distribution of CP-Ti and it is clearly seen that this kind of backpressure has the advantage of more uniformity of the material. This strain homogeneity could be reachable due to a reduction in the friction force between the billet and die caused by die sliding [58].

Previous studies show that it is more conventional to use the type II backpressure. Figure 21 shows a second punch method, where P₁ is the pressing force and P₂ (P₂＜P₁) is backpressure. A computer controlled back pressure (Fig. 22) has been an area of research interest during the last decade [49]. This technology has the advantage of controlling forward and backward pressure and velocity of punches [49]. By contrast, employing plunger is superior to applying frictional force between the work-piece and die. It has been validated by numerical investigations [125].

4 Conclusions

During the last two decades, ECAP process, patented by SEGAL et al [32,33], developed rapidly in various industries. Nowadays, it is one of the most significant SPD methods of improving mechanical properties of CP-Ti, which leads to higher biocompatibility of titanium alloys.

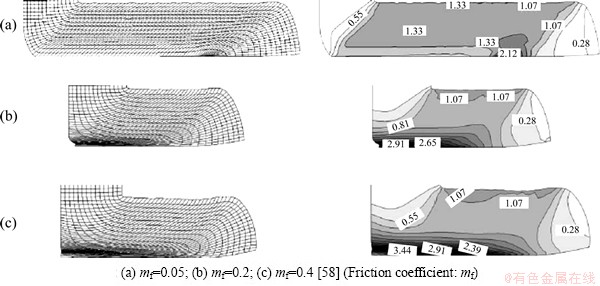

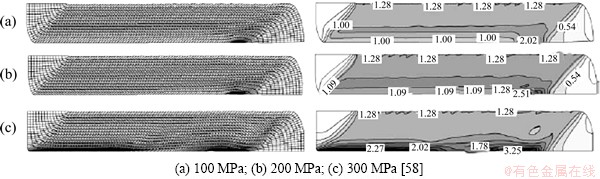

Fig. 18 Strain distribution due to type I backpressure

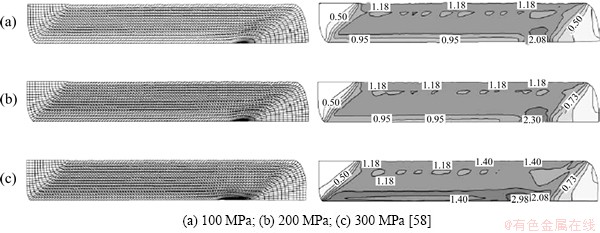

Fig. 19 Strain distribution due to type II backpressure (φ=90°, Ψ=0° and m_f=0.05)

Fig. 20 Strain distribution due to type III backpressure (φ=90°, Ψ=0° and m_f=0.05)

Fig. 21 Schematic illustration of ECAP die with backpressure

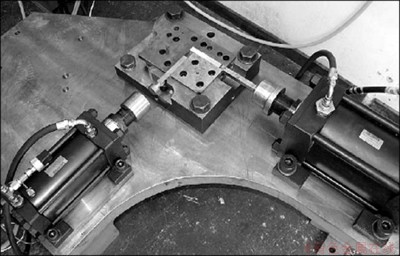

Fig. 22 Computer control equipment to apply backpressure during ECAP process with die curvature angle of 90° [57]

Previous studies show that employing a die with channel angle of 90° and curvature angle of 0°-20°along with operation temperature of around 450 °C, pressing speed of 1-3 mm/s, route B_C and an appropriate backpressure can lead to optimum mechanical properties and microstructural homogeneities in CP-Ti.
