Preparation and characteristics of Li₂FeSiO₄/C composite for cathode of

lithium ion batteries

GUO Hua-jun(郭华军), XIANG Kai-xiong(向楷雄), CAO Xuan(曹 璇),

LI Xin-hai(李新海), WANG Zhi-xing(王志兴), LI Li-ming(李黎明)

School of Metallurgical Science and Engineering, Central South University, Changsha 410083, China

Received 18 June 2008; accepted 30 October 2008

Abstract: A Li₂FeSiO₄/C composite cathode for lithium ion batteries was synthesized at 650 ℃ by solid-state reaction. The effects of carbon sources and carbon content on the properties of the Li₂FeSiO₄/C composites were investigated. The crystalline structure, morphology, carbon content and charge/discharge performance of Li₂FeSiO₄/C composites were determined by X-ray diffraction(XRD), scanning electron microscopy(SEM), carbon/sulfur analyzer and electrochemical measurements. As carbon content increases in the range of 5%-20%, the amount of Fe₃O₄ impurity phase decreases. The SEM micrographs show that the addition of the carbon is favorable for reducing the Li₂FeSiO₄ grain size. Using sucrose as carbon source, the Li₂FeSiO₄/C composite with 14.5% carbon synthesized at 650 ℃ shows good electrochemical performance with an initial discharge capacity of 144.8 mA?h/g and a capacity retention ratio of 94.27% after 13 cycles.

Key words: lithium ion battery; cathode; Li₂FeSiO₄

1 Introduction

In contrast to the high cost, toxicity, and relative instability of the cobalt-based compounds, LiFePO₄ is inexpensive, nontoxic, environmentally friendly and exceptionally stable both chemically and thermally, and is regarded as likely the next cathode material for rechargeable lithium-ion batteries after the layered LiCoO₂ and its derivatives[1-2]. However, this cathode suffers from the poor electronic conductivity and slow lithium ion diffusion[3-4]. In the early work, a lot of researches have been done to overcome these disadvantages, and notable enhancements in capacity and rate capability have been achieved[5-7].

Silicon is an element with natural abundance and non-toxic characteristics. Orthosilicates have intrinsic thermal stability. Recently, some reports[8-11] have indicated that silicates might be developed as a new class of cathode materials. As reported by ANTON et al[12], a further step in search for iron-based materials with aforementioned qualities seems to be the replacement of phosphorus with silicon. Nevertheless, they were found to suffer from the same drawback of poor electronic conductivity and poor rate performance as LiFePO₄. The poor high rate capability has been attributed to low electronic conductivity and slow lithium ion diffusion across the two-phase interface[13-15].

In order to improve the capacity of Li₂FeSiO₄ cathode, Li₂FeSiO₄/C composite was synthesized by solid-state reaction in this work, and the crystalline structure, morphology and charge/discharge performance of the composite were investigated in detail.

2 Experimental

The precursor of Li₂FeSiO₄/C was prepared by a solution route. Ball milling process was applied on the precursor in the presence of carbon to coat the particles with carbon, and then Li₂FeSiO₄/C composite was synthesized by solid-state reaction. Lithium acetate (99%, AR), FeC₂O₄·2H₂O (99%, AR) and Si(OC₂H₅)₄ were used as the starting materials and were dissolved in ethanol in stoichiometric amounts. The mixture was stirred at 50 ℃ for 8 h and the ethanol was evaporated. The resulting powder was mixed with various amounts of sucrose or carbon black in ethanol then ground by ball milling. After evaporating the ethanol, the mixture was heated in a horizontal quartz tube oven at 650 ℃ for 10 h in Ar atmosphere.

The powder samples were characterized by X-ray powder diffraction analysis(XRD) using Cu K_α radiation (λ=0.154 nm) and morphology of the samples was observed by a scanning electron microscope(SEM). Elemental carbon analysis of Li₂FeSiO₄/C was performed by C-S 800 Determinator (Eltar, Germany).

The cathode was made from the active material, carbon black and poly (vinylidene fluoride) binder in a ratio of 80?10?10 by mass. The components were mixed as viscous slurry in N-methyl-2-pyrrolidone solvent, coated uniformly on aluminum foil and dried at 120 ℃ for at least 6 h in vacuum. The typical cathode loading was 2.5-4.0 mg/cm². Electrochemical coin cells were assembled with lithium metal as anode, Li₂FeSiO₄/C as cathode, Celgard 2300 as separator and 1 mol/L LiPF₆ in EC?DMC?EMC (1?1?1 by volume) as electrolyte. Cells were cycled galvanostatically between 1.5 and 4.8 V at room temperature.

3 Results and discussion

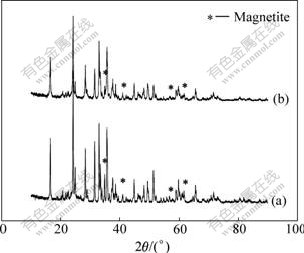

Fig.1 shows the XRD patterns of the samples prepared from the precursors with different kinds of carbon sources. The narrow diffraction peaks indicate that both samples have good crystallinity. Two impurities have been detected in the samples, and they are mainly Fe₃O₄ and a small amount of Li₂SiO₃. It is also evident that the main phases in both cases are similar. In fact, the diffraction peaks of the Li₂FeSiO₄ phase can be indexed by the orthorhombic unit cells of 6.271 1, 5.338 1, 4.960 7 ?, closely matching those of ANTON et al[2], which indicates that the addition of the carbon does not interfere with the main reaction, but prevents oxidation of Fe²⁺ and facilitates the reduction of Fe³⁺.

Furthermore, compared with the Li₂FeSiO₄/C sample prepared using carbon black as the source of carbon, the Li₂FeSiO₄/C sample synthesized using sucrose as the source of carbon shows much weaker diffraction peaks of Fe₃O₄ (2θ=34.9?), demonstrating that the content of the Fe₃O₄ impurity is rather lower.

Fig.1 XRD patterns of Li₂FeSiO₄/C samples synthesized by using carbon black (a) and sucrose (b) as sources of carbon

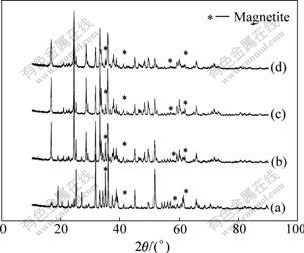

Fig.2 shows the XRD patterns of Li₂FeSiO₄/C composites with various contents of carbon. As the carbon content increases in the range of 5%-20%, the Fe₃O₄ impurity phase decreases. This indicates that the addition of the sucrose can prevent the oxidation of Fe²⁺ and facilitate the reduction of Fe³⁺, and Li₂FeSiO₄/C composites with less impurity can be obtained when the carbon content is higher.

Fig.2 XRD patterns of Li₂FeSiO₄/C samples with various contents of carbon: (a) 5.1%; (b) 8.6%; (c) 14.5%; (d) 19.8%

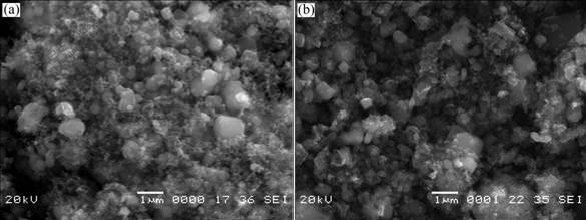

Fig.3 shows the SEM images of Li₂FeSiO₄/C powder prepared by using different carbon sources. There are many large tight particles in the Li₂FeSiO₄/C sample synthesized by using carbon black as carbon source, and a lot of tiny particles are distributed among the large ones. While much smaller and more uniform particles are observed in the Li₂FeSiO₄/C sample obtained by using sucrose as carbon source, which is considered to be better for the diffusion of lithium in the Li₂FeSiO₄ particles.

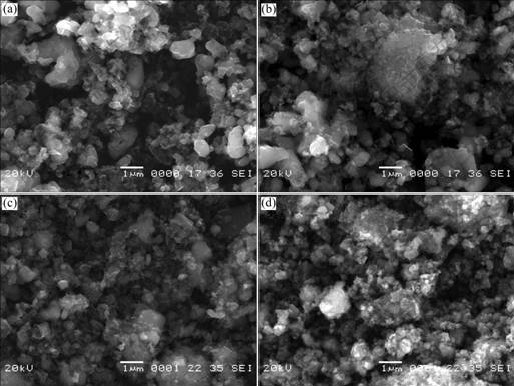

Fig.4 presents the SEM images of Li₂FeSiO₄/C composite with different contents of carbon calcined at 650 ℃. Many Li₂FeSiO₄ primary particles with regular shape and disordered carbon particles can be observed in the samples. As the content of carbon increases from 5.1% to 14.5%, the size of the Li₂FeSiO₄ primary particles tends to reduce. It can be concluded that carbon plays an important role in hindering the growth of Li₂FeSiO₄ particles during calcination. The carbon particles are distributed among the reactants and Li₂FeSiO₄ particles, and act as a disperser and agglomeration inhibitor. Thus the excessive growth and agglomeration of Li₂FeSiO₄ primary particles are hampered effectively. The small particle size of the sample is favorable for Li⁺ diffusion because it shortens the distance of Li⁺ diffusion in solid particles. But when the content of carbons reaches 19.8%, obvious agglomeration is observed in the SEM micrograph, resulting in large particle size of the sample. It is due to the agglomeration of carbon particles when the carbon content is high. As a result, the reactants and Li₂FeSiO₄ particles are poorly dispersed and Li₂FeSiO₄ primary particles agglomerate dramatically.

Fig.3 SEM images of Li₂FeSiO₄/C powder prepared using carbon black (a) and sucrose (b) as sources of carbon

Fig.4 SEM images of Li₂FeSiO₄/C samples with various contents of carbon: (a) 5.1%; (b) 8.6%; (c) 14.5%; (d) 19.8%

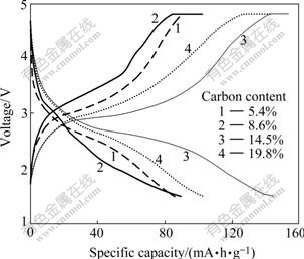

Initial charge-discharge curves for Li₂FeSiO₄/C composites with various carbon contents are shown in Fig.5. The cells are cycled between 1.5 and 4.8 V using a current rate of 10 mA/g at room temperature. The specific capacity is determined without subtracting out the mass of carbon added in synthesis of Li₂FeSiO₄/C composite. The cell performance of the cathode materials depends on the added carbon amount in the precursor. The discharge capacity increases from 85.9 to 144.8 mA?h/g with the carbon content increasing from 5.4% to 14.5%. However, Li₂FeSiO₄/C composite with 19.8% carbon content delivers a discharge capacity of 103.1 mA?h/g, which is less than that of Li₂FeSiO₄/C composite with 14.5% carbon. It can be attributed to the serious agglomeration of the particles when the carbon content is high, as shown in Fig.4.

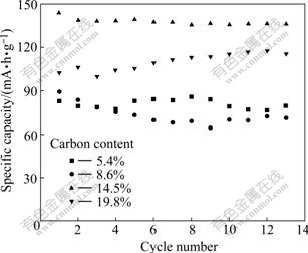

Fig.6 shows the cycling performance of Li₂FeSiO₄ cells at a current rate of 10 mA/g in the voltage range of 1.5-4.8 V. The composite with 19.8% carbon shows a capacity increase during the cycling. It is due to the serious agglomeration of the Li₂FeSiO₄ particles which results in the difficult activation of the cathode. The reversible capacity of other composites fades slightly, and the sample with 14.5% carbon delivers good electrochemical performance with a large initial capacity of 144.8 mA?h/g and a capacity retention ratio of 94.27% after 13 cycles.

Fig.5 Initial charge-discharge curves for Li₂FeSiO₄/C composites at current rate of 10 mA/g

Fig.6 Cycling performance of Li₂FeSiO₄/C composites at current rate of 10 mA/g

4 Conclusions

1) Li₂FeSiO₄/C was prepared by using carbon black or sucrose as carbon source. In comparison with the Li₂FeSiO₄/C composite made from carbon black, the composite made from sucrose as carbon source shows lower impurities and smaller particles.

2) Using sucrose as carbon source, the effects of carbon content on the characteristics of the Li₂FeSiO₄/C composite were investigated and the optimized carbon content was determined to be 14.5%. The Li₂FeSiO₄/C composite with 14.5% carbon has good crystallinity and uniform particle distribution, and shows excellent electrochemical characteristics with a large initial reversible capacity of 144.8 mA?h/g and good cycling performance at room temperature.

References

[1] PADHI A K, NJUNDASWAMY K S, GOODENOUGH J B. Phospho-olivines as positive-electrode materials for rechargeable lithium batteries [J]. J Electrochem Soc, 1997, 144: 1188-1194.

[2] PROSINI P P. LiFePO₄ for lithium battery cathodes [J]. J Electrochem Soc, 2001, 145(3): A120-A121.

[3] ZHANG Bao, LI Xin-hai, WANG Xiao-qiong, WANG Zhi-xing, GUO Hua-jun. Performance enhancement of LiFePO₄ for cathode material of lithium-ion battery [J]. The Chinese Journal of Nonferrous Mentals, 2006, 16(7): 1264-1168. (in Chinese)

[4] YAMADA A, CHUNG S C, HINOKUMA K. Optimized LiFePO₄ for lithium battery cathodes [J]. J Electrochem Soc, 2001, 148(3): A224-A229.

[5] ZHANG Bao, LI Xin-hai, ZHU Bing-quan, WANG Zhi-xing, GUO Hua-jun. Low temperature synthesis and electrochemical properties of LiFePO₄/C cathode [J]. Journal of Central South University: Science and Technology, 2006, 37(6): 505-508. (in Chinese)

[6] CHEN Z H, DAHN J R J. Reducing carbon in LiFePO₄/C composite electrodes to maximize specific energy, volumetric energy and tap density [J]. J Electrochem Soc, 2002, 149(9): A1184-A1189.

[7] PARKK K S, SON J T, CHUNG H T, KIM S J, LEE C H, KANG K T, KIM H G. Surface modification by silver coating for improving electrochemical properties of LiFePO₄ [J]. Solid State Communication, 2004, 129: 311-314.

[8] ZHOU F, COCOCCIONI M, KANG K, CEDER G. The Li intercalation potential of LiMPO₄ and LiMSiO₄ olivines with M=Fe, Mn, Co, Ni [J]. Electrochemistry Communications, 2004, 6: 1144-1148.

[9] ZAGHIB A, SALAH A A, RAVET N, MAUGER A, GENDRON F, JULIEN C M. Structural, magnetic and electrochemical properties of lithium iron orthosilicate [J]. Journal of Power Sources, 2006, 160: 1381-1386.

[10] DOMINKO R, BELE M, GABERSCEK M, MEDEN A, REMSKAR M, JAMNIK J. Structure and electrochemical performance of Li₂MnSiO₄ and Li₂FeSiO₄ as potential Li-battery cathode materials [J]. Electrochemistry Communications, 2006, 8: 217-222.

[11] LARSSON P, AHUJA R, ANTON N, THOMAS J O. An ab initio study of the Li-ion battery cathode material Li₂FeSiO₄ [J]. Electrochemistry Communications, 2006, 8: 797-800.

[12] ANTON N, ABOUIMRANE A, ARMAND M, GUSTAFAAON T, THOMAS J O. Electrochemical performance of Li₂FeSiO₄ as a new Li-battery cathode material [J]. Electrochemistry Communications, 2005, 7: 156-160.

[13] MOSKON J, DOMINKO R, KOROSEC R C, GABERSECK M, JAMNIK J. Morphology and electrical properties of conductive carbon coatings for cathode materials [J]. Journal of Power Sources, 2007, 174: 683-688

[14] ARROYO M E, ARMAND M, TARASCON J M, AMADOR U. On-demand design of polyoxianionic cathode materials based on electronegativity correlations: An exploration of the Li₂MSiO₄ system (M=Fe, Mn, Co, Ni) [J]. Electrochemistry Communications, 2006, 8: 1292-1298.

[15] DOMINKO R, CONTE D E, HANZEL D, GABERSCEK M, JAMNIK J. Impact of synthesis conditions on the structure and performance of Li₂FeSiO₄ [J]. Journal of Power Sources, 2008, 178: 842-847.
