TiB2-C复合阴极中碱金属(K、Na)的渗透及其对阴极电解膨胀的影响
来源期刊:中国有色金属学报(英文版)2013年第6期
论文作者:方 钊 张 凯 吕晓军 李林波 朱 军 李 劼
文章页码:1847 - 1853
关键词:铝电解;碱金属;钾;钠;TiB2-C复合阴极;电解膨胀
Key words:aluminum electrolysis; alkali metals; K; Na; TiB2-C composite cathode; electrolysis expansion
摘 要:在不同电解条件下,研究纯KF熔体、纯NaF熔体及其复合电解质熔体中,碱金属(K、Na)在TiB2-C复合阴极中的渗透迁移行为及其引起的阴极电解膨胀。揭示影响阴极电解膨胀性能的主要因素,同时对阴极剖面进行元素微区分析。结果表明:在非极化以及不含铝的电解质熔体中,阴极不会发生膨胀;直接放电所生成的碱金属是造成阴极膨胀的主要因素,引起的阴极最大电解膨胀率可达20.40%;含钾电解质熔体中阴极的电解膨胀率远高于不含钾电解质熔体中阴极的电解膨胀率,最高超出35.13%;与纯钾盐相比,复合电解质对阴极的破坏作用降低;此外,无论是在极化条件还是在非极化条件下,含铝电解质熔体中阴极的电解膨胀率均大于不含铝电解质熔体中阴极的电解膨胀率;同时,在非极化条件下电解质熔体中加入铝后比极化条件下电解质熔体中加入铝后所引起的阴极电解膨胀的增加更为明显。
Abstract: The behavior of alkali metals (K and Na) penetration in TiB2-C composite cathode and the induced electrolysis expansion under various conditions in KF melt, NaF melt and their composite melts were investigated. The most important influence factor on the electrolysis expansion properties of the cathode was revealed, and the elements micro-analysis of cathode profiles was performed. The results indicate that, under the condition of non-polarization and Al free, no electrolysis expansion occurs. The alkali metal produced by direct discharge reduction is the most important factor causing the electrolysis expansion, and the maximal expansion is 20.40%. Electrolysis expansion in electrolyte with K is higher than that in electrolyte without K, and the maximal excess magnitude is 35.13%. Compared with pure potassium salt, composite electrolyte has less destructive effects on the cathode. In addition, no matter under the condition of polarization or non-polarization, electrolysis expansion in electrolyte with Al is always greater than that in electrolyte without Al, and the increase amplitude of electrolysis expansion in non-polarization conditions with Al is significantly greater than that in polarization conditions with Al.
Trans. Nonferrous Met. Soc. China 23(2013) 1847-1853
Zhao FANG1, Kai ZHANG2, Xiao-jun 2, Lin-bo LI1, Jun ZHU1, Jie Li2
1. School of Metallurgical Engineering, Xi’an University of Architecture and Technology, Xi’an 710055, China;
2. School of Metallurgical Science and Engineering, Central South University, Changsha 410083, China
Received 2 December 2012; accepted 30 January 2013
Abstract: The behavior of alkali metals (K and Na) penetration in TiB2-C composite cathode and the induced electrolysis expansion under various conditions in KF melt, NaF melt and their composite melts were investigated. The most important influence factor on the electrolysis expansion properties of the cathode was revealed, and the elements micro-analysis of cathode profiles was performed. The results indicate that, under the condition of non-polarization and Al free, no electrolysis expansion occurs. The alkali metal produced by direct discharge reduction is the most important factor causing the electrolysis expansion, and the maximal expansion is 20.40%. Electrolysis expansion in electrolyte with K is higher than that in electrolyte without K, and the maximal excess magnitude is 35.13%. Compared with pure potassium salt, composite electrolyte has less destructive effects on the cathode. In addition, no matter under the condition of polarization or non-polarization, electrolysis expansion in electrolyte with Al is always greater than that in electrolyte without Al, and the increase amplitude of electrolysis expansion in non-polarization conditions with Al is significantly greater than that in polarization conditions with Al.
Key words: aluminum electrolysis; alkali metals; K; Na; TiB2-C composite cathode; electrolysis expansion
1 Introduction
Aluminum electrolysis industry is one of the pillar industries for national economic development. It accounts for about 80% of entire power consumption of the non-ferrous metals industry in China, and is the most “energy saving” potential sub-sectors in the industry [1,2]. During these years a great deal of research works have been done on energy saving of aluminum electrolysis. Low-temperature electrolytic process which can reduce heat loss, heat erosion, lower power consumption and secondary reaction has become one of the most active research topics in aluminum industry [3,4]. However, there are many problems for low temperature electrolysis, such as for low alumina solubility/dissolution rate in melts, incrustation at the bottom of cell during electrolysis, which are detrimental to the normal operation of the electrolysis. Since [K3AlF6/Na3AlF6]-AlF3-Al2O3 melt can maintain high Al2O3 solubility and good operational stability to ensure stable operation of low-temperature electrolytic process, it has become the focus of the low temperature aluminum electrolysis research [5-7]. Compared with Na in ordinary electrolyte system, K in the system has a lower ionic potential, which is easier to penetrate into the cathode’s interior and form CxK intercalation compounds. This behavior deteriorates the cathode during electrolytic process and accordingly injures the service life of aluminum reduction cells and normal industrial production significantly [8-10]. Based on semi-graphitic cathode, NAAS et al [11] investigated the influence of KF on electrolysis expansion properties of the cathode under the condition of CR(Cryolite ratio)=2.2 and Current density ρ=0.7A/cm2 at 970 °C. It was reported that electrolysis expansion of semi-graphitic cathode was only 0.3%, when KF addition was lower than 5% (mole fraction), which had little effect on the electrolysis expansion properties of cathode; but when KF addition was 20%, the electrolysis expansion was twice that of 5% KF addition under the same test conditions. LI et al [12] also confirmed that the addition of potassium cryolite should not be more than 10% (mass fraction), otherwise it would cause large electrolysis expansion of semi-graphitic cathode. TiB2-based cathodes with good wettability, which can resist strong corrosion from low temperature potassium electrolyte melts [13-15], were emerged as a promising cathode material used in aluminum electrolyte-inertia electrode system. FANG et al [16] studied the electrolysis expansion properties of TiB2-C composite cathodes in the low temperature potassium electrolyte melts. Compared with the electrolysis expansion of semi-graphite cathode measured in the same electrolyte system and electrolytic process conditions, the electrolysis expansion of pitch, furan, phenolic aldehyde and epoxy based TiB2-C composite cathode were smaller (9.0%-56.4%). ZHANG et al [17] also reported that the average annual erosion rates of pitch, furan, phenolic aldehyde and epoxy based TiB2-C composite cathode were 7.29, 5.84, 2.31 and 2.63 mm/a, respectively, which was reduced significantly compared with that of semi-graphitic cathode(15 mm/a).
However, because of the complicated compositions and structure of [K3AlF6/Na3AlF6]-AlF3-Al2O3 melt, it is difficult to distinguish the different influences of alkali metals K and Na on the electrolysis expansion properties of TiB2-C composite cathode. There are only some primary reports that the penetration ability of potassium salts on carbon-based materials was about 10 times larger than that of sodium [10,11]. It would impede further optimization of the electrolyte composition as well as the design of the TiB2-C composite cathode with high resistance to penetration. ADHOUM et al [18] investigated the electrochemical intercalation of alkali metal Na from NaF melt into graphite cathode at the temperature of 1025 °C, and found that part of alkali metal Na formed on the surface of the cathode during the electrolysis went into the graphite layer in the form of intercalation and become intercalation compounds, and the other part deposited in the pores of the cathode materials but then reached the position of intercalation by diffusion, also became intercalation compounds ultimately. At the temperature of 1163 K, LIU et al [19] studied the electrochemical intercalation of graphite cathode by alkali metal K in KF melt. They revealed that K just went into the graphite layer in the form of intercalation, and confirmed that C-K graphite intercalated compound would not only lead to the electrolysis expansion but also the erosion on the cathode which would produce peeling flakes on the surface of cathode. Further understanding the difference of the behavior of alkali metals (K and Na) penetration and clarifying the principal influencing factors of electrolysis expansion will help to the early industrialization of low temperature electrolyte melt containing K, and development of wettable TiB2-C composite cathode with high resistance to penetration.
In this work, the effects of alkali metals K and Na penetration on the electrolysis expansion properties of pitch-based TiB2-C composite cathode were investigated in 100% NaF, 100% KF and 50% NaF+50% KF melts under varius conditions. The most important effect on the expansion properties in cathode electrolysis was revealed, and the element micro-analysis of cathode cross section was performed.
2 Experimental
The formulae of TiB2-C composite cathodes are shown in Table 1. The average particle size of TiB2 powder was 12 μm, and that of the petroleum coke was 106-300 μm.
Table 1 Pitch-based formula of TiB2-C composite cathode (mass fraction, %)
First, a certain proportion of TiB2 powder and petroleum coke were mixed and kneaded in a three-dimensional motion kneader in order to mix with pitch binder in the pot. After being weighed, the materials were molded under the molding pressure of 150 MPa by a universal hydraulic press machine. The size of the obtained cathode was d20 mm×50 mm. Finally, the cathode samples were put into the alumina crucible via coke landfill, and sequentially heated according to the heating procedure shown in Fig. 1 in a box resistance furnace to obtain the TiB2-C composite cathodes.
Fig. 1 Curve of heat-up of TiB2-C composite green cathodes
The chemical reagents and materials used in the electrolysis tests were NaF, KF and aluminum block (99.99%). The specific electrolyte composition, electrolytic temperature and other test parameters are shown in Table 2.

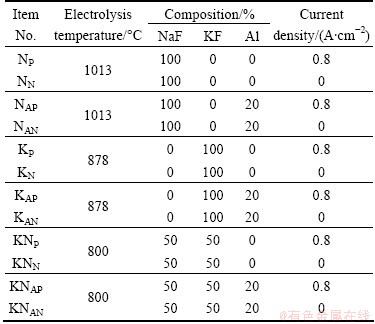

Table 2 Composition of melts, electrolysis temperature and correlative test condition
Rapoport apparatus used to test the linear expansion displacement of specimen and the cathode electrolysis expansion was figured out by
ρ=△L/L (1)
where ρ is the cathode electrolysis expansion, △L is the linear displacement of cathode expansion and L is the initial length of specimen.
The cross sections of specimens after electrolysis were analyzed by a JEOL JSM-5600LV SEM in backscatter electron image (BEI) mode. NORAN VANTAGE4105 X-ray energy dispersive spectrometry (EDS) was used to analyze the element distribution in the cross sections of specimens.
3 Results and discussion
3.1 Influence of alkali metal K and Na on cathode properties
Figure 2 shows the expansion curves of cathode during electrolysis in pure fluoride system. Three obvious characteristics are as follows.
Firstly, expansions of all the electrolyte melts under polarization are much larger than that under non-polarization. As a result of pure fluoride, the electrolysis expansion will be beyond the expansion measurement range after a very short test time. In order to facilitate the comparison, the electrolysis expansion data obtained after 10 min of electrolysis were used. Under polarization, after 10 min of electrolysis, the decreasing order of cathode electrolysis expansion is KAP>KNAP>NAP>KP>KNP>NP (28.40%, 23.27%, 18.43%, 13.56%, 11.65% and 10.41%, respectively). Under non-polarization, the electrolysis expansion is very small. 2 h later, cathode electrolysis expansion in the KAN, KNAN and NAN melts are only 0.91%, 0.43% and 0.22%, respectively, and the electrolysis expansion in the KNN, KN, NN melts can even be ignored. The main reason of this phenomenon is that alkali metal is produced on the cathode surface according to Eq. (2) under polarization when aluminum precipitates. The aluminum would not precipitate under non-polarization. Therefore, the electrolysis expansion of polarization is much larger than that of non-polarization, indicating that alkali metal generated by direct discharge reduction is the most important factor of the electrolysis expansion.

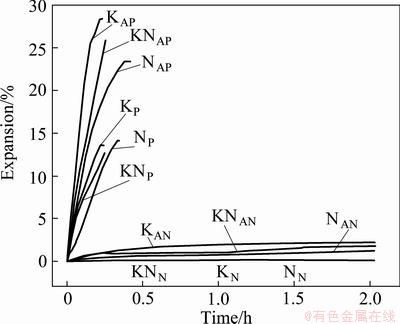

Fig. 2 Curves of cathodic electrolysis expansion obtained in fluoride system
Na+/K++e-=Na/K(dissolved) (2)
Secondly, in addition to KNN, KN and NN electrolyte melts, whether under polarization or non-polarization, electrolysis expansion in electrolyte melt with potassium is greater than the expansion in melt without potassium, such as KAP>NAP, KP>NP, KNAP>NAP and KNP>NP, the former is higher than the latters by 35.13%, 23.21%, 20.82% and 10.61%, respectively. This is because of the following aspects: 1) Electrochemical equivalent of K and Na is different (1.46 g/(A·h) for K and 0.86 g/(A·h) for Na), and therefore the precipitation amount of K is greater than that of Na under the same current density. This leads to the fact that the impact of K on the cathode is more significant than that of Na. 2) Larger atomic radius of K (227.2 pm) than that of Na (190 pm) makes expansion which is caused by infiltration of K precipitation on the cathode surface greater than that of Na. It is the necessary condition that the impact of K is greater than that of Na on cathode. 3) C-Na intercalation compounds generated by the reaction between Na penetrated into cathode and carbon mostly are high-end (such as C64Na, 8 bands), while C-K intercalation compounds generated by the reaction between K and carbon mostly are low-end (such as C8K, 1 band). This results in the concentration of C-K intercalation compounds in carbonaceous component of the cathode higher than that of C-Na intercalation compounds, causing a greater expansion of the cathode and becoming the decisive factor for greater impact of K than Na on cathode. In addition, it can be seen that, KNAP
Finally, under polarization and non-polarization conditions, cathode electrolysis expansion obtained in melts including Al is larger than that of free Al electrolyte melt, for example, KAP>KP, NAP>NP and KNAP>KNP. Besides, KAN, KNAN and NAN were also greater than KNN, KN, and NN. This is mainly due to the occurrence of replacement reaction between Al and electrolyte melt according to Eq. (3).
Al(l)+3NaF/KF(in electrolyte)=3Na/K(g)+AlF3(in electrolyte) (3)
Equation (3) will occur when Al is added into the melts. Under this circumstance, besides alkali metal obtained through direct discharge reduction, additional alkali metals obtained through Eq. (3) are also generated no matter under polarization or non-polarization. Some of these additional alkali metals dissolve or evaporate, but the others penetrate into the cathode and impact the expansion of cathode. Thus, adding Al to the melt leads to larger expansion.
In addition, it can be seen that, for pure fluoride melt, electrolysis expansion caused by the addition of Al under non-polarization conditions is much larger than that under polarization conditions, for example, NAN is 94.58% higher than NN, while NAP is only 43.49% higher than NP. Likewise, KAN is 90.99% higher than KN, but KAP is only 52.26% higher than the KP. These results show that alkali metals produced by replacement reaction under non-polarization conditions have greater impact than that under polarization conditions. This is mainly because that there is no discharge reaction of alkali metal ion in non-polarization conditions. At this circumstance, the replacement reaction occurs sufficiently, finally exhibits greater impact on the cathode. While in polarization conditions, the discharge reaction of alkali metal ion plays dominant role and inhibits the replacement reaction. Based on the above analysis, it is confirmed that the alkali metal generated by direct discharge reduction is the most important factor of electrolysis expansion.
3.2 Element micro-analysis of cross-section of cathode
Figure 3 shows the element surface scan images of the cross-section of TiB2-C composite cathode after electrolysis expansion test in polarization and non-polarization conditions. Fig. 3(a) indicates that Na does not penetrate into the carbon aggregates, which just congregates in the mixed area of binder and TiB2 under non-polarization conditions without Al. No element can penetrate into TiB2, and accordingly Na is essentially present in the binder phase. It can also be seen that element F is present in the binder phase, which indicates that Na in the binder phase is in ion form and penetrates together with the electrolyte. In non-polarization conditions, there is no evidence of the formation of Na, which is the prerequisite for electrolysis expansion. Figure 3(b) shows that Na infiltrates into both the binder and the carbon aggregates at polarization conditions without Al. Figure 3(c) shows that, under non-polarization conditions with Al, similar to Fig. 3(b), Na also infiltrates into both the binder and the carbon aggregates, but the content of Na in the aggregate carbon is less than Fig. 3(b), which confirms that alkali metal generated by direct discharge reduction is the most important factor of electrolysis expansion. At the same time, it is failed to detect the F in the aggregate carbon. This indicates that Na penetrates into the cathode in the form of alkali metal which confirms the replacement reaction between Al and electrolyte. Unlike Figs. 3(b) and (c), Fig. 3(d) displays that the permeability of Na is very intense, and the content of Na in any region of the cross section is almost the same. Neither the region of aggregate carbon nor the region of binder can be distinguished.
Alkali metals are generated by direct discharge reduction and replacement reaction under polarization conditions with Al. Compared with NP and NAN melts, large amount of alkali metals are generated. Therefore, it leads to the fact that the impact on the cathode is also large, which is in consistent with the results in Fig. 2.
Figure 4 shows the EDS analysis of different points in radial section of specimen KNAP after electrolysis. Firstly, it can be seen from Fig. 4(b) that, as for petroleum coke, both K and Na penetrate into it in various degrees, but the penetration of F is not found. This indicates that K and Na penetrating into the petroleum coke are not ionic, but the elementary substance. Secondly, Fig. 4(c) shows that, as for coking carbon of binder, F, Al, K and Na all penetrate into cathode in various degrees, indicating that K and Na penetrate into the coking carbon in the form of electrolyte or elementary substance. From Fig. 4(d), it can be found that no element penetrate into TiB2, revealing the good corrosion resistance of TiB2. Table 3 shows the elements content of different zones in the cross section of specimen KNAP after electrolysis. The content of K and Na in the petroleum is larger than that in the coking carbon of binders. This suggests that during the electrolysis process in low temperature electrolyte containing potassium, coking carbon of binders in the composite cathode is the easiest to be corroded, and the corrosion resistance of which determines the holistic performance of the cathode. Furthermore, the content of K is larger than that of Na in the same region, indicating that K has stronger penetrate ability than Na.
Fig. 3 Element micro-analysis of cross-section of cathode after electrolysis expansion test in different fluoride melts
In the process of electrolysis, because of the cathode polarization effect, potassium and sodium are precipitated on the surface of cathode. Subsequently, they will penetrate into carbon cathode under the bonding action between the electron in orbit S of alkali metal and electron π in carbon, forming alkali-graphite intercalation compounds. These compounds show a typical structural character that is the order phenomenon: the intercalation complexes are arranged in the host body between the graphite layers with certain period.
As for sodium precipitated on the surface of cathode in the process of electrolysis, when it penetrates into the cathode, the obtained C-Na intercalation compounds generated by the reaction between Na and carbon are mostly high-end (such as C64Na, 8 bands). But C-K intercalation compounds generated by the reaction between K and carbon are mostly low-end (such as C8K, 1 band), which makes the concentration of C-K intercalation compounds in the cathode larger than that of C-Na intercalation compounds, leading to a greater destructive effects on the cathode, and becoming the decisive factor for more significant impact of K than Na on cathode [21,22]. Because cathode materials contain a certain amount of open porosity, electrocapillarity will exist in the process of electrolysis. At this circumstance, a mass of electrolyte would penetrate into the cathode, and fill the pores, making the interface between electrolyte and cathode increase. Consequently, the penetration of K, Na to the cathode is aggravated.

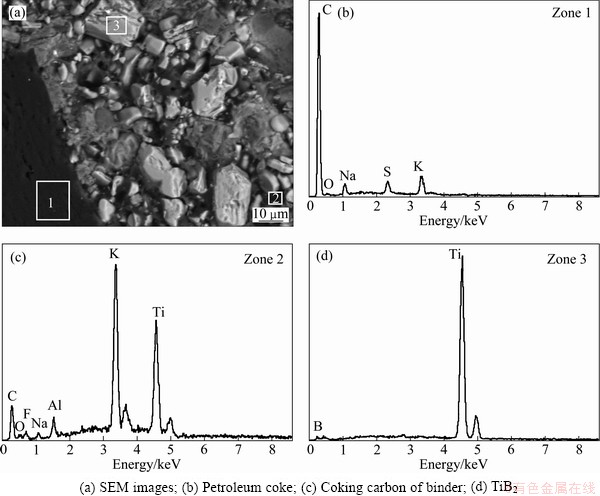

Fig. 4 XDS of radial section of specimen KNAP after electrolysis

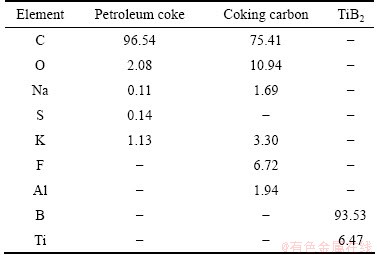

Table 3 Elements content of different points in cross section of specimen KNAP after electrolysis (mole fraction, %)
4 Conclusions
1) Electrolysis expansion obtained under the condition of polarization is much larger than that obtained under the condition of non-polarization and the maximal expansion is 20.40%. Direct discharge reduction is the most important factor causing the electrolysis expansion.
2) No matter under polarization or non-polarization, electrolysis expansion obtained in electrolyte melt containing potassium is greater than that in melt without potassium and the maximal excess magnitude is 35.13%. Composite electrolyte consisting of sodium cryolite and potassium cryolite can reduce the destruction to the cathode resulting from melts.
3) Under the conditions of co-existence of Al and electrolyte, Al will have effect on the electrolysis expansion of cathode, but its influence is far less than that of polarization and potassium cryolite. In addition, electrolysis expansion caused by addition of Al under non-polarization conditions is much larger than that under polarization conditions. Polarization inhibits the replacement reaction between Al and electrolyte.
4) After electrolysis, K and Na penetrate into the coking carbon of binders in the form of elementary substance and ionic, while, in the carbon aggregates, K and Na only exist in the form of coking carbon of binders. In contrast, the penetration ability of K and Na to binder phase is stronger than that to carbon aggregates. Binder phase is the weak links in TiB2-C composite cathode and strengthening the corrosion resistance of binder helps to promoting the overall performance of cathode.
References
[1] The novel aluminum reduction cell technology for the implementation of energy conservation goals [EB/OL]. [2011-6-23]. http://nm.chem99.com/news/335267.html. (in Chinese)
[2] VERBRUGGE M W, KRAJEWSKI P E, SACHDEV A K, SCHROTH J G, SIGLER D R, CARLSON B E. Challenges and opportunities relative to increased usage of aluminum within the automotive industry [C]//JOHNSON J A. Light Metals 2010. USA: TMS, 2010: 3-11.
[3] JAMES W E, HALVOR K. Sustainability, climate change, and greenhouse gas emissions reduction: responsibility, key challenges, and opportunities for the aluminum industry [J]. JOM, 2008, 60(8): 25-31.
[4] JAMES W E. The evolution of technology for light metals over the last 50 years: Al, Mg, and Li [J]. JOM, 2007, 59(2): 30-38.
[5] JACOBS T B, BROOKS R. Electrolytic reduction of aluminum: United States, 5279715 [P]. 1994.
[6] GAO Bing-liang. New studies on low-temperature aluminum electrolysis [D]. Shenyang: Northeastern University, 2003: 3-10. (in Chinese)
[7] WANG Jia-wei. Research on liquidus temperature and Al2O3 dissolving ability of Na3AlF6-K3AlF6-AlF3 system and corrosion resistance of NiFe2O4 based inert anodes in low temperature aluminum electrolysis [D]. Changsha: Central South University, 2008: 7-14. (in Chinese)
[8] BERGER D, CARTON B, METROT A, HEROLD A. Interactions of potassium and sodium with carbons [C]//WALKER P L. Chem Phys Carbon. USA: Marcel Dekker, 1975: 1-36.
[9] DIEGO S, CLAUDIO T, ACHILLE U. Applications of potassium-graphite and metals dispersed on graphite in organic synthesis [J]. Pure & Appl Chem, 1985, 57(12): 1887-1896.
[10] CHAN B K C, THOMAS K M, MARSH H. The interactions of carbons with potassium [J]. Carbon, 1993, 31(7): 1071-1082.
[11] NAAS T, OYE H A. Interactions of alkali metal with cathode carbon [C]// ECKERT C E. Light Metals 1999. USA: TMS, 1999: 193-198.
[12] LI Jie, FANG Zhao, LAI Yan-qing, Xiao-jun, TIAN Zhong-liang. Electrolysis expansion performance of semi-graphitic cathode in [K3AlF6/Na3AlF6]-AlF3-Al2O3 bath system [J]. Journal of Central South University of Technology, 2009, 16(3): 422-428.
[13] MORTEN S, OYE H A. Cathodes in aluminum electrolysis [M]. Aluminium-Verlag, 1994: 66-73.
[14] MCMINN C J. Review of RHM cathode development [C]// EUEL R C. Light Metals 1992. USA: TMS, 1992: 419-425.
[15] PAWLEK R P. Cathodes wettable by molten aluminum for aluminum electrolysis cells [J]. Aluminium, 1990, 66(8): 573-582.
[16] FANG Zhao, LI Jie, Xiao-jun, LAI Yan-qing, TIAN Zhong-liang. Electrolysis expansion performance of TiB2-C composite cathode in [K3AlF6/Na3AlF6]-AlF3-Al2O3 bath melts [C]// JOHNSON J A. Light Metals 2010. USA: TMS, 2010: 901-906.
[17] ZHANG Kai, FANG Zhao, Xiao-jun, LAI Yan-qing, LI Jie. Corrosion resistance of TiB2-C cathode composites for aluminum electrolysis in [K3AlF6/Na3AlF6]-AlF3-Al2O3 melts [J]. Journal of Central South University of Technology and Science Technology, 2011, 42(3): 588-594. (in Chinese)
[18] ADHOUM N, BOUTEILLON J, DUMAS D, POIGNET J C. Electrochemical insertion of sodium into graphite in molten sodium fluoride at 1025 °C [J]. Electochimica Acta, 2006, 51(25): 5402-5406.
[19] LIU Dong-ren, YANG Zhan-hong, LI Wang-xing, QIU Shi-lin, LUO Ying-tao. Electrochemical intercalations of potassium into graphite in KF melt [J]. Electrochimica Acta, 2010, 55(3): 1013-1018.
[20] LI Jie, FANG Zhao, Xiao-jun, TIAN Zhong-liang, LAI Yan-qing, XU Jian. Effects of superheat and current density on electrolysis expansion performance of semi-graphitic cathode at low temperature [J]. The Chinese Journal of Norferras Metals Society of China, 2009, 19(12): 2222-2229. (in Chinese)
[21] CLAIRE H, ALBERT H, PHILIPPE L. Ternary graphite intercalation compounds associating an alkali metal and an electronegative element or radical [J]. Solid State Sciences, 2004, 6(1): 125-138.
[22] GE Jun-yi, CAO Shi-xun, CAI Chuan-bing, ZHANG Jin-cang. Recent progress of graphite-intercalation-compounds supercondutors [J]. Chinese Journal of Low Temperature Physics, 2008, 30(1): 1-7. (in Chinese).
方 钊1,张 凯2,吕晓军2,李林波1,朱 军1,李 劼2
1. 西安建筑科技大学 冶金工程学院, 西安 710055;
2. 中南大学 冶金科学与工程学院, 长沙 410083
摘 要:在不同电解条件下,研究纯KF熔体、纯NaF熔体及其复合电解质熔体中,碱金属(K、Na)在TiB2-C复合阴极中的渗透迁移行为及其引起的阴极电解膨胀。揭示影响阴极电解膨胀性能的主要因素,同时对阴极剖面进行元素微区分析。结果表明:在非极化以及不含铝的电解质熔体中,阴极不会发生膨胀;直接放电所生成的碱金属是造成阴极膨胀的主要因素,引起的阴极最大电解膨胀率可达20.40%;含钾电解质熔体中阴极的电解膨胀率远高于不含钾电解质熔体中阴极的电解膨胀率,最高超出35.13%;与纯钾盐相比,复合电解质对阴极的破坏作用降低;此外,无论是在极化条件还是在非极化条件下,含铝电解质熔体中阴极的电解膨胀率均大于不含铝电解质熔体中阴极的电解膨胀率;同时,在非极化条件下电解质熔体中加入铝后比极化条件下电解质熔体中加入铝后所引起的阴极电解膨胀的增加更为明显。
关键词:铝电解;碱金属;钾;钠;TiB2-C复合阴极;电解膨胀
(Edited by Chao WANG)
Foundation item: Project (2009BAE85B02) supported by the National Key Technology Program of China; Project (QN1221) supported by the Science and Technology Funds of Xi’an University of Architecture and Technology, China
Corresponding author: Zhao FANG; Tel: +86-29-82202923; E-mail: fangzhao889@126.com
DOI: 10.1016/S1003-6326(13)62669-2
