Preparation and properties of nano-CeO₂/Zn composites

WANG Qian(王  乾)^{1, 2}

1. Department of Die, Changzhou Institute of Light Industry Technology, Changzhou 213164, China;

2. Graduate School of Southeast University, Nanjing 210096, China

Received 15 July 2007; accepted 10 September 2007

Abstract: The nano-composite powders of CeO₂/Zn were prepared with high energy ball milling and the nano-composite materials of CeO₂/Zn were fabricated with vacuum sintering powder metallurgy. Meanwhile, the composite and structure were analyzed by the means of XRD and FESEM. From the comparison of different nano-CeO₂ contents composites, the best corrosion resistance and hardness, and the optimum content of nano-CeO₂ were achieved. The result shows that corrosion resistance, hardness and uniformity of metal structure can be improved significantly with nano-CeO₂; at the same time, the optimal corrosion resistance, hardness and microstructure are obtained when the mass fraction of nano-CeO₂ is 1%.

Key words: high energy ball milling; CeO₂; nanocomposite; corrosion resistance; hardness

1 Introduction

The nanocomposite is the advanced subject of the research in high performance composite material. The performance of nanocomposite material is better than that of normal composite material[1-2]. Consequently, preparation of nanocomposite material is a valid method to obtain high performance material. Rare earth elements have a special function in improving material performance, especially corrosion resistance[3-5]. The improvement of corrosion resistance by rare earth elements added to pure Zn has been the purpose of studies by HINTON and WILSON firstly in 1980s[6]. It is suggested that the CeCl₃ of 1.0 g/L can make the corrosion velocity of the pure zinc as low as 1/10 of original, and that of the electroplating zinc as low as 1/2 of original. After the corrosion experiments, there is a layer of yellow film on the surface of both the pure Zn and electroplating zinc. And then HINTON[7] studied the composition and structure of the film ulteriorly, and discovered that the main compositions in the film were CeO₂ and Zn. In this work, the nano-CeO₂ and Zn powder were used to prepare nano-composite materials of CeO₂/Zn, and the performance was studied.

2.1 Preparation of nano-CeO₂/Zn composite powders with high energy ball milling

The homogenization of nano-CeO₂/Zn composite materials prepared by vacuum sintering powder metallurgy were decided by the granularity difference of the two kinds of powders, nano-CeO₂ and Zn[8]. The grain size of nano-CeO₂ powder was so different from pure Zn powder that the homogenization becomes worse. And the nano-CeO₂ particles are reunited in the compound based on Zn, so it can hardly carry out the homogenization of the material. To solve this problem, the key is to process nano-CeO₂/Zn composite powders. Consequently, the composite powder was prepared by high energy ball milling[9-11], the nano-CeO₂ particles were evenly distributed in the compound based on Zn, and the microstructure and organization were discussed.

The starting materials used in this study were Zn powders of 99.0% purity with a particle size range of 47-100 μm and CeO₂ powder of 99.5% purity with a mean size of 30 nm. A water-cooled horizontal ball mill with the rotation speed of 15.18 and steel balls of    3, 6 and 10 mm in diameters with ratio of 3?6?10 were employed. Zn and CeO₂ powders with mass ratio of 8?1 were added to the ball mill. The ball-to-powder mass ratio was selected to be 30?1. Pumping was repeated for three times to achieve a vacuum of 100 Pa, followed by argon gas charging. The powders were milled for 120 min[12-13].

2.2 Preparation of nano-CeO₂/Zn composite blocks by vacuum sintering powder metallurgy

The cylindrical specimens were produced by hot-press sintering at 40 MPa and 370 ℃ for 2 h under vacuum[14-15]. The hot pressing parameters were as follows (values in parentheses are CeO₂ mass fractions): Zn-CeO₂ (0.1%): 9 t, 2 h, 370 ℃, 6 ℃/min; Zn-CeO₂(1%): 9 t, 2 h, 370 ℃, 6 ℃/min; Zn-CeO₂(5%): 9 t, 2 h, 370 ℃, 6 ℃/min.

2.3 Microstructure evaluation of nanocomposite materials

X-ray diffraction(XRD) patterns were obtained at a scanning rate of 2(?)/min by using a fully automated diffractometer (Model Bruker D8 ADVANCE, Germany) with Cu K_α (0.154 06 nm) radiation. A scanning electron microscopy (SEM) (Model LEO 1530 VP, Germany) coupled with energy dispersive X-ray spectrum (EDS) was used to investigate the morphology and the element distribution of the composites.

2.4 Corrosion resistance test

The effect of CeO₂ nanoparticles on the corrosion resistance was measured. And two kinds of corrosive media were used.

1) The specimens were soaked in the spray tank full of 3.5% NaCl. After corroded for 36 h, they were rinsed, dried and weighted.

2) The specimens were soaked in 0.5 mol/L MgSO₄ solution (pH=1) at room temperature. After corroded for 0.5 h, they were rinsed, dried and weighted. The process was repeated six times, and the total corrosion time was 3 h.

The corrosion resistance was evaluated by the mass loss per area, ?m/S (?m is the mass loss and S is the surface area).

2.5 Hardness test

The hardness of specimens was measured by a Rockwell hardness tester.

3.1 Corrosion resistance

The corrosive results of the specimens on salt-spray condition are shown in Fig.1. It can be seen that, when the mass fraction of nano-CeO₂ is 1% the corrosion resistance is the best. With further increase of nano-CeO₂ to 5%, the corrosion resistance reduces.

Fig.1 Corrosion rates of samples in salt-spray corrosion

The corrosive results of the specimens in MgSO₄ solution are shown in Fig.2. The similar results are found to those in salt-spray corrosion.

Fig.2 Corrosion rates of samples in 0.5 mol/L MgSO₄ with pH=1.0

3.2 Hardness performance

The Rockwell hardness of samples is shown in Fig.3. The hardness of the specimen with nano-CeO₂ content of 0.1% is lower. When nano-CeO₂ is increased to 1%, the hardness is the highest. With further increasing the content of nano-CeO₂ to 5%, the hardness reduces.

The addition of nano-CeO₂ can increase the hardness of the material based on Zn, due to the fact that the nano-CeO₂ particles are very fine and they are distributed homogeneously on the Zn matrix. It engenders the dispersion strengthening of the matrix metal obviously. But an excessive amount of nano-CeO₂ is reunited and unevenly distributed, resulting in the reduction of hardness.

Fig.3 Hardness (HRA) of samples

3.2 Analysis of organization structure

The XRD patterns of nano-CeO₂/Zn composite are shown in Fig.4. It can be seen that except a small amount of zinc oxidized because of operational reasons, there is no new alloy phase, which indicates the nano-composite materials of CeO₂/Zn are gained.

Fig.4 XRD pattern of nano-CeO₂/Zn composite

The SEM micrograph for the powders milled for 120 min is shown in Fig.5. The nano-CeO₂ particles distribute either on the surface of Zn micro-flake or around the peripheral layer of Zn particle. The Zn particles become small obviously, with the CeO₂ particles in a nano size.

The SEM micrographs of sintered nano-CeO₂/Zn composite is shown in Fig.6. Fig.6(a) shows that the grains of the bulk are fine and the structure is dense. Fig.6(b) shows that the pores distribute homogeneously. This indicates that the sintered material has an uniform structure and steady performance.

After sintering, a few of CeO₂ particles dissolve into the Zn grains, which makes the structure more even and denser, the cell lattice increased, the grains refined and the preferred orientation promoted to single-crystal plane in the crystallization process. This is a reason of the corrosion resistance increasing of nano-composite of CeO₂/Zn.

Fig.5 SEM micrograph of milled CeO₂/Zn powder

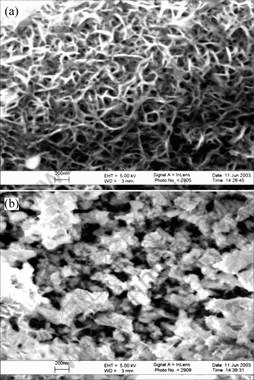

Fig.6 SEM micrographs of sintered nano-CeO₂/Zn composite

1) High energy ball milling and vacuum sintering powder metallurgy are effective techniques for preparing nano-composite of CeO₂/Zn. The XRD pattern and FESEM micrograph show that there is no new alloy phase, and the products have uniform structure and steady performance.

2) The corrosion resistance, hardness and uniformity of metal structure can be improved significantly with nano-CeO₂, the optimal corrosion resistance, hardness and microstructure are obtained when the mass fraction of nano-CeO₂ is 1%.
