Preparation and electrocatalytic properties of Ti/IrO₂-Ta₂O₅ anodes for

oxygen evolution

LI Bao-song(李保松), LIN An(林 安), GAN Fu-xing(甘复兴)

School of Resource and Environmental Science, Wuhan University, Wuhan 430079, China

Received 20 October 2005; accepted 7 March 2006

Abstract: The preparation and electrocatalytic activity for oxygen evolution of the thermally prepared Ti anodes coated with    IrO₂ -Ta₂O₅ were studied. The structure and morphologies of the oxide films with different contents of IrO₂ were determined by XRD and SEM respectively. Their electrochemical properties were studied by Linear Sweep Voltammetry, Tafel Plot and Cyclic Voltammetry. The results show that iridium and tantalum can form solid solution and the mutual solubility is affected by the ratio of Ir to Ta in coating solution. With increasing IrO₂ content in the coatings, the amount of fine crystallites of IrO₂ is increased and the electrocatalytic capability of oxygen evolution is strengthened. The coating adhesion and rigidity decrease, which affects electrochemical activity of the anode when the content of IrO₂ is too high. The electrochemically active surface area is determined not only by the content of IrO₂ but also the structure and morphology of the anode coatings. It is probably due to the existence of proper quantities of inert Ta₂O₅ which results in a typical morphology of cracks and solid solution structure.

Key words: IrO₂-Ta₂O₅; electrocatalytic activity; oxygen evolution; oxide coated anode

1 Introduction

Oxygen and chlorine evolution reaction are the common and most important electrochemical reactions in electrolysis industry. As the Ti/RuO₂-TiO₂ anode has been successfully developed and widely employed in the electrochemical industry, the electrocatalytic anodes for chlorine evolution have attracted much attention in the past decade and display a huge economic and social value[1,2]. However, the performance of RuO₂-TiO₂ anodes which exhibit excellent capability for chlorine evolution deteriorate quickly in oxygen evolving conditions such as electrogalvanizing of steel, electro- winning of some nonferrous metals, electrometallurgy of sheet copper for printing circuitry and sulfate chromium electroplating[3]. Depending on the application, materials with low over potential for oxygen evolution reaction are required. Nevertheless, the study of electrocatalytic activity anode of oxygen evolution is more difficult than that of chlorine evolution due to the corrosive electrolytes of sulfate solution and the oxidative medium[4-6]. IrO₂-Ta₂O₅ anodes thermally prepared on titanium substrates have received much attention as the most dominant catalyst for oxygen evolution in electrolysis industrial. This is because IrO₂-Ta₂O₅ coating exhibits high corrosion-resistant properties and the best electrocatalytic activity for the O₂ evolution reaction in sulfate system[7]. A lot of work has been done on the preparation and characterization of IrO₂-Ta₂O₅ anode and this anode has been widely used for oxygen evolution in the electrochemical industry. Nevertheless, the mechanism of electrocatalytic activity for O₂ evolution has not been sufficiently investigated in the previous literatures. The deep understanding of the relationship among composition, microstructure, morphology and electrocatalytic activity is still a challenge for electrochemists[8-10]. These problems such as unsatisfied stability, a very limited service life in oxygen evolution condition due to corrosive and oxidative environment, unclear mechanism of the electrocatalytic reaction of oxygen evolution, haven’t been solved completely yet, which limits their application largely.

In this investigation, the morphology, micro- structure and the electrocatalytic properties of the Ti/IrO₂-Ta₂O₅ anodes with different mole ratios of IrO₂ were investigated by XRD and SEM respectively.

Electrochemical properties were studied by Linear Sweep Voltammetry, Tafel Plot and Cyclic Voltammetry. Mechanism of electrocatalytic activity of O₂ evolution and the internal relationship among composition, morphology, microstructure and electrocatalytic properties were analyzed.

2 Experimental

2.1 Electrode preparation

The anodes were prepared by thermal decomposition on titanium substrates at 500 ℃. The precursors H₂IrCl₆ and TaCl₅ were dissolved in hydrochloric acid and ethanol, in which the total metal concentration was kept at around 0.2 mol/L. Solutions were prepared using deionized water and reagent grade chemicals. Titanium plates (TA1, 20 mm×20 mm×1.5 mm), which was used as the support for the oxide films, were initially sand-blasted or degreased in acetone and etched in 10% boiling oxalic acid solution for 2 h. After being rinsed with deionized water, the IrO₂ layers were obtained by brushing the corresponding coating solution on Ti substrates. After being dried at 100 ℃ for the solvent being evaporated, the samples were heated at 500 ℃ for 8-15 min. The entire procedure was repeated about 10 to 20 times until the amount of iridium oxide formed on the titanium substrate was 15 g/m², then the samples were heated at the same annealing temperature for 1 h.

2.2 Electrochemical measurement

All of the electrochemical measurements were carried out in a typical three electrodes electrochemical glass cell, taking platinum foil as a counter-electrode and saturated calomel electrode(SCE) as a reference electrode. These experiments were performed in 0.5 mol/L H₂SO₄ solution at 25 ℃ with a CHI660B potentiostat. Accelerated electrolysis life tests were carried out under the condition of 0.5 mol/L H₂SO₄ solution, 2 A/cm² of anodic current density, Ti plate as a counter electrode and 40 ℃. As for electrochemical tests, the surface of the specimen was covered with epoxy resin except for the working area (1 cm²) on one side [11].

2.3 Microstructure analysis

The morphology and surface composition of the oxide electrodes were analyzed by S-650 scanning electronic microscope(SEM). The operating voltage of electronic beam was 25 keV for morphological observation. X-ray diffraction(XRD) was used to analyze the structure of coatings. The inspection was carried out on a D/MAX-R3 type diffractometer equipped with   Cu K_α radiation, 40 keV and nickel filter. The scanning rate was 8 (?)/min.

3 Results and discussion

3.1 Structure and morphology

The morphologies of the IrO₂-Ta₂O₅ coating have been observed by SEM. Fig.1 presents the scanning electron micrographs for freshly prepared IrO₂-Ta₂O₅ oxide anodes with different fractions of IrO₂ thermally prepared at 500℃. As can be seen from Fig.1, the surface morphologies are different with the IrO₂ content varied in the coating though they are all composed of cracks and flat area on the whole. As for 10%IrO₂+ 90%Ta₂O₅ coating, it is clear that the surface features are islands separated by cracks and there is no fine particles aggregated. The cracks are wide and deep compared with the others. As for 40%IrO₂+60%Ta₂O₅ coating, the microstructure of the coating is heterogeneous in the whole range. The cracks are less and narrow in comparison with sample in Fig.1(a). The surface observation of Fig.1(b) by SEM at a large magnification reveals that the segregated IrO₂ particles form though the amount is less than that of Fig.1(c). However, as for 70%IrO₂+ 30%Ta₂O₅, the surface of the anode consists of dried-mud cracks surrounded by compact areas with much superficial agglomerates, which tends to connect to form networks. A large number of fine particles aggregate in the gap of the cracks, which is consistent with the morphology in Refs.[12,13]. But a large number of fine particles spread all over the surface of the 100% IrO₂ coating and few cracks exist on the surface. This indicates that there is an internal relationship between the composition and morphology. With the increasing of IrO₂ content in the coating, more finer crystallites of IrO₂ aggregate on the surface, which has a significant influence on the electrocatalytic capability of oxygen evolution. However, the coating adhesion and rigidity will decrease, which affects electrocatalytic activity of the anode when the content of IrO₂ is too high. The electrochemically active surface area is determined not only by the content of IrO₂ but also the structure and morphology of the anode coating. It is probably due to the existence of proper quantities of inert Ta₂O₅, which results in a typical morphology of cracks and solid solution structure. The solid solution structure is helpful to improving the anode corrosion resistance. The morphology of cracks could improve anode active surface area and electrocatalytic activity of oxygen evolution. It can be concluded that the microstructure of the IrO₂-Ta₂O₅ anodes can be controlled by adjusting the component content of coating solution.

Fig.1 SEM images of IrO₂-Ta₂O₅ anodes thermally prepared at 500 ℃: (a) 10% IrO₂; (b) 40% IrO₂; (c) 70% IrO₂; (d) 100% IrO₂

XRD patterns of the coatings are shown in Fig.2 and Fig.3. The resulting peak positions and intensities were compared with the JCPDS reference files for IrO₂(No.15-870), Ta₂O₅ (No. 21-1198) and Ti (No.5- 682). As can be seen from the XRD patterns, the type and number of crystallite phase vary with the content ratio of Ir to Ta. The peaks of IrO₂ are fairly narrow and strong. This suggests a good crystallinity of IrO₂. So the segregated crystallites on coating surface can be considered the enriched IrO₂ rutile[14]. Diffraction peaks corresponding to the Ti support are also observed but no TiO₂ is detected. Ti may come from the penetration of X-ray to reach the substrate in some thin areas and/or the diffusion into the coating from substrate during the thermal preparation[15-17]. There are no obvious peaks of Ta₂O_5. The amorphous peaks of β-Ta₂O₅ only appear in 90% Ta₂O₅ coating and the intensities are not strong. These results suggest that the amount of β-Ta₂O₅ decreases quickly with the content of iridium increasing. As IrO₂ content is up to 55%, the crystallite phase in the mixture exists entirely as rutile phase and none of amorphous peaks is detected. This result indicates that the crystallization of Ta₂O₅ is affected by IrO₂ component. Apart from β-Ta₂O₅, Ti and IrO₂ rutile, a certain amount of undetectable amorphous crystallite phases are also identified with IrO₂ mole fraction of no more than 40%. The presence of the undetectable phases indicates an incomplete decomposition of the corresponding chloride mixture.

Fig.2 XRD patterns of Ti/IrO₂-Ta₂O₅ anodes with different mole fractions of IrO₂ thermally prepared at 500 ℃: (a) 10% IrO₂;     (b) 40% IrO₂; (c) 70% IrO₂; (d) 100% IrO₂

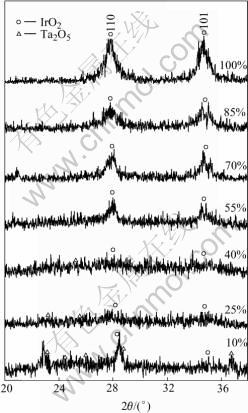

Fig.3 XRD patterns of IrO₂-Ta₂O₅ anodes with different mole ratios of IrO₂ in scanning range of 20° to 38°

Fig.3 presents XRD patterns of the IrO₂-Ta₂O₅ anodes in the range of 20? to 38?. It indicates that there is a solid solution of Ta component in IrO₂ rutile in IrO₂-Ta₂O₅ coating and the solubility of Ta in rutile phase is affected by the ratio of Ir to Ta. MASATSUGU [18] and KRYSA et al[19] reported that since the ion radius of Ta³⁺, Ta⁵⁺ and Ir⁴⁺ are extremely close (0.74, 0.72 and 0.71 ?, respectively), Ir and Ta compounds tend to form a solid solution during the thermolysis formation of the mixed oxides. They also pointed out that the rutile lattice is deformed and the cell volume increases due to access of a larger ion of Ta component[20]. The finer the crystallites of IrO₂, the more contributions of Ta₂O₅ modification to the mixed modified phase. The existence of proper quantities of inert Ta₂O₅ in the coating results in a typical morphology of cracks and solid solution structure. Proper ratio of Ir to Ta leads to an improvement of electrocatalytic activity of oxygen evolution and good electrolysis durability.

3.2 Polarization behaviors

It has been widely accepted that, on metals and/or oxides, the minimum required potential for oxygen evolution is determined by the metal/metal oxide or the lower metal oxide/higher metal oxide couple[21]. As for IrO₂ based oxide anodes, IrO₂/IrO₃ couple is generally concerned as the oxygen evolution governing couple. Fig.4 shows that the current of oxygen evolution at 1.5 V on Ti/IrO₂-Ta₂O₅ anodes as a function of IrO₂ content_. The current increases slowly from 10% to 40%. Then the current increases quickly and reaches the maximum at the content of 70% IrO_2. At the content of 100% IrO₂, the current of oxygen evolution is high. Nevertheless, the adhesion and rigidity of the coating are worse in comparison with the others. As shown in Fig.5(a), with the IrO₂ content increasing, the maximum current of oxygen evolution increases quickly from 10% to 45%. Then the maximum current is nearly steady at 100% IrO₂ content on the whole. On the contrary, the overpotential of oxygen evolution drops quickly from 10% to 60% and then it is nearly stable. The characterization of corrosion current and corrosion potential can be seen in Fig.5(b). Fig.6 shows the Tafel Plot and Linear Sweep Voltammetry of Ti/IrO₂-Ta₂O₅ electrodes in 0.5 mol/L H₂SO₄ solution at 25 ℃. The reason of current vibration of 40% IrO₂ on Tafel line in Fig.6(b) is that the anode reaction surface area is varied as the oxygen bubbles form and burst on the coating surface during the course of oxygen evolution.

Fig.4 Current of O₂ evolution at φ=1.5 V (vs SCE) on Ti/IrO₂- Ta₂O₅ anodes

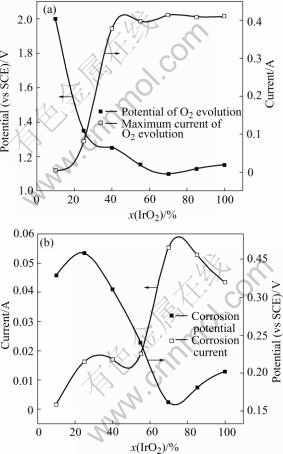

Fig.5 Overpotential and maximum current of oxygen evolution (a), corrosion current and corrosion potential (b) of Ti/IrO₂-Ta₂O₅ electrodes

3.3 Cyclic voltammetry and electrocatalytic activity

The voltammetric charge capacity (Q) obtained by integration of the cyclic voltammograms indicates the amount of protons exchanged with the solution[22]. The peaks of the IrO₂ electrode are due to the redox transitions of oxygen iridium group species on electrode surface, Ir³⁺/Ir⁴⁺ and Ir⁴⁺/Ir⁶⁺. Therefore, the value of Q is expected to be proportional to the electrochemically active surface area of the oxide electrode and thought to be able to represent the number of electrochemically active sites on the surface[23]. For the fresh anode sintered at 500 ℃, the oxygen evolution reaction and hydrogen evolution reaction are observed at about 1.2 and -0.6 V respectively. In Fig.7, the pair of peaks at 0.7 V are attributed to the surface redox transition of Ir³⁺/Ir⁴⁺ and this reaction has good reversibility, which is concluded from the symmetrical shape of the peaks. This indicates that the surface electrochemistry of the electrode is governed by the active component of IrO₂.

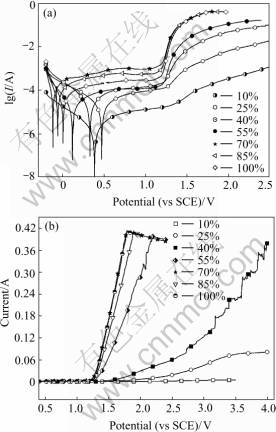

Fig.6 Tafel Plot (a) and Linear Sweep Voltammetry (b) of Ti/IrO₂-Ta₂O₅ electrodes in 0.5 mol/L H₂SO₄ (v=10 mV/s)

Fig.7 Cyclic voltammograms of Ti/IrO₂-Ta₂O₅ electrodes with different contents of IrO₂ (v=20 mV/s)

As can be seen from Fig.8, the voltammetric charges increase then decrease with the content of IrO₂ increasing, with a maximum at 70% IrO₂, which is similar to the results of current of O₂ evolution. Then the function of Ta₂O₅ is displayed. The reason is probably that proper quantities of inert Ta₂O₅ with the active composition IrO₂ form solid solution and this microstructure is useful to the improvement of the coating adhesion and corrosion-resistance ability in sulfate electrolysis. The typical morphology of cracks is strengthened and leads to an increase of surface active area and an improvement of electrocatalytic activity of oxygen evolution. So the electrode electrocatalytic activity depends on not only the composition of the active layer but also the structure and morphology of the IrO₂-Ta₂O₅ coating.

Fig.8 Voltammetric charge of Ti/IrO₂-Ta₂O₅ electrodes with different contents of IrO₂

3.4 Electrode stability and deactivation

It is well known that the IrO₂-Ta₂O₅ anodes are deactivated with electrolysis[24]. As can be seen from Fig.9, the accelerated service life of Ti/70%IrO₂-30% Ta₂O₅ anode is about 630 h. During the accelerated electrolysis, the potential decreases quickly in the first 50 h. This stage can be attributed to the wear and erosion of the loose part of the porous oxide coatings prepared by thermal decomposition under the action of intense oxygen evolution. Then the potential tends to stabilize for about 550 h, occupying the main portion of the whole electrolysis time. This stage is related to the electro- chemical dissolution of IrO₂. At the end of the electrolysis, the potential starts to increase rapidly, and in a short time the anode is deactivated. This stage may be attributed to the detachment of the coating in some areas and the passivation of the substrate. This is in reasonable agreement with the Ir dissolution rate of IrO₂ anode during the accelerated life test reported by XU et al[2] and JIN et al[25].

Fig.9 Change of cell voltage with operation time during accelerated electrolysis of Ti/70%IrO₂-30%Ta₂O₅ anodes at   2 A/cm² in 0.5 mol/L H₂SO₄ solution

4 Conclusions

1) With the increasing of IrO₂ content in IrO₂-Ta₂O₅ coatings, more fine crystallites of IrO₂ are found on the coating surface, resulting in the active surface area improved and the electrocatalytic capability of oxygen evolution strengthened. However coating adhesion and rigidity decrease, which affects electrochemical activity of the anode when the content of IrO₂ is too high. This shows that the electrochemically active surface area is determined not only by the active content of IrO₂ but also by the structure and morphology of the anode coating. The proper ratio of Ir to Ta is necessary for the best electrocatalytic capability of oxygen evolution and electrolysis stability.

2) Iridium and tantalum can form solid solution and the mutual solubility is affected by the ratio of iridium to tantalum. The solid solution structure is helpful to improving the electrolysis stability and prolonging the anode service life. The addition of proper quantities of Ta₂O₅ results in a typical morphology of cracks, which leads to an increase of surface active area and an improvement of electrocatalytic activity of oxygen evolution.

3) The electrochemical stability of the IrO₂-Ta₂O₅ anode is apt to deteriorate under the influence of the strong acid and oxygen evolution. In the corrosive and oxidative working medium, how to improve the anode electrolysis stability with high electrocatalytic activity of oxygen evolution is an important work which hasn’t been solved yet.

[1] HU Ji-ming, WU Ji-xun, MENG Hui-min, SUN Dong-bai, ZHU Yan-rong, YANG De-jun. Degradation characteristics of Ti/(IrO₂+Ta₂O₂) coating anodes in H₂SO₄ solution [J]. Trans Nonferrous Met Soc China, 2000, 10(4): 511-515.

[2] ALVES V A, DA SILVA L A, BOODTS J F C. Surface characterization of IrO₂/TiO₂/CeO₂ oxide electrodes and Faradaic impedance investigation of the oxygen evolution reaction from alkaline solution [J]. Electrochimica Acta, 1998, 44: 1525-1534.

[3] DE OLIVEIRRA-SOUSA A, DA SILVA M A S, MACHADO S A S, AVACA K A, DE LIMA-NETO P. Influence of the preparation method on the morphological and electrochemical properties of Ti/IrO₂ coated electrodes [J]. Electrochimica Acta, 2000, 45: 4467-4473.

[4] HU Ji-ming, ZHANG Jian-qing, CAO Chu-nan. Thermolytic formation and microstructure of IrO₂+Ta₂O₅ mixed oxide anodes from chloride precursor [J]. Thermochimica Acta, 2003, 403: 257-266.

[5] OTOGAWA R, MORIMITSU M, MATSUNAGA M. Effects of microstructure of IrO₂-based anodes on electrocatalytic properties [J]. Electrochimica Acta, 1998, 44: 1509-1513.

[6] PAUPORTE T H, ANDOLFATTO F, DURAND R. Some electrocatalytic properties of anodic iridium oxide nanoparticles in acidic solution [J]. Electrochimica Acta, 1999, 45: 431-439.

[7] DE PAULI C P, TRASATTI S. Composite materials for electrocatalysis of O₂ evolution: IrO₂+SnO₂ in acid solution [J]. Journal of Electroanalytical Chemistry, 2002, 538-539: 145-151.

[8] HU Ji-ming, ZHANG Jian-qing, CAO Chu-nan. Oxygen evolution reaction on IrO₂-based DSA type electrodes: kinetics analysis of Tafel lines and EIS [J]. International Journal of Hydrogen Energy, 2004, 29: 791-797.

[9] KIM K W, LEE E H, KIM J S. A study on performance improvement of Ir oxide-coated titanium electrode for organic destruction [J]. Electrochimica Acta, 2002, 47: 2525-2531.

[10] FOTI G, MOUSTY C, REID V, COMNINELLIS C H. Characterization of DSA type electrodes prepared by rapid thermal decomposition of the metal precursor [J]. Electrochimica Acta, 1998, 44: 813-818.

[11] KAMEGAYA Y, SASAKI K M. Improved durability of iridium oxide coated titanium anode with interlayers for oxygen evolution at high current densities [J]. Oguri Electrochimica Acta, 1995, 40: 889-895.

[12] SIMOND O, COMNINELLIS C H. Anodic oxidation of organics on Ti/IrO₂ anodes using Nafion as electrolyte [J]. Electrochimica Acta, 1996, 42: 2013-2018.

[13] HU Ji-ming, ZHANG Jian-qing, MENG Hui-min. Microstructure, electrochemical surface and electrocatalytic properties of IrO₂+Ta₂O₅ oxide electrodes [J]. Journal of Materials Sciences, 2003, 38: 705-712.

[14] CARDARELLI F, TAXIL P, SAVALL A, COMNINELLIS C, MANOLI G, LECLERC O. Preparation of oxygen evolving electrodes with long service life under extreme conditions [J]. Journal of Applied Electrochemistry, 1998, 28(3): 245-250.

[15] BOCK C, SPINNEY H, MACDOUGALL B. A study of the deactivation and service life of Ir oxide anodes supported on Al substrates [J]. Journal of Applied Electrochemistry, 2000, 30(5): 523-532.

[16] LIAO P C, CHEN C S, HO W S, HUANG Y S, TIONG K K. Characterization of IrO₂ thin films by Raman spectroscopy [J]. Thin Solid Film, 1997, 301: 7-11.

[17] KRISTOF J, SZILAGYI T, HORVATH E, BATTISTI A D, FROST R L, REDEY A. Investigation of IrO₂/Ta₂O₅ thin film evolution [J]. Thermochimica Acta, 2004, 413: 93-99.

[18] MORIMITSU M, OTOGAWA R, MATSUNAGA M. Effects of cathodizing on the morphology and composition of IrO₂-Ta₂O₅/Ti anodes [J]. Electrochimica Acta, 2000, 46: 401-406.

[19] KRYSA J, MAIXNER J, MRAZ R, ROUSAR I. Effect of coating thickness on the properties of IrO₂-Ta₂O₅ anodes [J]. Journal of Applied Electrochemistry, 1998, 28: 369-372.

[20] GORODETSKII V V, NEBURCHILOV V A. Titanium anodes with active coatings based on iridium oxides: a sublayer between the active coating and titanium [J]. Russian Journal of Electrochemistry, 2003, 39(10): 1111-1115

[21] ROSSI A, BOODTS J F C. Ir-based oxide electrodes oxygen evolution reaction from mixed solvents [J]. Journal of Applied Electrochemistry, 2002, 32: 735-741.

[22] XU L F, SCANTLEBURY J D. A study on the deactivation of an IrO₂-Ta₂O₅ coated titanium anode [J]. Corrosion Science, 2003, 45: 2729-2740.

[23] HU J M, MENG H M, ZHANG J Q, CAO C N. Degradation mechanism of long service life Ti/IrO₂-Ta₂O₅ oxide anodes in sulphuric acid [J]. Corrosion Science, 2002, 44: 1655-1668.

[24] MORIMITSU M, TAMURA H, MATSUNAGA M, OTOGAWA R. Polarization behaviour and lifetime of IrO₂-Ta₂O₅-SnO₂/Ti anodes in p-phenolsulfonic acid solutions for tin plating [J]. Journal of Applied Electrochemistry, 2000, 30(4): 511-514.

[25] JIN Shi-xiong, YE Si-yu. Oxygen evolution on titanium anodes coated with conductive metallic oxides: kinetics and mechanism in alkaline solution [J]. Electrochimica Acta, 1996, 41: 827-834.

Foundation item: Project(50499330) supported by the National Natural Science Foundation of China

Corresponding author: LI Bao-song; Tel: +86-27-68775799; E-mail: lbs79@126.com

(Edited by YANG Bing)
