Trans. Nonferrous Met. Soc. China 30(2020) 1325-1334

Mechanically-induced martensite transformation of NiTiFe shape memory alloy subjected to plane strain compression

Shu-yong JIANG¹, Jun-bo YU², Yan-qiu ZHANG¹ , Xiao-dong XING¹

1. College of Mechanical and Electrical Engineering, Harbin Engineering University, Harbin 150001, China;

2. College of Materials Science and Chemical Engineering, Harbin Engineering University, Harbin 150001, China

Received 9 May 2019; accepted 7 April 2020

Abstract: Based on the channel die compression, NiTiFe shape memory alloy (SMA) was subjected to plane strain compression. Mechanically-induced martensite transformation, nanocrystalline and amorphous phase can be observed in the case of large plastic strain. Mechanically-induced martensite transformation is obviously different from the conventional stress-induced martensite transformation. The former generally occurs after dislocation slip, whereas the latter arises prior to dislocation slip. The occurrence of B19' martensite phase contributes to accommodating subsequent plastic deformation of NiTiFe SMA. Mechanically-induced B19' martensite is partially stabilized due to the existence of local high stress field and consequently it is unable to be reverted to B2 austenite phase during unloading.

Key words: shape memory alloy; NiTiFe alloy; plastic deformation; martensitic transformation; microstructure

1 Introduction

NiTi shape memory alloy (SMA) possesses two important characteristics, namely shape memory effect and superelasticity, which are related closely to the martensitic transformation induced by temperature change or mechanical stress [1-3]. In order to broaden the engineering application of NiTi SMA, many researchers have added the third element to the binary NiTi SMA for improving the corresponding functional properties. Consequently, the ternary NiTi-based SMAs, including NiTiCu, NiTiNb, NiTiFe, and so on, have been frequently applied in the engineering field [4-7]. In particular, as a ternary NiTi-based SMA, NiTiFe SMA is a superior candidate for manufacturing pipe coupling since it possesses the lower martensite transformation temperature.

Plastic deformation is an indispensable approach in the engineering application of NiTi- based SMAs. On one hand, plastic deformation is used for manufacturing the products of NiTi-based SMAs [8-10]. On the other hand, plastic deformation can improve microstructures and properties of the alloys. In particular, cold plastic deformation can generate plenty of dislocations, and it can result in nanocrystallization and even amorphization of the NiTi-based SMAs. This contributes to enhancing superelasticity, mechanical properties, and biocompatibility, etc. Up to date, many researchers have investigated cold plastic deformation methods of NiTi SMA, including cold drawing [11], cold rolling [12], high pressure torsion [13], local canning compression [14], surface mechanical attrition treatment [15], laser shock peening [16] and ultrasonic nanocrystal surface modification [17]. However, when NiTi SMA with B2 austenite structure is subjected to cold plastic deformation, martensite phase transformation is frequently induced by stress or strain. In fact, stress- or strain-induced martensite phase transformation is not firstly found in NiTi SMA. For example, OLSON and COHEN [18,19] found that stress- and strain-induced martensitic transformations in 304 stainless steel subjected to plastic deformation, and the occurrence of the former or the latter depends on the specific deformation temperatures. As for the binary NiTi SMAs, stress-induced martensitic transformation has been widely investigated by many researchers [20-24]. In particular, stress-induced martensitic transformation has been observed by means of the corresponding experimental evidence [23,24]. ZHENG et al [25] also found stress-induced martensitic variants in the ternary NiTiNb SMA subjected to the mechanical loading. Strain-induced martensitic transformation is not frequently found in the binary NiTi SMAs. THAKUR et al [26] found strain-induced martensitic transformation in the binary NiTi alloy subjected to shock loading, where a well-defined dislocation substructure is observed, and it should be a typical characteristic of strain-induced martensitic transformation. Few literatures have reported stress-induced or strain- induced martensitic transformations in NiTiFe SMA subjected to plane strain compression.

In the present study, cold plastic deformation of NiTiFe SMA on the basis of plane strain compression is performed. It can be stated that the plane strain compression is obviously different from the aforementioned cold plastic deformation methods of NiTi SMA. For instance, in the case of cold drawing, NiTi SMA is in a two-dimensional compressive stress and a one-dimensional tensile stress state, whereas it is in a three-dimensional strain state, where one-dimensional strain is tensile and two-dimensional strains are compressive [11]. As for cold rolling, NiTi SMA is in a three-dimensional compressive stress state, whereas it is in a three-dimensional strain state, where one-dimensional strain is compressive and two-dimensional strains are tensile [27,28]. High pressure torsion enables NiTi SMA to be in a three-dimensional compressive stress state, whereas it is in a three-dimensional strain state, where one-dimensional strain is compressive and two-dimensional strains are tensile [13]. Stress and strain states of NiTi SMA during local canning compression are similar to the high pressure torsion [29]. Surface mechanical attrition treatment, laser shock peening and ultrasonic nanocrystal surface modification all make NiTi SMA be subjected to surface plastic strain in the case of compressive stress state [15-17]. However, in our work, plane strain compression enables NiTiFe SMA to be in a two-dimensional strain state and in a two-dimensional compressive stress and a one-dimensional tensile stress state. Therefore, the plane strain compression provides a new type of cold plastic deformation for NiTi-based SMAs.

However, no literatures have reported cold plastic deformation of NiTi-based SMAs on the basis of plane strain compression. In the current investigation, cold plastic deformation of NiTiFe SMA was studied via plane strain compression, where mechanically-induced martensite phase transformation was found.

2 Experimental

The as-rolled SMA bar with the composition of Ni₄₇Ti₅₀Fe₃ (at.%) was provided by Xi’an Saite Metal Materials Development Co., Ltd, China, and the diameter of it was 9 mm. The NiTiFe samples, which possess the length of 5 mm, the width of 5 mm and the height of 8 mm, were fabricated on the basis of the as-rolled Ni₄₇Ti₅₀Fe₃ SMA bar by means of electro-discharge machine (EDM). Then, plane strain compression was imposed on these NiTiFe samples via channel die compression test, as shown in Fig. 1, where X and Y directions represent the length and width directions of NiTiFe sample, respectively, whereas Z direction stands for the height direction of NiTiFe sample. The compression tests were performed on an INSTRON equipment at room temperature, where the strain rate was selected as 0.001 s^-1. The heights of the NiTiFe samples were reduced by 10%, 30% and 60%, respectively.

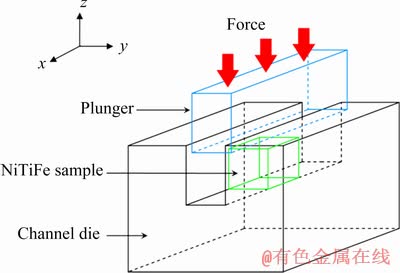

Fig. 1 Schematic diagram for plane strain compression of NiTiFe sample

The microstructure of as-rolled NiTiFe specimens was characterized via electron backscattered diffraction (EBSD). The samples for EBSD were polished by a mechanical method and then were polished by an electrochemical method in a solution comprising 30 vol.% HNO₃ and 70 vol.% CH₃OH at -30 °C. EBSD observation was conducted via a Zeiss ULTRA plus scanning electron microscope (SEM), which possesses Oxford Instruments AZtec combined with EBSD system. During the EBSD analysis, the step size was set as 1.5 μm and the scanning area was determined as 172.5 μm × 231 μm. Figure 2 shows the microstructure of the as-rolled NiTiFe sample, where the average diameter of the grains is 10.61 μm. It can be seen that as-rolled NiTiFe sample is mainly composed of equiaxed grains, which indicates that the as-rolled NiTiFe SMA is subjected to complete recrystallization. In addition, the as-rolled NiTiFe SMA possesses B2 austenitephase. Furthermore, differential scanning calorimetry (DSC) experiments were performed and the A_f temperature of the as-rolled NiTiFe SMA was determined as -10.2 °C.

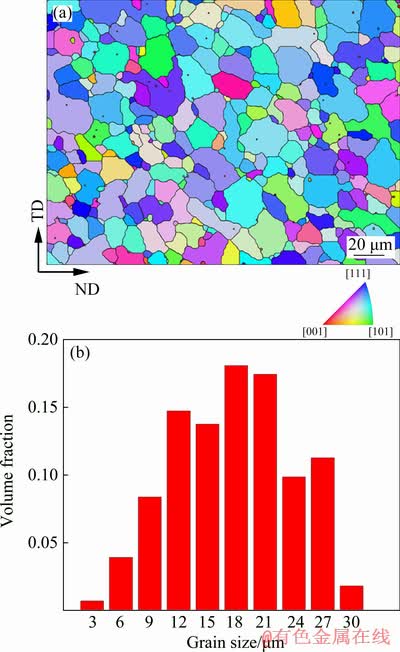

Fig. 2 EBSD microstructure of as-rolled NiTiFe sample (a) and distribution of grain size (b)

Microstructure of NiTiFe samples subjected to plane strain compression was characterized by transmission electron microscope (TEM). Samples for TEM observation were ground to 70 μm by means of mechanical method. Then, twin-jet thinning was performed in an electrolyte containing 6 vol.% HClO₄, 34 vol.% C4H₁₀O and 60 vol.% CH₃OH. TEM experiment was performed on a FEI TECNAI G2 F30 microscope, where the accelerating voltage was set as 300 kV.

3 Results and discussion

Figure 3 indicates the stress-strain curve of NiTiFe sample during plane strain compression. In particular, stress-induced martensite transformation is not observed on the stress-strain curve. It has been reported in Refs. [23,30] that when NiTi sample is composed of B2 phase at room temperature, the stress-induced martensite transformation occurs during uniaxial tensile or compressive loading. In other words, the stress- strain curve possesses a stress plateau representing stress-induced martensite transformation. However, in the current investigation, the involved stress plateau is not found on the stress-strain curve of NiTiFe SMA.

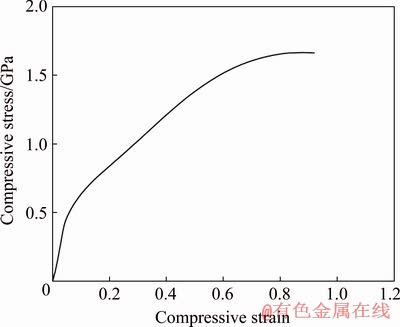

Fig. 3 Stress-strain curve of NiTiFe sample based on plane strain compression

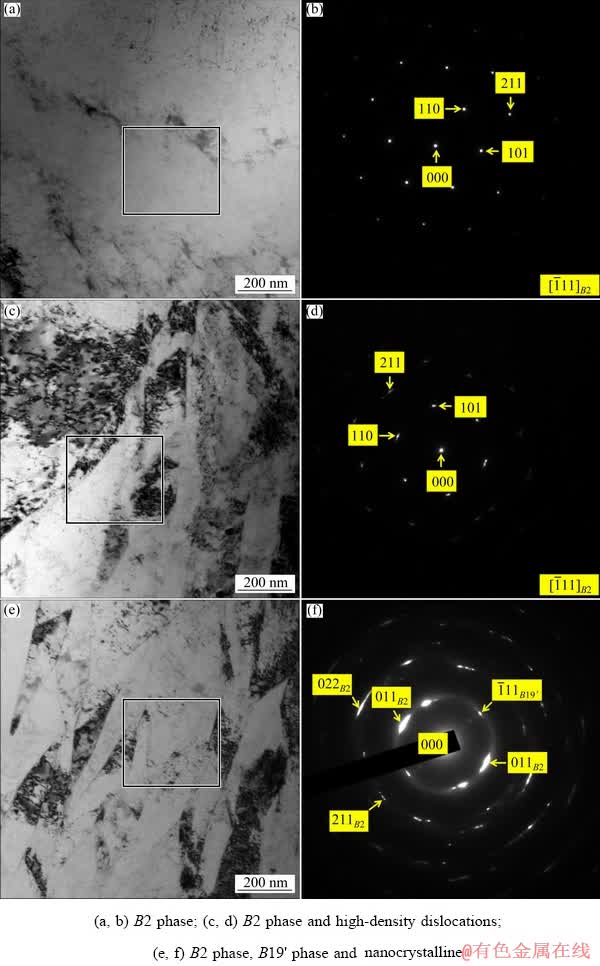

Fig. 4 TEM micrographs of NiTiFe sample compressed by 10% (a, c, e) and corresponding diffraction patterns of selected areas (b, d, f)

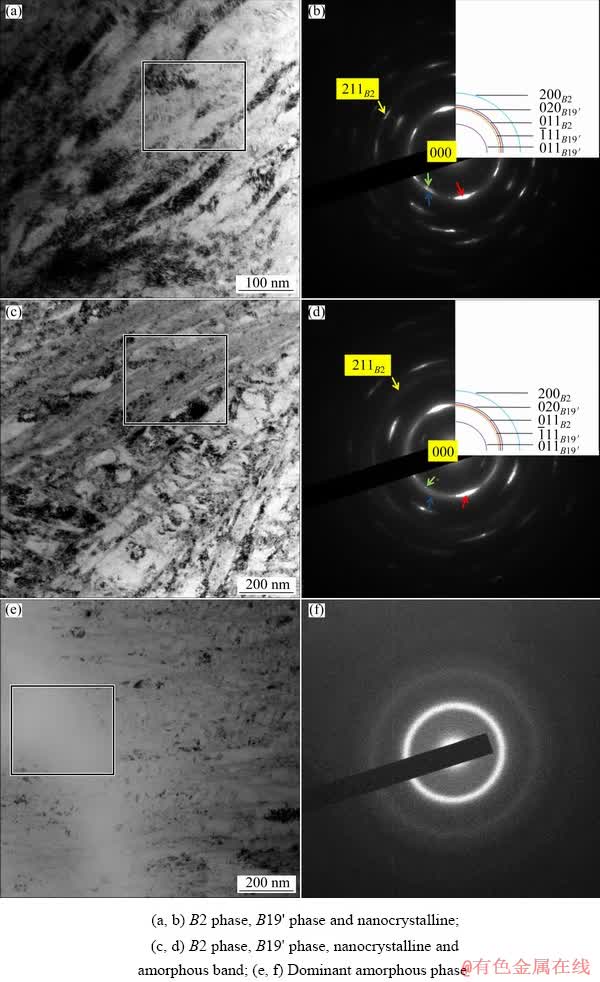

Fig. 5 TEM micrographs of NiTiFe sample compressed by 30% (a, c, e) and corresponding diffraction patterns of selected areas (b, d, f)

For better interpreting the mechanical behaviour of NiTiFe SMA subjected to plane strain compression, the microstructures of NiTiFe sample at various deformation degrees were characterized using TEM, as shown in Figs. 4-6. It is noted that inhomogeneous plastic deformation occurs during the compression deformation of NiTiFe sample. B19' phase and nanocrystalline are generated at the compressive deformation degree by 10%. With increasing plastic strain, the grains are refined more substantially. When the compressive deformation degree is 30%, B19' martensite and nanocrystalline are observed in NiTiFe sample as well. In particular, compared with NiTiFe sample compressed by 10%, NiTiFe sample compressed by 30% possesses more obvious martensite lath. When the compressive deformation degree is 60%, amorphous band and amorphous phase can be observed in addition to B19' martensite and nanocrystalline.

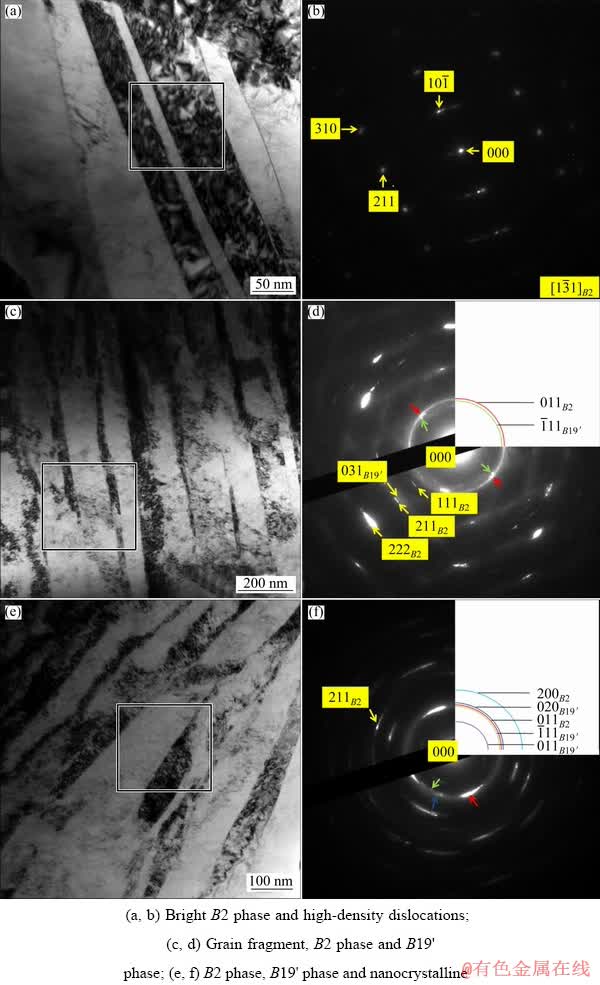

Fig. 6 TEM micrographs of NiTiFe sample compressed by 60% (a, c, e) and corresponding diffraction patterns of selected areas (b, d, f)

According to the aforementioned experimental results, it can be deduced that the formation of B19' martensite results from mechanically-induced martensitic transformation rather than the conventional stress-induced martensitic transformation only. The mechanically-induced martensitic transformation is attributed to a combination of strain-induced and stress-induced martensitic transformations. In other words, the mechanically-induced martensitic transformation is associated with the initial plastic strain for dislocation slip and subsequent local high stress field. Figure 7 illustrates the mechanism diagram for mechanically-induced martensitic transforma-tion, nanocrystallization and amorphization of NiTiFe SMA subjected to the plane strain compression. Firstly, when NiTiFe sample experiences the compression deformation at room temperature, yield stress of dislocation slip is smaller than one that is needed to induce the martensite transformation. As a consequence, stress-induced martensite transformation does not occur prior to the plastic deformation, so slip system can be activated when the external load reaches the critical resolved shear stress (CRSS) for dislocation slip. When the plastic strain is enhanced continuously, the dislocation density increases successively. Therefore, the CRSS for dislocation slip is enhanced with increasing dislocation density. When the CRSS approaches a very high value, the dislocation slip is unable to occur. As a result, the stress that is needed to induce the martensite transformation is smaller than the yield stress for dislocation slip, and thus B19' martensite is induced in the case of local high stress field. In addition, the stress-induced martensite transformation appears after plastic deformation for dislocation slip. Furthermore, plastic deformation for dislocation slip is a typical characteristic of strain-induced martensite transformation [17,24]. The occurrence of B19' martensite contributes to accommodating subsequent plastic deformation of NiTiFe SMA. The dislocation walls occur with increasing dislocation density. The dislocation walls lay the foundation for the formation of dislocation cells. In addition, the occurrence of mechanically-induced martensite not only changes the crystal structure of NiTiFe SMA, but it alters the crystallographic orientation of NiTiFe SMA as well, which contributes to further plastic deformation of NiTiFe SMA. With the continuous plastic deformation, subgrains with low-angle grain boundaries are generated. Consequently, the low-angle grain boundaries successively absorb the dislocations during plane strain compression and they are turned into the high-angle grain boundaries. This results in the formation of new refined grains. When the grains are repeatedly refined, nanocrystalline can be generated and finally amorphous phase can be induced. Nanocrystalline is considered to be a transition from coarse grain to amorphous phase.

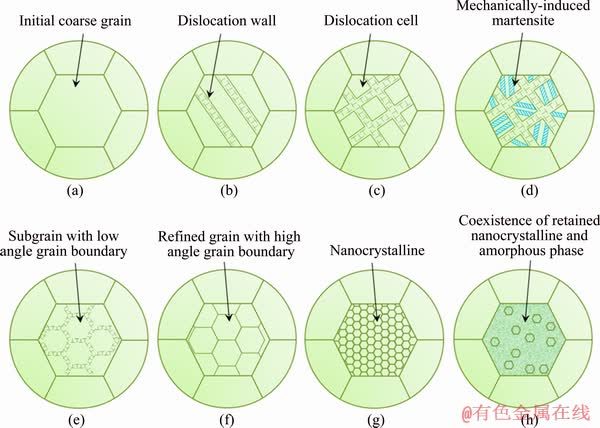

Fig. 7 Mechanism diagram of mechanically-induced martensite, nanocrystallization and amorphization for NiTiFe sample during plane strain compression

It is well known that stress-induced martensitic transformation frequently appears in NiTi SMA subjected to mechanical loading. However, the stress-induced martensitic transformation is related closely to the chemical composition of NiTi SMA as well as the deformation temperature. If the deformation temperature is less than A_f temperature and larger than M_s temperature, stress-induced martensite will appear on loading and it will remain stable on unloading. Therefore, subsequent heating is an indispensable procedure in order to make the stress-induced martensite recover to B2 phase. The case frequently corresponds to the equiatomic NiTi SMA. If the deformation temperature is larger than A_f temperature and less than M_d temperature, stress-induced martensite will appear on loading, whereas it will be returned to B2 phase on unloading. The case usually corresponds to the Ni-rich NiTi SMA. In our work, the A_f temperature of NiTiFe SMA is -10.2 °C and it is obviously lower than room temperature. According to the aforementioned experimental results, in the case of plastic deformation based on the plane strain compression, one portion of mechanically-induced B19' martensite will be reverted to B2 phase on unloading, whereas another portion of mechanically-induced B19' martensite will be stabilized and consequently they will be unable to recover to B2 phase.

In summary, mechanically-induced martensite transformation is obviously different from conventional stress-induced martensite transformation. Firstly, the former generally occurs after dislocation slip, whereas the latter arises prior to dislocation slip. Secondly, mechanically-induced martensite transformation is based on large plastic strain, but stress-induced martensite transformation does not need such a large strain. Thirdly, stress-induced B19' martensite can be reverted to B2 austenite during unloading, whereas mechanically- induced B19' martensite is partially stabilized due to the existence of local high stress field. In other words, the stabilized mechanically-induced B19' martensite is not returned to B2 austenite when the external loading is removed.

4 Conclusions

(1) Plane strain compression results in inhomogeneous plastic deformation of NiTiFe SMA. Mechanically-induced martensite, nanocrystalline and amorphous phase occur when the plastic strain is large enough during plane strain compression.

(2) Plastic deformation for dislocation slip plays a significant role in the formation of mechanically-induced martensite transformation, which is obviously different from conventional stress-induced martensite transformation. Generally, the former occurs after dislocation slip, but the latter arises prior to dislocation slip.

(3) The deformation temperature is larger than the A_f temperature of NiTiFe SMA. The occurrence of mechanically-induced B19' martensite phase contributes to accommodating subsequent plastic deformation of NiTiFe SMA. In the case of plastic deformation based on plane strain compression, one portion of mechanically-induced B19' martensite will be reverted to B2 phase on unloading, whereas another portion of mechanically-induced B19' martensite will be stabilized and consequently they will be unable to recover to B2 phase.
