Al和Co的添加对ZrCu基形状记忆合金的马氏体相变和显微结构的影响

来源期刊：中国有色金属学报(英文版)2015年第3期

论文作者：高卫红孟祥龙蔡伟赵连城

文章页码：850 - 855

关键词：ZrCu基合金；形状记忆合金；马氏体相变；显微结构

Key words：ZrCu-based alloy; shape memory alloy; martensitic transformation; microstructure

摘要：研究Al和Co元素掺杂的ZrCu基形状记忆合金的马氏体相变。结果表明，Al和Co的添加降低了马氏体相变温度，同时降低了马氏体相变温度滞后。TEM结果显示，Cm结构的马氏体为优先形成相。在ZrCuAlCo合金中内部马氏体变体呈(021) I 型孪晶关系，然而主要的亚结构呈(001)复合孪晶关系。随着Co含量的增加，拉伸断裂强度和应变显著提高。

Abstract: The effect of ternary alloying element Al and quaternary alloying element Co on the martensitic transformation of ZrCu-based shape memory alloy was investigated. The results show that the addition of Al and Co in ZrCu alloy decreases both the martensitic transformation temperature and the martensitic transformation temperature hysteresis. Transmission electron microscope (TEM) observations reveal that the Cm martensite structure is the preferential formation phase. The intervariant structures in ZrCuAlCo alloy are (021) type I twins, while the dominant substructures inside the martensite variant are the (001) compound twins. With the increase of Co content, tensile fracture strength and strain are improved obviously.

Trans. Nonferrous Met. Soc. China 25(2015) 850-855

Effects of Co and Al addition on martensitic transformation and microstructure in ZrCu-based shape memory alloys

Wei-hong GAO, Xiang-long MENG, Wei CAI, Lian-cheng ZHAO

School of Materials Science and Engineering, Harbin Institute of Technology, Harbin 150001, China

Received 21 March 2014; accepted 24 July 2014

Key words: ZrCu-based alloy; shape memory alloy; martensitic transformation; microstructure

1 Introduction

ZrCu-based shape memory alloys (SEA) have attracted considerable attention in recent years due to their potentialities for high temperature shape memory alloys as well as for metallic glasses with high ductility properties [1-4]. Recent advancements in ZrCu-based alloys come at the intersection between shape memory alloys and metallic glasses [5-7]. For Zr₄₈Cu_47.5Al₄Co_0.5 bulk metallic glass composites, the strain hardening rate was enhanced and plastic instability was suppressed due to a martensitic transformation (MT) of B2 to B19′ which is associated with shape memory effect [8]. However, there are some reports about how to improve the glass-forming ability and the mechanical properties [9]. Few reports about the MT behavior in ZrCu intermetallic compound are given. In fact, the SME in ZrCu intermetallic (only about 3%) is associated with a MT from a B2 type structure to two monoclinic martensitic structures: one with a base structure (B19′) with P2/m symmetry and the other with a superstructure with Cm symmetry [10,11]. In addition, the transformation temperature hysteresis of ZrCu-based SMA is large and the thermal stability of ZrCu-based SMA is poor [12]. However, it is not clear that how the addition of different alloying elements to ZrCu is linked with the martensitic transformation and the microstructure [13-18].

In the present work, the influences of Al and Co addition of the ZrCuAlCo quaternary high temperature SMAs on the microstructure, the phase transformation behaviors and mechanical properties were investigated by X-ray diffraction (XRD), transmission electron microscopy (TEM) observation, differential scanning calorimeter (DSC) measurement, tensile tests and scanning electron microscopy (SEM). The further explanations from microstructure on martensite transformation temperature and mechanical properties were discussed.

2 Experimental

The Zr₄₈Cu_47.5Al₄Co_0.5, Zr_47.5Cu_46.5Al₅Co₁ and Zr_47.5Cu_45.5Al₅Co₂ alloys were prepared by arc-melting using high-purity metals (99.99%) of Cu, Zr, Al and Co in an induction furnace under argon atmosphere. The ingots were then remelted six times to ensure the composition homogeneity (each time turning the button 180°). The samples were annealed in vacuum quartz tubes at 800 °C for 4 h, followed by water-quenching.

The plates with 1 mm in thickness were cut from the ingot by wire-electrode cutting, then ground and polished. Samples for transmission electron microscopy (TEM) observations were obtained by punching 3 mm-diameter samples from the plates and mechanically polishing them to a thickness of 20 μm. The TEM samples were prepared by double-jet electro-polishing in an electrolyte solution consisting of 70% (volume fraction) methanol and 30% (volume fraction) nitri cacid at 253 K. TEM observations were performed with a Philips Tecnai-G² F30 electron microscope operated at 300 kV. XRD measurements were carried out at room temperature with Cu K_α radiation. The phase transformation temperatures of the alloy were determined by a differential scanning calorimeter (DSC) with a PERKINELMER DSC8000 calorimeter. Heating/cooling scans were undertaken in the temperatures range of -100 to 600 K with a rate of 20 K/min. The tensile tests were performed at room temperature on an Instron 5569 testing system at a crosshead displacement speed of 0.2 mm/min. The microstructure of the alloys was examined with a Quanta 200FEG scanning electron microscope (SEM).

3 Results and discussion

Figure 1 shows the optical micrographs of as-cast ZrCuAlCo alloys, and the sampling position of every ingot is the same. It can be observed from Fig. 1 that with the increase of Co content the grain size becomes small. The average grain sizes of Zr₄₈Cu_47.5Al₄Co_0.5, Zr_47.5Cu_46.5Al₅Co₁, and Zr_47.5Cu_45.5Al₅Co₂ alloys are about 10, 8 and 6 μm, respectively. The decomposed phases appear along the grain boundary. Figure 2 shows the XRD patterns of ZrCuAlCo alloys. The analysis of the diffraction patterns reveals that the patterns of the alloys are different. The reflections in patterns for Zr₄₈Cu_47.5Al₄Co_0.5 and Zr_47.5Cu_46.5Al₅Co₁ alloys are indexed with the co-existence of B19′ and Cm martensite, the low-temperature equilibrium phases Cu₁₀Zr₇ and CuZr₂. The reflections in patterns for Zr_47.5Cu_45.5Al₅Co₂ alloy are indexed with Co₂Zr₃ and B2 phases. The XRD results indicate that the small Co alloying variation in the Zr/Cu ratio changes the crystal structure of the phases from martensite to austenite at room temperature in this alloy series.

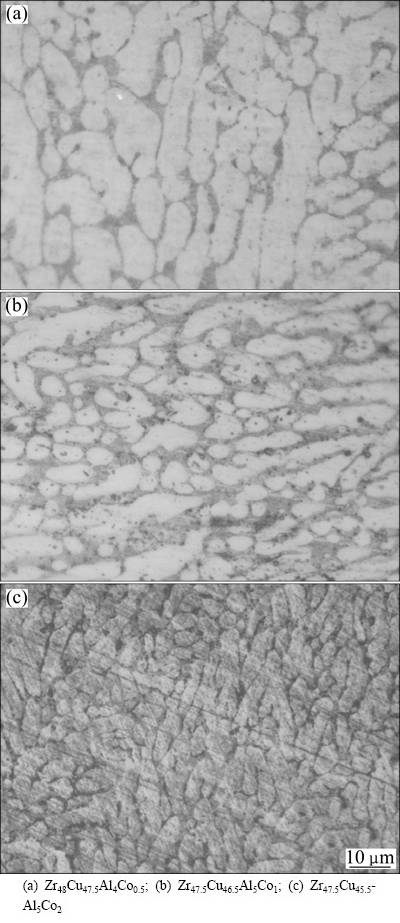

Fig. 1 Optical micrographs of as-cast ZrCuAlCo alloys

Fig. 2 XRD patterns of as-cast ZrCuAlCo alloys

Figure 3 shows the TEM bright-field (BF) micrographs and selected area electron diffraction (SAED) patterns of ZrCuAlCo alloys. The thermal martensite variants exhibit self-accommodation morphology. The typical bright field image exhibits large spear-like and plate-like variants with 400 nm in width, and the hair-like stripes can be seen in big plate, as shown in Fig. 3(a). The martensite variants are found to be (021) type I twin related, as clearly indicated by the corresponding electron diffraction patterns (EDPs) as shown in Fig. 3(b). The substructure is (001) compound twin by indexing the corresponding EDPs, as shown in Fig. 3(c). The morphologies of Zr_47.5Cu_46.5Al₅Co₁ alloy shown in Fig. 3(d) do not change obviously except for the width of the plate narrower. It is found that very fine microtwins with the thickness of several nanometers exist in the interior of the martensite variant, while they start and end in the interior of a martensite variant. The relationship between the martensite variants does not change, as shown in Fig. 3(e). Figure 3(f) shows the TEM image of the Zr_47.5Cu_45.5Al₅Co₂alloy. The microstructures are different obviously. It is found that both of the austenite and the martensite coexist as marked by A and M with the corresponding EDPs shown in Figs. 3(g) and (h), respectively. This means that the austenite is stable in a wider temperature range by increasing the content of Co. Thus, it can be seen that the martensitic transformation temperatures become low. These results are consistent with the previous investigations [19]. Although the amount of the martensite becomes small, all of them in the three alloys belong to Cm martensite. Rietveld refinement shows that at normal conditions in the intermetallic compound Zr₅₀Cu₅₀, B19′ and Cm martensite phases have 27% and 73% of the volume fraction correspondingly [11]. When the content of Al atom substituting for Zr atom is smaller than 9.375% (mole fraction), the austenite phase could form a martensite base structure during quenching or straining. While Al content is larger than 9.375% (mole fraction), it forms a superstructure [20]. In addition, the volume fraction of B19′ martensite becomes small due to the co-doping of Al and Co. So, it is more difficult to find B19′ martensite.

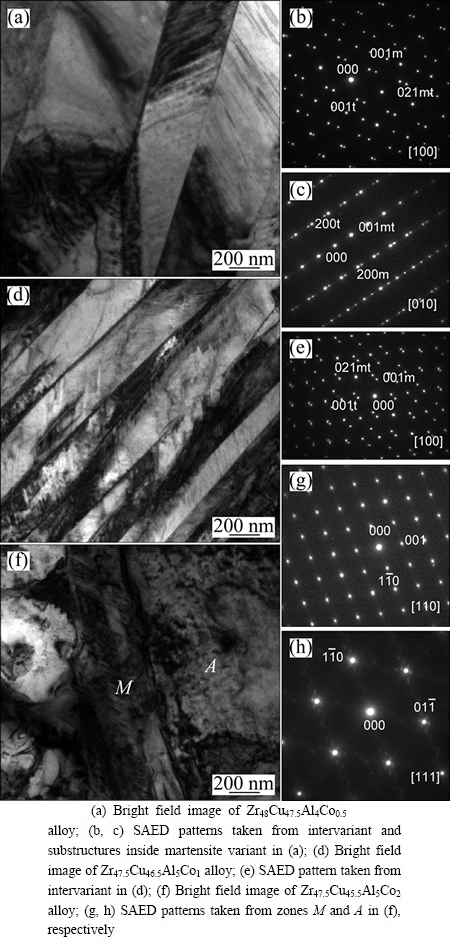

Fig. 3 TEM images of ZrCuAlCo alloys and corresponding SAED patterns

Martensitic transformation behavior of the ZrCuAlCo alloys is shown in Fig. 4. Only one-step transformation behaviors happen except for Zr_47.5Cu_46.5Al₅Co₁ alloy. It can be seen that two-step transformation behaviors are present in Zr_47.5Cu_46.5Al₅Co₁ alloy during reverse martensitic transformation (indicated by arrows). The results are occasionally found in forward martensitic transformation which attributed them to the transformation from B2 to B19′ and then to Cm phases on cooling progress [9]. The martensitic transformation temperatures of ZrCuAlCo alloys are shown in Table 1. As seen in Table 1, Zr₄₈Cu_47.5Al₄Co_0.5 alloy shows A_s=461 K and M_s=388 K, and transformation hysteresis (△H) is 73 K. With the addition of Co, the martensitic transformation temperature rapidly decreases. Increasing Al content induced a decrease in the martensitic transformation temperature until the Al content over 6% M_s remained almost constant [14]. The DSC results are fitted to the TEM results. When the addition of Co increases to 2%, the martensitic transformation temperature and the transformation hysteresis vary unobviously. This is likely to be resulted from the variation in the intrinsic factors, i.e. the increase in the unit-cell volume and the decrease in the electron concentration with increasing Co content because Co possesses small atomic radius and high electron concentration. The dependence of transformation temperature of ZrCu-based shape memory alloys on the number and concentration of valence electrons is analyzed.

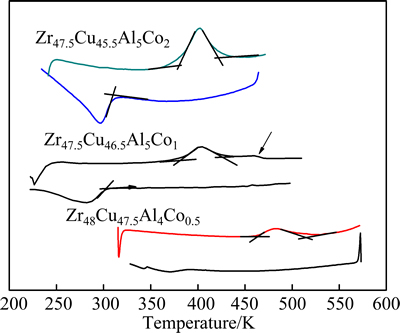

Fig. 4 DSC curves of ZrCuAlCo alloys

Table 1 Martensitic transformation temperatures of ZrCuAlCo alloys

Figure 5 shows the tensile stress-strain curves of ZrCuAlCo alloys at room temperature. The elastic and plastic properties of ZrCuAlCo alloys by tensile tests are shown in Table 2. It can be seen that the compressive strength of ZrCuAlCo alloy is obviously enhanced by the addition of Co. Furthermore, the fracture strain is increased from 0.73% to 1.76%. The increase of the strength is mainly due to stress-induced martensitic transformation from a cubic B2 phase to a monoclinic martensite phase, which imparts an appreciable work-hardening capability (the alloy becomes strong as it deforms). In order to clarify the fracture mechanism, the fracture morphologies of ZrCuAlCo alloys after tensile are observed, as shown in Fig. 6. The fracture type of Figs. 6(a) and (b) is similar to intergranular fracture. With the further increase of the Co content, the degree of ductile fracture accompanied with tearing ridges of Zr_47.5Cu_45.5Al₅Co₂ is increased. The fracture morphology with lots of brittle crystal particles is presented. In particular, lots of faults with tearing ridges appear, indicating that the ductile deformation is largely developed before fracture.

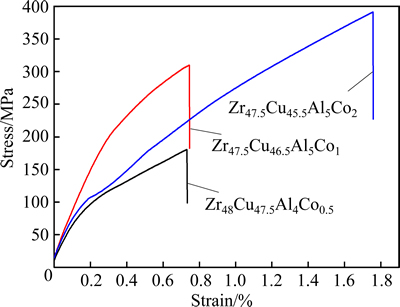

Fig. 5 Stress-strain curves of ZrCuAlCo alloys

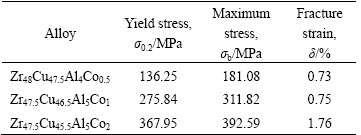

Table 2 Elastic and plastic properties of ZrCuAlCo alloys by tensile tests

4 Conclusions

1) Compared with equiatomic binary ZrCu alloy, the co-doping of Al and Co in ZrCu alloy decreases both the martensitic transformation temperature and the martensitic transformation temperature hysteresis. Furthermore, the volume fraction of B19′ martensite becomes so little that it is rarely observed.

2) The Al and Co addition significantly refines the grains. The martensite plates become fine. The substructure of the ZrCuAlCo quaternary alloy is mainly (001) compound twin and the martensitic variants are (021) type I twins related.

3) The tensile fracture strength and strain obviously increase with the increase of Co content.

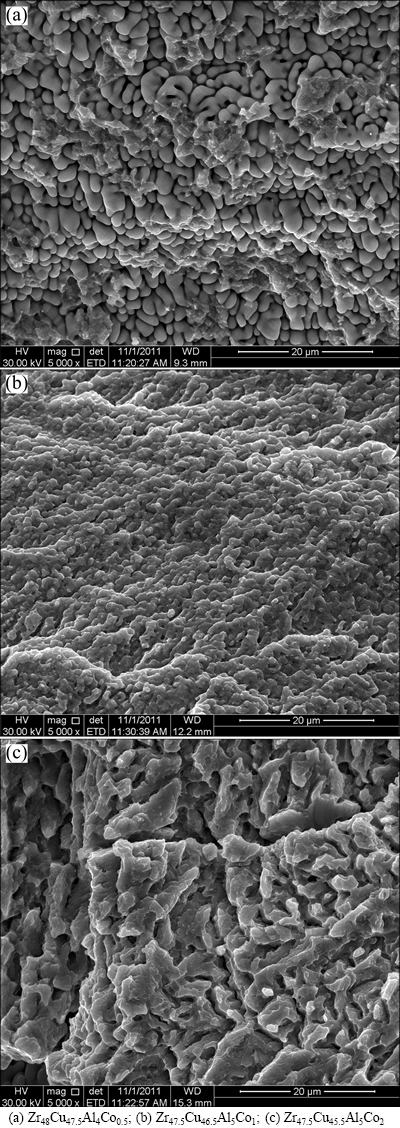

Fig. 6 SEM images of fracture surface of ZrCuAlCo alloys after tensile tests
