Trans. Nonferrous Met. Soc. China 22(2012) 2041-2048

Cyclic oxidation of Y₂O₃-modified ultrafine-grained Ni₃Al alloy coating at 900 ℃

ZHOU Yue-bo, ZHANG Hai-jun

College of Materials Science and Engineering, Heilongjiang Institute of Science and Technology,Harbin 150027, China

Received 20 August 2011; accepted 27 February 2012

Abstract: Ni₃Al coatings with and without Y₂O₃ particles were developed by annealing the electrodeposited Ni-Al composite coatings with and without Y₂O₃ particles at 800 ℃ for 3 h. The microstructures and cyclic oxidation performances of the produced Ni₃Al coatings were comparatively investigated, with the emphasis on the effect of Y₂O₃. SEM/EDAX and TEM characterizations showed that the dispersion of Y₂O₃ refines the grains. Oxidation at 900 ℃ for 100 h showed that the addition of Y₂O₃ significantly improved the cyclic oxidation resistance of Ni₃Al coating. The effect of Y₂O₃ on the microstructure and the oxidation of the Ni₃Al coating were discussed in detail.

Key words: electrodeposition; Ni₃Al; cyclic oxidation; reactive element effect

1 Introduction

Ni₃Al coating has been developed using different coating techniques because of its attractive applications in the aerospace and power industries due to the formation of thermodynamically stable Al₂O₃ scale at high temperatures [1,2]. Recently, Ni-Al alloy coatings with good isothermal oxidation resistance due to the formation of alumina scale were developed by the heat-treatment of electrodeposited Ni-Al composite coatings [3-7]. However, the cyclic oxidation resistance of such alloys or coatings is inherently poor, because the scale formed is susceptible to spalling [6-8]. Currently, the formation of poorly adherent alumina scale has been correlated with a decrease in the scale/metal interface strength because of interface segregation of sulfur, a common impurity in metals which can weaken the interfacial bonding [9], and because of the formation of large interface void [10]. It was reported that the grain refining may help an alumina-forming alloy to thermally develop a much adherent alumina scale [1,11,12]. However, the grain coarsening during oxidation may significantly decrease the cyclic oxidation resistance in the long-term. Doping with a small amount of reactive element (RE), such as Y, Ce, La or their oxides, could effectively improve the scale adherence and suppress the spallation in alumina-forming alloys and coatings  [13-15] due to the presence of RE or its oxides either in metals or at the scale/metal interface profoundly retarding the formation of the interfacial cavities [10,11] or effectively decreasing the interfacial activity of sulfur [9], which was called the “reactive element effects” (REE). RE or RE oxides are commonly added into alloys or coatings by different techniques [13-15]. Electro- deposition is another technique to co-deposit RE oxide particles in composite coatings by adding RE oxide particles to the plating bath [3,4,6,7]. The current authors [16,17] found that the codeposited Y₂O₃ or CeO₂ particles significantly improved the isothermal oxidation resistance of Ni-Al alloy coatings. LIU and CHEN [4,6,7] found that the pores in micron size and the oxidation temperature affected the cyclic oxidation resistance of the Ni₃Al coatings. At a comparable pore, the codeposited CeO₂ significantly enhanced the cyclic oxidation resistance of Ni₃Al coatings. Y₂O₃ had little effect on the two-phase, γ-Ni+γ′-Ni₃Al, coatings due to different volume fraction of pores, which depended on the Al content in the Ni-Al composite coatings [4]. However, PENG et al [12] found that pores (around 8.6% volume fraction) in submicron size had no deterimental effect on the scale adhesion of the Ni₃Al coating at 900 ℃. However, the comparison of cyclic oxidation of the Ni₃Al coatings with and without Y₂O₃ particles at a comparable pores has not been reported, and the effect of Y₂O₃ particles on the cyclic oxidation behaviors of Ni₃Al coatings is unclear. In order to elucidate the effect of base metal on the oxidation behavior of Ni₃Al coatings [3,4], the electrolytic Ni plate was chosen as base metal. The aim of this work is to gain an understanding of the effect of Y₂O₃ on the cyclic oxidation behaviors of Ni₃Al coatings at 900 ℃.

2 Experimental

Pure nickel specimens with the dimensions of 15 mm×10 mm×2 mm were cut from a pure electrolytic nickel plate and then were abraded by 800 grit SiC waterproof paper. After being ultrasonically cleaned in acetone, the specimens were electrodeposited a 70-80 mm-thick film of Ni-Al-Y₂O₃ or Ni-Al composite in a nickel sulfate bath. The detailed coating process was provided elsewhere [16-19]. After being ultrasonically cleaned in distilled water, both the composite coatings were annealed in a sealed quartz tube filled with pure Ar atmosphere at 800 ℃ for 3 h. To remove the oxide scale formed during annealing, a surface zone of ~5 μm thickness was ground from the annealed samples using 1000 grit SiC paper. In order to get Ni₃Al coatings with a comparable Al content and porosity, the energy- dispersive X-ray analysis (EDAX) of the middle of the cross-sectioned composite films after annealing was conducted. The coatings with and without Y₂O₃ particles contained (12.9±0.3)% Al based on the direct measurement of 10 different areas, a content locating in the narrow nonstoichiometric domain of Ni₃Al was chosen for experiment. Theoretically, the produced  Ni₃Al coatings would have the porosity of 8.6%  (volume fraction). EDAX showed the Y₂O₃ content was 3%-7% (mass fraction) for the Y₂O₃-diepersed Ni₃Al coating.

Cyclic oxidation test at 900 ℃ in air up to 100 h was performed by automatically lifting samples in the hot zone of a vertical furnace after a 1 h exposure followed by a 10 min cooling to room temperature. Mass changes of the oxidized specimens were measured after fixed time intervals using a balance with 0.01 mg sensitivity. The phase composition and microstructure of the coatings before and after oxidation were investigated using TECNAI-20 type transmission electron microscope (TEM), Camscan MX2600FE type scanning electron microscope with energy dispersive X-ray analysis (SEM/EDAX) and D/Max-2500 pc type X-ray diffractometer (XRD), respectively. Electroless Ni-plating was plated on the surface of the oxidized specimens to prevent the spallation of the scales for observing cross-sections.

3 Results

3.1 Microstructure

Figure 1 shows some parallel TEM bright-field images of Ni-Al-Y₂O₃ composite. Although the distribution of Al and Y₂O₃ microparticles could be observed in some locations (Fig. 1(a)), the particles were not present in most areas. A representative TEM image without Al and Y₂O₃ microparticle is presented in    Fig. 1(b). The image reveals that the coating generally contains Ni grains in size of 100-200 nm. The grain size is close to the grain size of electrodeposited Ni-Al composite film without Y₂O₃ microparticle, as reported elsewhere [18]. After 3 h annealing at 800 ℃, the Al particles fully reacted with Ni to form γ′-Ni₃Al according to the XRD analysis (Fig. 2) and the image of cross-sections of the coatings before and after annealing treatment (Fig. 3), which caused numerous pores in submicron size due to the volume shrinkage [3-7,16,17]. However, the coatings were still adherent to the Ni base. A similar phenomenon occurred on the Ni-12.9Al composite [17]. Y₂O₃ particles were observed in Ni-Al-Y₂O₃ coatings before and after annealing, as arrowed in Figs. 3(b) and (d). However, the peaks of Y₂O₃ phases in XRD analysis were not detected due to the low concentration.

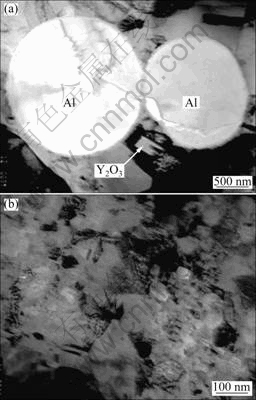

Fig. 1 TEM bright-field images of as-deposited Ni-Al-Y₂O₃ composites in area with (a) and without (b) Y₂O₃ and with Al particles

Fig. 2 XRD patterns of as-deposited Ni-Al-Y₂O₃ coating before (a) and after (b) annealing treatment

TEM observations showed that the grain size of the Y₂O₃-free γ′-Ni₃Al coating was generally large than 1 μm [17], while that of the Y₂O₃-dispersed γ′-Ni₃Al coating was ultrafine-grained (~500 nm) (Fig. 4(a)), indicating that the grain growth of the Y₂O₃-dispersed Ni₃Al coating was retarded by the dispersed Y₂O₃. Figures 4(b) and (c) show a bright-field TEM image and the corresponding SAED pattern of the dispersion bright Y₂O₃ particles in the Y₂O₃-dispersed γ′-Ni₃Al coating. It can be seen that near the Y₂O₃ particles, finer grain occurs. Furthermore, the dispersoids of about 50 nm  (as arrowed in Fig. 4(b)) are much smaller than the original Y₂O₃ particles used, suggesting the dissolution and re-precipitation of some Y₂O₃ particles during the annealing process.

3.2 Oxidation resistance

Figure 5 illustrates the mass gain vs time curves after cyclic oxidation of γ′-Ni₃Al coating with and without Y₂O₃ in air at 900 ℃ for 100 h. In the first 40 h, no scale spallation was observed for both coatings. However, the Y₂O₃-dispersed γ′-Ni₃Al coating exhibited lower mass gain than the Y₂O₃-free γ′-Ni₃Al coating. After 40 h, scale spallation and significant mass gain can be observed for the Y₂O₃-free γ′-Ni₃Al coating, suggesting the regrowth of less protective scale on the spallation areas. The spallation was also viewed by naked eyes. After 60 h, the mass loss by spallation became larger than the mass gain by oxidation. In contrast, no significant spallation was observed during the entire thermal cycling of the Y₂O₃-dispersed γ′-Ni₃Al coating.

XRD characterization indicated that the oxides formed on the Y₂O₃-free γ′-Ni₃Al coatings were composed of Al-rich oxides (NiAl₂O₄ and Al₂O₃) and NiO, while Al₂O₃ was the main oxide formed on the Y₂O₃-dispersed γ′-Ni₃Al coating, no NiO and NiAl₂O₄ spinel peaks were detected. This suggests that the Y₂O₃ significantly suppresses the growth of NiO and NiAl₂O₄ during the thermal cycling of the γ′-Ni₃Al coatings. This was also visually confirmed by SEM/EDAX investigation. Figure 6(a) shows the surface morphology of the Y₂O₃-free γ′-Ni₃Al coating after oxidation in air for 100 h. Heavy spallation occurred. From a magnified image in the inset, large interface cavities were observed. In addition to those formed during the annealing treatment, voids with different size were also observed  in oxide scales left on the surface (as arrowed in Fig. 6(a)). A magnified  image with spallation area was presented in Fig. 6(b), in which NiO nodule was visible on spallation area and Al₂O₃ (possibly including NiAl₂O₄ spinel) appeared on most other areas. In contrast, no spallation was visibed on the Y₂O₃-dispersed γ′-Ni₃Al coating after oxidation in air for 100 h, as shown in   Fig. 6(c). A silimar Al-rich oxide scale morphology as the Y₂O₃-free γ′-Ni₃Al coating (Fig. 6(b)) appears, as shown in Fig. 6(d).

Fig. 3 Cross-sectional backscattered electron (BSE) SEM images of as-deposited (a, b) and as-annealed (c, d) Ni-Al-Y₂O₃ composite

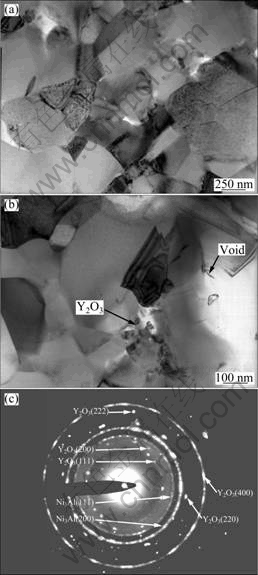

Fig. 4 TEM bright-field images of Y₂O₃-dispersed Ni₃Al coating: (a) A major area without distribution of Y₂O₃ particles; (b) An area with Y₂O₃ particle dispersion; (c) Corresponding SAED pattern

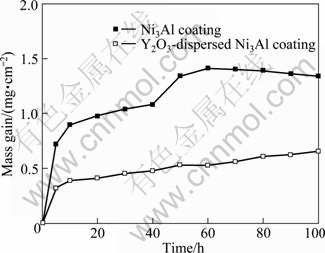

Fig. 5 Cyclic oxidation curves of Ni₃Al samples oxidized in air at 900 ℃ for 100 h

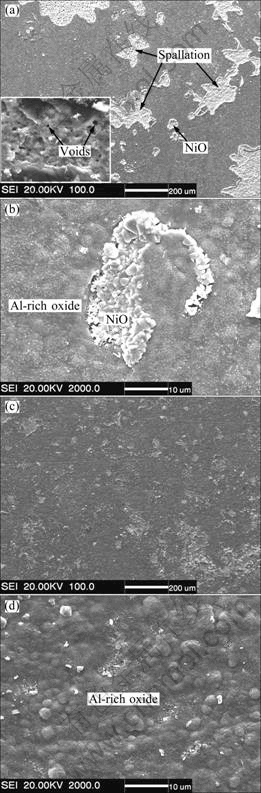

Fig. 6 Surface second electron images of oxide scales formed on pure Ni₃Al (a, b) and Y₂O₃-dispersed Ni₃Al (c, d) coatings after cyclic oxidation in air at 900 ℃ for 100 h

The fractured cross-sectional morphology of the Y₂O₃-dispersed Ni₃Al coating after 100 h cyclic oxidation in air at 900 ℃ is presented in Fig. 7. The thin Al-rich oxide scale had a columnar-grain structure. The scale structure was very silmilar to that formed on the CeO₂-dispersed γ′-Ni₃Al coating at 1050 ℃ [7]. The scale was dense and no voids were seen at the grain boundaries and the scale/coating interface. It means that if voids can form, they are too fine to be visible in the magnification.

Fig. 7 Fractured cross-sectional image of Y₂O₃-dispersed Ni₃Al coating after cyclic oxidation in air at 900 ℃ for 100 h

Figure 8(a) shows a scale cross-section passing through one NiO nodule formed on the Y₂O₃-free γ′-Ni₃Al coating. A thin Al-rich scale layer (indicated by arrow) can be clearly seen in the middle of the NiO nodule. This layer is almost parallel to the surface oxide layer around the NiO nodule. This observation strongly suggests that the Al-rich scale layer in the NiO nodule is linked with the alumina layer around the nodule before its formation. From a magnified image given in Fig. 8(b), the inner alumina layer (the “dark” continuous layer close to the metal) and the external less protective NiAl₂O₄ spinel (the “grayish” area) are clearly seen on the other areas without NiO nodule. NiO is also locally visible at the spallation-free area. Below the scale some cavities formed, as clearly indicated in Fig. 8(b). The scale structure is very similar to that formed on the electrodeposited Ni-28Al nanocomposite after 126 h cyclic oxidation at 1000 ℃ [19]. In contrast, during the thermal cycling of the Y₂O₃-dispersed γ′-Ni₃Al coating, no spallation and NiO nodules were observed, as  shown in Fig. 8(c). From the corresponding higher magnification image shown in Fig. 8(d), NiO (bright color) and NiAl₂O₄ spinel (darker than NiO but lighter than Al₂O₃ in color contrast) are not observed. This implies that the time for the formation of the continuous alumina layer is shortened, in other words, the scale formed on the Y₂O₃-dispersed γ′-Ni₃Al coating is composed mainly of alumina, which is also consistent well with XRD analysis. The alumina scale formed was further investigated using TEM, as seen in Fig. 9. It reveals that the grain size of the alumina formed on the Y₂O₃-free γ′-Ni₃Al coating is about 90 nm (Fig. 9(a)), while the alumina formed on the Y₂O₃-dispersed γ′-Ni₃Al coating is about 45 nm (Fig. 9(b)). Here, it is worthy to point out that interface cavities did not occur. From the comparison of Fig. 3 and Fig. 8, it can be found that voids in the coatings disappeared after 100 h oxidation due to the interdiffudion between the coatings and base metals.

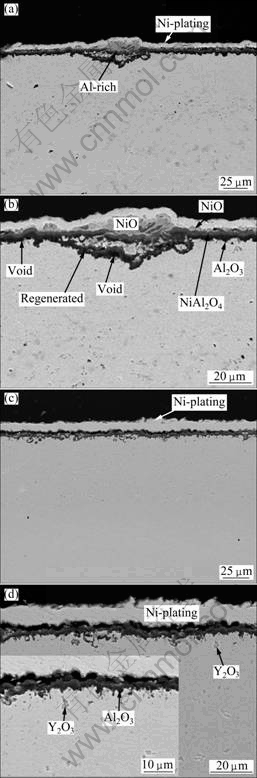

Fig. 8 Cross-sectional BSE images of oxide scales formed on pure Ni₃Al (a, b) and Y₂O₃-dispersed Ni₃Al (c, d) coating after cyclic oxidation in air at 900 ℃ for 100 h

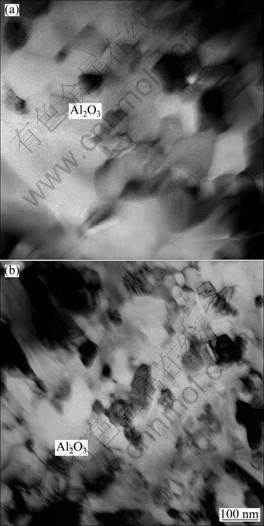

Fig. 9 TEM bright-field image of alumina scale formed on pure Ni₃Al (a) and Y₂O₃-dispersed Ni₃Al (b) coatings after cyclic oxidation in air at 900 ℃ for 100 h

4 Discussion

Scale failure on pure alumina-forming alloys and coatings during high temperature oxidation has been extensively studied [1-4, 6-15]. It is generally believed that the failure of oxide scale is related to internal compressive stresses resulting from the growth stress, the thermal stress, and the interfacial stress [20]. The formation of large interface cavities greatly decreases the critical stress (d_c) for scale decohesion as expressed in the following equation [21]: d_c=K_IC/(pc)^1/2, where K_IC is the critical stress intensity factor and c is a half length of the interface defect. Generally speaking, the interface cavities form as a result of a condensation of excessive vacancies at the grain boundaries and/or the scale/coating interface. The vacancy ?ux may be induced either by dominant outward diffusion of Al cations through the scale, or by faster inward diffusion of Ni in the Al-depleted matrix adjacent to the scale due to a selective oxidation of Al. The existence of voids can significantly reduce the value of K_IC of the oxide scale. According to the equation, a large size of voids (c) and a low K_IC value give a very low critical stress (d_c) for scale spallation. The high thermal stress during cooling as well as other residual stresses could induce scale cracking or de-cohesion around these voids, as shown in Fig. 6(a) and Fig. 8(b). The scale cracking or de-cohesion exposes the underlying coating directly to the air during the subsequent cyclic oxidation. Consequently, NiO nodules form on the fresh surface (Fig. 6(b) and Fig. 8(b)) because the aluminum content beneath the scale is too low and it cannot be compensated by the fast supply of aluminum from the coating due to the coarsening of the Ni₃Al grains. The growth of NiO progressively decreases the partial pressure of oxygen and simultaneously increases the Al content at the oxidation front, which leads to the selective oxidation of Al to form a regenerated alumina layer (Fig. 8(b)). Afterward, the NiO growth is completely prevented, leading to the improvement of the oxidation resistance. However, the regrowth of Al₂O₃ scale, as well as the inward diffusion of Al to the substrate, results in a rapid decrease of Al level in the coating matrix, deteriorates the coating performances and limits the lifetime of coating.

In contrast, no spallation and interface voids occurr on the Y₂O₃-dispersed γ′-Ni₃Al coating. On the basis, it is assumed that the addition of Y₂O₃ particles evidently enhances the adherence of the scale to the matrix and increases the threshold value of the scale for cracking or spalling. The so-called “reactive element effect” has been extensively studied [9-15]. The possible beneficial effects of Y₂O₃ during annealing and oxidation found in this investigation are summarized as follows.

First, adding Y₂O₃ into the electrodeposited Ni-Al composite coating further refines the grains of γ′-Ni₃Al coating [16,17], which significantly increases the number of sites for aluminia nucleating from the onset of oxidation, leading to the development of fine-grained alumina scale, as seen in Fig. 9. The fine-grained scale would be more adherent, because of easier operation of plastic deformation of the oxide in the thermal cycling [1]. At the same time, grain refining of γ′-Ni₃Al coating may also help to develop a more adherent alumina scale by minimizing the formation of interface voids during thermal cycling [1,11,12].

Second, Y₂O₃ particles alter the growth mechanism and the morphology of Al₂O₃ scale. Some investigators [11,22] reported that the reactive element oxides such as CeO₂, La₂O₃,Y₂O₃ dispersed in alloys during oxidation would release a small amount of RE ions, some of which could enter into the growing alumina scale via the scale/grain boundaries. Finally, they reach the gas/scale interface. Due to a much lower diffusivity of RE ions along the scale/grain boundaries than that of Al cations, the outward diffusion of Al cations will be suppressed and the slow inward diffusion of oxygen will become dominant. Indirect evidence for the suppression of the dominant outward growth of alumina is shown in Fig. 7. The alumina scale consists of columnar grain crystals [22,23]; whereas the alumina scale whose growth is controlled by the outward diffusion of aluminium should exhibit a typical equiaxed grain structures [7]. The inward scale growth decreases the scaling rate (Fig. 5) and reduces the interface voiding kinetics (Fig. 8(d)). Furthermore, the RE oxide precipitates will be formed if a critical doping concentration of RE ions along the grain boundary is exceeded. Due to the solute-drag effect by RE ions or the precipitates, the scale/grain boundaries would be pinned [24], and fine-grained scales with enhanced adhesion could be retained.

Third, the Y₂O₃ particles themselves in the coating might act as sinks like CeO₂ particles for vacancy condensation[7,11,19], which decreases the number and size of vacancies at the scale/coating interface or in the coating, as seen in Fig. 8(d).

Fourth, the Y ions segregated to the interface scavenge the interface segregants of sulfur, a detrimental element which can promote the growth of the exiting interface voids or weaken the interface bonding [9]. Although the current research did not detect any sulphur at the scale/coating interface, but desulfidation treatment could significantly improve the adhesion of alumina scale [25].

5 Conclusions

1) An ultrafine-grained Y₂O₃-dispersed Ni₃Al coating was fabricated by annealing the as-deposited Ni-Al-Y₂O₃ composite at 800 ℃ for 3 h.

2) The coarse-grained Ni₃Al coating had a poor cyclic oxidation resistance at 900 ℃, because the formation of large voids at the scale/metal interface caused buckling, cracking and spalling of the scale formed. In contrast, the ultrafine-grained Y₂O₃-dispersed Ni₃Al coating exhibited an excellent oxidation resistance.

3) The Y₂O₃ dispersions not only significantly refined the grain structure of the produced Ni₃Al coatings but also took REEs on its oxidation, which prevented the formation of interface cavity and consequently allowed the coating to intrinsically grow finer-grained adherent alumina scale.

References

[1] WANG F H. The effect of nanocrystallization on the selective oxidation and adhesion of Al₂O₃ scales [J]. Oxid Met, 1997, 47: 247-258.

[2] LA P Q, BAI M W, XUE Q J, LIU W M. A study of Ni₃Al on carbon steel surface via the SHS casting route [J]. Surface and Coatings Technology, 1999, 113: 44-51.

[3] SUSAN D F, MARDER A R. Oxidation of Ni-Al-based electrodeposited composite coatings (II): Oxidation kinetics and morphology at 1000 ℃ [J]. Oxid Met, 2002, 57: 159-180.

[4] LIU H F, CHEN W X. Porosity-dependent cyclic-oxidation resistance at 850 ℃ of annealed Ni-Al-based coatings via electroplating [J]. Surface and Coatings Technology, 2008, 202: 4019-4027.

[5] YANG X, PENG X, WANG F. Size effect of Al particles on the structure and oxidation of Ni/Ni₃Al composites transformed from electrodeposited Ni-Al films [J]. Scripta Materialia, 2007, 56: 509-512.

[6] LIU H F, CHEN W X. Cyclic oxidation behavior of electrodeposited Ni₃Al-CeO₂ base coatings at 850 ℃ [J]. Oxid Met, 2005, 64: 331-354.

[7] LIU H F, CHEN W X. Cyclic oxidation behaviour of electrodeposited Ni₃Al-CeO₂ base coatings at 1050 ℃ [J]. Corrosion Science, 2007, 49: 3453-3478.

[8] CHOI S C, CHO H J, KIM Y J, LEE D B. High-temperature oxidation behavior of pure Ni₃Al [J]. Oxid Met, 1996, 46: 51-72.

[9] LEES D G. On the reasons for the effects of dispersions of stable oxides and additions of reactive elements on the adhesion and growth-mechanisms of chromia and alumina scales-the “sulfur effect” [J]. Oxid Met, 1987, 27: 75-81.

[10] BRUMM M W, GRABKE H J. Oxidation behaviour of NiAl -(II): Cavity formation beneath the oxide scale on NiAl of different stoichiometries [J]. Corrosion Science, 1993, 34: 547-561.

[11] XU C, PENG X, WANG F. Cyclic oxidation of an ultrafine-grained and CeO₂-dispersed d-Ni₂Al₃ coating [J]. Corrosion Science, 2010, 52: 740-747.

[12] PENG X, LI M, WANG F. A novel ultrafine-grained Ni₃Al with incresaed cyclic oxidation resistance [J]. Corrosion Science, 2011, 53: 1616-1620.

[13] RAHMEL A, SCHUTZE M. Mechanical aspects of the rare-earth effec [J]. Oxid Met, 1992, 38: 255-266.

[14] JUNG H G, KIM KY. Effect of yttrium coating on the oxidation behavior of Ni₃Al [J]. Oxid Met, 1996, 46: 147-167.

[15] PINT B A. The oxidation behavior of oxide-dispersed β-NiAl: (I). short-term performance at 1200 ℃ [J]. Oxid Met, 1998, 49: 531-559.

[16] ZHOU Y B, ZHANG H J, WANG Z T. Effect of Y₂O₃ on the microstructure and oxidation of g-Ni+g?-Ni₃Al coatings transformed from electrodeposited Ni-Al films at 1000 ℃ [J]. Transactions of Nonferrous Metals Society of China, 2008, 18(2): 297-302.

[17] ZHOU Y B, ZHAO G G, ZHANG H J, ZHANG Y C, QIAN B Y. Effect of CeO₂ on the microstructure and isothermal oxidation of Ni-Al alloy coatings transformed from electrodeposited Ni-Al films at 800 ℃ [J]. Vacuum, 2009, 83: 1333-1339.

[18] ZHOU Y B, QIAN B Y, ZHANG H J. Al particles size effect on the microstructure of the co-deposited Ni-Al composite coatings [J]. Thin Solid Films, 2009, 517: 3287-3291

[19] ZHOU Y, PENG X, WANG F. Cyclic oxidation of alumina-forming Ni-Al nanocomposites with and without CeO₂ addition [J]. Scripta Materialia, 2006, 55: 1039-1042.

[20] BULL S J. Modeling of residual stress in oxide scales [J]. Oxid Met, 1998, 49: 1-17.

[21] HANCOCK P, NICHOLLS J R. Application of fracture mechanics to failure of surface oxide scales [J]. Mater Sci Technol, 1988, 4: 398-406.

[22] STOTT F H, WOOD G C, STRINGER J. The influence of alloying elements on the development and maintenance of protective scales [J]. Oxid Met, 1995, 44: 113-141.

[23] PRESCOTT R, GRAHAM M J. The formation of aluminum oxide scales on high-temperature alloys [J]. Oxid Met, 1992, 38: 233-254.

[24] HINDAM H M, WHITTLE D P. Peg formation by short-circuit diffusion in Al₂O₃ scales containing oxide dispersions [J]. J Electrochem Soc, 1982, 129: 1147-1149.

[25] GRABKE H J. Oxidation of NiAl and FeA [J]. Intermetallics, 1999, 7: 1153-1158.

Y₂O₃改性细晶Ni₃Al合金涂层在

900 ℃下的循环氧化性能

周月波，张海军

黑龙江科技学院 材料科学与工程学院，哈尔滨 150027

摘  要：将Ni-Al和Ni-Al/Y₂O₃复合镀层分别在800 ℃下扩散3 h制备纯Ni₃Al和Y₂O₃改性的Ni₃Al合金涂层，对其显微组织和氧化性能进行对比研究。SEM/EDAX和TEM分析表明，涂层中Y₂O₃的加入抑制了合金化过程中基体晶粒的长大。在900 ℃下循环氧化100 h的结果表明，Y₂O₃的加入明显提高了Ni₃Al合金涂层的抗循环氧化性能。对Y₂O₃影响Ni₃Al涂层的结构和氧化性能的机理进行了分析。

关键词：电镀；Ni₃Al；循环氧化；活性元素效应
