Trans. Nonferrous Met. Soc. China 27(2017) 2090-2095

Synthesis and alumina leaching mechanism of calcium sulphoaluminate

Bo WANG^1,2, Wei-qin CHU¹, Yuan-liang HAO¹, Shuo RONG¹, Hui-lan SUN^1,2

1. School of Materials Science and Engineering, Hebei University of Science and Technology, Shijiazhuang 050018, China;

2. Hebei Key Laboratory of Material Near-net Forming Technology, Hebei University of Science and Technology, Shijiazhuang 050018, China

Received 19 January 2016; accepted 28 September 2016

Abstract:

Calcium sulphoaluminate (3CaO·3Al₂O₃·CaSO₄, abbreviated as C₄A₃S) was synthesized by sintering at 1375 °C for 2 h with analytically pure carbonate calcium, alumina and dihydrate calcium sulfate. The crystal structure of C₄A₃S was characterized by XRD, SEM and TEM. Alumina leaching properties in Na₂CO₃ solution were studied, and the leaching mechanism was investigated by means of Raman spectrum and XRD. The results show that C₄A₃S has porous morphology. The polycrystallines and single crystals coexist in C₄A₃S and grow along different directions. The alumina leaching rate of C₄A₃S is 98.41%, which is higher than that of 12CaO·7Al₂O₃ under the optimal condition. The aluminum and sulfur elements exist in the leaching solution in the form of  and , respectively, and the calcium exists as CaCO₃ in the leaching residues.

Key words:

calcium sulphoaluminate; synthesis; alumina; leaching;

1 Introduction

With the continuous improvement of the global industrial production, alumina industry has been rapidly developed [1]. The alumina production of China increased to 5125 million tons in 2014 from 700 million tons in 2004 [2]. The ore grade decreases because of the sharp and increasing demand of bauxite. It’s meaningful to study the use of non bauxite resources (such as red mud, fly ash, and iron-bearing bauxite) in the production of alumina [3]. So, the comprehensive utilization of the low grade ore, fly ash and solid waste has become research hotpots [4-7].

At present, for low grade ore, red mud and fly ash whose A/S (Al₂O₃/SiO₂, mass rate) is less than or equal to 3, the lime sintering method has many advantages, such as high alumina leaching rate, low level of secondary reaction, dry sintering process without alkali [8,9]. The main aluminum phase of lime sinter process is 12CaO·7Al₂O₃ whose alumina leaching property is excellent [10]. However, it also owns a lot of shortcomings, such as large consumption of calcium oxide, large material flow, considerable amount of slag, and small burning temperature range. Based on our previous study, the alumina leaching rate can reach 95% in the process of treating fly ash with lime sintering process, but the main phase of the clinker is C₄A₃S but not 12CaO·7Al₂O₃, which is consistent with the research of GOODBOY [11]. He found that C₄A₃S clinker has a good alumina leaching property. It substitutes 12CaO·7Al₂O₃ as the main phase while the C/A (molar rate between CaO and Al₂O₃) decreases from 1.71 to 1.33, and a high alumina leaching property is achieved under the condition of low calcium and aluminum. The source of sulfur of the process is calcium sulfate, which is the desulfurization residue obtained during the burning of pulverized coal. Therefore, it is very important to study the synthesis and the alumina leaching of C₄A₃S. At present, the researches on C₄A₃S are mainly focused on the cement, because C₄A₃S is the main component of the sulfate cement clinker and it has a fast hydration and good sulfur retention characteristics [12-14]. The formation of C₄A₃S is hindered with the increase of the concentration of additives, such as P₂O₅ and Cr₂O₃ [15]. The use of phosphorus gypsum can significantly reduce the temperature and time of the formation of C₄A₃S compared with the use of gypsum [16]. LI et al [17] found that the optimal temperature range of formation of C₄A₃S with C₃S and CaSO₄ was 1150-1350 °C, and the corresponding optimum holding time was 1-6 h. It was also found that the holding time decreased with the increase of the sintering temperature. The reaction equation is

3Ca₃Al₂O₆+CaSO₄→Ca₄Al₆O₁₂(SO₄)+6CaO      (1)

The formation mechanism [18] and the thermodynamics [19] and kinetics of C₄A₃S [20] were researched, and the formation reaction of C₄A₃S was determined as

CaSO₄+3CaO+3Al₂O₃→3CaO·3Al₂O₃·CaSO₄        (2)

Therefore, the researches on the formation and hydration of C₄A₃S are widely reported, but the alumina leaching properties and mechanism are rarely reported. In order to eliminate the influence of other impurities, the pure C₄A₃S was synthesized by adding calcium sulfate as the source of sulfur in this work. The structure of C₄A₃S was characterized, and the alumina leaching behavior and mechanism were studied to provide a theoretical basis for the treatment of low sulfur grade raw materials with lime sintering process.

2 Experimental

2.1 Materials

The synthesis experiment of C₄A₃S was carried out with the analytically-pure reagents of carbonate calcium, alumina and dihydrate calcium sulfate.

The alumina leaching solution was prepared by analytically pure reagents of sodium carbonate and sodium hydroxide solution.

2.2 Experimental apparatus

Experimental apparatus: KSL-1700X-A2 box type high temperature sintering furnace, thermostatic water bath, SFM-1 planetary ball mill, planet type mixer.

Analytical apparatus: D/MAX-2500 X-ray diffraction analyzer of Rigaku made in Japan, S-4800-I scanning electron microscopy (SEM) of HITACHI made in Japan, JEM-2100 transmission electron microscopy (TEM) of JEOL made in Japan and Nicolet 6700 FT-Raman modules of Thermo Fisher made in America.

2.3 Synthesis of C₄A₃S

According to the formula of C₄A₃S, analytically pure carbonate calcium, alumina and dihydrate calcium sulfate were weighed at the rate of 3:3:1. They were mixed in the planetary mixer at the speed of 130 r/min for 2 h. The mixed material was sintered for 2 h at 1375 °C and then was taken out when the temperature below 200 °C. After sintering process, a portion of the sintered clinker was ground to less than 200 meshes (≤74 μm) for the use of XRD analysis and alumina leaching in the SFM-1 planetary ball mill at the speed of 250 r/min for 1 h. The scanning angle of XRD ranged from 10° to 80°, and the scanning speed was 2 (°)/min. Another part of the sintered sample was polished, corroded, sprayed with gold, and scanned by the SEM.

2.4 Alumina leaching of C₄A₃S

The leaching experiments of clinker were carried out in the constant temperature water bath, using flask as leaching container which was connected with the circulating cooling water. The experiments were performed under the following conditions: carbon alkali concentration (N_C) was 80 g/L, caustic concentration (N_K) was 10 g/L, leaching temperature ranged from 60 to 90 °C, leaching time ranged from 5 to 30 min, liquid to solid rate (L/S) was 10, and stirring speed was 400 r/min. The content of Al₂O₃ in the filtrate was analyzed by EDTA titration, and the content of  was analyzed by Barium sulfate gravimetric method. The alumina leaching rate was calculated according to

                        (3)

where C_ls is the alumina content in leaching solution, g/L; C_cl is the alumina content in correction liquor, g/L; V_ls is the volume of leaching solution, L; V_cl is the volume of correction liquor, L; m is the mass of C₄A₃S, g; w is the alumina mass fraction of C₄A₃S.

3 Results and discussion

3.1 Synthesis of C₄A₃S

A part of the sintered sample was analyzed by XRD. The XRD pattern is shown in Fig. 1. Another part of the sintered sample was scanned by the SEM. The result is shown in Fig. 2.

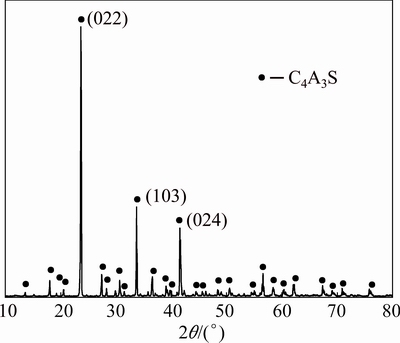

Fig. 1 XRD pattern of sintering clinker at 1375 °C for 2 h

Fig. 2 SEM image of C₄A₃S

The result of X-ray analysis shows that single phase C₄A₃S (PDF card number 85-2210) is obtained under the sintering conditions, and there is no impurity phase. The intensity and half height width of the strongest peak are 15499 and 0.146, so the crystallinity of C₄A₃S is high. The SEM image shows that its micro-morphology is porous, and there are some big gaps, as illustrated in Fig. 2. These pores can increase the contact area of the solid reaction and increase the reaction rate in the process of leaching.

A part of the sample was milled to below 100 nm, and then the ultrasonic dispersion was carried out for TEM analysis. The selected area electron diffraction (SAED) and lattice fringe image of C₄A₃S are shown in Fig. 3.

Because the electron diffraction pattern of Fig. 3(b) is a series of different radii of the concentric rings, there are some polycrystallines in C₄A₃S. But the diffraction pattern (Fig. 3(c)) indicates a single crystal, so the C₄A₃S is a coexisting phase of polycrystallines. Figures 3(c) and (d) show that C₄A₃S mainly has two growth directions, and their interplanar spacings are 0.3635 and 0.2936 nm. And combined with XRD results, the preferred orientations of C₄A₃S are (022) and (103), respectively, which are the strongest and the second strongest peaks of C₄A₃S.

The results of XRD, SEM and TEM analysis show that the microstructure of the C₄A₃S synthesized at 1375 °C for 2 h is porous and it grows in different directions.

3.2 Leaching mechanism of C₄A₃S

3.2.1 Alumina leaching of C₄A₃S

The effect of temperature on the leaching performance of C₄A₃S was studied under the leaching conditions (N_C=80 g/L, N_K=10 g/L, leaching time: 30 min, stirring speed: 400 r/min, and L/S=10). The results are shown in Fig. 4.

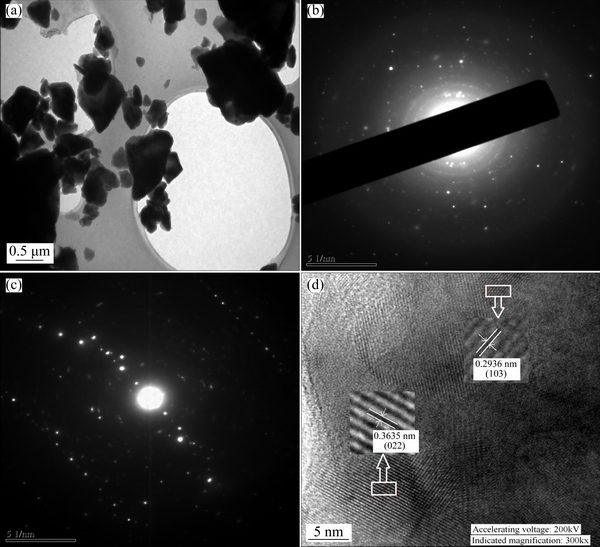

Fig. 3 TEM image of C₄A₃S (a), selected area electron diffraction patterns of C₄A₃S (b) and (c), and HRTEM image of C₄A₃S (d)

As shown in Fig. 4, the leaching rate of C₄A₃S increases obviously with the increase of temperature from 60 to 80 °C. After that, the effect of temperature on leaching rate decreases. And the leaching rate remains up to 98%. Therefore, C₄A₃S can be easily leached out and its optimal leaching temperature is 80 °C.

Fig. 4 Effect of leaching temperature on alumina leaching rate of C₄A₃S

The effect of leaching time on the leaching performance of C₄A₃S was investigated under the leaching conditions (N_C=80 g/L, N_K=10 g/L, leaching temperature: 80 °C, stirring speed: 400 r/min, and L/S=10). The results are shown in Fig. 5.

Fig. 5 Effect of leaching time on alumina leaching rate of C₄A₃S

As can be seen in Fig. 5, C₄A₃S can be leached in a short period of time, and the leaching rate is high. After 10 min leaching, the leaching rate changes little. As illustrated in Fig. 2, the micro-morphology of C₄A₃S is porous, which increases the contact area of the liquid and solid, accelerates the reaction rate and makes the reaction more adequate.

Based on the leaching experiments, the optimum leaching conditions (N_C=80 g/L, N_K=10 g/L, leaching temperature: 80 °C, leaching time: 10 min, stirring speed: 400 r/min, and L/S=10) are confirmed. Under those conditions, the alumina leaching rate of C₄A₃S is 98.41%. However, the alumina leaching rate of 12CaO·7Al₂O₃ is 93.30% under the conditions of N_C=80 g/L, leaching temperature: 80 °C, and leaching time: 30 min [21]. This indicates that the leaching performance of C₄A₃S is better than those of 12CaO·7Al₂O₃. And also, the leaching time and C/A of C₄A₃S are shorter and lower than that of 12CaO·7Al₂O₃. Therefore, this process can save the lime consumption and energy during the leaching process.

3.2.2 Leaching mechanism analysis

The alumina leaching experiment of the C₄A₃S was carried out under the optimum leaching conditions of the section 3.2.1. Raman spectrum analyses of the correction liquor and the leaching solution were also carried out. The results are shown in Figs. 6 and 7.

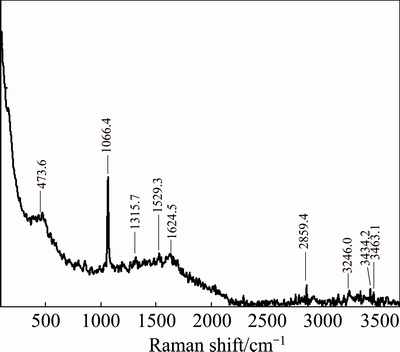

Fig. 6 Raman spectrum of correction liquor before leaching

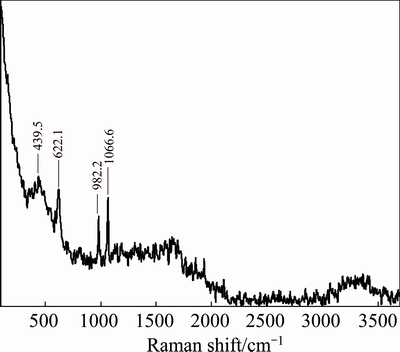

Fig. 7 Raman spectrum of C₄A₃S leaching solution

The concentration of  ion in the solution was 0.047 mol/L determined by gravimetric method. It’s closed to the theoretical value of 0.048 mol/L. And, the characteristic peak of  is found at 982.2 cm^-1 in Fig. 7 [22]. Therefore, the sulfur element in the clinker basically exists in the leaching solution in the form of  ion. The result shows that the characteristic peak of Al—OH stretching vibration band of  structure is at 622 cm^-1 in Fig. 7 [23]. Namely,  is generated after leaching. The characteristic peaks of  are found at 1315.7 cm^-1 (Fig. 6) and 1066 cm^-1 (Fig. 7) [24]. It can be seen from Fig. 7 that there is no sharp peak at 1315.7 cm^-1, because a part of Na₂CO₃ solution is consumed in the reaction process. By comparing Figs. 6 and 7, there is still  in the leaching solution at 1066 cm^-1 (Fig. 7), and the peak is still sharp, but the peak intensity decreases. There is O—H for different structures at 3200-3463.1 cm^-1 [25]. According to the comparison of the Raman spectra (Figs. 6 and 7), the peak shape of O—H before leaching (Fig. 6) converts to the shoulder peak after leaching and the peak width increases (Fig. 7), mainly due to the change of expansion of O—H by the free stretching to O—H bond stretching vibration.

The X-ray diffraction pattern of the leaching residue was carried out, and the result is shown in Fig. 8.

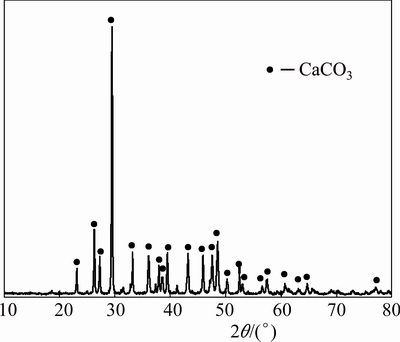

Fig. 8 XRD pattern of leaching residue

Figure 8 shows that C₄A₃S has been completely leached, and there is no aluminiferous compound phase. The main phase of leaching residue is CaCO₃. In addition, CaSO₄ is also not found in the slag. Therefore, the equation of the alumina leaching of C₄A₃S reaction can be determined as

4CaO·3Al₂O₃·SO₃+4Na₂CO₃+2H₂O→6NaAl(OH)₄+4CaCO₃+Na₂SO₄        (4)

This is consistent with the results of the study of GOODBOY [11]. In addition, according to the reaction equation, the molecular proportion (α_k, mole ratio between Na₂O and Al₂O₃ in solution) of the solution is equal to 1 when alkali is not added into the solution before leaching. The solution was unstable and easy to decomposition (Fig. 9), and the leaching rate is reduced by about 20% in the experiment. However, the molecular proportion α_k equals 1.26 when the leaching reagent contains alkali (10 g/L). The solution was stable and not easy to decomposition (Fig. 8).

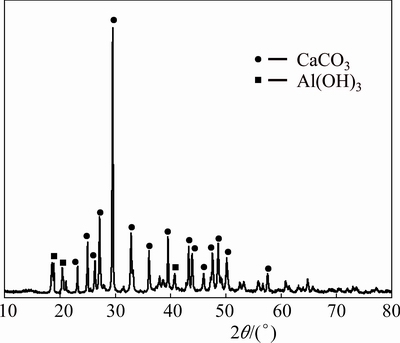

Fig. 9 XRD pattern of leaching residue of C₄A₃S without alkali in correction liquor

From the above analysis, it can be seen that the structure which is Al—OH stretching vibration band of  is generated by the reaction of C₄A₃S and sodium carbonate solution. And NaAl(OH)₄ is easy to break down:

NaAl(OH)₄→Al(OH)₃+NaOH                 (5)

On the principle of the movement of chemical equilibrium, the decomposition can be restrained by adding sodium hydroxide solution into the correction liquor.

4 Conclusions

1) Pure C₄A₃S is obtained at 1375 °C for 2 h by analytically pure carbonate calcium, alumina and dihydrate calcium sulfate. The crystalline integrity is better, and it has preferred orientations (022) and (103). It has excellent reaction performance in Na₂CO₃ and NaOH solution because its microstructure is porous, which results in the leaching rate increasing and the leaching time shortening obviously.

2) The alumina leaching rate of C₄A₃S can reach 98.70% which is better than that of 12CaO·7Al₂O₃ of 93.30% under the optimal conditions (N_C=80 g/L, N_K= 10 g/L, leaching temperature: 80 °C, leaching time: 30 min and L/S=10).

3) The aluminum and sulfur elements exist in the leaching solution in the form of  and , and the calcium element exists as CaCO₃ in the leaching residues. Adding alkali can inhibit the decomposition of  in leaching solution.

References

[1] YUE Qiang, WANG He-ming, GAO Cheng-kang, DU Tao, LIU Li-ying, LU Zhong-wu. Resources saving and emissions reduction of the aluminum industry in China [J]. Resources, Conservation and Recycling, 2015, 104: 68-75.

[2] YANG Ji-qian. The actuality and the discussion on bauxite and alumina industry in our country [J]. World Nonferrous Metals, 2006(11): 17-19. (in Chinese)

[3] YAO Z T, XIA M S, SARKER P K, CHEN T. A review of the alumina recovery from coal fly ash, with a focus in China [J]. Fuel, 2014, 120: 74-85.

[4] SUN Yu-zhuang, ZHAO Cun-liang, QIN Shen-jun, XIAO Lin, LI Zhong-sheng, LIN Ming-yue. Occurrence of some valuable elements in the unique ‘high-aluminium coals’ from the Jungar coalfield, China [J]. Ore Geology Reviews, 2016, 72(1): 659-668.

[5] LIU Zhao-bo, LI Hong-xu. Metallurgical process for valuable elements recovery from red mud—A review [J]. Hydrometallurgy, 2015, 155: 29-43.

[6] MOLDOVEANU G A, PAPANGELAKIS V G. Recovery of rare earth elements adsorbed on clay minerals: II. Leaching with ammonium sulfate [J]. Hydrometallurgy, 2013, 131-132: 158-166.

[7] WANG Bo, SUN Hui-lan, GUO Dong, ZHANG Xue-zheng. Effect of Na₂O on alumina leaching property and phase transformation of MgO-containing calcium aluminate slags [J]. Transactions of Nonferrous Metals Society of China, 2011, 21(12): 2752-2757.

[8] LI Yin-tai, BI Shi-wen, DUAN Zhen-ying, YANG Hong-yi, ZHANG Jing-dong. Discussion on the comprehensive process of gibbsite bauxite in Guangxi [J]. Light Metals, 1992(9): 6-14. (in Chinese)

[9] ZHANG Di, YU Hai-yan, PAN Xiao-lin, ZHAI Yu-chun. Effect of alumina existing formation on mineralogical transformation of sintered clinker with low lime dosage [J]. The Chinese Journal of Nonferrous Metals, 2015, 25(12): 3497-3505. (in Chinese)

[10] SUN Hui-lan, YU Hai-yan, WANG Bo, MIAO Yu, TU Gan-feng, BI Shi-wen. Leaching Dynamics of 12CaO·7Al₂O₃ [J]. The Chinese Journal of Nonferrous Metals, 2008, 18(10): 1920-1925. (in Chinese)

[11] GOODBOY K P. Investigation of a sinter process for extraction of Al₂O₃ from coal wastes [J]. Metallurgical and Materials Transactions B, 1976, 7(4): 716-718.

[12] MA Bing, LI Xue-run, MAO Yu-yi, SHEN Xiao-dong. Synthesis and characterization of high belite sulfoaluminate cement through rich alumina fly ash and desulfurization gypsum [J]. Ceramics-Silikáty, 2013, 57(1): 7-13.

[13] ARJUNAN P, SILSBEE M R, ROY D M. Sulfoaluminate-belite cement from low-calcium fly ash and sulfur-rich and other industrial by-products [J]. Cement and Concrete Research, 1999, 29(8): 1305-1311.

[14] YANG Tian-hua, ZHOU Jun-hu, CHENG Jun, MA Yi, CAO Xin-yu, CEN Ke-fa. Progress in high temperature phase of sulphoaluminate for desulfuration [J]. Journal of Combustion Science and Technology, 2003, 9(1): 35-39. (in Chinese)

[15] BENARCHID M Y, ROGEZ J. The effect of Cr₂O₃ and P₂O₅ additions on the phase transformations during the formation of calcium sulfoaluminate C₄A₃S [J]. Cement and Concrete Research, 2005, 35(11): 2074-2080.

[16] VALETI G, SANTORO L, GAROFANO R. High-temperature synthesis of calcium sulphoaluminate from phosphogypsum [J]. Thermochimica Acta, 1987, 113(87): 269-275.

[17] LI Xue-run, ZHANG Yu, SHEN Xiao-dong, WANG Qian-qian, PAN Zhi-gang. Kinetics of calcium sulfoaluminate formation from tricalcium aluminate, calcium sulfate and calcium oxide [J]. Cement and Concrete Research, 2014, 55: 79-87.

[18] MA Su-hua, SHEN Xiao-dong, HUANG Ye-ping, ZHONG Bai-qian. Preparation and formation mechanism of calcium sulphoaluminate [J]. Journal of the Chinese Ceramic Society, 2008, 36(1): 78-81.

[19] YANG Tian-hua, LI Run-dong, ZHOU Jun-hu, CEN Ke-fa. Formation thermodynamics of high-temperature phase sulphoaluminate [J]. Thermal Power Generation, 2006(6): 6-9, 67. (in Chinese)

[20] YANG Tian-hua, LI Run-dong, ZHOU Jun-hu, CEN Ke-fa. Formation kinetics of high -temperature phase sulphoaluminate [J]. Journal of Chemical Industry and Engineering, 2006, 57(10): 2327-2331. (in Chinese)

[21] YU Hai-yan, WANG Bo, PAN Xiao-lin, BI Shi-wen. Crystal structure and Al₂O₃ leaching properties of 12CaO·7Al₂O₃ [J]. Chinese Journal of Engineering, 2015, 37(01): 30-34. (in Chinese)

[22]  L. Hydration of calcium aluminates and calcium sulfoaluminate studied by Raman spectroscopy [J]. Cement and Concrete Research, 2013, 47(5): 43-50.

[23] WANG Ya-jing, ZHAI Yu-chun, TIAN Yan-wen, HAN Yue-xin, LIU Lian-li, JI Sheng-li. Infrared and Raman spectrum of aluminate and SiO₂-containing sodium aluminate solutions [J]. The Chinese Journal of Nonferrous Metals, 2003, 13(1): 271-275. (in Chinese)

[24] ZHANG Nai, ZHANG Da-jiang, ZHANG Shui-chang, ZHANG Di-jia. Analysis of the anion Raman characteristics and concentration of salt solution at -170 °C [J]. Science in China Series D: Earth Sciences, 2005, 35(12): 1165-1173. (in Chinese)

[25] SUN Qiang. The Raman OH stretching bands of liquid water [J]. Vibrational Spectroscopy, 2009, 51(2): 213-217.
