Effect of Al₂Ca intermetallic compound addition on grain refinement of AZ31 magnesium alloy

Zhong-tao JIANG^1,2, Bin JIANG^1,3, Jian-yue ZHANG¹, Jia-hong DAI¹,

Qing-shan YANG³, Qin YANG⁴, Fu-sheng PAN^1,3

1. National Engineering Research Center for Magnesium Alloys, College of Materials Science and Engineering,

Chongqing University, Chongqing 400044, China;

2. Research Institute for New Materials Technology, Chongqing University of Arts and Sciences,

Chongqing 402160, China;

3. Chongqing Academy of Science and Technology, Chongqing 401123, China;

4. Changan Auto Global Research and Development Center, Chongqing 401120, China

Received 6 June 2015; accepted 3 March 2016

Abstract:

The Al₂Ca intermetallic compound was prepared by melting process in a vacuum induction furnace. And the Al₂Ca compound was added in as-cast AZ31 alloys for grain refinement. The effect of its additional levels on grain refinement of as-cast AZ31 alloy was investigated and the mechanism of the grain refinement was discussed. The results reveal that the addition of 1.1% Al₂Ca (mass fraction) decreases the average grain size of as-cast AZ31 alloy from 354 to 198 μm. And the thermal stability of the grains refined by Al₂Ca is superior. The grain refining mechanism is attributed to the combined effects of solute and heterogeneous nucleation from the Al₂Ca.

Key words:

AZ31 magnesium alloy; Al2Ca; grain refinement; mechanism;

1 Introduction

Recently, magnesium alloys have been widely concerned in applications for the automobile and aerospace industries as a structure material due to their low specific strength and energy consumption [1,2]. However, for the most commercially and commonly used magnesium alloys, such as AZ31, AZ61 and AZ91, their mechanical properties and performance are relatively low and cannot meet the requirement of many applications [1]. It is well known that the grain size is a very important factor for overcoming this shortcoming of these alloys, and according to Hall-Petch equation, high strength can be attained with fine-grained magnesium alloys [3,4].

In Al-free Mg alloys, Zr is an extremely effective nucleation agent for the solidification of Mg alloys. Unfortunately, in commercially used Al-bearing Mg alloys, no suitable or effective nucleants have yet been found. Nonetheless, several approaches have been developed. These approaches mainly include superheating [5], carbon inoculation [6], adding suitable grain refiners and alloying elements, such as Ca, Sr [7], RE [8,9], Ti-B [10], Mn [11], ZnO [12], AlN [13] and Al₂Y [14]. Due to simplicity and good adaptability to alloy’s compositions, the addition of small amount of alloying elements or grain refiner has become more popular in industrial application.

Ca is one of the most important alloying elements for Mg alloys due to low cost and lightness compared with other elements. In recent years, Ca has been used to improve the creep and high temperature performances of the Mg alloys. Mg-Al-Ca alloys revealed excellent creep resistance and elevated temperature properties  due to the formation of high melting point Ca-containing phases with various sizes located both at the grain boundaries and within grains interior [15]. The addition of Ca to the AZ31 and AZ91 alloys can increase the high temperature properties because of the existence of (Al,Mg)₂Ca phases [16,17]. HOMMA et al [18] reported the precipitation of Al₂Ca plates during the creep test of Mg-Al-Ca-Mn alloys which had better creep  properties. Additionally, some investigations reported that the addition of Ca into Mg-Al alloys will produce an effective grain refinement. Obvious microstructure refinement in AZ31 [19], Mg-5%Al [20], AM60 [21] and AZ91D alloys [22] was observed with Ca additions. Some investigators thought about the grain refinement mechanism of addition of Ca into Mg-Al alloys as the higher growth restriction factor (GRF) [23] of Ca in Mg alloy, some thought about it as the heterogeneous nucleation of in situ formed Al₂Ca compounds in Mg alloys [19]. However, the refinement mechanism of Ca in Mg alloys is not fully understood and unfortunately, and the addition of Ca in AZ31 melt tends to increase the viscosity of the melt [13] and leads to the surface  defect [24].

Therefore, in this work, in order to study the effect of Al₂Ca compound addition on the grain refinement of Mg-Al alloys, Al₂Ca intermetallic compound was prepared by melting process in a vacuum induction furnace under an argon atmosphere. Then, it was added into AZ31 Mg alloy melt to check the grain refining effects on as-cast AZ31 magnesium alloy and the possible refining mechanism.

2 Experimental

The Al₂Ca intermetallic compound was synthesized by pure Al (>99.9%) and pure Ca (>99.9%) through melting reaction process at 1023 K using an alumina crucible in a vacuum induction furnace under an argon atmosphere. The Al/Ca molar ratio was 2:1. After the melting reaction, the products were held for about 10 min, then cooled with furnace and the primary Al₂Ca block was achieved. The agate balls with a diameter of 10 mm were used as the milling media and mixed with the starting material at a ball-to-powder mass ratio of 10:1. The Al₂Ca block and milling balls were put into the agate jar, and then mixed at a speed of 50 r/min for 12 h. Finally, the Al₂Ca powder was obtained.

A commercial AZ31 Mg alloy was melted in a mild steel crucible in an electric resistance furnace under the protection of CO₂+0.5% SF₆ (volume fraction) mixture gas. Then, 0.5% Al₂Ca, 1.1% Al₂Ca, 1.7% Al₂Ca and 3.5% Al₂Ca powders were added into the AZ31 Mg alloy melt at about 993 K, respectively. The melt was stirred and held for 10 min and then poured into a steel mold (d20 mm × 90 mm) preheated to 473 K in order to obtain a sample ingot. The actual chemical compositions of the experimental alloys were inspected by an XRF 800CCDE X-ray fluorescence spectrometer and results are listed in Table 1. For grain morphology observation, all as-cast samples were cut in the horizontal direction at the location of 15 mm from the bottom of the ingots. Moreover, in order to clearly show the grain boundaries of the samples and estimate the thermal stability of the fine grains, the solid solution treatment of the samples was carried out at 688 K for 10 h and followed by water quenching.

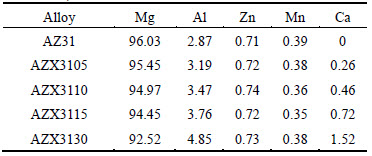

Table 1 Chemical compositions of alloys studied (mass fraction, %)

In order to identify the precipitation sequence of the Al₂Ca phase and the α-Mg phase, a thermal analysis method was used to detect whether the Al₂Ca precipitates during solidification. Before cooling, a thermocouple was placed at the center of the mild steel crucible with its tip set at 10 mm from the bottom of the crucible. The alloy melt was cooled in the furnace. The cooling curves were recorded by a datalogger and computer. In addition, to study the stability of Al₂Ca in liquid Mg, the Al₂Ca/Mg solid-liquid diffusion couple was prepared by traditional method. Pure Mg and Al₂Ca compound block (melting point about 1352 K) were used. A rectangular piece of Al₂Ca compound block was polished with 800-grit SiC paper, and then cleaned with acetone to make sure an oxide-free surface. Pure Mg was melted under a protective atmosphere of CO₂+0.5%SF6. Al₂Ca compound block was immediately submerged into the Mg melt, and isothermally held at 993 K for 10 min, and then the samples were quenched in cold water.

These samples were ground, polished and then etched with a solution of 2.5 g picric acid + 45 mL ethanol + 2.5 mL acetic acid + 5 mL distilled water and then the grain size of each sample was examined using polarized light in Olympus optical microscope. The obtained color images were analyzed by Image-Pro Plus 5.0 software. The phase identification was analyzed by a Dimax 2500PC type X-ray diffractometer (XRD) operated at 40 kV and 30 mA. The microstructure was observed by a scanning electron microscope (SEM) with energy dispersive spectrometer (EDS).

3 Results and discussion

3.1 Characteristics of Al₂Ca intermetallic compound

Figure 1 presents the XRD pattern of the Al-Ca intermetallic compound. It can be seen that the main compound in the product is Al₂Ca and small amount of Al₄Ca phase. In Al-Ca binary phase diagram [25], there have been two compounds, i.e., Al₂Ca and Al₄Ca. When the Al/Ca molar ratio is 2:1, the product is Al₂Ca. Due to the little burning of Ca under the limited vacuum degree, the Al₄Ca compound is present in the products. Figure 2(a) shows the image of the Al₂Ca block sample. As the compound is very brittle, it is easy to crush and ball-mill into powder, as shown in Fig. 2(b). It can be seen that the powder is composed of anomalous particles with sizes of 5-10 μm.

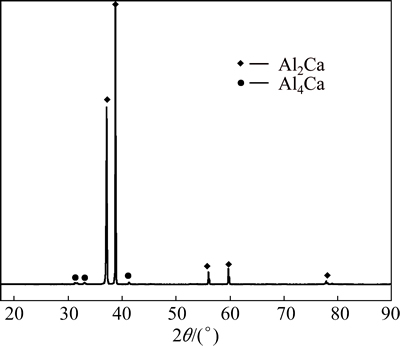

Fig. 1 XRD pattern of Al₂Ca intermetallic compound

3.2 Grain refining performance of Al₂Ca intermetallic compound

In order to identify the phase composition of the alloys, the as-cast alloys were examined by XRD and the patterns are shown in Fig. 3. The AZ31 alloy consists only of α-Mg phase. Extra peak was reproducibly identified to be the Al₂Ca phase in the spectra in the AZX3110, AZX3115 and AZX3130 alloys, respectively. The absence of the Al₂Ca phase in the AZX3105 alloy is presumably due to the relatively small addition amount of the Al₂Ca compound. Figure 4 shows the typical as-cast microstructures of the AZ31 alloys and Fig. 5 illustrates the variation of the average grain size with different addition levels of Al₂Ca. Without any Al₂Ca addition, the average grain size of AZ31 alloy is about 354 μm (Fig. 4(a)). With the increase of addition level of Al₂Ca powder, the average grain size is remarkably reduced. When the addition of the Al₂Ca is 1.1% (mass fraction), the average grain size decreases to 198 μm  (Fig. 4(c)), i.e., the smallest grain size. However, with the further increase of Al₂Ca addition level from 1.1% to 3.5% (mass fraction), the average grain size has a trend to increase (Figs. 4(d) and (e)). Therefore, it is clear that the Al₂Ca compound can efficiently refine the as-cast AZ31 Mg alloy.

Fig. 2 SEM images of Al₂Ca intermetallic compound obtained by casting

Fig. 3 XRD patterns of as-cast alloys

In order to clearly reveal the grain boundaries and distribution of the second phases, the as-cast samples of the experimental alloys were subjected to a solution heat treatment. The optical micrographs of the alloys after solution heat treatment are shown in Fig. 6. And the corresponding variation of the average grain sizes with different additions of Al₂Ca is shown in Fig. 7. It is obvious that the change trend of grain size of solution- treated alloys with the increase of Al₂Ca is the same as that of the as-cast alloys, similar to Fig. 5. However, after solution treatment at 688 K for 10 h, the average grain size without addition of Al₂Ca alloy increases to 400 μm, as shown in Fig. 6(a). When Al₂Ca contents are 1.1% and 1.7%, the average grain sizes are 200 and 223 μm, respectively, which is almost the same as that of the as-cast one. This indicates that the refined grains have high thermal stability. Next, it is worth noting that the grain boundaries of AZ31 alloy with addition of 3.5% Al₂Ca are not be revealed, due to too many second phases distributed at the grain boundary. In order to observe the grain size, polarization images should be used again, as shown in Fig. 6(e), meanwhile, optical micrograph contained a grain (marked in red) in Fig. 6(e) is also overlapped.

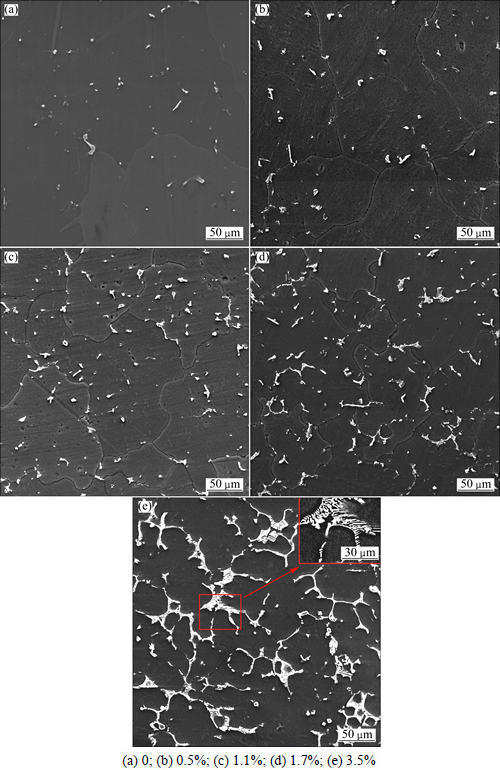

Fig. 4 Optical micrographs of as-cast AZ31 alloys with different addition levels (mass fraction) of Al₂Ca

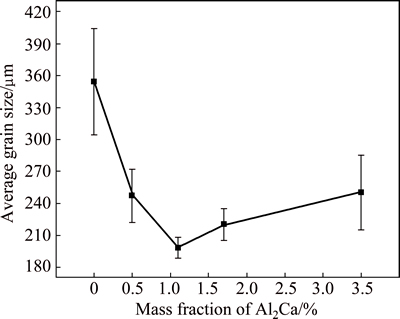

Fig. 5 Grain size variation of as-cast AZ31 magnesium alloys with addition level of Al₂Ca

Figure 8 presents the microstructures of the solution-treated AZ31 Mg alloy with different levels of Al₂Ca addition. LIU et al [26] reported that the dissolution of Al₂Ca into the Mg matrix is difficult during the solution treatment of alloys at 688 K. It is found that the alloying phases exist in the matrix of heat-treated alloys, shown as the bright parts in Fig. 8. The granular and irregular mass alloying phases may be Al-Mn intermetallic compound in the heat-treated AZ31 alloy without addition of Al₂Ca compound, as shown in Fig. 8(a). In general, the Mg₁₇Al₁₂ and Al-Mn phases may exist in the as-cast AZ31 alloy. But, after solution treatment at 688 K for 10 h, Mg₁₇Al₁₂ phase is dissolved in the matrix. Besides, after the addition of the Al₂Ca powders, the volume fraction of the bright parts rises with the increase of addition content of Al₂Ca. For AZ31 alloy with 1.1% Al₂Ca powder, the irregular shaped alloying phases are distributed not only inside the grains, but also along the grain boundary, as shown in Fig. 8(c). The distribution and morphology of alloying phases are almost no changed, but the size of the second phase is larger, compared with Figs. 8(c) and (d). As the Al₂Ca content increases to 3.5%, semi-continuous alloying phases are so thick that it is difficult to identify grain boundaries of alloys, as shown in Fig. 8(e).

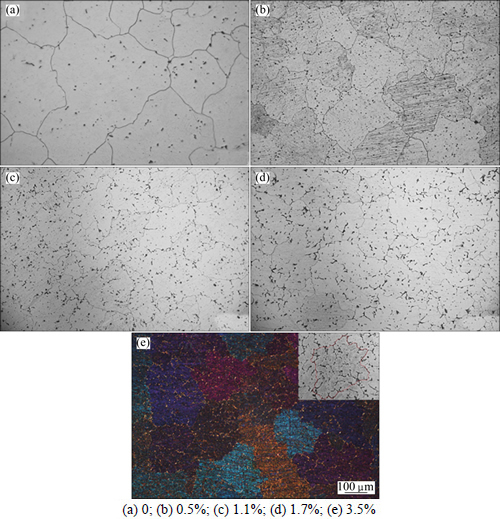

Fig. 6 Optical micrographs of AZ31 alloys after solution heat treatment with different amounts of Al₂Ca

Fig. 7 Grain size variation of AZ31 alloys after solution heat treatment with different addition levels of Al₂Ca

Meanwhile, it also reveals that the semi-continuous alloying phase forms probably during the eutectic solidification process and has a lamella-type morphology (the enlarged image in the upper right corner of  Fig. 8(e)).

3.3 Grain refinement mechanism

Figure 9 shows SEM image and EDS analysis of AZ31 alloy with the addition of 1.1% Al₂Ca powder. The chain-like and granular shape Al₂Ca compound is distributed along the grain boundary and inside grains, respectively, such as points A and B. In addition, there also exists irregular massive Al-Mn compound within grains and Al-Mn-Ca compound near the grain boundary. In this work, the notable grain refinement of the AZ31 alloy is obtained by adding 1.1% Al₂Ca compound (Fig. 4(c)). Although a small number of Al-Mn-Ca compounds (like point C in Fig. 9) exist in the alloy, the Mn content is the consistent as well as its contribution to grain refinement. So, the Al₂Ca compound in the melt and solidification process  plays a decisive role in the grain refinement of the AZ31 alloy.

Fig. 8 Microstructures of heat-treated AZ31 alloys with different additions of Al₂Ca

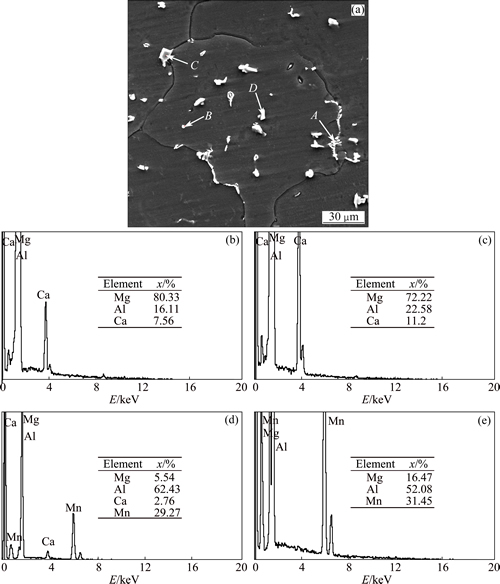

Fig. 9 SEM image (a) and EDS analysis of points A (b), B (c), C (d) and D (e) of AZ31 alloy with addition of 1.1% Al₂Ca

In general, the grain refinement of polycrystalline materials is mainly determined by enhancing the nucleation rate in the melt and/or reducing the growth of grains [27,28]. So, the main approaches of grain refinement are adding potent nucleating agent, increasing undercooling and holding back grain boundary sliding. In this work, Al₂Ca compound is adopted directly rather than Ca. So, the grain refinement of the AZ31 alloy obtained by adding Al₂Ca seems to be the heterogeneous nucleation of primary α-Mg on the Al₂Ca particles. In fact, some Al₂Ca particles are often found in the central region of α-Mg grains (as shown in Figs. 8 and 9). In addition, the early study [19] found that the grain refinement through addition of Ca in the AZ31 alloy is attributed to the inoculation effect of Al₂Ca particles formed in the melts, and crystallographic examination of relationship between Al₂Ca and Mg using the edge-to-edge matching model indicates that Al₂Ca particles are effective inoculants for heterogeneous nucleation of Mg. However, the solid particles for heterogeneous nucleation not only need to have a good lattice matching, but also need to be good stability in the liquid phase.

From Figs. 8 and 9, it is obvious that the morphology of the Al₂Ca phase in the alloys is extremely different from pre-added particles of Al₂Ca (as shown in Fig. 2(b)). It can presume that the Al₂Ca compound can dissolve into AZ31 alloy melt, and subsequently precipitate during solidification, although the melting point of Al₂Ca (1079 °C) is higher than 720 °C of the melt temperature. ROKHLIN et al [29,30] reported that the Al₂Ca phase soluble in solid Mg is in equilibrium with the Mg solid solution in the Mg-Al-Ca system.

In order to validate the idea, the Mg/Al₂Ca liquid-solid diffusion couple was prepared in Mg melt at 720 °C. Line scanning can characterize the diffusion of elements near the interface. The result of line scan   (Fig. 10) obviously shows the mutual diffusion for Mg, Al and Ca elements. It can also show the possibility of the formation of intermetallic compounds. The compositions of these compounds were analyzed by the EDS. The compositions of the lamella-type phase (labeled as A) were found to be 64.6% Mg, 25.2% Al and 11.2% Ca (mole fraction). The compositions of the irregular bulk phase (labeled as B) was found to be 16.6% Mg, 56.1% Al and 27.3% Ca (mole fraction). And the composition of another lamella-type phase (labeled as C) was found to be 81.9% Mg, 12.3% Al and 5.8% Ca (mole fraction). This indicates that the mole ratios of Al to Ca in those compounds (labeled as A, B and C in Fig. 10) are all close to 2:1. Those compounds should be identified as Al₂Ca. Besides, as shown in Fig. 10, there are two diffusion zones formed between Al₂Ca and Mg alloys. Zone a represents the mixture of (Mg-Al₂Ca) eutectic (labeled as A) with Al₂Ca dendrites (labeled as B), and zone b represents the mixture of (Mg-Al₂Ca) eutectic (labeled as C) with Mg dendrites. Only Mg and Al₂Ca phases were found in this diffusion couple. This means that lamella-type eutectic Al₂Ca was formed from the diffusion of Ca along with Al in Mg. Figure 11 shows the thermal analysis results for the investigated alloys, showing both the cooling curve and the variation of cooling rate with cooling time during solidification. The only one peak, can be clearly observed on the cooling rate curve (Fig. 11(a)), indicating the α-Mg phase nucleated at 627.8 °C in the AZ31 alloy, while the nucleation temperature of α-Mg phase is 623.7 °C in the AZX3110 alloy. Another peak at 516.8 °C (Fig. 11(b)) corresponds to Al₂Ca phase precipitation in the AZX3110 alloy. That is close to precipitation temperature of the Al₂Ca in the Mg-Al-Ca alloy [31].

Based on the above discussion and experimental data, we suggest that Al₂Ca compound can dissolve into the Mg melt and subsequently re-precipitate during solidification under the condition of casting of the metal mould. So, at the initial stage of solidification, the solute segregation of Ca along with Al at solid/liquid interface can provide stronger constitutional undercooling for nucleation [32]. In addition, under the non-equilibrium solidification, it is possible that some Al₂Ca precipitates firstly due to the limited solubility of Al₂Ca [29]. This part of Al₂Ca (point B in Fig. 9) was present in the undercooled layer and was activated as the potent nucleating agents of α-Mg. Therefore, this part of Al₂Ca was observed in the center of the grains. The other Al₂Ca was pushed to the grain boundaries and solidification end. As is known in Ref. [32], the grain refinement of Mg-Al by Ca addition can be improved further in the presence of potent nucleants.

It can be seen that grain refinement of AZ31 alloy by the Al₂Ca compounds was mainly attributed to the combined effects of solute and heterogeneous nucleation. It can be seen from Fig. 5 that the grain size of AZ31 Mg alloy is minimum when the addition amount of Al₂Ca is 1.1%. Combined with Fig. 8(c), Al₂Ca particles are distributed not only inside the grains but also along the grain boundary with fine and dispersed granular. But excessive addition of Al₂Ca powders is prone to aggregate to form clusters (Figs. 8(d) and (e)) and the nucleating particles are difficult to disperse. Correspondingly, the number of effective heterogeneous nuclei decreases, which decreases the grain refining efficiency of Al₂Ca on AZ31 Mg alloy. A similar phenomenon has been reported in Ref. [33].

Fig. 10 Microstructures of liquid-solid Mg-Al₂Ca diffusion couple at 720 °C with SEM-EDS line scanning

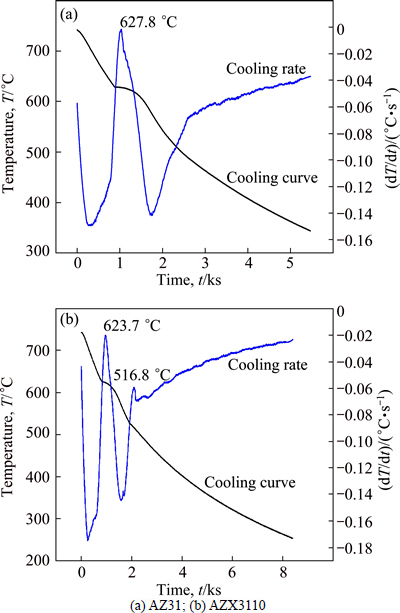

Fig. 11 Cooling curves and rate curves determined from thermal analysis

4 Conclusions

1) The Al₂Ca intermetallic compound was prepared by pure metal melting process in a vacuum induction furnace under an argon atmosphere. This shows perfect grain refining effect for AZ31 alloy.

2) The Al₂Ca compounds can be dissolved into the AZ31 alloy melt, subsequently re-precipitate during solidification under the non-equilibrium rapid solidification, and provide stronger constitutional undercooling for the grain refinement process.

References

[1] WU Guo-hua, YU Fan, GAO Hong-tao, ZHAI Chun-quan, YUAN Ping-zhu. The effect of Ca and rare earth elements on the microstructure, mechanical properties and corrosion behavior of AZ91D [J]. Materials Science and Engineering A, 2005, 408: 255-263.

[2] CHANG H W, QIU D, TAYLOR J A, EASTON M A, ZHANG M X. The role of Al₂Y in grain refinement in Mg-Al-Y alloy system [J]. Journal of Magnesium and Alloys, 2013, 1: 115-121.

[3] WANG Jing-tao, YIN De-liang, LIU Jin-qiang, TAO Jun, SU Yan-ling, ZHAO Xiang. Effect of grain size on mechanical property of Mg-3Al-1Zn alloy [J]. Scripta Materialia, 2008, 59: 63-66.

[4] STJOHN D H, EASTON M A, QIAN M, TAYLOR J A. Grain refinement of magnesium alloys: A review of recent research, theoretical developments, and their application [J]. Metallurgical and Materials Transactions A, 2012, 44: 2935-2949.

[5] CAO P, MA Q, STJOHN D H. Mechanism for grain refinement of magnesium alloys by superheating [J]. Scripta Materialia, 2007, 56: 633-636.

[6] MOTEGI T. Grain-refining mechanisms of superheat-treatment of and carbon addition to Mg-Al-Zn alloys [J]. Materials Science and Engineering A, 2005, 413-414: 408-411.

[7] HIRAI K, SOMEKAWA H, TAKIGAWA Y, HIGASHI K. Effects of Ca and Sr addition on mechanical properties of a cast AZ91 magnesium alloy at room and elevated temperatures [J]. Materials Science and Engineering A, 2005, 403: 276-280.

[8] LI W P, ZHOU H, LI Z F. Effect of gadolinium on microstructure and rolling capability of AZ31 alloy [J]. Journal of Alloys and Compounds, 2009, 475: 227-232.

[9] TIAN X, WANG L M, WANG J L, LIU Y B, AN J, CAO Z Y. The microstructure and mechanical properties of Mg-3Al-3RE alloys [J]. Journal of Alloys and Compounds, 2008, 465: 412-416.

[10] WANG Ying-xin, ZENG Xiao-qin, DING Wen-jiang. Effect of Al-4Ti-5B master alloy on the grain refinement of AZ31 magnesium alloy [J]. Scripta Materialia, 2006, 54: 269-273.

[11] GU Xin-fu, ZHANG Wen-zheng, QIU Dong. A systematic investigation of the development of the orientation relationship in an fcc/bcc system [J]. Acta Materialia, 2011, 59: 4944-4956.

[12] FU H M, QIU D, ZHANG M X, WANG H, KELLY P M, TAYLOR J A. The development of a new grain refiner for magnesium alloys using the edge-to-edge model [J]. Journal of Alloys and Compounds, 2008, 456: 390-394.

[13] FU H M, ZHANG M X, QIU D, KELLY P M, TAYLOR J A. Grain refinement by AlN particles in Mg-Al based alloys [J]. Journal of Alloys and Compounds, 2009, 478: 809-812.

[14] QIU D, ZHANG M X, KELLY P M. Crystallography of heterogeneous nucleation of Mg grains on Al₂Y nucleation particles in Mg-10wt.% Y alloy [J]. Scripta Materialia, 2009, 61: 312-315.

[15] LUO A L, BALOGH M P, POWELL B R. Creep and microstructure of magnesium-aluminum-calcium [J]. Metallurgical and Materials Transactions A, 2002, 33: 567-574.

[16] SUZUKI A, SADDOCK N D, JONES J W, POLLOCK T M. Solidification paths and eutectic intermetallic phases in Mg-Al-Ca ternary alloys [J]. Acta Materialia, 2005, 53: 2823-2834.

[17] LASER T, HARTIG C, NüRNBERG M R, LERZIG D, BORMANN R. The influence of calcium and cerium mischmetal on the microstructural evolution of Mg-3Al-1Zn during extrusion and resulting mechanical properties [J]. Acta Materialia, 2008, 56: 2791-2798.

[18] HOMMA T, NAKAWAKI S, KAMADO S. Improvement in creep property of a cast Mg-6Al-3Ca alloy by Mn addition [J]. Scripta Materialia, 2010, 63: 1173-1176.

[19] JIANG Bin, LIU Wen-jun, QIU Dong, ZHANG Ming-xing, PAN Fu-sheng. Grain refinement of Ca addition in a twin-roll-cast Mg-3Al-1Zn alloy [J]. Materials Chemistry and Physics, 2012, 133: 611-616.

[20] HAN L H, HU H, NORTHWOOD D O. Effect of Ca additions on microstructure and microhardness of an as-cast Mg-5.0wt.% Al alloy [J]. Materials Letters, 2008, 62: 381-384.

[21] KONDORI B, MAHMUDI R. Effect of Ca additions on the microstructure, thermal stability and mechanical properties of a cast AM60 magnesium alloy [J]. Materials Science and Engineering A, 2010, 527: 2014-2021.

[22] LI S S, TANG B, ZENG D B. Effects and mechanism of Ca on refinement of AZ91D alloy [J]. Journal of Alloys and Compounds, 2007, 437: 317-321.

[23] STJOHN D H, MA Q, EASTON M A, CAO P, HILDEBRAND Z. Grain refinement of magnesium alloys [J]. Metallurgical and Materials Transactions A, 2005, 36: 1669-1679.

[24] QIAN Bao-guang, GENG Hao-ran, TAO Zhen-dong, ZHAO Peng, TIAN Xian-fa. Effects of Ca addition on microstructure and properties of AZ63 magnesium alloy [J]. Transactions of Nonferrous Metals Society of China, 2004, 14(5): 987-991.

[25] ITKIN V P, ALCOCK C B, EKEREN P J V, OONK H A J. The Al-Ca (aluminum-calcium) system [J]. Bulletin of Alloy Phase Diagrams, 1988, 9: 652-657.

[26] LIU Man-ping, WANG Qu-dong, LIU Zi-li, YUAN Guang-yin, WU Guo-hua, ZHU Yan-ping, DING Wen-jiang. Behavior of Mg-Al-Ca alloy during solution heat treatment at 415 ^oC [J]. Journal of Materials Science Letters, 2002, 21: 1281-1283.

[27] LEE Y C, DAHLE A K, STJOHN D H. The role of solute in grain refinement of magnesium [J]. Metallurgical and Materials Transactions A, 2000, 31: 2895-2906.

[28] YAHIA A, QIU Dong, JIANG Bin, PAN Fu-sheng, ZHANG Ming-xing. Current research progress in grain refinement of cast magnesium alloys: A review article [J]. Journal of Alloys and Compounds, 2015, 619: 639-651.

[29] ROKHLIN L L, NIKITINA N I, VOLCHENKOVA V A. Magnesium-rich Mg-Al₂Ca alloys [J]. Russian Metallurgy, 2006, 2: 185-188.

[30] ROKHLIN L L, DOBATKINA T V, NIKITINA N I, TARYTINA I E. Calcium-alloyed magnesium alloys [J]. Metal Science and Heat Treatment, 2009, 51: 164-169.

[31] JIANG Zhong-tao, JIANG Bin, ZHANG Jian-yue, XIA Xiang-sheng, PAN Fu-sheng. Microstructural evolution of Mg-4Al-2.5Ca alloy during solidification [J]. Materials Science Forum, 2015, 816: 486-491.

[32] NAGASICAMUNI B, RAVI K R. An analytical approach to elucidate the mechanism of grain refinement in calcium added Mg-Al alloys [J]. Journal of Alloys and Compounds, 2015, 622: 789-795.

[33] CHEN Ti-jun, WANG Rui-quan, HUANG Hai-jun, MA Ying, HAO Yuan. Grain refining technique of AM60B magnesium alloy by MgCO₃ [J]. Transactions of Nonferrous Metals Society of China, 2012, 22: 1533-1539.
