Trans. Nonferrous Met. Soc. China 27(2017) 2239-2248
Effects of Na+ doping on crystalline structure and electrochemical performances of LiNi0.5Mn1.5O4 cathode material
Jiang-feng WANG, Dan CHEN, Wei WU, Li WANG, Guang-chuan LIANG
Key Laboratory of Special Functional Materials for Ecological Environment and Information, Ministry of Education, Institute of Power Source and Ecomaterials Science, Hebei University of Technology, Tianjin 300130, China
Received 13 June 2016; accepted 28 September 2016
Abstract:
Pristine LiNi0.5Mn1.5O4 and Na-doped Li0.95Na0.05Ni0.5Mn1.5O4 cathode materials were synthesized by a simple solid-state method. The effects of Na+ doping on the crystalline structure and electrochemical performance of LiNi0.5Mn1.5O4 cathode material were systematically investigated. The samples were characterized by XRD, SEM, FT-IR, CV, EIS and galvanostatic charge/discharge tests. It is found that both pristine and Na-doped samples exhibit secondary agglomerates composed of well-defined octahedral primary particle, but Na+ doping decreases the primary particle size to certain extent. Na+ doping can effectively inhibit the formation of LixNi1-xO impurity phase, enhance the Ni/Mn disordering degree, decrease the charge-transfer resistance and accelerate the lithium ion diffusion, which are conductive to the rate capability. However, the doped Na+ ions tend to occupy 8a Li sites, which forces equal amounts of Li+ ions to occupy 16d octahedral sites, making the spinel framework less stable, therefore the cycling stability is not improved obviously after Na+ doping.
Key words:
cathode material; LiNi0.5Mn1.5O4; Na+ doping; electrochemical performance;
1 Introduction
Lithium ion batteries (LIBs) have great potentials to be applied as large-scale power source for electric vehicles (EVs), hybrid electric vehicles (HEVs) and large-scale storage system of renewable energy due to their high energy density, long cycle life and environmental friendliness [1,2]. However, the lower energy density of currently commercially available LIBs using LiCoO2, LiFePO4 and LiMn2O4 as cathode materials seriously inhibits their large-scale application. Therefore, it is necessary to develop LIBs with higher energy density, which is determined by the cathode material.
LiNi0.5Mn1.5O4 cathode material, first reported by AMINE et al in 1996 [3], has a high working voltage of 4.7 V (vs Li/Li+) and a theoretical discharge capacity of 146.7 mA·h/g, thus resulting in a higher specific energy (~650 W·h/kg) than many commercialized compounds. Therefore, spinel LiNi0.5Mn1.5O4 has attracted much interest as a promising cathode material of high specific energy LIBs for EVs applications [4,5]. In addition, the fast three-dimensional Li+ ions diffusion pathways within the cubic lattice render a high power density [6]. However, LiNi0.5Mn1.5O4 suffers from limited cycle life, particularly at elevated temperature, which is caused by the electrolyte degradation at high working voltage [7-9], or Mn2+ dissolution resulting from the disproportionation reaction of Mn3+ ions [10-13]. In order to resolve the above issues, various approaches such as structure and morphology controlling, surface coating and element doping have been employed. Among them, element doping is believed to be one of the most effective ways to improve the electrochemical performance of LiNi0.5Mn1.5O4. It has been reported that the substitution of Ni/Mn by cations, such as Mo [14], Zn [15], Sm [16], Ti [17], Ru [18], Co [19] and Cr [20], could effectively eliminate the formation of rock-salt impurity phase and stabilize the disordering of Ni2+ and Mn4+ ions in the 16d octahedral sites of the Fd3m space group in the spinel structure [21], thus leading to the enhancement of cycling stability and rate capability. However, up to now, there is relatively little research on the substitution into Li sites. WANG et al [22] synthesized Li1-xNaxNi0.5- Mn1.5O4 cathode material via a co-precipitation method followed by a solid-state method and found that proper Na+ doping could remarkably enhance the rate capability and cycling stability. However, in this work, the pristine sample LiNi0.5Mn1.5O4 and Na-doped sample Li0.95Na0.05Ni0.5Mn1.5O4 were prepared by simple solid- state method using NiO, Mn3O4, Li2CO3 and Na2CO3 as raw materials, and the effects of Na+ doping on crystalline structure and electrochemical performances of LiNi0.5Mn1.5O4 cathode material were investigated.
2 Experimental
2.1 Material synthesis
Pristine LiNi0.5Mn1.5O4 cathode material was synthesized by solid-state method. The starting reagents Li2CO3, NiO and Mn3O4 with appropriate stoichiometry ratios were ball-milled for 1 h and fired initially at 500 °C for 5 h and then 850 °C for 8 h under air atmosphere with a heating rate of 5 °C/min. The as-obtained cathode material was labeled as LNMO. For the Na-doped sample, Na2CO3 was used as Na+ source to give the final composition of Li0.95Na0.05Ni0.5Mn1.5O4, which was named as LNMO-Na. To compensate for the lithium loss at high temperature, 3% (molar fraction) extra amount of lithium source was used in the experiment.
2.2 Characterization and electrochemical measure- ments
The crystalline structure of the samples was characterized by X-ray diffractometry (D8-FOCUS, Bruker, Germany) using Cu Kα radiation (λ=0.15406 nm) in the 2θ range of 10°-80°. The particle morphology of the materials was observed by scanning electron microscopy (Nova Nano SEM450, FEI, USA). The Ni/Mn ordering distribution in LiNi0.5Mn1.5O4 material was identified by Fourier transformation infrared spectrometer (V80, Bruker, Germany) with a wavenumber scale of 400-700 cm-1.
The fabrication of positive electrode was as follows. The as-prepared cathode materials were mixed with ethylene black and polytetrafluoroethylene (PTFE) in a mass ratio of 80:15:5. The CR2032 test coin cells were assembled using a lithium foil as the counter electrode, Celgard 2300 as the separator, and 1 mol/L LiPF6 dissolved in ethylene carbonate (EC)-dimethyl carbonate (DMC)-ethyl methyl carbonate (EMC) (1:1:1, volume ratio) as the electrolyte in an argon-filled glove box. The cells were galvanostatically charged/discharged at various current densities (1C=147 mA/g) on a LAND CT2001A battery tester between 3.5 and 4.95 V (vs Li/Li+). Cyclic voltammetry (CV) and electrochemical impedance spectroscopy (EIS) data were collected on a CHI660 electrochemical workstation. The CV curves were recorded in the voltage range of 3.4-5.0 V (vs Li/Li+) at a scan rate of 5 mV/s. The impedance spectra were recorded by applying an ac amplitude of 5 mV over a frequency range from 10 mHz to 100 kHz at full-discharge state after rate capability test. All tests were carried out at room temperature.
3 Results and discussion
3.1 Structural characterization
Figure 1 displays the XRD patterns of the pristine and Na-doped samples. From Fig. 1(a), we can see that all the diffraction peaks can be indexed to the cubic spinel structure with Fd3m space group (JCPDS No. 80-2162) [23,24], which can be confirmed later from the CV curves or the charge-discharge curves with the presence of a small 4.0 V plateau. As for the pristine sample, besides the main spinel phase, there also exist three weak peaks at 2θ=37.5°, 43.5° and 63.5°, which can be ascribed to a rock-salt impurity phase (LixNi1-xO) resulting from the oxygen loss during calcination at temperatures over 650 °C [25,26]. This indicates that part of Mn will be reduced from Mn4+ to Mn3+ in order to maintain the charge balance, thus leading to the formation of disordered phase with Fd3m space group [27]. However, the impurity phase does not exist in the Na-doped sample, indicating that the Na+ doping can effectively inhibit the formation of rock-salt impurity phase, leading to the high phase purity of LiNi0.5Mn1.5O4 product, which is believed to be conductive to the electrochemical performance.

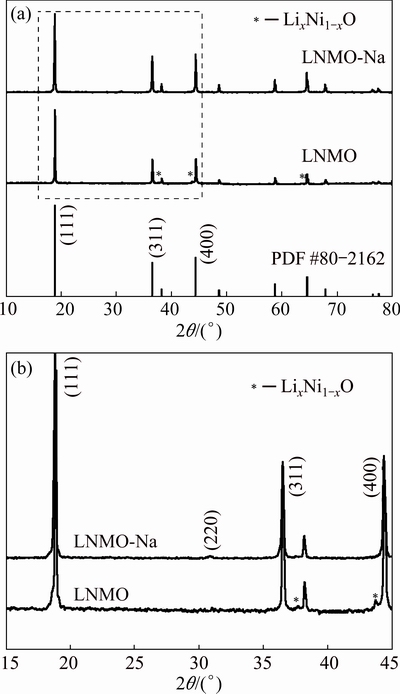

Fig. 1 XRD patterns (a) and magnification of 15°-45° (b) of pristine and Na-doped samples
From the amplified pattern between 15° and 45°, as shown in Fig. 1(b), we can see that the (111) diffraction peak of LNMO-Na shifts to lower angles compared with that of LNMO sample, which can be explained by larger ionic radius of Na+ (1.02
) than that of Li+ (0.76 ). What’s more, based on Bragg equation 2dsin°θ=nλ, we can get that the interlayer spacings of (111) lattice plane (d111) for LNMO and LNMO-Na samples are 0.4706 and 0.4712 nm, respectively, as listed in Table 1, which is in consistence with the shift of (111) diffraction peak after Na+ doping. This can further testify the successful doping of Na+ ions into the crystal lattice. From Table 1, it can be seen that the lattice parameters and unit cell volumes of LNMO and LNMO-Na samples are 0.8163 nm, 0.5440 nm3 and 0.8170 nm, 0.5454 nm3, respectively. It can be seen that the Na+ doping results in the expansion of unit cell, suggesting that Na+ ion with larger ionic radius substituting Li+ ion in the crystal lattice occurs. The swelling of lattice parameter will make Li+ ion diffusion much easier, which is good for the electrochemical performance.
Table 1 Lattice parameters, d111, D111 and I311/I400 for pristine and Na-doped samples
Based on Scherrer equation D=kλ/βcos°θ, where k is 0.89, λ is 0.15406 nm and β is the full-width-at-half- maximum (FWHM) of the diffraction peak on a 2θ scale, we can get the crystallite size of both samples according to D111 value, as tabulated in Table 1. From Table 1, we can see that the D111 values for LNMO and LNMO-Na samples are 69.28 and 45.53 nm, respectively. It is found that Na+ doping reduces the crystallite size, in accordance with the slightly broader diffraction peak of Na-doped sample, which is believed to be advantageous to the rate capability. This can be further verified by the following SEM observation.
From Fig. 1(b), we can also observe the presence of a weak reflection peak at ~31°, indexed as (220), in LNMO-Na sample, verifying that the Na+ ions indeed enter into the crystal lattice and occupy part of 8a tetrahedral sites [28,29]. Although this will cause the expansion of unit cell, which is believed to be advantageous to the Li+ ions diffusion, it will lead to the instability of crystal structure, which can be verified by the integrated intensity ratio of (311) to (400). It has been reported that the intensity ratio of I311/I400 reflects the structural stability of spinel framework. The higher the I311/I400 ratio is, the better structural stability and electrochemical performance can be achieved [30,31]. From Table 1, we know that the intensity ratio of I311/I400 is 0.948 and 0.869, respectively, for LNMO and LNMO-Na samples, indicating that Na+ doping is disadvantageous to the structural stability of [Ni0.5Mn1.5]O4 spinel framework, which may be due to the weaker bonding strength of Na—O than that of Li—O. The decreased structural stability after Na+ doping is believed to be disadvantageous to the cycling performance.
Generally, LiNi0.5Mn1.5O4 spinel has two different crystallographic structures, depending on the oxygen stoichiometry or the ordering of Ni/Mn cations, namely, the Fd3m disordered structure, in which Ni and Mn atoms are randomly distributed in the octahedral 16d sites, and the P4332 ordered structure, in which Ni and Mn atoms occupy the 4a and 12d octahedral sites, respectively [32,33]. However, the XRD technique could not distinguish between the two crystal structures due to the similar scattering factors of Ni and Mn [23,34]. While FT-IR spectroscopy is sensitive to the crystal symmetry, which is a useful tool to determine the structure (amorphous structure, cation ordering, etc) [34,35]. It is generally accepted that LiNi0.5Mn1.5O4 with ordered structure in P4332 space group typically produces a fingerprint spectrum consisting of eight well- defined bands [36]. Disordered phase, on the other hand, gives a rather broad spectrum with only five bands [33]. Figure 2 shows FT-IR spectra of the pristine and Na-doped samples. It can be seen that both samples have only five bands at 621, 586, 556, 505 and 475 cm-1, indicating that both samples have disordered structures with Fd3m space group [37,38]. As reported in Refs. [39,40], the intensity ratio between the bands at 586 and 621 cm-1 can be used as a semiquantitative measure of the cation ordering degree in LiNi0.5Mn1.5O4. The higher the intensity ratio is, the higher the cation ordering degree is. As Fig. 2 demonstrates, the band intensity ratios are 0.883 and 0.875 for LNMO and LNMO-Na samples, respectively, indicating that Na+ doping increases the disordering degree of Mn and Ni in the sample, which is in consistence with the results of Ref. [22].

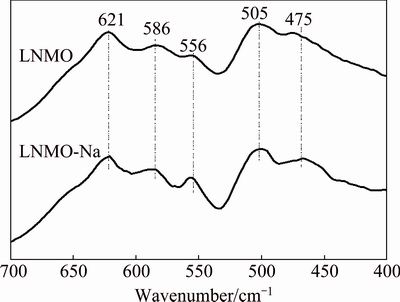

Fig. 2 FT-IR spectra of pristine and Na-doped samples
3.2 Morphological analysis
The structure and morphology of both LiNi0.5Mn1.5O4 samples are illustrated in Fig. 3. It can be seen that both samples exhibit similar particle morphology, namely, secondary agglomerate composed of well-defined octahedral primary particle with smooth surface. The nonuniform particle size distribution is a characteristic of the product of solid-state method. From Fig. 3(b), we can see that despite of the existence of some large particles, the primary particle size of LNMO-Na sample is somewhat smaller than that of pristine LNMO sample, indicating that the Na+ doping could inhibit the particle growth to some extent, in consistence with the above XRD results, which is believed to be advantageous to the rate capability. This phenomenon is consistent with, but not obviously, the finding of Ref. [22] that the particle size decreased with the increase of Na doping amount, which may be due to the different synthesis methods.
Fig. 3 SEM images of pristine and Na-doped samples
3.3 Electrochemical performance
Figure 4 shows the discharge curves of the pristine and Na-doped samples at various rates of 0.2C, 1C, 5C and 10C, respectively. From Fig. 4, we can see that both samples exhibit similar discharge profiles at various rates, including a large voltage plateau at ~4.7 V and a small voltage plateau at ~4.0 V, corresponding to the Ni2+/Ni4+ and Mn3+/Mn4+ redox couples, respectively. The existence of small plateau at ~4.0 V confirms above structural analysis that both the pristine and Na-doped samples belong to Fd3m space group due to the disordered distribution of Ni and Mn ions in octahedral 16d sites.

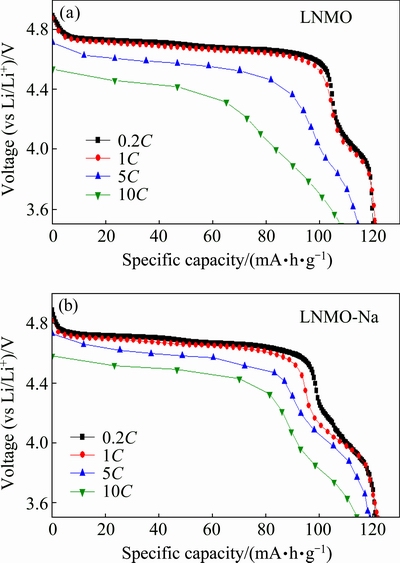

Fig. 4 Discharge curves of pristine (a) and Na-doped (b) samples at various rates
From the discharge curves at 0.2C rate, we can see that LNMO-Na sample has a longer voltage plateau at 4.0 V than LNMO sample, implying a higher Mn3+ content in Na-doped sample. It has been reported that the relative Mn3+ content can be directly deduced by taking the ratio of discharge capacity at plateau of 3.8-4.25 V to the total discharge capacity [29], which are 11.27% and 14.85% for LNMO and LNMO-Na samples, respectively. In theory, because of the same valence state of Na+ with Li+, there should not be any change in the length of 4.0 V plateau and Mn3+ content. The generation of Mn3+ is reported to be caused by two factors, that is, the formation of LixNi1-xO impurity phase and oxygen nonstoichiometry [41]. However, from the XRD patterns in Fig. 1, we can see that there is nearly no rock-salt impurity phase in LNMO-Na sample, which indicates that there may be oxygen nonstoichiometry present in the Na-doped sample. As shown in Fig. 1(b), the weak peak at ~31° indicates that some Na+ ions occupy the 8a tetrahedral sites displacing equal amounts of Li+ ions into the 16d octahedral sites, and the larger Na+ ion induces a nearby oxygen vacancy due to the compressive strain on the metal—oxygen bonds near large ions [42]. Additionally, the presence of Li+ ions in the 16d octahedral sites promotes cation disordering between Mn4+ and Ni2+. Both of the above factors lead to higher Mn3+ content, in other words, higher cation disordering degree in the Na-doped sample. This phenomenon is the same case as the findings of CHEMELEWSKI and MANTHIRAM [41], where parts of Ni2+ was substituted by Zn2+ with the same valence state.
From Fig. 4, we can also observe that with the discharge rate increasing, the discharge voltage plateau decreases gradually, which can be attributed to the increase in electrode over-potential and IR drop at high rates. In comparison with LNMO sample, LNMO-Na sample shows a slighter drop in the discharge voltage, implying a smaller polarization at high rates. Therefore, better rate capability can be expected for Na-doped sample. From Fig. 4, we can get that the specific discharge capacities at 0.2C, 1C, 5C and 10C rates are 119.8, 120.8, 114.2, 107.8 mA·h/g and 121.2, 121.9, 118.8, 115.1 mA·h/g, respectively, for LNMO and LNMO-Na samples, indicating that the discharge capacity at each rate, that is, the rate capability is enhanced after Na+ doping.
In order to compare the rate capability, both samples were galvanostatically charged and discharged at room temperature at 0.2C, 1C, 5C and 10C rates and then back to 0.2C rate with 5 cycles per step, as illustrated in Fig. 5. We can see that the discharge capacity of LNMO-Na sample is higher than that of LNMO sample at all rates, which is more obvious at higher rates of 5C and 10C, manifesting the better rate capability of Na-doped sample. When the rate goes back to 0.2C, the discharge capacities of LNMO and LNMO-Na samples maintain at 121.0 and 120.0 mA·h/g, suggesting that the pristine LNMO has more stable structure compared to the Na-doped sample. This may be due to the lower bonding strength of Na—O than Li—O. The improvement of rate capability after Na+ doping may be attributed to the following three reasons. Firstly, the Na+ doping leads to the disappearance of rock-salt impurity phase and higher phase purity. It has been reported that the impurity would inhibit the transport of Li+ ions in the spinel lattice, thus detrimental to the rate capability. Secondly, the Na+ doping increases the Ni/Mn disordering degree, which can enhance the electronic conductivity by providing two additional electron hopping paths of Ni2+/3+→Mn4+→ Ni3+/4+ and Ni2+/3+→Mn4+
Mn3+→Ni3+/4+ [43], thus relieving the ohmic polarization and electrochemical polarization of materials [44], especially at higher charge/discharge rates. Thirdly, the decreased primary particle size after Na+ doping will shorten the lithium ion diffusion distance, which is believed to be conductive to rate capability. Finally, the increase in lattice parameter and interlayer spacing after Na+ doping enable faster Li+ ions diffusion, which can be verified in the later EIS analysis. It is known that the Li+ ion diffusivity is dependent on activation energy, which is closely associated with the lattice constant [45]. Because of the expansion in the lattice parameter, the Na-doped spinel structure is able to provide larger diffusion channels and hence lower activation energy to facilitate faster Li+ ion transportation. Faster lithium mobility will give rise to better high-rate performance.
Fig. 5 Rate capability curves of pristine and Na-doped samples at various rates
Figure 6 gives the cyclic voltammograms of the pristine and Na-doped samples in the voltage range of 3.4-5.0 V (vs Li/Li+) at a scanning rate of 5 mV/s. It can be observed that two pairs of dominant redox peaks are located in the high voltage range of 4.65-4.85 V, corresponding to the reversible reactions of the Ni2+/Ni3+ and Ni3+/Ni4+ couples, respectively. In addition, there also exists a pair of minor redox peaks at around 4.0 V, stemming from the redox reaction of Mn3+/Mn4+ couple due to the oxygen deficiencies in the disordered spinel [46]. It is generally accepted that LiNi0.5Mn1.5O4 with P4332 space group shows only a strong oxidation peak around 4.7 V, but the oxidation peak splits into two separate peaks in the Fd3m spinel because the voltage difference between Ni2+/Ni3+ and Ni3+/Ni4+ redox couples is enhanced in the nonstoichiometric spinel [47,48]. Therefore, the observation of two oxidation peaks at around 4.7 V in Fig. 6 confirms the disordered phase with Fd3m space group for both the pristine and Na-doped samples, consistent with the FT-IR analysis. In addition, it has been reported that the peak separation values in LiNi0.5Mn1.5O4 samples with disordered and ordered structures are 60 and 20 mV, respectively [49,50]. From Fig. 6, we can get that the separation between the Ni redox couples is 57 and 66 mV for LNMO and LNMO-Na samples, respectively, further confirming the disordered structure of both samples. In addition, LNMO-Na sample has higher peak intensity at around 4.0 V than LNMO sample, which indicates that the Mn3+ content (cation disordering degree) is slightly increased after Na+ doping, in consistence with the above FT-IR results.

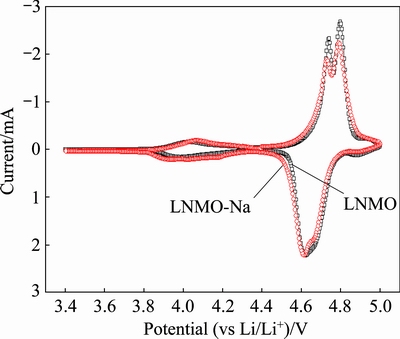

Fig. 6 Cyclic voltammograms of pristine and Na-doped samples in voltage range of 3.4-5.0 V at a scanning rate of 5 mV/s
Table 2 lists the peak values obtained from the CV curves in Fig. 6. From Table 2, we know that the potential separations (Δφ) between the anodic peak (φa) and cathodic peak (φc) of the Ni2+/Ni3+ and Ni3+/Ni4+ redox couples are 121, 131 mV and 116, 126 mV, respectively, for LNMO and LNMO-Na samples. It can be seen that the Na-doped sample has smaller potential separation values than the pristine sample, suggesting faster lithium ion insertion/extraction kinetics [51], which also accounts for the better rate capability of Na-doped sample.
Table 2 Values of CV peaks for pristine and Na-doped samples
Figure 7 compares the cycling performance of the pristine and Na-doped samples at 1C rate and room temperature. From Fig. 7, we can see that the discharge capacities firstly increase in the initial several cycles and then gradually decrease with the cycling going on. The initial gradual increase of capacity is a common phenomenon, usually attributed to slow penetration of electrolyte into microparticles [52,53]. The pristine LNMO sample delivers a maximum discharge capacity of 124.0 mA·h/g and a capacity retention rate of 90.3% after 100 cycles at 1C rate, while LNMO-Na sample releases a higher maximum discharge capacity of 125.5 mA·h/g and a capacity retention rate of 90.7%, comparable to the pristine sample, indicating that there is little improvement in the cycling performance after Na+ doping. This can be explained as follows. On one hand, the Na+ doping eliminates the rock-salt impurity phase in LNMO-Na sample. It has been reported that the impurity phase will readily react with the electrolyte, therefore the elimination of impurity phase is advantageous to the cycling stability. In addition, the Na+ doping enhances the cation disordering degree (Mn3+ content). The presence of Mn3+ has two functions. Although higher Mn3+ content can increase both the electronic conductivity and lithium ion diffusivity [45], it can also induce Jahn-Teller structural distortion and Mn dissolution into the electrolyte [54]. And the decreased primary particle size of Na-doped sample will increase the contact area of electrolyte with electrode material, which is also detrimental to cycling stability. On the other hand, from the XRD pattern in Fig. 1, we know that the doped Na+ ions occupy part of 8a Li sites, which is believed to be disadvantageous to the structural stability of [Ni0.5Mn1.5]O4 spinel framework. The comprehensive effect of the above factors leads to the phenomenon that the cycling performance is enhanced to little extent after Na+ doping.
Fig. 7 Cycling performance curves of pristine and Na-doped samples at 1C rate
To further explore the reasons for the better electrochemical performance of LNMO-Na sample, EIS spectra were adopted on the pristine and Na-doped samples after rate capability test, as illustrated in Fig. 8(a). Both spectra have similar profiles which are composed of a semicircle in the high-to-medium frequency region and an inclined line in the low frequency region. The semicircle is approximately related to the charge transfer process, and the inclined line is ascribed to the diffusion of lithium ions into the bulk of electrode material, the so-called Warburg diffusion. The impedance spectra can be described by the equivalent circuit presented in the inset picture, where Re represents the electrolyte resistance, Rct represents the charge transfer resistance, the Warburg element (W) represent the Warburg impedance and the constant phase element (CPE1) represents the double layer capacitance [55]. Table 3 lists the charge transfer resistance (Rct) obtained by ZView software based on the equivalent circuit. It can be obviously seen that the charge transfer resistances for LNMO and LNMO-Na samples are 36.81 and 31.35 Ω, respectively, indicating that the Na-doped sample exhibits better electrochemical kinetics, which is conductive to the electrochemical performance.
Fig. 8 Nyquist plots and fitting-curves (a) and graphs of Z' plotted against ω-1/2 (b) for pristine and Na-doped samples
Table 3 Charge transfer resistance (Rct), σ values and Li+ ion diffusion coefficients (DLi) for pristine and Na-doped samples
Lithium ion diffusion coefficient (DLi) can be roughly calculated from the following equation [56,57]:
(1)
where R is the gas constant (8.314 J/(mol·K)), T the temperature (298 K), A the surface area of the electrode, n the number of electrons per molecule during oxidation, F the Faraday’s constant (96500 C/mol) and C the molar concentration of Li+ ions, σ the Warburg factor which can be obtained by
Z' =Re+Rct+σω-1/2 (2)
where Re is the resistance of electrolyte, Rct is the charge transfer resistance and ω is the angular frequency. Both Re and Rct are independent of frequency. σ is obtained from the plot of Z' vs ω-1/2 (reciprocal root square of the lower angular frequencies) shown in Fig. 8(b), whose values are listed in Table 3. Based on Eq. (1), we can get that the lithium ion diffusion coefficient (DLi) of LNMO-Na sample is 1.290×10-10 cm2/s, higher than the value of 8.807×10-11 cm2/s for LNMO sample, indicating that Na+ doping increases the lithium ion diffusion coefficient, which can be ascribed to the absence of rock-salt impurity phase and the expansion of unit cell. The enhancement of lithium ion diffusion coefficient after Na+ doping is in consistence with the above rate capability result.
4 Conclusions
1) SEM observations show that the pristine and Na-doped samples have similar particle morphology, but the Na+ doping decreases the primary particle size. XRD and FT-IR analyses show that Na+ doping does not change the Fd3m disordered structure, but increases the Ni/Mn disordering degree.
2) The rate capability is enhanced after Na+ doping, which can be ascribed to the absence of rock-salt impurity phase, higher cation disordering degree, enlarged lattice parameters and smaller primary particle size, in consistence with the lower charge transfer resistance and higher lithium ion diffusion coefficient after Na+ doping.
3) The cycling performance of Na-doped sample is improved to little extent in comparison with the pristine one, because the appearance of (220) weak peak in the XRD pattern implies that the doped Na+ ions occupy part of 8a Li sites, which forces equal amounts of Li+ ions to occupy the 16d octahedral sites, thus making the spinel framework less stable.
References
[1] PAN Cheng-chi, ZHU Yi-rong, YANG Ying-chang, HOU Hong-shuai, JING Ming-jun, SONG Wei-xin, YANG Xu-ming, JI Xiao-bo. Influences of transition metal on structural and electrochemical properties of Li[NixCoyMnz]O2 (0.6≤x≤0.8) cathode materials for lithium-ion batteries [J]. Transactions of Nonferrous Metals Society of China, 2016, 26: 1396-1402.
[2] LUO Yun-ze, HE Li-hua, LIU Xu-heng. Effect of Mg doping on electrochemical performance of Li3V2(PO4)3/C cathode material for lithium ion batteries [J]. Transactions of Nonferrous Metals Society of China, 2015, 25: 2266-2271.
[3] AMINE K, TUKAMOTO H, YASUDA H, FUJITA Y. A new three-volt spinel Li1+xMn1.5Ni0.5O4 for secondary lithium batteries [J]. Journal of the Electrochemical Society, 1996, 143: 1607-1613.
[4] GAO Zhi-gang, SUN Kai, CONG Li-na, ZHANG Yu-hang, ZHAO Qin, WANG Rong-shun, XIE Hai-ming, SUN Li-qun, SU Zhong-min. High performance 5 V LiNi0.5Mn1.5O4 spinel cathode materials synthesized by an improved solid-state method [J]. Journal of Alloys and Compounds, 2016, 654: 257-263.
[5] ZHANG Bao, WANG Zhi-xing, GUO Hua-jun. Effect of annealing treatment on electrochemical property of LiNi0.5Mn1.5O4 spinel [J]. Transactions of Nonferrous Metals Society of China, 2007, 17: 287-290.
[6] KANG B, CEDER G. Battery materials for ultrafast charging and discharging [J]. Nature, 2009, 458: 190-193.
[7] AURBACH D, MARKOVSKY B, SALITRA G, MARKEVICH E, TALYOSSEF Y, KOLTYPIN M, NAZAR L, ELLIS B, KOVACHEVA D. Review on electrode-electrolyte solution interactions, related to cathode materials for Li-ion batteries [J]. Journal of Power Sources, 2007, 165: 491-499.
[8] AURBACH D, MARKOVSKY B, TALYOSSEF Y, SALITRA G, KIM H J, CHOI S. Studies of cycling behavior, ageing, and interfacial reactions of LiNi0.5Mn1.5O4 and carbon electrodes for lithium-ion 5-V cells [J]. Journal of Power Sources, 2006, 162: 780-789.
[9] KIM J H, PIECZONKA N P W, YANG Li. Challenges and approaches for high-voltage spinel lithium-ion batteries [J]. Chem Phys Chem, 2014, 15: 1940-1954.
[10] PIECZONKA N P W, LIU Zhong-yi, LU Peng, OLSON K L, MOOTE J, POWELL B R, KIM J H. Understanding transition-metal dissolution behavior in LiNi0.5Mn1.5O4 high-voltage spinel for lithium ion batteries [J]. The Journal of Physical Chemistry C, 2013, 117: 15947-15957.
[11] JARRY A, GOTTIS S, YU Y S, ROQUE-ROSELL J, KIM C, CABANA J, KERR J, KOSTECKI R. The formation mechanism of fluorescent metal complexes at the LixNi0.5Mn1.5O4-δ/carbonate ester electrolyte interface [J]. Journal of the American Chemical Society, 2015, 137: 3533-3539.
[12] CHOI W, MANTHIRAM A. Comparison of metal ion dissolutions from lithium ion battery cathodes [J]. Journal of the Electrochemical Society, 2006, 153: A1760-A1764.
[13] LIN Ming-xiang, BEN Liu-bin, SUN Yang, WANG Hao, YANG Zhen-zhong, GU Lin, YU Xi-qian, YANG Xiao-qing, ZHAO Hao-fei, YU Ri-cheng, ARMAND M, HUANG Xue-jie. Insight into the atomic structure of high-voltage spinel LiNi0.5Mn1.5O4 cathode material in the first cycle [J]. Chemistry of Materials, 2015, 27: 292-303.
[14] YI Ting-feng, CHEN Bin, ZHU Yan-rong, LI Xiao-ya, ZHU Rong-sun. Enhanced rate performance of molybdenum-doped spinel LiNi0.5Mn1.5O4 cathode materials for lithium ion battery [J]. Journal of Power Sources, 2014, 247: 778-785.
[15] YANG Ze, JIANG Yan, KIM Jung-hyun, WU Yan, LI Guo-long, HUANG Yun-hui. The LiZnxNi0.5-xMn1.5O4 spinel with improved high voltage stability for Li-ion batteries [J]. Electrochimica Acta, 2014, 117: 76-83.
[16] MO Ming-yue, HUI K S, HONG Xiao-ting, GUO Jun-sheng,YE Cheng-cong, LI Ai-ju, HU Nan-qian, HUANG Zhen-ze, JIANG Jian-hui, LIANG Jing-zhi, CHEN Hong-yu. Improved cycling and rate performance of Sm-doped LiNi0.5Mn1.5O4 cathode materials for 5 V lithium ion batteries [J]. Applied Surface Science, 2014, 290: 412-418.
[17] KIM Jung-hyun, PIECZONKA N P W, SUN Yang-kook, POWELL B R. Improved lithium-ion battery performance of LiNi0.5Mn1.5-xTixO4 high voltage spinel in full-cells paired with graphite and Li4Ti5O12 negative electrodes [J]. Journal of Power Sources, 2014, 262: 62-71.
[18] KIZILTAS-YAVUZ N, BHASKAR A, DIXON D, YAVUZ M, NIKOLOWSKI K, LU Li, EICHEL R A, EHRENBERG H. Improving the rate capability of high voltage lithium-ion battery cathode material LiNi0.5Mn1.5O4 by ruthenium doping [J]. Journal of Power Sources, 2014, 267: 533-541.
[19] MAO Jing, MA Meng-ze, LIU Pan-pan, HU Jun-hua, SHAO Guo-sheng, BATTAGLIA V, DAI Ke-hua, LIU Gao. The effect of cobalt doping on the morphology and electrochemical performance of high-voltage spinel LiNi0.5Mn1.5O4 cathode material [J]. Solid State Ionics, 2016, 292: 70-74.
[20] WANG Wei, LIU Heng, WANG Yan, GAO Chao, ZHANG Jun. Effects of chromium doping on performance of LiNi0.5Mn1.5O4 cathode material [J]. Transactions of Nonferrous Metals Society of China, 2013, 23: 2066-2070.
[21] LIU Hai-dong, WANG Jun, ZHANG Xiao-fei, ZHOU Dong, QI Xin, QIU Bao, FANG Jian-hui, KLOEPSCH R, SCHUMACHER G, LIU Zhao-ping, LI Jie. Morphological evolution of high-voltage spinel LiNi0.5Mn1.5O4 cathode materials for lithium-ion batteries: The critical effects of surface orientations and particle size [J]. ACS Applied Materials Interfaces, 2016, 8: 4661-4675.
[22] WANG Jing, LIN Wei-qing, WU Bi-he, ZHAO Jin-bao. Syntheses and electrochemical properties of the Na-doped LiNi0.5Mn1.5O4 cathode materials for lithium-ion batteries [J]. Electrochimica Acta, 2014, 145: 245-253.
[23] KIM J H, MYUNG S T, YOON C S, KANG S G, SUN Y K. Comparative study of LiNi0.5Mn1.5O4-δ and LiNi0.5Mn1.5O4 cathodes having two crystallographic structures: Fd3m and P4332 [J]. Chemistry of Materials, 2004, 16: 906-914.
[24] STROBEL P, IBARRA-PALOS A, ANNE M, LE CRAS F. Structural, magnetic and lithium insertion properties of spinel-type Li2Mn3MO8 oxides (M=Mg, Co, Ni, Cu) [J]. Journal of Materials Chemistry, 2000, 10: 429-436.
[25] ZHONG Qi-ming, BONAKDARPOUR A, ZHANG Mei-jie, GAO Yuan, DAHN J R. Synthesis and electrochemistry of LiNixMn2-xO4 [J]. Journal of the Electrochemical Society, 1997, 144: 205-213.
[26] WANG Li-ping, LI Hong, HUANG Xue-jie, BAUDRIN E. A comparative studyof Fd-3m and P4332 "LiNi0.5Mn1.5O4" [J]. Solid State Ionics, 2011, 193: 32-38.
[27] SONG Jie, SHIN D W, LU Yu-hao, AMOS C D, MANTHIRAM A, GOODENOUGH J B. Role of oxygen vacancies on the performance of Li[Ni0.5-xMn1.5+x]O4 (x=0, 0.05, and 0.08) spinel cathodes for lithium-ion batteries [J]. Chemistry of Materials, 2012, 24: 3101-3109.
[28] CABALLERO A, CRUZ M,
L, MELERO M, MORALES J,
E. Oxygen deficiency as the origin of the disparate behavior of LiM0.5Mn1.5O4 (M=Ni, Cu) nanospinels in lithium cells [J]. Journal of the Electrochemical Society, 2005, 152: A552-A559.
[29] XIAO Jie, CHEN Xi-lin, SUSHKO P V, SUSHKO M L, KOVARIK L, FENG Ji-jun, DENG Zhi-qun, ZHENG Jian-ming, GRAFF G L, NIE Zi-min, CHOI D, LIU Jun, ZHANG Ji-guang, WHITTINGHAM M S. High-performance LiNi0.5Mn1.5O4 spinel controlled by Mn3+ concentration and site disorder [J]. Advanced Materials, 2012, 24: 2109-2116.
[30] GAO Po, WANG Lu, CHEN Lin, JIANG Xue-fan, PINTO J, YANG Gang. Microwave rapid preparation of LiNi0.5Mn1.5O4 and the improved high rate performance for lithium-ion batteries [J]. Electrochimica Acta, 2013, 100: 125-132.
[31] BAO Shu-juan, LI Chang-ming, LI Hu-lin, LUONG J H T. Morphology and electrochemistry of LiMn2O4 optimized by using different Mn-sources [J]. Journal of Power Sources, 2007, 164: 885-889.
[32] IDEMOTO Y, NARAI H, KOURA N. Crystal structure and cathode performance dependence on oxygen content of LiMn1.5Ni0.5O4 as a cathode material for secondary lithium batteries [J]. Journal of Power Sources, 2003, 119-121: 125-129.
[33] KUNDURACI M. AMATUCCI G G. Synthesis and characterization of nanostructured 4.7V LixMn1.5Ni0.5O4 spinels for high-power lithium-ion batteries [J]. Journal of the Electrochemical Society, 2006, 153: A1345-A1352.
[34]
R, JARABA M, LAVELA P, TIRADO J L, ZHECHEVA E, STOYANOVA R. Changes in the local structure of LiMgyNi0.5-yMn1.5O4 electrode materials during lithium extraction [J]. Chemistry of Materials, 2004, 16: 1573-1579.
[35] KUNDURACI M, AL-SHARAB J F, AMATUCCI G G. High-power nanostructured LiMn2-xNixO4 high-voltage lithium-ion battery electrode materials: Electrochemical impact of electronic conductivity and morphology [J]. Chemistry of Materials, 2006, 18: 3585-3592.
[36] ARIYOSHI K, IWAKOSHI Y, NAKAYAMA N, OHZUKU T. Topotactic two-phase reactions of Li[Ni1/2Mn3/2]O4 (P4332) in nonaqueous lithium cells [J]. Journal of the Electrochemical Society, 2004, 151: A296-A303.
[37] LIU D, ZHU W, TROTTIER J, GAGNON C, BARRAY F, GUERFI A, MAUGER A, GROULT H, JULIEN C M, GOODENOUGH J B, ZAGHIB K. Spinel materials for high-voltage cathodes in Li-ion batteries [J]. RSC Advances, 2014, 4: 154-167.
[38] FANG Hai-sheng, WANG Zhi-xing, ZHANG Bao, LI Xin-hai, LI Guang-she. High performance LiNi0.5Mn1.5O4 cathode materials synthesized by a combinational annealing method [J]. Electrochemical Communications, 2007, 9: 1077-1082.
[39] SHIN D W, BRIDGES C A, HUQ A, PARANTHAMAN M P, MANTHIRAM A. Role of cation ordering and surface segregation in high-voltage spinel LiMn1.5Ni0.5-xMxO4 (M=Cr, Fe, and Ga) cathodes for lithium-ion batteries [J]. Chemistry of Materials, 2012, 24: 3720-3731.
[40] LIU Zu-shan, JIANG Yang-mei, ZENG Xiao-yuan, XIAO Guan, SONG Hui-yu, LIAO Shi-jun. Two-step oxalate approach for the preparation of high performance LiNi0.5Mn1.5O4 cathode material with high voltage [J]. Journal of Power Sources, 2014, 247: 437-443.
[41] CHEMELEWSKI K R, MANTHIRAM A. Origin of site disorder and oxygen nonstoichiometry in LiMn1.5Ni0.5-xMxO4 (M=Cu and Zn) cathodes with divalent dopant ions [J]. The Journal of Physical Chemistry C, 2013, 117: 12465-12471.
[42] STROBEL P, IBARRA-PALOS A, ANNE M, POINSIGNON C, CRISCI A. Cation ordering in Li2Mn3MO8 spinels: Structural and vibration spectroscopy studies [J]. Solid State Science, 2003, 5: 1009-1018.
[43] JIN Yi-chun, LIN Chih-yuan, DUH Jenq-gong. Improving rate capability of high potential LiNi0.5Mn1.5O4-x cathode materials via increasing oxygen non-stoichiometries [J]. Electrochimica Acta, 2012, 69: 45-50.
[44] SHA Ou, TANG Zhi-yuan, WANG Shao-liang, YUAN Wei, QIAO Zhi, XU Qiang, MA Li. The multi-substituted LiNi0.475Al0.01Cr0.04- Mn1.475O3.95F0.05 cathode material with excellent rate capability and cycle life [J]. Electrochimica Acta, 2012, 77: 250-255.
[45] WANG Hai-long, TAN T A, YANG Ping, LAI M O, LU Li. High-rate performances of the Ru-doped spinel LiNi0.5Mn1.5O4: Effects of doping and particle size [J]. The Journal of Physical Chemistry C, 2011, 115: 6102-6110.
[46] CHEMELEWSKI K R, LEE Eun-sung, LI Wei, MANTHIRAM A. Factors influencing the electrochemical properties of high-voltage spinel cathodes: Relative impact of morphology and cation ordering [J]. Chemistry of Materials, 2013, 25: 2890-2897.
[47] ZHONG G B, WANG Y Y, YU Y Q, CHEN C H. Electrochemical investigations of the LiNi0.45M0.10Mn1.45O4 (M=Fe, Co, Cr) 5 V cathode materials for lithium ion batteries [J]. Journal of Power Sources, 2012, 205: 385-393.
[48] JAFTA C J, MATHE M K, MANYALA N, ROOS W D, OZOEMENA K I. Microwave-assisted synthesis of high-voltage nanostructured LiMn1.5Ni0.5O4 spinel: Tuning the Mn3+ content and electrochemical performance [J]. ACS Applied Materials Interfaces, 2013, 5: 7592-7598.
[49] DUNCAN H, HAI Bin, LESKES M, GREY C P, CHEN Guo-ying. Relationships between Mn3+ content, structural ordering, phase transformation, and kinetic properties in LiNixMn2-xO4 cathode materials [J]. Chemistry of Materials, 2014, 26: 5374-5382.
[50] HAI Bin, SHUKLA A K, DUNCAN H, CHEN Guo-ying. The effect of particle surface facets on the kinetic properties of LiMn1.5Ni0.5O4 cathode materials [J]. Journal of Materials Chemistry A, 2013, 1: 759-769.
[51] CAI Yi, HUANG Shao-zhuan, SHE Fa-shuang, LIU Jing, ZHANG Run-lin, HUANG Zhen-hong, WANG Feng-yun, WANG Hong-en. Facile synthesis of well-shaped spinel iNi0.5Mn1.5O4 nanoparticles as cathode materials for lithium ion batteries [J]. RSC Advances, 2016, 6: 2785-2792.
[52] LIU Jian-zhong, NI Jiang-feng, ZHAO Yang, WANG Hai-bo, GAO Li-jun. Grapecluster-like Fe3O4@C/CNT nanostructures with stable Li-storage capability [J]. Journal of Materials Chemistry A, 2013, 1: 12879-12884.
[53] NI Jiang-feng, ZHOU Heng-hui, CHEN Ji-tao, ZHANG Xin-xiang. Molten salt synthesis and electrochemical properties of spherical LiFePO4 particles [J]. Materials Letters, 2007, 61: 1260-1264.
[54] CHENG Fang-yi, WANG Hong-bo, ZHU Zhi-qiang, WANG Yan, ZHANG Tian-ran, TAO Zhan-liang, CHEN Jun. Porous LiMn2O4 nanorods with durable high-rate capability for rechargeable Li-ion batteries [J]. Energy & Environmental Science, 2011, 4: 3668-3675.
[55] CUI Yan, ZHAO Xiao-li, GUO Rui-song. High rate electrochemical performances of nanosized ZnO and carbon co-coated LiFePO4 cathode [J]. Materials Research Bulletin, 2010, 45: 844-849.
[56] FANG Hai-sheng, YI Hui-hua, HU Cheng-lin, YANG Bin, YAO Yao-chun, MA Wen-hui, DAI Yong-nian. Effect of Zn doping on the performance of LiMnPO4 cathode for lithium ion batteries [J]. Electrochimica Acta, 2012, 71: 266-269.
[57] CUI Yan, ZHAO Xiao-li, GUO Rui-song. Improved electrochemical performance of La0.7Sr0.3MnO3 and carbon co-coated LiFePO4 synthesized by freeze-drying process [J]. Electrochimica Acta, 2010, 55: 922-926.
