Microstructure evolution and mechanical behavior of
AZ31 Mg alloy processed by equal-channel angular pressing
FENG Xiao-ming(冯小明), AI Tao-tao(艾桃桃)
Department of Materials Science and Engineering, Shaanxi University of Technology, Hanzhong 723003, China
Received 4 March 2008; accepted 21 July 2008
Abstract:
AZ31 Mg alloy bar was subjected to 8-pass equal-channel angular pressing(ECAP) at 623 K. Microstructure evolution was observed by optical microscopy(OM) on cross section and X-ray diffraction analysis. The room temperature mechanical properties of the ECAP processed specimens were also investigated. A fine-grained structure with an average sub-grain size of 9 μm is obtained after 7 ECAP passes. XRD analysis indicates that after ECAP, in placing of
planes
and
become the dominant directions that are favourable for grain refinement
Key words:
AZ31 Mg alloy; equal-channel angular pressing(ECAP); superplasticity; microstructure;
1 Introduction
Magnesium alloys are attractive for lightmass structural applications in the transportation industry because of their low density and high specific strength and stiffness[1]. However, the symmetry of the hexagonal close-packed crystal structure has the limited number of independent slip systems, resulting in poor formability and ductility near room temperature[2-3]. Fortunately, this can be resolved by using ultrafine- grained(UFG) structure. UFG materials have sufficient room temperature ductility and superplasticity at high strain rates[4-6].
Equal channel angular pressing(ECAP) is a promising technique for obtaining microstructures with ultra-fine grains in the sub-micrometer to nanometer range in for bulk metallic materials[7]. In addition, structure is reasonably stable at elevated temperature and is capable of providing,superplastic deformation in tensile testing[8]. An early attempt to achieve significant grain refinement in AZ91 alloy by ECAP with a grain size of 1 μm and an elongation of 660% at 6×10-5 s-1 and 200 ℃ was successful[9]. The grain size of a cast Mg-9Al-1Zn alloy was significantly refined to 0.5 μm after 8 passes of ECAP at 448 K via route A[10], and superplasticity, especially at low temperatures and high strain rates, was achieved for Mg alloys with UFG structures through ECAP[11-12]. Recently, KOIKE et al[13] reported that the ductility was improved for fine-grained AZ31 Mg alloys due to the activity of nonbasal slip, grain boundary sliding(GBS) and recovery in high strained region. However, this significant improvement of superplasticity, i.e. enhancement of elongation to fracture, is at the expense of strength by ECAP [14]. The reason is not clear .
In the present work, AZ31 Mg alloy was subjected to repetitive ECAP processing in order to improve mechanical properties of Mg alloy by grain refinement. Relationship between microstructures and mechanical properties of ECAP-processed AZ31 Mg alloy was investigated.
2 Experimental
A cast billet of AZ31 Mg alloy (Mg-2.8%Al- 0.9%Zn-0.24%Mn, mass fraction) was machined into cylindrical specimens with diameter of of 15 mm and height of 70 mm for ECAP processing after homogenization. The intersecting angle between the two channels was 90? and the angle of the outer arc at the intersection was 20?. The 8-pass ECAP processing was performed at 623 K. These ECAP specimens were rotated by 90? along the longitudinal axis of the specimen after each pass, which was so-called route Bc, to obtain a homogeneous microstructure. The die was heated by a flexible heating blanket during the testing. For each pass, the die was heated to the designated temperature and stabilizedto mounting the specimen. The specimen was coated with graphite and boron nitride for lubrication before being put in the entrance channel at the testing temperature. The specimen was held at the temperature for 15 min to achieve stabilization.
Tensile specimens with gauge length of 25 mm and diameter of 5 mm were machined from the initial sample and also from the rods produced by ECAP. The tensile tests were carried out by an MTS machine at a strain rate of 3 mm/min. The grain structures in the as-extruded and ECAP processed specimens were examined by optical microscope(OM). The samples were ground and polished following standard metallography procedures, and etched at room temperature for 5 s using a solution of 1% HNO3, 24% C2H6O2 and 75% H2O (volume fraction).
3 Results and discussion
3.1 Effect of die angle on microstructures
Fig.1 shows the optical images of as-received specimen and those after 4-pass ECAP processed specimens. The original microstructure of the cast ingot is not uniform on the cross sections, as shown in Fig.1(a). Larger grains up to hundreds of micrometers are surrounded by smaller grains with tens of micrometers in diameter. During ECAP processing, their microstructures are effectively refined by dynamic recrystallization (DRX). As illustrated in Figs.1(b) and (c), it can be found that AZ31 Mg alloy after 4-pass ECAP through 120? die via route Bc still consists of a considerable number of large grains and shows a non-uniform grain structure. But the microstructure after 4-pass ECAP through 90? die via route Bc is more heterogeneous with very fine grains, about 10 μm in diameter.
Fig.1 Typical microstructures of ECAP AZ31 Mg alloys as function of die angle via route Bc: (a) Original unpressed morphology; (b) 4-pass through 90? die; (c) 4-pass through 120? die
DU et al[15] reported that the difference of equivalent true strain at the angles in the range of 90?- 120?. LI et al[16] reported that DRX caused the grain size refinedment due to the effect of the deformation temperature and the total strain or the strain rate occurred in AZ31 Mg alloy after ECAP. The extrusion led to homogeneous equiaxed grains and, the ECAP generated many small sub-grains, so that the microstructure became finer and more homogeneous with increase of pressing passes up to a critical value. The effect of deformation temperature is significant as,high temperature is favorable for grain growth. The lower the processing temperature, the finer the DRX grain size is. IWAHASHI et al[17] calculated the shear strain of a single pass to be 0.68 through 120? die and 1.05 through 90? die. The strain generated by 4-pass ECAP through 90? die is larger than that through 120? die, thus,more grain-refined effects took place after 4-pass ECAP through 90? die. Since larger strain could generate more dislocation cell walls that,lead to the formation of more sub-grains during the dynamic crystallization process, it is apparent that the die angle significantly affects the deformation and therefore, influences on the microstructures of specimens after ECAP.
3.2 Effect of passes on microstructures
Fig.2 shows the OM images of 8-pass ECAP processed specimens. After 1 pass of ECAP at 623 K, the microstructure is more heterogeneous with very fine grains ,about 9-11 μm in diameter. With further ECAP processing at the same temperature, the volume fraction of fine grains increases while that of large grains decreases. A homogeneous, fine microstructure with an average grain size of 9 μm after 7 passes of ECAP can be obtained. The average grain size is further homogeneous after 8 passes of ECAP. Some grains are refined to few micrometers with little residual strain whereas other large grains undergo distortion with traces of plastic deformation. Such a heterogeneous microstructure is rarely observed in ECAP processed cubic structured alloy such as Al alloys and steels[18-19]. This heterogeneity hcp packed Mg alloy is believed to result from the different orientations of the grains in relation to the shear direction imposed by ECAP. The easy slip systems in the hcp structured materials such as Mg are limited, compared with those in cubic materials. As a result, the Schmid factors for these slip systems differ significantly in grains with different orientations. A large number of grains are initially in the so-called hard orientations with small Schmid factors and where deformation is difficult in themto occur. On the other hand, thosee soft oriented grains with large Schmid factors can deform easily. LIN et al[20] reported a high Schmid factor of 0.27 for Mg alloy under the ECAP condition andis zero under the extruded condition, leading to the non-uniform microstructures. This heterogeneity in grain structure is reduced as the deformation increases with increase of pass.
Fig.2 Optical microstructures on cross sections of AZ31 Mg alloys after different passes of ECAP: (a) One pass; (b) Three passes; (c) Five passes; (d) Seven passes; (e) Eight passes
Fig.2 also indicates that the grain size changes with the number of ECAP passes up to 3 and then remains stableThe evolution of the grain size with with as the number of ECAP passes is presented in Fig.3.

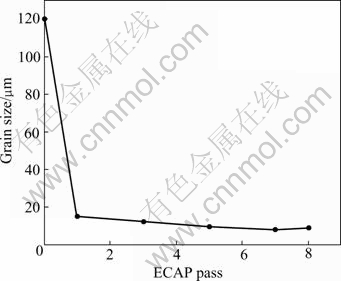

Fig.3 Grain size evolution during ECAP
Fig.4 shows XRD patterns of AZ31 Mg alloy after ECAP. It is apparent that the planes
for the extruded specimens show a strong tendency to lie perpendicular to the extrusion axis while no such tendency occurs under the ECAP condition. Only the basal slip system
<
> is operated. After ECAP, the intensity of planes
and
increases. By contrast, the intensity of planes decreases significantly. LIU et al[21] considered that the change of deformation mode was attributed to the grain refinement caused by the ECAP. Accordingly, it can be concluded that during the primary stage of ECAP, the main deformation mode of α phase is <
> twinning, while during the following passes the main deformation mode is dislocation slip, which is close to the results reported by LIU et al [21].

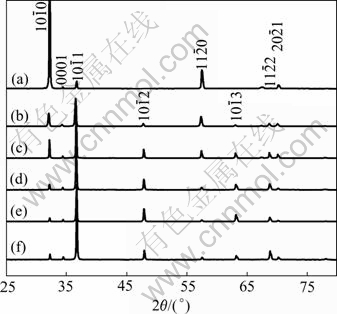

Fig.4 XRD patterns of AZ31 Mg alloy before and after ECAP: (a) Before ECAP; (b) One pass; (c) Three passes; (d) Five passes; (e) Seven passes; (f) Eight passes
In generally, it is said thatthe crystallographic texture is an important strengthening mechanism, especially in the hcp metals with a low symmetry. This structural factor can be changed considerably during the process of plastic deformation. As can be seen clearly in Fig.4, a strong texture is initially observed in the as-extruded Mg alloy. The intensity of this extruded texture gradually decreases during ECAP processing. In the as-extruded material, the {0001} basal planes and <
> directions in most grains are preferentially parallel to the extrusion direction(ED). That is, the as-extruded alloy exhibits an ED//<> fibre texture. The shear deformation during ECAP will destroy the existing fibre texture from extrusion. Consequently, the intensity of the fibre texture decreases with increasing the number of ECAP passes, and after a certain number of passes, the original fibre texture from extrusion can be completely removed. In the meanwhile, a new texture associated with the shear deformation of ECAP is gradually built up with the subsequent ECAP processing[22].
3.3 Effect of passes on mechanical properties
Fig.5 shows the mechanical properties of the AZ31 Mg alloy before and after ECAP at 623 K for different passes. The uniform elongation of AZ31 Mg alloy increases continuously and the strength decreases slightly after ECAP. Particularly, the elongation increases from 28% of as-extruded alloy to 50% of 2-pass ECAP processed specimen and then remains stable,However, the ultimate strength decreases from 321.2 MPa of as-extruded alloy to 283.9 MPa of 2-pass ECAP processed specimen and ,then remains stable also. The results indicate that the strength reduction with the decrease of grain size, is consistent with the results on AZ61 alloy fabricated by ECAP[22].

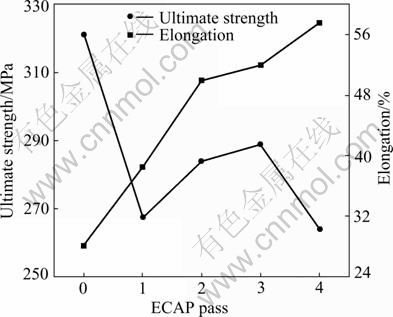

Fig.5 Mechanical properties of AZ31 Mg alloy as function of passes of ECAP
The reason why the strength of ECAP alloy with increasing passes of ECAP is lower than that of the extruded alloy must be related to the texture transition occurring during ECAP. Because the critical resolved shear stress(CRSS) for basal plane slip in Mg single crystal exhibits 100 times lower than that for nonbasal plane slip near room temperature[23]. So the distribution of basal plane (0001) in Mg alloy will have great effects on mechanical properties. As we know, the extruded Mg alloy exhibits a strong texture with the majority of basal plane arranged parallel to the extruded direction[24]. Thus, their tensile properties especially the yield strength in direction parallel to the extrusion direction are high. As to the ECAP processed Mg alloy, the distribution of basal plane (0001)has been modified to some degree or became more scattered, so it is in favor of the dislocation slip during deformation in the tension experiment.This is the reason why the elongation of AZ31 Mg alloy increases and the strength decreases after ECAP. In other words, ECAP results in the increase of the tensile strength at room temperature as a consequence of the reduction of the grain size as well as the increase of the dislocation density. Simultaneity, at high temperature, the recovery process becomes important, the tensile strength decreases and the ductility increases owning to ECAP for Mg alloy.
From the microstructural analysis and the mechanical testing, it can be deduced that at high temperatures the large elongation and the low strength of the ECAP processed specimens compared with the initial state are most probably caused by the relatively small grain size, which enables the material to deform by the mechanism of grain boundary sliding. Grain boundary sliding plays an important role in superplasticity. This phenomenon was has been also confirmed by CHUVILDEEV et al[25].
4 Conclusions
1) The effect of high temperature ECAP processing on the microstructure and the mechanical properties of AZ31 Mg alloy is studied by means of optical microscopy(OM), X-ray diffraction analysis and mechanical testing. ECAP is successfully used to achieve a reasonably homogeneous ultrafine-grained micro- structure for the AZ31 Mg alloy. With increasing the number of ECAP passes, the initial coarse grained structure in the as-extruded material is transformed gradually into an ultrafine-grained microstructure with an average grain size of 9 μm. XRD analysis indicates that after ECAP, the planes and hold the ascendancy directions replacing the planes and become favourable for the grain refinement.
2) The ECAP processing leaadss to relatively small changes of the tensile strength, but significant improvement of the uniform elongation. Ultimate strength of AZ31 Mg alloy reaches 321.1 MPa. The strength decreases after ECAP compared with that of as-extruded alloy. The uniform elongation of the alloy increases continuously up to 2 passes and then remained unchanged.
References
[1] CHANG C I, DU X H, HUANG J C. Achieving ultrafine grain size in Mg-Al-Zn alloy by friction stir processing [J]. Scripta Materialia, 2007, 57: 209-212.
[2] AVEDESIAN M M, BAKER H. ASM specialty handbook: Magnesium and magnesium alloys [M]. Materials Park, OH: The Materials Information Society, 1999: 13-43.
[3] M?THIS K, GUBICZA J, NAM N H. Microstructure and mechanical behavior of AZ91 Mg alloy processed by equal channel angular pressing [J]. Journal of Alloys and Compounds, 2005, 394: 194-199.
[4] KOCH C C, MORRIS D G, LU K, INOUE A. Ductility of nanostructured materials [J]. Mater Res Soc Bull, 1999, 24: 54-58.
[5] WEERTMAN J R, FARKAS D, HEMKER K, KUNG H, MAYO M, MITRA R. Structure and mechanical behavior of bulk nanocrystalline materials [J]. Mater Res Soc Bull, 1999, 24: 44-50.
[6] MCFADDEN S X, MISHAR R S, VALIEV R Z, ZHILYAEV A P, MUKHERJEE A K. Low temperature superplasticity in nanostructured nickel and metal alloys [J]. Nature, 1999, 398: 684-686.
[7] WU X, LUO P, WANG J T, LIANG M, XIE S, XIA K. Severe plastic deformation of magnesium alloy AZ31 at low temperatures [J]. Materials Forum, 2005, 29: 441-445.
[8] MIYAHARA Y, MATSUBARA K, HORITA Z, LANGDON T G. Grain refinement and superplasticity in a magnesium alloy processed by equal-channel angular pressing [J]. Metallurgical and Materials Transactions A, 2005, 36: 1705-1711.
[9] MABUCHI M, IWSAKI H. Low temperature superplasticity in an AZ91 magnesium alloy processed by ECAE [J]. Scripta Materialia, 1997, 36(6): 681-686.
[10] MABUCHI M, CHINO Y, IWASAKI H, AIZAWA T, HIGASHI K. The grain size and texture dependence of tensile properties [J]. Mater Trans, 2001, 42: 1182-1189.
[11] HORITA Z, MATSUBARA K, MAKII K, LANGDON T G. A two-step processing route for achieving a superplastic forming capability in dilute magnesium alloys [J]. Scripta Materialia, 2002, 47: 255-260.
[12] MATSUBARA K, MIYAHARA Y, HORITA Z, LANGDON T G. Developing superplasticity in a magnesium alloy through a combination of extrusion and ECAP [J]. Acta Materialia, 2003, 51: 3073-3084.
[13] KOIKE J, KOBAYASHI T, MUKAI T, WATANABE H, SUZUKI M, MARUYAMA K, HIGASHI K. The activity of non-basal slip systems and dynamic recovery at room temperature in fine-grained AZ31B magnesium alloys [J]. Acta Mater, 2003, 51: 2055-2065.
[14] KIM W J, AN C W, KIM Y S, HONG S I. Mechanical properties and microstructures of an AZ61 Mg alloy produced by equal channel angular pressing [J]. Scripta Materialia, 2002, 47: 39-44.
[15] DU Zhong-ze, WU Lai-zhi, WEI Fa-ming, WANG Jing-tao. Nanocrystalline 2J4 alloy processed by equal channel angular pressing [J]. Trans Nonferrous Met Soc China, 2005, 15(s3): 212-215.
[16] LI Yuan-yuan, LIU Ying, NGAI Tungwai Leo, ZHANG Da-tong, GUO Guo-wen, CHEN Wei-ping. Effects of die angle on microstructures and mechanical properties of AZ31 magnesium alloy processed by equal channel angular pressing [J]. Trans Nonferrous Met Soc China, 2004, 14(1): 53-57.
[17] IWAHASHI Y, WANG J, HORITA Z, NEMOTO M, LANGDON T G. Principle of equal-channel angular pressing for the processing of ultrafine-grained materials [J]. Scripta Materialia, 1996, 35(2): 143-146.
[18] SHIN D S, SEO C W, KIM J, PARK K T, CHOO W Y. Microstructures and mechanical properties of equal-channel angular pressed low carbon steel [J]. Scripta Materialia, 2000, 42: 695-699.
[19] IWAHASHI Y, HORITA Z, NEMOTO M, LANGDON T G. The process of grain refinement in equal-channel angular pressing [J]. Acta Materialia, 1998, 46: 3317-3331.
[20] LIN H K, HUANG J C, LANGDON T G. Relationship between texture and low temperature superplasticity in an extruded AZ31 Mg alloy processed by ECAP [J]. Mater Sci Eng A, 2005, A402: 250-257.
[21] LIU Teng, ZHANG Wei, WU Shi-ding, JIANG Chuan-bin, LI Shou-xin, XU Yong-bo. Equal channel angular pressing of a two-phase alloy Mg-8Li-1Al (Ⅰ): Deformation modes during ECAP [J]. Acta Metallurgica Sinica, 2003, 39(8): 790-794. (in Chinese)
[22] KIM W J, HONG S I, KIM Y S. Texture development and its effect on mechanical properties of an AZ61 Mg alloy fabricated by equal channel angular pressing [J]. Acta Materialia, 2003, 51: 3293-3307.
[23] MUKAI T, YAMANOI M, WATANABE H, HIGASHI K. Ductility enhancement in AZ31 magnesium alloy by controlling its grain structure [J]. Scripta Materialia, 2001, 45: 89-94.
[24] HILPERT M, STYCZNKI A, KIESE J, WANGER L. Magnesium alloys and their application [M]. Hamburg: Werkstoff-informations Gesellshaft, 1998.
[25] CHUVILDEEV V N, NIEH T G, GRYAZNOV M Y, SYSOEV A N, KOPYLOV V I. Low-temperature superplasticity and internal friction in microcrystalline magnesium alloys processed by ECAP [J]. Scripta Materialia, 2004, 50: 861-865.
Foundation item: Project(08JK240) supported by the Special Program of Education Bureau of Shaanxi Province, China; Project(SLGQD0751) supported by the Scientific Research Startup Program for Introduced Talents of Shaanxi University of Technology, China
Corresponding author: FENG Xiao-ming; Tel: +86-916-2291080; E-mail: fxmhz@126.com
DOI: 10.1016/S1003-6326(08)60267-8
(Edited by YANG Hua)
