Effect of addition of Zn and Al elements on glass-forming ability and thermal stability of Mg-Cu-Y bulk metallic glasses

LI Ye-sheng(黎业生), FU Qun-qiang(付群强), WU Zi-ping(吴子平), DONG Ding-qian (董定乾)

(School of Materials and Chemical Engineering, Jiangxi University of Science and Technology, Ganzhou 341000, China)

Received 15 July 2007; accepted 10 September 2007

Abstract:

After substituting partial Cu and Mg with Zn or Al elements for Mg₆₅Cu₂₅Y₁₀ alloy, respectively, the metallic glass plate samples with thickness of 2-3 mm were prepared by water-quenching, their respective glass-forming ability and thermal stability were studied by using differential thermal analysis (DTA) and X-ray diffraction (XRD). Using Kissinger equation, the activation energies of crystallization of these metallic glasses heated with a constant rate were calculated. The results show that Al element is greatly harmful to the glass-forming ability of Mg-Cu-Y alloys and cannot acquire bulk amorphous alloys; nevertheless, the effect of Zn element addition is indeterminate for various components. The magnitudes of thermal stability are also revealed.

Key words:

Mg-based alloy; metallic glasses; glass-forming ability; thermal stability;

1 Introduction

Mg-based alloys were paid more and more attention for their low density and high specific strength, specific stiffness in recent years. Mg-based metallic glasses are considered structure materials due to their high specific strength and other attractive mechanical and corrosion resistance properties. Since the glass-forming ability of Mg-based bulk metallic glass was developed greatly in the end of last century, the alloy systems and preparation methods were improved[1-5]. The proper addition of other elements affects the glass-forming ability and thermal stability of Mg-Cu-Y alloys[3-4]. As it is known to all, the nanocrystalline phase can be obtained from amorphous material by an appropriate heat treatment that leads to crystallization[6-7], so the control of this process is very important.

In this study, Mg₆₅Cu₂₀Y₁₀Zn₅, Mg₆₀Cu₂₅Y₁₀Zn₅ and Mg₆₅Cu₂₀Y₁₀Al₅ alloys were prepared for the substitution of partial Cu and Mg elements in Mg₆₅Cu₂₅Y₁₀ with Zn or Al. To be compared with Mg₆₅Cu₂₅Y₁₀ alloy, their glass-forming ability, thermal stability and effects of Zn and Al elements were investigated.

Consulting the nominal compositions of Mg-Cu-Y metallic glasses, four types of pure metal of Mg, Cu, Y and Zn or Al were mixed and melted in the medium frequency-induced vacuum furnace to obtain the parent alloys with design composition. The parent alloys were smashed and milled into powders, and then the powders were put into a copper mould with a cavity of d 20 mm×5 mm and sealed. The copper mould was quickly heated to 700 ℃ in the above vacuum furnace, holding for 1 min, then quenched into the mixture of ice and water, and a plate sample with the thickness of 2-3mm was obtained.

The structure of the plate sample was determined by Miniflex XRD instrument, and its behavior of glass transition, crystallization and melting were detected by Diamond TG/DTA 6000 thermal analyzer, using α-Al₂O₃ as reference and protected by flow Ar gas with high purity. The chemical composition of parent alloys was measured by Magix(PW-2424) type of X fluorescence analyzer.

3.1 Glass-forming ability of the alloys

Table 1 shows the chemical compositions of the parent alloys.

Table 1 Chemical compositions of Mg-Cu-Y-Zn and Mg-Cu-Y-Al parent alloys (mass fraction, %)

Changing mass fraction into mole fraction in Table 1, alloy A is Mg₆₅Cu₂₀Y₁₀Zn₅, alloy B is Mg₅₉Cu₂₆Y₁₀Zn₅ and alloy C is Mg_64.1Cu_20.9Y_9.5Al_5.4; apparently, the chemical compositions of parent alloys are consistent with the nominal compositions.

Fig.1 shows the XRD patterns and DTA curves of water-quenching samples of parent alloys, respectively. Mg₆₅Cu₂₀Y₁₀Zn₅ and Mg₅₉Cu₂₆Y₁₀Zn₅ quenched samples only exhibit a broad peak, indicating the formation of single amorphous phase. However, Mg_64.1Cu_20.9Y_9.5Al_5.4 quenched sample shows several sharp crystalline peaks, indicating the coexistence of Mg₂Cu, Al₂CuMg, YAl₃, and little unknown phase, as shown in Fig.1(a). The DTA curves of the above three type samples all exhibit clear exothermal peaks, as shown in Fig.1(b). From Fig.1, it can be deduced that the water-quenching samples of Mg₆₅Cu₂₀Y₁₀Zn₅ and Mg₅₉Cu₂₆Y₁₀Zn₅ form amorphous phase; as the heating temperature increases, they will be crystallized. The water-quenching sample of Mg_64.1Cu_20.9Y_9.5Al_5.4 almost cannot form amorphous phase, but it forms an unstable phase; as the heating temperature increases, the unstable phase will transform into a stable one. The above evidences demonstrate that the substitution of partial Cu for Al is harmful to Mg₆₅Cu₂₅Y₁₀ alloy, which decreases the glass-forming ability of Mg₆₅Cu₂₅Y₁₀ alloy greatly.

Table 2 lists the data of the glass transition temperature (T_g), onset temperature of crystallization (T_x1), supercooled liquid region (?T_x), reduced glass transition temperature (T_rg) and melting temperature(T_m) of Mg₆₅Cu₂₅Y₁₀, Mg₆₀Cu₃₀Y₁₀, Mg₆₅Cu₂₀Y₁₀ Zn₅ and Mg₅₉Cu₂₆Y₁₀Zn₅ metallic glasses with a heating rate of 20 ℃/min.

Fig.1 XRD patterns (a) and DTA curves (b) of water quenched alloys

Table 2  Data of T_g , T_x1, ?T_x , T_rg and T_m obtained with DTA for metallic glasses with heating rate of 20 ℃/min

Mg₆₅Cu₂₀Y₁₀ Zn₅ metallic glass possesses lower T_g by little, T_x1 by about 3.4 K and T_m by about 5 K than Mg₆₅Cu₂₅Y₁₀, and its DTA trace has a trend of moving forward, compared with Mg₆₅Cu₂₅Y₁₀. Mg₆₀Cu₂₅Y₁₀ Zn₅ metallic glass has lower T_g by 11.8 K, T_x1 by 24.1 K and T_m by 22.6 K than Mg₆₀Cu₃₀Y₁₀. Compared with the thermal parameters of Mg₆₅Cu₂₀Y₁₀Zn₅, the thermal parameters of Mg₅₉Cu₂₆Y₁₀Zn₅ have larger changes and its DTA trace moves forward more prominently. From the view of glass-forming, the supercooled liquid region ?T_x of Mg₆₅Cu₂₅Y₁₀ decreases about 2.7 K after replacing Cu with Zn, whereas the reduced glass transition temperature T_rg increases slightly, from 0.559 to 0.562; ?T_x of Mg₆₀Cu₃₀Y₁₀ decreases about 12.3 K after replacing Cu with Zn, and T_rg keeps at 0.563, these similar phenomena also appear in Zr-Ti-Cu-Ni-Be and Cu-Zr-Ti alloys[8-11]. From the preparation process of the sample, it can be seen that the decrease of ?T_x does not exhibit the descendant of the glass forming ability. It demonstrates that the glass forming ability is not only determined by ?T_x, T_rg is also an important reference index. Comparing  Mg₆₅Cu₂₀Y₁₀Zn₅ with Mg₆₀Cu₂₅Y₁₀- Zn₅, the former has a larger ?T_x about 17.2 K than the latter, both almost have the same value of T_rg, which shows that the former has a strong glass forming ability than the latter, as the same as the situation of metallic glasses without Zn.

3.2 Thermal stability

   In order to study the crystallization processes of Mg₆₅Cu₂₀Y₁₀Zn₅ and Mg₅₉Cu₂₆Y₁₀Zn₅ metallic glasses, the DTA traces were measured at various heating temperature rates of 10, 20, 30, 40 and 50 K/min, respectively. Both of the DTA traces with a constant heating rate of 20 K/min of Mg₆₅Cu₂₀Y₁₀Zn₅ and Mg₅₉Cu₂₆Y₁₀Zn₅ metallic glasses show two exothermal peaks, i.e. the crystallization process divides two stages. The first peak of Mg₆₅Cu₂₀Y₁₀Zn₅ is big, and the second is small; whereas the DTA trace of Mg₅₉Cu₂₆Y₁₀Zn₅ shows two big exothermal peaks, as shown in Fig.1(b). Fig.1(b) only shows the DTA curves with a constant heating rate of 20 K/min, similar DTA curves are also obtained for other heating rates. This illustrates that the crystallization of amorphous Mg₆₅Cu₂₀Y₁₀Zn₅ mainly focuses on the first stage; the crystallization amount of the second one is less relatively. Contrarily, the crystallization amounts of the two stages are big for Mg₅₉Cu₂₆Y₁₀Zn₅. As heating rate increases, both T_x1 and T_p of all metallic glasses increase, and the difference ?T_px (?T_px = T_p-T_x1) between T_p and T_x1 also increases, as listed in Tables 3-6.

Table 3 Initial and peak temperatures of crystallization for Mg₆₅Cu₂₅Y₁₀ metallic glass with various heating rates

Table 4 Initial and peak temperatures of crystallization for Mg₆₀Cu₃₀Y₁₀ metallic glass with various heating rates

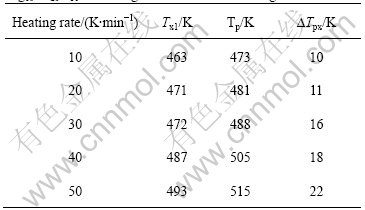

Table 5 Initial and peak temperatures of crystallization for Mg₆₅Cu₂₀Y₁₀Zn₅ metallic glass with various heating rates

Table 6 Initial and peak temperatures of crystallization for Mg₅₉Cu₂₆Y₁₀Zn₅ metallic glass with various heating rates

Using Kissinger equation, ln(r/T²)=-E/RT+constant, and the data of Tables 3-6, the lines can be obtained from the diagrams of ln(T²/r) vs 1/T, as shown in Fig.2. The slope of line is E/R, and the activity energy of crystallization, E, under different conditions can be calculated, whose values are as follows.

Put T_x1 into Kissinger equation, the activity energies of crystallization of Mg₆₅Cu₂₅Y₁₀, Mg₆₀Cu₃₀Y₁₀, Mg₆₅Cu₂₀Y₁₀Zn₅ and Mg₅₉Cu₂₆Y₁₀Zn₅ metallic glasses are 78.66, 127.97, 96.47 and 81.78 kJ/mol, respectively. Put T_p into Kissinger equation, E values of them are 56.92, 92.32, 78.92 and 66.27 kJ/mol, respectively.

From the above results, it can be seen that E values of amorphous Mg₆₅Cu₂₀Y₁₀Zn₅ and Mg₅₉Cu₂₆Y₁₀Zn₅ are similar to those of Mg₆₅Cu₂₅Y₁₀ and Mg₆₀Cu₃₀Y₁₀, as putting T_x1 and T_p into Kissinger equation, E values of the former are larger than those of the latter. The reason is that while T_p＞T_x1, atoms diffuse faster for possessing

Fig.2 Kissinger plots of DTA of water-quenching metallic glasses: (a) Mg₆₅Cu₂₅Y₁₀; (b) Mg₆₀Cu₃₀Y₁₀; (c) Mg₆₅Cu₂₀Y₁₀Zn₅;       (d) Mg₅₉Cu₂₆Y₁₀Zn₅

higher energy and bigger momentum at high temperature; there exists partial crystallization in the front of crystallization process, the potential energy that atoms need to get across is lower. So the E values calculated from T_x1 is higher. Putting either T_x1 or T_p into Kissinger equation, the E value of amorphous Mg₆₅Cu₂₀Y₁₀Zn₅ is larger than that of Mg₆₅Cu₂₅Y₁₀, demonstrating that the thermal stability of Mg₆₅Cu₂₅Y₁₀ substituting Cu with Zn gets stronger from the results of crystallization with a constant heating rate, according with that of isothermal annealing. E value of amorphous Mg₅₉Cu₂₆Y₁₀Zn₅ is lower than that of amorphous Mg₆₀Cu₃₀Y₁₀, demonstrating that the thermal stability of Mg₆₀Cu₃₀Y₁₀ substituting Cu with Zn gets weaker. E value of amorphous Mg₆₅Cu₂₀Y₁₀Zn₅ is bigger than that of amorphous Mg₅₉Cu₂₆Y₁₀Zn₅, demonstrating that the former possesses the thermal stability higher than the latter does.

1) Mg₆₅Cu₂₅Y₁₀ alloy substituting partial Cu with Al can’t obtain amorphous structure by water-quenching; the addition of Al element is very harmful to the glass-forming ability of Mg₆₅Cu₂₅Y₁₀ alloy.

2) After substituting Cu with Zn to form Mg₆₅Cu₂₀- Y₁₀Zn₅, ?T_x of Mg₆₅Cu₂₅Y₁₀ metallic glass lowers slightly, whereas T_rg lifts a little, glass-forming ability doesn’t weaken distinctly, and thermal stability improves remarkably, the thermal stability temperature rises from 423 K to 473 K.

3) The glass-forming ability of Mg₆₀Cu₃₀Y₁₀ doesn’t decrease obviously, but whose thermal stability decreases from 533 K to 423 K while substituting Cu with Zn to form Mg₅₉Cu₂₆Y₁₀Zn₅. The thermal stability of Mg₆₅ Cu₂₀Y₁₀Zn₅ is 50 K higher than that of Mg₅₉ Cu₂₆Y₁₀Zn₅ during the process of isothermal crystallization.

4) With the comparison of glass-forming abilities of Mg₆₅ Cu₂₀Y₁₀Zn₅ and Mg₅₉Cu₂₆Y₁₀Zn₅, the former has larger ?T_x and T_rg than the latter does, which shows that Mg₆₅Cu₂₀Y₁₀Zn₅ alloy has stronger glass-forming ability than Mg₅₉Cu₂₆Y₁₀Zn₅, as the same as those without Zn.

The authors gratefully acknowledge the financial supports from the Science and Technology Foundation of Education Department and Industrial Plan of Science and Technology Bureau of Jiangxi Province, P.R.China under the contract of No.18, 2004 and No.188, 2006, respectively.
