Trans. Nonferrous Met. Soc. China 25(2015) 2003-2008
Uniaxial tensile behavior of porous metal fiber sintered sheet
Bo ZHOU, Wei YUAN, Jin-yi HU, Yong TANG, Long-sheng LU, Bin-hai YU
School of Mechanical and Automotive Engineering, South China University of Technology, Guangzhou 510640, China
Received 4 August 2014; accepted 12 November 2014
Abstract:
A novel porous metal fiber sintered sheet (PMFSS) with a three-dimensional reticulated structure was fabricated by multi-tooth cutting and high-temperature solid-phase sintering process with copper fibers. A uniaxial tensile test was conducted to investigate the effect of fiber length and natural aging factor on the tensile properties of the PMFSS. Results indicated that, under given stress, the increase of fiber length helped reinforce the tensile strength. The elongation of the PMFSS with medium length fiber of 15 mm exhibited the optimal performance, reaching about 13.5%. After natural aging treatment for a month, the tensile strength of PMFSS significantly decreased, but the change of elongation was negligible except for the one with the shortest fiber length of 5 mm, whose elongation was effectively improved. The morphological fracture features of PMFSSs were also characterized.
Key words:
porous metal fiber sintered sheet; tensile property; fiber length; natural aging; fracture mode;
1 Introduction
As one of the most promising functional and structural materials, porous metal fiber sintered sheet (PMFSS) has a three-dimensional reticulated structure with interconnected pores featuring a high porosity and large specific surface area. It not only inherits the essential characteristics of the raw metal such as electrical and thermal conductivity, plasticity and machinability, but also owns special features of porous materials like layered open cell, controllable porosity and permeability, capillarity and so on [1]. Based on these superior properties, it has been widely used in various fields such as filtration and separation [2], catalytic reaction [3,4], sound absorption [5], explosion protection [6], flow field and gas diffusion [7,8], biomedical device [9], pollutant treatment [10,11], mass transfer barrier [12] and heat transfer [13,14].
To investigate the mechanical properties of PMFSS, plenty of researches were conducted in the past decades laying a good foundation for its application. ANDERSEN et al [15,16] fabricated sintered metal fiber structures using aluminum-based fibers and reported their mechanical properties. DUCHEYNE et al [17] looked into the tensile and compressive properties of novel low-porosity PMFSS made from AISI316L stainless steel fibers with diameter of 50 and 100 μm. LIU et al [18,19] made a porous steel wire mesh with open pores by using metallurgical methods and assessed the effects of forming pressure and sintering parameters on the porous structure and mechanical behavior of the wire mesh. MARKAKI et al [20] produced highly porous sheets through liquid-phase sintering of copper-coated short fibers with a diameter of 100 μm at about 1100 °C for 5 min. They found that the tensile strength of the sheets with a porosity of 90% was less than 1 MPa. QIAO et al [21] developed a PMFSS made of stainless steel fibers with a diameter of 12 μm by means of vacuum sintering. Compression testing of the porous metal fibers was carried out in a quasi-static condition. TAN and CLYNE [22] fabricated highly-porous (75%-95%) ferrous fiber network materials by use of solid-state sintering at 1200 °C for 3 h. They conducted heat treatment on single-fibers, and made micrographic characterization of the grain change. Regretfully, the effect of fiber length on tensile property was not clarified. ZHOU et al [23] focused on how the porosity and sintering parameters impacted on the tensile properties of PMFSS. JIN et al [24,25] and YI et al [26] validated a series of theoretical models disclosing the relationship between structural parameters and mechanical properties of the PMFSS.
In view of the current literatures, the effects of fiber length parameter and natural aging factor on the tensile properties of PMFSS were barely investigated. With this background, the present work performed a uniaxial tensile test to investigate related issues regarding a self-made PMFSS. The morphological fracture features of this PMFSS were also characterized in this work.
2 Experimental
2.1 Processing procedures of PMFSS
In this experiment, the PMFSS was made of copper fibers that were prepared by multi-tooth cutting and high-temperature solid-phase sintering. The fibers were machined by a super-hard multi-tooth cutter made from W12Mo3Cr4V3N at a low speed on a horizontal lathe (C6132A), as shown in Fig. 1(a). The nominal flank face of this cutter had a row of triangle micro-teeth formed by wire-cutting. After prescribing appropriate cutter parameters and processing conditions, a string of continuous long fibers with diameters of 100-150 μm could be obtained. Detailed processing parameters can refer to our previous work [27]. The collected fibers are shown in Fig. 1(b). Subsequently, the fibers were snipped into small segments. In order to inspect the effects of fiber length, in this work, three types of fiber elements with different values of lengths were prepared, namely 5, 15 and 35 mm. Then, a specified volume of copper fibers were loaded uniformly into the packing chamber of the mold assembly in random directions. The compaction force was regulated by using M8 bolts. By altering the ratio of fiber mass to cavity volume, we could get the PMFSS samples with different porosities. Then, the fibers were sintered in a programmable furnace in the hydrogen atmosphere at a constant pressure of 0.5 MPa. The rising speed of sintering temperature was controlled at a rate of 500 °C/h, and the PMFSS was finally treated at 900 °C for 1 h. When the sintering process was completed, the PMFSS was cooled to room temperature in the furnace. Figure 2 displayed the PMFSS samples produced with different fiber lengths.

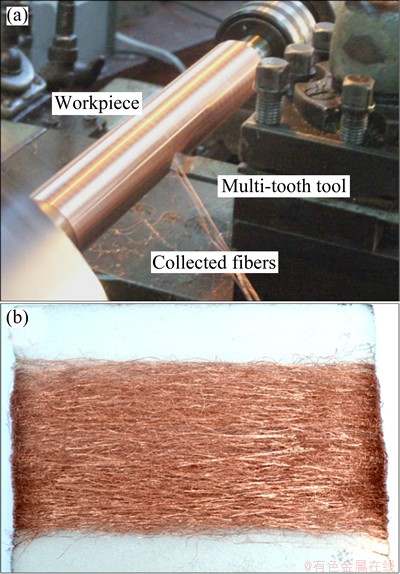

Fig. 1 In-situ photos of multi-tooth cutting process (a) and collected copper fibers (b)

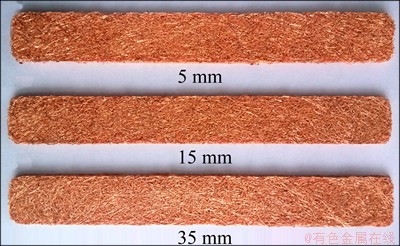

Fig. 2 PMFSS samples with different fiber lengths
Since the PMFSS has a regular geometric shape, the average porosity can be calculated by using the mass-volume method
(1)
where V is the volume of PMFSS (cm3), m is the mass of PMFSS (g) and ρ is the density of red copper (g/cm3).
2.2 Tensile test of PMFSS
The tensile test was carried out on a universal material testing machine (INSTRON 2369, USA) with the load error less than 1% at room temperature. The cross-head speed was controlled at a constant tensile rate of 1.5 mm/min. An extensometer gauge length with 50 mm was used to measure the displacement and strain. To meet the testing requirement, the size of each PMFSS sample was 120 mm (length) × 15 mm (width) × 2 mm (thickness). The fixtures of the testing machine had a self-locking setup. For each run of test, the determinand was clamped by the fixtures by force of friction, whose effective length was actually 60 mm, as shown in Fig. 3. In this work, the elongation represents the percentage of total extension at the maximum force.
3 Results and discussion
3.1 Microstructural characterization of PMFSS with typical porous structure
Figure 4(a) shows the microscopic structure and morphology of the PMFSS with a porosity of 80%. It can be seen that the metal fibers are randomly connected with each other to construct a metal skeleton forming a three-dimensional network structure. Apparently, many micro/nano-scale bulges grow on the surface of a single fiber, as shown in Fig. 4(b). Such a rough structure benefits forming sintering joints among the fibers, which significantly enhances the mechanical strength of the PMFSS.

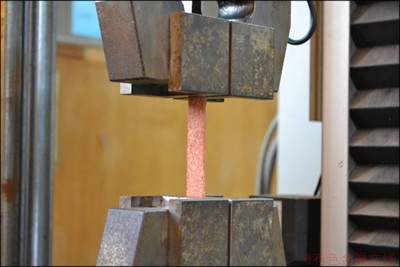

Fig. 3 Sample clamped by fixtures on universal material testing machine

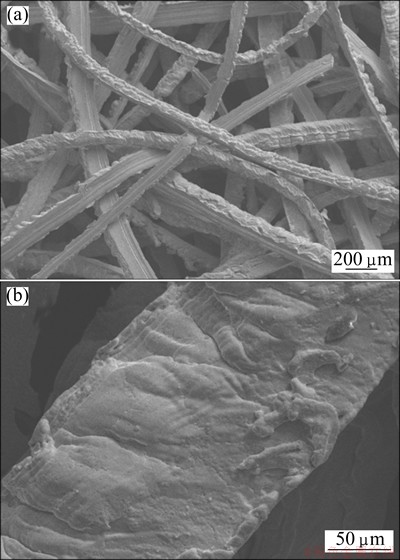

Fig. 4 SEM images of PMFSS with 80% porosity (a) and fiber surface morphology (b)
3.2 Uniaxial tensile stress–strain behavior of PMFSS
The tensile stress–strain curves for the PMFSS with different fiber lengths are presented in Fig. 5. It can be found that in the initial stage, the PMFSS experiences a short period of elastic deformation. The stress–strain relationship agrees well with the linear elastic Hooke’s law. As the tension increases, the fibers in the PMFSS begin to deflect plastically around the sintering joint between two fibers in the pulling direction. With a continuous increase in tensile force, the fibers and sintering joints suffer from plastic deformation. This is also a typical behavior for many other metal materials. However, no yield stage can be observed in the case of this work. This is different from the tensile property of the base material of copper. When the tension reaches the ultimate tensile stress, the fibers and sintering joints get fractured so that the stress drops sharply, leading to the destruction of the entire network structure.

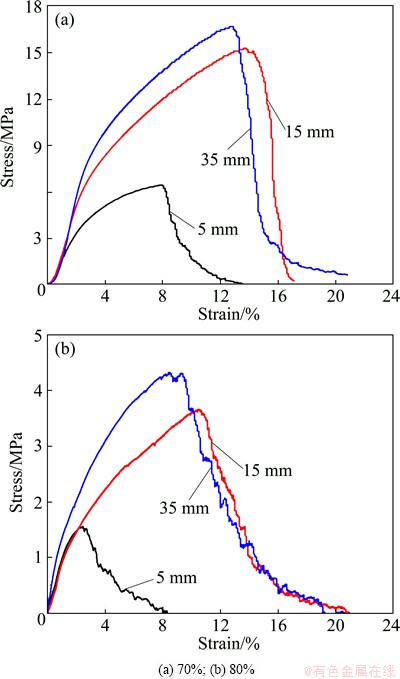

Fig. 5 Uniaxial tensile stress–strain curves for PMFSSs with different porosities
3.3 Effect of fiber length on uniaxial tensile fracture properties
Figure 6(a) shows the tensile strengths of PMFSS with fiber lengths of 5 mm (PMFSS-5), 15 mm (PMFSS-15) and 35 mm (PMFSS-35), respectively. In this experiment, two porosities of 70% and 80% were involved. When a porosity of 70% is used, the PMFSS-35 with the longest fiber length exhibits the optimum tensile strength at 16.7 MPa. The tensile strength of the PMFSS-15 with the medium fiber length is lower with a value of 14.5 MPa. For the PMFSS-5 based on the shortest fiber, the tensile strength drops sharply, simply reaching 6.5 MPa. Obviously, the length of fibers has a great influence on the tensile strength of the PMFSS. As we know, throughout the sintering process, the sintering joints arise from material migration among the interlaced fibers. The size of a sintering joint is mostly small, and the stress concentration is likely to occur around the area of sintering joints. As a result, the strength of the sintering joints is much lower than that of the copper fibers. When a uniaxial load is applied, the stress transfers among the fibers and sintering joints. By comparison, the PMFSS-5 only includes short fibers with poor tensile strength to bear force, and its sintering joints are torn apart easily. Therefore, an overall fracture happens quickly. As shown in Fig. 7, the fracture occurs in a perpendicular direction to the tensile loading, showing similar behavior to brittle materials. For the medium fiber length of 15 mm, the fracture of the PMFSS-15 emerges at an angle of 45° relative to the tensile loading direction. This result is consistent with that reported by ZHOU et al [23]. Theoretically, this phenomenon follows the maximum shear stress criterion according to the plastic flow failure mode of metal materials. When the fiber length reaches 35 mm, necking phenomenon which usually happens in the tensile fracture of plastic metal materials can be observed finally, and the tensile strength gets to a higher level of about 16.7 MPa. The above results demonstrate that the use of long fibers contribute to improving the strength of the PMFSS. Likewise, the 80% PMFSSs have analogous tensile behavior but exhibit far lower tensile strength correspondingly at a given fiber length. This is owing to smaller effective bearing area and fewer sintering joints associated with larger porosities. It can be thus far confirmed that the tensile strength of the PMFSS is quite sensitive to its porosity.

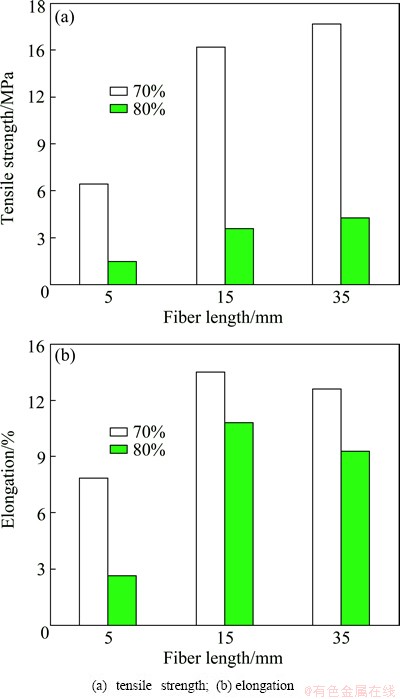

Fig. 6 Tensile properties of PMFSS

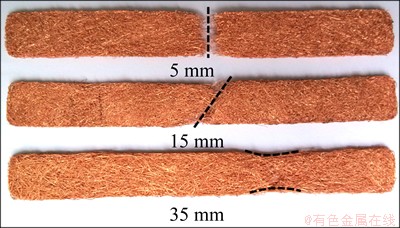

Fig. 7 Fractured morphology of PMFSS samples with different fiber lengths
As shown in Fig. 6(b), no matter which porosity is adopted, the elongation of the PMFSS-15 is the highest, followed by PMFSS-35 and PMFSS-5 because the former achieves a good balance between fiber length and fiber joints. On one hand, the use of a medium fiber length, i.e., 15 mm, provides enough resistance to the change of tension. On the other hand, the effective formation of fiber joints enhances stress transfer and promotes uniaxial extension by plastic deformation around fiber joints. This rule is of great importance to material design, suggesting how to choose the fiber length according to the requirements of material mechanical property related to tensile strength and elongation.
After being treated by natural aging and placed in a confined space at a room temperature of 26 °C for 1 month, the PMFSS shows diverse tensile behaviors, as shown in Fig. 8(a). Interestingly, after the sample experiences a short period of elastic deformation process, obvious yield stages can be observed for all PMFSSs with different fiber lengths when the tensile stress is around 1.3 MPa, as shown in Fig. 8(b). This hints that the samples tested in this situation have a similar performance to the plastic metal material. Compared with Figs. 5 and 6, it is found that the tensile strength of PMFSS is significantly reduced. This may be ascribed to the effect of grain growth of fibers and sintering joints after the natural aging treatment. Nevertheless, the stress concentrating around the sintering joints is more likely to release with the test going on. As a result, the elongations of the PMFSS-15 and PMFSS-35 almost remain, whereas the PMFSS-5 gains an improved elongation because it is much more sensitive to stress concentration around the sintering joints. Therefore, it is better to take the time-related factor into account for material design and application.

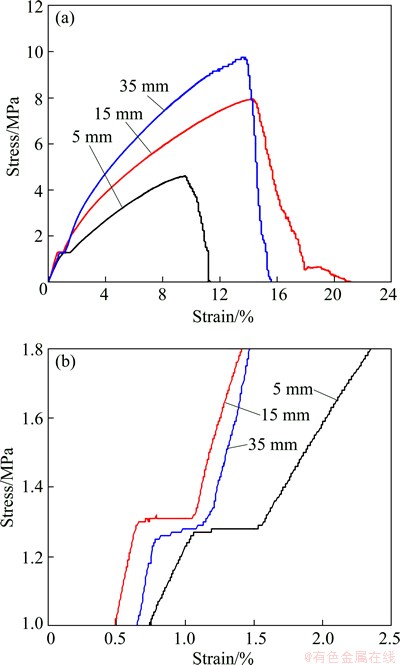

Fig. 8 Uniaxial tensile stress-strain curves for PMFSSs after 1 month (a) and magnification of yield stages (70% porosity) (b)
4 Conclusions
1) The fiber length has a significant effect on the fracture mode of the PMFSS. The PMFSS-5 made of 5 mm fibers is destroyed in the form of brittle fracture. The PMFSS-15 with a medium fiber length of 15 mm fractures at an angle of 45° relative to the tensile loading direction. The PMFSS-35 with 35 mm fibers is damaged along with necking phenomenon.
2) The tensile strength of a PMFSS increases with the increase in fiber length. The PMFSS constructed by medium-length fibers owns the highest elongation. To balance the tensile strength and elongation, the PMFSS with a medium fiber length is recommended for material design.
3) The effect of natural aging leads to an obvious yield stage during the tensile process. As a result, the tensile strength of the treated samples significantly decreases, but the elongation almost remains except for the PMFSS-5 whose elongation is effectively improved.
