Trans. Nonferrous Met. Soc. China 25(2015) 3197-3203

Effects of Mg content on primary Mg₂Si phase in hypereutectic Al-Si alloys

Zhi-li HUANG, Kai WANG, Zhi-ming ZHANG, Bo LI, Han-song XUE, Da-zhuang YANG

College of Materials Science and Engineering, Chongqing University, Chongqing 400044, China

Received 9 December 2014; accepted 21 May 2015

Abstract:

Hypereutectic Al-Si alloy with variant Mg contents were fabricated by casting, and the effects of Mg content on the microstructure of primary Mg₂Si particles in hypereutectic Al-Si alloys were investigated. The results show that the volume fraction of primary Mg₂Si particles increases linearly with raising the Mg content, but the average size of Mg₂Si particles does not exhibit a corresponding change. When the Mg content is 3%, <1 0 0> directions have the fastest growth velocity, so that Mg₂Si particles are likely to form octahedron shape. When gradually increasing the Mg content, the distributions of Mg and Si atoms on the solid-liquid interface become inhomogeneous, which results in the formation of irregular octahedron structures. Finally, when the Mg content is about 10%, the morphology of primary Mg₂Si particles changes from the octahedron shape into various complex structures with a large size.

Key words:

hypereutectic Al-Si alloys; primary Mg2Si particles; growth pattern; growth velocity;

1 Introduction

Hypereutectic Al-Si alloys have widespread applications in automotive, aerospace and general engineering industries due to their excellent properties, such as low thermal expansion coefficient, satisfied castability, good corrosion resistance and wearing resistance [1-3]. However, the primary Si particles in hypereutectic Al-Si alloys are usually coarse, which leads to poor mechanical properties [4]. Therefore, many efforts have been made to control primary Si particles in an ideal shape and distribution in alloys, for instance, adding rare earth elements into Al-Si alloys [5-7] or increasing the solidification rate [8].

In recent years, researchers have found that Mg plays a vital role in improving properties of hypereutectic Al-Si alloys. When a certain amount of Mg is added to hypereutectic Al-Si alloys, primary Mg₂Si phase would form [9]. Mg₂Si is an intermetallic compound with a low density (1.90 g/cm³), a high melting point (1087 °C), a high hardness (4.5×10⁹ N/m²), a high elastic modulus (120 GPa) and a low coefficient of thermal expansion(7.5×10^-6 K^-1) [10]. It is obvious that Mg₂Si has excellent properties for hypereutectic Al-Si alloys. FROMMEYER et al [11] found that Mg₂Si-Al composites have a higher yield strength and elastic modulus than Al-Si composites. THIRUGNANAM et al [12] found that the strength and hardness of Al-Si-Mg alloys became higher when increasing the Mg content. Another study indicated that the distribution of eutectic Si became homogeneous as well by adding Mg in alloys [13]. For expanding the application of Mg₂Si-Al composites, it is valuable to understand what the changes are in the microstructure of hypereutectic Al-Si alloys and how primary Mg₂Si particles grow as the Mg content increases. However, few efforts have been made to research the effects of Mg content on the primary Mg₂Si phase.

The present investigation was carried out to research the effects of Mg content on the microstructure of primary Mg₂Si phase in hypereutectic Al-Si alloys. Furthermore, the relationship between Mg content and growth mechanisms of primary Mg₂Si was discussed.

2 Experimental

Commercial pure Al (99.7%), Si (98%), Cu (99.7%) and Mg (99%) were used as raw materials to prepare Al-16Si-xMg (x=1, 3, 6 and 10) alloys. The chemical compositions of alloys are presented in Table 1. The raw materials were thoroughly melted by a 30 kW electrical resistance furnace to prepare the Al-16Si-xMg alloys.

The total mass of raw materials was 13 kg. Four groups of alloys with different chemical compositions were melted and cast, respectively. The mass of Al, Si and Mg was accurately calculated according to Table 1. The crucible and the furnace were firstly preheated to 300 °C for 1 h. Secondly, Si and Al were put into the crucible subsequently after the furnace was heated to 500 °C. Thirdly, the temperature of furnace was increased to 800 °C. When Si was completely melted, Cu, Mg and other metals were added into the melted liquid. The whole smelting process was accompanied with slight stirring. At last, the Al-Si-Mg melted liquid was poured into a preheated mould and the ingots were obtained. M1, M3, M6 and M10 were used to present the alloys with the Mg contents of 1%, 3%, 6% and 10% (mass fraction), respectively.

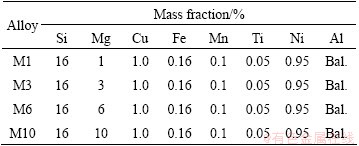

Table 1 Chemical compositions of alloys

Four groups of metallographic specimens were taken out at the same position of ingots in the middle of ingots. The sodium hydroxide solution (15%, mass fraction) and the hydrofluoric acid aqueous solution (0.5%, mass fraction) were used as two kinds of etchant. The microstructures of the specimens were analyzed using a Nikon-L150 optical microscope and Tescan scanning electron microscope.

3 Results

3.1 Microstructures of Al-Si alloys with different Mg contents

Figure 1 shows the microstructures of M1, M3, M6 and M10. Only coarse primary Si particles and eutectic phase can be observed when the Mg content is 1%. As the Mg content rises to 3%, a small number of primary Mg₂Si particles can be found. With the increase of Mg content, as shown in Figs. 1(c) and (d), there are an increasing number of Mg₂Si particles and the average size of Mg₂Si rises as well. Generally, primary Mg₂Si can be found in the alloys after the reaction of Mg (the Mg content is at least 3%) with Si. When the Mg content is up to about 6%, coarse Si particles can hardly be found in the alloys.

The volume fraction of primary Mg₂Si particles in the hypereutectic Al-Si alloys was measured by image processing software, and the detail is shown in Fig. 2. When the Mg contents are 1%, 3%, 6% and 10%, the volume fractions of primary Mg₂Si particles are 0, 3.88%, 10.66% and 22%, respectively. It is obvious that the volume fraction of primary Mg₂Si particles rises with raising the Mg content.

The average size of primary Mg₂Si particles was measured by quantitative metallography method and is shown in Fig. 3. The average size of Mg₂Si particles rises with increasing the Mg content. It changes from 30 to 32 μm as the Mg content increases from 3% to 6%. Once the Mg content rises to 10%, the average size reaches 95 μm.

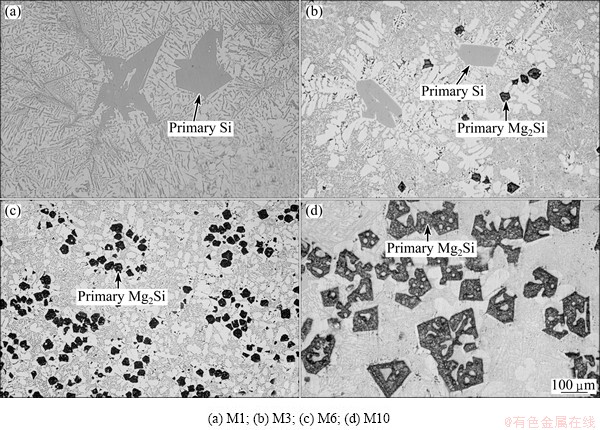

Fig. 1 Microstructures of hypereutectic Al-Si alloys with different Mg contents

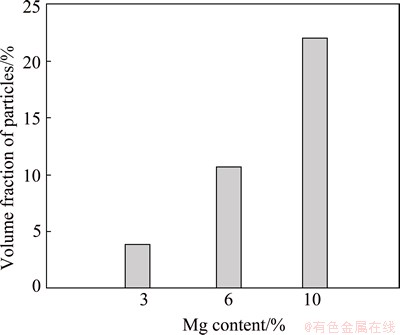

Fig. 2 Volume fraction of primary Mg₂Si particles with different Mg contents

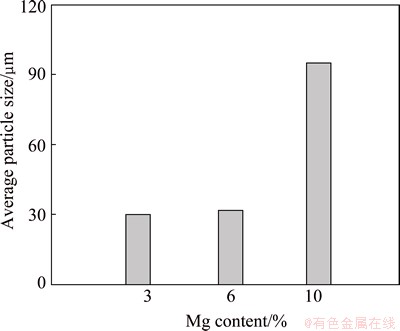

Fig. 3 Average size of primary Mg₂Si particles with different Mg contents

In Figs. 2 and 3, it is worth noting that the volume fraction of primary Mg₂Si particles almost exhibits a linear increase with increasing the Mg content in alloys, but the size of Mg₂Si particles does not show the same growth tendency with the variation of Mg content. So, further study was carried out to explain this phenomenon.

3.2 Morphology of primary Mg₂Si particles with different Mg contents

Figures 4(a), (b) and (c) show the morphologies of primary Mg₂Si particles when the Mg content is 3%, 6% and 10%, respectively. It is clear from Figs. 4 (a) and (b) that most primary Mg₂Si particles exhibit polygon shape when the Mg contents are 3% and 6%, such as triangle, rectangle and trapezoid. However, with raising the Mg content to 10%, as shown in Fig. 4(c), the shape of primary Mg₂Si particles changes to Chinese character, polygon shapes with hole and so on.

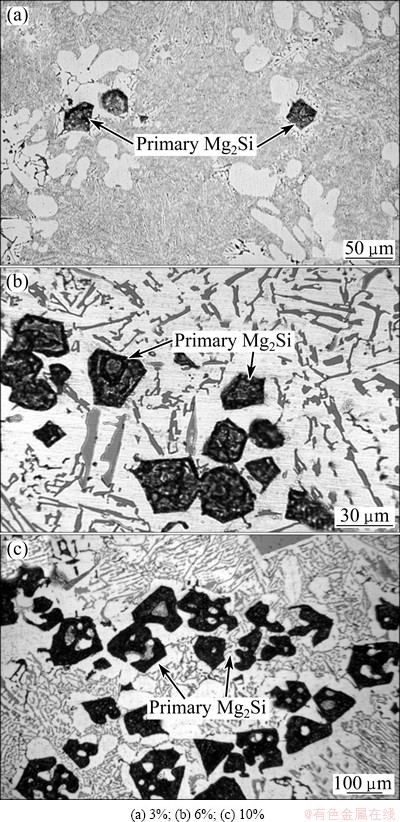

Fig. 4 Morphologies of primary Mg₂Si particles in alloys with different Mg contents

Then, the three-dimensional examination was used to observe the morphology evolution of primary Mg₂Si particles, as shown in Fig. 5. When the Mg content is 3%, the primary Mg₂Si particles exhibit complete octahedron, as shown in Fig. 5(a). With increasing the Mg content to 6%, Mg₂Si particles show incomplete octahedron or octahedron structure with hoppers, as shown in Figs. 5(b) and (c). Once the Mg content reaches 10%, Mg₂Si particles tend to be various complex structures, as shown in Fig. 5(d). The evolution of the morphology of Mg₂Si particles indicates that the growth behavior of Mg₂Si particles may change when the Mg content increases from 3% to 10 %.

4 Discussion

In this section, the effects of Mg content on the growth mechanism of primary Mg₂Si particles will be explained. The primary Mg₂Si particles change from the octahedron structure to various complex shapes with increasing the Mg content in Al-Si alloys. The growth pattern of primary Mg₂Si may change as the Mg content increases.

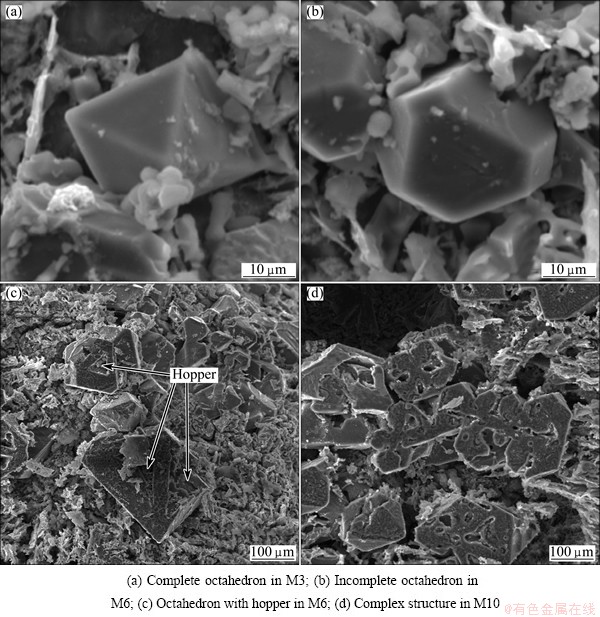

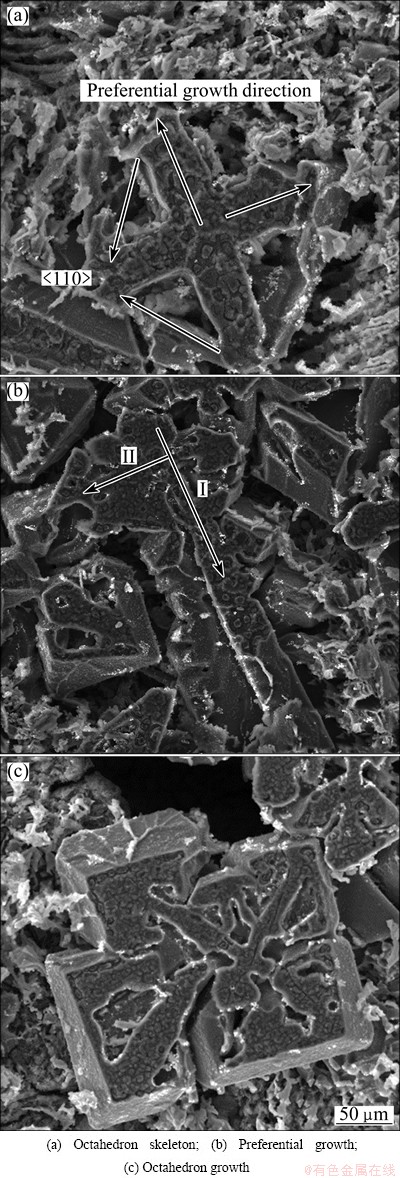

Fig. 5 Three-dimensional morphologies of primary Mg₂Si particles

4.1 Growth mechanism of octahedron Mg₂Si

Octahedron Mg₂Si is mainly observed in the Al-Si alloys with approximately 3% Mg content. It is well known that Mg₂Si crystal displays a face-centered cubic crystal structure, {1 0 0}, {1 1 0} and {1 1 1} are three vital planes. Compared with {1 1 0} and {1 1 1} planes, {1 0 0} planes have the lowest lattice density, which are easier for atoms to adhere to. So, it clearly suggests that {1 0 0} planes have the fastest growth velocity.

When some Mg is added into hypereutectic Al-Si alloys, Mg-Si atomic clusters can easily extend to the crystal nucleus for the structure fluctuation and the energy fluctuation in the melt. While the primary Mg₂Si particles grow to a certain size, they will lose stability. The primary arms emerge and rapidly grow along six  <1 0 0> directions, corresponding to {1 0 0} planes mentioned above. Subsequently, the secondary arms grow up along some directions such as <1 1 0> and they will expand, linking with each other and finally become the edges of octahedron [14]. As the growth proceeds, there are many chances for atoms to pile up on {1 1 1} planes [15]. Finally, {1 0 0} planes disappear, the Mg₂Si crystal is covered by {1 1 1} planes and complete octahedron Mg₂Si forms. For a complete octahedron Mg₂Si particle, as shown in Fig. 6, its corners and edges grow up along <1 0 0> and <1 1 0> directions, respectively, while its planes are parallel to {1 1 1} planes.

4.2 Growth mechanism of incomplete-octahedron Mg₂Si and complex-structure Mg₂Si

According to the microstructure of M3 shown in Fig. 5(a), the morphology of Mg₂Si particle exhibits complete octahedron. This suggests that the growth velocity of {1 1 1} planes is properly matched with that of {1 0 0} planes. However, the microstructure of M6 reveals that Mg₂Si particles show incomplete octahedron and octahedron with hopper (Figs. 5(b) and (c)), which means that <1 1 0> edges and {1 1 1} planes may not grow completely due to the high growth velocity of {1 0 0} planes. When the Mg content increases, the growth pattern may change.

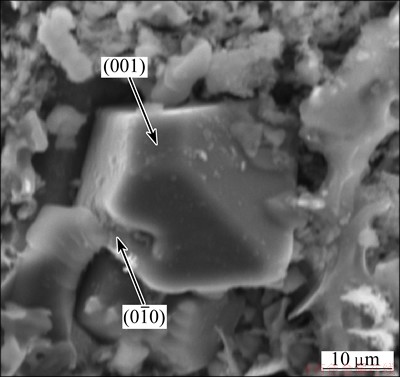

Fig. 6 Morphology of octahedron Mg₂Si particle in M3

On the basis of the crystal growth theory [16], it is known that when the polyhedral crystal grows in faceted-growth form, the solute concentration will not be uniform on the solid-liquid interface. And according to Ref. [17], as Mg₂Si particles grow, the distributions of Mg and Si atoms obviously become uneven on the solid-liquid interface. So, it is well founded that as the Mg content increases, the concentrations of Mg and Si atoms along some <1 0 0> directions of Mg₂Si particles are high. The directions with high solute concentrations grow faster than other  <1 0 0> directions, which leads to the formation of incomplete octahedron. It is found that the growth velocity of (0 0 1) and  is lower than that of other {1 0 0} planes. Thus, (0 0 1) and  planes are exposed on the final morphology. However, other <1 0 0> directions exhibit complete corners, as shown in Fig. 7.

Fig. 7 Morphology of incomplete octahedron particle in M6

Some irregular Mg₂Si structures can also be found when the Mg content is about 6%. In Fig. 5(c), Mg₂Si particle shows incomplete octahedron with hopper. Based on the discussion above, when the Mg content reaches about 6%, some <1 0 0> directions grow relatively fast, which is difficult for Mg and Si atoms to fill the full {1 1 1} planes. As a result, {1 1 1} planes can not grow completely, thus, a hopper-structure is left.

When the Mg content reaches 10%, various complex Mg₂Si structures can be observed in the alloys. Figure 8 shows kinds of complex primary Mg₂Si particles. As the Mg content is approximately 10%, the distributions of Mg and Si atoms on the solid-liquid interface become more inhomogeneous [16]. Therefore, a few preferential growth directions may grow so fast that even the <1 1 0> directions cannot link with each other to form octahedron skeleton, let alone Mg and Si atoms to fill the full {1 1 1} planes. In this case, the primary Mg₂Si particles tend to grow to enormous octahedron- skeleton structure, as shown in Fig. 8(a). Other Mg₂Si particles develop one main branch only along the preferential growth direction (mark I in Fig. 8(b)) and perpendicular to the stem, and several secondary arms grow up (mark II in Fig. 8(b)). From Fig. 8(c), it can be seen that a few Mg₂Si particles still develop in the octahedron-growth form. No <1 0 0> direction has a very high growth velocity. Nevertheless, some edges are not able to grow completely and some planes are not full. At last, Mg₂Si grows to irregular structure. In general, when the Mg content reaches 10%, most Mg₂Si particles exhibit enormous and complex structures due to seriously inhomogeneous distribution of solutes.

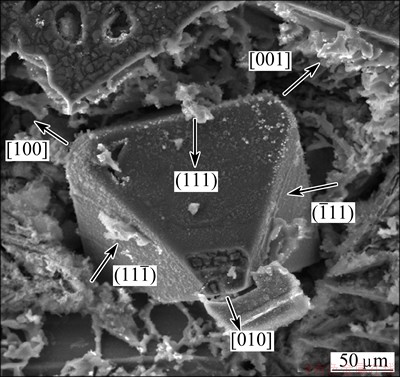

Fig. 8 Morphologies of typical complex Mg₂Si particles in M10

It can be deduced from the above discussion that the morphology change of primary Mg₂Si particle can be attributed to the Mg content. The growth of primary Mg₂Si goes through several stages. Firstly, when the Mg content is approximately 3%, {1 0 0} planes grow preferentially, meanwhile, the edges grow along <1 1 0> directions and the atoms pile up on the {1 1 1} planes, which results in the formation of octahedron structure. Then, as the Mg content reaches 6%, the growth velocity of {1 0 0} planes is too fast for atoms to fill the full {1 1 1} planes, so some octahedron structures exhibit hopper morphology. As the Mg content continues to increase, the differences of growth velocity among three vital planes become greater, so the primary Mg₂Si particles tend to develop to various complex shapes.

In terms of improving the properties of hypereutectic Al-Si alloys, adding 6% Mg may be an ideal choice. Because the primary Mg₂Si has a moderate size and amount at this Mg content. As the Mg content reaches 10%, most primary Mg₂Si particles exhibit complex shape and large size, which needs to be avoided.

5 Conclusions

1) The addition of Mg leads to an increase in both size and amount of primary Mg₂Si particles. When the Mg contents are 1%, 3%, 6% and 10%, the volume fractions of primary Mg₂Si particles are 0, 3.88%, 10.66% and 22%, respectively. The average size of Mg₂Si particles rises from 30 to 95 μm as the Mg content increases from 3% to 10%.

2) Most primary Mg₂Si particles exhibit octahedron shape when the Mg content is low. <1 0 0> directions usually have the highest growth velocity as {1 0 0} planes have the lowest lattice density. Finally, the octahedron’s corners and edges grow up along <1 0 0> and <1 1 0>, respectively, and the facets are parallel to {1 1 1}.

3) Some <1 0 0> directions become the preferential growth ones as the Mg content gradually increases. The primary Mg₂Si particles change to incomplete octahedron, hopper-like structure and kinds of complex shapes. The content of solute is a main factor to influence the morphology of Mg₂Si particles.

References

[1] LI Qing-lin, XIA Tian-dong, LAN Ye-feng, LI Peng-fei, FAN Lu. Effects of rare earth Er addition on microstructure and mechanical properties of hypereutectic Al-20%Si alloy [J]. Materials Science and Engineering A, 2013, 588: 97-102.

[2] DAS S, PRASAD S V, RAMACHANDRAN T R. Microstructure and wear of cast (Al-Si alloy) graphite composites [J]. Wear, 1989, 133(1): 173-187.

[3] LI Bo, WANG Kai, LIU Ming-xiang, XUE Han-song, ZHU Zi-zong, LIU Chang-ming. Effects of temperature on fracture behavior of Al-based in-situ composites reinforced with Mg₂Si and Si particles fabricated by centrifugal casing [J]. Transactions of Nonferrous Metals Society of China, 2013, 23(4): 923-930.

[4] LIU X F, WU Y Y, BIAN X F. The nucleation sites of primary Si in Al-Si alloys after addition of boron and phosphorus [J]. Journal of Alloys and Compounds, 2005, 391(1-2): 90-94.

[5] WANG Hui-yuan, LI Qian, LIU Bo, ZHANG Nan, CHEN Lei, WANG Jing-guo, JIANG Qi-chuan. Modification of primary Mg₂Si in Mg-4Si alloys with antimony [J]. Metallurgical and Materials Transactions A, 2012, 43(13): 4926-4932.

[6] CHANG J Y, MOON I G, CHOI C S. Refinement of cast microstructure of hypereutectic Al-Si alloys through the addition of rare earth metals [J]. Journal of Materials Science, 1998, 33(20): 5015-5023.

[7] LI Qing-lin, XIA Tian-dong, LAN Ye-feng, ZHAO Wen-jun, FAN Lu, LI Peng-fei. Effect of rare earth cerium addition on the microstructure and tensile properties of hypereutectic Al-20%Si alloy [J]. Journal of Alloys and Compounds, 2013, 562: 25-32.

[8] BOSE S K, KUMAR R. Structure of rapidly solidified aluminum- silicon alloys [J]. Journal of Materials Science, 1973, 8(12): 1795-1799.

[9] CACERES H S, DAVIDSON C J, GRIFFITHS J R, WANG Q G. The effect of Mg on the microstructure and mechanical behavior of Al-Si-Mg casting alloys [J]. Metallurgical and Materials Transactions A, 1999, 30(10): 2611-2618.

[10] RIFFEL M, SCHILZ J. Mechanical alloying of Mg₂Si [J]. Scripta Metallurgica et Materialia, 1995, 32(12): 1951-1956.

[11] FROMMEYER G, BEER S, VONOLDENBURG K. Microstructure and mechanical properties of mechanically alloyed intermetallic Mg₂Si-Al alloys [J]. Zeitschrift Fur Metallkunde, 1994, 85(5): 372-377.

[12] THIRUGNANAM A, SUKUMARAN K, PILLAI U T S, RAGHUKANDAN K, PAI B C. Effect of Mg on the fracture characteristics of cast Al-7Si-Mg alloys [J]. Materials Science and Engineering A, 2007, 445: 405-414.

[13] DAHLE A K, NOGITA K, MCDONALD S D, DINNIS C, LU L. Eutectic modification and microstructure development in Al-Si alloys [J]. Materials Science and Engineering A, 2005, 413: 243-248.

[14] LI C, WU Y Y, LI H, LIU X F. Morphological evolution and growth mechanism of primary Mg₂Si phase in Al-Mg₂Si alloys [J]. Acta Materialia, 2010, 59(3): 1058-1067.

[15] HU Han-qi. Fundamentals of metal solidification [M]. Beijing: China Machine Press, 2000: 81-84. (in Chinese)

[16] CHERNOV A A. Stability of faceted shapes [J]. Journal of Crystal Growth, 1974, 24: 11-31.

[17] CHEN Xiao. Study on in-situ particulate reinforced magnesium matrix composite [D]. Changsha: Central South University, 2005: 100-102. (in Chinese).
