Mechanism of boron removal from Si-Al melt by Ar-H2 gas mixtures
Jing-wei LI, Xiao-long BAI, Bo-yuan BAN, Qiu-xiang HE, Jian CHEN
Key Laboratory of Novel Thin Film Solar Cells, Institute of Applied Technology, Chinese Academy of Science, Hefei 230031, China
Received 9 October 2015; accepted 11 April 2016
Abstract:
A new method about purification of metallurgical grade silicon (MG-Si) by a combination of Si-Al solvent refining and gas blowing treatment was proposed. The morphologies and transformation of impurity phases, especially for boron and iron in Si-Al melt were investigated during Ar-H2 gas blowing treatment. The mechanism of boron removal was discussed. The results indicate that gas blowing can refine grain size and increase nucleation of the primary Si. Boron can be effectively removed from MG-Si using the Ar-H2 gas blowing technique during the Si-Al solvent refining. Compared with the sample without gas blowing, the removal efficiency of boron increases from 45.83% to 74.73% after 2.5 h gas blowing. The main impurity phases containing boron are in the form of TiB2, AlB2 and VB compounds and iron-containing one is in the form of β-Al5FeSi intermetallic compound. Part of boron combines [H] to transform into gas BxHy (BH, BH2) and diffuses towards the surface of the melt and is volatilized by Ar-H2 gas blowing treatment under electromagnetic stirring.
Key words:
metallurgical grade silicon; Si-Al melt; gas blowing; boron removal;
1 Introduction
The removal of boron in metallurgical grade silicon (MG-Si) is one of the most crucial tasks for upgrading to the photovoltaic silicon feedstock [1]. Several processes, such as slag refining [2], plasma treatment [3], and solvent refining [4] have been reported for this purpose.
Impurities in the MG-Si shorten the lifetime of excited carries in Si-based solar cells and disturb electric generation [5]. Hence, their removal from Si is an important issue on Si solar cells fabrication. Solvent refining is a purification process that relies on preferential segregation of impurities to a liquid, in which high purity solid silicon crystals grew from. Al as an effective solvent, has been investigated by many researchers [4,6,7]. During the Al-Si solvent refining process, the impurity elements are rejected into the Al-Si eutectic melt and the segregation behaviour of the impurity elements determines the removal efficiency. In order to improve the removal efficiency of boron from Al-Si melt, many works emphasized on thermodynamic evaluation, separation of the refined Si and kinetic factors of the Al-Si solvent refining process. The segregation coefficients of boron and phosphorus between solid Si and Al-Si melt have been calculated by many researchers with different methods [4,8,9]. Some external fields, such as electromagnetic force [10] and super gravity [11], have been applied to separating the primary Si from the Al-Si melt. Besides, the kinetic factors [12,13], such as cooling rate, Si proportion, and refining temperature, or the introduction of other additives [14,15] have been investigated to improve the purity of the refined Si. Gas blowing treatment [16,17] is an effective way to remove boron from MG-Si, but with the disadvantage of high temperature, essential hydrogen water vapour, small contact area, and closed system. However, as for the effect of gas blowing, especially for the H2 without water vapor, the boron removal at low temperatures during Al-Si solvent refining process has not been investigated.
In the present work, a new method of solvent refining has been proposed to obtain higher removal efficiency of boron during Al-Si solvent refining. The efficiency of boron removal is evaluated by introducing into Ar-H2 gas mixtures into the Al-Si melt and compared with that without Ar-H2 gas mixtures. The distribution of boron and transformation of impurity phases, especially TiB2, AlB2 and VB, etc., in the Al-Si alloy after the gas blowing treatment were investigated. Mechanism of boron removal was discussed based on the experimental results.
2 Experimental
Figure 1 shows a schematic drawing of the 25 kW induction furnace used in this work. 6N pure silicon (99.9999%) was first alloyed with analytical reagent pure boron powder to about 186×10-6 in a high-purity graphite crucible. 90 g boron doped Si and 210 g high purity aluminum were then put into a high-purity alumina crucible with an inner diameter of 55 mm and height of 100 mm. After the crucible was positioned into the medium frequency induction furnace, the system was then filled with Ar to protect graphite crucible. Raising the temperature to melt Al-Si mixture, then a H2-Ar mixture was blown into the melt through a 5 mm inner diameter quartz tube. The gas blowing rate was controlled at 3 L/min and the gas ratio of H2 to Ar was 1:1 for H2-Ar mixture. The temperature profiles of the samples were carefully controlled by adjusting the induction power of the furnace. After the gas blowing treatment, the Al-Si melt was sampled into the cold crucible from the melt by a quartz tube every 30 min and the sample was solidified rapidly at room temperature. The duration of each experiment within gas blowing was from 0 to 330 min. Then, the power was cut off and the Al-Si melt was slowly solidified to the room temperature in the furnace. Lastly, the solidified Al-Si alloy samples (containing the rapidly and slowly solidified samples) were put into acid solution to remove Al to obtain refined Si. The acid solutions were HCl solution and the duration of acid leaching was 48 h at 353 K. Then, the impurity concentrations in the refined Si were examined by inductively coupled plasma optical emission spectroscopy (ICP-OES), and the morphologies were analyzed by scanning electron microscope (SEM).

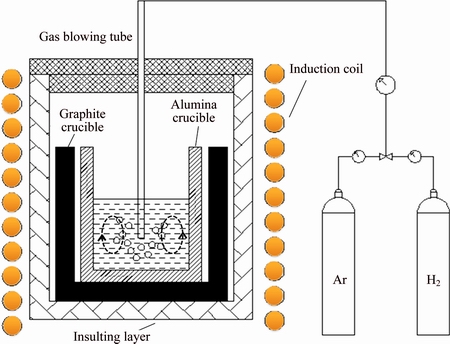

Fig. 1 Schematic drawing of 25 kW induction furnace
3 Results and discussion
3.1 Morphology of Al-Si alloy
Figure 2 shows the microstructures of the solidified Al-Si alloy with different Ar-H2 treatment time and cooling rates. As can be seen from Figs. 2(a) and (b), the Al-Si melt was sampled into the cold crucible directly with different gas blowing treatment time. The primary silicon crystals are distributed uniformly in the alloy. The average length of the primary Si crystals in the alloy is about 500 μm without Ar-H2 blowing. After 3.5 h Ar-H2 blowing treatment, the average length of the primary Si in the alloy is 300 μm, which is shorter than that without gas blowing.

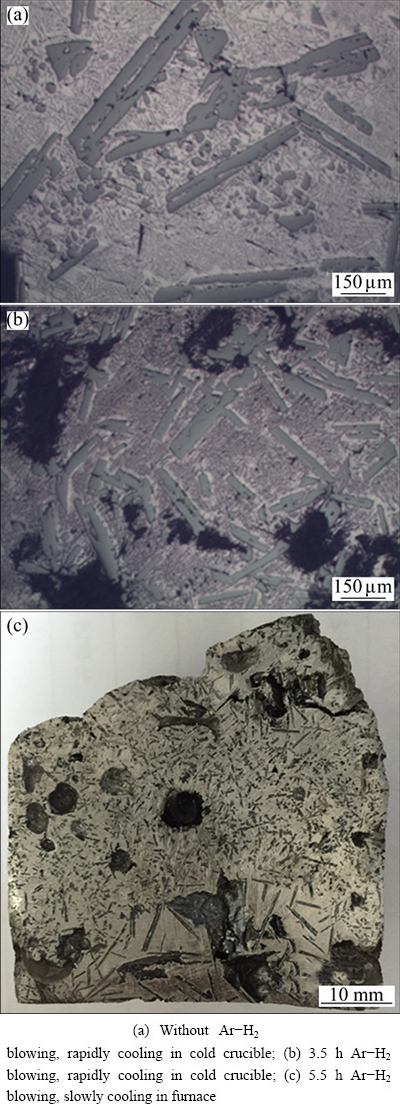

Fig. 2 Microstructures of Al-30%Si
As for the reason, the Ar-H2 mixture was directly blown into the melt without preheating, which lowered the local melt temperature and increased nucleation of the primary Si. Moreover, the shear force produced by the Ar-H2 bubbles could break the long primary Si particles. Based on the microstructure change of the primary Si phases, it can be concluded that the Ar-H2 blowing can refine the grain size and increase the nucleation of the primary Si phases.
In Fig. 2(c), many holes uniformly distribute in the Al-30%Si alloy within 5.5 h Ar-H2 blowing after furnace cooling. Obvious stratification appears. Large needle-like primary Si crystals are agglomerated at the bottom of the ingot and the average length of primary silicon is more than 5 mm. The distributions of primary silicon crystals are different from the samples, as shown in Figs. 2(a) and (b) because of the difference of cooling rates. In Figs. 2(a) and (b), the Al-Si melt was directly sampled into the cold crucible with rapid cooling rate. And the primary silicon crystals are small and uniformly distribute in the sample. However, in Fig. 2(c), the Al-Si melts were solidified slowly in the induction furnace when the power was cut off. This phenomenon is similar to the work by YOSHIKAWA and MORITA [18].
3.2 Removal efficiency of boron by gas blowing
Figure 3 shows the relationship between gas blowing time and removal efficiency of boron. The Al-Si melt was sampled into the cold crucible directly with different gas blowing treatment time. As can be seen from Fig. 3, the removal efficiency of boron becomes large with increasing of blowing time. When the gas blowing time is zero, which is without gas blowing, the mass fraction of boron in the refined Si is 101×10-6, and the removal efficiency of boron is 45.83%. As for Al-Si solvent refining, YOSHIKAWA et al [6,19] and LI et al [11] have investigated the removal efficiency of boron in the refined Si and both of them have high removal efficiency of boron, more than 90%. However, because of the different cooling rates of Al-Si melt, in this part, the Al-Si melt after gas blowing was directly sampled into the cold crucible from the furnace with high cooling rate. The boron removal rate is controlled by kinetic factor, such as cooling rate [13]. For YOSHIKAWA et al [6,19], the sample was pulled down to the furnace with low cooling rate in the range of 5-10 K/min. Therefore, the removal efficiency of boron in this experiment was less than that in the previous literature. When the blowing time increased from 0.5 to 2.5 h, the removal efficiency of boron was improved from 46.05% to 74.73%. After 2.5 h blowing time treatment, the mass fraction of boron decreases from 186.46×10-6 to 47.12×10-6. Compared with the sample without gas blowing, the removal efficiency increases by 28.9% after 2.5 h gas blowing. These results demonstrated that blowing with Ar-H2 mixture in the Al-Si melt can improve the removal efficiency of boron during solvent refining.

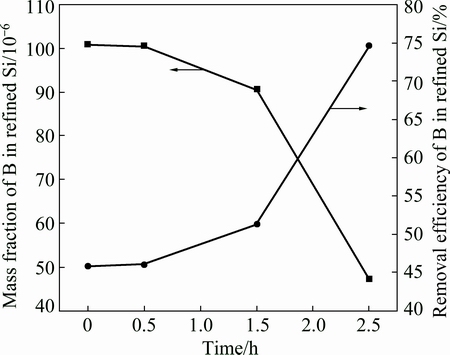

Fig. 3 Dependence of removal efficiency of boron on gas blowing time
3.3 Mechanism of boron removal
Figure 4 shows the morphology of impurities phases in the Al-30%Si alloy after Ar-H2 gas blowing treatment. The photomicrograph of impurity phases and the corresponding EDS annlysis results of different areas are illustrated in Fig. 4(a) and listed in Table 1, many coarse needle-like primary Si particles are distributed in the entire alloy and the average length of the primary Si is more than 10 μm. Two types of impurity phases were detected in the solidified Al-30%Si alloy, as shown in Fig. 4(a).
The difference in the color of the intermetallic phases is ascribed to the diverse composition and content of impurities. A grey suborbicular impurity phase (1#) is adhered to the boundary of needle-like primary Si particles with a diameter of 3 μm. As can be seen from Figs. 4(b) and (c), the main elements in 1# phase are B, Al, Ti and V, without Fe. The mole fraction of boron is 61.13% in the impuritiy phase, and the total mole fraction of Al and Ti is more than 27%. The possible existing compound is TiAl3, TiB2, AlB2 or Alx-Si(1-x)-Ti ternary phase. According to Ref. [20], Ti only distributes at location where there is boron element in the grain centre of the primary silicon for Al-Si alloy within the addition of Al-Ti-B alloy. Where there is no boron element there is no Ti element, which indicates that the Ti-containing compound is TiB2, not TiAl3. In Ref. [21], TiB2 solubility in molten Al was found to be rather small with a large temperature dependence. Moreover, TiAl3 compound is found to be unstable in Al-Si alloy and reacts with Si to form Ti-Si-Al compound and distributes in the matrix [22]. However, mole fraction of Si in the impurity phase is only 3.3%, few Ti-Si-Al ternary compounds exist in the impurity phases. Thus, the main phase (1#) in Fig. 4(a) can be regarded as TiB2 and AlB2.

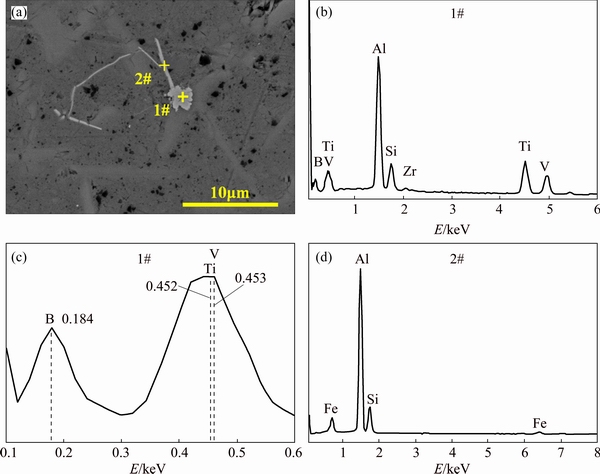

Fig. 4 Morphology (a) of impurity phases in solidified Al-30%Si alloy and corresponding EDS analyses (b-d)

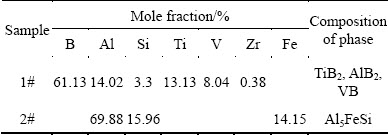

Table 1 EDS quantitative analysis and chemical composition of impurity phases
As for TiB2, the mole ratio of Ti to B is 1:2, and the mole ratio of Al to B is the same as 1:2 for AlB2. According to the mass conversation, the mole ratio of boron to (Ti+Al) is 2:1 for TiB2 and AlB2. However, in this impurity phase, the mole ratio of boron to (Ti+Al) is larger than 2:1. The remained boron combines with V to form VB based on the mole ratio in the impurity phase (1#). By enlarging the EDS map shown in Fig. 4(c), the peak of boron in the EDS spectral line is 0.184 keV, and peaks of Ti and V are 0.452 and 0.453 keV, respecitvely. Ti and V have similar spectral line, which makes them have similar properity, and thus, form the TiB2 or VB compound. From the perspective of thermodynamic, the Gibbs free energies of formation of TiB2, VB and AlB2 (Fig. 5) are -132.12, -131.10 and -71.65 kJ/mol at 973 K respectively as calculated by the software of HSC Chemistry. The Gibbs free energy of TiB2 is also close to that of VB, and both of them are below zero. Hence, TiB2 and VB are significantly more stable than AlB2, which is consistent with Fig. 4(c). This indicates that TiB2 and VB can be preferred to form. Therefore, the main impurity phases (1#) are TiB2, AlB2 and VB compounds.
At the same time, another light gray impurity phase is in long needle-like shape, which is shown in Fig. 4(a) (2#). EDS spectrum indicates that it only contains Al, Si and Fe, as shown in Fig. 4(d). It is clear from Table 1 that the needle-like phase (2#) contains about 69.88% Al, 15.96% Si and 14.15% Fe. From Refs. [18-21], the ternary intermetallic phases in Al-Si-Fe system are mainly α-Al8SiFe2, β-Al5FeSi, γ-Al3FeSi and δ-Al4FeSi2. Compared with other ternary phases, β-Al5FeSi has the needle-like shape [22,23]. According to the mass fraction of each element, it can be concluded that the Al-Si-Fe impurity phase is β-Al5FeSi intermetallic with the needle-like shape.
As for the removal mechanism of boron during Al-Si melt gas blowing, the explanation of that is shown as follows.

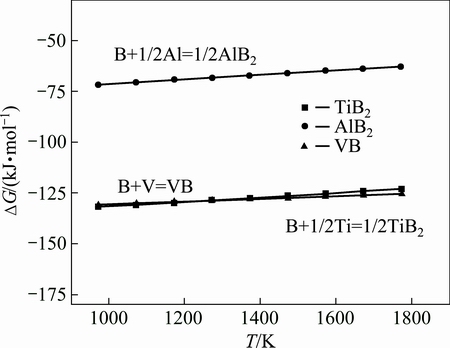

Fig. 5 Comparison of Gibbs free energy of TiB2, VB and AlB2
It is well known that TiB2 has hexagonal lattice structure with lattice parameters: a=0.303 nm, b=0.303 nm, c=0.323 nm, and its crystal structure is illustrated in Fig. 6(b). β-Al5FeSi phase is monoclinic structure [24]. But the crystal struture of Si is cubic with the lattice parameter: a=0.5421 nm, which is shown in Fig. 6(a). Because the difference of crystal structure between Si and the impurity phases, the impurity elements segregated into the Al-Si eutectic from the primary Si in the form of impurity phase, especially as TiB2 and VB. Considering the transformation of impurity phase in Fig. 3, it can be concluded that boron could be effectively removed by the segregation of TiB2 and VB during Al-Si melt gas blowing treatment.

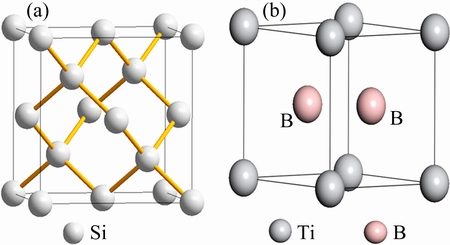

Fig. 6 Crystal structures of Si (a) and TiB2 (b)
When H2 is used as reaction gas, part of H2 is dissolved in the Al-Si melt. The schematic drawing of boron removal is illustrated in Fig. 7. In Ref. [25], the effect of hydrogen content in the Ar-H2 mixture about pure Si melt has been investigated. But little work has been focused on the Al-Si melt during gas blowing. This result reveals that H2 addition increases the removal rate of boron significantly. The hydrogen in the Al-Si melt can be expressed as [H][16]. The [H] reacts with the impurity [B] in the molten Al-Si melt to form BH or BH2 that has high vapour pressure, which can be taken out from the molten Al-Si melt within Ar-H2 bubble. From the perspective of purification, the Al-Si solvent refining principle is that the impurities in the MG-Si are segregated into the Al-Si melt, obtaining the high purity primary Si phases [8]. Thus, the segregation of the impurities occurs on the surface of the primary Si as shown in Fig. 2(a). If the number and the interface of the primary Si nucleation particles increase, the segregation efficiency could be improved. It is considered that the electromagnetic stirring used in the induction furnace can speed the diffusion of the BxHy (BH, BH2) and BxMy (TiB2, VB and AlB2) towards the interface of the primary Si or Al-Si melt.

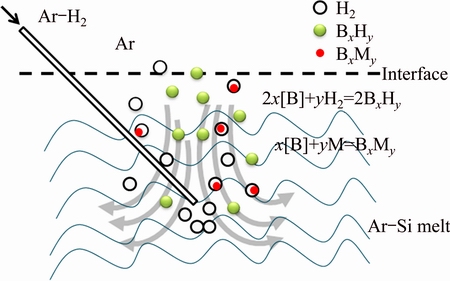

Fig. 7 Schematic drawing of boron by gas blowing treatment
4 Conclusions
1) Boron can be effectively removed from MG-Si using Ar-H2 gas blowing technique during the Al-Si solvent refining. Compared with the sample without gas blowing, the removal efficiency of boron increases from 45.83% to 74.73% after 2.5 h.
2) Ar-H2 blowing can refine the grain size and increase the nucleation of the primary Si. After 3.5 h Ar-H2 blowing treatment, the average length of the primary Si in the alloy is shorter than that without gas blowing and many holes uniformly distribute in the Al-Si alloy after furnace cooling.
3) The main boron-containing impurity phase is in the form of TiB2, AlB2 and VB compounds and the iron- containing phase is in the form of β-Al5FeSi intermetallic. They segregate into the Al-Si melt from the primary Si during the purification process. Part of boron transforms into gas BxHy (BH, BH2) and diffuses towards the surface of volatilization by Ar-H2 gas blowing treatment under electromagnetic stirring.
