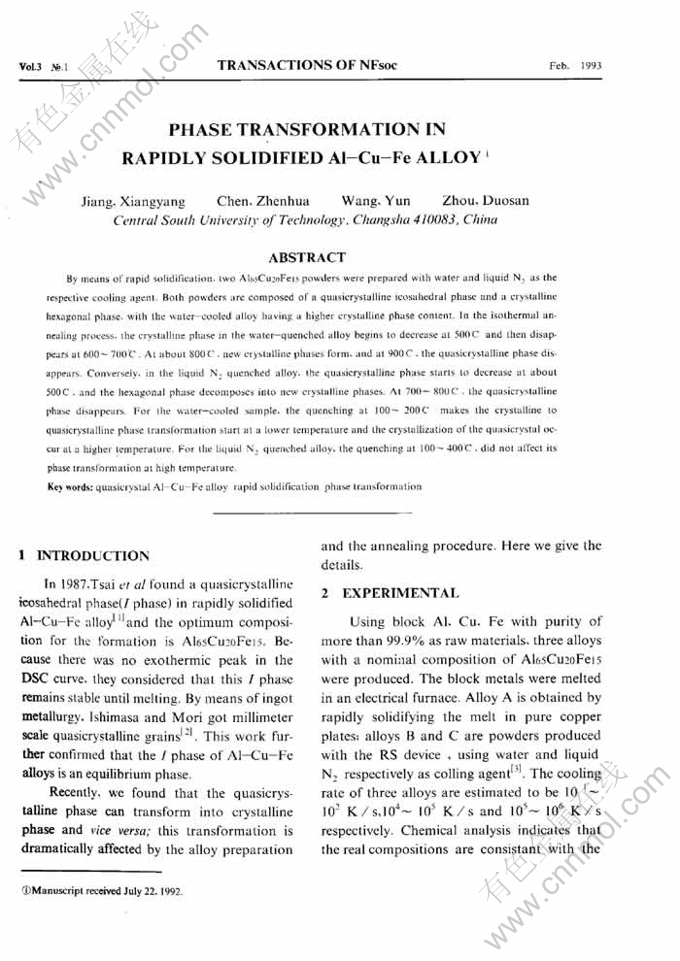

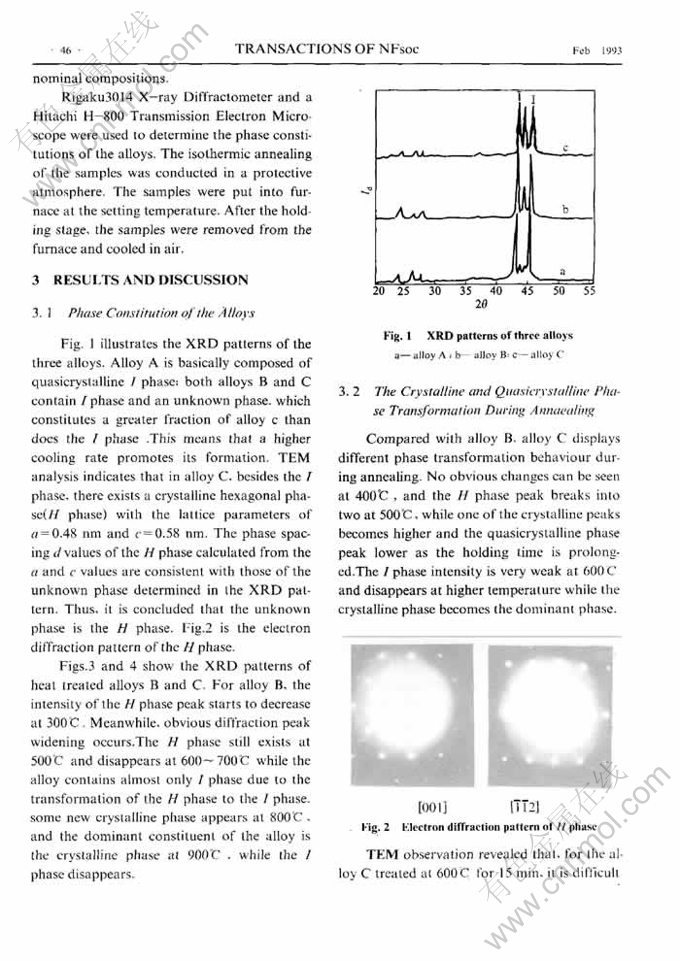

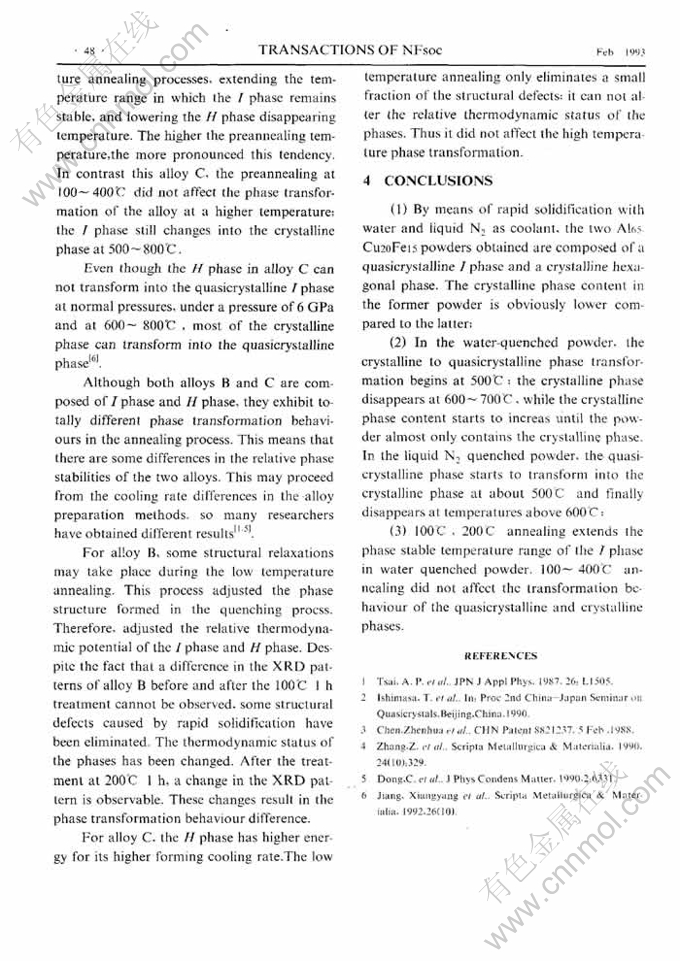

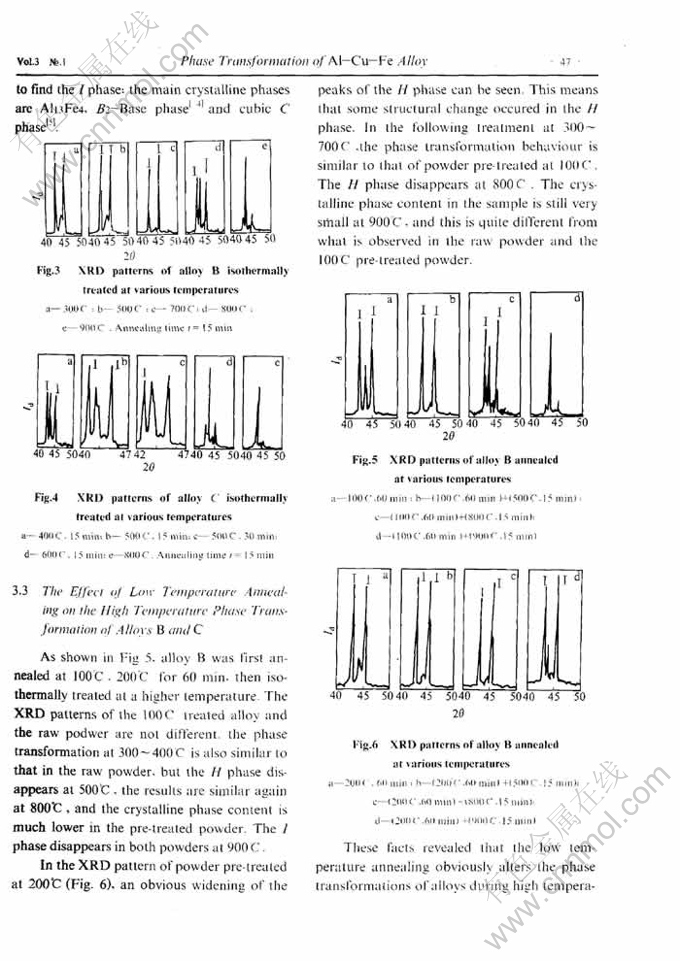

PHASE TRANSFORMATION IN RAPIDLY SOLIDIFIED AI-Cu-Fe ALLOY

来源期刊：中国有色金属学报(英文版)1993年第1期

论文作者：Jiang Xiangyang Chen Zhenhua Wang Yun Zhou Duosan

文章页码：45 - 48

Key words：quasicrystal Al-Cu-Fe alloy; rapid solidification; phase transformation

Abstract: By means of rapid solidification, two Al_(65)Cu_(20)Fe_(15) powders were prepared with water and liquid N_2 as the respective cooling agent. Both powders are composed of a qnasicrystalline icosahedral phase and a crystalline hexagonal phase, with the water-cooled alloy having a higher crystalline phase content. In the isothermal an nealing process, the crystalline phase in the water-quenched alloy begins to decrease at 500℃ and then disap pears at 600～700℃. At about 800℃, new crystalline phases form, and at 900℃, the quasicrystalline phase disappears. Conversely, in the liquid N_2 quenched alloy, the quasicrystalline phase starts to decrease at about 500℃. and the hexagonal phase decomposes into new crystalline phases. At 700～800℃, the quasicrystalline phase disappears. For the water-cooled sample, the quenching at 100～200C makes the crystalline to quasicrystalline phase transformation start at a lower temperature and the crystallization of the quasicrystal occur at a higher temperatur...更多e. For the liquid N_2 quenched alloy, the quenching at 100～400℃, did not affect its phase transformation at high temperature.
