Preparation of transparent yttrium aluminum garnet ceramics by relatively low temperature solid-state reaction
来源期刊：中国有色金属学报(英文版)2003年第5期
论文作者：王介强 岳云龙 陶文宏 于庆华 陶珍东 孙旭东
文章页码：1096 - 1101
Key words：low temperature; yttria; sulfate ions; solid-state reaction; YAG; transparent ceramics

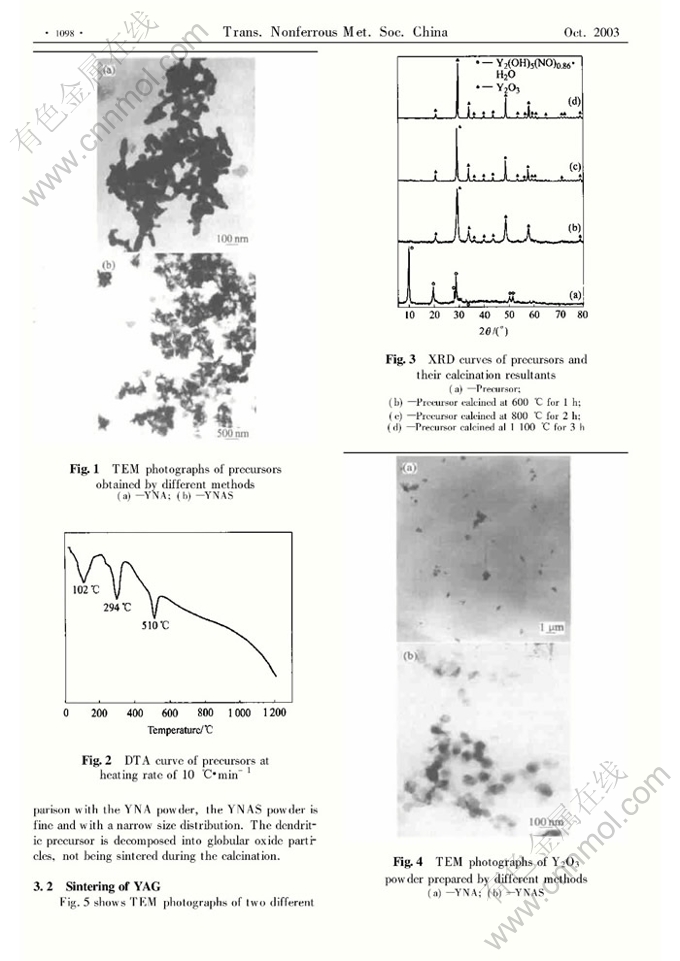

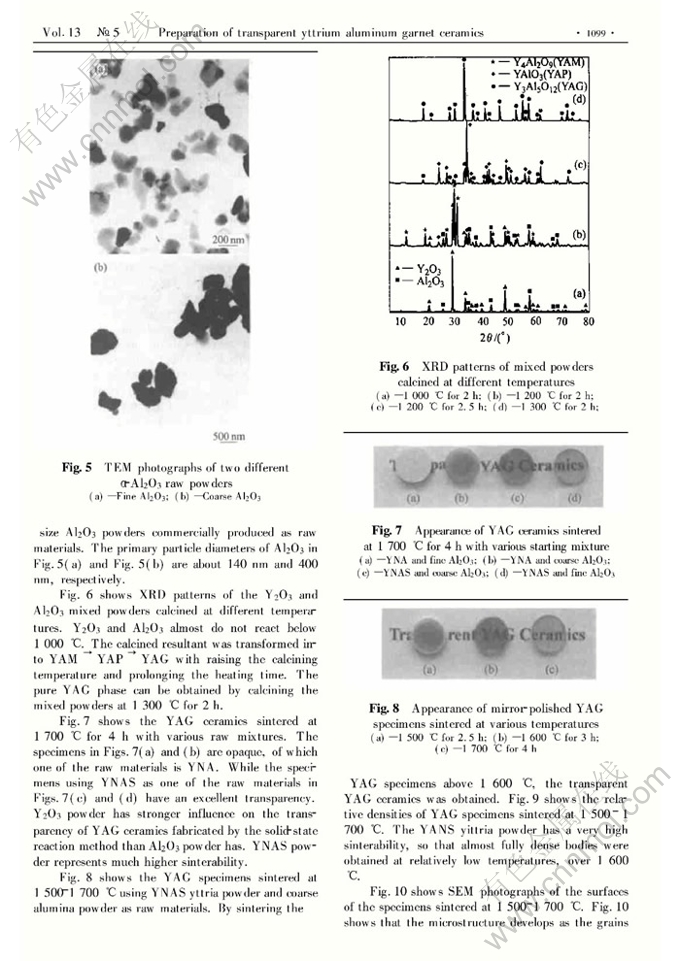

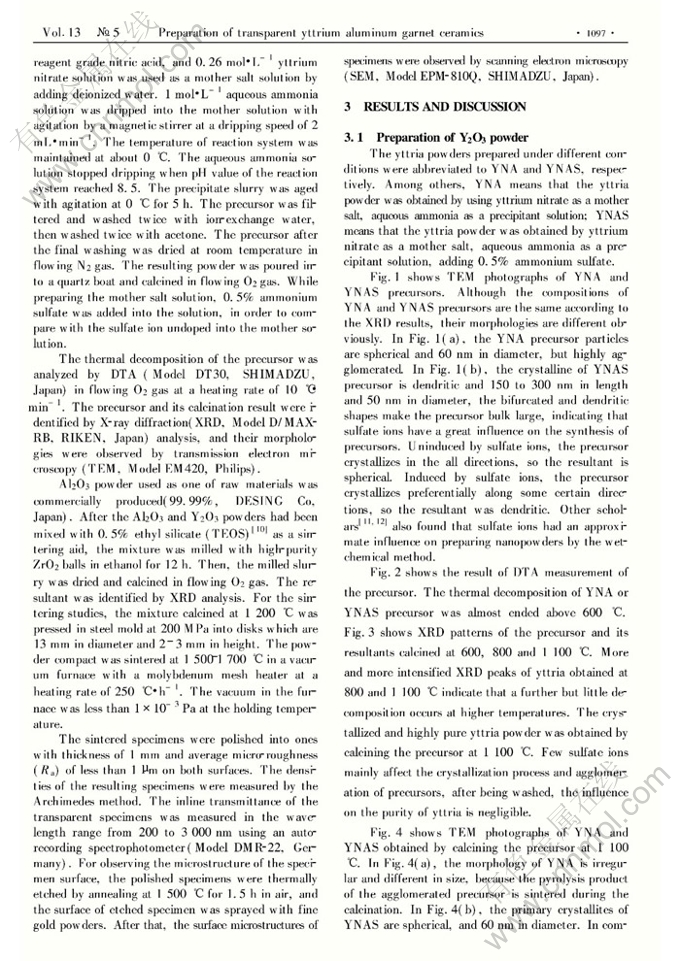

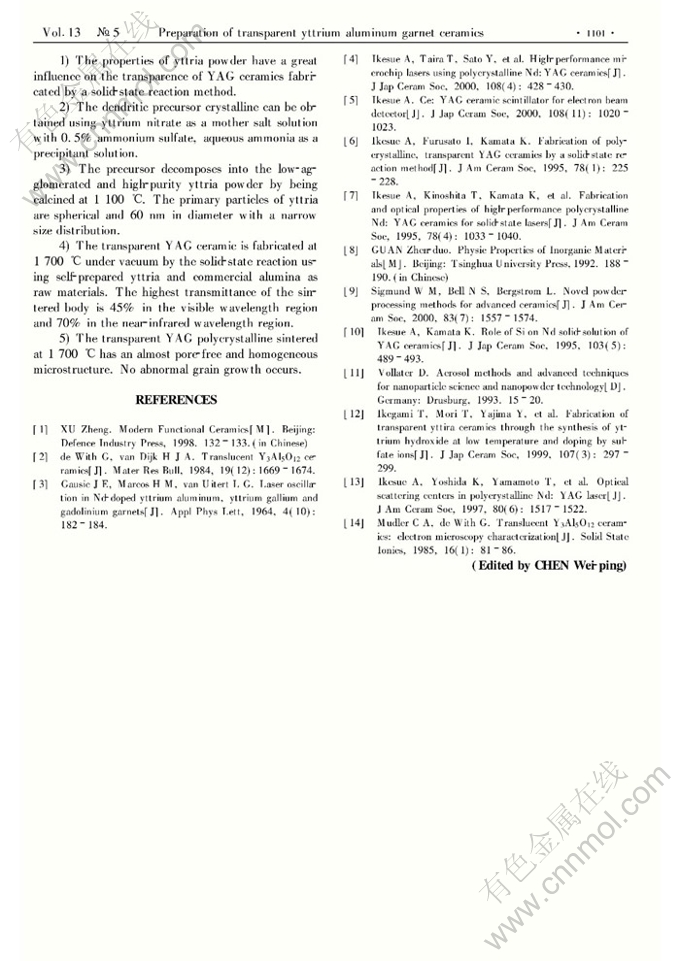

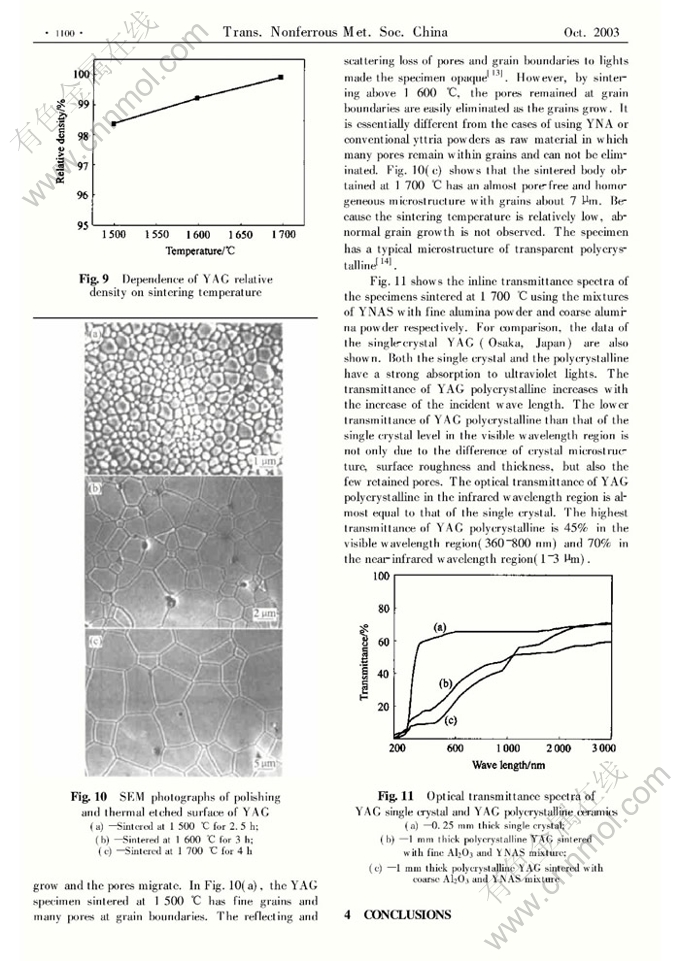

Abstract: A new preparation method for a highly sinterable Y2O3 powder was developed, using the mixture of the powder with Al2O3 powder, a transparent yttrium aluminum garnet(YAG) ceramic was prepared at relatively low temperature by a solid-state reaction method. Yttrium nitrate was used as a mother salt, and aqueous ammonia was used as a precipitant reagent, the fine and dendritic precursor crystalline was prepared by adding 0.5% ammonium sulfate into the precipitation reaction system. The highly pure and low-agglomerated Y2O3 powders were obtained by calcinating the precursor at 1100℃, the primary particles are spherical and 60nm in diameter. The mixture of Y2O3 and Al2O3 powders was calcinated, and the resulting mixture compact pressed in mold could be sintered to transparency under vacuum at 1700℃. The sintered transparent YAG polycrystalline exhibits a homogeneous microstructure and its transmittance reaches 45% in the visible light region and 70% in the near-infrared wavelength region.
