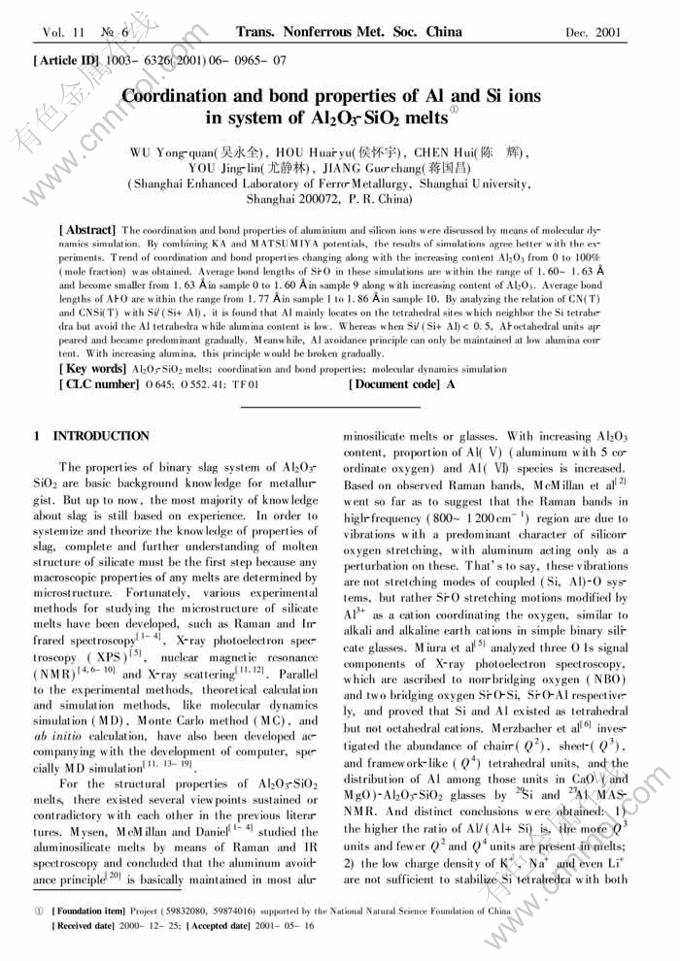

Coordination and bond properties of Al and Si ions in system of Al₂O₃-SiO₂ melts

À´Ô´ÆÚ¿¯£ºÖйúÓÐÉ«½ðÊôѧ±¨(Ó¢ÎÄ°æ)2001ÄêµÚ6ÆÚ

ÂÛÎÄ×÷ÕߣºÎâÓÀÈ« ºî»³Óî ³Â»Ô ÓȾ²ÁÖ ½¯¹ú²ý

ÎÄÕÂÒ³Â룺965 - 971

Key words£ºAl₂O₃-SiO₂ melts; coordination and bond properties; molecular dynamics simulation

Abstract: The coordination and bond properties of aluminium and silicon ions were discussed by means of molecular dynamics simulation. By combining KA and MATSUMIYA potentials, the results of simulations agree better with the experiments. Trend of coordination and bond properties changing along with the increasing content Al₂O₃ from 0 to 100%ªª(mole fraction) was obtained. Average bond lengths of Si-O in these simulations are within the range of 1.60¡«1.63 A and become smaller from 1.63 A in sample 0 to 1.60 A in sample 9 along with increasing content of Al₂O₃. Average bond lengths of Al-O are within the range from 1.77 A in sample 1 to 1.86 A in sample 10. By analyzing therelation of CN(T) and CNSi(T) with Si/(Si+Al), it is found that Al mainly locates on the tetrahedral sites which neighbor the Si tetrahedra but avoid the Al tetrahedra while alumina content is low. Whereas when Si/(Si+Al)£¼0.5, Al-octahedral units appeared and became predominant gradually. Meanwhile, Al avoidance principle can only be maintained at low alumina content. With increasing alumina, this principle would be broken gradually.
