Development of Si₃N₄/Al composite by pressureless melt infiltration

Akhtar Farid, GUO Shi-ju

Institute of Powder Metallurgy, University of Science and Technology Beijing, Beijing 100083, China

Received 25 August 2005; accepted 20 December 2005

Abstract: Pressureless infiltration process to synthesize Si₃N₄/Al composite was investigated. Al-2%Mg alloy was infiltrated into Si₃N₄ and Si₃N₄ containing 10% Al₂O₃ preforms in the atmosphere of nitrogen. It is possible to infiltrate Al-2%Mg alloy in Si₃N₄ and Si₃N₄ containing 10% Al₂O₃ preforms. The growth of the dense composite of useful thickness was facilitated by the presence of magnesium powder at the interface and by flowing nitrogen. During infiltration Si₃N₄ reacted with aluminium to form Si and AlN, the growth of composite was found to proceed in two ways, depending on the Al₂O₃ content in the initial preform. Firstly, preform without Al₂O₃ content gives rise to AlN, Al_3.27Si_0.47 and Al type phases after infiltration. Secondly, perform with 10% Al₂O₃ content gives rise to AlN-Al₂O₃ solid solution phase (AlON), MgAl₂O₄, Al and Si type phases. AlON phase was only present in composite, containing 10% Al₂O₃ in the Si₃N₄ preforms before infiltration.

Key words: Si₃N₄ composite; infiltration; AlON; AlN-Al₂O₃ solid solution

1 Introduction

Composites of ceramic/metal or metal/ceramic are expected to have properties superior to their constituents alone[1-4]. However, the fundamental difference in atomic bonding between metals and ceramics results in quite different physical and chemical properties, such as surface energy, thermal expansion, chemical activity. These differences pose restrictions in fabrication of metal ceramic composites. For example non-wetting between ceramic surfaces and molten metals requires pressure or interfacial reactions to ensure good bonding between metals and ceramics[4-6]. The infiltration of molten metal into the porous ceramic preforms is an attractive processing route to prepare ceramic metal composites. The metal phase fraction, shape, size and distribution can be controlled through consolidation and densification processing of ceramic preforms. Moreover, porous preforms can be formed easily to complex shapes. Infiltration with metal can yield dense composites without large shrinkage associated with liquid phase sintering.

Pressureless melt infiltration is more attractive due to its cost effectiveness and near net shape capability. The essential requirements for pressureless melt infiltration of aluminium alloys are presence of magnesium in the alloy or infiltrating system and nitrogen in the furnace environment[7]. Binary Al-Mg alloys containing as low as 2% Mg will infiltrate spontaneously into ceramic preform at temperatures as low as 800 ℃ but infiltration stops after 1-2 mm[8].

Increasing the magnesium content or temperature enables the infiltration of thicker section before termination. It has been suggested that magnesium in the alloy evaporates and reacts with N₂ in the furnace atmosphere and forms a coating of Mg₃N₂ on the ceramic reinforcement, which on coming in contact with molten aluminium gets reduced to aluminium nitride then by recycling magnesium[9]. Hence, it is supposed that the reaction between Mg₃N₂ and Al induces wetting and allows pressureless infiltration of Al-alloys into ceramic perform. Also, use of magnesium at the ceramic/metal interface can continue infiltration for longer period of time[10]. In contrast to the previous work, in this study the pressureless infiltration of Si₃N₄ with Al is discussed. The aim of this study directs to the synthesis of Si₃N₄/Al composite by melt infiltration process at temperature higher than 1 200 ℃.

2 Experimental

Silicon nitride preforms with 40% porosity were prepared by cold pressing Si₃N₄ powder (1 ?m). The procedure for the preparation of preforms is as follows. The Si₃N₄ powder was mixed with EBS wax and mixture was pored into the die cavity. Approximately 200 MPa pressure was applied to get cylindrical Si₃N₄ preforms, 10 mm in diameter and 7 mm in height. These green compacts were heated slowly up to 450 ℃ at 2 ℃/min in vacuum, so as to burn out the binder without changing the shape and dimension of the preforms. From 450 ℃ samples were heated to 700 ℃ in air and held there for 30 min to get enough strength for handling in further processing operations. The porosity of the preforms measured by coating the preforms with wax and using Archimedes principle was found to be approximately 39%. Since there is a possibility of wax entering the pores of the preform, this method slightly underestimates the actual porosity. Al and Mg powders were used to prepare Al-2%Mg compacts. The mixture of Al-2%Mg powder was poured into the die cavity and approximately 200 MPa pressure was applied to get cylindrical compacts, 10 mm in diameter and 6mm in height. No binder was used in making of Al-2%Mg compacts. Graphite crucibles were prepared to carry out infiltration experiments. Si₃N₄ preform was kept on the top of the Al-2%Mg compact with and without 10-15 mg magnesium powder at the Al-2%Mg compact and Si₃N₄ preform interface in graphite crucible as shown in Fig.1. The crucible containing Si₃N₄ preform and Al-2%Mg compact was introduced in the furnace and heated to 500 ℃ in vacuum at the rate of 10 ℃/min, then N₂ atmosphere was introduced inside the furnace and the pressure of N₂ was kept a little higher than atmospheric pressure in order to avoid the air entrance. Then temperature was raised to 1 100-1 400 ℃ at the rate of 10 ℃/min. Infiltration experiments were carried out in static N₂ and flowing N₂ atmospheres. The samples were held at infiltration temperature for 1 h and cooled inside the furnace.

Infiltrated samples were prepared metallographi- cally (parallel to the infiltration direction) to measure the infiltration depth by optical microscope. Infiltrated samples were ground to a powder and characterized by X-ray diffractometry(XRD) to identify the various phases present in the composite. Some infiltrated samples were mounted and polished metallographically to 0.5 ?m diamond finish for measurement by scanning electron microscopy. The above experimental procedure was repeated for the infiltration experiments on Si₃N₄-10%Al₂O₃ preforms.

3 Results and discussion

3.1 Infiltration

Infiltration experiments demonstrate that pressure- less infiltration of molten Al-alloys in Si₃N₄ preforms could occur if the correct process conditions are employed. The critical process conditions were found to be alloy composition and flowing nitrogen atmosphere. It is observed that the use of magnesium in the alloy and nitrogen atmosphere in conjunction with an appropriate process temperature results in infiltration. No infiltration occurs without magnesium in the alloy. Using the experimental arrangement in Fig.1, alloy Al-2%Mg, a Si₃N₄ preform and process conditions of 1 h soak at temperature larger than 1 200 ℃, partial infiltration incase of Al-2% Mg alloy and considerable infiltration thickness in case of Al-2%Mg alloy with 10-15 mg magnesium powder at the interface of Si₃N₄ preform and Al-2%Mg compact is observed. Infiltration experiments carried out on Si₃N₄-10%Al₂O₃ compact do not exhibit any measurable difference in the infiltration height. The results of infiltration experiments are summarized in Tables 1-3. The SEM micrographs before and after infiltration are shown in Fig.2.

Fig.1 Schematic drawing of experimental arrangement used to fabricate Si₃N₄-Al Composites

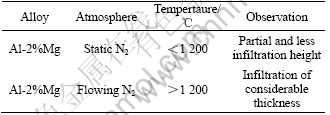

Table 1 Effect of temperature on infiltration of Al-2% Mg alloy in Si₃N₄ preform

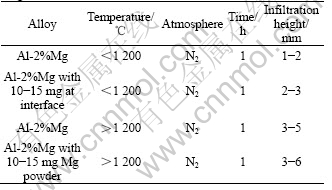

Table 2 Effect of 10-15 mg Mg at interface on infiltration height

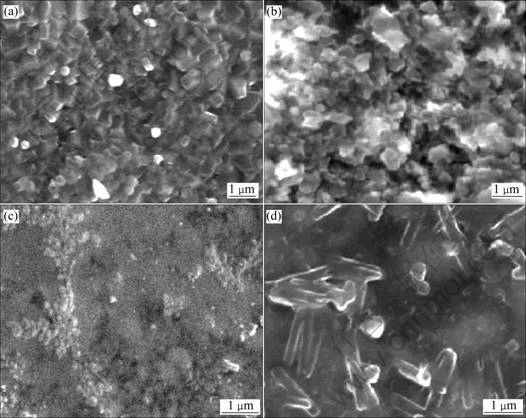

Fig.2 SEM micrographs before and after infiltration: (a) Si₃N₄ preform before infiltration; (b) Si₃N₄+10% Al₂O₃ preform; (c) Si₃N₄ preform after infiltration showing dense composite; (d) Si₃N₄+10% Al₂O₃ preform after infiltration showing dense composite

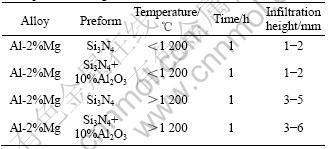

Table 3 Effect of addition of 10%Al₂O₃ on infiltration height in atmosphere of nitrogen

The above results demonstrate that the combination of magnesium in the alloy and at interface decreases the surface tension of the molten Al-alloy[10]. Nitrogen atmosphere causes further reduction of surface tension of Al-2% Mg alloy[11]. Additionally, the reactivity of magnesium induces interfacial reactions with solid ceramic surfaces. These reactions are typically not enough to promote spontaneous wetting, but in combining with nitrogen atmosphere, they may change or be altered thus allowing the observed infiltration. So, the use of magnesium at the interface is an extra support to the infiltration to proceed. Pure aluminium did not wet Si₃N₄ particles readily, so, no infiltration was observed. Whereas, magnesium level greater than the threshold value, the Si₃N₄ particles are wetted readily. While working at temperature higher than 1 200 ℃ the threshold magnesium level was found to be 2% by mass. The micrographs in Fig.2 show the developed com- posites are dense as no porosity is observed. The micrographs also show that there is severe chemical reaction between Si₃N₄ and Al-Mg Alloy because no Si₃N₄ particles are present in the micrographs. So, it can be concluded that reaction between Si₃N₄ and Al has been necessarily wetted in the presence of Mg and N₂ atmosphere for the observed infiltration.

3.2 Growth of composite

Infiltration experiments were carried out on two types performs, Si₃N₄ preform and Si₃N₄-10%Al₂O₃ preform. 10%Al₂O₃ was added to increase the wetability of Si₃N₄ compact with Al. Very less difference in infiltration height was observed in these two types of preforms. But the resultant phases formed after infiltration were different depending on Al₂O₃ content in the initial preform. Composites developed by using Si₃N₄ preform without addition of Al₂O₃ showed AlN, Al₂O₃, Al­_3.27Si_0.47 and Si phases after infiltration as shown in XRD results in Fig.3. Si₃N₄ preform with addition of 10% Al₂O₃ preform showed AlON, Al₂O₃, MgAl₂O₄, AlN and Si phases after infiltration as shown in XRD results in Fig.4.

In N₂ atmosphere, magnesium can reduce the partial pressure of residual oxygen, therefore near the surface of the Al-Mg alloy melt, the O₂ partial pressure is so low that melt will react with N₂ and form a nitride. The formation of AlN is favorable above 1 000 ℃. So the surface of melt must be covered with a thin layer of AlN during infiltration[4]. Also liquid aluminium will react with silicon nitride to give AlN above 1 000 ℃ as follows.

4Al +Si₃N₄→4AlN+Si

Fig.3 XRD pattern (Cu was used as target) of infiltrated Si₃N₄ composite

Fig.4 XRD pattern (Cu was used as target) of infiltrated Si₃N₄-10%Al₂O₃ composite

The silicon produced in above reactions will consume in formation of Al_3.27Si_0.47 and Si type phases.  It is suggested that less amount of alumina will present in pure Si₃N₄ preform infiltrated with Al-2%Mg alloy because AlN formation is favored. So, the composite developed with infiltration of Si₃N₄ preform with Al-Mg Alloy contains AlN, Al₂O₃, Al_­3.27Si_0.47 and Si type phases as shown in XRD spectra in Fig.3.

         Composite developed by the infiltration of Si₃N₄- 10%Al₂O₃ compacts showed presence of AlON phase as shown in XRD spectra in Fig.4. In the case of Al₂O₃-Al-Mg-X the interfacial reaction of leads to the formation of magnesium oxides and mixed oxides (spinel). With small amount of Mg, aluminium alloys do not form any spinel while the wetting of particulate alumina is not extensive. Below 7%Mg, magnesium reacts with alumina to form spinel MgAl₂O₄ but this reaction decreases from ＞4% Mg and doesn’t take place over 7%-8% Mg where MgO is exclusively formed[12]. In the presence of additive like MgAl₂O₄ the AlON can be stabilized at the infiltration temperature T＞1 300 ℃[13, 14]. It is suggested that AlON phase will be present only in the areas rich in MgAl₂O₄ spinel. So, addition of 10% Al₂O₃ in the initial preform gives rise to AlON, Al₂O₃, MgAl₂O₄, AlN and Si type phases as shown in XRD spectra in Fig.4.

References

[1] HANABE M, ASWATH P B. Synthesis of in-situ reinforced Al composites from Al—Si—Mg—O precursors [J]. Acta Materialia, 1997, 45: 4067-4076.

[2] SWAMINATHAN S, SRINIVASA RAO B, JAYARAM V. The production of AlN-rich matrix composites by the reactive infiltration of Al alloys in nitrogen [J]. Acta Materialia, 2002, 50: 3095-3106.

[3] TRAVITZRY N A. Microstructure and mechanical properties of alumina/copper composites fabricated by different infiltration techniques [J]. Materials Letters, 1998, 36: 114-117.

[4] TRAVITZRY N A, GUTMANAS E Y, CLAUOSEN N. Mechanical properties of Al₂O₃/Si composites fabricated by pressureless infiltration technique [J]. Materials Letters, 1997, 33: 47-50.

[5] TAHA M, EL-MAHALLAWY N A. Metal–matrix composites fabricated by pressure-assisted infiltration of loose ceramic powder [J]. Journal of Materials Processing Technology, 1998, 73: 139-146.

[6] SAIZ E, FOPPIANO S, MOBERLYCHAN W, TOMSIA A P. Synthesis and processing of ceramic–metal composites by reactive metal penetration [J]. Composite-A, 1999, 30: 399-403.

[7] AGHAJANIAN M K, ROCAZELLA M A, BURKE J T, KECK S D. The fabrication of metal matrix composites by a pressureless infiltration technique [J]. Journal of Materials Science, 1991, 26: 447-454.

[8] RAO B S, JAYARAM V. The initiation and continuation of infiltration Al-Mg based alloys into Alumina performs [A]. The Third PRICM Conference of Advanced Materials and Processing [C]. Hawaii, 1998. 367-373.

[9] SCHIROKY G H, MILLER D V, AGHAJANIAN M K, FAREED A S. Fabrication of CMCs and MMCs using novel processes [J]. Key Engineering Materials, 1997, 127-131: 141-152.

[10] RAO B S, JAYARAM V. New technique for pressureless infiltration Al-alloys into Al­­₂O₃ preforms [J]. Journal of Materials Research, 2001, 16: 2906-2913.

[11] GOICOECHEA J, GARCIA CORDOVILLA G, LOVIS E, PARMIE A. Surface tension of binary and ternary aluminium alloys of the systems Al-Si-Mg and Al-Zn-Mg [J]. Journal of Materials Science, 1992, 27: 5247-5251.

[12] MCCULLOUGH C, GALUSKA P, PITTMAN S R. Criteria for matrix selection in continuous fiber aluminum matrix composites [A]. Design Fundamentals of High Temperature Composites, Intermetallics and Metal-Ceramics Systems[C]. USA: Anaheim, California, 1996. 15-28.

[13] BOEY F, CAO L, KHOR K A, TOK A. Phase reaction and sintering behavior of a Al₂O₃-20wt%AlN-5wt%Y₂O₃ system [J]. Acta Materialla, 2001, 49: 3117-3127.

[14] WEI L Y, NAN L, RUNZHANG Y. The formation and stability of γ-aluminium oxynitride spinel in the carbothermal reduction and reaction sintering processes [J]. Journal of Materials Science, 1997, 32: 979-982.

Corresponding author: Akhtar Farid; E-mail: faridmet22@hotmail.com

(Edited by LONG Huai-zhong)
