Pre-evaluation on stability of proposed expressway embankment with existing geothermal regulation measures in permafrost regions
来源期刊:中南大学学报(英文版)2021年第1期
论文作者:马勤国 罗晓晓 姜海强
文章页码:264 - 283
Key words:permafrost; expressway embankment; influencing factor; stability evaluation; geothermal regulation measures
Abstract: Embankment stability is the primary problem for the expressway construction in permafrost regions. The proposed Qinghai-Tibet Expressway (QTE) is planned to construct along the Qinghai-Tibet Project Corridor. Confronted with harsh environmental condition and intense heat exchange between earth and atmosphere, it is necessary to predict and evaluate the stability of the proposed QTE. In this study, the factors affecting the embankment stability are analyzed firstly. And then, a scheme for the stability evaluation of the embankment is established. Finally, the evaluation scheme is used for the pre-evaluation of the stability for the proposed QTE with different geothermal regulation measures (GRMs). The results indicate that the influencing factors include climatic environment, permafrost property, engineering condition and geological condition, and among them, engineering condition and permafrost property are the main influence factors for embankment stability. The stability of the proposed QTE varies greatly in the different geomorphological regions. The application effect and contribution to embankment stability of the existing GRMs are different, and using GRMs cannot completely overcome the influence of various factors on expressway stability. In the construction process, different GRMs should be adopted depending on the geomorphological environment where the embankment is located to ensure the embankment stability.
Cite this article as: LUO Xiao-xiao, MA Qin-guo, JIANG Hai-qiang. Pre-evaluation on stability of proposed expressway embankment with existing geothermal regulation measures in permafrost regions [J]. Journal of Central South University, 2021, 28(1): 264-283. DOI: https://doi.org/10.1007/s11771-021-4601-5.
J. Cent. South Univ. (2021) 28: 264-283
DOI: https://doi.org/10.1007/s11771-021-4601-5
LUO Xiao-xiao(罗晓晓)1, 2, MA Qin-guo(马勤国)1, 2, JIANG Hai-qiang(姜海强)2
1. State Key Laboratory of Frozen Soil Engineering, Northwest Institute of Eco-environment and
Resources, Chinese Academy of Sciences, Lanzhou 730000, China;
2. State Key Laboratory of Subtropical Building Science, South China University of Technology,Guangzhou 510641, China
Central South University Press and Springer-Verlag GmbH Germany, part of Springer Nature 2021
Abstract: Embankment stability is the primary problem for the expressway construction in permafrost regions. The proposed Qinghai-Tibet Expressway (QTE) is planned to construct along the Qinghai-Tibet Project Corridor. Confronted with harsh environmental condition and intense heat exchange between earth and atmosphere, it is necessary to predict and evaluate the stability of the proposed QTE. In this study, the factors affecting the embankment stability are analyzed firstly. And then, a scheme for the stability evaluation of the embankment is established. Finally, the evaluation scheme is used for the pre-evaluation of the stability for the proposed QTE with different geothermal regulation measures (GRMs). The results indicate that the influencing factors include climatic environment, permafrost property, engineering condition and geological condition, and among them, engineering condition and permafrost property are the main influence factors for embankment stability. The stability of the proposed QTE varies greatly in the different geomorphological regions. The application effect and contribution to embankment stability of the existing GRMs are different, and using GRMs cannot completely overcome the influence of various factors on expressway stability. In the construction process, different GRMs should be adopted depending on the geomorphological environment where the embankment is located to ensure the embankment stability.
Key words: permafrost; expressway embankment; influencing factor; stability evaluation; geothermal regulation measures
Cite this article as: LUO Xiao-xiao, MA Qin-guo, JIANG Hai-qiang. Pre-evaluation on stability of proposed expressway embankment with existing geothermal regulation measures in permafrost regions [J]. Journal of Central South University, 2021, 28(1): 264-283. DOI: https://doi.org/10.1007/s11771-021-4601-5.
1 Introduction
Frozen soil is composed of mineral particles, viscoplastic ice inclusion, liquid water and gaseous inclusions (water vapor and air). During the long-term evolution of frozen soil, the underground ice layers with the thickness of several meters or even tens of meters are formed [1, 2]. The construction of embankment disturbs the energy balance of natural surface, causing the underlying permafrost degradation, and further affecting the stability of embankment [3, 4]. Taking the Qinghai-Tibet Highway as example, the mean annual ground temperature of permafrost beneath embankment is about 30% higher than that of the natural site, and the thickness of active layer is 1.5-2.0 times deeper than that of the natural site [5]. Compared with ordinary highway, the construction of expressway accelerates the warming and thawing of frozen soil, because of the wider asphalt pavement, stronger heat absorption capacity and more severe engineering thermal disturbance [6, 7]. Therefore, although the Qinghai-Tibet Expressway (QTE) has been incorporated into the Chinese 12th Five-Year Plan, the sections at permafrost section (from Golmud to Lhasa) have been delayed due to the permafrost problem.
In order to prevent the underlying permafrost from degradation, various geothermal regulation measures (GRMs) are applied [8, 9]. Insulation board, awning, ventilated duct, crushed-rock layer and thermosiphon are widely used in warm permafrost regions. Field tests and numerical simulation results show that these measures can protect permafrost and improve embankment stability [10-12]. However, each measure is not perfect and has certain limitations in practice. For example, the insulation board cannot change the heat absorption trend caused by embankment construction [13], which is not conducive to the long-term stability of the embankment. Ventilated duct may bring heat energy into the embankment in warm seasons, and the cooling effect is poor in regions with high annual average ground temperature [14]. When the crushed-rock layer are laid at the bottom of embankment, the cooling effect in the center of embankment is limited by the embankment width [15]. And the wider the embankment is, the worse the cooling effect will be. When the crushed-rock layer is laid on the embankment slope, the cooling effect is easily disturbed by aeolian sand [16]. The cooling effect of thermosiphon is limited, and the embankment with thermosiphon is easy to encounter the secondary disasters [17]. In addition to the above-mentioned GRMs, a measure to reduce the thermal energy absorption by increasing the albedo of embankment surface has developed. The traditional methods are using white paving and covering with white coating, but their application is restricted by albedo measurement and visual vertigo caused by white pavement. As a method to calculate the albedo of embankment by the solar radiation absorption and reflection of the reference object is proposed [18, 19], the non-white paving and non-white coating are put forward [20, 21]. These new methods can effectively block solar radiation and free from glare problem. Even for the sunny slope of the embankment in permafrost regions, they can reduce and eliminate the asymmetry of the temperature field [22, 23]. Although the existing GRMs can maintain embankment stability to a certain extent, their application effect and contribution to embankment stability are different. Therefore, it is necessary to analyze the application effects of existing GRMs in detail and make classification.
For the proposed QTE planned to construct along the existing Qinghai-Tibet Project Corridor, its stability is related to geological and climatic conditions and the GRMs [24-26]. In this case, it is of great significance to establish a pre-evaluation scheme for the stability of the proposed QTE under different GRMs in different geomorphic regions. Common methods to evaluate the reliability and stability of engineering structure are genetic algorithm [27], BP neural network [28, 29], catastrophe progression method [30, 31], fuzzy reasoning method [32], and fuzzy comprehensive evaluation method [33]. Genetic algorithm is usually combined with reliability theory to analyze the reliability of engineering structure. The three operators of selection, intersection and variation are determined by experience, and the calculation process is cumbersome. For BP neural network and fuzzy reasoning method, a large number of data samples are required, and the more the samples are, the more accurate the evaluation results will be. Both catastrophe progression method and fuzzy comprehensive evaluation method are based on fuzzy membership function. Compared with the fuzzy comprehensive evaluation method, each index in catastrophe progression method is not needed to assign weights, but the maximum index number decomposed in each hierarchical structure cannot exceed four, which is not suitable for the stability evaluation of engineering structure with many influencing factors. For the expressway embankment in permafrost regions, there are many factors affecting its stability, and these factors are interrelated and have strong fuzziness. It is difficult to quantify these influence on expressway stability.
Thus, with the above analysis, in this paper, the factors affecting expressway stability in permafrost regions are analyzed firstly, and the hierarchical structure of the evaluation index is determined. Then, the fuzzy comprehensive evaluation model of expressway stability is established to predict and evaluate the stability of the proposed QTE with different GRMs. According to the forecast and evaluation results, the efficiency of the existing GRMs are considered, and some suggestions on the application of the GRMs are proposed for the proposed QTE in different landforms along the Qinghai-Tibet Project Corridor.
2 Analysis on factors affecting expressway stability in permafrost regions
Embankment stability in permafrost regions is mainly restricted by the thermal state of underlying permafrost. Thus, the factors that affect the embankment stability, except for the external load (vehicles, earthquakes) and the construction quality of the embankment itself, can be considered the factors that cause the degradation of the underlying permafrost. These factors can be classified into the categories of climatic environment, permafrost property, engineering condition and geological condition.
Climatic environment: Solar radiation is a direct heat source, and its variation determines the temperature fluctuation at the pavement surface and shallow layer of embankment. Air temperature is an important factor affecting the thermal stability of embankment. The cumulated positive temperature for air temperature (thawing index) is positively correlated with the annual maximum thawing depth of permafrost [34], which is closely related to the embankment stability. During rainy season, the humidity at embankment slope and shallow layer increases, and vertical seepage in soil accelerates the thawing of underlying frozen soil.
Permafrost property: Permafrost is sensitive to temperature, and its strength and carrying capacity reduce with the temperature increasing [35-37]. The higher the mean annual ground temperature of underlying permafrost is, the worse the embankment stability will be. The ice content in permafrost determines the warming and thawing rates of permafrost and the settlement of embankment from permafrost thawing [38, 39]. If the distributions of ice and ground temperature of the permafrost beneath the embankment are uneven, the depths of seasonal thawing will be unequal, forming differential deformation. Surface water and suprapermafrost water affect the distribution and development of permafrost beneath the embankment. If drainage is blocked, atmospheric precipitation accumulates at the low-lying areas, and connects to the suprapermafrost water, resulting in embankment toe being soaked [40]. The seasonal rising and descending of the groundwater cause the repetitive expansion and shrinkage of the soil, giving rise to mud-pumping and other embankment diseases [41]. Thawing settlement generally occurs in seasonal thawing layer, and the greater the depth of seasonal thawing, the greater the settlement deformation. Besides, the thickness of the permafrost is conductive to the embankment stability, and the larger the permafrost thickness is, the better the embankment stability will be.
Engineering condition: Roadbed height is an important factor for the embankment stability in permafrost regions [42-44]. The height is too low to achieve the thermal insulation effect of the embankment, but embankment with high height increases the heat absorption surface and additional load to foundation and causes the residual thawed layer in the first cold season after the embankment construction [42, 45]. Affected by the direction of the roadbed, the sunny slope receives more solar radiation, and the temperature at the sunny slope is relatively higher than that at the shady slope, which causes asymmetric thermal regime in embankment, and further promotes the uneven settlement and the formation of longitudinal cracks [39, 46]. Except for roadbed height, the width and the slope gradient both affect the thermal state of the underlying permafrost. The wider the pavement is, the greater the heat absorption intensity is, and the less likely the heat diffuses from both sides, forming heat gathering effect under the roadbed [6]. Compared with the integrated roadbed, the separated roadbed can alleviate the heat accumulation inside the embankment, and postpone the degradation of the underlying permafrost. In this case, if the slope is relatively gentle, it is conducive to the heat dissipation inside the embankment. Meantime, the gentle slope is not prone to collapse during the rainy season. However, if the distance between the two separated embankments is unreasonable, the thermal interaction between the two embankments will be caused [47]. Moreover, the separated embankment covers larger area than integrated embankment, which is unfriendly to the ecological environment along the Qinghai-Tibet Project Corridor. No matter which construction method is adopted, the necessary GRMs are indispensable. Monitoring datum from the Qinghai-Tibet Testing Expressway (QTTE) shows that the GRMs based on convective heat transfer theory not only effectively cool the underlying permafrost, but also produce a cold energy accumulation effect beneath the embankment [48]. With the increase of the service life, the structural performance of the embankment will be reduced. If the embankment is not timely repaired, various diseases such as looseness, pothole, crack, and ups and downs will occur.
Geological condition: Vegetation is the medium for energy exchange between the atmosphere and lithosphere, affecting the hydro- thermal circulation of underlying permafrost through reflection, scattering solar radiation, blocking wind and snow, also absorbing and retaining water. Vegetation deterioration can cause degradation of permafrost [49]. Restricted by altitude, ground temperature of the permafrost basically decreases and the thickness increases from the plain to the mountain. However, affected by the terrain, the ground temperature at low-lying section is low, and the seasonal frozen layer is relatively thick in those areas. The particle size, mineral and organic composition of skeleton soil in seasonal thawing layer affect hydrothermal processes in permafrost.
3 Establishment of comprehensive evaluation system
For the evaluation of embankment stability in permafrost regions, the method combining the advantages of the analytic hierarchy process and fuzzy comprehensive evaluation can appropriately reduce the randomness of subjective judgment and evaluation, and improve the reliability of the evaluation results.
3.1 Construction of analytic hierarchy process (APH) model
Evaluating the stability of the embankment in permafrost regions by the mothed of APH, the membership relation of the influencing factors should be determined firstly, and then these factors are disassembled into several levels from top to bottom. According to the above analysis results on influencing factors of embankment stability in permafrost regions, the hierarchical substructure model for expressway stability is established, as shown in Figure 1. This hierarchical substructure model consists of three levels including object hierarchy, rule hierarchy and factor hierarchy, and the elements in the factor hierarchy are the expressway stability evaluation indexes. The elements in rule hierarchy include climatic environment, permafrost property, engineering condition and geological condition. Climatic environment consists of three secondary-level influencing factors: mean annual solar radiation, mean annual air temperature and annual mean precipitation. Permafrost property includes five secondary level influencing factors: Permafrost type, seasonal thawing depth, permafrost thickness, mean annual ground temperature, surface water and groundwater. Engineering condition is composed of five secondary level influencing factors: Roadbed height, roadbed direction, GRM, roadbed section form, and service life. Geological condition is composed of three secondary level influencing factors: Vegetation coverage, active layer lithology and terrain.

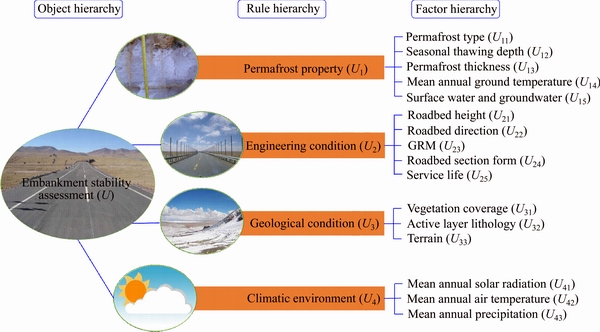

Figure 1 Hierarchical substructure model for expressway stability in permafrost regions (GRM: Geothermal regulation measure)
3.2 Determination of weight of influencing factors
3.2.1 Construction of judgment matrix
The judgment matrix is the evaluation for objective factors. Each value in the matrix is a quantitative representation of the relative importance of each element. The relative importance of an element is usually marked by a number from 1 to 9 or its reciprocal. The larger the number is, the more important one factor is relative to another. Assuming that the element in the upper level in the hierarchical substructure model is Ai (i=1, 2,…, m) and the element in the lower level is Bn (n=1, 2, …, k), the relative importance of each element is determined by questionnaire survey, as shown in Table 1. According to the evaluation results, the judgment matrix is formed:

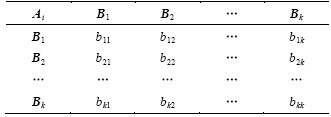

Table 1 Evaluation results
(1)
where bij represents the importance of the factor bi relative to bj and bij is determined as follows:
(2)
3.2.2 Calculation of weight value
After obtaining the judgment matrix, the weight value of each factor is calculated by using the sum and product method. The calculation steps are as follows:
First, the normalization of the judgment matrix Bn is carried out and the normalization matrixis obtained:
(3)
And then, the elements in each column of the normalized matrix are summed to obtain a vector W=[W1, W2, …, Wk], and the vector W is normalized to obtain the eigenvector
(4)
whereand each element in the eigenvector is the weight value of each factor in the same level.
3.2.3 Validation for rationality of weight value
In order to ensure the rationality of the weight value obtained by the judgment matrix, the consistency checking of the judgment matrix is performed. Firstly, it needs to calculate the maximum eigenvalue λmax:
(5)
And then, the consistence proportional factor CR is proposed to perform the consistency test:
(6)
where CI is the consistency index and CI=(λmax-k)/ (k-1); k is the number of influencing factors; RI is the mean random consistency index, and the values are shown in Table 2. When CR≤0.1, the judgment matrix is considered to be consistent and the weight is reasonable; otherwise, the judgment matrix needs to be readjusted.
Table 2 Mean random consistency index
3.2.4 Determination of weight
Based on the established APH model for expressway stability, the weight of various factors affecting the expressway stability in permafrost regions is calculated. The calculated results for the judgment matrix and weight refer to Appendix A.
3.3 Establishment of fuzzy comprehensive evaluation model
The fuzzy comprehensive evaluation model consists of three elements (U, V, R), and its application is divided into five steps:
1) Determine the influencing factor set U of the evaluation object, U={U1, U2, …, Um}. The set U consists of affecting factor subsets Ui, Ui={Ui1, Ui2, …, Uik} where k represents the number of factors in the subset Ui.
2) Determine the evaluation set V, V={V1, V2, …, Vn} where n is the number of evaluation levels. In this study. n takes 4 levels including stable level, basically stable level, less stable level, and unstable level.
3) Establish the single factor evaluation matrix Ri. In general, the influencing factor Uij (i=1, 2, …, m; j=1, 2, …, k) has a certain fuzziness to each element in the evaluation set V. Using the appropriate membership function to evaluate the influencing factor Uij, the fuzzy evaluation subset of each factor Uij is obtained, which is presented as Rij={rij1, rij2, …, rijn}. Therefore, the single factor evaluation matrix can be expressed as:
(7)
The determination method of the membership degree of quantitative and qualitative indicators refer to Appendix B for details.
4) Introduce the weight vector Li (Li=[li1, li2, …, lik]) of factor subset Ui, where lij≠0, and lij indicates that each factor of the evaluation factor set has different roles in the evaluation object. For the weight vector Li and the single factor evaluation matrix Ri, fuzzy operation Fi=Li○Ri is performed according to matrix product algorithm:
(8)
The weight vector L (L=[l1, l2, …, lm]) of factor set U is introduced. The weighted vector L and the secondary fuzzy comprehensive evaluation matrix F=[F1, F2, …, Fm]T are subject to the same fuzzy operation P=L○F to obtain the primary fuzzy comprehensive evaluation set P={p1, p2, …, pn}.
5) Recommend the expressway embankment stability index. The value range of the stability index is [25, 100], and it is divided into four levels according to the equal steps, as quantization evaluation set V={100, 75, 50, 25} for expressway embankment stability. The primary fuzzy comprehensive evaluation result P is processed and the stability index Q=PV T is obtained. The larger the stability index, the more stable the expressway. In order to make the evaluation results easy to understand, the expressway embankment stability grades are divided by the stability index. The range of stability index values corresponding to each level is shown in Table 3.
Table 3 Evaluation standard for expressway stability
Based on a large number of references, and combined with the opinions of experts, the reference standards for the grading of each evaluation index in the fuzzy comprehensive evaluation model of expressway stability are given in Table 4.
4 Verification for evaluation model
Taking the expressway embankment with temperature-controlled ventilation as an example, the above evaluation model is verified. Designed and constructed in accordance with the Chinese expressway design standards, the embankment has been completed in September, 2009. The road height is 3 m; the width of the roadbed top surface is 13.0 m; the slope ration is 1:1.5; and the road direction is about 198° from north. The embankment is located in the southern part of the Beiluhe Basin which belongs to the piedmont alluvial-proluvial high plain landform with a surface vegetation coverage rate of 90%. The mean annual air temperature is about -3.58 °C; the mean annual solar radiation is 5760 MJ/m2; and the mean annual precipitation is about 450 mm. The runoff and drainage are developed. The maximum ice content is approximately more than 80% and the mean annual ground temperature range is -1.0- -0.5 °C. The area belongs to the high-temperature and ice-rich permafrost area. The depth of the permafrost table is approximately 1.84 m beneath the natural surface, and the permafrost thickness is 30 m. In addition, the geological data show that four soil layers are included within the depth of 20 m, i.e., sand soil (0-0.5 m), sandy loam (0.5- 5.0 m), sub-clay (5.0-7.0 m), and weathered mudstone (below 7.0 m).

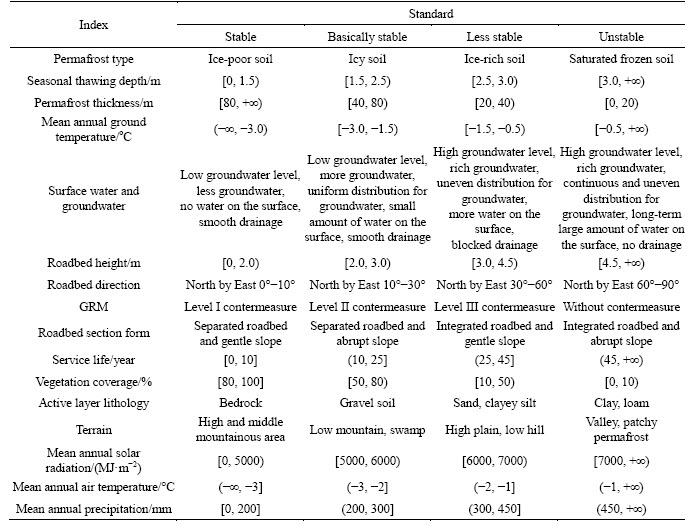

Table 4 Grading standards of evaluation indexes
According to the above survey results and the calculation method for membership degree, each single factor evaluation matrix can be determined, and the corresponding weight subset is introduced to calculate the single factor fuzzy comprehensive evaluation set. Then, the primary fuzzy comprehensive evaluation set of embankment stability can be calculated, and the stability index of embankment is finally obtained to be 77.51. Refer to Appendix C for the calculation process of the fuzzy comprehensive evaluation set of embankment stability and embankment stability index.
According to the expressway stability index, the embankment is basically stable. Actually, the cracks appeared at the half of the roadbed near the sunny slope at the initial stage of construction (2010), and the crack depth was less than the thickness of the pavement surface (Figure 2). After repairing, no new cracks have appeared. The actual embankment is in stable state. This indicates that the evaluation result for the expressway stability by the fuzzy comprehensive evaluation model is consisted with the actual situation, and the model has certain reliability.
Figure 2 Photo of expressway embankment with temperature-controlled ventilation
5 Effectiveness evaluation of GRMs
The stability of the expressway embankment in permafrost regions is related to the GRMs. The most suitable GRM should be applied to ensure the embankment stability. This requires a clear understanding of the application effect of GRMs.
In the process of rehabilitation of the Qinghai-Tibet Highway in 2003, some GRMs were applied to improve embankment stability in some damaged sections. These countermeasures mainly included insulation board, thermosiphon, ventilation, crushed-rock interlayer, etc. For the terrible engineering environment, composite measures were used.
Based on the monitoring datum of ground temperature, deformation and disease of the Qinghai-Tibet Highway in the recent 13 years [50], the disease incidence of ordinary embankment and embankment with countermeasure is shown in Figure 3. The emergence of most diseases is concentrated within 2 to 5 years after the embankment construction. Compared with ordinary embankment, insulation board, thermosiphon, ventilation, crushed-rock interlayer and composite measure combining ventilation with crushed-rock interlayer can reduce the disease incidence of roadbed by 35%, 45%, 45%, 55% and 55%, respectively (Figure 4(a)). The effective rates of insulation board, thermosiphon, crushed-rock interlayer and ventilation in preventing and controlling disease are 60%, 70%, 80% and 70%, respectively. For the embankment with insulation board, the disease incidence in the early stages after construction ranges from 3% to 15%. Since the fourth year, the damage incidence has rapidly increased, and reached about 40% in the ninth year (Figure 4(b)). The high incidence period of disease is from the fourth to eighth year after construction, and the maximum annual disease incidence is 6.5% (Figure 4(c)). For the embankment with thermosiphon, the disease occurs rapidly in five years after construction. The annual disease incidence reached a maximum of 9% in the third year and was basically 0 after the sixth year (Figure 4(c)). Its disease sections account for 30% of the whole embankment (Figure 4(b)). The high incidence period of disease for the ventilated embankment is from the third year to the sixth year after construction. The annual disease incidence is about 5.5% during this period (Figure 4(c)). The annual disease incidence of embankment with crushed-rock interlayer is relatively small, less than 3%. Fortunately, the effective rate of the composite measure combining ventilation with crushed-rock interlayer in preventing and controlling disease rises to 80%. Although the application of countermeasures can effectively prevent embankment diseases to some extent, it cannot completely eliminate embankment disease (Figure 4(a)).

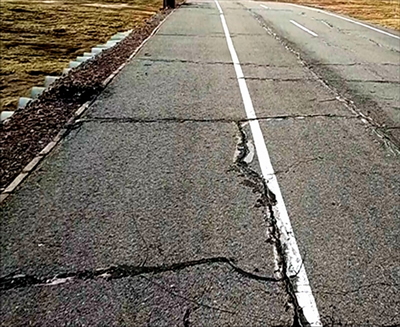

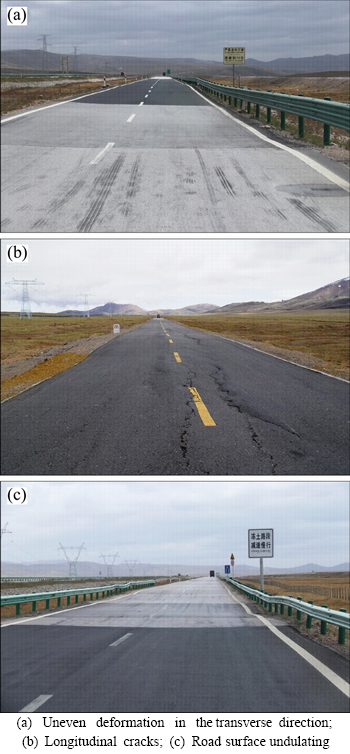

Figure 3 Embankment diseases for highway in permafrost regions:

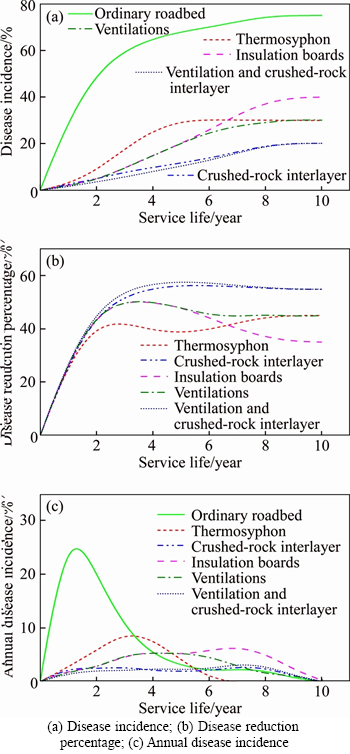

Figure 4 Disease incidence of embankment in different service life:
It can be seen that among the various countermeasures, the controlling efficiency of crushed-rock interlayer is relatively high, the thermosiphon and ventilations are in the middle, and the insulation board is lower. The composite measure can improve the controlling effect. In order to further clarify the effectiveness of various GRMs, according to operating principle, the GRMs are classified into six types including reducing solar radiation, releasing heat, controlling heat conduction, air convection heat exchange, composite measure and replacing roadbed with bridge. The principle, advantages and disadvantages of each GRM are summarized in Tables 5-9.
Investigation of embankment disease along the Qinghai-Tibet Highway manifests that the embankment diseases are mainly subsidence, uneven deformation and longitudinal cracking [34, 39] (Figure 3). The construction of embankment will change the thermal equilibrium state of the original surface. The asphalt pavement has a strong heat-absorbing effect, causing the thawing of underlying permafrost and forming a thawing layer. When the ice content of the underlying permafrost along the same section is different, there will be uneven deformation in the transverse direction of the embankment (Figure 3(a)), which can be aggravated by the uneven distribution of the ground temperature at both slopes of the embankment. The greater the transverse uneven deformation, the more easily the longitudinal cracks occur (Figure 3(b)). If the geological conditions of the underlying permafrost are different greatly in the longitudinal direction, the roadbed will have different deformation in different sections, which will cause the road surface undulating (Figure 3(c)).
Therefore, in order to ensure the long-term stability of highway, the underlying permafrost should be protected from degeneration firstly. Secondly, the uneven deformation caused by the temperature difference between the sunny and shady slope should be eliminated. And then, for the sections with quite different geological conditions, the overall cooling is achieved. Finally, the permafrost can be cooled rapidly. The above four strategic points are reflected in the application effect of the GRMs as follows: the rise of the permafrost table, the symmetrical distribution of ground temperature, the overall cooling of permafrost, and the rapid cooling. Based on the evaluation of the cooling performance of various GRMs in Tables 5-9, these GRMs are classified into three grades.

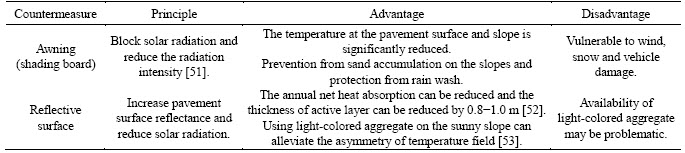

Table 5 Efficiency evaluation for countermeasures of reducing solar radiation
Table 6 Efficiency evaluation for countermeasures of releasing heat

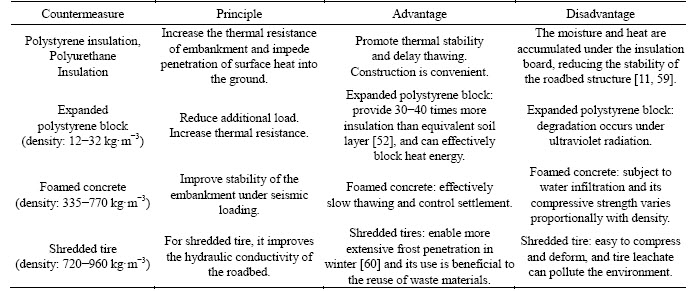

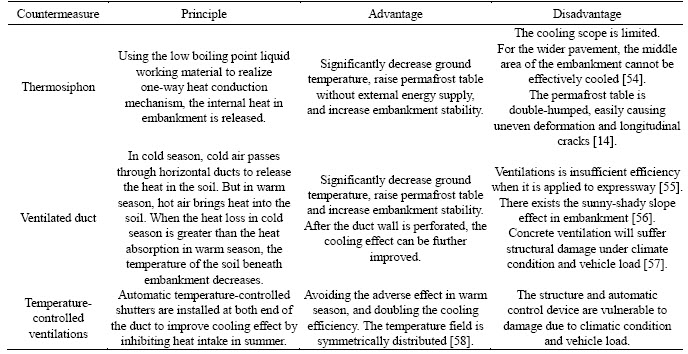

Table 7 Efficiency evaluation for countermeasures of controlling heat conduction
Level I: It can protect permafrost immensely, overcome the asymmetrical distribution of the ground temperature, and achieve rapid, overall and uniform cooling of permafrost. These GRMs include the composite measure combining hollow concrete bricks and ventilated ducts, the composite measure combining thermosiphon, thermal insulation board and asymmetrical crushed-rock revetment, temperature-controlled ventilations, land bridge, etc.

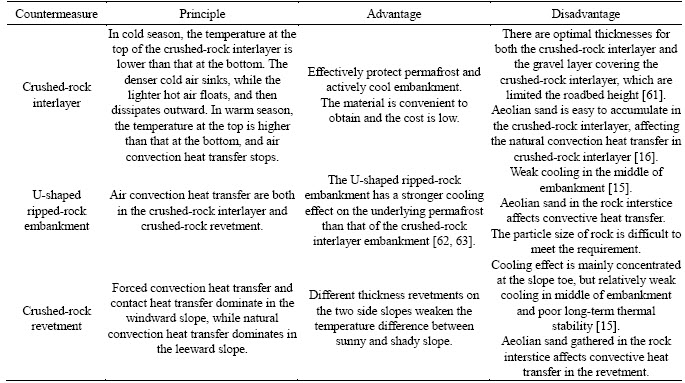

Table 8 Efficiency evaluation for countermeasures of air convection heat exchange

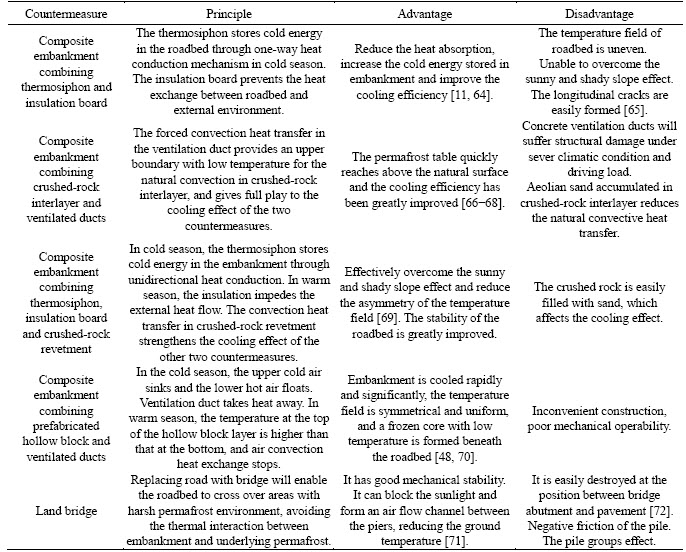

Table 9 Efficiency evaluation for composite embankment and land bridge
Level II: It can better protect permafrost, but cannot completely overcome the asymmetrical distribution of the ground temperature. These GRMs include crushed-rock interlayer embankment, crushed-rock revetment embankment, U-shaped ripped-rock embankment, the composite measure combining crushed-rock interlayer and ventilated ducts, the composite measure combining thermosiphon with thermal insulation board, etc.
Level III: It can protect permafrost to some extent, but the application scope is limited. It may be unfriendly to the embankment engineering and environment. These GRMs include thermal insulation board, thermosiphons, expanded polystyrene blocks, foamed concrete, awnings, etc.
6 Pre-evaluation on stability of proposed QTE
The proposed QTE is to be built along the Qinghai-Tibet Project Corridor. Because of the wider asphalt pavement, expressway has stronger heat absorption than ordinary highway, which is more likely to cause the degeneration of the underlying permafrost and affect the stability of expressway. Therefore, it is necessary to predict and evaluate the stability of the QTE, so as to facilitate decision makers to make judgment.
Considering that the QTE has not yet been built, the engineering conditions such as roadbed direction, roadbed section form, and GRM cannot be got in detail, so the stability levels of roadbed height, roadbed direction, roadbed section form and service life are determined to be unstable in the calculation process. According to Refs. [73, 74], the mean annual solar radiation in most areas along the Qinghai-Tibet Project Corridor is greater than 6000 MJ/m2, and even the mean annual solar radiation in the Hohxil Mountains and the most areas from Tanggula Mountains to the Ando- Liandaohe Highlands is more than 7000 MJ/m2. In addition, affected by topography and precipitation, the mean annual solar radiation of local areas is relatively low. For example, the mean annual solar radiation of the Beiluhe Basin and Tongtianhe Basin are 5600 to 6000 MJ/m2. Combined monitoring data [75, 76] with the monthly precipitation (http://data.cma.cn), the mean annual precipitation along the Qinghai-Tibet Project Corridor is obtained. Vegetation coverage is obtained based on geospatial data cloud (http://www.gsclond.cn). The remaining evaluation index related to the permafrost property is obtained by on-site investigations. Limited to the space of the paper, only some of the evaluation indexes of expressway stability along the Qinghai-Tibet Project Corridor are shown in Table 10.
The stability of the proposed QTE with different levels of GRMs is evaluated by the fuzzy comprehensive evaluation method mentioned above, and the evaluation results are shown in Table 11. According to the evaluation standard for expressway stability, it is believed that when the stability index Q is greater than 62.50, the expressway stability reaches the basically stable level and basically satisfies the stability of expressway (Table 3). The evaluation results of stability for expressway without any countermeasures indicate that, except that the expressway embankment in Tanggula Mountains is basically stable, the other sections along the Qinghai-Tibet Project Corridor are at the less stable level. In this case, it is necessary to take some countermeasures to improve the stability of the expressway embankment.

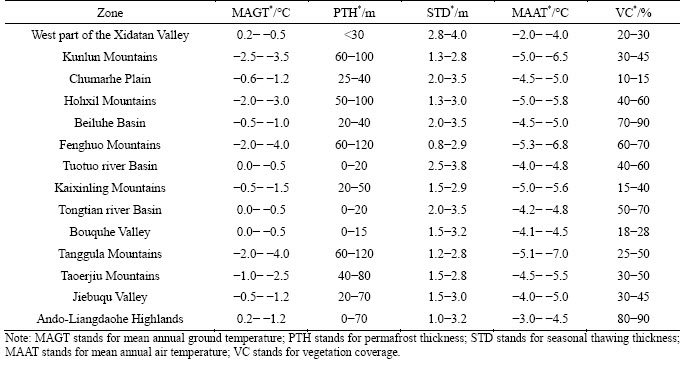

Table 10 Evaluation indexes of expressway stability along the Qinghai-Tibet Plain Corridor
According to Table 11, the stability of the proposed QTE at Kunlun Mountains, Hohxil Mountains, Fenghuo Mountains, and Taoerjiu Mountains can reach basically stable level by adopting the Level III GRMs. For the proposed QTE at West part of the Xidatan Valley, Chumarhe Plain, Tuotuohe Basin, Kaixinling Mountains, Jiebuqu Valley, and Ando-Liangdaohe Highlands, the stability of the embankment can attain the basic stability by adopting Level II GRMs. Due to the harsh permafrost environment, the Level I GRMs should be adopted to achieve the basic stability of the proposed QTE at Beiluhe Basin, Tongtianhe Basin and Buquhe Valley. In addition, even if Level I GRMs are adopted in all landform zones along the Qinghai-Tibet Project Corridor, the stability of the proposed QTE cannot reach the stable level. This indicates that even if the corresponding GRMs are taken for the expressway, it still cannot overcome the influence of the permafrost property, climatic environment, engineering condition and geological condition on the stability of expressway. The necessary maintenance during operation period is essential for the stability of expressway in permafrost regions.
7 Conclusions
In this paper, a fuzzy comprehensive evaluation model for embankment stability in permafrost regions is established, and through this evaluation model, the stability of the proposed expressway with different levels of geothermal regulation measures is pre-evaluated. The following conclusions are drawn:
1) The influence factors of embankment stability in permafrost regions include climatic environment, permafrost property, engineering condition and geological condition. Among them, engineering condition and permafrost property are the main influence factors for embankment stability.

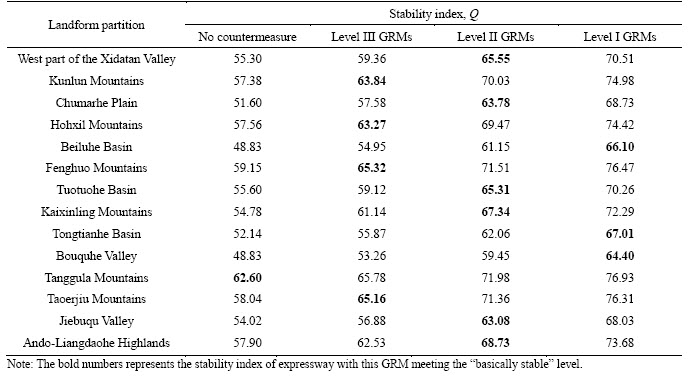

Table 11 Evaluation results on stability of expressway with different levels of GRMs
2) GRM is the main engineering condition affecting embankment stability. Existing GRMs can protect permafrost to a certain extent, but their cooling efficiency is different. In terms of embankment disease controlling efficiency, the strategy of air convection heat exchange is high, the strategy of discharging heat is middle, and the strategy of controlling heat conduction is low. The composite measure combining two or more GRMs can significantly improve the controlling efficiency of embankment diseases.
3) The method of combining analytic hierarchy process and fuzzy comprehensive evaluation can effectively evaluate the stability of expressway in permafrost regions, and make reasonable pre-evaluation on the stability of the proposed expressway.
4) For the proposed QTE, the embankment stability cannot be guaranteed without any countermeasures in most regions. The selection of GRMs is closely related to the geographical environment for the embankment. In general, high level GRMs should be adopted in warm permafrost regions, while low level GRMs can be adopted in high-altitude mountainous regions. The GRMs cannot completely overcome the potential embankment disease. Necessary maintenance is the key to maintain the stability of expressways in permafrost regions.
Appendix A
The calculated results for the judgment matrix and weight of rule hierarchy and the factor hierarchy (permafrost property, engineering condition, geological condition climatic environment) are shown in Table A1 and Tables A2-A5, respectively.
Appendix B
The membership degree of quantitative indexes can generally be determined by the method of the ascending or descending semi-trapezoid function and linear trigonometric function. According to the numerical relationship between quantitative index and evaluation object, quantitative index can be divided into positive and negative indexes. Different types of indexes have different membership function curves (Figure B1). For positive indexes, such as permafrost thickness and vegetation coverage in this study, the larger the value, the higher the evaluation object level. But for negative indexes, such as seasonal thawing depth and mean annual ground temperature, the larger the value, the lower the evaluation object level. The membership degree of positive indexes under different evaluation levels can be calculated by Eqs. (B1)-(B4). The calculation method for membership degree of negative index is similar to that of positive index, and can be obtained by Figure B1(b), which is not specifically listed here:
(B1)
(B2)
(B3)
(B4)
where rij1, rij2, rij3 and rij4 are the membership degrees of factor Uij at different evaluation levels; x is the actual value of the factor; C1, C2, C3 and C4 are the grading standards of evaluation levels. For level interval only containing the upper limit or the lower limit, the grading standard directly takes the limit value, but for level interval containing both the upper and lower limits, the standard takes the median of the upper and lower limits.

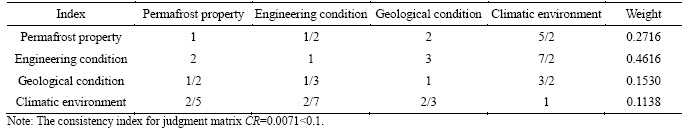

Table A1 Judgment matrix and weight of evaluation index for rule hierarchy

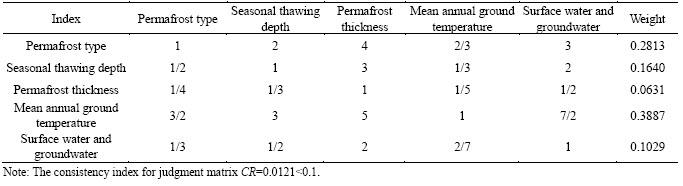

Table A2 Judgment matrix and weight for permafrost property

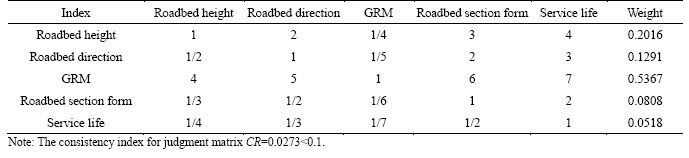

Table A3 Judgment matrix and weight for engineering condition

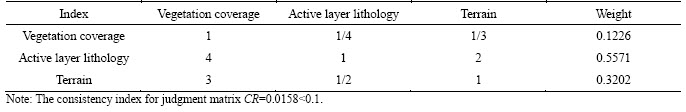

Table A4 Judgment matrix and weight for geological condition
Table A5 Judgment matrix and weight for climatic environment
Since the normal distribution function can reasonably indicate the fuzzy relation between an index and each evaluation level, a set of appropriate values with normal distribution characteristics are used as the fuzzy relation set of qualitative indexes in this study, namely single factor evaluation set. Table B1 shows the single factor evaluation set of qualitative indexes at different evaluation levels, which can be directly used for single factor evaluation.

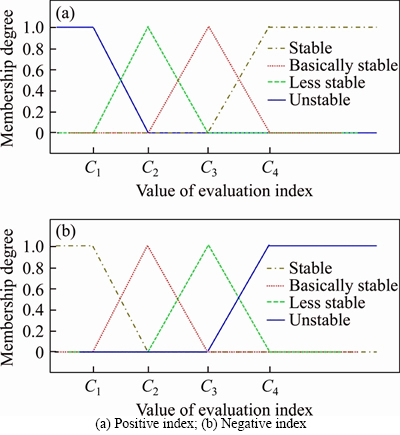

Figure B1 Fuzzy membership degree function curves:

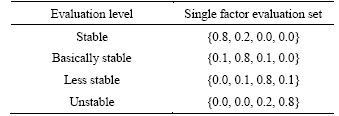

Table B1 Reference table of single factor evaluation set of qualitative indexes
Appendix C
Equations (C1)-(C4) present the calculation process of the fuzzy comprehensive evaluation set for permafrost property, engineering condition, geological condition and climatic environment, respectively:
(C1)
(C2)
(C3)
(C4)
The primary fuzzy comprehensive evaluation set is expressed as follows:
(C5)
The expressway stability index: Q=[0.4498, 0.2411, 0.2667, 0.0445] [100, 75, 50, 25]T=77.51.
Contributors
LUO Xiao-xiao established the models, predicted the stability and wrote the first draft of manuscript. MA Qin-guo provided the ideas and edited the draft of the manuscript. JIANG Hai-qiang analyzed the calculated results.
Conflict of interest
LUO Xiao-xiao, MA Qin-guo, and JIANG Hai-qiang declare that they have no conflict of interest.
