A nonlinear rheological damage model of hard rock
来源期刊:中南大学学报(英文版)2018年第7期
论文作者:杨圣奇 胡波 徐鹏
文章页码:1665 - 1677
Key words:Hard rock; multi-step loading and unloading cycles; nonlinear; damage; rheological model
Abstract: By adopting cyclic increment loading and unloading method, time-independent and time-dependent strains can be separated. It is more reasonable to describe the reversible and the irreversible deformations of sample separately during creep process. A nonlinear elastic-visco-plastic rheological model is presented to characterize the time-based deformational behavior of hard rock. Specifically, a spring element is used to describe reversible instantaneous elastic deformation. A reversible nonlinear visco-elastic (RNVE) model is developed to characterize recoverable visco-elastic response. A combined model, which contains a fractional derivative dashpot in series with another Hook’s body, and a St. Venant body in parallel with them, is proposed to describe irreversible visco-plastic deformation. Furthermore, a three-stage damage equation based on strain energy is developed in the visco-plastic portion and then nonlinear elastic-visco-plastic rheological damage model is established to explain the trimodal creep response of hard rock. Finally, the proposed model is validated by a laboratory triaxial rheological experiment. Comparing with theoretical and experimental results, this rheological damage model characterizes well the reversible and irreversible deformations of the sample, especially the tertiary creep behavior.
Cite this article as: HU Bo, YANG Sheng-qi, XU Peng. A nonlinear rheological damage model of hard rock [J]. Journal of Central South University, 2018, 25(7): 1665–1677. DOI: https://doi.org/10.1007/s11771-018-3858-9.
J. Cent. South Univ. (2018) 25: 1665-1677
DOI: https://doi.org/10.1007/s11771-018-3858-9
HU Bo(胡波)1, YANG Sheng-qi(杨圣奇)1, 2, XU Peng(徐鹏)1
1.State Key Laboratory for Geomechanics and Deep Underground Engineering,China University of Mining and Technology, Xuzhou 221116, China;
2. School of Mechanics and Civil Engineering, China University of Mining and Technology,Xuzhou 221116, China
Central South University Press and Springer-Verlag GmbH Germany, part of Springer Nature 2018
Abstract: By adopting cyclic increment loading and unloading method, time-independent and time-dependent strains can be separated. It is more reasonable to describe the reversible and the irreversible deformations of sample separately during creep process. A nonlinear elastic-visco-plastic rheological model is presented to characterize the time-based deformational behavior of hard rock. Specifically, a spring element is used to describe reversible instantaneous elastic deformation. A reversible nonlinear visco-elastic (RNVE) model is developed to characterize recoverable visco-elastic response. A combined model, which contains a fractional derivative dashpot in series with another Hook’s body, and a St. Venant body in parallel with them, is proposed to describe irreversible visco-plastic deformation. Furthermore, a three-stage damage equation based on strain energy is developed in the visco-plastic portion and then nonlinear elastic-visco-plastic rheological damage model is established to explain the trimodal creep response of hard rock. Finally, the proposed model is validated by a laboratory triaxial rheological experiment. Comparing with theoretical and experimental results, this rheological damage model characterizes well the reversible and irreversible deformations of the sample, especially the tertiary creep behavior.
Key words: Hard rock; multi-step loading and unloading cycles; nonlinear; damage; rheological model
Cite this article as: HU Bo, YANG Sheng-qi, XU Peng. A nonlinear rheological damage model of hard rock [J]. Journal of Central South University, 2018, 25(7): 1665–1677. DOI: https://doi.org/10.1007/s11771-018-3858-9.
1 Introduction
The stability of rock engineering is governed by the mechanical behaviors of surrounding rocks. There are a number of experimental studies on the basic deformational and failure behaviors of different rocks under complicated stress states [1–4]. However, the stability of rock engineering during a long period is related to the time-related properties of rocks, so rheological characteristic of soft and hard rock materials must be considered [5–11]. Especially, excavation activities in the deep underground always perturbed the stress state and affected the stability of surrounding rocks frequently. Moreover, the perturbed surrounding rocks subjected loading and unloading alternatively due to the excavation, whose rheological characteristics could not be ignored [12–15].
The creep deformation of rock consisted of reversible and irreversible deformations, and the time-related instability of rock engineering was closely related with the irreversible deformation [13]. Therefore, the elasto-visco-plastic behaviors of rock should be investigated, especially for the hard rock subjected higher geo-stress. MALAN [7] used a viscoelastic and developed viscoplastic theory to analyze the time-dependent deformational behavior of hard rock. To construct suitable creep models, the creep experiments are indispensable.DEBERNARDI et al [9] developed a new visco-plastic constitutive law and described the deformation features in tunnel excavations. MARANINI et al [14] presented a creep constitutive equation to characterize the rheological deformational behavior of granite. ZHAO et al [15] performed cyclic loading–unloading creep experiments on rocks to study the elasto- viscoplastic characteristics of iherzolites, and presented appropriate model to describe their creep deformations. XU et al [16] developed a nonlinear creep model to characterize the time-related deformational behaviors of green schists. CAO et al [17] presented a coupling model to calculate the relaxation loss of concrete. A CVISC model and a VIPLA model were developed to describe the creep behaviors of Apennines Clay Shale specimens by BONINI et al [18]. YANG et al [19] introduced a non-linear viscoplastic body to build a new creep equation to characterize the non-linear time-related deformational behaviors of diabase samples. SCIUM et al [20] deduced a damage equation based on a recoverable elastic-viscosity element to describe the time-dependent deformation and crack width of concrete materials. MIURA et al [8] proposed a micro-crack propagation model to predict the long period deformational result of hard rock and this model can reflect the creep rupture mechanism. SHAO et al [21] developed an anisotropic constitutive model to explain the anisotropic damage in brittle rocks, and applied the model to characterize the creep deformation of Lac du Bonnet granite. LI et al [22] presented a micro- mechanical constitutive equation to investigate the relation between macro rheological mechanical behavior and micro-crack extension of brittle rock. WEN et al [23] considered the discontinuity in natural rocks and then presented a simple multi axial damage creep constitutive equation. KACHANOV [24] presented damage concept in materials groundbreaking, then MURAKAMI [25] developed a damage model considering anisotropy in materials and KYOYA [26] used the presented damage concept to research rock materials. LIU et al [27] constructed a rate-damage creep model based on Kachanov’s report and detailed how to determine the creep parameters. YANG et al [28] performed triaxial compressive tests to explore the traditional triaxial and creep mechanical behaviors of marbles under cyclic loading and unloading, and proposed a visco-elastic-plastic rheological model to explain time-based deformational behavior of sample. HU et al [29] developed a damage model base on CVISC model to characterize tertiary creep of argillaceous siltstone. BUI [30] proposed a constitutive model extended from the original Lemaitre’s model for creep behavior of partially saturated rocks.
Moreover, fractional calculus was applied to describe materials’ visco-elastic and visco-plastic deformational behaviors [31–33]. WELCH et al [34] presented a constitutive model based on fractional calculus for describing the elastic- viscosity time-related deformation of polymeric material. CELAURO et al [35] deduced a simple creep constitutive equation to predict creep/recover behavior of asphalt mixtures. ZHOU et al [36, 37] used fractional calculus to deduce a nonlinear viscosity damage growth equation, which can reflect creep deformation of salt rock. KANG et al [38] presented an elastic-viscoplastic rheological equation to describe coal’s nonlinear time-based deformation.
However, there is no much report about a kind of rheological model to characterize the loading and unloading deformation behavior of hard rock. Especially, it is able to describe the reversible and irreversible characteristics of the sample. Consequently, in order to explain and predict the rheological deformation for hard rock during a long period, and explore its time-based damage evolution, a rheological constitutive model should be developed. A non-linear rheological damage model based on component model composing of the linear-elastic element, the plastic slider element, a new RNVE model, and a fractional derivative dashpot with damage, was presented. Finally, the proposed model was verified by cyclic loading and unloading experiment.

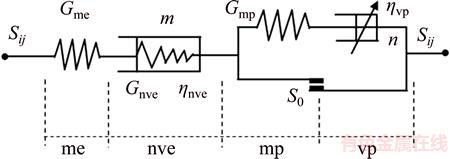

2 Non-linear rheological damage model
During creep experiment, specific strains can be separated by cyclic loading and unloading method, which include reversible strain and irreversible strain. The reversible strain can be divided into instantaneous elastic strain (εme) and visco-elastic strain (εve), whereas the irreversible strain can be divided into instantaneous plastic strain (εmp) and visco-plastic strain (εvp), as shown in Figure 1. Moreover, total strain (ε) also can be divided into time-independent strain (εm) and time-dependent strain (εc) [39, 40], which can be expressed as
εm=εme+εmp (1)
εc=εve+εvp (2)
Figure 1 A typical sketch of different strains during creep test
XIA et al [39] supposed that the shape of reversible curve during loading was the same to that of delayed reversible curve, and the visco-plastic curve under loading can be obtained by creep curve and visco-elastic curve. Therefore, to characterize the different time-based curves during rheological experiment, a rheological model is studied as following parts.
2.1 Recoverable deformation model
2.1.1 Instantaneous elastic model

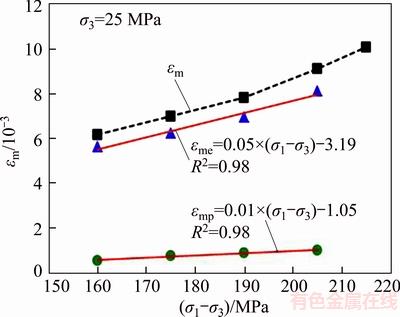

Lots of creep experiment results showed that instantaneous elastic deformation has a linear correlation with deviatoric stress [13–15, 40], therefore, it can be described by a Hooke body, as shown in Figure 2. The three dimensional state formulation can be written as Eq. (3).
(3)
where Sij and σm represent the deviatoric stress tensor and the mean stress tensor, correspondingly, eme and εm are respectively the corresponding deviatoric strain tensor and mean strain tensor, Ke and Gme are respectively the bulk moduli and the shear moduli. When confining pressures are same (σ2=σ3), the mean stress (σm) can be calculated by Eq. (4), and Eq. (5) can be used to calculate the mean strain (εm). Eq. (6) can be used to calculate the axial deviatoric stress (S11) [41].
(4)
(5)
(6)

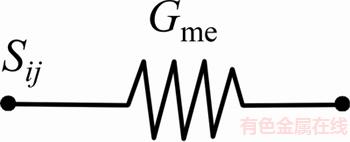

Figure 2 Instantaneous elastic model (Hooke body)
The bulk modulus (Ke) of material can be calculated by Eq. (7).
(7)

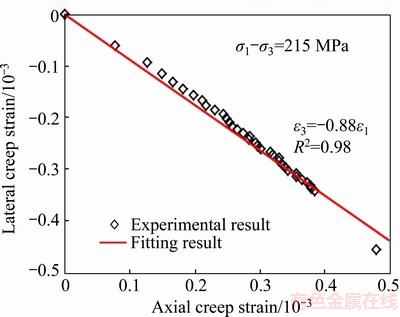

where E represents the elastic modulus and μ represents Poisson ratio of rock sample.
Assuming that the mean stress tensor just makes rock yield volume deformation and the deviatoric stress tensor just induces rock to adjust shape including time-dependent deformation [42]. Considering the hydrostatic pressure is unable to be unloaded during triaxial compressive creep experiment, so the axial strain produced by hydrostatic pressure can be recognized as a part of irrecoverable plastic strain. Instant elastic strain can be calculated by Eq. (8), and Gme can be calculated by Eq. (9).
(8)
(9)
2.1.2 Nonlinear viscoelastic rheological model
As well known, Kelvin body, as shown in Figure 3, is able to describe the viscoelastic recoverable strain for rock [42], whose constitutive and creep equations can be written as Eqs. (10) and (11).
(10)
(11)
where Sij is the deviatoric stress tensor; eve represents corresponding recoverable deviatoric strain tensor; ηve and Gve represent Kelvin element’s viscosity parameter and shear modulus.

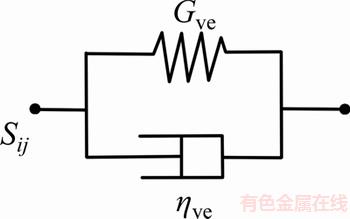

Figure 3 Viscoelastic model (Kelvin body)
However, the Kelvin model is unable to characterize well the delayed recoverable strain of the hard rock under high pressure condition (e.g.,the results of sample after unloaded deviatoric stresses in the later validation portion). YANG et al [43] reported that the time scale had a great influence on the creep parameters of model and the shear modulus and viscosity coefficient showed nonlinear correlations with time. Inspired by XU et al [16], we proposed RNVE model, as shown in Figure 4, whose one-dimensional stress–strain relation can be expressed as Eq.(12).
(12)
where A and B represent intrinsic properties of rock; m is time index (m>0); C is an integration constant; t1 and t0 are initial time and unit time, which can be determined by initial conditions.

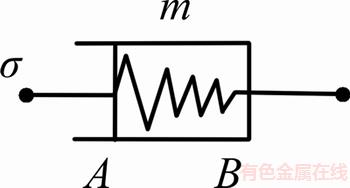

Figure 4 Recoverable nonlinear viscoelastic model
Under loading condition, when σ=σl, t=t1=0, ε=0, C can be worked out and creep constitutive expression is
(13)
When the loading is unloaded to some value at time t1, where t=t1≠0, σ=σu, ε=ε1, the unloading constitutive expression can be written as
(14)
When t≥t1≠0 and σu=0, the unloading equation can be simplified as
(15)
The three-dimensional creep equations under loading and unloading conditions can be written as Eqs. (16) and (17).
(16)
(17)
where Gnve and ηnve are material parameters in three- dimensional condition which are similar to the shear modulus and viscosity coefficient of Kelvin model in unit time.
Figure 5 plots the comparison results between different models and test result. According to the fitting result, the RNVE model agrees well with the test results comparing with Kelvin component by assuming that the shape of reversible visco-elastic strain curve under unloading stage is the same to that under loading phase.
Figure 5 Comparison with Kelvin and RNVE model

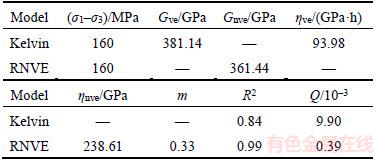

Table 1 Model parameters of Kelvin and RNVE model
Therefore, the axial recoverable strain, which includes instant elastic and recoverable visco-elastic stains, can be expressed as
(18)
2.2 Irrecoverable deformation model
2.2.1 Instantaneous plastic model
The instantaneous plastic strain can be characterized by the parallel combination of Hooke and plastic slider bodies [13, 15, 40], as shown in Figure 6. Similarly, instantaneous plastic strain can be expressed as
(19)
where Gmp is shear modulus; Kp is bulk modulus; S0 is the stress threshold above which irrecoverable plastic strain will be produced. Kp also can be calculated by Eq. (7), and Gmp can be calculated by
(20)

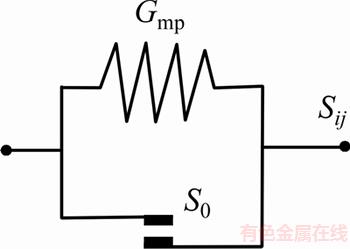

Figure 6 Instantaneous plastic model

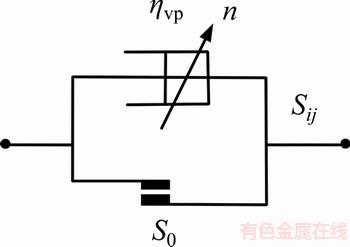

2.2.2 Visco-plastic rheological model

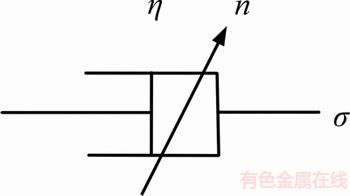

Figure 7 plots a widely used basic fractional derivative component substituted conventional dashpot [44, 45], which was able to describe the deformation between ideal fluid and solid. The model expression of fractional derivative dashpot is
