Morphology and photoluminescence of BaMoO₄micro- and nano-crystals synthesized by coprecipitation method

Marziyeh GHAED-AMINI¹, Mehdi BAZARGANIPOUR², Masoud SALAVATI-NIASARI¹, Kamal SABERYAN³

1. Institute of Nano Science and Nano Technology, University of Kashan, Kashan, P. O. Box. 87317-51167, Iran;

2. Nanotechnology and Advanced Materials Institute, Isfahan University of Technology, Isfahan, P. O. Box 84156-83111, Iran;

3. Nuclear Fuel Cycle Research School, NSTRI, Tehran, P. O. Box 11365-8486, Iran

Received 25 January 2015; accepted 4 June 2015

Abstract: Barium molybdate (BaMoO₄) micro- and nano-crystals were synthesized by the coprecipitation method. Utilizing the water as the solvent provides octahedron-like nanostructures. These nano-crystals were structurally characterized by X-ray diffraction, energy dispersive X-ray micro-analysis, Fourier transform infrared spectra. The size and shape were observed by scanning electron microscopy. The optical properties were studies by ultraviolet-visible diffuse reflectance spectroscopy and photoluminescence measurements at room temperature. The effects of temperature, solvent, surfactant and barium source were considered to obtain a controlled shape. It is found that the morphology, particle size and phase of the final products are extremely affected by these parameters.

Key words: BaMoO₄; microcrystals; nanocrystals; coprecipitation; photoluminescence

1 Introduction

The molybdates have fascinated much consideration because of their particular luminescence and structure originated from the MoO₄^2- group [1,2]. Among the molybdate oxides with scheelite-type tetragonal structure, such as AMoO₄ (A=Sr²⁺, Ca²⁺, Pb²⁺ and Cd²⁺), BaMoO₄ is a significant material, so that many studies have been performed on the synthesis technique and optical properties of BaMoO₄ [3-10]. A current tendency in material synthesis is to investigate new methods to control the architecture and morphology at all dimensions from the nanoscale to macroscopic scale.

Diverse methods have been explored to synthesize these materials, involving solid-state reaction [11], electrochemical method [12], combustion synthesis [13], reverse microemulsion process [14], complex polymerization [15], solvothermal synthesis [16], molten salt route [17] and microwave-assisted citrate complex method [18]. Among all these approaches, the coprecipitation process has demonstrated to be an effective approach to synthesize inorganic nanomaterials with interesting morphologies and regular particle sizes [19-26].

In this work, a new coprecipitation approach was proposed to synthesize homogeneous octahedron-like BaMoO₄ nanostructures. Furthermore, the morphology of BaMoO₄ nanostructures can be regulated by adjusting the processing parameters.

The reaction was proceeded in an open system at atmospheric pressure. No other additives were utilized. This method has apparent advantages like easy experimental set-up, easy handling, short reaction time, environmental friendliness, and the process is very simple, fascinating and novel by focusing large amount of coprecipitation into the solutions to manufacture pure products. To the best of our knowledge, no such studies have ever been reported.

2 Experimental

2.1 Synthesis of octahedron-like BaMoO₄ nanostructures

BaMoO₄ nanostructures were prepared by a simple coprecipitation method. In a typical procedure, an aqueous solution of Ba(Sal)₂ (Sal=salicylidene) in the presence of different surfactants, such as poly vinyl pyrrolidone (PVP), sodium dodecyl sulfate (SDS) and cetyl trimethyl ammonium bromide (CTAB), was mixed with (NH₄)₆Mo₇O₂₄ aqueous solution and the mixed solution was heated up to 70 °C for 2 h. The white precipitate was centrifuged, washed with distilled water and methanol three times and dried under vacuum at 60 °C. The effects of temperature, solvent, surfactant and barium source on the morphology and particle sizes of BaMoO₄ nanostructures were investigated.

2.2 Synthesis of Ba(Sal)₂ complex

[Ba(Sal)₂] was synthesized as follows: 2 mmol barium(II) nitrate [Ba(NO₃)₂·4H₂O] was dissolved in  40 mL distilled water, a solution of 4 mmol salicylaldehyde dissolved in the same volume of methanol was dropwise added to the above solution under magnetic stirring. After the addition of all reagents, the mixture was refluxed for about 3 h.

2.3 Materials and experiments

All the chemicals were of analytical grade and purchased from Merck and used as-received without further purification. X-ray diffraction (XRD) patterns were recorded by a Rigaku D-max C III X-ray diffractometer using Ni-filtered CuK_α radiation. Scanning electron microscopy (SEM) images were obtained on a Philips XL-30ESEM scanning electron microscope equipped with an energy dispersive X-ray spectroscopy (EDX). Fourier transform infrared spectroscopy (FT-IR) was recorded with a Shimadzu Varian 4300 spectrophotometer in KBr pellets. EDS analysis was performed on a Philips EM208 energy dispersive spectrometer. Room temperature photo- luminescence (PL) was studied on a PerkinElmer (LS 55) fluorescence spectrophotometer. Transmission electron microscopy (TEM) images were obtained on a JEM- 2100 transmission electron microscope with an accelerating voltage of 200 kV.

3 Results and discussions

3.1 XRD analyses

The crystal structure and composition of the as-prepared products were determined by XRD. The XRD patterns of the barium molybdates obtained under different conditions (surfactant) are presented in Fig. 1. All peaks in Fig. 1 correspond to the reflections of tetragonal phase of BaMoO₄. which are in a good agreement with the reported data (JCPDS: 08-0455). No remarkable diffractions of other phases can be found in the XRD patterns, exhibiting that a pure BaMoO₄ phase forms.

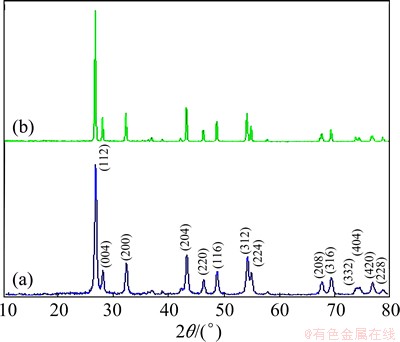

Fig. 1 XRD patterns of BaMoO₄ nanostructures obtained in presence of SDS and methanol (a), and CTAB and water (b) at 30 °C

3.2 FT-IR analyses

Figure 2 shows the FT-IR spectra of Ba(Sal)₂ precursor and BaMoO₄ nanostructures. The vibrations of BaMoO₄ are sorted into the internal and external modes [27]. The first belongs to the vibration inside [MoO₄]^2- units. Their centers of masses are stationary. The second is called lattice phonon mode which corresponds to the motion of Ba²⁺cations and the rigid molecular units [27-29]. Figure 2(a) exhibits the FT-IR spectrum of BaMoO₄ nanostructures acquired in methanol as the solvent and SDS as the surfactant. The spectrum illustrates a band of Mo—O stretching vibration in tetrahedral MoO₄^2- clusters [15] at 791-900 cm^-1. It is one of the internal modes indicated as antisymmetric stretching vibrations [15] of the three products. Weak Mo—O bending vibrations [28] are also discerned at about 403 cm^-1 for BaMoO₄ nanostructures. In the case of [Ba(Sal)₂] (Fig. 2(b)), the peaks at 1525 and 1639 cm^-1 belong to the C—O stretching vibrations (v_C—O) and the peak at 1436 cm^-1 belongs to C—C stretching vibrations (v_C—C) of the salicylaldehyde. Free salicylaldehyde v_C—O emerges at 1680 and 1660 cm^-1, and v_C—C emerges at 1490 and 1380 cm^-1. Upon complex formation, these stretching vibrations shift to lower regions. The broad absorption band nearby 3332 cm^-1 in Fig. 2(a) is appointed to the stretching vibrations of absorbed water. The absorption peaks at 469-939 cm^-1 belong to Ba—O band, there are no absorption bands nearby this range in salicylaldehyde.

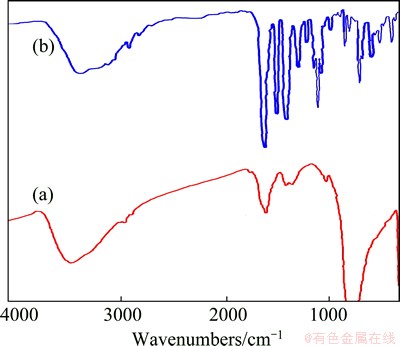

Fig. 2 FT-IR spectra of BaMoO₄ (a) and Ba(Sal)₂ (b) obtained in presence of SDS and methanol at 30 °C

3.3 EDX analysis

EDX analysis was employed to investigate the chemical composition and purity of as- synthesized BaMoO₄ nanostructures. The EDX pattern of BaMoO₄ shown in Fig. 3 exhibits that the only existing elements are Ba, Mo and O. No peak of any impurity is observed, indicating the high purity of the product.

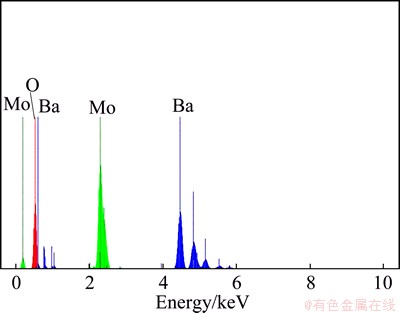

Fig. 3 EDX pattern of BaMoO₄

3.4 SEM images

The morphologies of the samples were investigated by SEM. To explore the effect of surfactant on the morphology of the products, the reaction was performed in the presence of three different surfactants in methanol at 30 °C for 2 h. The SEM images of the samples obtained in the presence of CTAB, PVP and SDS are displayed obtained in Figs. 4(a)-(c), respectively. Figure 4(a) exhibits rod-like nanostructures in the presence of CTAB as the surfactant. In the presence of PVP and SDS as the surfactants, only particle nanostructures form (Figs. 4(b) and (c)).

Figure 5 shows the SEM images of the samples synthesized at 30 °C for 2 h with different solvents via the coprecipitation method. In the presence of propylene glycol (PG) as the solvent, rod-like nanostructures are shaped (Fig. 5(a)). The morphology of as-prepared products changes to octahedron-like nanostructures, when water is utilized as the solvent, as exhibited in Fig. 5(b). Probably, the reason is that the PG is more polar agent than water and can protect the as-formed nuclei in three dimensions and restrict them from further growing in one direction and hinder the formation of octahedron- like nanostructures.

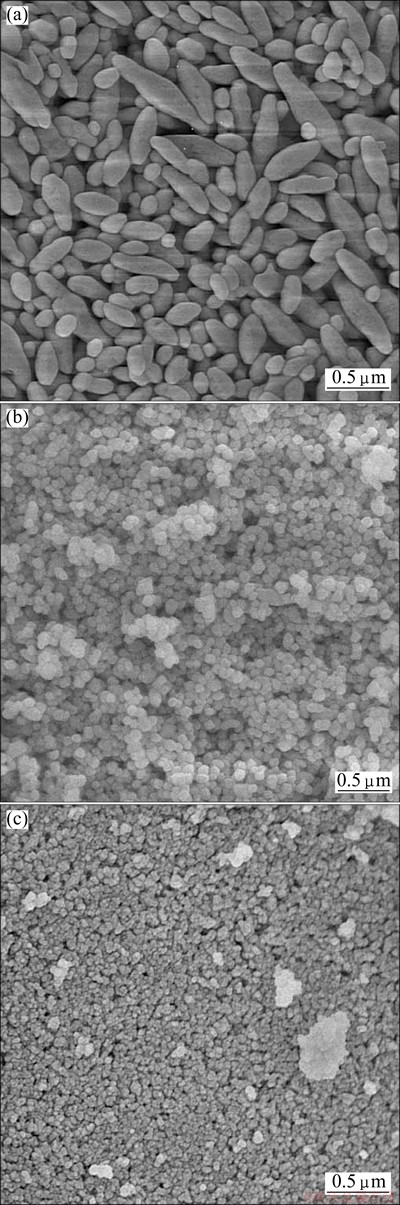

Fig. 4 SEM images of BaMoO₄ obtained from Ba(Sal)₂ and (NH₄)₆Mo₇O₂₄·4H₂O in methanol via coprecipitation method in presence of CTAB (a), PVP (b) and SDS (c) as surfactant

Figure 6 shows the SEM images of the samples obtained at 30, 50 and 70 °C. It can be observed that with increasing the reaction temperature from 30 to 70 °C, the size of the nanostructures and their agglomeration enlarge.

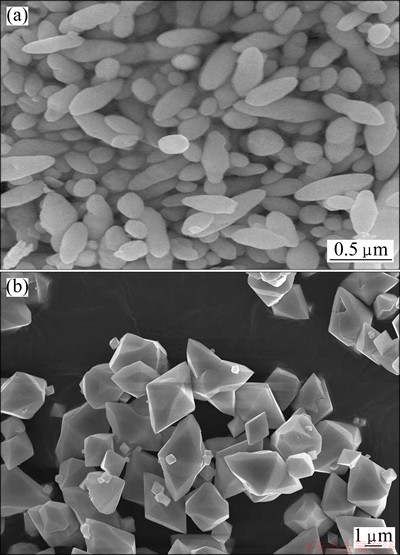

Fig. 5 SEM images of BaMoO₄ obtained from Ba(Sal)₂ and (NH₄)₆Mo₇O₂₄·4H O via coprecipitation method with PG (a) and H₂O (b) as solvents

The effect of the Ba source on the morphology of BaMoO₄ nanostructures was explored (Fig. 7). Here, Ba(NO₃)₂ is used as the Ba source and other reaction parameters remain unchanged. Plate-like barium molybdate nanostructures are obtained from Ba(NO₃)₂ salt, as shown in Fig. 7. Figure 8 exhibits octahedron-like barium molybdate nanostructures obtained in the presence of CTAB as the surfactant and water as the solvent. It is proved that water as solvent has critical role for the formation of octahedron-like barium molybdate nanostructures.

3.5 TEM images

Figure 9 shows the TEM images and SAED pattern of BaMoO₄ nanostructures obtained in the presence of SDS and methanol at 30 °C. The obtained TEM images show exhibit that BaMoO₄ nanostructures with an average size of 20 nm and particle-like shape are obtained. The ring-like SAED pattern illustrates that the nanostructures are polycrystalline.

3.6 Optical properties

Figure 10 shows the (αhυ)² versus hυ curve of BaMoO₄ nanostructures which was calculated from their UV–visible absorbance using the equation proposed by THONGTEM et al [29]:

αhυ=(hυ-E_g)ⁿ                                      (1)

where α is the absorbance, h is the Planck constant, υ is the photon frequency, E_g is the energy gap and n is the pure number associated with different types of electronic transitions. For n=1/2, 2, 3/2 and 3, the transitions are directly allowed, indirectly allowed, directly forbidden and indirectly forbidden, respectively. Each energy gap is determined by the extrapolation of each linear portion of the curves to α=0. In the current investigation, the BaMoO₄ presents directly allowed electronic transition (n=1/2) [29], and the energy gaps of BaMoO₄ nanostructures is 4.27 eV.

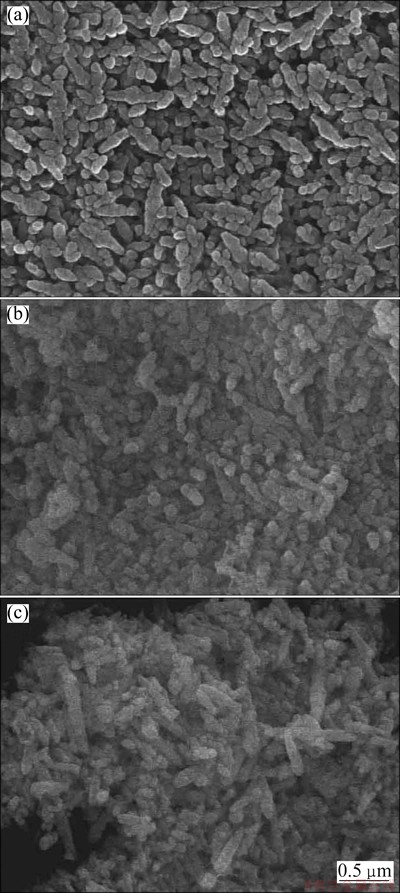

Fig. 6 SEM images of BaMoO₄ obtained from Ba(Sal)₂ and (NH₄)₆Mo₇O₂₄·4H₂O in methanol via coprecipitation method at 30 °C (a), 50 °C (b) and 70 °C (c)

The photoluminescence properties of the prepared BaMoO₄ nanostructures excited at 275 nm at room temperature are shown in Fig. 11. The emission spectra of the metal molybdates are principally due to the charge-transfer transitions within the [MoO₄]^2- complex [30]. With the excitation at 275 nm, BaMoO₄ nanostructures reveal PL emission in the wavelength of 303 nm (Fig. 11). It is usually accepted that the emission spectra of the barium molybdates are mostly influenced by charged transitions in the [MoO₄]^2- complexes, involving some factors such as the distortions of [MoO₄]^2- tetrahedron groups happened by the different angles of O—Mo—O, particle sizes, crystalline degree, morphology and surface defects [29].

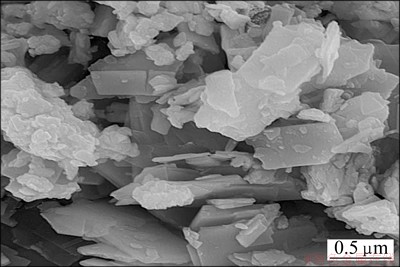

Fig. 7 BaMoO₄ nanostructures obtained from Ba(NO₃)₂ and (NH₄)₆Mo₇O₂₄·4H₂O

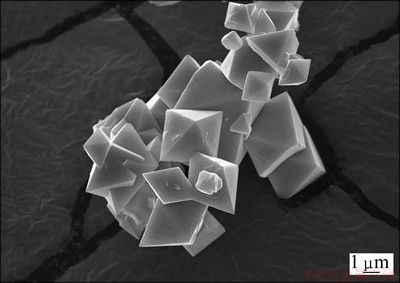

Fig. 8 Octahedron-like BaMoO₄ nanostructures obtained in presence of CTAB and water at 30 °C

4 Conclusions

1) Octahedron-like BaMoO₄ nanostructure was successfully synthesized from Ba(Sal)₂ and ammonium hepta molybdate using a simple coprecipitation method at low temperature and pressure.

2) The coprecipitation method has apparent advantages like easy experimental set-up, easy handling, short reaction time, environmental friendliness, and the process is very simple, fascinating and novel by focusing large amount of coprecipitation into the solutions to manufacture pure products.

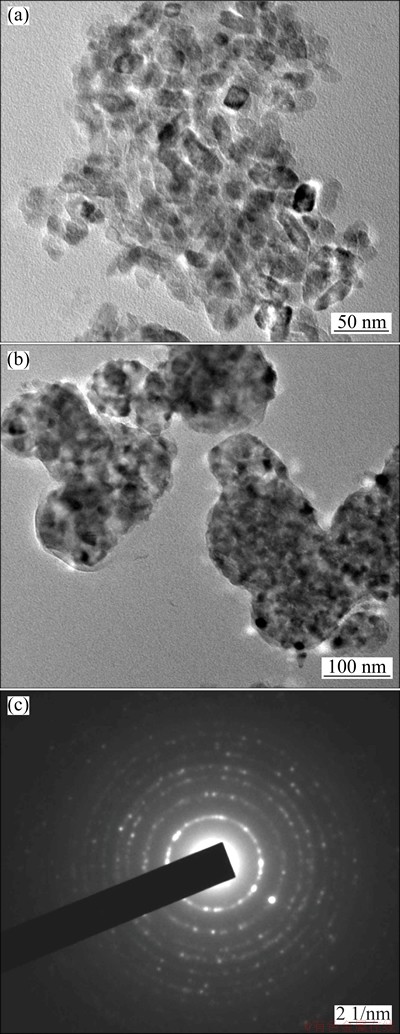

Fig. 9 TEM images (a, b) and SAED pattern (c) of BaMoO₄ nanostructures obtained in presence of SDS and methanol at 30 °C

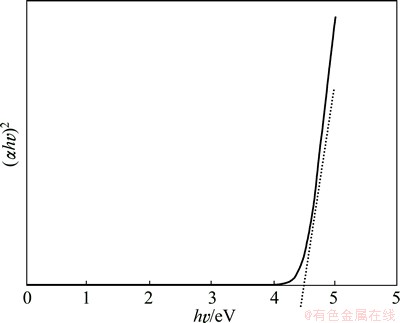

Fig. 10 (αhυ)² vs hυ plot of BaMoO₄ nanostructures obtained in presence of SDS and methanol at 30 °C

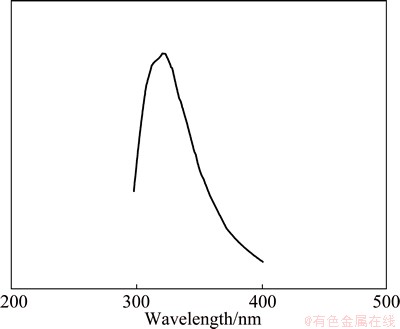

Fig. 11 PL spectrum of BaMoO₄ nanostructures obtained in presence of SDS and methanol at 30 °C

Acknowledgment

The authors are grateful to the council of Iran National Science Foundation and University of Kashan for supporting this work by Grant No. 159271/148.

References

[1] CHEN Z X, BU W B, ZHANG N, SHI J L. Controlled construction of monodisperse La₂(MoO₄)₃:Yb, Tm micro-architectures with upconversion luminescent property [J]. J Phys Chem C, 2008, 112: 4378-4383.

[2] SU Y G, LI L P, LI G S. Self-assembly and multicolor emission of core/shell structured CaWO₄:Na⁺/Ln³⁺ spheres [J]. Chem Commun, 2008, 34: 4004-4006.

[3] LUO Z J, LI H M, SHU H M, SHU K X, XIA J X, YAN Y S. Synthesis of BaMoO₄ nestlike nanostructures under a new growth mechanism [J]. Cryst Growth Des, 2008, 8: 2275-2281.

[4] LUO Y S, ZHANG W D, DAI X J, YANG Y, FU S Y. Facile synthesis and luminescent properties of novel flower like BaMoO₄ nanostructures by a simple hydrothermal route [J]. J Phys Chem C, 2009, 113: 4856-4861.

[5] ROSA I L V, MARQUES A P A, TANAKA M T S, MELO D M A, LEITE E R, LONGO E, VARELA J A. Synthesis, characterization and photophysical properties of Eu³⁺ doped in BaMoO₄ [J]. J Fluoresc, 2008, 18: 239-245.

[6] XIA Z G, CHEN D M. Synthesis and luminescence properties of BaMoO₄:Sm³⁺ phosphors [J]. J Am Ceram Soc, 2010, 93: 1397-1401.

[7] XIA Z, JIN S, SUN J, DU H, DU P, LIAO L. Facile morphology-controlled synthesis and luminescence properties of BaMoO₄:Eu³⁺ microparticles and micro-rods obtained by a molten-salt reaction route [J]. Journal of Nanoscience and Nanotechnology, 2011, 11: 9612-9620.

[8] CAVALCANTE L S, SCZANCOSKI J C, TRANQUILIN R L, VARELA J A, LONGO E, ORLANDI M O. Growth mechanism of octahedron-like BaMoO₄ microcrystals processed in microwave- hydrothermal: Experimental observations and computational modeling [J]. Particuology, 2009, 7: 353-362.

[9] RYU E K, HUH Y D. Synthesis of hierarchical self-assembled BaMoO₄ microcrystals [J]. Bull Korean Chem Soc, 2008, 29: 503-506.

[10] CAVALCANTE L S, SCZANCOSKI J C, TRANQUILIN R L, JOYA M R, PIZANI P S, VARELA J A, LONGO E. BaMoO₄ powders processed in domestic microwave-hydrothermal: Synthesis, characterization and photoluminescence at room temperature [J]. Journal of Physics and Chemistry of Solids, 2008, 69: 2674-2680.

[11] PUPP C, YAMDAGNI R, PORTER R F. Mass spectrometric study of the evaporation of BaMoO₄ and BaWO₄ [J]. J Inorg Nucl Chem, 1969, 31: 2021-2029.

[12] SUN Y, MA J, FANG J, GAO C, LIU Z. Synthesis of BaMoO₄ high photoluminescent whiskers by an electrochemical method [J]. Ceramics International, 2011, 37: 683-686.

[13] XIA C T, FUENZALIDA V M, ZARATE R A. Electrochemical preparation of crystallized Ba_1-xSr_xMoO₄ solid-solution films at room-temperature [J]. J Alloy Compd, 2001, 316: 250-255.

[14] MI Y, HUANG Z Y, HU F L, LI X Y. Room temperature reverse-microemulsion synthesis and photoluminescence properties of uniform BaMoO₄ submicro-octahedra [J]. Mater Lett, 2009, 63: 742-744.

[15] de AZEVEDO MARQUES A P, de MELO D M A, PASKOCIMAS C A, PIZANI P S, JOYA M R, LEITE E R, LONGO E. Photoluminescent BaMoO₄ nanopowders prepared by complex polymerization method (CPM) [J]. J Solid State Chem, 2006, 179: 671-678.

[16] ZHANG C, SHEN E H, WANG E B, KANG Z H, GAO L, HU C W, XU L. One-step solvothermal synthesis of high ordered BaWO₄ and BaMoO₄ nanostructures [J]. Mater Chem Phys, 2006, 96: 240-243.

[17] AFANASIEV P. Molten salt synthesis of barium molybdate and tungstate microcrystals [J]. Mater Lett, 2007, 61: 4622-4626.

[18] RYU J H, YOON J W, LIM C S, SHIM K B. Microwave-assisted synthesis of barium molybdate by a citrate complex method and oriented aggregation [J]. Mater Res Bull, 2005, 40: 1468-1476.

[19] SHAHRI Z, BAZARGANIPOUR M, SALAVATI-NIASARI M. Controllable synthesis of novel zinc molybdate rod-like nanostructures via simple surfactant-free precipitation route [J]. Superlattices Microstruct, 2013, 63: 258-266.

[20] GHOLAMI T, SALAVATI-NIASARI M, BAZARGANIPOUR M, NOORI E. Synthesis and characterization of spherical silica nanoparticles by modified process assisted by organic ligand [J]. Superlattices Microstruct, 2013, 61: 33-41.

[21] SALAVATI-NIASARI M, SHOSHTARI-YEGANEH B, BAZARGANIPOUR M. Facile synthesis of rod-shape nanostructures lead selenide via hydrothermal process [J]. Superlattices Microstruct, 2013, 58: 20-30.

[22] NOORI E, BAZARGANIPOUR M, SALAVATI-NIASARI M, GHOLAMI T. Synthesis and characterization of silica nanostructures in the presence of schiff-base ligand via simple sonochemical method [J]. J Clust Sci, 2013, 24: 1171-1180.

[23] GOUDARZI M, BAZARGANIPOUR M, SALAVATI-NIASARI M. Synthesis, characterization and degradation of organic dye over Co₃O₄ nanoparticles prepared from new binuclear complex precursors [J]. RSC Adv, 2014, 4: 46517-46520.

[24] MANDIZADEH S, BAZARGANIPOUR M, SALAVATI-NIASARI M. A low-cost and eco-friendly viable approach for green synthesis of barium haxaferrite nanostructures using palm oil [J]. Ceramics International, 2014, 40: 15685-15691.

[25] GHAED-AMINI M, BAZARGANIPOUR M, SALAVATI-NIASARI M. Calcium molybdate octahedral nanostructures, hierarchical self-assemblies controllable synthesis by coprecipitation method: Characterization and optical properties [J]. Journal of Industrial and Engineering Chemistry, 2015, 21: 1089-1097.

[26] GHOLAMREZAEI S, SALAVATI-NIASARI M, BAZARGANIPOUR M, PANAHI-KALAMUEI M, BAGHERI S. Novel precursors for synthesis of dendrite-like PbTe nanostructures and investigation of photoluminescence behaviour [J]. Advanced Powder Technology, 2014, 25: 1585-1592.

[27] BASIEV T T, SOBOL A A, VORONKO Y K, ZVEREV P G. Spontaneous Raman spectroscopy of tungstate and molybdate crystals for Raman lasers [J]. Optic Mater, 2000, 15: 205-216.

[28] THONGTEMA T, PHURUANGRAT A, THONGTEM S. Sonochemical synthesis of MMoO₄ (M = Ca, Sr and Ba) nanocrystals [J]. Journal of Ceramic Processing Research, 2008, 9: 189-191.

[29] THONGTEM T, KUNGWANKUNAKORN S, KUNTALUE B, PHURUANGRAT A, THONGTEM S. Luminescence and absorbance of highly crystalline CaMoO₄, SrMoO₄, CaWO₄ and SrWO₄ nanoparticles synthesized by co-precipitation method at room temperature [J]. J Alloy Compd, 2010, 506(1): 475-481.

[30] HONG G Y, JEON B S, YOO Y K, YOO J S. Photoluminescence characteristics of spherical Y_□2□O□₃:□Eu phosphors by aerosol pyrolysis [J]. J Electrochem Soc, 2001, 148: H161-H166.
