Trans. Nonferrous Met. Soc. China 26(2016) 2665-2671

Application of pre-alloyed powders for diamond tools by ultrahigh pressure water atomization

Zhi-qiang CHU^1,2, Xue-yi GUO¹, Dong-hua LIU², Yan-xian TAN², Dong LI¹, Qing-hua TIAN¹

1. School of Metallurgy and Environment, Central South University, Changsha 410083, China;

2. Hunan Research Institute of Metallurgy and Materials, Changsha 410129, China

Received 23 August 2016; accepted 12 October 2016

Key words: ultrahigh pressure water atomization; pre-alloyed powders; diamond tools; sintered segments

1 Introduction

In diamond tools industry, the traditional way to prepare metal matrix powder is EMMM method, which is difficult to achieve the pre-alloyed powder matrix and easily leads to powder oxidation, inhomogeneous matrix composition and solute segregation [1-3]. The control force between matrix material and diamond is poor, which results in poor mechanical properties of diamond tools, and short service life [4-6].

The elements can form intermetallic compounds and achieve partial or complete mutual dissolution during the preparation of pre-alloyed powder. Components segregation of matrix powder can be avoided, especially when all pre-alloyed powders are consistent with the nominal element composition [7]. By using the matrix pre-alloyed powder, activation energy can be greatly reduced, and thus reducing the sintering temperature and avoid the strength loss [8]. On the other hand, the microstructure of matrix is more uniform, and the density, the hardness and the bending strength of matrix are improved significantly, leading to the improvements in control force mechanical properties and service life of the diamond tools [9,10]. The process using pre-alloyed powder can be able to solve the uniform mixing problem of matrix powder, and enhance elements of matrix material which realize a fully coverage and contact between diamond.

The concept of using pre-alloyed powder in diamond tools was proposed by Umicore Corporation in Belgium since 1990s [11]. Researchers all over the world made a lot of efforts to the application of pre-alloyed powder in diamond tools [12-14]. At present, the main preparation method of the pre-alloyed powder for diamond tools is water atomization method and hydrometallurgical co-precipitation method [15-18]. Conventional water atomization method shows disadvantages of coarse particle size and high oxygen content in products, which limited its application [19,20]. UPWA technology, considered as the most effective way to improve the diamond tools performance, is based on conventional atomization technology and developed by spray nozzle optimization, atomization device design and rapid solidification technology. The pre-alloyed powder prepared by this method shows fine particle size, uniform composition segregation, low oxygen content, controllable particle morphology and low production cost [21,22]. In the present work, to explore the advantages of UPWA, three kinds of pre-alloyed powders were prepared by UPWA, CWA and EMMM separately. The powders were sintered to segments and compared in properties. Moreover, the fracture morphologies of sintered segments were characterized to explain their property differences.

2 Experimental

2.1 Materials and equipment

The experimental powders of copper, iron and cobalt based alloy were prepared by UPWA and CWA, and the powder produced by EMMM method was purchased. Technical performance of UPWA powder, water atomization powder and mechanical mixing metal matrix powder used in the experiment is listed in Table 1. The chemical composition of matrix powder material is listed in Table 2. Figure 1 exhibits the particle morphologies of UPWA pre-alloyed powders. Tables 1 and 2 show that the average particle size and the oxygen content of UPWA pre-alloyed powder are far lower than those of the EMMM matrix powder, and also show a certain decrease compared with CWA pre-alloyed powder.

Both the blank and the diamond added matrix materials with a size of 40 mm × 8 mm × 32 mm were prepared by SMVB60 vacuum sintering machine.

2.2 Sintered segment preparation

Matrix powder and diamond were uniformly mixed and then enclosed into graphite mold. Graphite mold was placed into an electrode pressure head. At 800-1000 °C, the metal matrix material was melted and combined with diamond. The sintered segment of diamond tool was prepared by a following cooling, mould unloading and polished smooth.

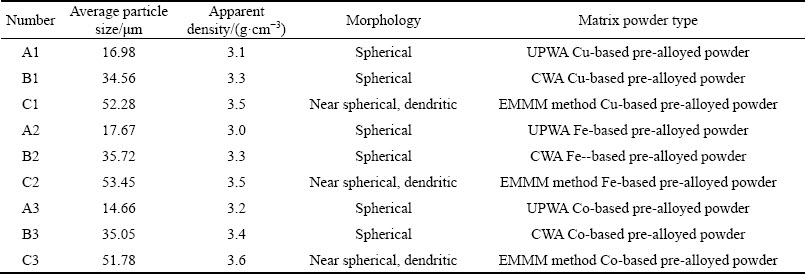

Table 1 Technical performance of UPWA powder

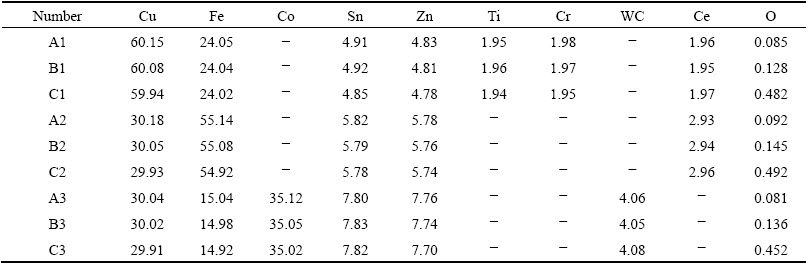

Table 2 Chemical composition of matrix powder material (mass fraction, %)

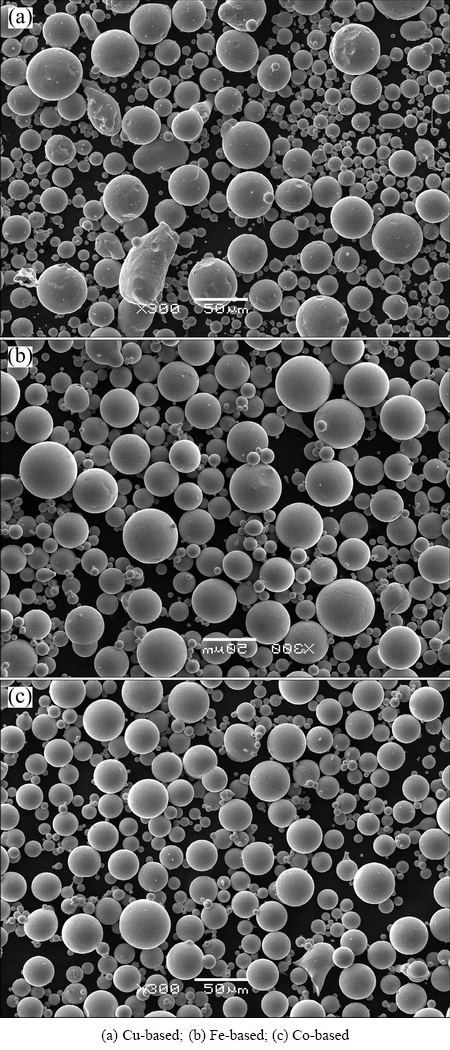

Fig. 1 Particle morphologies of UPWA powders

The diamond tool sinter segment preparations with blank and with diamond were similar. Blank diamond tool sintered segment preparation includes the procedures as testing of raw materials, mold assembly, weighting, feeding, loaded indented, hot pressing, cooling, unloading mode, polishing smooth, measurements, weighing and performance testing. Diamond tool sintered segment preparation includes the procedures as testing of raw materials, burden, mixture, mold assembly, weighting, feeding, loaded indented, hot pressing, cooling, unloading mode, polishing smooth, measurements, weighing and performance testing.

Liquid phase sintering process was used in all experiments. Parameters and operating procedures of the sintering process are listed in Table 3.

2.3 Performance characterization

The chemical composition of matrix powders was analyzed with a WFX-120 atomic absorption spectrometer and a TC-436 nitrogen-oxygen analyzer. Morphology of matrix powder particle was observed with a JSM-6360LV scanning electron microscopy. The average particle size of powder was measured by LS800 laser particle size analyzer.

The hardness of sintered segment was measured with an HR-150A Rockwell hardness. The bending strength of the sintered segment was tested by Nodal LD-508 type universal testing machine. The density of sintered segment was measured by drainage method. Fracture morphology of sintered segment was observed with a JSM-6360LV scanning electron microscope.

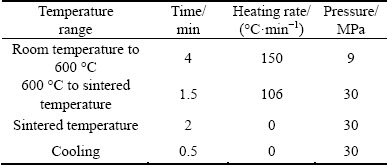

Table 3 Parameters and operating procedures of sintering process

3 Results and discussion

3.1 Mechanical properties of matrix diamond products

Table 4 lists the mechanical properties of sintered segments of Cu-based pre-alloyed powder prepared by UPWA, CWA and EMMM methods under the same composition recipe and sintering conditions.

It is found that the relative density, hardness and bending strength of sintered segments prepared by UPWA powders are higher than those prepared by EMMM. Diamond tool sintering is a process of powder curing to remove the holes. During the sintering, the pre-alloyed powder forms fine particle size and large surface area, which has a faster diffusion velocity to transform the hollow surface with high energy into solid crystals with low energy. The relative density, the hardness and the bending strength of diamond tools have been significantly improved. Therefore, the pre-alloyed powders have a higher bending strength than the powders prepared by EMMM method [23].

Table 4 also shows that compared with the CWA pre-alloyed powder, the UPWA pre-alloyed powder has the advantages of fine average particle size and low oxygen content, and the relative density, the hardness and the bending strength have also been improved.

3.2 Holding force calculation of matrix to diamond

Generally speaking, the interface between diamond and matrix is the source of fracture. So, the bending strength of sintered segments with diamond is lower than the ones with blank. The decreased value of bending strength can be used to measure the holding force of matrix to diamond [24]. The holding force coefficient (F) is calculated as follows:

Q=(σ_b-σ_d)/σ_b (1)

F=100(1-Q) (2)

where Q is the decreased bending strength value between diamond sintered segments and blank sintered segments; F is the holding force coefficient of matrix to diamond.

Under the same condition of ingredient formula and sintering process, the holding force coefficients of different matrix to diamond are listed in Table 5. The results show that the pre-alloyed powders, especially the UPWA powders, have a strong holding force to diamond. The oxygen content of UPWA pre-alloyed powder is reduced, leading to a higher holding force of matrix to diamond compared with the CWA pre-alloyed powder.

In diamond tools, diamond particles are generally distributed in the matrix. The cutting tools are abrased with matrix material during cutting stones. This makes the diamond particles abrased continuously [25,26]. So the losing degree of diamond during sawing process is an important indicator. Table 6 exhibits the calculation results of the losing degree of diamond during the sawing process under the same ingredient formula and sintering condition.

The losing degree of matrix segments prepared by the UPWA powders is lower than the ones prepared by EMMM powders. It is shown that the pre-alloyed powders prepared by UPWA have stronger holding force to diamond than CWA powders. This is consistent with the holding force coefficient results above.

3.3 Fracture analysis of blank matrix sintered segment

Figure 2 shows the fracture morphology of blank matrix sintered segment using Cu-based pre-alloyed powder prepared by UPWA, CWA and EMMM. It is found that the fracture morphology of the blank matrix sintered segment with pre-alloyed powder prepared by UPWA is dense and dimple, which is the typical characteristic of ductile material (Fig. 2(a)). As shown in Fig. 2(b), the fracture morphology of the blank matrix sintered segment with the CWA pre-alloyed powder is also dimple, but becomes larger compared with one in Fig. 2(a), which means a decrease in toughness of the matrix. In Fig. 2(c), the fracture morphology of the blank matrix sintered segment with the alloy powder prepared by EMMM shows smooth surface, which is the typical characteristic of brittle material. Accordingly, the fracture morphology of the blank matrix sintered segment using the pre-alloyed powder is ductile, while the one using EMMM powder is brittle. Conclusions can be obtained that the pre-alloyed powder has a significantly stronger holding performance to diamonds than the EMMM powder. The UPWA pre-alloyed powder also shows an improved holding ability to diamonds compared with the CWA powder.

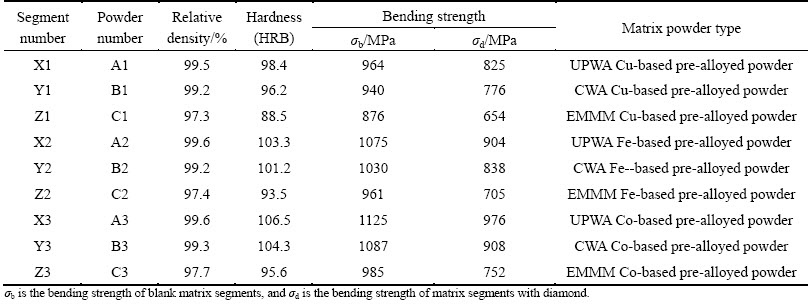

Table 4 Mechanical properties of sintered segments

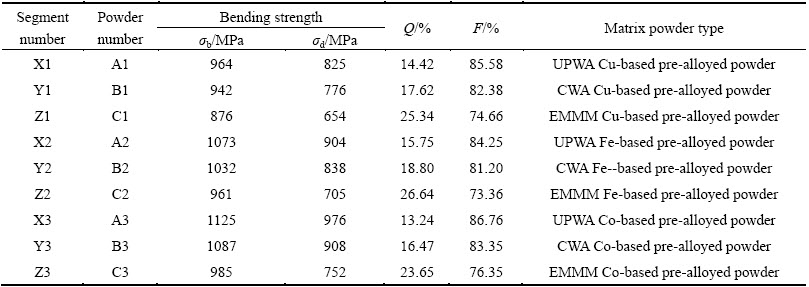

Table 5 Holding force coefficients of matrix to diamond

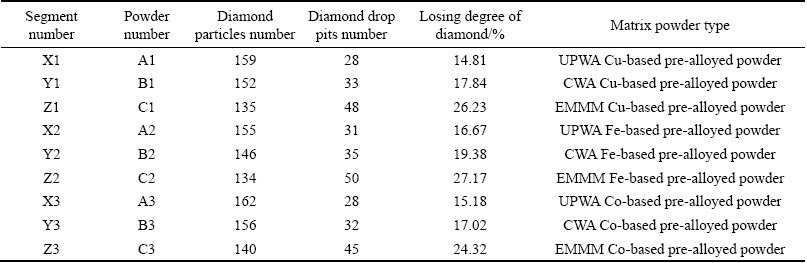

Table 6 Losing degree of diamond during sawing process

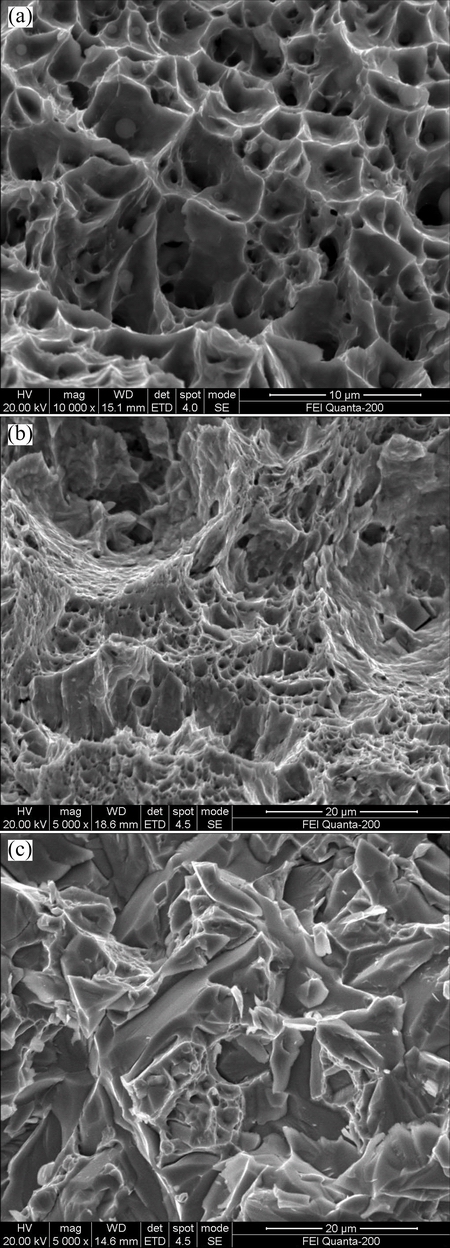

Fig. 2 Fracture morphologies of blank matrix sintered segments using Cu-based pre-alloyed powders prepared by UPWA (a), CWA (b) and EMMM (c)

3.4 Fracture analysis of diamonds matrix sintered segment

Figure 3 presents the fracture morphologies of the matrix sintered segments with diamonds using the Cu-based pre-alloyed powder prepared by UPWA, CWA and EMMM, respectively. In Fig. 3(a), no obvious gap is observed between diamond and the matrix material, revealing that the elements with strong carbide forming ability in the matrix material react with diamond in response. As a result, the bonding force is not only mechanical but also chemical. Thus, the holding ability of matrix material to diamonds is notably enhanced. The same phenomenon is also observed in Fig. 3(b). As can be seen in Fig. 3(c), the gap between diamond and matrix material is wide and continuous. The pit surface is dense and smooth. This phenomenon indicates that the bonding between the matrix and diamond is not chemical but mechanical. This indicates that the holding ability between the matrix material and diamonds is greatly increased by using the UPWA powder when compared with the EMMM powder.

4 Conclusions

1) The relative density, hardness and bending strength of matrix sintered segments prepared using the UPWA powder are greatly improved compared with those using the EMMM and CWA powders. The sintering temperature of the diamond tools is reduced as well as the diamond graphitization at high temperatures, when using the pre-alloyed powders, especially the UPWA powder. In addition, the mechanical properties of the diamond tools are also greatly improved.

2) Using the pre-alloyed powders, especially the UPWA powder, the holding force of matrix material to diamond is significantly improved.

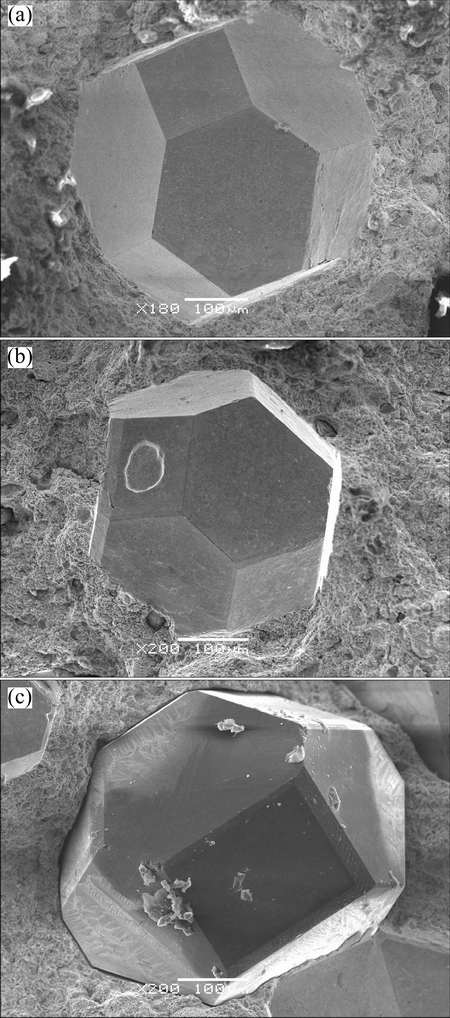

Fig. 3 Fracture morphologies of matrix sintered segments with diamond using Cu-based pre-alloyed powders prepared by UPWA (a), CWA (b) and EMMM (c)

3) The fracture of blank matrix sintered segments using the pre-alloyed powder is ductile fracture and the morphology is fine. The UPWA powder has a much stronger ability than the EMMM powder in the holding performance to diamond. The UPWA powder also shows a certain improvement compared with the CWA powder.

4) The bonding force between matrix and diamond is not only mechanical but also chemical. The pit surface is dense and smooth, and the bonding between matrix and diamonds is not chemical but mechanical. The holding ability between matrix and diamond is greatly increased by using the UPWA powder when compared with the EMMM powder.
