Effects of rapid quenching on microstructures and electrochemical properties of La_0.7Mg_0.3Ni_2.55Co_0.45B_x(x=0-0.2) hydrogen storage alloy

ZHANG Yang-huan(张羊换)^{1, 2}, DONG Xiao-ping(董小平)¹, WANG Guo-qing(王国清)²,

 GUO Shi-hai(郭世海)², REN Jiang-yuan(任江远)¹, WANG Xin-lin(王新林)²

1.School of Material, Inner Mongolia University of Science and Technology, Baotou 014010, China;

2.Department of Functional Material Research, Central Iron and Steel Research Institute, Beijing 100081, China

Received 29 August 2005; accepted 1 April 2006

Key words: La-Mg-Ni based electrode alloys; rapid quenching; microstructures; electrochemical properties

1 Introduction

Ni-MH batteries have been used widely by virtue of several of their advantages, such as high capacity, capable of performing a high rate charge/discharge, high resistance to overcharging and over-discharging, a long cycle life, environmental friendliness, and inter- changeability with Ni-Cd batteries[1]. Since the commercialization of small size Ni-MH cells in 1990, the small size Ni-MH cells have rapidly grown and gained a good share in the rechargeable battery market. In the very recent years, however, the rechargeable Ni-MH cells are encountering serious competition from Li-ion cells since the Li-ion cells show higher energy density than the Ni-MH cells per unit mass or volume. On the other hand, the production cost of Ni-MH battery based on the current hydride technology also limits the widespread applications as power sources of electric vehicles or hybrid cars because low-cost Pb-acid batteries are still dominating over the segment. Therefore, investigations of new type electrode alloys with higher capacity and longer cycle life is extremely important to exalt the competition ability of Ni-MH batteries in the rechargeable battery field. A series of metal hydride electrode materials have been discovered, including the rare-earth-based AB₅-type alloys[2], the Laves phase AB₂-type alloys[3], the V-based solid solution alloys[4], and the Mg-based alloys[5]. Among the hydrogen storage alloys mentioned above, the discharge capacity of the AB₅-type electrode alloys is comparatively low, the activation of the AB₂-type Laves phase electrode alloys is very difficult, the electrocatalytic activation of the V-based solid solution alloys is also difficult, and the cycle stability of the Mg-based electrode alloy is extremely poor. Especially, the electrochemical capacityof currently advanced AB₅-type materials has reached 320-340 mA?h/g at 0.2-0.3C rate and room temperature. It seems to be difficult to further improve the capacity of the AB₅-type alloy since the theoretical capacity of LaNi₅ is about 372 mA?h/g. Several new and good hydrogen storage alloys were reported recently. One of the most promising candidates is the La-Mg-Ni based alloy for increasing the capacity. KADIR et al[6] investigated the structure of the R₂MgNi₉ (R=La, Ce, Pr, Nd, Sm and Gd) alloys and the result obtained shows that the alloys have the PuNi₃-type structure. After investigating the electrochemical performances of the La₂MgNi₉, La₅Mg₂Ni₂₃ and La₃MgNi₁₄-type electrode alloys, KOHNO et al[7] found that the La₅Mg₂Ni₂₃-type electrode alloy La_0.7Mg_0.3Ni_2.8Co_0.5 has a capacity of 410 mA·h/g and good cycle stability during 30 charge- discharge cycles. PAN et al[8] investigated the structures and electrochemical characteristics of the La_0.7Mg_0.3(Ni_0.85Co_0.15)_x (x=3.15-3.80) alloy system and obtained a maximum discharge capacity of 398.4 mA·h/g, but the cycle stability of the alloy needs to be improved further. In order to further improve the cycle stability of the La-Mg-Ni based La_0.7Mg_0.3Ni_2.55Co_0.45 electrode alloy, a trace of boron was added and rapid quenching technique was used in the preparation of the alloys. The obtained results indicated that the addition of boron and the rapid quenching could enhance the cycle lives of the alloys.

2 Experimental

2.1 Preparation of alloys

The chemical composition of the investigated alloys is La_0.7Mg_0.3Ni_2.55Co_0.45B_x (x=0, 0.05, 0.10, 0.15 and 0.20). These alloys are represented by M₀, M₁, M₂, M₃ and M₄, respectively. The purity of all the component metals (La, Ni, Co, Mg) is at least 99.8%. The purity of boron is 99.93%. The experimental alloys were melted in an argon atmosphere using a vacuum induction furnace. A binary La-Mg intermediate alloy (30%Mg+70%La) was beforehand prepared by electrolytic synthesis and a positive argon pressure of 0.1 MPa was applied for preventing the volatilization of magnesium during melting. After induction melting, the melt was poured into a copper mould cooled by water, and a cast ingot was obtained. Part of the as-cast alloys was re-melted and quenched by melt-spinning with a rotating copper wheel. Flakes of the as-quenched alloys were obtained with quenching rates of 15, 20, 25 and 30 m/s. The quenching rate is expressed by the linear velocity of the copper wheel.

2.2 Microstructure determination and morphology observation

The polished samples were etched with a 60% HF solution. The morphologies of the as-cast and quenched alloys were examined by SEM. The microscopic composition of the as-cast alloys was analysed by EDX. The phase structures and compositions of the alloys were determined by XRD diffractometer of D/max/2400. The diffraction was performed with Cu K_α1 radiation filtered by graphite. The powder samples were dispersed in anhydrous alcohol for observing the grain morphology with TEM, and for determining crystalline state of the samples with selected area electron diffraction(SAD). The granular morphologies of the alloy electrode before and after electrochemical cycling were observed by SEM in order to reveal the mechanism of the efficiency loss of the alloy electrode.

2.3 Electrode preparation and electrochemical mea- surement

A round electrode pellets with 15 mm diameter were prepared by mixing 1 g alloy powder and 1 g Ni powder as well as a small amount of polyvinyl alcohol (PVA) solution as binder, and then compressing under a pressure of 35 MPa. After drying for 4 h, the electrode pellets were immersed in 6 mol/L KOH solution for 24 h in order to wet the electrodes fully before the electro- chemical measurement.

The experimental electrodes were tested in a tri-electrode open cell, consisting of a working electrode (metal hydride electrode), a counter electrode (NiOOH/Ni(OH)₂) and a reference electrode (Hg/HgO). In order to reduce the ohmic drop between the working electrode and the reference electrode, a Luggin capillary was located close to the hydride electrode in the working electrode apartment. The electrolyte was a 6 mol/L KOH solution. The voltage between the negative electrode and the reference electrode is defined as the discharge voltage. Every cycle was charged with constant current of 100 mA/g for 5 h, resting 15 min and then discharged at 100 mA/g to -0.500 V cut-off voltage. The environ- ment temperature of measurement was kept at 30 ℃.

3 Results and discussion

3.1 Effects of rapid quenching on microstructures

3.1.1 Phase composition and structure

The XRD patterns of the as-cast and quenched alloys are shown in Fig.1. It can be seen from Fig.1 that the alloys have a multiphase structure, composing of (La, Mg)Ni₃ phase and LaNi₅ phase as well as LaNi₂ phase. A trace of Ni₂B phase exists in the as-cast boron-contained alloy, and the abundance of Ni₂B phase increases with increasing the boron content. The addition of boron and the rapid quenching have an obvious influence on the phase composition of the alloys. It can also be seen from Fig.1(a) that the relative amount of LaNi₂ phase in the as-cast alloy significantly increases with increasing boron content. Probably, the formation of Ni₂B phase also implies the formation of LaNi₂ phase. It can be derived by comparing the diffraction peaks of the LaNi₂ phase in the as-cast and quenched M₀ alloys that rapid quenching can increase the amount of LaNi₂ phase in the M₀ alloy, but it leads to a decreased amount of LaNi₂ phase in the B-contained alloys. Obviously, it is ascribed to a distinct decrease of Ni₂B phase in the B-containing alloy after rapid quenching.

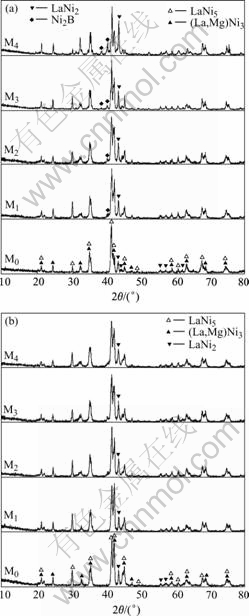

Fig.1 XRD patterns of as-cast and quenched alloys: (a) As-cast; (b) As-quenched (20 m/s)

3.1.2 Microstructure and morphology

The morphologies of the as-cast and quenched alloys were inspected by SEM, and the results are shown in Fig.2. The results obtained by EDX indicated that all the experimental alloys are of multiphase structure, containing both (La, Mg)Ni₃ phase (white grey regions) and LaNi₅ phase (black grey regions). Because the amount of LaNi₂ phase is small and it affects (La, Mg)Ni₃ phase in the process of growing, it is difficult to see the morphology of LaNi₂ phase. A morphology of (La, Mg)Ni₃+LaNi₂ structure with a eutectic character can be seen clearly in the as-cast M₄ alloy by virtue of Ni₂B phase promoting the formation of LaNi₂ phase. The amount of Ni₂B is too small to be distinguished. It can be seen from Fig.2 that the grains of the as-cast alloys are very coarse and the composition homogeneity is very poor. Compared with the morphologies of the as-cast alloys, the rapid quenching markedly refined the grains and significantly improved the composition homogeneity of the alloys. The morphologies and the crystalline state of the as-quenched alloys were examined by TEM, and the results are shown in Fig.3. The results obtained by SAD show that the as-quenched M₀ and M₂ alloys have a multiphase structure and an obvious tendency to amorphous phase formation in the M₂ alloy, and some amount of amorphous phase existed in the M₄ alloy. It can be seen from Fig.3 that the morphology of the as-quenched M₀ alloy presents a typical microcrystalline character, and an amorphous and nanocrystalline phase co-exist in the as-quenched M₂ alloy. It indicates that the formation abilities of an amorphous phase in the alloys are different although the same rapid quenching technique was used. Obviously, it can be attributed to the action of boron. The relative mechanism of boron addition promoting the formation of an amorphous phase has been reported in Ref.[9].

3.2 Effects of rapid quenching on electrochemical per- formances

3.2.1 Discharge capacity

The maximum discharge capacities of the as-cast and quenched alloys were measured with a constant current density of 100 mA/g, and the quenching rate dependence of the maximum discharge capacity of the alloys was illustrated in Fig.4. Fig.4 shows that the effects of the quenching rate on the capacities of the B-containing and B-free alloys are different. The capacity of the M₀ alloy monotonously decreases with the increase of the quenching rate, whereas the capacities of all alloys except M₀ alloy have a maximum value with the change of the quenching rate. Obviously, it is directly relevant to the structure change of the alloys resulted from rapid quenching. For the B-free alloy, rapid quenching increases the amount of LaNi₂ phase (Fig.1). The lattice internal stress increases with increasing the quenching rate, which is unfavourable for the capacity of

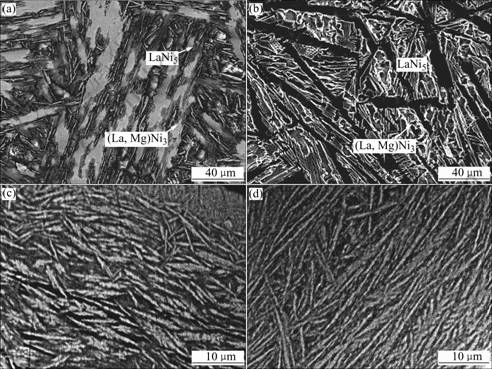

Fig.2 SEM morphologies of as-cast and quenched alloys: (a) As-cast M₁ alloy; (b) As-cast M₄ alloy; (c) As-quenched M₁ alloy; (d) As-quenched M₄ alloy

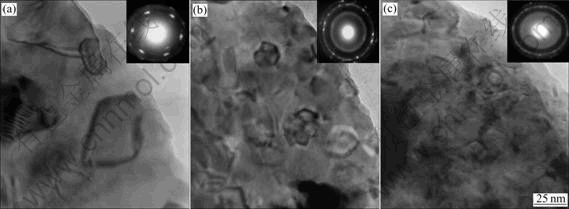

Fig.3 TEM morphologies of SAD patterns of as-quenched (20 m/s) alloys: (a) M₀; (b) M₂; (c) M₄

the alloy. Because the capability of the hydrogen absorption of LaNi₂ phase is much lower than that of  (La, Mg) Ni₃ phase and LaNi₅ phase, it seems to go without saying that the capacity of the alloys decreases monotonously with increasing the quenching rate. For the B-containing alloys, the rapid quenching leads to approximate disappearance of Ni₂B phase, which hampers the formation of LaNi₂ phase. The decrease of the amounts of Ni₂B phase and LaNi₂ phase is favourable for the increase of the discharge capacity of the alloy. Therefore, the discharge capacities of the alloys increase with increasing the quenching rate. On the other hand, Boron addition promotes the formation of an amorphous phase in the alloy, which is unfavourable for the increase of the discharge capacity of the alloy because the capacity of the amorphous phase is half as large as that of the crystalline alloy[10]^. Therefore, the higher the quenching rate, the larger the amount of amorphous phase and the lower the discharge capacity.

3.2.2 Activation capability

The activation number denoted by n was characterized by the number of charge-discharge cycles required for attaining the greatest discharge capacity through a charge-discharge cycle at a constant current density. The cycle number dependence of the discharge capacities of the as-cast and quenched alloys was illustrated in Fig.5, the charge-discharge current density being 100 mA/g. It can be derived from Fig.5 that all of the as-cast and quenched alloys have an excellent activation performance, and the as-cast and quenched alloys could be activated completely after 2 to 4 cycles. The effect of rapid quenching on the activation capability of the alloys is complicated. Generally, the activation capability of the hydrogen storage alloy is directly

Fig.4 Quenching rate dependence on discharge capacity of alloys

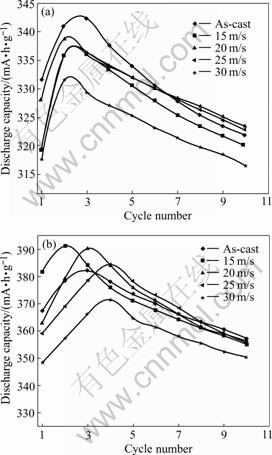

Fig.5 Activation performances as-cast and quenched alloys at different quenching rates: (a) M₀; (b) M₁

related to the change of the internal energy of the system before and after absorbing hydrogen. The larger the additive internal energy, which originates from the oxidation film formed on the surface of the electrode alloy, and the strain energy, which is produced by hydrogen atom entering the interstitial of the tetrahedron or octahedron of the alloy lattice, the poorer the activation performance of the alloy[11]. Obviously, some parameters, such as the phase structure, the surface characteristics, the grain size and the interstitial dimensions of the alloy, are decisive factors of the activation performance of the alloy. The fact that the as-cast and quenched alloys have good activation performance is mainly ascribed to their multiphase structures because the phase boundary can decrease the lattice distortion and strain energy formed in the process of hydrogen absorption. Moreover, the phase boundary provides good tunnels for diffusion of hydrogen atoms, the activation capability of the alloys being improved significantly[12].

3.2.3 Discharge voltage characteristic

The discharge voltage characteristic is an important performance of the electrode alloy, which was characterized by the voltage plateau of the discharge voltage curve of the alloy. The longer and the more horizontal the discharge voltage plateau, the better the discharge characteristics of the alloys. In order to compare the characteristics of the discharge voltage plateau, the discharge voltage curves of the alloys with different quenching rates are shown in Fig.6. It can be derived from Fig.6 that rapid quenching lowers the discharge plateau voltage and decreases the plateau length. When quenching rate is larger than 20 m/s, the slopes of the discharge voltage plateaus of the alloys obviously increase with the increase of the quenching rate.

3.2.4 Cycle life

The cycle life, indicated by N, is characterized by the cycle number after which the discharge capacity of the alloy obtained with a current density of 100 mA/g is reduced to 60% of the maximum capacity. The cycle number dependence of the discharge capacities of the as-cast and quenched alloys is shown in Fig.7. It can be derived from Fig.7 that the slopes of the curves of the alloys decrease with the increase of the quenching rate. This indicates that the rapid quenching is favourable for the improvement of the cycle stabilities of the alloys. In order to show the effect of the quenching rate on the cycle lives of the alloys, the quenching rate dependence of the cycle lives of the alloys is presented in Fig.8. Fig.8 shows that the cycle lives of the alloys increase with the increase of the quenching rate. When the quenching rate increases from 0 (As-cast was defined as quenching rate of 0 m/s) to 30 m/s, the cycle lives of M₀ and M₂ alloys increase from 72 and 86 cycles to 100 and 106 cycles, respectively.

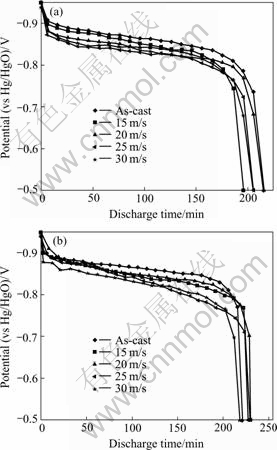

Fig.6 Discharge voltage curves of alloys quenched at different rates: (a) M₀; (b) M₁

It is confirmed in Ref.[13] that the fundamental reasons for the capacity decay of the electrode alloy are the pulverization and oxidation of the alloy during charge-discharge cycle. The lattice internal stress and cell volume expansion, which are inevitable when hydrogen atoms enter into the interstitials of the lattice, are the real driving force that leads to the pulverization of the alloy. The decisive factors of the anti pulverization capability of the electrode alloy are its strength and toughness. The main cause of rapid quenching enhancing the cycle lives of the alloys is ascribed to the grain refinement and the formation of an amorphous phase resulted from rapid quenching. The higher the quenching rate, the smaller the grain size of the alloy and the more the amount of amorphous phase, the higher the strength and toughness, the stronger the anti-pulverization capability and the longer the cycle life.

In order to correctly understand the mechanism of the efficacy loss of the electrode alloy, the particle morphologies of the as-cast and quenched alloys before and after electrochemical cycling as observed by SEM are shown in Fig.9. It can be seen from Fig.9 that the

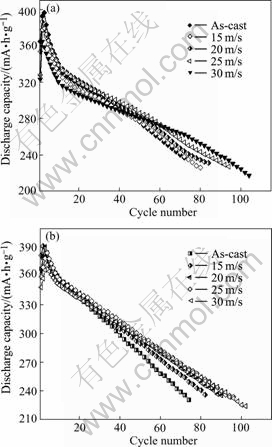

Fig.7 Relationship between cycle number and discharge capacity of alloys quenched at different rates: (a) M₀; (b) M₁

Fig.8 Quenching rate dependence on cycle life of alloys

shapes of the as-cast and quenched alloy particles before electrochemical cycling are irregular and sharp-angled. After charge-discharge cycling, their morphologies change markedly, leading to a disappearance of the pointedness of the particle and to a decrease of the particle sizes. This indicated that the capacity decay of the alloy during electrochemical cycle is related to the pulverization of the electrode alloy. It is worthy to be noticed that the pulverization degree of the alloys after

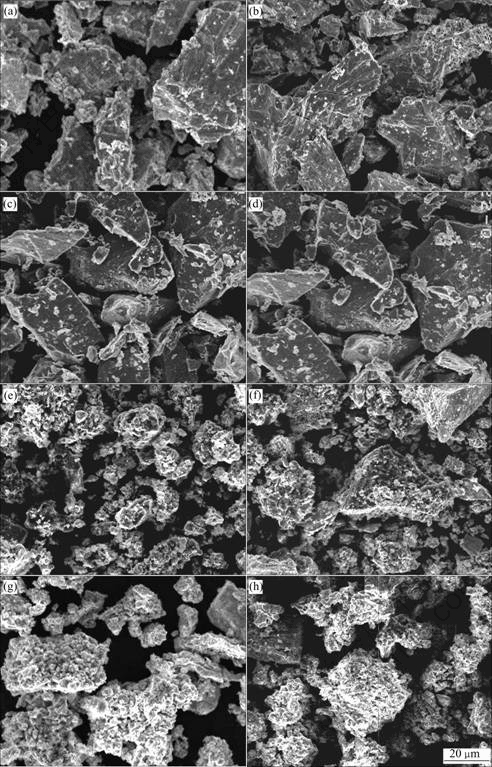

Fig.9 Granular morphologies of M₂ alloys before and after electrochemical cycle (SEM): (a), (b), (c) and (d) Before cycling of M₂ alloy with quenching rates of 0, 15, 20 and 30 m/s, respectively; (e), (f), (g) and (h) After cycling of M₂ alloy with quenching rate of 0, 15, 20 and 30 m/s, respectively

electrochemical cycling is obviously different. The pulverization of the alloy obviously decreases with the increase of the quenching rate. This indicated that rapid quenching could enhance the anti-pulverization capability of the alloy. Compared with the as-quenched AB₅-type hydrogen storage alloy, the pulverization degree of the La-Mg-Ni system alloy after electrochemical cycling is much smaller[14,15], and an oxidation and corrosion layer can be seen on the surface of the La-Mg-Ni system alloy after electrochemical cycling. This indicated that the corrosion and oxidation is an important reason leading to the efficacy loss of the alloy. Therefore, it can be concluded that the improvement of the anti-corrosion and oxidation capabilities of the alloys produced by rapid quenching is very limited.

4 Conclusions

1) The as-cast and quenched La_0.7Mg_0.3Ni_2.55Co_0.45- B_x(x=0, 0.05, 0.1, 0.15, 0.2) electrode alloys have a multi-phase structure, including (La, Mg)Ni₃ phase, LaNi₅ phase and a small amount of LaNi₂ phase. A trace of Ni₂B phase exists in the as-cast alloy containing boron and Ni₂B phase can increase the amount of LaNi₂ phase. Rapid quenching leads to an increase of the amount of LaNi₂ phase in M₀ alloy and a decrease in the B-containing alloys. This is ascribed to the approximate disappearance of Ni₂B phase resulted from rapid quenching.

2) The effects of rapid quenching on the capacities of the B-containing and B-free alloys are different. The capacity of the B-free alloy monotonously decreases with the increase of the quenching rate, whereas the capacities of the B-containing alloys have a maximum value with the change of the quenching rate. Rapid quenching lowers the discharge plateau voltage and obviously increases the slopes of the discharge voltage plateaus of the alloys when the quenching rate is more than 20 m/s.

3) The main reason of leading to the efficacy loss of the La-Mg-Ni based electrode alloy is the pulverization of the alloy during charge-discharge cycle, and the corrosion and oxidation of the alloy is also an important reason. Rapid quenching could significantly enhance the anti-pulverization capability of the alloy, but its action on the improvement of the anti-corrosion and oxidation capabilities of the alloys is very limited.
