Electrochemical properties of powder-pressed Pb-Ag-PbO₂ anodes

Hai-hua LI¹, Tie-chui YUAN¹, Rui-di LI¹, Wen-jun WANG^{1, 2}, Dan ZHENG¹, Ji-wei YUAN³

1. State Key Laboratory of Powder Metallurgy, Central South University, Changsha 410083, China;

2. Zhuzhou Smelter Group Company Limited, Zhuzhou 412004, China;

3. Guizhou R&D Center of Titanium Materials Co., Ltd., Zunyi 563004, China

Received 30 April 2019; accepted 21 August 2019

Abstract: Pb-Ag-PbO₂ composite anodes with different mass fractions (1%, 2%, 3%, 4% and 5%) of β-PbO₂ were prepared by powder-pressed (PP) method. The galvanostatic polarization curves, Tafel curves and anodic polarization curves were tested in sulfuric acid solution. The morphologies and phase compositions of the anodic layers formed after galvanostatic polarization were investigated by using scanning electron microscope (SEM) and X-ray diffractometer (XRD), respectively. The results showed that β-PbO₂ can improve the electrocatalytic activity of anodic oxide. The anode containing 3% β-PbO₂ had the lowest overpotential of oxygen evolution reaction (OER) and the best corrosion resistance. The morphologies of the anode surfaces were gradually transformed from regular crystals to amorphous ones as the content of β-PbO₂ increased in anodes.

Key words: power-pressed Pb-Ag-PbO₂ anode; oxygen evolution overpotential; electrochemical properties; zinc electrowinning

1 Introduction

Electrowinning has become a very important method for producing zinc by hydrometallurgy in the past few decades [1-3], in which the oxygen evolution reaction (OER) is a significant anodic reaction [4,5]. The cast Pb-(0.3%-1%)Ag anodes are widely used in zinc electrowinning for their available raw materials and stability [6-8]. For the cast Pb-(0.3%-1%)Ag anodes, the addition of Ag can effectively reduce the overpotential of OER, and the produced PbO₂ coating on the anodes exhibits good properties, such as good corrosion resistance to Cl^-, which can even be eliminated [9]. However, because there are several problems for the cast Pb-Ag anodes in the zinc electrowinning, such as worse corrosion resistance which reduces the service lifetime of the Pb-Ag anodes (only 1-3 a) [10-12], a lot of precious metal Ag particles are consumed [13]. Most important of all, the cast anodes still have high overpotential of OER in zinc electrowinning [14-16], which results in 20%-30% energy wasted during zinc electrowinning [17].

To solve these problems, many alternative anodes have been put forward, such as Pb-based multi-variant alloy anodes, porous alloy anodes, dimensionally stable anodes (DSAs), polyaniline anodes, and powder-rolled/ powder-pressed (PP) anodes. The Pb-based multi-variant alloys have good mechanical properties, but have little reduction to the overpotential of OER [18]. The porous alloy anodes have larger inner surface, which helps lower the overpotential of OER [19]. However, they are not easy to obtain because of the complex preparation process. The anodes with particle coatings, usually RuO₂, IrO₂, and MnO₂ [20-22], formed on the Pb matrix show good electrocatalytic properties, but they show poor corrosion resistance and instability [23]. In addition, the preparation process of these anodes is complex. Compared with the cast Pb-Ag anodes, the powder- rolled/powder-pressed anodes show better creep resistance, lower overpotential of OER and better corrosion resistance [24], which are considered to be a more promising candidate for zinc electrolysis.

In our previous work [25], it has been found that the electrochemical performance of PP Pb-0.4%Ag anode is better than that of the cast Pb-0.6%Ag anode. In addition, it is reported that the β-PbO₂ has good corrosion resistance and electrocatalytic properties, which could improve the electrochemical properties of the anodes [9]. In order to further study the effect of β-PbO₂ on the performance of anode, in this study, the PP Pb-Ag-PbO₂ composite anodes were prepared with the fixed 0.4% Ag content and various β-PbO₂ contents (1%, 2%, 3%, 4% and 5%, mass fraction). For comparison, the performances of cast Pb–0.6%Ag anode and PP Pb–0.4%Ag anode were also investigated. The electrochemical properties of the anodes were systematically tested. The micromorphologies and phase compositions of the oxide layer after galvanostatic polarization were also studied.

2 Experimental

2.1 Preparation of sample

The β-PbO₂ powders with particle size <5 μm (99.00% purity, Shanghai Macklin Biochemical Co., Ltd., China), Ag powders with particle size <8 μm (99.99% purity, Chengdu Lianhe Chemical Pharmaceutical Co., Ltd., China) and Pb powders with particle size <42 μm (99.95% purity, Sinopharm Chemical Reagent Co., Ltd., China) were used as raw materials. The XRD pattern and SEM image of the β-PbO₂ powders are shown in Figs. 1 and 2, respectively.

To obtain the uniformly distributed powder particles, the mixture containing 0.4% Ag, different contents (0, 1%, 2%, 3%, 4% and 5%) of β-PbO₂ powder and Pb powders was milled in a plastic tube at a rotating speed of 65 r/min for 48 h in air. The mixture was put into a steel mold and pressed under a pressure of 65 MPa for 5 min. And then, the compacts were sintered at 310 °C for 10 h and a H₂ flow rate of 0.2 L/min under normal pressure. Finally, the sintered samples were cooled to room temperature at a H₂ flow rate of 0.2 L/min. For comparison, the Pb-0.6%Ag anode was also prepared by melt casting method. The process flow diagram of PP anodes and the sketch of the mould are shown in Fig. 3.

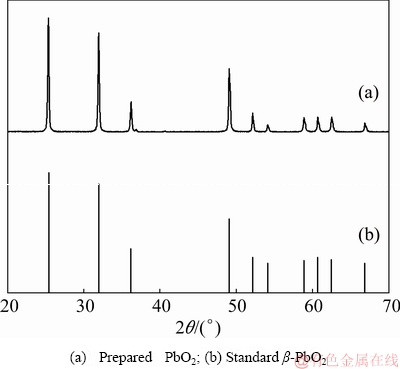

Fig. 1 XRD patterns of powders

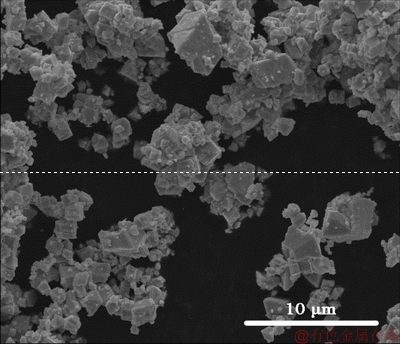

Fig. 2 SEM image of β-PbO₂ powders

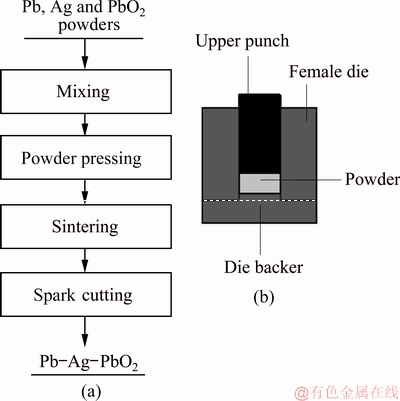

Fig. 3 Process flow diagram of PP anodes (a) and sketch of mould (b)

2.2 Electrochemical measurements

Galvanostatic polarization curves, Tafel curves and anodic polarization curves were obtained with an electrochemical workstation (CHI 760E, Huachen, China) in 500 mL electrolyte solution at 35 °C. The galvanostatic polarization tests were performed in a solution of 160 g/L H₂SO₄ at a current density of 50 mA/cm² for 72 h. The Tafel and anodic polarization tests were done in a solution containing 50 g/L Zn²⁺ and 160 g/L H₂SO₄ after galvanostatic polarization at the scanning rates of 3 and 0.5 mV/s from 1.4 to 1.8 V (vs SCE), respectively. A three-electrode cell was used, in which the reference electrode was a saturated calomel electrode (SCE), the counter electrode was a platinum plate, and the working electrode was the sample with an exposed area of 1.0 cm². The assembly diagram of the anode is shown in Fig. 4.

All the samples were polished with 1500-grit SiC paper before galvanostatic polarization tests, and they were washed with distilled water and dried with warm air after each electrochemical test.

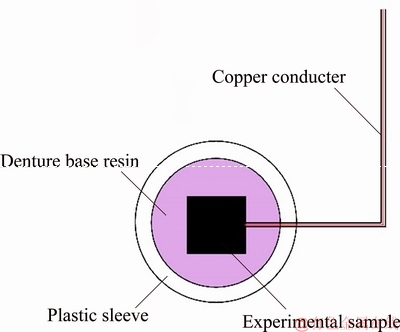

Fig. 4 Sketch diagram of experimental sample

2.3 Characterization

The morphologies of the samples after galvanostatic polarization tests of 72 h were observed by SEM (Nova Nano SEM 230). The phases of the oxide layer formed on the anode surface after galvanostatic polarization tests of 72 h were identified by XRD (Rigaku D/MAX-2250) with Cu K_α radiation.

3 Result and discussion

3.1 Galvanostatic polarization

In order to study the effects of different anodes on the overpotentials of OER, the galvanostatic polarization tests were carried out under a current density of 50 mA/cm² in a solution of 160 g/L H₂SO₄ at 35 °C and the results are shown in Fig. 5.

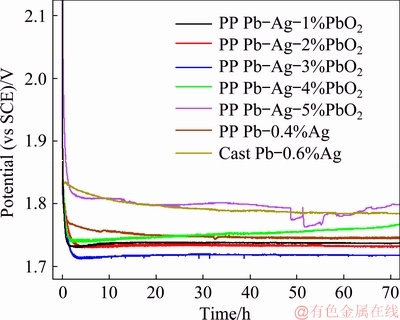

Fig. 5 Galvanostatic polarization curves of different anodes

All the anodes showed different anodic behaviors. At the initial stage of galvanostatic polarization test, the potential of all the anodes dropped dramatically with time, and eventually kept stable except for the PP Pb-Ag-5%PbO₂ anode. With the continuous formation of oxide layer on the anode surface [22,26,27], the potential of the cast Pb-0.6%Ag anode was stabilized around 1.79 V (vs SCE) after 44 h of polarization test. Compared with the cast Pb-0.6%Ag anode, the PP Pb-0.4%Ag anode showed lower stable potential in the galvanostatic polarization test which was around 1.73 V (vs SCE) after 44 h, which is consistent with our previous study.

As for the PP Pb-Ag-PbO₂ composite anodes, with the increase of β-PbO₂ content, the potential of anode was firstly decreased and then increased. More specifically, the potentials of PP anodes containing 1%, 2% and 3% PbO₂ were stabilized around 1.72, 1.72 and 1.71 V (vs SCE) after 55, 30, and 13 h of polarization tests, respectively. The potential of the anode containing 4% PbO₂ was firstly decreased and then increased, which is obviously distinguished with the other anodes; while, the potential of the anode containing 5% PbO₂ presented obvious fluctuation and was significantly higher than that of the other anodes at the end of the test.

According to Fig. 5, the overpotential of OER decreased with the increase of β-PbO₂ content (≤ 3%) in the anode during the galvanostatic polarization test, which can be explained as follows: (1) OER can be facilitated by β-PbO₂; (2) the increase of β-PbO₂ content is conducive to the increase of surface area of the anode. However, when the content of β-PbO₂ is higher than 3%, it will have great impact on the mechanical strength of the anode, which is not conducive to the formation of dense oxide layer and can even cause the shedding of the oxide layer. The cracks and loose structures of the oxide layers may be the reasons for the fluctuation of potential.

In conclusion, according to the results shown in Fig. 5, the β-PbO₂ powders (≤3%) could improve the electrocatalytic activity of the anodes and the PP Pb-Ag-3%PbO₂ anode showed the lowest overpotential of OER and the best stability among the studied samples, which makes it promising alternative for zinc electrolysis.

3.2 Tafel curves

The corrosion resistance of the PP Pb-Ag-PbO₂ composite anodes was evaluated by the Tafel curves obtained in the solution containing 50 g/L Zn²⁺ and 160 g/L H₂SO₄ under a scanning rate of 3 mV/s at 35 °C after galvanostatic polarization. The results are shown in Fig. 6.

Table 1 shows the corrosion potential (φ_corr) and corrosion current density (J_corr), which were obtained by the linear fitting of Tafel curves (Fig. 6). As well known, J_corr is a kinetic parameter and φ_corr is a thermodynamic parameter, and J_corr is usually used to evaluate the corrosion resistance of the anode [28]:

                                  (1)

where ν is the corrosion rate, n is the valence of metal, F is the Faraday constant, and M is the mole mass of metal.

As shown in Table 1, compared with the PP Pb-0.4%Ag anode, for all the PP Pb-Ag-PbO₂ composite anodes, the current densities are decreased firstly at β-PbO₂ content ≤3% and then increased at β-PbO₂ content >3%, and the anode containing 3% PbO₂ has the lowest J_corr (3.50×10^-5 A/cm²) and φ_corr (-0.338 V), which exhibits the best corrosion resistance. This means that appropriate addition of β-PbO₂ can improve the corrosion resistance of the anode [29], while excessive addition of β-PbO₂ will cause the decrease of corrosion resistance of the anode. The corrosion resistance of the anode is closely related to the morphology of the surface oxide layer.

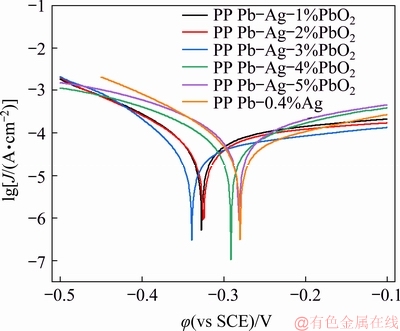

Fig. 6 Tafel curves of different anodes

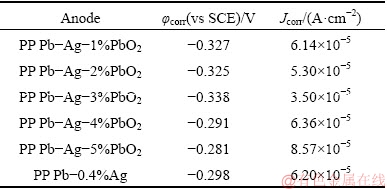

Table 1 Corrosion potentials and corrosion current densities of different anodes

3.3 Anodic polarization

To study the oxygen evolution behaviors of different anodes after galvanostatic polarization, anodic polarization tests were carried out at a scanning speed of 0.5 mV/s in a solution containing 50 g/L Zn²⁺ and 160 g/L H₂SO₄ at 35 °C, and the results are shown in Fig. 7. The order of oxygen evolution potentials from low to high is: Pb-Ag-3%PbO₂ < Pb-Ag-2%PbO₂ < Pb-Ag-1%PbO₂ < Pb-Ag-4%PbO₂ < Pb-Ag-5%PbO₂ < Pb-0.4%Ag. This trend is consistent with the final potential of galvanostatic polarization in Fig. 5 and the Pb-Ag-3%PbO₂ anode has the lowest overpotential of OER.

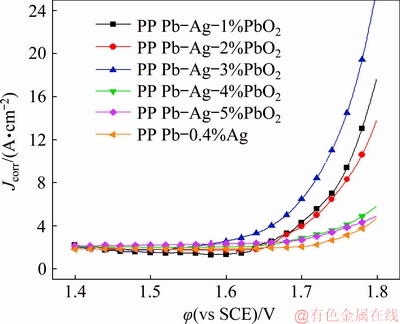

Fig. 7 Anodic polarization curves of different anodes

Table 2 lists the kinetic parameters (a, b and J₀) and the overpotential of OER (η) for all the Pb-Ag-PbO₂ composite anodes obtained at a current density of 50 mA/cm². The value of η is calculated with Eq. (2) [30,31].

η=φ+0.2373-1.260-JR_s                                     (2)

where R_s is the solution resistance between the working electrode and the reference electrode, J is the current density corresponding to φ, φ is the anodic potential, 1.260 is the equilibrium potential of OER, and 0.2373 is the potential of SCE. And then, a, b can be obtained by linear fitting of R_s-corrected lines (η-lg J) according to Eq. (3), and the exchange current density (J₀) can also be calculated through Eq. (3) at η=0.

η=a+blg J                                   (3)

From Table 2, it can be seen that the order of J₀ from low to high is: Pb-0.4%Ag < Pb-Ag-5%PbO₂ < Pb-Ag-4%PbO₂ < Pb-Ag-1%PbO₂ < Pb-Ag-2%PbO₂ < Pb-Ag-3%PbO₂, and the Pb-Ag-3%PbO₂ anode  has the highest J₀ value (1.02×10^-5 A/cm²). We usually evaluate the reversibility of electrode reactions and electrode polarization with the value of J₀ [28]. A higher J₀ indicates that the electrode cannot be easily polarized and has higher electrochemical activity and better reversibility [32]. Table 2 also shows that the Pb-Ag-3%PbO₂ anode has the the lowest η value (0.786 V), which means that the anode has the best energy saving property among all the PP Pb-Ag-PbO₂ composite anodes. Therefore, the Pb-Ag-3%PbO₂ anode has the highest electrochemical activity.

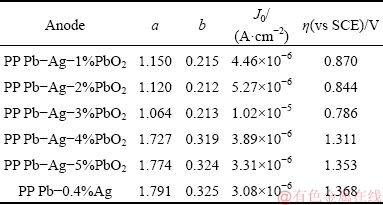

Table 2 Kinetic parameters of oxygen evolution reaction of anodes

3.4 Surface morphology

To find out the reason for the difference of electrochemical properties of different anodes, the morphologies of the anodes after galvanostatic polarization tests were characterized by SEM, as shown in Fig. 8.

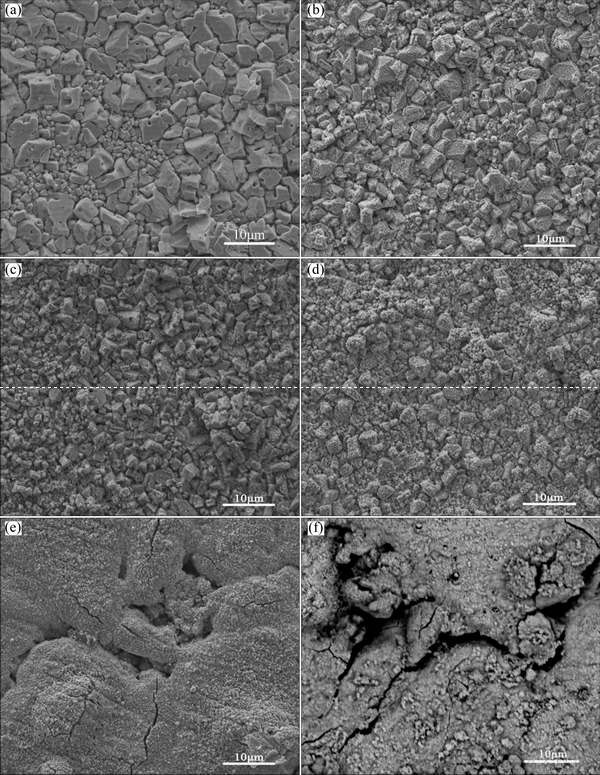

Fig. 8 SEM images of PP Pb-0.4%Ag (a), PP Pb-Ag-1%PbO₂ (b), PP Pb-Ag-2%PbO₂ (c), PP Pb-Ag-3%PbO₂ (d), PP Pb-Ag-4%PbO₂ (e), and PP Pb-Ag-5%PbO₂ (f)

For the PP Pb-0.4%Ag anode (Fig. 8(a)), the oxide layers formed on the anode surface were mainly composed of small crystals/particles, on some of which, small cavities could be found. In comparison, when the low amount of β-PbO₂ is introduced (PP Pb-Ag- 1%PbO₂) (Fig. 8(b)), the oxide layer was mainly composed of smaller regular crystals/particles than PP Pb-0.4%Ag anode (Fig. 8(a)) with different sizes and amorphous particles. When the β-PbO₂ content was further increased to 2% (Fig. 8(c)), the particles/crystals became smaller in size and the proportion of amorphous particles increased significantly. When the β-PbO₂ content was 3% (Fig. 8(d)), the oxide layer was mainly composed of amorphous particles and some regular particles. The results above indicate that the introduction of β-PbO₂ into the PP Pb-0.4%Ag anode is beneficial to the formation of amorphous particles, and the higher content of β-PbO₂ induces the formation of more amorphous particles in the oxide layer. However, when the β-PbO₂ content was increased to 4% (Fig. 8(e)), the oxide layer was composed of amorphous particles and the crystals/particles disappeared, most importantly, some cracks were observed in the oxide layer. With further increase of β-PbO₂ content to 5% (Fig. 8(f)), cracks became significantly larger. The obvious cracks mean that the oxide layer is loose and has weak adhesion, which is easy to fall off during galvanostatic polarization tests. The loose structure and the cracks may be the main reasons for the poor corrosion resistance of PP Pb-Ag-4%PbO₂ and PP Pb-Ag-5%PbO₂ anodes, and are also responsible for the potential fluctuation in the process of galvanostatic polarization test.

3.5 Phase analysis

The influence of β-PbO₂ content on the composition and phases of the anodic oxide layer was studied by XRD and the results are shown in Fig. 9.

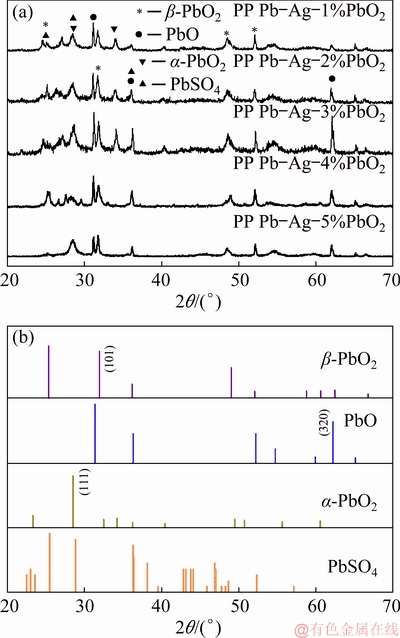

Fig. 9 XRD patterns of oxide layer of PP anodes after 72 h polarization at 50 mA/cm² and 35 °C (a) and diffraction standard cards of β-PbO₂, PbO, α-PbO₂ and PbSO₄ (b)

The results showed that for all the Pb-Ag-PbO₂ composite anodes, the oxide layers were mainly composed of PbO, α-PbO₂, β-PbO₂, and PbSO₄. However, the characteristic absorption peaks of each anode were different. Compared with the anodes containing 4% and 5% β-PbO₂, the anodes containing 1%, 2% and 3% β-PbO₂ had obvious diffraction peaks of α-PbO₂ (111). The intensity of the peak of PbO (320) increased with the β-PbO₂ content (≤3%), then it decreased when the β-PbO₂ content exceeded 3%. It is worth noting that the increase of β-PbO₂ content in fresh composite anodes had great effect on the intensity of the peak of β-PbO₂ (101) of oxide layers and the changing trend of the absorption peak of β-PbO₂ was consistent with the potential of galvanostatic polarization of Pb-Ag-PbO₂ composite anodes. Therefore, the content of β-PbO₂ in anodes has certain influence on the formation of α-PbO₂, β-PbO₂ and PbO. The powder of β-PbO₂ in the anodes may provide some active sites for the formation of transformation of Pb to PbSO₄ and PbSO₄ to β-PbO₂ [29,33]. However, the excessive addition of β-PbO₂ leads to the formation of unstable oxides, which may be the reason for the decline of intensity of PbO.

4 Conclusions

(1) As the content of β-PbO₂ increased in the powder-pressed anode, the overpotential of oxygen evolution reaction decreased firstly and then increased. The Pb-Ag-3%PbO₂ anode had the lowest potential.

(2) The addition of an appropriate amount of β-PbO₂ can improve the corrosion resistance of the powder-pressed anodes. The Pb-Ag-3%PbO₂ anode showed the best corrosion resistance.

(3) With increasing the content of β-PbO₂, the morphologies of the oxide layer changed from regular crystals/particles to amorphous particles. However, excessive addition of β-PbO₂ in the anodes was not conducive to the formation of a highly adhesive oxide layer.

References

[1] SOROUR N, ZHANG W, GABRA G, GHALI E, HOULACHI G. Electrochemical studies of ionic liquid additives during the zinc electrowinning process [J]. Hydrometallurgy, 2015, 157: 261-269.

[2] ZHANG Qi-bo, HUA Xin-yi. Stability of [BMIM] H₂SO₄ for using as additive during zinc electrowinning from acidic sulfate solution [J]. Journal of Central South University, 2012, 19: 2451-2457.

[3] ZHANG Chen-mu, DUAN Ning, JIANG lin-hua, XU Fu-yuan. The impact mechanism of Mn²⁺ ions on oxygen evolution reaction in zinc sulfate electrolyte [J]. Journal of Electroanalytical Chemistry, 2018, 811: 53-61.

[4] KARBASI M, ESKANDAR K A, ELAHEH A D. Electrochemical performance of Pb-Co composite anode during zinc electrowinning [J]. Hydrometallurgy, 2018, 183: 51-59.

[5] CHEN Bu-ming, WANG Shi-chuan, LIU Jian-hua, HUANG Hui, DONG Can-sheng, HE Ya-peng, YAN Wen-kai, GUO Zhong-cheng, XU Rui-dong, YANG Hai-tao. Corrosion resistance mechanism of a novel porous Ti/Sn-Sb-RuO_x/β-PbO₂ anode for zinc electrowinning [J]. Corrosion Science, 2018, 144: 136-144.

[6] ZHONG Xiao-cong, JIANG Liang-xing, LIU Fang-yang, LI Jie, LIU Ye-xiang. Anodic passivation of Pb-Ag-Nd anode in fluoride- containing H₂SO₄ solution [J]. Journal of Central South University, 2015, 22: 2894-2901.

[7] ZHOU Xiang-yang, WANG Shuai. YANG Juan, GUO Zhong-cheng, YANG Jian, MA Chi-yuan, CHEN Bu-ming. Effect of cooling ways on properties of Al/Pb-0.2%Ag rolled alloy for zinc electrowinning [J]. Transactions of Nonferrous Metals Society of China, 2017, 27: 2096-2103.

[8] ZHANG Cheng, LIU Jian-hua, CHEN Bu-ming. Effect of CeO₂ and graphite powder on the electrochemical performance of Ti/PbO₂ anode for zinc electrowinning [J]. Ceramics International, 2018, 44: 19735-19742.

[9] YANG Hai-tao, CHEN Bu-ming, GUO Zhong-cheng, LIU Huan-rong, ZHANG Yong-chun, HUANG Hui, XU Rui-dong, FU Ren-chun. Anodic behavior and microstructure of Al/Pb-Ag-Co anode during zinc electrowinning [J]. Transactions of Nonferrous Metals Society of China, 2014, 24: 3394-3404.

[10] XU R D, HUANG L P, ZHOU J F, ZHAN P, GUAN Y Y, KONG Y. Effects of tungsten carbide on electrochemical properties and microstructural features of Al/Pb-PANI-WC composite inert anodes used in zinc electrowinning [J]. Hydrometallurgy, 2012, 125: 8-15.

[11] ZHONG Xiao-cong, YU Xiao-ying, LIU Zheng-wei, JIANG Liang-xing, LI Jie, LIU Ye-xiang. Comparison of corrosion and oxygen evolution behaviors between cast and rolled Pb–Ag–Nd anodes [J]. International Journal of Minerals, Metallurgy and Materials, 2015, 22: 1067-1075.

[12] XIA X L, ZHITOMIRSKY I, MCDERMID J R. Electrodeposition of zinc and composite zinc-yttria stabilized zirconia coatings [J]. Journal of Materials Processing Technology, 2009, 209: 2632-2640.

[13] PENG Bing, PENG Ning, LIU Hui, XUE Ke, LIN Dong-hong. Comprehensive recovery of Fe, Zn, Ag and in from high iron-bearing zinc calcine [J]. Journal of Central South University, 2017, 24: 1082-1089.

[14] SOROUR N, SU C, GHALI E, HOULACHI G. Effect of ionic liquid additives on oxygen evolution reaction and corrosion behavior of Pb-Ag anode in zinc electrowinning [J]. Electrochimica Acta, 2017, 258: 631-638.

[15] LAFRONT A M, ZHANG W, GHALI E, HOULACHI G. Electrochemical noise studies of the corrosion behaviour of lead anodes during zinc electrowinning maintenance [J]. Electrochimica Acta, 2010, 55: 6665-6675.

[16] CHEN Bu-ming, YAN Wen-kai, HE Ya-peng, HUANG Hui, LENG He, GUO Zhong-cheng, LIU Jian-hua. Influence of F-doped beta-PbO₂ conductive ceramic layer on the anodic behavior of 3D Al/Sn rod Pb-0.75% Ag for zinc electrowinning [J]. Journal of the Electrochemical Society, 2019, 166: E119-E128.

[17] JAIMES R, MIRANDA-HERNANDEZ M, LARTUNDO-ROJAS L, GONZALEZ I. Characterization of anodic deposits formed on Pb-Ag electrodes during electrolysis in mimic zinc electro- winning solutions with different concentrations of Mn(II) [J]. Hydrometallurgy, 2015, 156: 53-62.

[18] WANG Wen-jun, WANG Zhuo-ran, YUAN Tie-chui, LI Rui-di, LI Hai-hua, LIN Wen-jun. Oxygen evolution and corrosion behavior of Pb-CeO₂ anodes in sulfuric acid solution [J]. Hydrometallurgy, 2019, 183: 221-229.

[19] LAI Yuan-qing, JIANG Liang-xing, LI Jie, ZHONG Shui-ping, Lü Xiao-juan, PENG Hong-jian, LIU Ye-xiang. A novel porous Pb-Ag anode for energy-saving in zinc electrowinning. Part II: Preparation and pilot plant tests of large size anode [J]. Hydrometallurgy, 2010, 102: 81-86.

[20] ZHANG W, ROBICHAUD M, GHALI E, HOULACHI G. Electrochemical behavior of mesh and plate oxide coated anodes during zinc electrowinning [J]. Transactions of Nonferrous Metals Society of China, 2016, 26: 589-598.

[21] BARUFFALDI C, CATTARIN S, MUSIANI M. Deposition of non-stoichiometric tungsten oxides + MO₂ composites (M=Ru or Ir) and study of their catalytic properties in hydrogen or oxygen evolution reactions [J]. Electrochimica Acta, 2003, 48: 3921-3927.

[22] MOHAMMADI M, ALFANTAZI A. Anodic behavior and corrosion resistance of the Pb-MnO₂ composite anodes for metal electrowinning [J]. Journal of the Electrochemical Society, 2013, 160: C253-C261.

[23] CHEN Bu-ming, GUO Zhong-cheng, YANG Xian-wan, CAO Yuan-dong. Effect of the current density on electrodepositing alpha-lead dioxide coating on aluminum substrate [J]. Acta Metallurgica Sinica (English Letters), 2009, 22: 373-382.

[24] WANG Shuai, ZHOU Xiang-yang, MA Chi-yuan, LONG Bo, WANG Hui, TANG Jing-jing, YANG Juan. Electrochemical properties of Pb-0.6wt%Ag powder-pressed alloy in sulfuric acid electrolyte containing Cl^-/Mn²⁺ ions [J]. Hydrometallurgy, 2018, 177: 218-226.

[25] WANG Wen-jun, YUAN Tie-chui, LI Rui-di, WANG Zhuo-ran, LI Hai-hua, LI Lan-bo, ZHENG Dan. Electrochemical behaviors of powder-processed Pb-Ag anodes [J]. The Journal of the Minerals, Metals & Materials Society, 2019, 71: 2498-2504.

[26] MA Rui-xin, CHENG Shi-yao, ZHANG Xiao-yong, LI Shi-na, LIU Zi-lin, LI Xiang. Oxygen evolution and corrosion behavior of low-MnO₂-content Pb-MnO₂ composite anodes for metal electrowinning [J]. Hydrometallurgy, 2016, 159: 6-11.

[27] REROLLE C. WIART R. Kinetics of oxygen evolution on Pb and Pb-Ag anodes during zinc electrowinning [J]. Electrochim Acta, 1996, 41: 1063-1069.

[28] ZHANG Yong-chun, CHEN Bu-ming, YANG Hai-tao, HUANG Hui, GUO Zhong-cheng. Anodic behavior and microstructure of Al/Pb-Ag-Co anode during zinc electrowinning [J]. Journal of Central South University, 2014, 21: 83-88.

[29] LAI Yang-qing, LI Yuan, JIANG Liang-xing, LV Xiao-juan, LI Jie, LIU Ye-xiang. Electrochemical behaviors of co-deposited Pb/Pb-MnO₂ composite anode in sulfuric acid solution—Tafel and EIS investigations [J]. Journal of Electroanalytical Chemistry, 2012, 671: 16-23.

[30] MOHAMMADI M, MOHAMMADI F, HOULACHI G, ALFANTAZI A. The role of electrolyte hydrodynamic properties on the performance of lead-based anodes in electrometallurgical processes [J]. Journal of the Electrochemical Society, 2013, 160: E27-E33.

[31] WANG Wen-jun, WANG Zhuo-ran, YUAN Tie-chui, LI Rui-di, LI Hai-hua, LIN Wen-jun, ZHENG Dan. Oxygen evolution and corrosion behavior of Pb-CeO₂ anodes in sulfuric acid solution [J]. Hydrometallurgy, 2019, 183: 221-229.

[32] WANG Wen-jun, YUAN Tie-chui, LI Rui-di, ZHU Xian-yun, LI Hai-hua, LIN Wen-jun, LI Lan-bo, ZHENG Dan. Electrochemical corrosion behaviors of Pb-Ag anodes by electric current pulse assisted casting [J]. Journal of Electroanalytical Chemistry, 2019, 847: 113250.

[33] HO J C K, FILHO G T, SIMPRAGA R, CONWAY B E. Structure influence on electrocatalysis and adsorption of intermediates in the anodic O₂ evolution at dimorphic α- and β-PbO₂ [J]. Journal of Electroanalytical Chemistry, 1994, 366: 147-162.
