Abstract: 50% diamond particle (5 μm) reinforced 2024 aluminum matrix (diamond/2024 Al) composites were prepared by pressure infiltration method. Diamond particles were distributed uniformly without any particle clustering, and no apparent porosities or significant casting defects were observed in the composites. The diamond-Al interfaces of as-cast and annealed diamond/2024 Al composites were clean, smooth and free from interfacial reaction product. However, a large number of Al2Cu precipitates were found at diamond-Al interface after aging treatment. Moreover, needle-shaped Al2MgCu precipitates in Al matrix were observed after aging treatment. The coefficient of thermal expansion (CTE) of diamond/2024 Al composites was about 8.5×10-6 °C-1 between 20 and 100 °C, which was compatible with that with chip materials. Annealing treatment showed little effect on thermal expansion behavior, and aging treatment could further decrease the CTE of the composites. The thermal conductivity of obtained diamond/ 2024 Al composites was about 100 W/(m?K), and it was slightly increased after annealing while decreased after aging treatment.
Trans. Nonferrous Met. Soc. China 23(2013) 3584-3591
Zi-yang XIU1, Xu WANG2, M. HUSSAIN3, Chao FENG1, Long-tao JIANG1
1. State Key Laboratory of Advanced Welding and Joining, Harbin Institute of Technology, Harbin 150001, China;
2. School of Mechanical Engineering, Liaoning Shihua University, Fushun 113001, China;
3. Department of Chemical Engineering, COMSATS Institute of Information Technology, Lahore 54000, Pakistan
Received 17 April 2013; accepted 5 July 2013
Abstract: 50% diamond particle (5 μm) reinforced 2024 aluminum matrix (diamond/2024 Al) composites were prepared by pressure infiltration method. Diamond particles were distributed uniformly without any particle clustering, and no apparent porosities or significant casting defects were observed in the composites. The diamond-Al interfaces of as-cast and annealed diamond/2024 Al composites were clean, smooth and free from interfacial reaction product. However, a large number of Al2Cu precipitates were found at diamond-Al interface after aging treatment. Moreover, needle-shaped Al2MgCu precipitates in Al matrix were observed after aging treatment. The coefficient of thermal expansion (CTE) of diamond/2024 Al composites was about 8.5×10-6 °C-1 between 20 and 100 °C, which was compatible with that with chip materials. Annealing treatment showed little effect on thermal expansion behavior, and aging treatment could further decrease the CTE of the composites. The thermal conductivity of obtained diamond/ 2024 Al composites was about 100 W/(m·K), and it was slightly increased after annealing while decreased after aging treatment.
Key words: Al matrix composites; diamond; interface; annealing; aging; thermal properties
1 Introduction
Ever-growing requirements imposed on thermal management materials in semiconductor applications drive the development of new materials with enhanced thermal conductivity [1,2]. High-performance thermal management materials should have high thermal conductivity (TC) [3,4] to maximize heat dissipation and low coefficient of thermal expansion (CTE) [5,6] to minimize the thermal stress and warping, which are critical issues in packaging of electronic devices [7]. However, the traditional packaging materials such as W/Cu and Mo/Cu could not meet these requirements [8,9]. Therefore, a large effort has been made to develop new materials with improved thermal properties.
Metal-matrix composites (MMCs) with tailored properties have been widely investigated recently. Aluminum matrix composites reinforced with high fraction of SiC [10-12] or Si3N4 particles [13,14] demonstrated compatible CTE with chip materials. However, their heat conduction and heat spreading capacity could not meet well with the increasing requirement [15]. Diamond particles have been identified as a promising reinforcement due to their exceptional high TC and low CTE [16], typically 600-2000 W/(m·K) and 0.8×10-6 °C-1 at 25 °C, respectively.
Pressureless metal infiltration [17,18], spark plasma sintering [7,19,20], powder metallurgy method [21], vacuum hot pressing [22], gas pressure infiltration [23-25] and pressure infiltration method (squeeze casting) [26,27] have been reported to fabricate diamond/ Al composites. JOHNSON and SONUPARLAK [17] used pressureless metal infiltration to obtain diamond/Al composites. The diamond particulates were coated with SiC prior to infiltration to prevent the formation of Al4C3. Moreover, TC of diamond/Al composites prepared by spark plasma sintering reached 403 W/(m·K) [7,19,20]. HANADA et al [21] reported the processing of diamond/Al with mean particle size of 5 nm by powder metallurgy method. The addition of 1% (volume fraction) cluster diamond improved the friction coefficient of Al matrix significantly. Furthermore, gas pressure infiltration was also adopted to prepare diamond/Al composites. However, the long exposure time of diamond to molten aluminum led to excessive formation of Al4C3, which was observed to be formed with a strong crystallographic preference on the {100} faces of diamond [24]. Therefore, Ti [28] or TiN [29] coatings were used to prevent the formation of Al4C3. Pressure infiltration method is believed to be an effective technique because of the advantages of higher production rate, elimination of expensive equipments, feasibility of mass production and near-net products [30,31]. BEFFORT et al [26] investigated the thermal and chemical stability of micron-grade diamond powders as well as the interface microstructure in diamond/Al composites produced by pressure infiltration method. It was found that diamond powders were particularly susceptible to thermal degradation in the presence of oxygen during composite processing, which leads to the formation of an amorphous layer consisting of carbon, aluminum and oxygen.
Our research group has successfully fabricated carbon fibre [32,33] and ceramic particles [13,14] reinforced Al composites by pressure infiltration method under protective atmosphere. Moreover, it is well known that the heat treatment has significant effects on microstructure and properties of metal and metal matrix composites [34,35]. However, the effect of heat treatment on microstructure and properties of diamond/Al composites has rarely been investigated. Therefore, in the present work, 50% (volume fraction) diamond particle (5 μm) reinforced 2024 aluminum matrix composites were prepared by pressure infiltration method. The effect of annealing and aging on microstructure and thermo-physical properties was also discussed.
2 Experimental
The synthetic diamond particles (SF Diamond Co., Ltd., China) with an average particle size of 5 μm were used to reinforce 2024 Al alloy by pressure infiltration method. The basic properties of diamond particles and 2024 Al alloy are shown in Table 1. The chemical composition (mass fraction, %) of the 2024 Al alloy was 4.79% Cu, 1.49% Mg, 0.611% Mn, 0.245% Fe, 0.168% Si, 0.068% Zn, 0.049% Cr, 0.046% Ti, 0.013% Ni and Al balance. A preform comprising diamond particles was prepared firstly. Preheating temperatures for the preform and pressure infiltration dies were 500 and 740-750 °C, respectively. The matrix alloy was melted under protection of argon and melted salts, and poured into dies at 740-750 °C under argon.

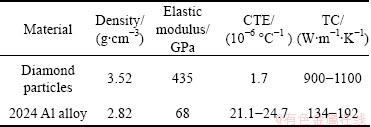

Table 1 Properties of diamond particles and 2024 Al alloy
The schematic diagrams of annealing and aging treatment are shown in Fig. 1. The annealing samples were held at 360 °C for 1 h and then cooled in the furnace to room temperature. The aging samples were solution treated at 495 °C in KNO3 salt-bath furnace for 1 h and water quenched at room temperature. After solution treatment, specimens were aged at 190 °C for 8 h and cooled in the air. The as-cast samples were used for comparison.

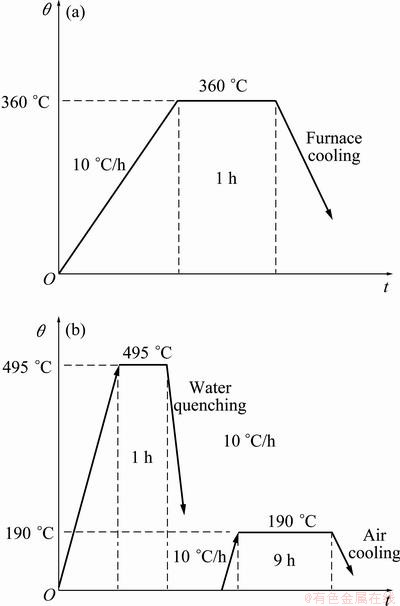

Fig. 1 Schematic diagrams of annealing (a) and aging (b) treatment
The density of diamond/2024 Al composites was measured by Archimedes’ method. The morphology of diamond/2024 Al composites was observed by ZEISS 40MAT optical microscope (OM) and FEI Sirion Quanta 200 scanning electron microscope (SEM). Further microstructure observation was conducted by a Philips CM-12 transmission electron microscope (TEM) with an accelerated voltage of 100-120 kV. Thermal conductivity (TC) and specific heat capacity of the composite and matrix, with a diameter of 12.7 mm and a thickness of 2 mm, were examined on LFA 427 laser flash apparatus (Netzsch, Germany) from 20 to 50 °C with a heating rate of 5 °C/min. CTE tests were carried out on Dilatometer 402C (Netzsch, Germany). The samples were the cylinders with a diameter of 4 mm and a length of 25 mm. During the CTE measurement, the temperature was increased from 20 to 495 °C at a heating rate of 5 °C/min. The helium atmosphere was maintained at a flow rate of 50 mL/min to ensure the equilibrium of temperature and prevent oxidation of samples.
3 Results and discussion
3.1 Microstructure
The irregular shape diamond particles were used in the present work, as shown in Fig. 2. The representative optical morphologies of the diamond/2024 Al composites in as-cast, annealed and aged condition are shown in Fig. 3. Diamond particles were distributed uniformly without any particle clustering, and no apparent porosities or significant casting defects were observed in the composites. The dense microstructure is favorable for the mechanical and thermal conductivity properties. Moreover, the dense microstructure is also beneficial to improving the dimensional stability of composite, which would prolong the service life of devise.

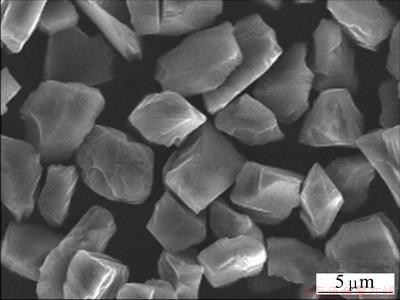

Fig. 2 SEM image of diamond particles used in the present work
Representative SEM images of diamond/2024 Al composites in as-cast, annealed and aged condition are shown in Fig. 4. It is obvious that some diamond particles were polished away due to the large hardness difference between reinforcement and matrix.
TEM images of diamond-Al interface of as-cast, annealed and aged diamond/2024 Al composites are shown in Fig. 5. As reported by BEFFORT et al [24], amorphous interfacial C-layer and excessive Al4C3 phases were observed in as-cast diamond/Al composites fabricated by pressure infiltration method. However, in the present work, the diamond-Al interface of as-cast diamond/2024 Al composites was clean, smooth and free from interfacial reaction product (Fig. 5(a)). Diamond particles would undergo thermal degradation [24]. This effect is more obvious in air atmosphere [27]. Therefore, amorphous carbon and isolated Al carbides were observed in the obtained composites. However, in the present work, the diamond preform was protected by CO2, which would inhabit its degradation. Therefore, the diamond-Al interface is clean and without amorphous layer and Al4C3 phases in as-cast composite. No significant change was observed at diamond-Al interface in annealed composite (Fig. 5(b)). However, a large number of Al2Cu precipitates were found at diamond-Al interface after aging treatment (Fig. 5(c)). Moreover, it was hard to observe Al2Cu phase in Al matrix.

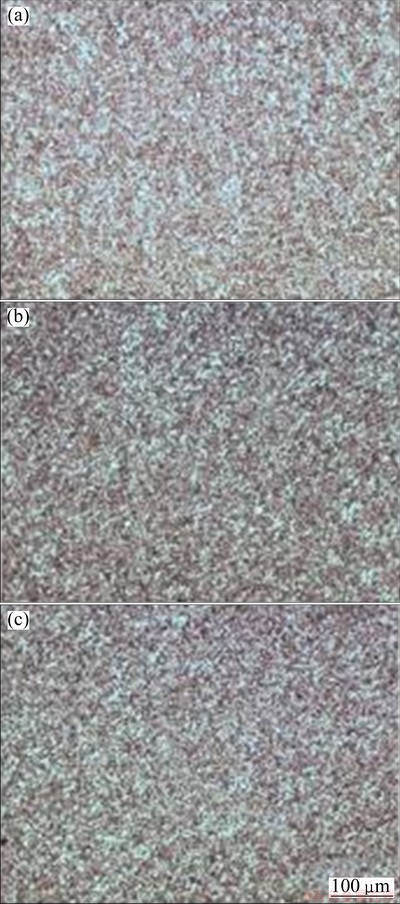

Fig. 3 Optical morphologies of diamond/2024 Al composites in as-cast (a), annealed (b) and aged (c) condition

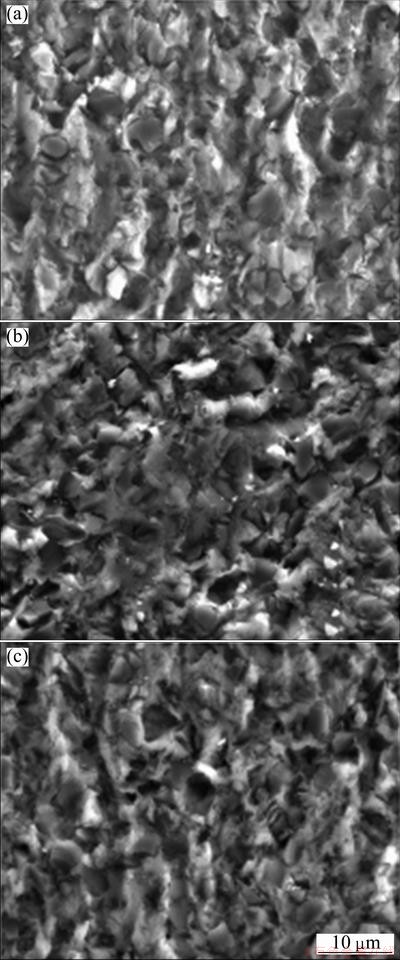

Fig. 4 SEM images of diamond/2024 Al composites in as-cast (a), annealed (b) and aged (c) conditions
The diamond-Al interface provides extra energy for heterogeneous nucleation of Al2Cu, leading to the low nucleation energy and a relatively high nucleation rate at the interface compared with that in Al matrix. Therefore, Al2Cu phase would grow predominantly at the interface instead of in Al matrix during aging treatment.

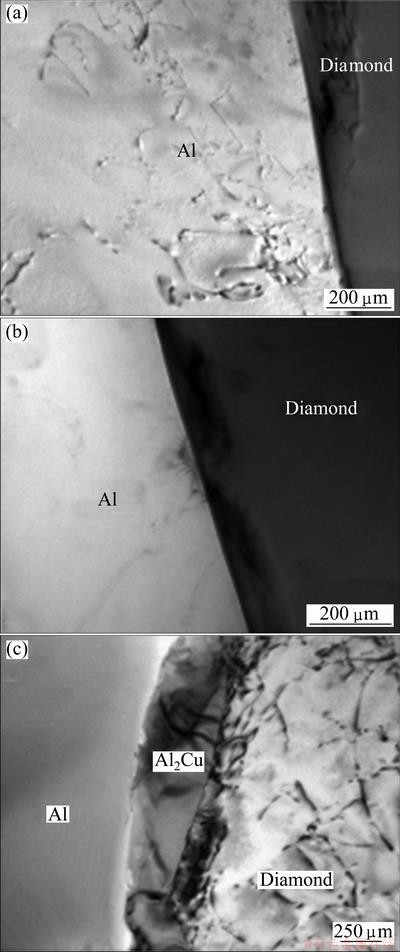

Fig. 5 TEM images of diamond-Al interface of as-cast (a), annealed (b) and aged (c) diamond/2024 Al composites
The dislocations in Al matrix of as-cast, annealed and aged diamond/2024 Al composites are shown in Fig. 6. Large CTE difference between diamond particles and Al matrix would generate enormous thermal tensile stresses on Al matrix during rapid cooling after Al infiltration, which leads to the formation of high density dislocations near the diamond-Al interface (Fig. 6(a)). The annealing treatment decreased the density of the dislocations significantly due to release of residual thermal stress (Fig. 6(b)). However, more dislocations were found after aging treatment. Water quenching process in aging treatment generates larger thermal stress at diamond-Al interface, which leads to the reformation of dislocations. Moreover, apparent needle-shaped precipitates were found in Al matrix after aging treatment (Fig. 7(a)), and the weak diffraction spots in electron diffraction pattern (Fig. 7(b)) were elongated lines, which corresponds to Al2MgCu.

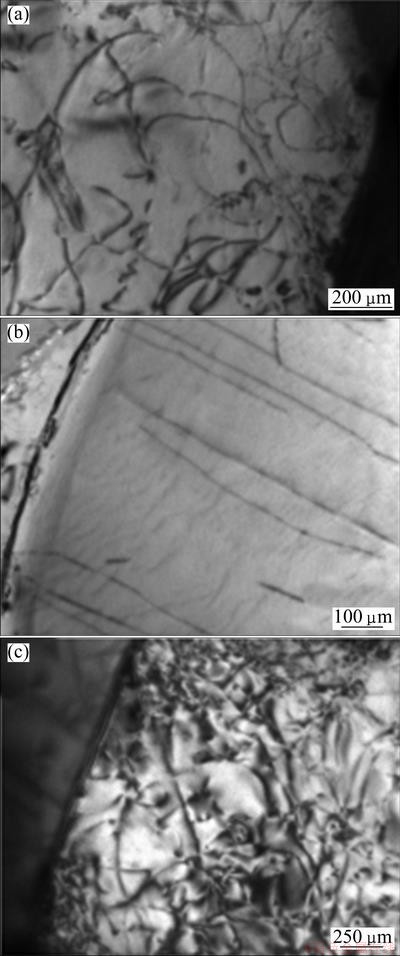

Fig. 6 TEM images of dislocations in Al matrix of as-cast (a), annealed (b) and aged diamond/2024 Al composites (c)
Crystal defects in particle reinforcements, which have important influence on interface and properties, are significant characteristics of particle reinforced metal matrix composite. Stacking faults and dislocations have been observed in ceramic particles reinforced Al matrix composites [36,37], the high density dislocations in AlN particles even tangle with each other [38]. In the present work, few aligned linear dislocations (Fig. 8) were found in diamond particles. Generally, the crystal defects in reinforcements are generated in preparation process of particles as well as composites. The diamond particles were fabricated under high temperature and pressure, which may produce some crystal defects. Moreover, the volume fraction of particles was very high (50%), parts of particles contacted with each other during perform densification or Al infiltration under pressure. Since the morphology of the diamond particles was irregular with sharp edges (Fig. 2), some sharp edges would exert pressure to the contacted surface of other particles inevitably, which would generate dislocations. Furthermore, a large CTE difference between diamond particles and Al matrix would generate enormous thermal compressive stresses on diamond particles, which would also contribute to the formation of dislocations in the diamond particles.
Fig. 7 Al2MgCu precipitates in Al matrix of diamond/2024 Al composites after aging treatment

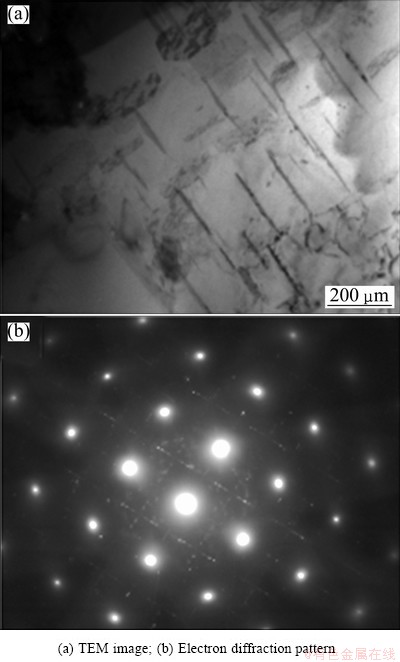

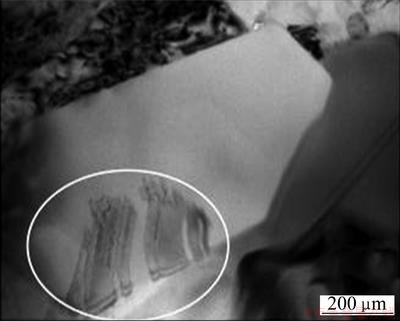

Fig. 8 TEM image of few linear dislocations in diamond particles
3.2 Thermophysical properties
The CTE comparison of diamond/2024 Al in as-cast, annealed and aged condition is shown in Fig. 9. Regardless of heat treatment, the CTEs of diamond/2024 Al composite were reduced greatly to nearly half that of the 2024 Al matrix [13] with high addition of diamond particles. It is well known that the thermal expansion of metal matrix composite is determined by the thermal expansion of metal matrix and the restriction of reinforcement through interfaces. High content of diamond particles imposes large restriction on surrounding aluminum matrix, which leads to the low CTE of the diamond/2024 Al composite. Moreover, annealing treatment has little effect on thermal expansion behavior. Aging treatment could further decrease the CTE of the composite. The formation of Al2Cu phases at diamond-Al interface could improve the interfacial bonding and restriction of diamond particles on the surrounding Al matrix, which leads to the decrease of CTE. Furthermore, formation of Al2MgCu precipitates in Al matrix could also contribute to the decrease of CTE. The CTE of diamond/2024 Al composite was about 8.5×10-6 °C-1 between 20 and 100 °C, which is compatible with that of chip materials.

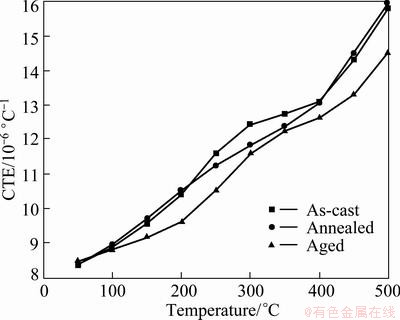

Fig. 9 CTE comparison of as-cast, annealed and aged diamond/2024 Al composites
The thermal diffusivity (α) and conductivity (λ) of diamond/2024 Al composites in as-cast, annealed and aged condition are shown in Table 2. The thermal conductivity of diamond/Al composite is expected to exceed 600 W/(m·K). However, the measured thermal conductivity of the present composite was about 100 W/(m·K), which was far lower than the theoretical value. Although lager particles were adopted (average particle size of 100 μm), thermal conductivity of diamond/Al, which was also fabricated by pressure infiltration method, was about 130 W/(m·K) [14]. The annealing treatment improved the thermal diffusivity and conductivity while aging treatment showed an opposite effect. There are two ways for heat transfer in diamond/2024 Al composite: free electron in Al matrix and phonon in diamond particles. Both of their movements would be scattered by interface. Therefore, heat conduction in diamond/2024 Al composite is depended on Al matrix, diamond particles and their interface. The annealing treatment would release the residual thermal stress in Al matrix generated in fabrication, which is beneficial to heat conduction, and lead to improvement of the thermal conductivity. Moreover, the density of the dislocations decreased after annealing treatment, which also contributed to the increase of TC. However, after aging treatment, more scattering interfaces for electron and phonon were introduced into the composite, such as Al2Cu phase at diamond-Al interface (Fig. 5(c)), Al2MgCu precipitates in Al matrix (Fig. 7(a)) and higher density dislocations introduced more interfaces into the composite, which would scatter the movement of electron and phonon, and decrease the thermal conductivity. Therefore, thermal conductivity is slightly decreased after aging treatment.

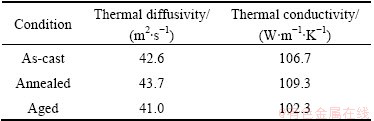

Table 2 Thermal diffusivity and conductivity of diamond/2024 Al composites after different treatments
4 Conclusions
1) 50% (volume fraction) diamond particle (5 μm) reinforced 2024 aluminum matrix (diamond/2024 Al) composites were prepared by pressure infiltration method. Diamond particles are distributed uniformly without any particle clustering, and no apparent porosities or significant casting defects are observed in the composites.
2) The diamond-Al interfaces of as-cast and annealed diamond/2024 Al composites are clean, smooth and free from interfacial reaction product. However, a large number of Al2Cu precipitates are found at diamond-Al interface after aging treatment. High density dislocations are observed in the as-cast composite. The density of dislocations is decreased and increased after annealing and aging treatment, respectively.
3) The CTE of diamond/2024 Al composites is about 8.5×10-6 °C-1 between 20 and 100 °C, which is compatible with that of chip materials. Annealing treatment has little effect on thermal expansion behavior, and aging treatment can further decrease the CTE of the composite.
4) The thermal conductivity of obtained diamond/ 2024 Al composites is about 100 W/(m·K). Due to the release of residual stress and decrease of dislocations, thermal conductivity of diamond/2024 Al composites slightly increases after annealing treatment. However, thermal conductivity of diamond/2024 Al composites slightly decreases the formation of Al2Cu at diamond-Al interface and Al2MgCu precipitates in Al matrix.
