­­Photoelectrocatalytic activity of two antimony doped SnO2 films for

oxidation of phenol pollutants

WANG Yan(王 艳)^{1, 2}, FAN Cai-mei(樊彩梅)¹, HUA Bo(华 勃)¹,

LIANG Zhen-hai(梁镇海)¹, SUN Yan-pin(孙彦平)¹

1. College of Chemistry and Chemical Engineering, Taiyuan University of Technology,

Taiyuan 030024, China;

2. College of Chemistry and Bioengineering, Taiyuan University of Science and Technology,

Taiyuan 030021, China

Received 3 July 2008; accepted 8 November 2008

Abstract: Two types of Sb-doped SnO₂ films on titanium substrate were prepared by the combination of electro-deposition and dip-coating (Ti/SnO₂-Sb₂O₄/SnO₂-Sb₂O₄) and single dip-coating (Ti/SnO₂-Sb₂O₄), respectively. The surface morphology and crystalline structure of both film electrodes were characterized using X-ray diffractometry(XRD) and scanning electron microscopy(SEM). XRD spectra indicate that the rutile SnO₂ forms in two films and a TiO₂ crystallite exists only in Ti/SnO₂-Sb₂O₄ electrode. SEM images show that the surface morphology of two films is typically cracked-mud structure. The photooxidation experiment was proceeded to further confirm the two electrode activity. The results show that the photoelectrocatalytic degradation efficiency of Ti/SnO₂-Sb₂O₄ electrode with sub-layer is higher than that of simple Ti/SnO₂-Sb₂O₄ electrode using phenol as a model organic pollutant. The Ti/SnO₂-Sb₂O₄/SnO₂-Sb₂O₄ photoanode has a better photoelectrochemical performance than Ti/SnO₂-Sb₂O₄ photoanode for the removal of organic pollutants from water.

Key words: Ti/SnO₂-Sb₂O₄; SnO₂ films; photoelectrocatalysis; phenol

1 Introduction

Photoelectrocatalytic process using semiconductor electrodes has been widely studied due to their inherent high catalytic activity for oxidation of organic pollutants in the past two decades[1-3]. Especially, metal/TiO₂ photoelectrode has received a lot of attention, because this technology can suppress the recombination of photogenerated electron-hole pairs by external bias[4-5], and solve the separation problem of TiO₂ particles from water solution. Unfortunately, applying external bias to Ti/TiO₂ electrode could improve the photocatalytic activity of Ti/TiO₂ electrode[6-8], but the improvement is very limited. The Ti/SnO₂ film electrode has attracted a lot of attention due to its high oxygen–evolution overpotential in electrochemical process[9-10]. Our study about Ti/SnO₂ film electrode allowed effective photooxidation of phenol under UV irradiation[11]. Thus we designed the Ti/SnO₂ as a novel photoanode in the treatment of organics in water by photoelectrocatalysis. However, its poor conductivity limited its catalytic activity for oxidation of organics in water[12-14]. One of the methods to increase the electricity conductivity is to modify SnO₂ by doping various elements, such as F, P and Sb[15-17]. Among these elements, Sb-doped SnO₂ showed good electrical conductivity, high overpotential for oxygen–evolution and catalytic activity. On the other hand, Sb-doped SnO₂ is still a semiconductor (E_g= 3.5-3.8 eV) and has the function of photoanode, although its application in the photoelectrocatalytic process has not been noted as TiO₂ thin film anode.

Besides, the preparation technology and method of electrode have much important effect on electrode function and performance as well as service life. Recently, many papers have reported the preparation and properties of SnO₂ film, such as sol-gel dip coating [18-19], spray pyrolysis[20-21], sputtering[22-23], chemical vapor deposition[24-25], and thermal evapora- tion[26]. Although various studies have demonstrated the dependence of the properties of Sb-doped SnO₂ on preparation condition and method, there is little information about the performance of these modified SnO₂ as photoelectrocatalysts for the oxidation of organic pollutants.

In this work, two electrodes were prepared: one was coated directly with catalyst layer (SnO₂-Sb₂O₄) to titanium substrate surface to form Ti/SnO₂-Sb₂O₄ electrode; the other included a SnO₂-Sb₂O₄ sub-layer to form Ti/SnO₂-Sb₂O₄/SnO₂-Sb₂O₄ electrode. Phenol was selected as model compound for study of catalytic performance of Sb-doped SnO₂ photoelectrocatalysis. Our goals are to evaluate the influences of Sb modifier and SnO₂-Sb₂O₄ sub-layer on electrode microstructure, electrochemical properties and photoelectrocatalytic activity for phenol oxidation.

2 Experimental

2.1 Preparation of Sb-doped SnO₂ electrode

2.1.1 Pre-treatment of Ti substrate

Ti plates with size of 70 mm×10 mm were polished using abrasive paper prior to etch in 40% NaOH solution at 95 ℃ for 4 h. Additional acid etching was carried out using 10% oxalic acid solution at the same condition. The etched Ti plate was then washed thoroughly using deionized water and dried.

2.1.2 Preparation of Ti/SnO₂-Sb₂O₄/SnO₂-Sb₂O₄ anode

The anode was prepared in two steps. First, SnO₂-Sb₂O₄ sub-layer was prepared using electro- deposition technique. In this process, the pretreated Ti plate was used as cathode and insoluble electrode as anode with 100 mL electrolyte solution containing 1.753 g SnCl₄·4H₂O, 0.114 g SbCl₃, and 12 mL ethanol solution (analytical reagent) of tetrabutyl titanate (analytical reagent). A constant DC current of 0.12 A was applied for 30 min to electroplate the cathode, and then the Ti plate with electroplated sub-layer was dried in an oven at 450 ℃ for 2 h. Subsequent loading of the second layer of SnO₂-Sb₂O₄ was accomplished using dip-coating technique. The coating solution was made using 4 g SnCl₄·5H₂O, 0.156 g SbCl₃ and 1 mL concentrated HCl (37%) in 9 mL n-butanol (analytical reagent). After washing coating, the sample was dried at 100 ℃ for 5 min prior to calcination at 450 ℃ for 10 min. The dipping and thermal deposition process, washing coating and calcination process were repeated several times until reaching the loading times. The resulting electrode was annealed at 450 ℃ for 1 h to form Ti/ SnO₂-Sb₂O₄/SnO₂-Sb₂O₄ electrode.

2.1.3 Preparation of Ti/SnO₂-Sb₂O₄ anode

The anode was prepared using dip-coating procedure as described above. The final electrode was also called Ti/SnO₂-Sb₂O₄ electrode without sub-layer.

2.2 Preparation of gas diffusion electrode

The gas diffusion electrode was prepared using coating and pressing method. Graphite, carbon black and nickel mesh were pressed to about 1 mm in thickness and annealed at 400 ℃ for 1 h. The resulting electrode was used as cathode for photoelectrocatalysis(PEC) process. Detailed preparing process can be found in Ref.[27].

2.3 Analytical methods

Scanning electron microscope(SEM) (LEO-438VP, Japan) equipped with an energy-disperse spectrometer (EDS) analyzer was used to study the surface morphology. X-ray diffraction (XRD) (D/max-2500, Japan) measurements were carried out to determine crystal phase structure of Ti/SnO₂-Sb₂O₄ electrode. UV-visible spectrophotometer (Model Cary50, USA) was used to measure phenol concentration. Total organic carbon(TOC) of phenol containing solutions was measured using a TOC analyzer (Multi N/C 3000, Germany).

2.4 Photoelectrocatalytic reactor and experimental procedure

Fig.1 shows a schematic diagram of the batch scale experimental reactor system. The photoreactor system consists of a cylindrical quartz glass reactor with an effective vessel volume of 100 mL, an external UV light source and a two-electrode configuration. The two electrodes were placed in the reactor parallelly. Ti/SnO₂-Sb₂O₄ electrode faced to UV light was used as photocatalyst and electroanode. The gas diffusion electrode was used as cathode. The applied potential bias was obtained from a DC potentiostat (model 363, England). A 250 W high-pressure mercury lamp (main wavelength 365 nm, China) with a cooling water quartz jacket acted as a side light source. Air was supplied to the reaction system from the bottom of reactor using a mini-type air pump.

Fig.1 Schematic diagram of photoreaction systems

During the reaction, phenol solution with the initial content of 20 mg/L was irradiated by UV light and aerated by air. Samples of phenol solution were taken periodically for measuring both phenol and TOC contents.

3 Results and discussion

3.1 XRD analysis

No apparent change was found in the XRD pattern of the Ti/SnO₂-Sb₂O₄/SnO₂-Sb₂O₄ electrode before and after use (Fig.2). In contrast, a TiO₂ peak is observed for Ti/SnO₂-Sb₂O₄ electrode without sub-layer of SnO₂-Sb₂O₄ after 30 h. This indicates the oxidation of Ti substrate during reaction process. Ti oxidation may further result in weak conductivity of Ti/SnO₂-Sb₂O₄ electrode[28]. Applying a sub-layer to Ti surface is proved to be useful in preventing Ti from oxidation and improving photoelectrocatalytic activity of Sb-doped SnO₂ electrode.

Fig.2 XRD patterns of Ti/SnO₂-Sb₂O₄ electrodes: (a) With sub-layer before use; (b) With sub-layer after use of 30 h; (c) Without sub-layer before use; (d) Without sub-layers after use of 30 h

3.2 SEM analyses

The surface morphologies of the Sb-doped SnO₂ electrodes are shown in Fig.3. Fig.3(a) reveals a roughly porous surface of the Ti substrate after pretreatment. Roughness of the pretreated Ti surface is critical for generating desired catalysts layer on Ti surface. A flat and dense surface is formed after sub-layer of SnO₂- Sb₂O₄, which is applied by electro-deposition process(Fig.3(b)). It is believed that this dense surface provides barrier for oxygen diffusion and reaction with Ti as evidence by XRD study above. Both the surfaces of the Ti/SnO₂-Sb₂O₄ electrode prepared by dip-coating procedure (Fig.3(c)) and the double layered Ti/SnO₂-Sb₂O₄/SnO₂-Sb₂O₄ electrode by a procedure of electro-deposition and subsequent dip-coating (Fig.3(d)) look rather rough with a mixed mud-flat cracking and agglomerates. The factor leading to the formation of such a complex morphology may be the difference in thermal expansion coefficients of substrates or layer materials[29]. The surface morphology significantly influences the activity of the electrode for the oxidation of phenol in aqueous solution. Lower activity of Ti/SnO₂-Sb₂O₄ electrode without sub-layer is apparently related to cracks which may provide convenience for oxygenous infiltration and diffusion, resulting in the decrease of electrode performance. Thus, adding sub-layer is an appropriate measure for the preparation of Ti/SnO₂-Sb₂O₄ electrode.

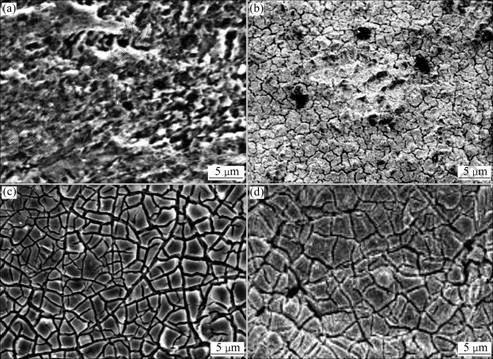

Fig.3 SEM images of Ti/SnO₂-Sb₂O₄ electrodes

Furthermore, both the Ti/SnO₂-Sb₂O₄ and Ti/SnO₂-Sb₂O₄/SnO₂-Sb₂O₄ electrodes were analyzed by means of EDS, and the results about the molar ratios of Sn and Sb are shown in Table 1. In this study, the theoretical composition ratio of Sn to Sb atoms is 100:6. From the results of Table 1, it can be found that the molar ratios of the final coatings are not consistent with the theoretical composition. There are two reasons: one is element volatilization during heat treatment, and the other is instrument error by itself.

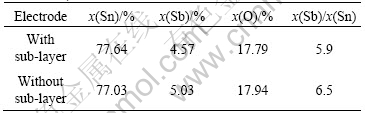

Table 1 Composition of Ti/SnO₂-Sb electrode (molar fraction, %)

3.3 Performance of phenol degradation

Complete phenol oxidation was achieved using the Ti/SnO₂-Sb₂O₄/SnO₂-Sb₂O₄ electrode after 2 h reaction, while only about 86% phenol conversion was achieved under the same conditions using Ti/SnO₂-Sb₂O₄ electrode (Fig.4). The phenol mineralization rates after 3 h were determined to be 85% and 73% for Ti/SnO₂- Sb₂O₄/SnO₂-Sb₂O₄ electrode and Ti/SnO₂-Sb₂O₄, respectively. These results indicate that the sub-layer of SnO₂-Sb₂O₄ on Ti substance improves the activity of the catalysts for phenol oxidation.

Fig.4 Effect of sub-layer on photoelectrocatalytic degradation of phenol

3.4 Linear voltammogram

The current properties of the Ti/SnO₂-Sb₂O₄/ SnO₂-Sb₂O₄ and Ti/SnO₂-Sb₂O₄ electrodes were investigated in phenol solution without electrolyte, and the linear voltammograms of two electrodes are shown in Fig.5. In dark, the anode current of the Ti/SnO₂-Sb₂O₄/ SnO₂-Sb₂O₄ electrode is higher than that of the Ti/SnO₂-Sb₂O₄ on the condition of only anodic bias, which is similar to the result of the combination of the same anodic bias and UV illumination. Under UV illumination, the current efficiency of the two electrodes is better than that in dark, and the Ti/SnO₂-Sb₂O₄ electrode with sub-layer can acquire a higher photocurrent[30] than Ti/SnO₂-Sb₂O₄ electrode without sub-layer at the same anode bias, which indicates that the Ti/SnO₂-Sb₂O₄/ SnO₂-Sb₂O₄ electrode can promote the separation of photoelectrocatalytic electron-hole pair due to improved anode conductivity. Moreover, the probability of electrons that can get away from hole recombination increases with increasing the voltage. As a result, it is necessary to employ an anodic bias in photocatalytic process.

Fig.5 Linear voltammograms of Ti/SnO₂-Sb₂O₄ electrode with sub-layer and without sub-layer (scanning speed: 100 mV/s, scanning range: -2.0-2.0 V (vs SCE))

3.5 Comparison of different degradation processes

The efficiencies of phenol degradation and TOC degradation from phenol solution were measured at four different processes, which were adsorption, photocatalytic, electrocatalytic and photoelectrocatalytic processes, and the results are presented in Fig.6. During all the experiments, the Ti/SnO₂-Sb₂O₄/SnO₂-Sb₂O₄ electrode and a gas diffusion electrode were immersed in the phenol solution, and air was supplied to the reaction system from the bottom of reactor.

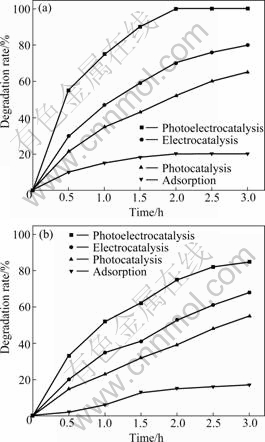

Fig.6 Comparison of removal rate of different degradation processes: (a) Phenol removal; (b) TOC removal

The adsorption effect of phenol plays an important role in the phenol removal, because the adsorption of organic pollutants on the catalysts is the key step in the catalytic reaction[31]. Thus, the adsorption effect of the two electrodes must be considered at first. Adsorption process was performed in the absence of the UV light and potentiostat for 3 h, and only 20% of phenol was removed. For the photocatalytic degradation process alone, the phenol degradation rate can reach 65% after 3 h reaction. When 2.0 V cell voltage was applied for 3 h in the absence of UV illumination, the phenol degradation rate was 80%. However, both in the presence of 2.0 V cell voltages and UV illumination, the phenol concentrations were decreased rapidly with increasing reaction time, and the degradation rate can reach 100% after 2 h. It can be seen that the phenol removal increases with the increase of reaction time in all four processes, but the photoelectrocatalytic degradation rate was obviously higher than that of other processes. Thus, it can be concluded that phenol can be removed from the water more efficiently by photoelectrocatalytic process.

A similar conclusion can be drawn by comparison of the TOC reduction efficiency, which is shown in Fig.6(b). TOC removal efficiencies are 17%, 68% and 55% in the presence of adsorption, photocatalytic and electrocatalytic processes, respectively, while the phenol mineralization rate of photoelectrocatalytic process can reach 85%. The TOC removal rate in the photoelectrocatalytic process is the highest. This should be attributed to the synergetic effect between photocatalysis and electrocatalysis in this photoreactor, and the adsorption also plays an important role in the degradation process.

4 Conclusions

1) Two electrodes of Ti/SnO₂-Sb₂O₄/SnO₂-Sb₂O₄ and Ti/SnO₂-Sb₂O₄ were obtained. The Ti/SnO₂-Sb₂O₄ was prepared by the simple procedure of dip-coating method and the Ti/SnO₂-Sb₂O₄/SnO₂-Sb₂O₄, i.e. the Sb-doped SnO₂ film electrode with Sb-doped SnO₂ film sub-layer, was prepared by the procedure of electro- deposition technique and subsequent dip-coating method.

2) The XRD spectra of two film electrodes (Ti/SnO₂-Sb₂O₄/SnO₂-Sb₂O₄ and Ti/SnO₂-Sb₂O₄), which were annealed at 450 ℃, correspond to rutile SnO₂, and an anatase TiO₂ crystallite is found only in the thin film of Ti/SnO₂-Sb₂O₄ electrode. SEM measurement shows that Ti/SnO₂-Sb₂O₄/SnO₂-Sb₂O₄ electrode looks rougher with a mixed mud-flat cracking and agglomerates.

3) The Ti/SnO₂-Sb₂O₄/SnO₂-Sb₂O₄ electrode can acquire a higher photocurrent than Ti/SnO₂-Sb₂O₄ electrode.

4) The degradation experiments show that the Sb-doped SnO₂ film electrode with sub-layer has a higher phenol and TOC removal rate than Ti/SnO₂-Sb₂O₄ electrode in electrocatalytic process and photo- electrocatalytic process. Therefore, Ti/SnO₂-Sb₂O₄/ SnO₂-Sb₂O₄ is not only a good electrochemical anode in treating organic pollutants but also a good photoanode in electro-assisted photocatalytic process for complete oxidation of organic pollutants.

References

[1] WALDNER G, POURMODJIB M, BAUER R, NEUMANN- SPALLART M. Photoelectrocatalytic degradation of 4-chlorophenol and oxalic acid on titanium dioxide electrodes [J]. Chemosphere, 2003, 50(8): 989-998.

[2] CHENG Xiao-fang, LENG Wen-hua, PI Ou-yang, ZHANG Zhao, ZHANG Jian-qing, CAO Chu-nan. Enhancement of photocatalytic activity of TiO₂ film electrode by in situ photoelectro-generating active chlorine [J]. Trans Nonferrous Met Soc China, 2007, 17(5): 1087-1092.

[3] RADECKA M. TiO₂ for photoelectrolytic decomposition of water [J]. Thin Solid Films, 2004, 451/452(22): 98-104.

[4] WALKER S A, CHRISTENSEN P A, SHAW K E. Photoelectrochemical oxidation of aqueous phenol using titanium dioxide aerogel [J]. Journal of Electroanalytical Chemistry, 1995, 393(1/2): 137-140.

[5] ZLAMAL M, MACAK J M, SCHMUKI P, KR?SA J. Electrochemically assisted photocatalysis on self-organized TiO₂ nanotubes [J]. Electrochemistry Communications, 2007, 9(12): 2822-2826.

[6] ZANONI M V B, SENE J J, ANDERSON M A. Photoelectrocatalytic degradation of Remazol Brilliant Orange 3R on titanium dioxide thin-film electrodes [J]. Journal of Photochemistry and Photobiology A: Chemistry, 2003, 157(1): 55-63.

[7] YANG Shao-gui, LIU Ya-zi, SUN Ceng. Preparation of anatase TiO₂/Ti nanotube-like electrodes and their high photoelectrocatalytic activity for the degradation of PCP in aqueous solution [J]. Applied Catalysis A: General, 2006, 301(2): 284-291.

[8] QUAN Xie, CHEN Shuo, SU Jing, CHEN Jing-wen, CHEN Guo-hua. Synergetic degradation of 2, 4-D by integrated photo and electrochemical catalysis on a Pt doped TiO₂/Ti electrode [J]. Separation and Purification Technology, 2004, 34(1/3): 73-79.

[9] GRIMM J, BESSARABOV D, MAIER W, STORCK S, SANDERSON R D. Sol-gel film preparation of novel electrodes for the electrocatalytic oxidation of organic pollutants in water [J]. Desalination, 1998, 115(3): 295-302.

[10] ZHANG Q S, WU H H. The research on electrocatalytic oxidation of phenol using the SnO₂/Ti electrode by thermal oxidation [J]. Electrochemistry, 1999, 5: 401-405.

[11] ZHANG Xiao-yan, FAN Cai-mei, LIANG Zhen-hai, SUN Yan-pin. Synergetic effect of oxygen diffusion electrode and Ti/SnO₂/Sb₂O₄ electrode in photoelectrocatalytic degradation of phenol in water [J]. Journal of Taiyuan University of Technology, 2007, 38(2): 130-132. (in Chinese)

[12] EPIFANI M, ALVISI M, MIRENGHI L. Sol-gel processing and characterization of pure and metal-doped SnO₂ thin films [J]. Journal of the American Ceramic Society, 2001, 84: 48-54.

[13] CANUT B, TEODORESCU V, ROGER J A, BLANCHIN M G, DAOUDI K, SANDU C. Radiation-induced densification of sol-gel SnO₂:Sb films [J]. Nuclear Instruments and Methods in Physics Research Section B: Beam Interactions with Materials and Atoms, 2002, 191(1/4): 783-788.

[14] DAL SANTOS M A, ANTUNES A C, RIBEIRO C, BORGES C P F, ANTUNES S R M, ZARA A J, PIANARO S A. Electric and morphologic properties of SnO₂ films prepared by modified sol-gel process [J]. Materials Letters, 2003, 57(28): 4378-4381.

[15] HU Y, HOU S H. Preparation and charaterization of Sb-doped SnO₂ thin films from colloidal precursors [J]. Materials Chemistry and Physics, 2004, 86(1): 21-25.

[16] ZHANG Cun-zhong, LIU Zhen, WU Feng, LIN Li-jun, QI Fei. Electrochemical generation of ferrate on SnO₂-Sb₂O₃/Ti electrodes in strong concentration basic condition [J]. Electrochemistry Communications, 2004, 6(11): 1104-1109.

[17] LEE S Y, PARK B O. Structural, electrical and optical characteristics of SnO₂:Sb thin films by ultrasonic spray pyrolysis [J]. Thin Solid Films, 2006, 510(1/2): 154-158.

[18] GRIMM J H, BESSARABOV D G, SIMON U. Characterization of doped tin dioxide anodes prepared by a sol-gel technique and their application in an SPE-reactor [J]. Journal of Applied Electrochemistry, 2000, 30: 293-302.

[19] ZHANG Jian-rong, GAO Lian. Synthesis and characterization of nanocrystalline tin oxide by sol-gel method [J]. Journal of Solid State Chemistry, 2004, 177: 1425-1430.

[20] CORREA-LOZANO B, COMNINELLIS C, DE BATTISTI A. Electrochemical properties of Ti/SnO₂-Sb₂O₅ electrodes prepared by the spray pyrolysis technique [J]. Journal of Applied Electrochemistry, 1996, 26: 683-688.

[21] PARAGUAY-DELGADO F, MIKI-YOSHIDA M, ANTUNEZ W, GONZ?LEZ-HERN?NDEZ J, VOROBIEW Y V, PROKHOROV E. Morphology and microstructure of textured SnO₂ thin films obtained by spray pyrolysis and their effect on electrical and optical properties [J]. Thin Solid Films, 2008, 516(6): 1104-1111.

[22] JAEHYEONG L. Effects of oxygen concentration on the properties of sputtered SnO₂:Sb films deposited at low temperature [J]. Thin Solid Films, 2008, 516(7): 1386-1390.

[23] GODFROID T, GOUTTEBARON R, DAUCHOT J P, LECL?RE P, LAZZARONI R, HECQ M. Growth of ultrathin Ti films deposited on SnO₂ by magnetron sputtering [J]. Thin Solid Films, 2003, 437(1/2): 57-62.

[24] DUVERNEUIL P, MAURY F, PEBERE N, SENOCQ F, VERGNES H. Chemical vapor deposition of SnO₂ coatings on Ti plates for the preparation of electrocatalytic anodes [J]. Surface and Coatings Technology, 2002, 151: 9-13.

[25] AMJOUD M B, MAURY F, SOUKANE S, DUVERNEUIL P. Making of specific electrodes by CVD [J]. Surface and Coatings Technology, 1998, 100/101: 169-172.

[26] STRY?HAL Z, PAVL?K J, NOV?K S, MACKOV? A, PE?INA V, VELTRUSK? K. Investigations of SnO₂ thin films prepared by plasma oxidation [J]. Vacuum, 2002, 67(3/4): 665-671.

[27] FAN Cai-mei, ZHANG Xiao-yan, WANG Yun-fang, HAO Xiao-gang, SUN Yan-ping. Properties of oxygen electrodes in photoelectrocatalytic degradation of phenol in water [J]. Chinese Journal of Applied Chemistry, 2007, 24(4): 389-391.

[28] CORREA-LOZANO B, COMNINELLIS C, DE BATTISTI A. Service life of Ti/SnO₂-Sb₂O₅ anodes [J]. Journal of Applied Electrochemistry, 1997, 27: 970-974.

[29] CUI Yu-hong, FENG Yu-jie, LIU Jun-feng. Preparation and characterization on Sb doped Ti-base SnO₂ electrocatalytic electrodes [J]. Function Material, 2005, 36(2): 234-237. (in Chinese)

[30] FENG Yu-jie, CUI Yu-hong, WANG Jian-jun. Preparation and characterization of Dy doped Ti-base SnO₂/Sb electrocatalytic electrodes [J]. Chinese Journal of Inorganic Chemistry, 2005, 21(6): 836-841. (in Chinese)

[31] HE Chun, XIONG Ya, SHU Dong, ZHU Xi-hai, LI Xiang-zhong. Preparation and photoelectrocatalytic activity of Pt (TiO₂)-TiO₂ hybrid films [J]. Thin Solid Films, 2006, 503: 01-07.
