Trans. Nonferrous Met. Soc. China 29(2019) 1975-1982

Local corrosion mechanism of SiO₂-based refractories caused by slag movement near solid–liquid–gas interface in different slag systems

Zhang-fu YUAN, Shan-shan XIE, Xiang-tao YU, Yan-gang ZHANG, Rong-yue WANG

Collaborative Innovation Center of Steel Technology, University of Science and Technology Beijing, Beijing 100083, China

Received 5 January 2019; accepted 31 May 2019

Abstract: Slag movement on SiO₂-based prism refractories in different slag systems was observed. The cross section shape evolution mechanism was discussed. Two types of shape evolution appear. For PbO-SiO₂ slag whose surface tension improves with SiO₂ concentration, slag film flows up along four edges under axial Marangoni shear force and wettability. Then, it flows down along four lateral faces under gravity. Corrosion rate at edges is larger than that on lateral faces due to different SiO₂ solubilities of ascending and descending flow. Prism cross section shape changes from square to round. For Fe_tO-SiO₂ slag whose surface tension reduces with the increase of SiO₂ concentration, slag film flows up under the inflence of wettability. Then, it flows down under Marangoni shear force and gravity. Compared to four edges, slag is mainly up and down on four lateral faces due to larger surface tension and size. So, prism cross section shape keeps square.

Key words: Marangoni convection; slag film; local corrosion; solid-liquid-gas interface; SiO₂-based refractories

1 Introduction

The refractory has been extensively applied in high temperature smelting industry, including ferrous industry and non-ferrous industry [1-4]. However, during the smelting process, the refractory is easily damaged due to local corrosion [5,6]. The corrosion of the refractory not only changes the composition of the slag, resulting in the reduction of the product quality, but also brings serious security issues [7]. Therefore, it is significant to investigate the local corrosion mechanism of the refractory, and further put forward corresponding measures to prevent the corrosion.

Generally, the local corrosion of the refractory occurs mainly at the refractory-slag-air (i.e., SLG) interface [8-10]. Marangoni convection is formed due to the presence of the surface tension gradient which is caused by concentration gradient, temperature gradient or composition change near the SLG interface [11,12]. And the dissolved mass transfer coefficient of slag with Marangoni convection is three times stronger than that observed in the slag under static condition [6]. Hence, Marangoni convection is an important factor for the local corrosion of the refractory. On the other hand, the local corrosion rates of different parts of the refractory material differ in different slag systems, which would lead to different shape evolution of the refractory material [13-15]. MUKAI et al [13] studied the shape evolution of SiO₂-based prism in PbO-SiO₂ slag. In our previous study, the shape evolution of SiO₂-based prism in Fe_tO-SiO₂ slag was investigated [14], and the corresponding theoretical calculation mode for different shape evolutions of the prism in the two slag systems were established based on the Laplace equation [15]. However, slag movement near SLG interface for different slag systems driven by Marangoni convection is not observed in situ, and the formation mechanism of Marangoni convection during local corrosion process is unclear.

Therefore, in this work, the slag movement patterns near the SLG interface of the SiO₂-based prism for different slag systems (PbO-SiO₂ or Fe_tO-SiO₂ slag) were observed in situ. The microstructure evolution on local corrosion area of the prism was also investigated. The mechanism of the slag movement patterns was analyzed based on the effect of wettability, gravity and Marangoni shear stress caused by surface tension gradient. And the cross section shape evolution of prism in PbO-SiO₂ and Fe_tO-SiO₂ slags was discussed based on slag film movement characteristics.

2 Experimental

Local corrosion experiments were carried out by using X-ray radiographic apparatus (MXR-160 (1×2900), Shimadzu Corporation, Japan) [16] at high temperature. The system consists of LaCrO₃ bar heaters, water-cooling gum seal, high purity chamber and a PID digital program controller.

In the experiment, SiO₂-based refractory with the square prism of 10 mm × 10 mm × 80 mm was chosen as specimen. Molten silicon, PbO-SiO₂ [13] and Fe_tO- SiO₂ [14] were used as slag. When the temperature reached the required value (1693, 1713, 1733 or 1753 K) in Ar atmosphere, high purity Al₂O₃ crucibles containing molten silicon, PbO-SiO₂ slag or Fe_tO-SiO₂ slag were elevated into the homogenous-temperature zone of furnace and held for 15 min. Then, SiO₂-based specimen preheated in the upper zone of furnace was inserted slowly into molten silicon, PbO-SiO₂ slag or Fe_tO-SiO₂ slag with the dipping depth about 45 mm using the X-ray radiographic apparatus. The slag movement patterns near the SLG interface of the SiO₂-based prism for different slag systems (PbO-SiO₂ or Fe_tO-SiO₂ slag) were observed by high resolution CCD camera.

In order to observe the microstructure of the refractory at solid (refractories)–liquid (molten slag) interface, the specimen was cooled together with the slag in the Al₂O₃ crucible. And then, the specimen with the slag in the crucible was cut horizontally in the local corrosion zone using a cutting machine and polished. The surface morphology of the specimen before and after corrosion was also examined by the scanning electron microscopy (SEM) (JEOL JSM-7001F). On the other hand, the specimen was extracted from the melt and then cooled, after being dipped for a certain time (0.9-15 ks). Shape evolution of local corrosion and the corrosion depth were observed with the optical microscopy. Then, local corrosion rate was measured, and the measuring method has been described elsewhere in detail [16].

3 Results and discussion

3.1 Mechanism of melt movement driven by Marangoni convection

The corrosion of refractory material is mainly caused by the melt movement near the SLG interface. The mechanism of melt movement driven by Marangoni convection was analyzed in the SiO₂-based prism refractory and molten silicon system. When the SiO₂- based prism was immersed in the molten silicon, as Fig. 1(a) shows, the SiO₂-Si(l)-air interface was formed. Due to the wettability, the molten silicon liquid firstly flowed up along the SiO₂-based prism to form a liquid film. The local corrosion of SiO₂-based prism occurred in the contact zone between prism surface and the liquid film (Fig. 1(a)). The oxygen concentration in the liquid film near the SiO₂-based prism was higher than that in the bulk of the molten silicon (C_O1>C_O2), due to the dissolution of SiO₂. According to the results of Fig. 1(b), the surface tension of molten silicon decreased gradually with the increase of oxygen concentration. Therefore, the surface tension of molten silicon at point e was larger than that at point a. This meant that there was a surface tension gradient in the molten silicon near the SiO₂-based prism, which led to the formation of Marangoni convection.

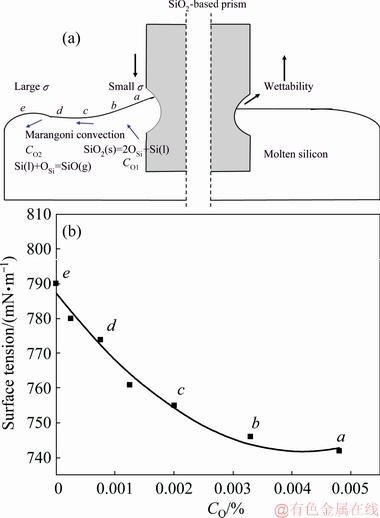

Fig. 1 Schematic diagram for movement characteristics of molten silicon near local corrosion zone of SiO₂-based prism (a) and dependence of surface tension on oxygen concentration in molten silicon (b)

The shape of the molten silicon liquid film in steady state can be expressed by the Laplace equation [13]:

(1)

where H is the height of the liquid film; g is the gravitational acceleration; σ and ρ are the surface tension and density of the molten silicon, respectively; θ is the contact angle between the molten silicon and the SiO₂-based prism.

As shown in Fig. 1(a), the associated reactions in this system were as follows [17,18]:

SiO₂(s)=Si(l)+2O_Si (2)

Si(l)+O_Si=SiO(g) (3)

Si(l)+1/2O₂=SiO(g) (4)

Due to the dissolution of SiO₂ (Eq. (2)), the oxygen was concentrated in the liquid film on SiO₂-based prism and transferred to the bulk of molten silicon. On the other hand, the evaporation of SiO(g) occurred in the bulk of molten silicon (Eqs. (3) and (4)). If the oxygen supply rate of SiO₂(s) was lower than the evaporation rate of SiO(g), the oxygen concentration in the bulk of molten silicon would decrease. Then, the oxygen concentration gradient would become larger, resulting in the increase of σ/ρ. According to Eq. (1), the height of the liquid film (H) increased (i.e., the SLG interface rose). At this point, the contact area between the molten silicon and SiO₂-based prism enlarged. Thus, the oxygen concentration gradient increased, leading to the intensification of Marangoni convection. Accordingly, the oxygen supply rate for molten silicon from liquid film to bulk increased. However, when the oxygen supply rate of SiO₂(s) was higher than the evaporation rate of SiO(g), the oxygen concentration in the bulk of molten silicon would increase, which would lead to the decrease of σ/ρ. Consequently, the height of liquid film (H) reduced (i.e., the SLG interface dropped). The SLG interface of molten silicon liquid film moved up and down circularly. So, the local corrosion zone near SLG interface was rapidly formed.

From the above analysis, it can be found that the effect of dissolved matter concentration on the surface tension of melt can influence the movement of melt by influencing the surface tension gradient distribution. So, in the following, the slag movement on SiO₂-based prism is investigated in two slag systems (PbO-SiO₂ and Fe_tO-SiO₂ slags), in which the effect of dissolved SiO₂ concentration on surface tension was different.

3.2 In-situ observation of movement patterns of different slag systems

Bubbles were adopted to clearly observe the movement pattern of the PbO-SiO₂ slag on the local corrosion area of the SiO₂-based prism. To observe the motion of slag film, SiO₂ was fixed at the low end of Al₂O₃ tube with Pt wire to make it consistent with the crucible center line, and the changes in the three-phase interface of SiO₂(g)-slag(l)-gas were recorded with a digital camera. As shown in Fig. 2, the bubbles moved upward at edges (indicated by the yellow circles and arrows in Fig. 2) and downward at lateral faces (indicated by the red circles and arrows in Fig. 2), respectively. It indicated that the slag film flowed up at each edge and flowed down at lateral faces in the local corrosion zone. Figure 3 shows the schematic diagram of the movement pattern for PbO-SiO₂ slag film in the local corrosion zone of SiO₂-based prism. As the slag film moved along the edge to the highest point, the slag flowed into two sides due to the influence of gravity. The slag gathered at each face and then flowed down to bulk (indicated by the arrows in Fig. 3).

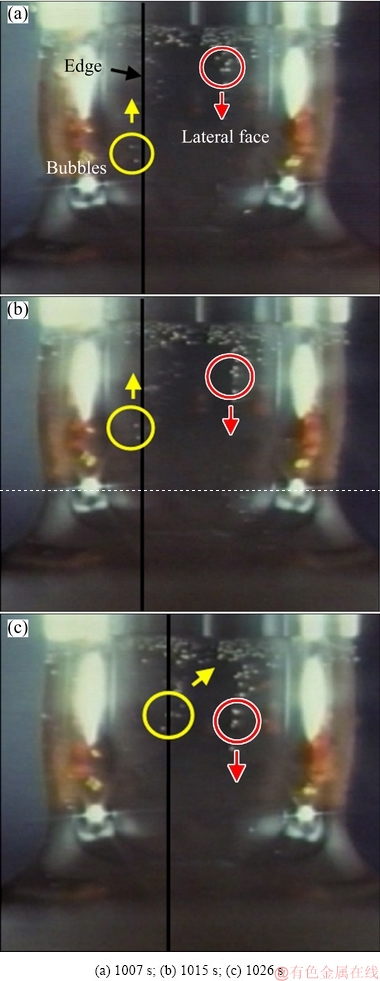

Fig. 2 Images showing movement pattern of PbO-SiO₂ slag in local corrosion zone of SiO₂-based prism observed by bubble tracing method

By comparison, the movement pattern of the Fe_tO-SiO₂ slag on the local corrosion zone of the SiO₂-based prism was also observed in situ (Fig. 4). It could be found that after the SLG interface of the slag film reached the highest point (Fig. 4(a)), it began to fall down to the lowest point (Figs. 4(b) and (c)). Then, the SLG interface flowed up to the highest point again (Figs. 4(d) and (e)). The movement pattern in Fe_tO-SiO₂ slag was up-and-down movement (Fig. 5), which was quite different from that in PbO-SiO₂ slag.

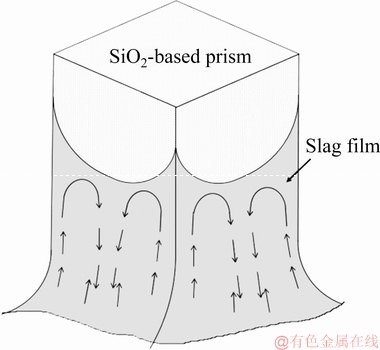

Fig. 3 Schematic diagram of movement pattern for PbO-SiO₂ slag film in local corrosion zone of SiO₂-based prism

3.3 Marangoni convection driving local corrosion mechanism in PbO-SiO₂ slag

It is well known that Marangoni convection is caused by surface tension gradient. Temperature gradient and solute concentration gradient are the main reasons for the formation of surface tension gradient. However, the movement characteristics of slag film (Figs. 2 and 4), as the main reason for the local corrosion of refractory materials, are dominated by Marangoni convection. Therefore, it is significant to clarify the formation and evolution mechanism of Marangoni convection near the SLG interface.

The SiO₂-based prisms were immersed into PbO-SiO₂ slag at different temperatures for different time. From the optical images (Fig. 6(a)), it could be found that the local corrosion mainly occurred at SLG interface, and the local corrosion became more serious with time. It was interesting that the cross section shape of SiO₂-based prisms changed from square to round after corrosion. The evolution of cross section shape might be related to the Marangoni convection characteristics in PbO-SiO₂ slag.

In order to study the corrosion process, the cross sectional microstructure of refractory-slag interface was observed (Figs. 6(b) and (c)). It could be found that a corrosion zone with many corrosion pits was formed at refractory-slag interface. From the result, it could be inferred that, the corrosion pits were formed first and then linked together, leading to the corrosion of refractory. The corrosion process was similar with that in previous works [19,20]. The thickness of corrosion zone at edge was much less than that at lateral face, which indicated that the corrosion rate at edge was much larger than that at lateral face. For SiO₂-based prisms after corrosion in PbO-SiO₂ slags at different temperatures (1693, 1713, 1733 and 1753 K), the cross section shapes were round. It was indicated that the movement pattern of PbO-SiO₂ slag film at different temperature was not changed. The linear loss representing local corrosion rate was also obtained by experiments. It was found that the linear loss increased with the increase of slag temperature (Fig. 6(d)).

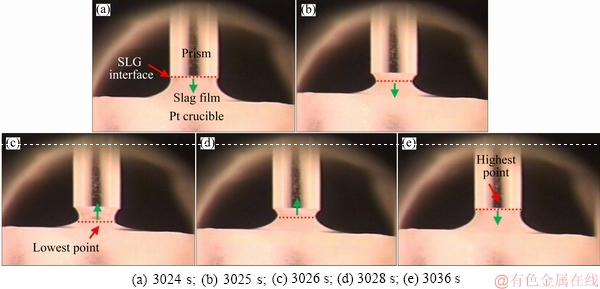

Fig. 4 Images showing movement pattern of Fe_tO-SiO₂ slag in local corrosion zone of SiO₂-based prism

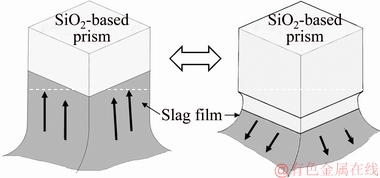

Fig. 5 Schematic diagram of movement pattern for Fe_tO-SiO₂ slag film in local corrosion zone of SiO₂-based prism

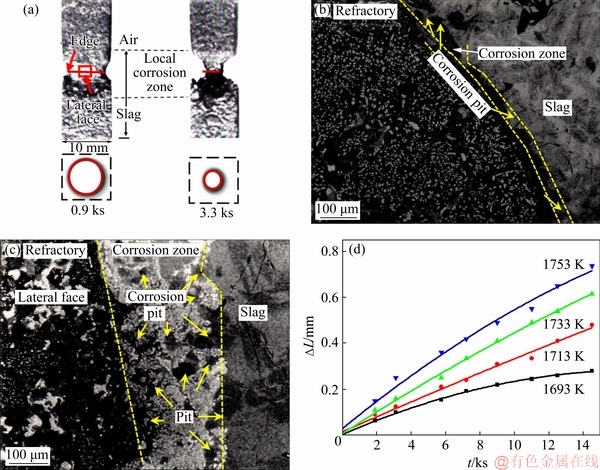

Fig. 6 Optical images of prism refractory after being immersed into PbO-SiO₂ slag for different time (a), cross sectional SEM images of refractory-slag interface at edge (b) and lateral face (c), and linear loss representing local corrosion rate of SiO₂-based prisms immersed into PbO-SiO₂ slag at different temperatures for different time (d)

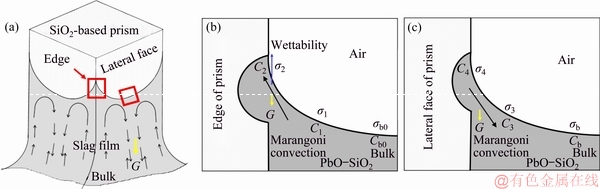

Fig. 7 Typical up-at-edge and down-at-face movement pattern of PbO-SiO₂ slag film on SiO₂-based prism (a), and cross section magnifications of edge (b) and lateral face (c)

For PbO-SiO₂ slag, the surface tension was improved with the increase of dissolved SiO₂ concentration [13]. It could be found from Eq. (1) that, a certain height of the slag film (H>0) was formed due to the good wettability, after the SiO₂-based prism was immersed in the PbO-SiO₂ slag (Figs. 7(a) and (b)). Meanwhile, due to the dissolution and diffusion of SiO₂, a SiO₂ concentration gradient formed between prism surface and slag bulk. As shown in Figs. 7(b) and (c), the SiO₂ concentration near prism surface was higher than that in slag bulk (C₁>C_b0, C₃>C_b). So, a radial surface tension gradient was formed near prism (σ₁>σ_b0, σ₃>σ_b), producing a Marangoni shear force perpendicular to tension gradient. The force caused slag film to flow up along prism. In addition, the relationship between the solubility of solid sample in melt and the curvature radius was as follows [15]:

(5)

where c_r and c_∞ are the solubility of the solid samples with curvature radii of r and ∞ (∞ means the curvature is infinite), respectively; M and ρ_s are the relative molecular mass and density of the solid sample, respectively; σ_s-L is the interface tension; R and T are the gas constant and the thermodynamic temperature, respectively.

As shown in Eq. (5), the solubility (i.e., the dissolution driving force) became larger as the radius of curvature decreases. Therefore, the dissolution rate at four edges of solid prism was larger than that at four lateral faces. The SiO₂ concentration in the slag near edges was higher than that near lateral faces (C₁>C₃), which led to the fact that the surface tension of slag near edges was larger than that near lateral faces (σ₁>σ₃). As a result, the ascending flow mainly occurred at the four edges of prism. During the upward flow of slag film, the SiO₂ concentration in the upper part of liquid film was higher than that in lower part (C₂>C₁). Thus, the axial surface tension gradient was formed in the slag film due to the axial concentration gradient (σ₂>σ₁). Therefore, the radial Marangoni shear force was created, which promoted the slag film flowing aside. At the same time, under the effect of gravity, the slag liquid gathered at the highest point of edge. Then, it flowed aside and gathered on the lateral face, forming a descending flow. Finally, the up-at-edge and down-at-face movement pattern was formed (Fig. 2). Compared with the descending flow, the SiO₂ concentration in ascending flow was lower, thus leading to stronger solubility. So, the corrosion rate at four edges was larger than that at lateral faces, which was consistent with the results observed in Figs. 6(b) and (c). As a result, the cross section shape of prism was transformed from square to round (Fig. 6(a)).

3.4 Marangoni convection driving local corrosion mechanism in Fe_tO-SiO₂ slag

Different from PbO-SiO₂ slag, the surface tension of Fe_tO-SiO₂ slag decreased with the rising of dissolved SiO₂ concentration [14]. From the optical image (Fig. 8(a)), it can be found that the cross section shape of SiO₂-based prism did not change during corrosion process. Before corrosion, the surface morphology of refractory was smooth and compact (Fig. 8(b)). However, after corrosion, it became rough due to the forming of many interconnected corrosion pits (Fig. 8(c)), which was similar to the microstructure of corrosion zone in Figs. 6(b) and (c). For SiO₂-based prisms after corrosion in Fe_tO-SiO₂ slags at different temperatures (1683, 1713 and 1753 K), the cross section shapes were still square, indicating the same movement pattern. It can be also found that the linear loss increased with the rising of slag temperature (Fig. 8(d)).

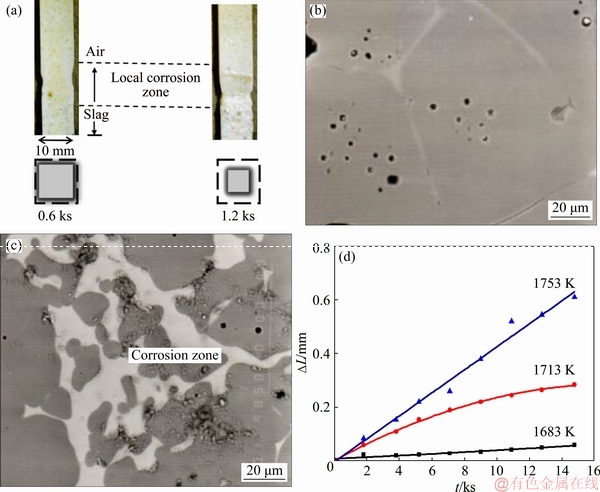

Fig. 8 Optical images of SiO₂-based prisms after being immersed into Fe_tO-SiO₂ slag for different time (a), surface morphologies of SiO₂-based prisms before corrosion (b) and after corrosion (c), and linear loss representing local corrosion rate of SiO₂-based prisms immersed into Fe_tO-SiO₂ slag at different temperatures for different time (d)

Fig. 9 Typical up-and-down movement pattern of Fe_tO-SiO₂ slag film on SiO₂-based prism (a, c) and magnification (b, d)

When the SiO₂-based prism was immersed in Fe_tO-SiO₂ slag, it can be seen from Eq. (1), the slag flowed up along the prism and reached the highest point (Figs. 9(a) and (b)). Due to the dissolution and diffusion of SiO₂, SiO₂ concentration gradient was formed between prism surface and slag bulk (C₂₂>C₁₁). So, a surface tension gradient was formed in the slag near prism (σ₂₂<σ₁₁), which caused Marangoni convection that flowed from prism surface to slag bulk. Under the influence of Marangoni convection and gravity, slag film moved downward along the prism. Simultaneously, the dissolved SiO₂ was transferred from the slag film near prism to slag bulk, due to the Marangoni convection and mass diffusion. The SiO₂ concentration in the vicinity of prism and in slag bulk would be homogenized (i.e., C₄₄ is close to C₃₃). The slag liquid near prism was close to the initial state, and the slag film rose again under the influence of wettability (Figs. 9(c) and (d)). So, the up-and-down movement pattern was formed. On the other hand, as shown in Eq. (5), the dissolution rate at the lateral face was slower than that at the edge, due to the larger curvature radius. Thus, at the lateral face, the SiO₂ concentration was lower, leading to a greater surface tension. In addition, the size of four lateral faces is much larger than that of four edges. So, the up-and-down movement of slag liquid was mainly along the four lateral faces of prism, while it was relatively weak at four edges. As a result, the cross section shape of prism remained square (Fig. 8(a)).

4 Conclusions

(1) The slag movement pattern and the local corrosion of the SiO₂-based prism showed a strong dependence on the effect of dissolved SiO₂ concentration on the slag surface tension. In dependence on the Marangoni shear force determined by the surface tension gradient, two types of slag movement patterns were formed, which resulted in two different cross section shape evolution of the corroded prisms.

(2) The first type of movement patterns was the up-at-edge and down-at-face movement. The PbO-SiO₂ slag film flowed up along four edges to the highest point under upward axial Marangoni shear force. Then, the slag film flowed down along four lateral faces, under the influence of radial Marangoni shear force and gravity. The corrosion rate at the edges was larger than that at the lateral faces. As a result, the prism cross section shape changed from square to round.

(3) The other one was the up-and-down movement pattern in the Fe_tO-SiO₂ slag whose surface tension reduced with the increase of the dissolved SiO₂ concentration. The slag film rose due to the wettability effect and flowed down due to the Marangoni convection and gravity effect. The up-and-down movement of the slag liquid was mainly along the four lateral faces of the prism, while relatively weak at the four corners. So, the cross section shape of the prism remained the original square.

References

[1] MU Wen-ning, LU Xiu-yuan, CUI Fu-hui, LUO Shao-hua, ZHAI Yu-chun. Transformation and leaching kinetics of silicon from low-grade nickel laterite ore by pre-roasting and alkaline leaching process [J]. Transactions of Nonferrous Metals Society of China, 2018, 28: 169-176.

[2] YEH Chun-liang, CHEN Yi-chang. In situ formation of Zr₂Al₃C₄/Al₂O₃ composites by combustion synthesis with PTFE and thermal activations [J]. Transactions of Nonferrous Metals Society of China, 2018, 28: 2011-2516.

[3] WANG Qi-yu, ZOU Xiao-dong, MATSUURA H, WANG Cong. Evolution of inclusions during the 1473 K (1200 °C) heating process of EH36 shipbuilding steel [J]. Metallurgical and Materials Transactions B, 2018, 49(1): 18-22.

[4] LI Ping, SUN Da-zhi, WANG Xue, XUE Ke-min, HUA Rui, WU Yu-cheng. Microstructure and thermal stability of sintered pure tungsten processed by multiple direction compression [J]. Transactions of Nonferrous Metals Society of China, 2018, 28: 461-468.

[5] ZOU Xiao-dong, ZHAO Da-peng, SUN Jin-cheng, WANG Cong, MATSUURA H. An integrated study on the evolution of inclusions in EH36 shipbuilding steel with Mg addition: From casting to welding [J]. Metallurgical and Materials Transactions B, 2018, 49B: 481-489.

[6] LIAN Peng-fei, HUANG Ao, GU Hua-zhi, ZOU Yong-shun, FU Lv-ping, WANG Ya-jie. Towards prediction of local corrosion on alumina refractories driven by Marangoni convection [J]. Ceramics International, 2018, 44: 1675-1680.

[7] RICHARDSON F D. Interfacial Phenomena and Metallurgical Processes [J]. Canadian Metallurgical Quarterly, 1982, 21(2): 111-119.

[8] MATSUSHITA T, WATANABE T, HAYASHI M. Thermal, optical and surface/interfacial properties of molten slag systems [J]. International Materials Reviews, 2011, 56(5-6): 287-323.

[9] LIU S, LIU Z, WANG Y, TANG J. A comparative study on the high temperature corrosion of TP347H stainless steel, C22 alloy and laser-cladding C22 coating in molten chloride salts [J]. Corrosion Science, 2014, 83(6): 396-408.

[10] WANG Hui-jun, CABALLERO R, DU Si-chen. Dissolution of MgO based refractories in CaO-Al₂O₃-MgO-SiO₂ slag [J]. Journal of the European Ceramic Society, 2018, 38: 789-797.

[11] SCRIVEN L, STERNLING C. The Marangoni effects [J]. Nature, 1960, 187: 186-188.

[12] WANG Min-bo, LI Rui-di, YUAN Tie-chui, CHEN Chao, ZHANG Mei, WENG Qi-gang, YUAN Ji-wei. Selective laser melting of W-Ni-Cu composite powder: Densification, microstructure evolution and nano-crystalline formation [J]. International Journal of Refractory Metals and Hard Materials, 2018, 70: 9-18.

[13] MUKAI K, HARADA T, NAKANO T, HIRAGUSHI K. Mechanism of local corrosion of solid silica at PbO-SiO₂ slag surface [J]. Journal of the Japan Institute of Metals and Materials, 1986, 50: 63-67.

[14] YU Z, MUKAI K. Direct Observation of the local corrosion of solid silica at the surface of liquid Fe_tO-SiO₂ slags [J]. Journal of the Japan Institute of Metals and Materials, 1992, 56: 1137.

[15] HUANG Wen-lai, YUAN Zhang-fu. Shape change of prism solids in different liquid systems during local corrosion [J]. Journal of Colloid & Interface Science, 2003, 267(1): 155-159.

[16] YUAN Zhang-fu, HUANG Wen-lai, MUKAI K. Local corrosion of magnesia-chrome refractories driven by Marangoni convection at the slag-metal interface [J]. Journal of Colloid & Interface Science, 2002, 253(1): 211-216.

[17] NASS M, YOUNG D, ZHANG J, OLSEN J, TRANELL G. Active oxidation of liquid silicon: Experimental investigation of kinetics [J]. Oxidation of Metals, 2012, 78(5-6): 363-376.

[18] WAGNER C. Passivity during the oxidation of silicon at elevated temperatures [J]. Journal of Applied Physics, 1958, 29(9): 1295-1297.

[19] WAN Wei-cai, XIONG Ji, LI Yu-he, TANG Qi-feng, LIANG Meng-xia. Erosion-corrosion behavior of Ti(C,N)-based cermets containing different secondary carbides [J]. International Journal of Refractory Metals and Hard Materials, 2017, 66: 180-187.

[20] TANG Wei, ZHANG Li, CHEN Yi, ZHANG Hua-dong, ZHOU Lei. Corrosion and strength degradation behaviors of binderless WC material and WC-Co hardmetal in alkaline solution: A comparative investigation [J]. International Journal of Refractory Metals and Hard Materials, 2017, 68: 1-8.
