Trans. Nonferrous Met. Soc. China 25(2015) 1410-1418
Pei LIU1, Ai-qin WANG1, Jing-pei XIE1, Shi-ming HAO2
1. School of Materials Science and Engineering, Henan University of Science and Technology, Luoyang 471023, China;
2. School of Physical and Engineering, Zhengzhou University, Zhengzhou 450052, China
Received 25 May 2014; accepted 13 July 2014
Abstract: 35% SiCp/2024 Al (volume fraction) composite was prepared by powder metallurgy method. The microstructures of SiCp/Al interfaces and precipitate phase/Al interfaces were characterized by HRTEM, and the interface conditions were evaluated by tensile modules of elasticity and Brinell hardness measurement. The results show that the overall SiCp/Al interface condition in this experiment is good and three kinds of SiCp/Al interfaces are present in the composites, which include vast majority of clean planer interfaces, few slight reaction interfaces and tiny amorphous interfaces. The combination mechanism of SiC and Al in the clean planer interface is the formation of a semi-coherent interface by closely matching of atoms and there are no fixed or preferential crystallographic orientation relationships between SiC and Al. MgAl2O4 spinel particles act as an intermediate to form semi-coherent interface with SiC and Al respectively at the slight reaction interfaces. When the composite is aged at 190 °C for 9 h after being solution-treated at 510 °C for 2 h, numerous discoid-shaped and needle-shaped nanosized precipitates dispersively exist in the composite and are semi-coherent of low mismatch with Al matrix. The Brinell hardness of composites arrives peak value at this time.
Key words: SiCp/2024 Al composite; interface; precipitate phase; characterization
1 Introduction
Because of their high specific strength and elastic modulus, good wear resistance and low CTE values, metal matrix composites (MMCs) have received much attention in recent years and become attractive as candidate materials in aerospace applications [1,2]. The aluminum matrix composites containing particulate and whiskers of silicon carbide are the most promising materials [3,4]. The load would be transferred from the matrix to the reinforcements by the interface during the deformation process, and thus a strengthening matrix and good bonding interface between reinforcement and matrix are favorable to the mechanical properties.
As the load transfers from the matrix to the reinforcements during the deformation process, the interfacial structures between SiC and Al are critical to control mechanical properties of the composite. It is accepted that good bonding interfaces with coherency or semicoherency are favorable to the mechanical properties, whereas interfaces with incoherency, especially those with the presence of brittle intermetallic phases at the interfaces, degrade these properties [5,6]. During the fabrication of the SiCp/Al composite, a major technical problem occurs with the formation of Al4C3 phase at the interface. This brittle reactant Al4C3, in the shape of thin hexagonal platelet, degrades the strength, modulus, and corrosion resistance of the composite. So far, the following methods have been proposed in order to prevent the formation of Al4C3 reactant at the SiCp/Al interface.
1) Addition of excessive Si into the matrix composition. The Si element in the Al melt can effectively inhibit the formation of Al4C3 through increasing activity a[Si] of the solution, as evidenced from the following reaction:
3SiC(s)+4[Al]=Al4C3(s)+3[Si] (1)
where the elements in the brackets are in the molten solution. This method is effective but the matrix composition is modified, which may affect the composite global properties [7].
2) Pre-oxidation of SiC to introduce a thin coating layer of SiO2 on the SiC surface, which is believed to act as an intermediate to form stable interfacial structures that prevent direct contact of SiC and Al. In the presence of SiO2 layers on the SiC surface, the following reactions may occur in the Al melt containing Mg element:
SiO2(s)+2[Mg]=2MgO(s)+[Si] (2)
2SiO2(s)+2[Al]+[Mg]=MgAl2O4+2[Si] (3)
LIU et al [8] prepared the oxidized SiCp/Al-Mg alloy composites by squeeze casting. MgAl2O4 forms on the surface and the interface action can be controlled via SiCp oxidation technical parameters.
3) Powder metallurgy method. According to the reactivity between SiC particles and molten Al, powder metallurgy becomes an effective way to produce SiCp/Al composites in solid state by eliminating the reaction between reinforcement and matrix. CHENG et al [9] used a powder metallurgy route followed by hot extrusion to fabricate the SiCp/Al composites. They found that the reinforcement SiC particles were bonded well with Al matrix through an amorphous layer with thickness of 20-30 nm by diffusion of Al and Mg into SiO2 layer on the SiC particles. FAN [10] gained the SiCp/1100 Al and SiCp/7075 Al composites by powder metallurgy. The results indicated that clean planar interfaces with zero thickness and without morphology change of SiC particles were found in the composites hot-pressed below the solidus temperature of the matrix. Several kinds of interfaces were present in the composites hot-pressed between the melting point and the solidus temperature of the matrix.
For some aluminum alloy matrix composites, especially 2xxx and 6xxx aluminum alloy matrix composites, heat treatment is an effective method to strengthen the matrix because numerous nanosized precipitates can distribute diffusely in the matrix after heat treatment, coherent or semi-coherent with matrix, which can inhibit the dislocation motion and significantly increase properties of some aluminum alloy matrix composites [11-13]. According to Ref. [14], the main strengthening phases of 2024 Al are θ(Al2Cu) and S(Al2CuMg). The addition of reinforcement in aluminum matrix composite does not fundamentally change its aging precipitation process.
From the above analysis, the interface types of SiCp/Al composites are especially complex, mainly including SiCp/Al interfaces and different kinds of precipitate/Al interfaces. So, it is important to characterize the interface microstructure in the aluminum matrix composites. In this study, a 35% SiCp/2024 Al composite (volume fraction) was produced by using the PM technique. The aim of this work is to characterize and evaluate various kinds of interfaces in the composites by transmission electron microscopy (TEM), stress-strain curve and Brinell hardness measurement.
2 Experimental
2.1 Experimental materials
SiC particles (mean particle size of 15 μm) and gas atomized 2024 aluminum powders with an average particle size of 10 μm were used as reinforcement and base alloy, respectively. The chemical composition of 2024 aluminum is listed in Table 1.
Table 1 Chemical composition of 2024 aluminum matrix alloy (mass fraction, %)
2.2 Experimental process
In this research, the aluminum matrix composite was manufactured by powder metallurgy technique. The powders (35% SiC particles, volume fraction) and balls with the ratio of 2:1 were blended in the Y style mixer for 24 h at the revolving speed of 50 r/min and then the mixed powers were put into the mold and hot-pressed up to 580 °C at 8 °C/min in the VDBF-250 experiment machine with the vacuum degree of 2.3×10-3 Pa. The stress of 80 MPa was applied to the powders at 580 °C for 3 h and then the powders were cooled in the furnace with the protection of vacuum. When the temperature dropped to room temperature, the stress was removed and the composite was acquired. The tensile tests of composites were conducted using the Shimadzu AG-I250KN precision universal testing machine at a constant crosshead speed of 1 mm/min.
Various specimens were obtained from the composite and solution-treated at 510 °C for 2 h, water- quenched, and then aged at 190 °C for periods up to 40 h. The age-hardening responses of composite were characterized using Brinell hardness (HB) measurement, with triplicate specimens and five measurements per condition to ensure the accuracy of results. The metallographic samples were ground and polished following standard metallographic practices, and then were etched using Keller’s reagent (1 mL HF+1.5 mL HCl+2.5 mL HNO3+95 mL H2O). The samples for TEM observation were machined into 0.5 mm by wire- electrode cutting and ground to 50 μm by mechanical thinning, and then cut into foils with 3 mm in diameter. After that, foils were prepared by argon ion milling using Gatan 691 precision ion polishing system. Transmission electron microscopy (TEM) investigations were performed on a JEM-2100 HRTEM microscope operated at 200 kV.
3 Results and discussion
3.1 Structure of SiC
Figure 1(a) shows the SEM image of the SiC powders used in the present study. The SiC particles are angular. Diffraction patterns and high resolution TEM images show that both hexagonal α-SiC and cubic β-SiC are present in the composites. The hexagonal allotrope has predominantly the 6Hα poly type structure. Figures 1(b) and (c) show a high resolution TEM image and the corresponding SAED pattern of the 6H α-SiC along zone axis. In Fig. 1(b), the interplanar spacing of (001) plane in 6H α-SiC phase is 1.51 nm. Each (001) plane consists of six layers and the stacking sequence is ABCACB. Then, the interplanar spacing of each atomic layer is 0.251 nm. Figures 1(d) and (e) show a high resolution TEM image and the corresponding SAED pattern of the cubic β-SiC along [001] zone axis.
3.2 Interface between SiC and Al
3.2.1 Clean interface between SiC and Al
Figures 2(a) and (b) show the typical interface morphologies of SiCp/2024 Al alloy matrix in this experiment. We can see from Figs. 2(a) and (b) that the interfaces are clean and smooth, and there are no interface reactants and the phenomenon of SiC particles dissolved. Previous studies [15,16] have shown that SiC particles are easy to react with Al to generate Al4C3 in the SiC particles reinforced aluminum alloy matrix composites. But we did not find Al4C3 reactants in the composite materials in this experiment, because the hot-press sintering technology was used, the temperature throughout was too low to produce interface chemical reaction. So, the interface of the composite is clean, which provides the prerequisites for the composite material with excellent performance.

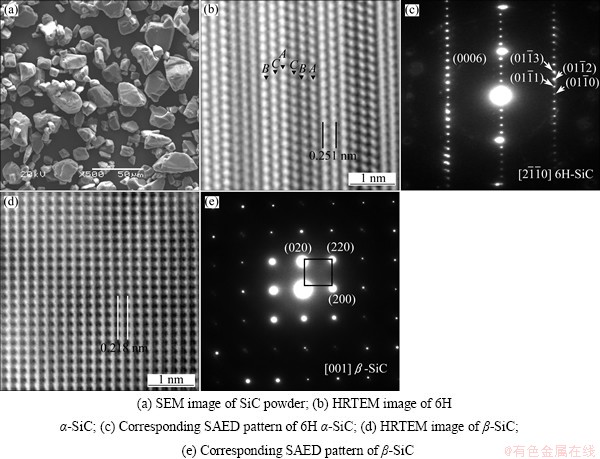

Fig. 1 SEM image of SiC powder and HRTEM images of SiC in composite

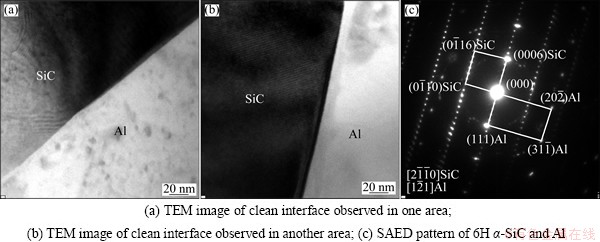

Fig. 2 TEM image and SAED pattern of clean interface between SiC and Al
Figure 2(c) shows a selected area electron diffraction (SAED) pattern from the Al phase along zone axis and the 6H SiC phase along zone axis. As calibrated in Fig. 2(c), the close-packed (111) plane of the Al phase is parallel to the close-packed basal plane (0001) of the SiC phase, and thus their OR, denoted as OR I in this work, is determined as follows: SiC//Al, (0001) SiC//(111) Al. The interplanar spacing of (111) planes in the Al phase is 0.234 nm, while the interplanar spacing of (0006) planes in α-SiC phase is 0.251 nm, and the lattice misfit between them is 0.07. It is obvious that the combination mechanism of SiC and Al is the formation of a semi-coherent interface by closely matching of atoms.
Figure 3(a) gives a HRTEM image of the interface between the reinforcement particle and the matrix. The interface, as indicated in Fig. 3(a), is very clean, smooth and straight. No reaction product has been found at the interface. The IFFT images of 6H α-SiC phase along zone axis and Al along [001] zone axis are respectively shown in Figs. 3(b) and (c). Figures 3(d) and (e) are corresponding SAED and its indexed patterns, respectively. In Fig. 3(e), the circles represent the reflections from the matrix and the dots represent those from SiC particles. The incident beam is parallel to [001] Al and 6H α-SiC, and the (020) plane of the matrix Al is parallel to the plane of the SiC phase. Thus, their OR, denoted as OR II in this work, is determined as follows: SiC//[001] Al, SiC//(020) Al. The interplanar spacing of (020) planes in the matrix is 0.203 nm, while the interplanar spacing of planes in α-SiC phase is 0.235 nm. Figure 3(f) shows the IFFT image of square area in Fig. 3(a), which gives a semi-coherent interface where every seven (200) Al atoms corresponding to six α-SiC atoms with a mismatch of less than 1%.
A second high resolution image of the interface between the reinforcement particle and the matrix is also observed, as shown in Fig. 4(a). In the SAED pattern in Fig. 4(b), the SiC is along zone axis and Al along [001] zone axis. The (020) plane of the matrix Al is parallel to the plane of the SiC phase, as indexed in Fig. 4(c). Thus, the following OR III results are SiC//[001] Al, SiC//(020) Al.
Figure 4(f) shows the IFFT image of square area in Fig. 4(a), the interplanar spacing of (020) planes in the matrix is 0.202 nm, while the interplanar spacing of planes in 6H α-SiC phase is 0.255 nm, which also gives a semi-coherent interface between 6H α-SiC and Al matrix.

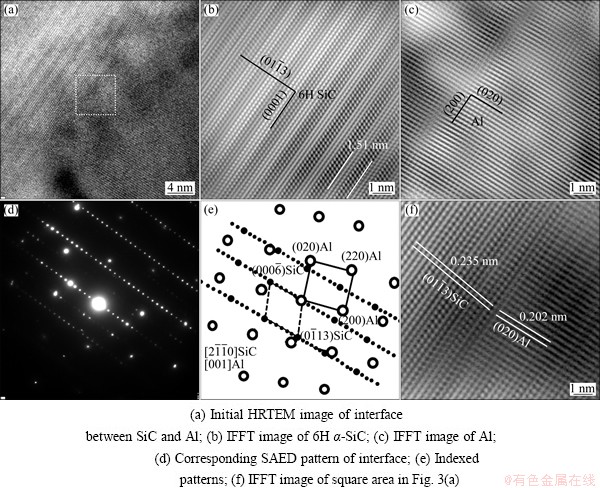

Fig. 3 HRTEM image of clean interface between SiC and Al showing OR II between them

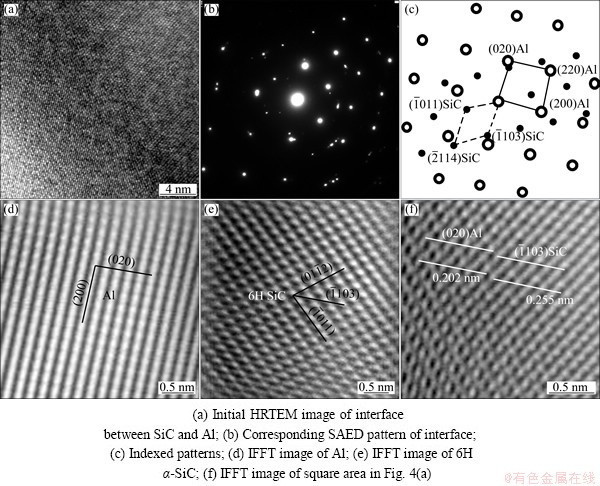

Fig. 4 HRTEM image of clean interface between SiC and Al showing OR III between them

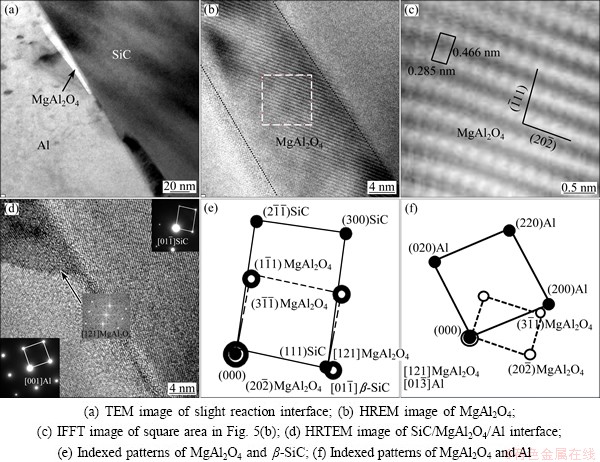

Fig. 5 Slight reaction interface between SiC and Al
3.2.2 Slight reaction interface between SiC and Al
A type of slight reaction interface is also observed, although less frequently, as shown in Fig. 5(a). A nanocrystalline particle with the length of about 100 nm and width of about 10 nm was found at the interface between SiC and Al. Figure 5(b) shows the HRTEM image of nanocrystalline particle, and Fig. 5(c) shows the IFFT image of square area in Fig. 5(b). The arrangement of the atomic structure of the nanocrystalline particle can clearly be observed from the IFFT image (Fig. 5(c)). As shown in Fig. 5(c), the smallest quadrilateral element was selected. After being accurately measured, the length and width were respectively indexed to be consistent with the interplanar spacing of planes and planes in MgAl2O4, thus the nanocrystalline particle is identified as MgAl2O4 (space group Fd3m, lattice parameter a=0.81 nm). The MgAl2O4 phase has been extensively reported in the literature in a rather wide variety of studies, and there existed a SiO2 membrane with a thickness of about 5 nm on the surface of commercial SiC particles. In the presence of SiO2 layers on the SiC surface, the following reactions may occur in the Al matrix containing Mg element:
3SiO2+4Al=2Al2O3+3Si (4)
SiO2+2Mg=2MgO+2Si (5)
Al2O3+MgO=MgAl2O4 (6)
The sintering temperature in this study was 580 °C and slightly higher than the solidus temperature of 2024 Al. So, few of 2024 Al powders would melt and then the above three response equations would occur in the process of vacuum hot-pressing.
Figure 5(d) shows the HRTEM image of SiC/MgAl2O4/Al interfaces, Figs. 5(e) and (f) are respectively the corresponding indexed patterns of SiC/MgAl2O4 and MgAl2O4/Al. It can be seen from Fig. 5(e) that the lattice plane of MgAl2O4 is parallel to lattice plane (111) of β-SiC. The interplanar spacing of MgAl2O4 on lattice plane is 0.285 nm and that of β-SiC on lattice plane (111) is 0.252 nm. The lattice misfit between them is 0.116, which indicates the semi-coherent interface between β-SiC and MgAl2O4.
Figure 5(f) indicates that the lattice plane of MgAl2O4 is parallel to lattice plane (200) of Al. The interplanar spacing of MgAl2O4 on lattice plane is 0.244 nm and that of Al on lattice plane (200) is 0.202 nm. The lattice misfit between them is 0.17, which indicates the semi-coherent interface between Al matrix and MgAl2O4. The semi-coherent interface of SiC/MgAl2O4 and MgAl2O4/Al indicates that MgAl2O4 spinel particles act as an intermediate to form stable interfacial structures.
3.2.3 Amorphous interface between SiC and Al
Figure 6(a) shows the HRTEM image of little amorphous interface between SiC and Al in the composite. It can be clearly observed from Fig. 6(a) that an amorphous interface with about 15 nm in thickness exists between SiC and Al. The IFFT images of three square areas 1, 2 and 3 in Fig. 6(a) are respectively corresponding to 6H α-SiC phase along zone axis, amorphous diffraction pattern and Al matrix along zone axis. Some studies [9,10] have shown that the production of amorphous layer is connected with the magnesium concentration at the interface and the formation of impurity phase. There exists a SiO2 membrane with about 5 nm in thickness on the surface of commercial SiC particles, the sintering temperature in this study was 580 °C and slightly higher than the solidus temperature of 2024 Al. So, few of 2024 Al powders would melt, Mg element is easy to enrich at the interface and generate impurity phase and oxide layer during the solidification of liquid matrix.
3.3 Interface between precipitated phase and Al
Figure 7 shows the TEM micrographs of SiCp/2024 Al composite aged at 190 °C for 9 h after solution- treated at 510 °C for 2 h. It can be seen from Figs. 7(a) and (b) that numerous discoid-shaped nanoscale precipitates with the diameter ranging from 50 to 200 nm, needle-shaped nanoscale precipitates with the average length of 100-150 nm distributed homogeneously and dispersively in the composite.

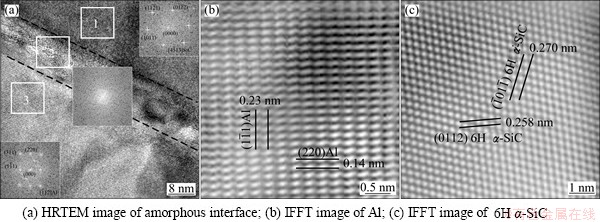

Fig. 6 Amorphous interface between SiC and Al

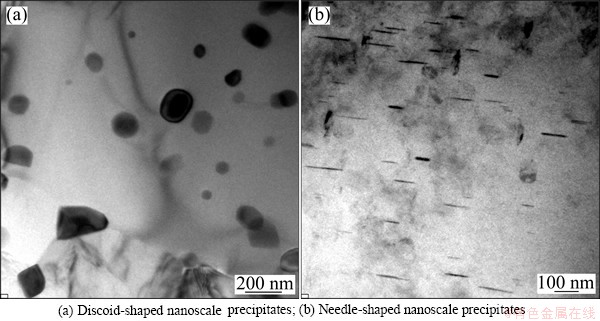

Fig. 7 TEM micrographs of composite aged at 190 °C for 9 h after solution-treated at 510 °C for 2 h
Fig. 8 TEM image of precipitates and HTREM images of interface between precipitates and Al matrix
Figure 8 shows the TEM image of precipitates and the HRTEM images of interface between precipitates and Al matrix. The diffraction patterns from needle-shaped nanoscale particles (see Fig. 8(b)) were indexed to be consistent with Al2CuMg (Space group: Cmcm; lattice parameters: a=4.008 , b=9.248 , c=7.154 ) and diffraction pattern from discoid-shaped nanoscale particles (see Fig. 8(e)) was indexed to be consistent with Al2Cu (Space group: lattice parameters: a=8.704 ). Figures 8(c) and (f) respectively show the IFFT images of square areas in Figs. 8(b) and (e). It can be clearly observed from the IFFT images that the lattice plane of Al is parallel to lattice plane of Al2CuMg, and the lattice plane (200) of Al is parallel to lattice plane of Al2Cu. The interplanar spacing of Al on lattice plane is 0.24 nm and that of Al2CuMg on lattice plane is 0.21 nm. The lattice misfit between them is 0.125, which indicates the semi-coherent interface between Al and Al2CuMg. Similarly, the interplanar spacing of Al on lattice plane (200) is 0.203 nm and that of Al2Cu on lattice plane is 0.237 nm. The lattice misfit between them is 0.143, which also indicates the semi-coherent interface between Al and Al2Cu.
3.4 Evaluation of interfaces in composite
Some researchers [17] applied a method to evaluate particle–matrix bonding of particulate reinforced aluminum matrix composites by measuring the change in elastic modulus of composite with increasing plastic strain. There are a lot of reports [18,19] about the theoretical prediction model of elastic modulus of particles reinforced metal matrix composites, among them, Hashin-Shtrikman model has been accepted by more and more researchers [20]. The model indicates the elastic modulus of the composite as follows:
(7)
where Ec is the elastic modulus of the composite material; Em and φm are the elastic modulus and volume fraction of matrix, respectively; Er and φr are the elastic modulus and volume fraction of reinforcement, respectively.
Figure 9(a) shows the elastic deformation curves of model results and experiment. It can be seen clearly that the theoretical curve and experimental curve match very well,which indicates good bonding interfaces between SiC and Al in this experiment. Figure 9(b) shows age hardening curve of the composite at different aging time.

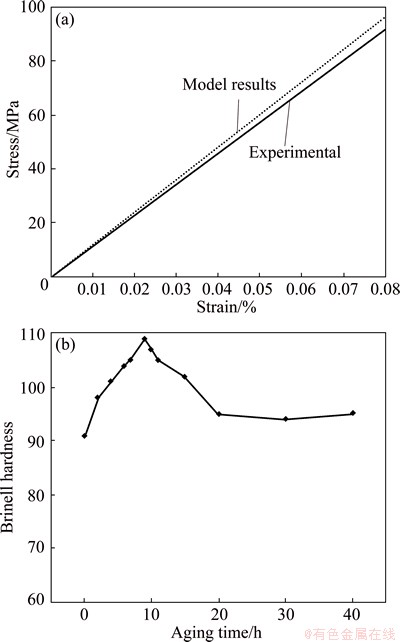

Fig. 9 Comparison of experimental elastic deformation curve of composite with theoretical curve (a) and age hardening curve of composite at different aging time (b)
The Brinell hardness arrived peak when composite was aged for 9 h. As described in Section 3.3, numerous nanosized precipitates distributed diffusely in the matrix after being aged for 9 h and were semi-coherent with matrix. The semi-coherent interface between Al and precipitates can inhibit the dislocation motion and thus gives a great help of the strength improvement.
4 Conclusions
1) The overall interface condition in this experiment is good. Three kinds of SiC/Al interfaces are present in the composites, which include vast majority of clean planer interfaces, few slight reaction interfaces and tiny amorphous interfaces.
2) The combination mechanism of SiC and Al in the clean planer interface is the formation of a half coherent interface by closely matching of atoms. There are no fixed or preferential crystallographic orientation relationships between SiC and Al. MgAl2O4 spinel particles act as an intermediate to form stable interfacial structures at the slight reaction interfaces.
3) When the composite was aged at 190 °C for 9 h after solution-treatment at 510 °C, numerous discoid- shaped and needle-shaped nanosized precipitates existed in the composite. The Brinell hardness of composites arrived peak at this time.
