Trans. Nonferrous Met. Soc. China 28(2018) 739-747

Influence of La precursors on structure and properties of CeO₂-ZrO₂-Al₂O₃ composite oxides

You-feng LI¹, Yue-hui HE², Guo-qing LIU¹, Ling-wei ZENG¹

1. School of Chemistry and Chemical Engineering, Hunan University of Science and Technology, Xiangtan 411201, China;

2. Research Institute of Powder Metallurgy, Central South University, Changsha 410083, China

Received 19 October 2016; accepted 4 November 2017

Abstract: Three La-doped CeO₂-ZrO₂-Al₂O₃ (CZA) composite oxide samples, namely, CZA-I, CZA-II and CZA-III, were prepared following a co-precipitation method in the presence of La₂O₃, La(NO₃)₃·6H₂O and H[La(EDTA)]·16H₂O precursors, respectively. When the precursor samples are sintered at 1000 °C, the as-prepared composite oxides mainly exhibit the CeO₂-ZrO₂ cubic fluorite phase, while the γ-Al₂O₃ and δ-Al₂O₃ phases appear when the precursor samples are subjected to sintering at 1100 and 1200 °C. CZA-III exhibits improved redox properties after high-temperature treatment compared with CZA-I and CZA-II. CZA-III presents the largest surface area of 97.46 m²/g among the three CZAs when the CZA-III precursor sample is sintered at 1000 °C. Furthermore, the corresponding oxygen storage capacity (OSC) is the largest with value of 400.27 μmol/g when CZA-III precursor sample is sintered at 1000 °C. Additionally, CZA-III exhibits the best thermal stability and the highest reduction temperature. However, by increasing the sintering temperature to 1200 °C, there is a dramatic decline in the properties of surface area and OSC. And a decrease for CZA-III in surface area by 58.94% and a decrease of the OSC value by 74.56% are observed.

Key words: La precursor; ceria-zirconia solid solution; composite oxide; texture structure; redox property

1 Introduction

Automobile emissions containing CO,  hydrocarbons, nitrogen oxides, sulfur dioxide and other waste gases are an environmental concern as they are major air pollutants. Three-way catalysts, which mainly comprise the carrier and Pt, Pd or Rh noble metal active components, can simultaneously eliminate these contaminated waste gases. Ceria-based oxides have been extensively used as the carrier on the merit of their oxygen storage capability via the reaction 2CeO₂Ce₂O₃+1/2O₂ [1-4]. However, pure CeO₂ is easily susceptible to sintering at 800 °C, resulting in a reduction in surface area and oxygen storage capacity (OSC) [5]. It has been reported that Ce_xZr_1-xO₂ generated by doping ZrO₂ into CeO₂, can significantly improve the stability of ceria against high temperature sintering and thus inhibit the decrease of OSC [6-8]. As known, γ-Al₂O₃ is commonly used as a gas purification catalyst carrier because of the nature of its porous structure and high specific surface area. MONTE et al [9] successfully inserted Al₂O₃ into Ce_xZr_1-xO₂ to improve the specific surface area and OSC of the composite oxide. However, in previous studies [10,11], significant reductions to specific surface area were observed as a result of particle sintering, pore collapse and γ-Al₂O₃ phase transition when subjecting the materials to high temperature of 1000 °C. Therefore, the thermal stability of the Ce_xZr_1-xO₂ composite oxides is still an important issue when the operation temperature of the catalysts exceeds 1000 °C. Incorporation of other rare earth ions to Ce_xZr_1-xO₂ can further enhance the thermal stability. SI et al [12] observed that surface area and thermal stability were enhanced by doping Y, La, or Pr into Ce_xZr_1-xO₂. MENG and JI [13] studied the influence of La₂O₃ particle size on the oxidation resistance of electrodeposited Ni-La₂O₃/ CeO₂ composites at 1000 °C. WANG et al [14] discovered that catalyst-supported materials of tetragonal ZrO₂ were stabilized by La₂O₃ and possessed well- defined shape and size, and superior thermal stability (up to 1000 °C). According to the results of BOZO et al [15], incorporation of some rare earth ions can significantly increase the number of oxygen vacancies in Ce_xZr_1-xO₂ and improve oxygen activation. The doped composites normally possess significantly more crystal defects and maintain a relatively high surface area after calcination. Usually, these rare earth ions are introduced into the reaction system via their corresponding nitrate precursors. There are few reports related to the influence of varying the rare earth ion precursors and addition methods on the structure and properties of Ce_xZr_1-xO₂.

In the present work, La rare earth ions were introduced into CeO₂-ZrO₂-Al₂O₃ (CZA) composites via La₂O₃, La(NO₃)₃·6H₂O and H[La(EDTA)]·16H₂O precursors, yielding three composite oxide samples, CZA-I, CZA-II and CZA-III, respectively. The influence of the La precursors on the crystal phase, thermal stability, structural and textural properties, OSC and temperature-programmed reduction (TPR) properties of the three composite oxides was investigated systematically. Finally, CZA composite oxides doped with La were studied to increase their thermal stabilities and redox properties.

2 Experimental

2.1 Preparation of La-doped composite oxides

Fresh CZA composite oxides were prepared following a co-precipitation method. The nitrate precursors of Ce(NO₃)₃·6H₂O, Zr(NO₃)₄·5H₂O and Al(NO₃)₃·9H₂O were employed as reactive materials. La rare earth ions were introduced via the addition of La₂O₃, La(NO₃)₃·6H₂O and H[La(EDTA)]·16H₂O precursors, respectively. The molar ratio of Ce:Zr:Al was controlled at 1:1:5, and the theoretical mole fraction of La was 2%. Polyethylene glycol (PEG) as the dispersant and NH₄HCO₃NH₃·H₂O as the precipitator were added into the mixture to aid precipitation at 80 °C under agitation. After being aged at room temperature for 24 h, the precipitate was filtrated and washed with deionized water. The loose precursor samples were obtained after the precipitates were dried at 100 °C for 10 h, followed by calcination in a muffle furnace at 300 °C for 6 h. The CZA samples were prepared by sintering the as-obtained loose precursors at 1000, 1100 and 1200 °C for 4 h. The corresponding CZA samples deriving from the La₂O₃, La(NO₃)₃·6H₂O and H[La(EDTA)]·16H₂O precursors were denoted as CZA-I, CZA-II and CZA-III, respectively. The CZA samples were employed as the reference samples to demonstrate the influence of different La precursors on the structure and properties of the composite oxides.

2.2 Material characterization

The crystalline phases of the as-prepared composite oxides were studied by X-ray diffraction (XRD) using a Bruker/AXS D8 Advance X-ray diffractometer  operated at 40 kV and 200 mA with Cu K_α radiation (λ=0.15418 nm). Thermogravimetric analysis (TGA) was conducted in a nitrogen flow of 60 mL/min at a rate of 5 °C/min on an STD Q600 instrument. The morphology and dispersion of the powders were observed using a scanning electron microscope (SEM, JEOL-6360LV). Textural properties of the samples were measured by the Brunauer-Emmett-Teller (BET) model with a Quantachrome NOVA instrument using Ar as the carrier gas and N₂ as the adsorbent. Total OSC was measured via the oxygen pulse method. H₂-temperature programmed reduction (H₂-TPR) experiments were performed in a conventional system equipped with a thermal conductivity detector.

3 Results and discussion

3.1 Crystal structure analysis

The XRD results of the CZA samples obtained from different La precursors, as a function of sintering temperature, are shown in Fig. 1. Clear diffraction peaks are observed at 2θ of ~28.5°, ~33.0°, ~47.5°, ~59.0°, ~69.5° and 79.0°, in agreement with the (111), (200), (220), (311), (400) and (422) planes of the cubic fluorite structure of CeO₂, respectively. Some weak peaks of γ-Al₂O₃ are also observed on the XRD patterns for the samples sintered at 1100 °C. However, the peak intensity for γ-Al₂O₃ and δ-Al₂O₃ phases significantly increases when subjecting the samples to sintering temperature of 1200 °C. XRD results show that ceria-zirconia solid solutions form. Additionally, the γ-Al₂O₃ phase arises at 1100 °C because of the instability and sintering phenomenon of the ceria-zirconia solid solutions. The γ-Al₂O₃ phase transforms to the δ-Al₂O₃ phase at 1200 °C. The La in the samples is not detected by XRD, indicating that La³⁺ cations have been well inserted into the CeO₂-ZrO₂ lattice, or amorphous La₂O₃-based clusters are well dispersed on the surface of the CeO₂-ZrO₂ matrix and Al₂O₃ particles [16]. As the sintering temperature increases, there is a reduction in full width at half maximum of the diffraction peaks together with an increase in the diffraction peak intensity, indicating improved crystallization and larger crystal sizes with increasing temperature. The above trend is the most obvious for CZA-III doped with the H[La(EDTA)] precursor; however, the trend is not observed for CZA-II doped with the La(NO₃)₃ precursor. CZA-III has the lowest degree of crystallization at 1000 °C but displays the highest degree of crystallinity when being subjected to a sintering temperature of 1200 °C. It is noticed that the diffraction peaks of CZA-I sintered at 1200 °C are slightly shifted to lower diffraction angles, which can be attributed to lattice shrinkage because of the replacement of Ce⁴⁺ cations with La³⁺ cations. The substitution of the small-sized Ce⁴⁺ (r=0.097 nm) with La³⁺ (r=0.120 nm) results in an increase in lattice dimensions, thereby the diffraction peaks shifting to lower diffraction angles [17].

Fig. 1 X-ray diffraction patterns of different CeO₂-ZrO₂-Al₂O₃ (CZA) composite oxides

This exchange results as the interactions between La and the CZA matrix material differ with various La precursors. With the addition of La₂O₃ into the matrix, CZA-I sample has the weakest interaction force, and free La₂O₃ can be distributed on the surface of the CeO₂-ZrO₂ matrix and Al₂O₃ particles. Since there is a preference for La³⁺ to replace Ce⁴⁺ at 1200 °C, there is a crystal lattice blue-shift phenomenon. La(NO₃)₃ has been employed as a precursor in precipitation reactions as other nitrates, when La(NO₃)₃ is added into the reaction system. The La³⁺ cations have been incorporated into the CeO₂-ZrO₂ lattice and thereafter solid solutions form. There are cases in which the La(NO₃)₃ precursor has little effect on the crystal structure during heat treatment process. There is a stable complex in the presence of H[La(EDTA)]. In this case, the CZA-III matrix exhibits the highest thermal stability for the five-membered rings composed of metals cations and EDTA [18]. Hence, crystallization of the samples is the lowest at 1000 °C among all products, and the product crystallinity is the highest when subjecting the EDTA-containing matrix to combustion at 1200 °C.

3.2 Thermal stability analysis

Figure 2 shows the thermogravimetric analysis (TGA)/differential scanning calorimetry (DSC) curves of the dried CZA precipitate at a heating rate of 5 °C/min. DSC curves display endothermic peaks and exothermic peaks. The endothermic peaks at ~150 °C can be explained by the removal of adsorbed water and crystal water. The exothermic peaks at ~200 °C can be attributed to the burning and decomposition of PEG in the precipitate precursors. Major mass loss of the precipitate precursors occurs at ~400 °C. The overall mass loss is approximately 80%. The exothermic peaks of CZA-I, in the presence of the La₂O₃ additive, at 590 and 735 °C can be attributed to crystallization and crystal growth of CeO₂-ZrO₂ and γ-Al₂O₃ matrix, respectively. At ~1110 °C, there is another exothermic peak that shows γ-Al₂O₃ phase transition. The exothermic peaks of CZA-II, containing the La(NO₃)₃ additive, at 605 °C, are also ascribed to the crystallization and crystal growth of CeO₂-ZrO₂ and γ-Al₂O₃ matrix. There are no other changes in the TGA/DSC curves above 750 °C, suggesting that the precursor powders have been completely transformed to the CeO₂-ZrO₂ cubic crystal phase and the γ-Al₂O₃ matrix phase, as confirmed by the XRD results in Fig. 1(b). An exothermic peak occurs for the H[La(EDTA)] additive sample during the heating process at ~960 °C, which implies the formation of the CeO₂-ZrO₂ and γ-Al₂O₃ crystal phases. This is consistent with the XRD results in Fig. 1(c). It is obvious that the diffraction peaks of CZA-III are weak at 1000 °C; however, the XRD peak intensity of CZA-III is the strongest among all the samples sintered at 1200 °C when the EDTA complex decomposes and releases heat. Mass loss of the CZA-III sample can also be observed above 1000 °C (Fig. 2(c)).

Fig. 2 Thermogravimetric analysis (TGA)/differential scanning calorimetry (DSC) curves of CZA precipitate precursors

Figures 1 and 2 indicate that varying La precursors directly influence the thermal stability and crystal structure of the CZA composites, which can be attributed to the nature of the interaction between the CZA matrix and the La₂O₃, La(NO₃)₃·6H₂O or H[La(EDTA)]·16H₂O precursors. When EDTA is added into the reaction solution, a stable complex is generated and the corresponding samples demonstrate higher degrees of stability. When La(NO₃)₃·6H₂O precursor is added into the solution, it takes part in the co-precipitation reaction as other nitrate materials. The corresponding precursor completely transforms into the CeO₂-ZrO₂ cubic crystal phase and γ-Al₂O₃ phase at ~605 °C. However, when La₂O₃ is added into the reaction solution, this La₂O₃ precursor does not undergo any reaction until ~1110 °C and replaces the Ce⁴⁺ cations. There is obvious agreement between the XRD results and the thermal analysis results.

3.3 Product morphology analysis

Figure 3 shows the SEM images of the CZA samples sintered at 1000 °C and 1200 °C for 4 h. There are some differences in morphology of the CZA samples depending on the precursors employed. In the presence of La₂O₃, the crystals display a fibrous porous nature, while the products are porous and granular when the La(NO₃)₃·6H₂O additive is used. A porous spongy texture is observed for the samples synthesized using the H[La(EDTA)]·16H₂O precursor. It is clear that both particle size and pore size increase as a function of increased sintering temperature. The interstitial pore size among particles is ~15 nm at 1000 °C, which increases to ~40 nm at 1200 °C. The increase of particle size and pore size leads to a significant decrease of the BET surface area. Furthermore, varying the precursors directly influences CZA product morphologies, textural properties and oxygen storage capacities.

Generally, the morphology of the CZA product is closely related to its growth surroundings [19,20]. The surroundings can be controlled through chemical bonding, sintering temperature and sintering time. There are small differences in structure for a low doping content of La and the same doping content of the PEG dispersant at the same sintering temperature. The particles grow and become coarse as the sintering temperature increases. The interstitial pores grow accordingly when the precursor samples are sintered at 1200 °C. So, the morphology and pore structure of CZA composite oxides vary under different conditions.

3.4 Texture structure and oxygen storage capacity analysis

Textural properties of the samples were investigated by N₂ adsorption and desorption isotherms. Figure 4 displays the pore diameter distribution of CZA-I, CZA-II and CZA-III sintered at 1000 and 1200 °C. The mean pore diameters (d_p) of the samples are ~15 and ~40 nm after the precursor are samples sintered at 1000 and 1200 °C, respectively. The pore diameter and the pore volume display normal distributions. The mean pore size of the sample in the presence of the La(NO₃)₃ precursor is smaller, while using to the EDTA and La₂O₃ precursors sintered at 1200 °C results in an increase in the mean pore size. The EDTA and La₂O₃ precursors in the materials obviously show a shift to larger pore size; hence, the anti-aging properties of the corresponding products are enhanced. However, the pore volume (V) is smaller for the CZA-III samples than for the CZA-I and CZA-II samples. This can be attributed to the difference of the precursor decomposition temperature and decomposition pathways with various La precursors.

Fig. 3 Scanning electron microscopy images of CZA samples doped with different La precursors after sintering at 1000 °C (a, c, e) and 1200 °C (b, d, f)

Figure 5 displays the adsorption and desorption isotherms of the CZA composite oxides. It can be observed that all samples present mesoporous characteristics. Additionally, there is the presence of hysteresis loops in the isotherms, which are attributed to non-uniform pore shape and size, as well as the phenomenon of capillary condensation. The hysteresis loops of CZA-III are the most prominent regardless of sintering temperature, and the hysteresis loops of CZA-I are less obvious. Hysteresis loop area decreases as a function of increased sintering temperature, especially noticeable for CZA-I. A sharp inflection point related to the rapid uptake of the adsorbate gas is noticed at relative pressure (p/p₀) of 0.9-1.0, which is related to the mesoporous nature of the interstitial pores.

Fig. 4 Pore diameter distributions of CZA samples doped with different La precursors sintered at 1000 °C (a) and 1200 °C (b)

Fig. 5 N₂ adsorption-desorption isotherms of CZA composite oxides doped with different La precursors sintered at 1000 °C (a) and 1200 °C (b)

Usually, the larger the hysteresis loop is, the better the adsorption property is. Hence, the degree of adsorbate uptake is higher for the CZA-III samples, while the adsorption capacity of the CZA-I samples is relatively lower, especially for the samples sintered at 1200 °C.

Textural structure properties and OSC results of the samples are given in Table 1. CZA-III sintered at 1000 °C has the highest surface area (A) with values of 97.46, 72.38 and 40.02 m²/g at 1000, 1100 and 1200 °C, respectively. While CZA-I has the lowest surface area, the highest mean pore volume and pore diameter regardless of the sintering temperature. On the whole, surface area and pore volume of all samples decrease with the sintering temperature increasing, while pore diameter increases. This can be attributed to either grain growth or crystal transformation resulting in sintering of the interstitial sites or collapsing of the pores at higher temperatures [21,22]. This trend is most obvious for CZA-II, with its specific surface area decreasing by a factor of four, pore volume decreasing by a factor of three, and pore diameter increasing by a factor of three when the sintering temperature is increased from 1000 to 1200 °C. However, the greatest change is within the sintering temperature range of 1100-1200 °C, with a less effect observed when increasing the sintering temperature from 1000 to 1100 °C. This is thought to be related to a dramatic change in the crystalline phase structure of the samples within the sintering temperature range of 1100-1200 °C. There are γ-Al₂O₃ and δ-Al₂O₃ phases in the CZA-I and CZA-II samples sintered at 1100 °C, which do not appear in the CZA-III sample until 1200 °C. This coincides with the XRD analysis results. Hence, the optimum sintering temperature of the CZA oxygen-storage materials is 1100 °C, and the CZA-III sample endures the best anti-high temperature aging performance.

The textural structures of the samples directly affect the oxygen-storage performance. The OSC experiment is performed using a pulse technique, and the results are reported in Table 1. CZA-I samples possess relatively lower OSC values regardless of the sintering temperature, indicating that OSC efficiency of the CZA oxygen- storage materials is strongly dependent on the specific surface area. CZA-II and CZA-III samples display similar OSC values at 1000 °C, because of their similar textural properties. However, CZA-III samples sintered at 1100 °C show higher OSC values than CZA-I and CZA-II, owing to the enhanced high temperature thermal stability and the oxygen vacancy abundance. It has previously been reported that La³⁺ rare earth ions are dopants that improve OSC and thermal stability of ceria-based oxides, attributed to doping a small amount of La³⁺, which generates additional oxygen vacancies and crystal defects when La³⁺ is incorporated into the lattice [23,24]. Compared with La₂O₃ and La(NO₃)₃, the samples in the presence of the La[EDTA] precursor present higher OSC values, creating more crystal defects, and maintain relatively higher surface areas after high-temperature sintering. The results coincide with the thermal analysis results. From Table 1, we can also observe that the OSC values decline sharply as a function of increased sintering temperature from 1100 to 1200 °C. Specific surface areas decrease by 58.94% and the OSC values decrease by 74.56% when the CZA-III precursor samples are subjected to sintering temperatures from 1100 to 1200 °C. Therefore, the optimum sintering temperature should not exceed 1100 °C.

3.5 TPR analysis

TPR is widely used to characterize the reductive properties of ceria-based materials. Figure 6 displays the H₂-TPR profiles of the CZA composite oxides prepared under different conditions. The composite oxide precursors sintered at 1000 °C exhibit reduction peak values at ~600 °C. CZA-III, employing the La[EDTA] precursor, shows a reduction peak at a maximum value of 635 °C. CZA-II, doped with La(NO₃)₃, presents a minimum value of 555 °C, while the corresponding temperature for CZA-I, using La₂O₃ as the precursor, is 570 °C. The reduction peak temperatures of the composite oxides sintered at 1100 °C translate to high temperature zones. The reduction peak temperature for CZA-III, increases by 15 °C to a maximum value of 650 °C. CZA-I presents a reduction peak value of 638 °C, and the reduction peak temperature of CZA-II, synthesized with La(NO₃)₃ the precursor, is 618 °C. This is thought to be attributed to the difference in the crystalline phase structure of the samples. The crystalline phase structure of the CZA-III samples does not significantly change at 1000 and 1100 °C; only the crystallinity increases. Meanwhile, minor γ-Al₂O₃ and δ-Al₂O₃ phases are present in the crystalline phases of CZA-I and CZA-II sintered at 1100 °C. However, the crystalline phase structure of all samples show dramatic changes when being subjected to sintering temperature of 1200 °C. The TPR profiles of samples sintered at 1200 °C show either two or even three peaks, which indicates that the reduction mechanism may follow a two- or three-stage process. The peaks present at ~400 °C are related to the reduction of the surface ceria oxide, while bulk reduction is represented by the high-temperature signal at ~650 °C. Furthermore, the Ce_xZr_1-xO₂ solid solution formation will result in the distortion of the cubic fluorite lattice. As a result, the reduction process is no longer confined to the surface but extended deep into the bulk [16].

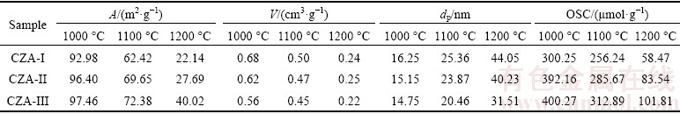

Table 1 Textural performance of CZA after sintering with different La precursors

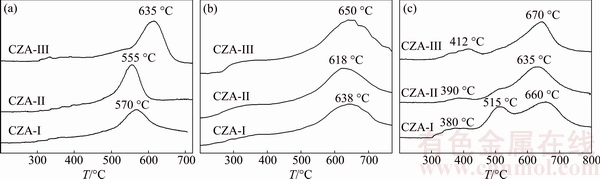

Fig. 6 Temperature-programmed reduction profiles of CZA samples doped with different La precursors after sintering at 1000 °C (a), 1100 °C (b) and 1200 °C (c)

For CZA-III, the reduction temperature is the highest. Doping a small amount of La rare earth ions can enhance specific surface area and promote thermal stability [25]. CZA-III exhibits the highest temperature stability for the five-membered rings composed of metal cations and EDTA, which is consistent with TGA/DSC analysis. For CZA-I, the degree of reduction is the largest at 1200 °C. Reduction capacity of the CZA oxygen-storage materials is associated with their textural structures. Typically, large pore diameters and large pore volumes result in enhanced reduction [26].

4 Conclusions

1) La-doped CZA composite oxides were prepared following a co-precipitation method in the presence of various La precursors, namely, La₂O₃, La(NO₃)₃·6H₂O and H[La(EDTA)]·16H₂O. The specific surface area and thermal stability can be enhanced by introducing the H[La(EDTA)]·16H₂O precursor into the solution. Sintering the samples above 1000 °C yields CeO₂-ZrO₂ cubic fluorite as the major phase.

2) The CZA samples that employ H[La(EDTA)]·16H₂O as the precursor display enhanced thermal stability compared with the composite oxides prepared with the La₂O₃ and La(NO₃)₃·6H₂O precursors. The CZA samples possess different porous structure and surface morphologies depending on the La precursor used. Product morphology and pore structure influence the textural properties and OSC of the CZA samples. The samples doped with La₂O₃ show the largest degree of reduction at 1200 °C because of the relatively larger pore volume and pore diameter.

3) The CZA samples sintered at 1000 °C in the presence of the H[La(EDTA)]·16H₂O precursor have the highest surface areas with values of 97.46 m²/g. The corresponding OSC value is also the largest with value of 400.27 μmol/g when the CZA-III precursor sample is sintered at 1000 °C. From 1100 to 1200 °C, the surface areas and redox properties of the samples decline dramatically. So, the optimum sintering temperatures should not exceed 1100 °C.

References

[1] HECK R M, FARRAUTO R J. Automobile exhaust catalysts [J]. Applied Catalysis A: General, 2001, 221(1-2): 443-457.

[2] KAPAR J, FOMASIERO P, GRAZINI M. Use of CeO₂-based oxides in the three-way catalysis [J]. Catalysis Today, 1999, 50(2): 285-286.

[3] ZHANG Y J, ZHANG L, DENG J G, DAI H X, HE H. Controlled synthesis, characterization, and morphology-dependent reducibility of ceria-zirconia-yttria solid solutions with nanorod-like, microspherical, microbowknot-like, and micro-octahedral shapes [J]. Inorganic Chemistry, 2009, 48(5): 2181-2192.

[4] ZHAO Q S, XIANG J, SUN L S, SHI J M, SU S, HU S. Selective catalytic reduction of NO with NH₃ over sol-gel-derived CuO- CeO₂-MnO_x/γ-Al₂O₃ catalysts [J]. Journal of Central South University Technology, 2009, 16(3): 513-519.

[5] SHYU J Z, WEBER W H, GANDHI H S. Surface characterization of alumina-supported ceria [J]. Journal of Physical Chemistry, 1988, 92(17): 4964-4970.

[6] LI M, LIU Z G, HU Y H, WANG M T, LI H Q. Effect of doping element on catalytic performance of CeO₂-ZrO₂ solid solutions [J]. Journal of Rare Earths, 2008, 36(3): 357-361.

[7] HORI C E, PERMANA H, SIMONG K Y. Thermal stability of oxygen storage properties in a mixed CeO₂-ZrO₂ system [J]. Applied Catalysis B: Environmental, 1998, 16(2): 105-117.

[8] FORNASIERO P, BALDUCCI G, MONTER D. Modification of the redox behavior CeO₂ induced by structural doping with ZrO₂ [J]. Journal of Catalysis, 1996, 164(1): 173-183.

[9] MONTE R D, FORMASIERO P, DESINAN S, KASPAR J. Thermal stabilization of CexZr_1-xO₂ oxygen storage promoters by addition of Al₂O₃: Effect of thermal aging on textural, structural, and morphological properties [J]. Chemistry Materials, 2004, 16(22): 4273-4285.

[10] BIRGERSSON H, ERIKSSON L, BOUTONNET M, JARAS S G. Thermal gas treatment to regenerate spent automotive three-way exhaust gas catalysts (TWC) [J]. Applied Catalysis B: Environmental, 2004, 54(3): 193-200.

[11] WANG X, GORTE R J, WAGNER J P. Deactivation mechanisms for Pd/ceria during the water-gas-shift reaction [J]. Journal of Catalysis, 2002, 212(3): 225-230.

[12] SI R, ZHANG C H, WANG L M, LI S J, LIN B X, CHU W S, WU Z Y, YAN C H. Enhanced thermal stability and oxygen storage capacity for Ce_xZr_1-xO₂(x=0.4-0.6) solid solutions by hydrothermally homogenous doping of trivalent rare earths [J]. Journal of Physical Chemistry C, 2007, 111(2): 787-794.

[13] MENG J S, JI Z S. Effect of La₂O₃/CeO₂particle size on high- temperature oxidation resistance of electrodeposited Ni-La₂O₃/CeO₂ composites [J]. Transactions of Nonferrous Metals Society of China, 2014, 24(11): 3571-3577.

[14] WANG S C, XIE H, LIN Y Y, KENNATH R P, LI T. High thermal stability of La₂O₃ and CeO₂-stabilized tetragonal ZrO₂ [J]. Inorganic Chemistry, 2016, 55(5): 2413-2420.

[15] BOZO C, GUIHAUME N, HERRMANN J M. Role of the ceria–zirconia support in the reactivity of platinum and palladium catalysts for methane total oxidation under lean conditions [J]. Journal of Catalysis, 2001, 203(2): 393-406.

[16] WANG L J, WANG K C, CAO H Y, CHEN Y D, LIU Z M. Low temperature catalytic combustion of cooking fume over Pt/γ-Al₂O₃/ CexZr_1-xO₂ catalyst [J]. Acta Physico-Chimica Sinica, 2009, 24(4): 689-693.

[17] LI M, LIU Z G, HU Y H, WANG M T, LI H Q. Effect of doping elements on catalytic performance of CeO₂-ZrO₂ solid solutions [J]. Journal of Rare Earths, 2008, 26(3): 357-361.

[18] WANG S J, XU Y B, LU P X, XU C F, CAO W. Synthesis of yttrium aluminum garnet(YAG) from an ethylenediaminetetraacetic acid precursor [J]. Materials Science and Engineering B, 2006, 127(2-3): 203-206.

[19] FAN J, WENG D, WU X D, WU X D, RAN R. Modification of CeO₂-ZrO₂ mixed oxides by coprecipitated/impregnated Sr: Effects on the microstructure and oxygen storage capacity [J]. Journal of Catalysis, 2008, 258(1): 177-186.

[20] FAN J, WU X D, WU X D, LIANG Q, RAN R, WENG D. Thermal ageing of Pt on low-surface-area CeO₂-ZrO₂-La₂O₃ mixed oxides: Effect on the OSC performance [J]. Applied Catalysis B: Environmental, 2008, 81(1-2): 38-48.

[21] ANG M L, OEMAR U, SAW E T, MO L, KATHIRASE R Y, CHIA B H, KAWI S. Highly active Ni/xNa/CeO₂ catalyst for the water-gas shift reaction: Effect of sodium on methane suppression [J]. ACS Catalysis, 2014, 4(9): 3237-3248.

[22] WANG J, WEN J, SHEN M Q. Effect of interaction Ce_0.7Zr_0.3O₂ and Al₂O₃ on structure characteristics, thermal stability and oxygen storage capacity [J]. Journal of Physical and Chemistry, 2008, 112(13): 5113-5122.

[23] LEMONIDOU A A, VAGIA E C, LERCHER J A. Acetic acid reforming over Rh supported on La₂O₃/CeO₂–ZrO₂: Catalytic performance and reaction pathway analysis [J]. ACS Catalysis, 2013, 3(9): 1919-1928.

[24] JIANG P, LU G, GUO Y, WANG X. Preparation of La₂O₃-doped CeO₂-ZrO₂ solid solution with high thermal stability by water-in-oil microemulsion [J]. Chemistry Letters, 2004, 33(8): 1064-1065.

[25] KONDAKINDI R R, THALLADA B, KOMANDUR V R C. Structure and reactivity of molybdenum oxide catalysts supported on La₂O₃-stabilized tetragonal ZrO₂ [J]. Langmuir, 2003, 19(26): 10795-10802.

[26] KASPAR J, FORNASIERO P, HICKEY N. Automotive catalytic converters: Current status and some perspectives [J]. Catalysis Today, 2003, 77(4): 419-449.

不同La源对CeO₂-ZrO₂-Al₂O₃复合氧化物结构和性能的影响

李友凤¹，贺跃辉²，刘国清¹，曾令玮¹

1. 湖南科技大学 化学化工学院，湘潭 411201；

2. 中南大学 粉末冶金研究院，长沙 410083

摘  要：分别以La₂O₃、La (NO₃)₃·6H₂O和H[La (EDTA)]·16H₂O为La源，采用共沉淀法制备La掺杂CeO₂-ZrO₂- Al₂O₃复合氧化物样品，即CZA-I、CZA-II和CZA-III，研究不同La源对材料结构和性能的影响。结果表明，前躯体沉淀经1000 °C煅烧后样品主要为CeO₂-ZrO₂相；煅烧温度为1100 °C和1200 °C时，发现存在γ-Al₂O₃ 与δ-Al₂O₃ 相。高温热处理后，CZA-III具有比CZA-I和CZA-II更好的热稳定性。N₂ 吸附-脱附结果显示，CZA-III具有最大的比表面积，其前躯体经1000 °C煅烧后所得样品的比表面积值为97.46 m²/g，且相应的储氧能力(OSC)值也最大，其值为400.27 μmol/g，这导致CZA-III具有最好的热稳定性和最高的还原温度。然而，当煅烧温度从1100升高到1200 °C时，复合氧化物样品的比表面积和储氧性能急剧下降，CZA-III的比表面积值降低58.94%，OSC值降低74.56%。

关键词：La源；铈锆固溶体；复合氧化物；织构特性；氧化还原性能

(Edited by Bing YANG)

Foundation item: Project (14JJ4043) supported by the Natural Science Foundation of Hunan Province, China

Corresponding author: You-feng LI; Tel: +86-731-58290045; E-mail: liyoufeng2005@sina.com

DOI: 10.1016/S1003-6326(18)64706-5
