Trans. Nonferrous Met. Soc. China 30(2020) 223-235

Separation of arsenic from arsenic-antimony-bearing dust through selective oxidation-sulfidation roasting with CuS

Da-peng ZHONG, Lei LI

State Key Laboratory of Complex Non-ferrous Metal Resources Clean Utilization, Engineering Research Center of Metallurgical Energy Conservation and Emission Reduction of Ministry of Education, Faculty of Metallurgical and Energy Engineering, Kunming University of Science and Technology, Kunming 650093, China

Received 22 February 2019; accepted 1 December 2019

Abstract: The feasibility of a new method for separating arsenic from arsenic-antimony-bearing dusts using CuS was put forward, in which Sb was transformed into Sb₂O₄ and Sb₂S₃ that stayed in the roasted calcine while As was volatilized in the form of As₄O₆. The factors such as roasting temperature and CuS addition amount were studied using XRD, EPMA and SEM-EDS. CuS has an active effect on the separation of arsenic due to the destruction of (Sb,As)₂O₃ structures in the original dust and the simultaneous release of As in the form of As₄O₆. At a roasting temperature of 400 °C and CuS addition amount of 130%, the volatilization rates of arsenic and antimony reach 97.80 wt.% and 8.29 wt.%, respectively. Further, the high As volatile matter can be used to prepare ferric arsenate after it is oxidized, with this treatment rendering the vapor harmlessness.

Key words: arsenic-antimony-bearing dusts; separation of arsenic and antimony; CuS; phase transformation; waste utilization

1 Introduction

Arsenic-antimony-bearing dust is of great importance for recovering valuable metals as a secondary resource [1]. It is usually generated from the nonferrous metal smelting process and accumulates, resulting in high costs for landfill disposal and in the heavy pollution of water, land and air [2-5]. However, arsenic-antimony-bearing dust generally contains not only approximately 30 wt.% of antimony but also other abundant valuable metals, such as zinc, lead, copper, and bismuth [6-8]. The high arsenic content dust cannot be directly recycled into the antimony smelting process since the As-Sb alloys might be generated due to their similar chemical properties.

Arsenic and antimony in arsenic-antimony- bearing dusts exist mainly in the forms of As₂O₃ and Sb₂O₃, respectively, and they are difficult to be separated due to their similar physical and chemical properties [9,10]. The conventional treatment of arsenic-antimony-bearing dusts can be classified into three methods: hydrometallurgical, physical filtration and pyrometallurgical processes. In the hydrometallurgical process, arsenic can be selectively leached into solution and separated from antimony using acid [11,12], alkali [13-15], chlorination [16] or pressure leaching (in form of Na₃AsO₄) [10,17], and antimony is transformed into insoluble matter and further concentrated by filtration [14,18-20]. The arsenic removal rate can reach 92 wt.% in the hydrometallurgical process [10,13-17], but the arsenic-containing wastewater generated from this process poses a potential threat to the environment. Based on the high-temperature filtration technology, a cleaner and more effective method of physical filtration was investigated by ZHANG et al [21]. Approximately 92.24 wt.% of arsenic was removed at the expense of the loss of 6-7 wt.% of antimony in their studies. However, the porous FeAl(20Cr) intermetallic filter materials used to separate As were seriously corroded by the high-temperature As-containing gas, causing it difficulty for industrial application. As₂O₃ was easy to volatilize, and its volatilization rate exceeded 93.0 wt.% at 460 °C for 120 min [22]. The Sb₂O₃ volatilization also exceeded 95.0 wt.% at 600 °C for 120 min under a nitrogen atmosphere [23]. When the oxygen partial pressure exceeded 10 vol.%, PADILLA et al [24] found that Sb₂O₃ volatilization was seriously inhibited by the formation of a non- volatile compound, SbO₂. The arsenic could be separated effectively if Sb₂O₃ was selectively oxidized from As₂O₃ and Sb₂O₃ to SbO₂ in a suitable oxidizing atmosphere. Thus, a roasting process in a selectively oxidizing atmosphere using O₂ for treating high As-Sb dusts was investigated by LI et al [9] and TANG et al [25], but their studies showed that only approximately 60 wt.% of arsenic was removed and that the antimony lost was greater than 10 wt.%. The reason might have been that As₂O₃ and Sb₂O₃ were combined and transformed into a solid solution phase, As_xSb_yO₆ (where x=1, 2 or 3, and x+y=4), during the roasting process, which inhibited the volatilization of arsenic and simultaneously promoted the volatilization of antimony at 200-800 °C [26-28]. Meanwhile, As₂O₃ could be oxidized to As₂O₅ under an O₂ atmosphere, which also restricted the volatilization of arsenic. Thus, ZHONG et al [29] proposed a method using CuO as a weak oxidant to treat this dust. The solid solution phase As_xSb_yO₆ was effectively destroyed by CuO, in which the Sb component was selectively oxidized to Sb₂O₄ and As was transformed to As₄O₆ and volatilized. In their research, the arsenic removal rate reached 91.50 wt.% but was accompanied by an antimony loss rate of 8.63%.

In the study by PADILLA et al [24], the stibnite (Sb₂S₃) volatilization rate did not exceed  20 wt.% at a roasting temperature of 700 °C, roasting time of 60 min and N₂ flow rate of 1.5 L/min, indicating that the stibnite (Sb₂S₃) volatility is far lower than that of Sb₂O₃. Combined with the low volatility of stibnite (Sb₂S₃) and weak oxidizability of Cu²⁺, a new method of selective oxidation-sulfidation for treating arsenic- antimony-bearing dusts was put forward. CuS was used as an additive in the roasting process, and the influences of processing parameters on separating arsenic were investigated, including the roasting temperature and amount of CuS addition.

2 Experimental

2.1 Materials

The arsenic-antimony-bearing dust used in this study was provided by a plant for treating tin anode slime using the pyrometallurgical process; the plant is located in Yunnan Province, China. The chemical composition (wt. %) of the dust is presented in Table 1, which shows that the major elements present are arsenic (36.28 wt.%), antimony (28.72 wt.%) and oxygen (21.73 wt.%). The “Others” in Table 1 are mainly Ca, K, and Si, etc. The XRD pattern of this arsenic-antimony- bearing dust is reported in Fig. 1(a), which shows that the main phases are As₂O₃ and Sb₂O₃, accompanied by a small amount of (Sb,As)₂O₃ solid solution [28]. Furthermore, As₂O₃ holds a more content than Sb₂O₃ in coexistent states of As-Sb-O seen from compositions of points 2, 3 and 5 (Fig. 1(b)) in Table 2, which implies that the formation of this solid solution is through the dissolution of Sb₂O₃ into As₂O₃. In addition, the dust contains tiny amounts of Cu and S in Table 2, which agrees with the result in Table 1.

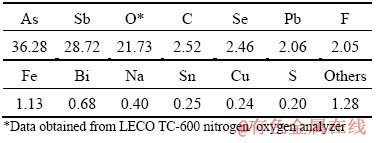

Table 1 Chemical composition of arsenic-antimony- bearing dust (wt.%)

CuS prepared via a precipitation process was used as an additive. It was of analytical grade (purity of 99%) and was procured from local suppliers. In addition, the high purity N₂ (purity of 99.999%) used was also procured from local suppliers.

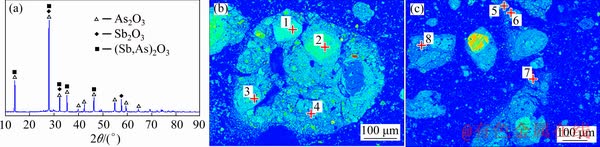

Fig. 1 XRD pattern (a) and EPMA images (b, c) of arsenic-antimony-bearing dust

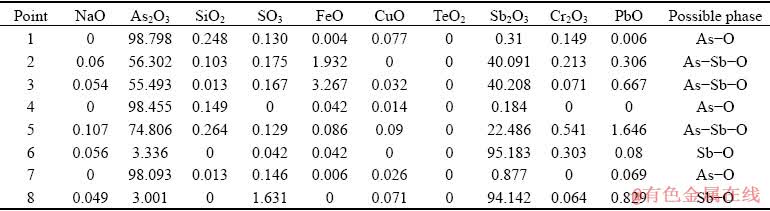

Table 2 Elemental analysis of different phases (wt.%)

2.2 Methods

The experimental apparatus is shown in Fig. 2. An appropriate amount of CuS was first mixed adequately with 5 g arsenic-antimony-bearing dust in the experiment. The addition amount of CuS added (α) was calculated using Eq. (1):

                           (1)

where m_C and m_D stand for the mass of CuS added and arsenic-antimony-bearing dusts, respectively. The mixture then was put into a corundum crucible and roasted in a tube furnace (Fig. 2) at the required temperature for the proper time under a nitrogen atmosphere. The off-gas from the reaction tube was continuously passed through a water-cooled condenser, which collected the volatile matter, and then to solutions of 1 mol/L NaOH to remove harmful components. Finally, after holding for a proper time, the roasted calcines were weighed, ground and chemically analyzed to investigate the volatilization rates of arsenic and antimony.

2.3 Characterization

The thermogravimetric analysis (TG) and differential scanning calorimetry (DSC) of the samples were performed in a thermal analyzer (NETZSCH, STA 449 F3). Typical measurements were performed at a heating rate of 0.167 K/s under N₂ atmosphere. The X-ray diffraction analysis (XRD, Rigaku, TTR-III) and electron probe microanalysis techniques (EPMA, JXA82, JEOL) coupled with an energy dispersive spectrometer (EDS) were used to detect phase transformations and the morphology of the samples during the roasting process, and the chemical compositions of the samples were characterized by chemical analysis. Specifically, the O content in the original dust was characterized by LECO TC-600 nitrogen/ oxygen analyzer. The phase contents in the roasted calcines were calculated through K value method. The FactSage 7.0 software was used to calculate the standard Gibbs free energy changes and equilibrium compositions of the reaction system. Mathematical expressions of the volatilization rates of arsenic (R_As) and antimony (R_Sb) were defined as follows:

                  (2)

                  (3)

where m_D and m_T stand for the masses of the original arsenic-antimony-bearing dust and roasted calcines respectively; w_As1 and w_Sb1 are the arsenic and antimony contents in the original arsenic- antimony-bearing dust, respectively; and w_As2 and w_Sb2 are the arsenic and antimony contents in the roasted calcines, respectively.

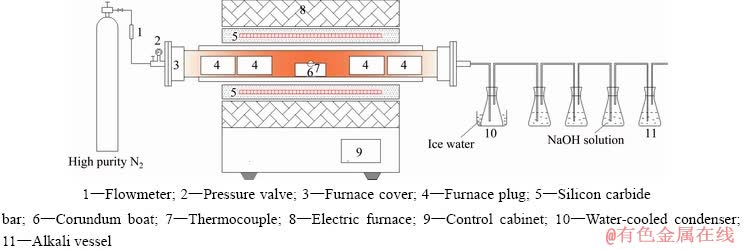

Fig. 2 Experimental setup

3 Thermo-chemical behavior

Figure 3 shows the TG-DSC curves of CuS, arsenic-antimony-bearing dusts and their mixture (α=130%) under an N₂ atmosphere. Two endothermic peaks located at 262.2-470.5 °C are detected in the DSC measurement for the arsenic- antimony-bearing dusts, and each corresponds to a mass loss. The first endothermic peak at 262.2- 289.7 °C is attributed to the As₂O₃ phase melting (the melting point of As₂O₃ is 275 °C) [30] and dust volatilization. The second peak at 415.6-470.5 °C is attributed to evaporation of the dust. As reported in Ref. [27], As₂O₃ begins to volatilize at 200 °C and its volatilization rate increases to approaching 100 wt.% at 500 °C, which corresponds the first endothermic peak in the DSC curves of dust in  Fig. 3. Sb₂O₃ begins to volatilize at 500 °C, and its volatilization rate increases to 80 wt.% at 800 °C. In addition, the volatilization rate of the mixture of As₂O₃ and Sb₂O₃ (solid solution, As_xSb_yO₆) increases from 0 to 54.3 wt.% at 200 to 350 °C, remains nearly constant at 520 °C, and finally continues to increase with the increase of temperature. The volatilization of As₂O₃, Sb₂O₃ and mixture of them results in the second peak in the DSC curves of dust in Fig. 3. The main evaporation processes are shown in Eqs. (4)-(6). There are seven endothermic peaks in the DSC curves of CuS, and each of these peaks corresponds to a mass loss.

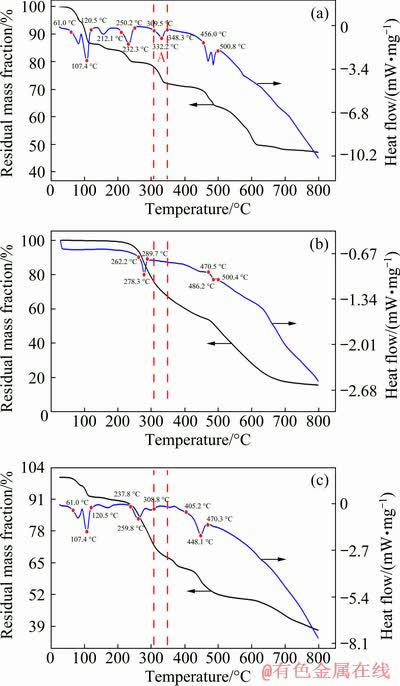

Fig. 3 TG-DSC curves of CuS (a), arsenic-antimony-bearing dust (b) and their mixture (α=130%) (c)

The first endothermic peak at 61.0-120.5 °C is attributed to the evaporation of free water, and the other endothermic peaks are attributed to the gradual decomposition of CuS as shown in Eq. (7) (where 19S₈, Cu₇S₄, Cu_1.8S, and Cu₂S [31,32]. Compared with the DSC curves of individual CuS and arsenic-antimony-bearing  dusts, no new endothermic or exothermic peak is observed at 25-309.5 °C for the mixture of them seen from Fig. 3, indicating that no reaction occurs between the dust and CuS in this temperature range. Concretely, the first endothermic peak at 61.0-120.5 °C is attributed to the evaporation of free water, and the endothermic peak at 212.1-250.2 °C is attributed to the As₂O₃ phase melting, gradual decomposition of CuS and dust volatilization. When the temperature is increased to 309.5-348.3 °C, no peak is observed in the DSC curve for the mixture, which differs from the curve of CuS. Specifically, in the DSC curve of CuS, an endothermic peak A centered at 332.2 °C can be observed. This difference might be attributed to the occurrence of an exothermic reaction between the dust and CuS and/or the decomposition products of CuS. Figure 4(a) shows that Eq. (8) can be carried out, and Fig. 4(b) shows that Eq. (8) is an exothermic reaction. Due to the lack of the thermodynamic data for the decomposition products of CuS, Cu₉S₈, Cu₇S₄, and Cu_1.8S, the standard Gibbs free energy changes of those reactions between them and the dust are not shown in Fig. 4. With a further increase in temperature, an obvious endothermic peak is observed at 405.2-470.3 °C, which might be related to the occurrence of     Eqs. (9)-(13). Equation (9) cannot occur due to its positive standard Gibbs free energy in Fig. 4(a). Furthermore, the standard Gibbs free energy values of Eqs. (10) and (12) are more negative than those of Eqs. (11) and (13) at above 200 °C, which means that the sulfidation of Sb₂O₃ is carried out prior to that of As₂O₃ and that the selective sulfidation of Sb₂O₃ could be realized. Besides, there is some (Sb,As)₂O₃ solid solution existing in the original dust seen from Fig. 1, in which the arsenic trioxide might have some affinity with antimony tetroxide and further influences the oxidation and sulfidation of Sb₂O₃. These solid solutions were assumed as ideal solid solution in this study, whereas arsenic trioxide was assumed to have less affinity with antimony tetroxide and thus Sb₂O₃ has a higher activity coefficient according to the Raoult’s law (activity coefficient γ=1). The thermodynamic calculation results, presented in Fig. 5, demonstrate that the formation of these solid solutions restricts

the oxidation of Sb₂O₃ to Sb₂O₄ or the formation of Sb₂S₃ obviously.

Sb₂O₃(s)=1/2Sb₄O₆(g)                     (4)

As₂O₃(s)=1/2As₄O₆(g)                     (5)

(Sb,As)₂O₃(s)→As_xSb_yO₆(g)                (6)

CuS(s)→Cu_zS(s)+S(s,l)                    (7)

CuS(s)+2/3Sb₂O₃(s)=1/2Cu₂S(s)+1/2Sb₂O₄(s)+1/6Sb₂S₃(s)     (8)

CuS(s)+5/12As₂O₃(s)=1/2Cu₂S(s)+1/4As₂O₅(s)+1/6As₂S₃(s)    (9)

CuS(s)+1/9Sb₂O₃(s)=1/2Cu₂S(s)+1/6SO₂(g)+1/9Sb₂S₃(s)      (10)

CuS(s)+1/9As₂O₃(s)=1/2Cu₂S(s)+1/6SO₂(g)+1/9As₂S₃(s)      (11)

S(s,l)+2/9Sb₂O₃(s)=1/3SO₂(g)+2/9Sb₂S₃(s)    (12)

S(s,l)+2/9As₂O₃(s)=1/3SO₂(g)+2/9As₂S₃(s)    (13)

FactSage 7.0 was used to calculate the equilibrium phases for the roasted products by minimizing Gibbs free energy under isothermal, isobaric and fixed-mole conditions. The required data for computation were provided by the FactPS database of the program.

Fig. 4 Standard Gibbs free energy changes (a) and enthalpy changes (b) of Eqs. (8)-(13) in temperature range of 0-800 °C

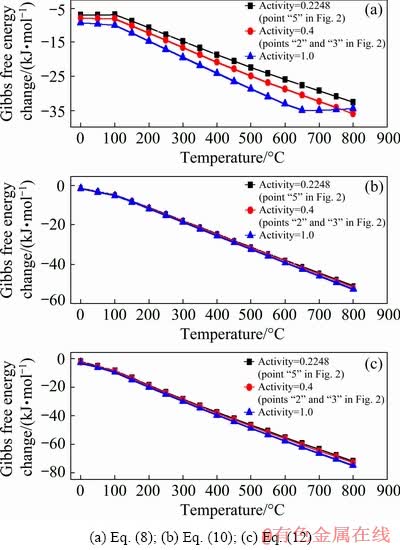

Fig. 5 Gibbs free energy changes with temperature for Sb₂O₃ in solid solutions in original dust reacted with CuS and S by assuming these solid solutions being ideal solid solution

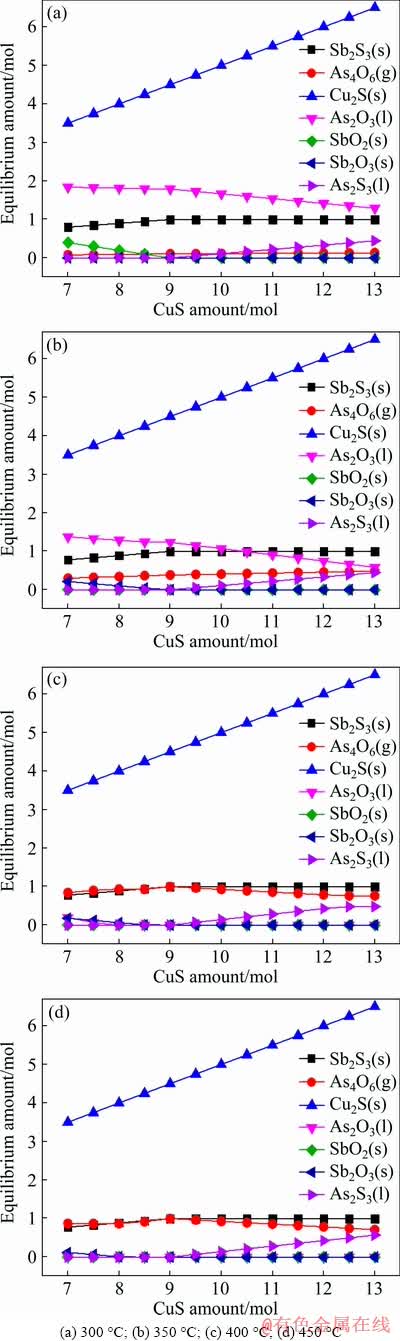

Fig. 6 Equilibrium amounts of species in roasted products as function of temperature and CuS amount

The calculations were performed on a mixture of 1 mol Sb₂O₃ and 2 mol As₂O₃ with variable amounts of CuS in the temperature range of 300-450 °C under an inert atmosphere at a pressure of 101.325 kPa. The phases of Sb₂S₃(s) [23], Cu₂S(s), As₂O₃(l), SbO₂(s), Sb₂O₃(s) and As₂S₃(l) are assumed to be present in the roasted products, and the phase of As₄O₆(g) is deemed to be volatilized and goes into the off-gas. The results of their equilibrium are presented in Fig. 6. It is noteworthy that massive Sb₂S₃(g) is generated in the original results given by FactSage 7.0, which differs obviously from the research of PADILLA et al [24]. Then further combined with our previous research [33], Sb₂S₃(g) is revised into Sb₂S₃(s) in the equilibrium results. When the CuS amount is less than 9 mol, As exists mainly in forms of As₂O₃(l) and As₄O₆(g). The As₂S₃(l) phase appears at a CuS amount of 9 mol, and it originates from the sulfidation of the As oxide (Eqs.(11) and (13)). The amount of Sb₂S₃(s) remains nearly constant when the CuS amount exceeds 9 mol. This seems to support the sulfidation of the antimony phase being completed at a CuS amount of 9 mol and the sulfidation of the subsequent arsenic phases, which is due to the more negative standard Gibbs free energy changes of Eqs. (10) and (12) than those of Eqs. (11) and (13). In addition, the amount of As₄O₆(g) increases acutely with temperature, which is propitious for the separation of arsenic and antimony.

As mentioned above, the selective oxidation- sulfidation of the Sb phases from arsenic- antimony-bearing dusts and the As volatilization in form of As₄O₆ (g) could be achieved by controlling the temperature and CuS amount, in which the temperature and CuS amount should be controlled at 400-450 °C and 9 mol, respectively, due to thermodynamics.

4 Results and discussion

4.1 Separation of arsenic

The mixtures of CuS and the dust in a proper ratio were roasted in the temperature range of 300-450 °C to investigate the effects on the volatilization rates of arsenic and antimony. The roasting time and N₂ flow rate were fixed at 100 min and 30 mL/min, respectively. Besides, a series of blank experiments without CuS addition were also carried out under the same condition.

All the experiments under the same conditions were repeated three times, and each set of data in Figs. 7 and 8 are the average values of these three repeated measurements. Figure 7 shows that an increase in temperature improves the volatilization of both arsenic and antimony on the whole. To be specific, the arsenic volatilization rate reaches a maximum at 400-425 °C and then remains nearly constant. The antimony volatilization rate changes slightly at 300-400 °C and then increases sharply with a continuing rise in temperature. Specially, the arsenic volatilization rate decreases slightly with temperature from 375 to 400 °C when α is less than 130%. The reason for this is that the (Sb,As)₂O₃ phase in the original dust is transformed to the As-Sb-S phase and the corresponding arsenic compounds vapor pressure decreases. This will be investigated by EPMA analysis in the following section. Without CuS addition, Fig. 8 shows that the arsenic volatilization rate is relatively low, the reason for which might be due to a formation of coexistent phase (As-Sb-O) which inhibits the As volatilization. It will be also investigated by XRD and EPMA analysis in the following section.

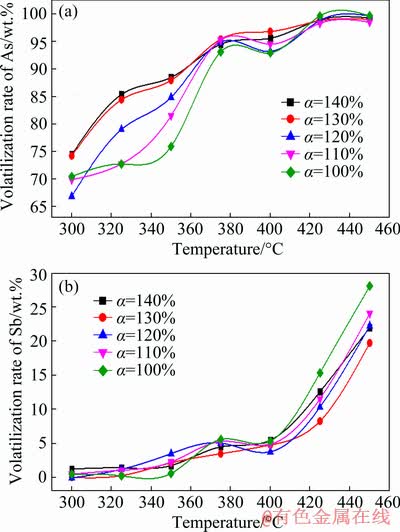

Fig. 7 Effects of roasting temperature and CuS amount on volatilization rate of arsenic and antimony

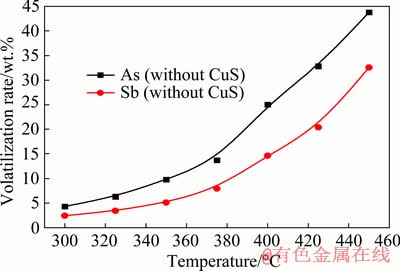

Fig. 8 Effects of roasting temperature on volatilization rate of arsenic and antimony without CuS addition

The CuS plays a dual role on the volatilization of antimony. The antimony volatilization rate decreases with the CuS amount from 100% to 130% and then increases with the CuS amount from 130% to 140%. The reason for this might be that Sb₂S₃ and Sb₂O₄ are generated with a CuS amount from 100% to 130% and neither of them is volatile. However, the generated Sb₂S₃ and Sb₂O₄ are transformed into As-Sb-S and Sb₄O₆ when the CuS amount is greater than 130%, causing Sb to be volatilized in the form of Sb₄O₆. These will also be investigated by XRD and EPMA analysis in the following section.

The optimum parameters are selected as a roasting temperature of 400 °C and a CuS amount of 130% to increase the separation efficiency of arsenic and antimony. Their volatilization rates can reach 97.80 wt.% As and only 8.29 wt.% Sb, respectively.

4.2 Analysis of mechanism of arsenic separation

It is important to establish a qualitative measurement of the mechanism to confirm the roasting process.

The broadening of the XRD peak in Fig. 9(a) indicates amorphous nature of the roasted calcine without CuS addition, and Fig. 9(b) demonstrates that this amorphous roasted calcine is mainly complex multi-phase crystal system containing varying amounts of As and Sb (in combination with oxygen). It restricted the arsenic volatilization obviously.

The mineral compositions of the roasted calcines with a CuS amount of 130% at different roasting temperatures were analyzed by XRD and the results are shown in Fig. 10(a). The broadening of the XRD peaks at 300 °C in Fig. 10(a)  indicates the amorphous nature of the roasted calcine, and Fig. 10(b) shows that this amorphous solid is mainly composed of As-Sb-O and Sb-S phases [26-28]. From a comparison of Fig. 2 and Fig. 10(b), it can be concluded that the most dissociative state As₂O₃ has been removed and the amount of combined state of As₂O₃ ((Sb,As)₂O₃ in Fig. 1) also clearly decreases. The destruction of the (Sb,As)₂O₃ structures in the original dust might be due to the oxidizing action of Cu²⁺ in CuS [29]. The structure of the (Sb,As)₂O₃ compound is further destroyed when the temperature is increased to 400 °C, as seen by comparing Fig. 10(c) to Fig. 10(b), in which the Sb component is further oxidized and sulfurized into Sb₂O₄ and Sb₂S₃ (Fig. 10(a)), respectively, by CuS and S through Eqs. (8), (10) and (12). Sb₂O₄ and Sb₂S₃ stay in the roasted calcine, which results in the low antimony volatilization rate as shown in Fig. 7. Meanwhile, the As component in (Sb,As)₂O₃ is released and volatilizes in the form of As₄O₆, resulting in a sharp increase in the arsenic volatilization rate between 300 and 400 °C (Fig. 7).

In addition, when α is lower than 130%, the arsenic sulfide could be formed through Eqs. (11) and (13) and combined with Sb₂S_3, generating a coexistent phase of As-Sb-S [27] at 400 °C. This can be confirmed by the EPMA-EDS result in  Fig. 11 (α=110%). This As-Sb-S specie is difficult to volatilize at 400 °C, and it causes a slight decrease in the arsenic volatilization rate as the temperature increases from 375 to 400 °C.

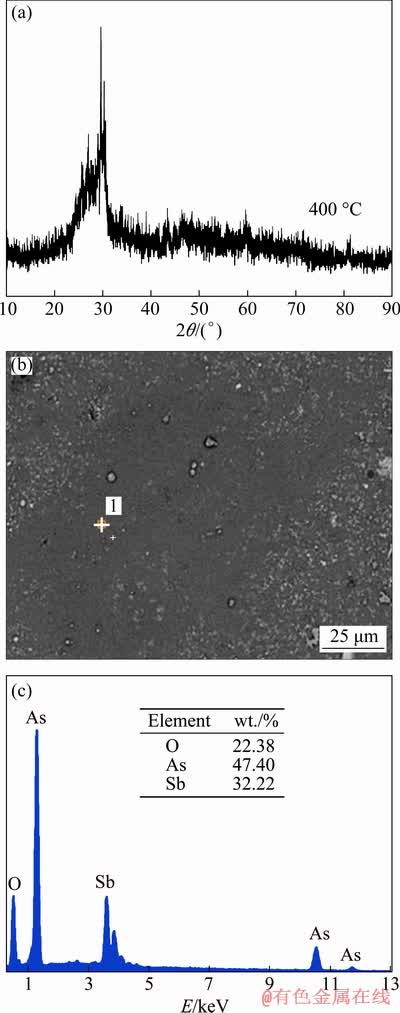

Fig. 9 XRD pattern (a), EPMA analysis (b) and EDS analysis (c) of roasted residue at 400 °C without CuS addition

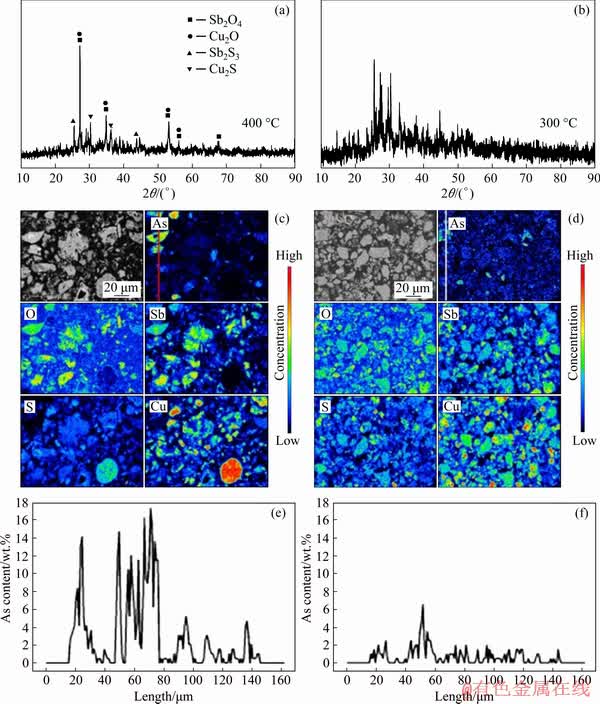

Fig. 10 XRD patterns (a, b), EPMA analyses (c, d), and line scanning analyses (e, f) of roasted residue at 300 °C (a, c, e) and 400 °C (b, d, f)

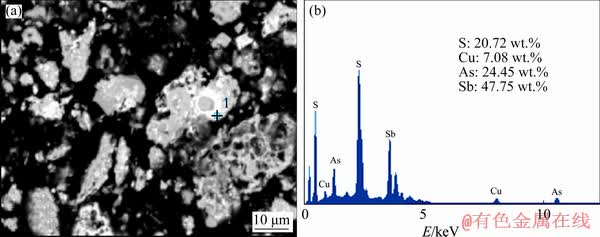

Fig. 11 EPMA-EDS analyses of roasted residue at 400 °C (α=110%)

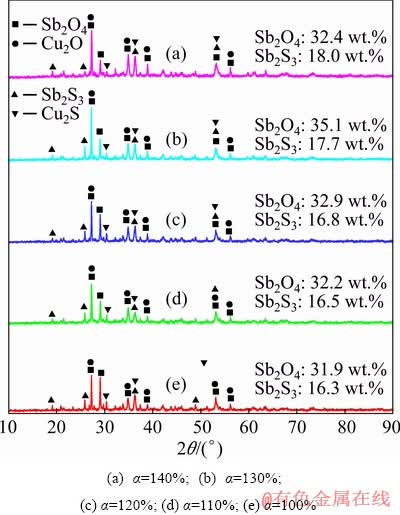

Fig. 12 XRD patterns of roasted residues with different CuS amounts at 425 °C

The XRD patterns of roasted calcines with different CuS amounts at 425 °C are shown in   Fig. 12. It shows that the peak intensity of Sb₂O₄

and Sb₂S₃ increases gradually, with α ranging from 100% to 130% and then Sb₂O₄ peak decreases when α is above 130%, which occurs because Sb₂O₄ is reduced into volatile Sb₄O₆ by the “S” component in CuS through Eq. (14) at a higher α value. This results in an increase in the antimony volatilization rate at 400-450 °C in Fig. 7. Figure 13 shows that Eq. (14) can proceed by increasing temperature and decreasing the partial pressures (P) of Sb₄O₆(g) and SO₂(g). The partial pressures of Sb₄O₆(g) and SO₂(g) are low and always decreasing in the roasting process due to their strong volatility.

4CuS(s)+10Sb₂O₄(s)=5Sb₄O₆(g)+2Cu₂O(s)+4SO₂(g)         (14)

The volatile matter in the water-cooled condenser (device No. 10 in Fig. 2) was collected, and its XRD pattern is shown in Fig. 14. It is shown that the volatile matter is mainly composed of As₂O₃, accompanied by a small amount of Sb₂O₃. The volatile matter, containing a high amount of As₂O₃, could be used to prepare ferric arsenate after it was oxidized, with this treatment rendering the vapor harmless. In addition, after being roasted with CuS, Sb₂O₃ and (Sb,As)₂O₃ in the original arsenic-antimony-bearing dust are transformed to Sb₂O₄ and Sb₂S₃ retaining in the roasted calcine, and meanwhile CuS is changed into Cu₂O and Cu₂S.  Sb could be separated and recovered in the form of Sb₄O₆ from the Cu-containing roasted calcine through an oxidation-reduction process [34].

Fig. 13 Gibbs free energy changes of Eq. (14) with temperature under different P_{Sb4O6 (g)} and P_{SO2 (g)}

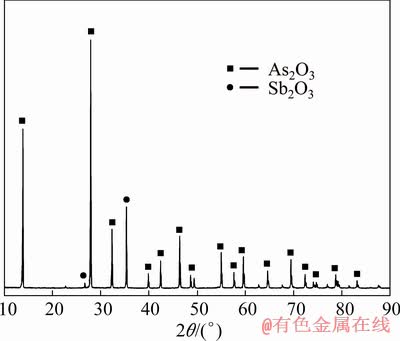

Fig. 14 XRD pattern of product in water-cooled condenser (device No. 10 in Fig. 2)

The thermodynamic behavior of As and Sb phases in the dust during the roasting process is summarized in Fig. 15. When the temperature is lower than 400 °C, most of Sb₂O₃ is oxidized and sulfurized to Sb₂O₄ and Sb₂S₃ by CuS and/or the decomposition products of CuS, and the structure of (Sb,As)₂O₃ in the original dust is destroyed via the oxidizing action of the Cu²⁺ in CuS. As a result, the volatilization rate of arsenic increases with the CuS amount accompanied by the antimony volatilization rate being lower than 5 wt.%. Increasing the temperature over 400 °C, As₂O₃ could be sulfurized to As₂S₃ and combined with Sb₂S₃ generating a coexistent phase of As-Sb-S with CuS amount of 110%-130%, which antagonizes the arsenic volatilization. In addition, the generated Sb₂O₄ could be reduced into volatile Sb₄O₆ by the S component in CuS and causes the antimony volatilization rate increase.

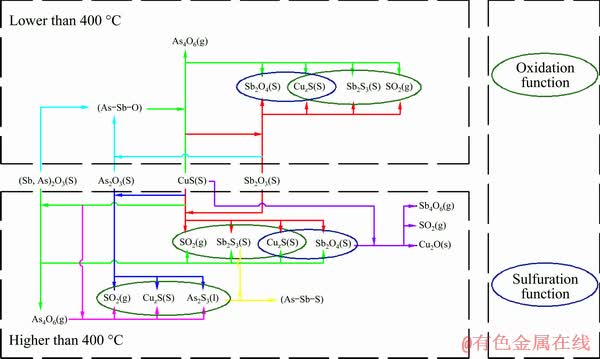

Fig. 15 Thermodynamic behavior of As and Sb phases in dust during oxidation-sulfidation roasting process using CuS

5 Conclusions

(1) The effective removal of arsenic from arsenic-antimony-bearing dust through a selective oxidation-sulfidation roasting process using CuS was feasible. The factors of the roasting temperature and CuS amount played significant roles on the separation of arsenic and antimony.

(2) Both the thermodynamic analysis and experimental results showed that the oxidation and sulfidation of Sb₂O₃ occurred prior to those of As₂O₃, in which Sb was transformed into Sb₂O₄ and Sb₂S₃ that stayed in the roasted calcine while As was volatilized in the form of As₄O₆. The CuS played an active role in the separation of arsenic because the structure of (Sb, As)₂O₃ in the original dust could be destroyed through the oxidizing action of Cu²⁺ in CuS and As was released in the form of As₄O₆.

(3) When the roasting temperature and CuS amount were above 400 °C and 130%, respectively, the generated Sb₂O₄ could be reduced to volatile Sb₄O₆ by the S component in CuS, causing the rate of antimony volatilization to increase. To increase the As removal rate and reduce the loss of Sb, the optimum conditions were established as a roasting temperature of 400 °C with a CuS amount of 130%. After roasting under these conditions, the volatilization rates of arsenic and antimony reached 97.80 wt.% and only 8.29 wt.%, respectively.

References

[1] HENCKENS M L C M, DRIESSEN P P J, WORRELL E. Metal scarcity and sustainability, analyzing the necessity to reduce the extraction of scarce metals [J]. Resources, Conservation and Recycling, 2014, 93(11): 1-8.

[2] MONARREZ-CORDERO B, AMEZAGA-MADRID P, ANTUNEZ-FLORES W, LEYVA-PORRAS C, PIZA-RUIZ P, MIKI-YOSHIDA M. Highly efficient removal of arsenic metal ions with high superficial area hollow magnetite nanoparticles synthetized by AACVD method [J]. Journal of Alloys and Compounds, 2014, 586: S520-525.

[3] SINGH P, SHARMA S, CHAUHAN K, SINGHAL R K. Fabrication of economical Thiol-tethered bifunctional iron composite as potential commercial applicant for arsenic sorption application [J]. Industrial & Engineering Chemistry Research, 2018, 57: 12959-12972.

[4] SUN Bo, ZHAI Hao, ZHANG Li-bing, ZHANG Chun-xue, WU Xin-shi. Removal of trace arsenic based on biomimetic separation [J]. Industrial & Engineering Chemistry Research, 2015, 54: 396-403.

[5] LI Yi-ran, WANG Jun, LUAN Zhao-kun, LIANG Zhen. Arsenic removal from aqueous solution using ferrous based red mud sludge [J]. Journal of Hazardous Materials, 2010, 177(1-3): 131-137.

[6] TANG Shi-jia, GAO Guang-ming, PENG En-sheng, SUN Zhen-jia. Fractal feature of western fracture zone in Xikuangshan antimony mine and its geological significance [J]. Journal of Central South University of Technology, 2000, 7 (4): 212-215.

[7] SHAWABKEH R A. Hydrometallurgical extraction of zinc from Jordanian electric arc furnace dust [J]. Hydrometallurgy, 2010, 104: 61-65.

[8] ELLNER M. Crystal chemical investigation of the solid solutions of antimony and bismuth in palladium and platinum [J]. Journal of Alloys and Compounds, 2007, 436 (1-2): 78-81.

[9] LI Lei, ZHANG Ren-jie, LIAO Bin, XIE Xiao-feng. Separation of As from As and Sb contained smoke dust by selective oxidation [J]. The Chinese Journal of Process Engineering, 2014, 14 (1): 71-77. (in Chinese)

[10] LI Yu-hu, LIU Zhi-hong, LI Qi-hou, LIU Fu-peng, LIU Zhi-yong. Alkaline oxidative pressure leaching of arsenic and antimony bearing dusts [J]. Hydrometallurgy, 2016, 166: 41-47.

[11] WANG Jiang-sheng. Reclaiming valuable metals from copper converter dust [J]. Copper Industrial Engineering, 2005, 1: 27-28. (in Chinese)

[12] KASHIWAKURA S, OHNO H, MATSUBAE-YOKOYAMA K, KUMAGAI Y, KUBO H, NAGASAKA T. Removal of arsenic in coal fly ash by acid washing process using dilute H₂SO₄ solvent [J]. Journal of Hazardous Materials, 2010, 181: 419-425.

[13] GUO Xue-yi, SHI Jing, YI Yu, TIAN Qing-hua, LI Dong. Separation and recovery of arsenic from arsenic-bearing dust [J]. Journal of Environmental Chemical Engineering, 2015, 3: 2236-2242.

[14] GUO Xue-yi, YI Yu, SHI Jing, TIAN Qing-hua. Leaching behavior of metals from high-arsenic dust by NaOH-Na₂S alkaline leaching [J]. Transactions of Nonferrous Metals Society of China, 2016, 26: 575-580.

[15] MONTENEGRO V, SANO H, FUJISAWA T. Recirculation of high arsenic content copper smelting dust to smelting and converting processes [J]. Minerals Engineering, 2013, 49: 184-189.

[16] JIANG Xue-xian, HE Gui-xiang, LI Xue-guang, LU Jing. Experimental research on dearsenization of high arsenic fume [J]. Hydrometallurgy of China, 2010, 29: 199-202. (in Chinese)

[17] VIRCIKOVA E, HAVLIK M. Removing As from converter dust by a hydrometallurgical method [J]. The Journal of The Minerals, Metals & Materials Society, 1999, 51: 20-23.

[18] LI Yu-hu, LIU Zhi-hong, LI Qi-hou, ZHAO Zhong-wei, LIU Zhi-yong, ZENG Li. Removal of arsenic from Waelz zinc oxide using a mixed NaOH-Na₂S leach [J]. Hydrometallurgy, 2011, 108: 165-170.

[19] SULLIVAN C, TYRER M, CHESSEMAN C R, GRAHAM N J. Disposal of water treatment wastes containing arsenic—A review [J]. Science of the Total Environment, 2010, 408: 1770-1778.

[20] LI Yu-hu, LIU Zhi-hong, LI Qi-hou, ZHAO Zhong-wei, LIU Zhi-yong, ZENG Li, LI Li. Removal of arsenic from arsenate complex contained in secondary zinc oxide [J]. Hydrometallurgy, 2011, 109: 237-244.

[21] ZHANG Hui-bin, LIU Xin-li, JIANG Yao, GAO Lin, YU Lin-ping, LIN Nan, HE Yue-hui, LIU C T. Direct separation of arsenic and antimony oxides by high-temperature filtration with porous FeAl intermetallic [J]. Journal of Hazardous Materials, 2017, 338: 364-371.

[22] YUAN Hai-bin, ZHU Yu-yan, ZHANG Ji-bin. Process of high-arsenic dust containing tin volatilization from DC submerged arc furnace [J]. Journal of Central South University, 2013, 44: 2200-2205. (in Chinese)

[23] ARACENA A, JEREZ O, ANTONUCCI C. Senarmontite volatilization kinetics in nitrogen atmosphere at roasting/ melting [J]. Transactions of Nonferrous Metals Society of China, 2016, 26: 294-300.

[24] PADILLA R P, RAMIREZ G, RUIZ M C. High-temperature volatilization mechanism of stibnite in nitrogen-oxygen atmospheres [J]. Metallurgical and Materials Transactions B, 2010, 41: 1284-1292.

[25] TANG Hai-bo, QIN Qing-wei, GUO Yong, ZHENG Xin, XUE Ping, LI Guang-qiang. Pretreatment of high arsenic and antimony smelting dust for arsenic removal using roasting process [J]. Conservation and Utilization of Mineral Resources, 2014, 3: 35-38. (in Chinese)

[26] BROOKS G A, RANKIN W J, GRAY N B. Thermal separation of arsenic and antimony oxides [J]. Metallurgical and Materials Transactions B, 1994, 25: 873-884.

[27] MAUSER J E. Heteronuclear compounds of arsenic and antimony [J]. Metallurgical and Materials Transactions B, 1982, 13: 511-513.

[28] BROOKS G A, RANKIN W J. Solid-solution formation between arsenic and antimony oxides [J]. Metallurgical and Materials Transactions B, 1994, 25: 865-871.

[29] ZHONG Da-peng, LI Lei, TAN Cheng. Separation of arsenic from the antimony-bearing dust through selective oxidation using CuO [J]. Metallurgical and Materials Transactions B, 2017, 48: 1308-1314.

[30] FACTSAGE 7.0: FactPS-FACT Pure Substances Database, Thermfact/CRCT and GTT Technologies, 2015.

[31] NAFEES M, IKRAM M, ALI S. Thermal behavior and decomposition of copper sulfide nanomaterial synthesized by aqueous sol method [J]. Digest Journal of Nanomaterials and Biostructures, 2015, 10: 635-641.

[32] JIANG Xu-chuan, XIE Yi, LU Jun, HE Wei, ZHU Li-ying, QIAN Yi-tai. Preparation and phase transformation of nanocrystalline copper sulfides (Cu₉S₈, Cu₇S₄ and CuS) at low temperature [J]. Journal of Materials Chemistry, 2000, 10: 2193-2196.

[33] TAN Cheng, LI Lei, ZHONG Da-peng, WANG Hua, LI Kong-zhai. Separation of arsenic and antimony from dust with high content of arsenic by a selective sulfidation roasting process using sulfur [J]. Transactions of Nonferrous Metals Society of China, 2018, 28: 1027-1035.

[34] ZHONG Da-peng, LI Lei, TAN Cheng. Recovery of antimony from antimony-bearing dusts through reduction roasting process under CO-CO₂ mixture gas atmosphere after firstly oxidation roasted [J]. Journal of Central South University, 2018, 25: 1904-1913.
