Discovery and prediction of high natural gamma sandstones in Chang 73 Submember of Triassic Yanchang Formation in Ordos Basin, China
来源期刊:中南大学学报(英文版)2019年第7期
论文作者:郑庆华 刘行军 尤继元 白云云 王镜惠 陈小亮
文章页码:1840 - 1855
Key words:Ordos Basin; Chang 73 Submember; high-quality source rock; high natural gamma sandstone; prediction
Abstract: The large scale development of high natural gamma sandstones has been discovered in the Chang 73 Submember of the Triassic Yanchang Formation in the Ordos Basin, China. High natural gamma sandstones consist of terrigenous detrital rocks with particle sizes ranging from silt to sand. They represent turbidite deposits characterized by high gamma ray values that are more than 180 American Petroleum Institute (API) units on a natural gamma ray log profile. For a long time, very high natural gamma sandstones had been identified as high-quality source rocks, such as oil shales, from conventional well log profiles, such as natural gamma ray well logs. Therefore, predicting the distribution of high natural gamma sandstones was studied. The sedimentary, lithological, and well log characteristics, as well as the genesis of the high radioactivity of high natural gamma sandstones were analyzed in the Chang 73 Submember. Thorium (Th), uranium (U) and other radioactive elements were found, carried by deep hydrothermal activity, and probably resulted in the formation of a relatively high radioactive zone in the cross-section, where high natural gamma sandstones usually develop in large quantities. This caused many turbidite sand bodies, which should have a continuous distribution in the cross-section, to appear to have a discontinuous distribution, when using conventional well log profiles, such as natural gamma ray well logs. From the above mentioned apparent discontinuous distribution of turbidite sand bodies in the cross-section, a continuous distribution can be predicted. It is obvious that the prediction of areas of continuous turbidite sand bodies in the cross-section usually corresponds with areas where high natural gamma sandstones are developed in large quantities. Exploration and development practice demonstrated that the developed method is fast and effective in predicting high natural gamma sandstones in the Chang 73 Submember.
Cite this article as: ZHENG Qing-hua, LIU Xing-jun, YOU Ji-yuan, BAI Yun-yun, WANG Jing-hui, CHEN Xiao-liang. Discovery and prediction of high natural gamma sandstones in Chang 73 Submember of Triassic Yanchang Formation in Ordos Basin, China [J]. Journal of Central South University, 2019, 26(7): 1840-1855. DOI: https://doi.org/10.1007/s11771-019-4138-z.
J. Cent. South Univ. (2019) 26: 1840-1855
DOI: https://doi.org/10.1007/s11771-019-4138-z
ZHENG Qing-hua(郑庆华)1, LIU Xing-jun(刘行军)2, YOU Ji-yuan(尤继元)1, 3,
BAI Yun-yun(白云云)1, WANG Jing-hui(王镜惠)1, CHEN Xiao-liang(陈小亮)1
1. School of Chemistry & Chemical Engineering, Yulin University, Yulin 719000, China;
2. Changqing Division, China Petroleum Well Logging Limited Company, Xi’an 710201, China;
3. Department of Geology, Northwest University, Xi’an 710069, China
Central South University Press and Springer-Verlag GmbH Germany, part of Springer Nature 2019
Abstract: The large scale development of high natural gamma sandstones has been discovered in the Chang 73 Submember of the Triassic Yanchang Formation in the Ordos Basin, China. High natural gamma sandstones consist of terrigenous detrital rocks with particle sizes ranging from silt to sand. They represent turbidite deposits characterized by high gamma ray values that are more than 180 American Petroleum Institute (API) units on a natural gamma ray log profile. For a long time, very high natural gamma sandstones had been identified as high-quality source rocks, such as oil shales, from conventional well log profiles, such as natural gamma ray well logs. Therefore, predicting the distribution of high natural gamma sandstones was studied. The sedimentary, lithological, and well log characteristics, as well as the genesis of the high radioactivity of high natural gamma sandstones were analyzed in the Chang 73 Submember. Thorium (Th), uranium (U) and other radioactive elements were found, carried by deep hydrothermal activity, and probably resulted in the formation of a relatively high radioactive zone in the cross-section, where high natural gamma sandstones usually develop in large quantities. This caused many turbidite sand bodies, which should have a continuous distribution in the cross-section, to appear to have a discontinuous distribution, when using conventional well log profiles, such as natural gamma ray well logs. From the above mentioned apparent discontinuous distribution of turbidite sand bodies in the cross-section, a continuous distribution can be predicted. It is obvious that the prediction of areas of continuous turbidite sand bodies in the cross-section usually corresponds with areas where high natural gamma sandstones are developed in large quantities. Exploration and development practice demonstrated that the developed method is fast and effective in predicting high natural gamma sandstones in the Chang 73 Submember.
Key words: Ordos Basin; Chang 73 Submember; high-quality source rock; high natural gamma sandstone; prediction
Cite this article as: ZHENG Qing-hua, LIU Xing-jun, YOU Ji-yuan, BAI Yun-yun, WANG Jing-hui, CHEN Xiao-liang. Discovery and prediction of high natural gamma sandstones in Chang 73 Submember of Triassic Yanchang Formation in Ordos Basin, China [J]. Journal of Central South University, 2019, 26(7): 1840-1855. DOI: https://doi.org/10.1007/s11771-019-4138-z.
1 Introduction
The Chang 7 Member of the Triassic Yanchang Formation of the Ordos Basin, China can be divided in descending order into the Chang 71 Submember, Chang 72 Submember, and Chang 73 Submember [1]. The depositional stage of the Chang 73 Submember represents the peak of the Ordos Basin development. During the deposition of the Chang 73 Submember, the areas of semi-deep and deep lake sedimentary environments were at a maximum, and source rocks, such as mudstone and oil shale, were mostly developed, while the turbidite fan was relatively poorly developed [1-10]. The lithology of the Chang 73 Submember formed in the semi-deep to deep lake environments in the central Ordos Basin is mainly oil shale, followed by dark grey to black mudstone, grey to ash black silty mudstone, pelitic siltstone, grey brown siltstone, and fine siltstone. Among these, the oil shale corresponds to a high-quality source rock, and is the primary source rock, followed by black mudstone, while the silty mudstone corresponds to a poor source rock, and pelitic siltstone, siltstone, and fine siltstone are not source rocks. The fine siltstone lithology is the main reservoir, and mainly consists of lithic feldspar sandstone and feldspar lithic sandstone, with dissolution pores accounting for an average of 66.7% of the developed porosity. The average porosity is 9.8% and the average permeability is 0.20×10-3 μm2, which corresponds to an ultra-low permeability tight sandstone reservoir.
Drilling of the Chang 7 Member seldom involves the source rocks, such as oil shale and black mudstone, but typically involves the fine siltstone of the Chang 71 and Chang 72 Submembers. For a long time, conventional well log profiles theoretically identified the lithology, whose natural gamma ray value is more than 180 American Petroleum Institute (API) units and whose density is less than 2.4 g/cm3, as oil shale corresponding to high-quality source rock [11]. But based on the above specifications, the thickness of the oil shale corresponding to high-quality source rock is too small for production; therefore it explained the lithology, whose natural gamma value is more than 180 American Petroleum Institute units, as oil shale corresponding to high-quality source rock. On the basis of core observations and analysis of well logs and geological logs of ten whole Chang 73 Submember wells, for the first time it was found that most of conventional well logs identified lithology as oil shale corresponding to high-quality source rock if its natural gamma ray value was greater than 180 American Petroleum Institute units. The lithology could be divided mainly into two types: 1) terrigenous detrital rocks with particle sizes ranging from silt to sand and corresponding to turbidite deposits, such as pelitic siltstone, siltstone and fine siltstone; and 2) a mixture of terrigenous detrital rocks with particle sizes ranging from silt to sand and corresponding to turbidite deposits, black mudstone, oil shale, etc., which formed interbedded layers, slump layers, seismicity layers, and muddy gravel-bearing layers. The above lithologies are collectively referred to as high natural gamma sandstones. For a long time this led to the underestimation of the development scale of turbidite sand bodies, especially the relatively high radioactive zone in the cross-section, such as in the Heshui Block (Figure 1). The result of this practice showed that oil shale corresponding to high-quality source rock, which was identified by conventional well logging, is actually high natural gamma sandstone, and it often has a high test oil yield, such as in Well N148 and Well G295, while the oil enrichment area of the Chang 81 Submember, which is close to the Chang 73 Submember, is usually undeveloped. Therefore, the prediction of high natural gamma sandstones has great significance in both theory and practice for tight oil exploration and development in the Yanchang Formation in the Ordos Basin.
On the basis of a study of the sedimentary characteristics, lithological characteristics, well log characteristics and analysis of the genesis of the high radioactivity of high natural gamma sandstones in the Chang 73 Submember of the Yanchang Formation in the Heshui Block, this study advances the prediction of the distribution of high natural gamma sandstones for the first time.
2 Definition of high natural gamma sand-stone
The study of the genesis of the high natural gamma sandstones within the sandstone reservoir was not systematic and related to tuff material [13-25], before LIU et al [26] performed comparatively systematic research in the Yanchang Formation.
LIU et al [26] discussed the definition, genesis, and log identification methods of high natural gamma sandstone in sandstone reservoirs, such as the Chang 4+5 and Chang 6 Members. High natural gamma sandstone is define as sandstone whose value of ΔGRh/ΔGRn is more than 66% in natural gamma ray log profiles, and whose lithology is sandstone with particle sizes coarser than or equal to fine sandstone, but not including siltstone, such as the high natural gamma sandstone of the Chang 6 Member in the Jiyun area. During identification with natural gamma ray logs, ΔGRn is the difference between the normal value of mudstone and the normal value of sandstone, while ΔGRh is the difference between the value of high natural gamma sandstone and the normal value of sandstone. According to thickness, the high natural gamma sandstone within a sandstone reservoir can be roughly divided into type Ⅰ and type Ⅱ, which represent relatively thin and relatively thick layers, respectively. The above particle size, the lower limit value of ΔGRh/ΔGRn in natural gamma ray log profiles, and the specifications of relatively thin layers and relatively thick layers reveal differences, while the distribution is not only within sandstone in different areas and layers of the Ordos Basin.
Figure 1 Comprehensive map of Chang 73 Submember of Yanchang Formation in Longdong (modified from Ref. [12])
The natural gamma ray values of lithologies of the Chang 73 Submember are significantly influenced by deep hydrothermal activity [26-31], and show a wide variety in different areas (Figure 1), as well as having the characteristics of high contents of uranium (U) or thorium (Th), as determined by natural gamma ray spectrometric logs (Figure 2).
Considering the lithology of the Chang 7 Member with relatively finer grain-size in the Triassic Yanchang Formation of the Ordos Basin, and to recognize high-quality source rocks, such as oil shale, the high natural gamma sandstone, whose natural gamma ray value is more than 180 API units on a natural gamma ray log profile, can be mainly divided into two types in the Chang 73 Submember. One is terrigenous detrital rock with particle sizes ranging from silt to sand and corresponding to turbidite deposit, such as pelitic siltstone, siltstone, and fine siltstone (Figure 2). The other is a mixture of terrigenous detrital rocks with particle sizes
ranging from silt to sand and corresponding to turbidite deposits, black mudstone, oil shale, etc., which form interbedded layers, slump layers, seismicity layers and muddy gravel-bearing layer (Figures 3 and 4). The former lithology is in a narrow sense, a high natural gamma sandstone, while the latter lithology is in a broad sense, a high natural gamma sandstone, and they are collectively called the target source rock’s high natural gamma sandstone (high natural gamma sandstone for short). The lithology which is in, a broad sense, a high natural gamma sandstone, is characterized by a sequence of terrigenous detrital rocks which is relatively thick, with particle sizes ranging from silt to sand, while the thickness of the source rock is relatively thin and has a lower hydrocarbon generation potential. The former lithology generally defines the lower limit of the natural gamma ray value of source rock of 180 API units in the Chang 7 Member, so the value of ΔGRh/ΔGRn of the target source rock’ high natural gamma sandstone is more than 100% in natural gamma ray logs. According to thickness, the relevant source rock’s high natural gamma sandstone can also be roughly divided into two types. Type Ⅰ is characterized by relatively thin layers, where the general range of thickness is 0.1-2.0 m, with an average thickness of 1.5 m. Type Ⅱ is characterized by relatively thick layers, where the general range of thickness is 2.0-5.0 m, with an average thickness of 2.5 m (Figures 3 and 4).

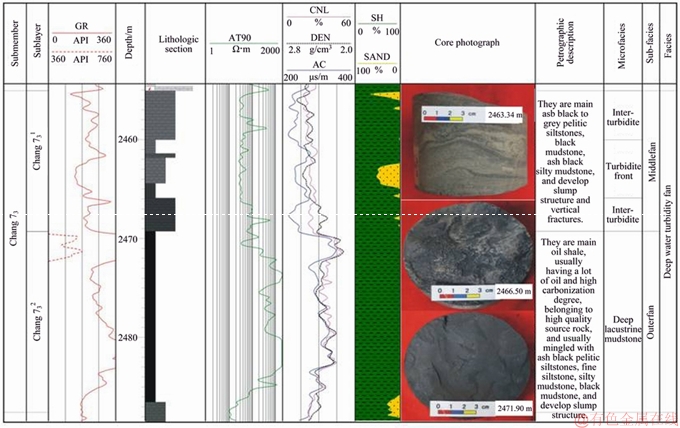

Figure 2 Well log interpretation profile of Chang 73 Submember in representative Well B36

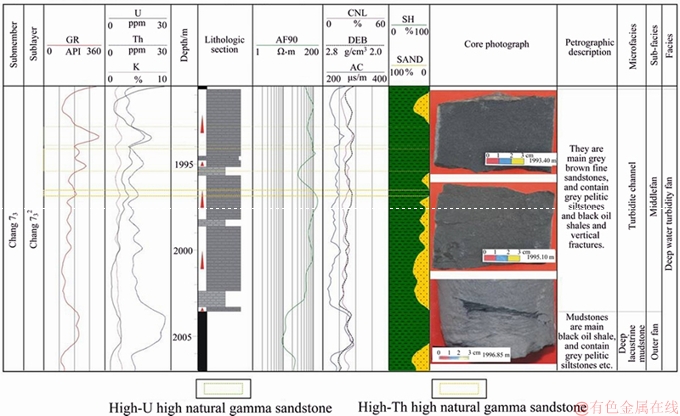

Figure 3 Well log interpretation profile of Chang 73 Submember in representative Well N138

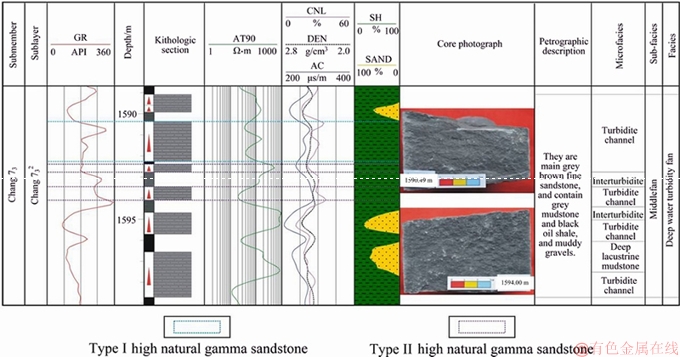

Figure 4 Well log interpretation profile of Chang 73 Submember in representative Well Z233
3 Sedimentary and lithological features
Deposition of the Chang 73 Submember occurred in the central part of the Ordos Basin and mainly represented semi-deep to deep lake environments, which developed deep water turbidite fan facies. The latter facies can be further divided into three subfacies (inner, middle, and outer fans), and four microfacies, such as the turbidite channel, interturbidite, turbidite front, and deep lacustrine mudstone [32-39]. The marginal parts of the Ordos Basin mainly represent a shallow lake environment, in which deposition of a river delta front sub-facies was developed in the Chang 73 Submember (Figure 1). The characteristics of the sedimentary environments, lithologies, oil-bearing properties, palaeontology, hydrocarbon generation potential, etc., of the Chang 73 Submember were studied, and as a result, it was divided in descending order into the Chang 731 Sublayer and Chang 732 Sublayer, where their average thicknesses are 15.0 and 20.0 m, respectively.
3.1 Chang 731 Sublayer
Deposition of the Chang 731 Sublayer occurred in the central parts of the Ordos Basin and mainly represented semi-deep to deep lake environments. The sublayer developed largely as the middle fan subfaces of the deep water turbidite fan facies, which was further divided into a turbidite front, interturbidite, and turbidite channel microfacies, and was followed by deep lacustrine mudstone of the outer fan subfacies of the deep water turbidite fan facies (Figures 4 and 5). The lithologies of the Chang 731 Sublayer are mainly terrigenous detrital rocks with particle sizes ranging from silt to sand that consist of mostly oily lithologies, and are followed by mudstone that contains only a minor amount of oily lithologies. The lithologies of the Chang 731 Sublayer are mainly terrigenous detrital rocks with particle sizes ranging from silt to sand, mainly consisting of pelitic siltstone, siltstone, and fine siltstone, whose thicknesses are generally between 2.0 and 13.0 m. These rocks developed mainly massive bedding, banded bedding or wave bedding, and slump structure, with muddy gravel observed at the base. The mudstones are mainly dark grey to black silty mudstone, and are followed by black mudstone and oil shale, and contain cyanobacteria, botryococcus, phytoclasts, and pyrite aggregates [40, 41], while fractures are well developed. Generally, the total organic carbon (TOC) values of the above mudstones are approximately 3.65%, and the content of chloroform asphalt “A” is approximately 0.25%. The value of potential hydrocarbon generation (S1+S2) is approximately 6.50 mg/g, and thus, the hydrocarbon potential is relatively poor, such as in Well H317 (Figure 5). The turbidite channel sand bodies are generally developed in the Chang 731 Sublayer, and relatively thick oil shale corresponding to high quality source rock is usually undeveloped.

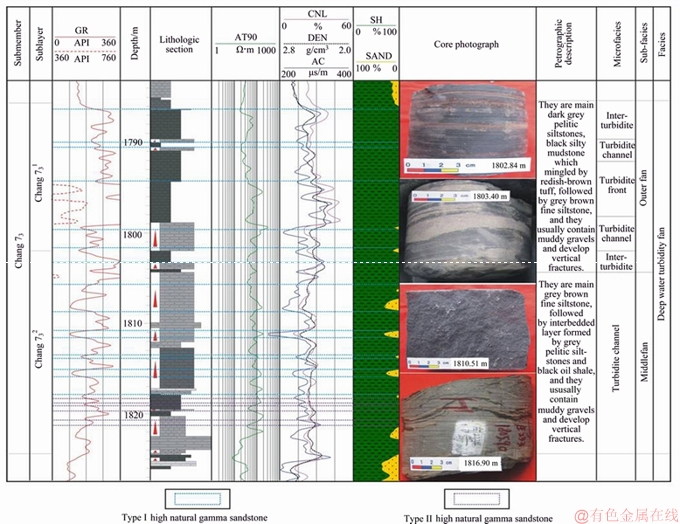

Figure 5 Well log interpretation profile of Chang 73 Submember in representative Well H317
3.2 Chang 732 Sublayer
The deposition of the Chang 732 Sublayer occurred in the central parts of the Ordos Basin, and mainly represented a deep lake environment. The sublayer developed as the deep lacustrine mudstone microfacies, which developed in the outer fan subfacies of the deep water turbidite fan facies, and those are the most developed microfacies, followed by a turbidite channel, interturbidite, and turbidite front microfacies, which developed in the middle fan subfacies (Figures 4 and 5). The lithologies of the Chang 732 Sublayer are mainly mudstone, followed by terrigenous detrital rocks with particle sizes ranging from silt to sand, and followed by mudstone, which are mostly oily lithologies. The lithologies of the Chang 732 Sublayer are mainly terrigenous detrital rocks with particle sizes ranging from silt to sand, and are mainly fine siltstone, siltstone, and pelitic siltstone, whose thicknesses are generally between 0.1 and 6.0 m, which mainly developed massive bedding and slump structures. The mudstones mainly mostly consist of black oil shale, followed by black mudstone, with only minor amounts of black and grey silty mudstone, and contain cyanobacteria, botryococcus, phytoclasts, ostracods, and pyrite aggregates [40, 41]. Generally, the total organic carbon (TOC) values of the above mudstones are approximately 15.67%, and the content of chloroform asphalt “A” is approximately 0.61%. The value of potential hydrocarbon generation (S1+S2) is approximately 30.97 mg/g, and the hydro-carbon potential is very good, such as in Well H317 (Figure 5). The turbidite channel sand bodies are developed in the Chang 732 Sublayer, and generally have thicknesses between 0.5 and 2.0 m. The lithologies are mainly terrigenous detrital rocks with particle sizes ranging from silt to sand, and correspond to turbidite deposits, such as pelitic siltstone, siltstone, and fine siltstone. These usually consist of mixed black mudstone, oil shale, etc., and form interbedded layers, slump layers, seismicity layers, muddy gravel-bearing layers, and others. They are well developed on the margins and central parts of the semi-deep to deep lakes (especially on the margins), especially on the margins, and are unfavourable for the development of relatively thick oil shale corresponding to high quality source rock (Figures 1-4).
4 Conventional well log responses
The Chang 732 Sublayer rather than Chang 731 Sublayer is the primary target for this study because almost all of the relatively thick oil shales corresponding to high quality source rock were developed in the Chang 732 Sublayer.
4.1 Chang 731 sublayer
The lithologies of the Chang 731 Sublayer are generally not high-quality source rocks, such as fine siltstone, siltstone, pelitic siltstone, silty mudstone, and black mudstone, which can typically be identified by conventional well log analysis. They are generally characterized by a natural gamma ray of less than 180 American Petroleum Institute (API) units, a density between 2.2 and 2.6 g/cm3, an interval transit time between 160 and 350 μs/m, a neutron porosity between 15% and 50%, an induction between 20 and 100 Ω·m, and a shale volume (VSH) equal to or lower than 100% (Figures 4 and 5).
4.2 Chang 732 sublayer
The lithologies of the Chang 732 sublayer are generally oil shales corresponding to high-quality source rocks. In conventional well log analysis, these are generally characterized by a natural gamma ray of more than 180 American Petroleum Institute units, a density of smaller than 2.4 g/cm3, an interval transit time of greater than 250 μs/m, a neutron porosity of more than 30%, an induction of more than 100 Ω·m, and a shale volume (VSH) of equal to 100% (Figure 5).
A large amount of conventional well log data indicated that in a well log interpretation profile it is difficult to distinguish between oil shales corresponding to high quality source rocks and non-high quality source rocks in relatively high radioactive zones of the Chang 73 Submember, whether in the Chang 731 Sublayer or the Chang 732 Sublayer. The above non-high quality source rocks include fine siltstone, siltstone, pelitic siltstone, silty mudstone, and black mudstone, and can be generally characterized by a natural gamma ray of more than 180 American Petroleum Institute units, a density between 2.2 and 2.6 g/cm3, an interval transit time between 200 and 350 μs/m, a neutron porosity between 15% and 50%, an induction between 20 and 200 Ω·m, and a shale volume (VSH) of equal to 100% (Figures 2-4). Although the above non-high quality source rocks are characterized by a low density, a high interval transit time, a high neutron porosity, a high induced induction, etc., compared with oil shales corresponding to high quality source rocks, it is difficult to identify them effectively in practice.
According to the comprehensive analysis above, it is difficult for conventional well logging to effectively distinguish oil shales corresponding to high quality source rocks from high natural gamma sandstones, mainly for four reasons. Firstly, they all have high natural gamma ray values, all of which can be greater than 180 American Petroleum Institute units. Secondly, they are all oil-rich lithologies [42-46], which are characterized by high resistivity and there is no obvious difference in the characteristic of the induction resistivity log profiles. Thirdly, the dissolution pores are well developed in terrigenous detrital rocks with particle sizes ranging from silt to sand [47-51], and therefore log profiles of density, interval transit time, and neutron porosity show no obvious differences between them and oil shales corresponding to high quality source rocks. Fourthly, the thickness of terrigenous detrital rocks with particle sizes ranging from silt to sand are generally less than 40 cm, or occur usually mixed with oil shales, forming interbedded layers, slump layers, seismicity layers, and muddy gravel-bearing layers. Therefore, their characteristics in well logs are greatly influenced by oil shales corresponding to high quality source rocks.
5 Genetic and distribution characteristics of high natural gamma sandstones
5.1 Genetic characteristics of high natural gamma sandstones
The research objective of the genetic characteristics of the target source rocks’ high natural gamma sandstone is high natural gamma sandstone in a narrow, rather than in a broad sense, with characteristics in well logs that are greatly influenced by the relatively high radioactive signature of the surrounding rocks, such as oil shales corresponding to high quality source rocks. According to their mineralogical characteristics, the genetic characteristics of high natural gamma sandstone in the narrow sense are probably related to deep hydrothermal activity in the Chang 73 Submember, which is characterized by the development of a hydrothermal mineral assemblage, including minerals such as monazite, and rutile, which are higher in radioactive thorium (Th).
The genetic characteristics of high natural gamma sandstones are similar between high natural gamma sandstones in the narrow sense in the Chang 73 Submember and high natural gamma sandstones within sandstone reservoirs in other members of the Yanchang Formation, such as the Chang 6, Chang 4+5, Chang 2, and Chang 3. Both may have been affected by deep hydrothermal activity, which indicates that the content of radioactive thorium (Th), uranium (U), and potassium (K) are higher than in conventional sandstones, especially thorium (Th) (Figure 2). Thorium (Th) mainly exists in xenomorphic hydrothermal mineral assemblages, including minerals such as monazite, and rutile (Figure 6).
Taking two high natural gamma sandstone samples in the narrow sense from the Chang 73 Submember of the Yanchang Formation in the Heshui Block, as examples, such as the high-U, high natural gamma, fine siltstone, and the high-Th, high natural gamma, fine siltstone (Figures 6(a) and (d)), their contents of radioactive Th and K are comparable, but there are larger differences in the contents of radioactive uranium (U), and its high radioactivity is mainly caused by thorium (Th) (Figure 2). Both sandstone samples are rich in black oil and other organic matter, while dissolution pores are well developed in the fine siltstones (Figures 6(b) and (e)). Th-rich minerals, such as xenomorphic monazite, and rutile, are developed in intracrystalline pores or interstitial, intercrystalline pores (Figures 6(c) and (f)). Independent-U minerals, which may be of hydrothermal origin are not observed in the high-U high natural gamma, fine siltstone (Figures 6(a) and (c)) [29]. It is speculated that U may exist in homogeneous form or adsorbed form [27, 29]. Taking a high natural gamma, fine siltstone sample in the narrow sense from the Chang 73 Submember of the Yanchang Formation in the Pengyang Block, as an example, it developed syn-depositional deformation structures and was intercalated with a bedded thin layer of xenomorphic pyrite aggregates, which may correspond to syndepositional hydrothermal sediments (Figure 6(g)) [28]. The above high natural gamma, fine siltstone sample in the narrow sense is rich in black oil and other organic matter as well as dissolution pores (Figure 6(h)), and developed xenomorphic pyrite occurring together with xenomorphic monazite in intergranular pores, which may be related to syndepositional hydrothermal sediments (Figure 6 (i)).

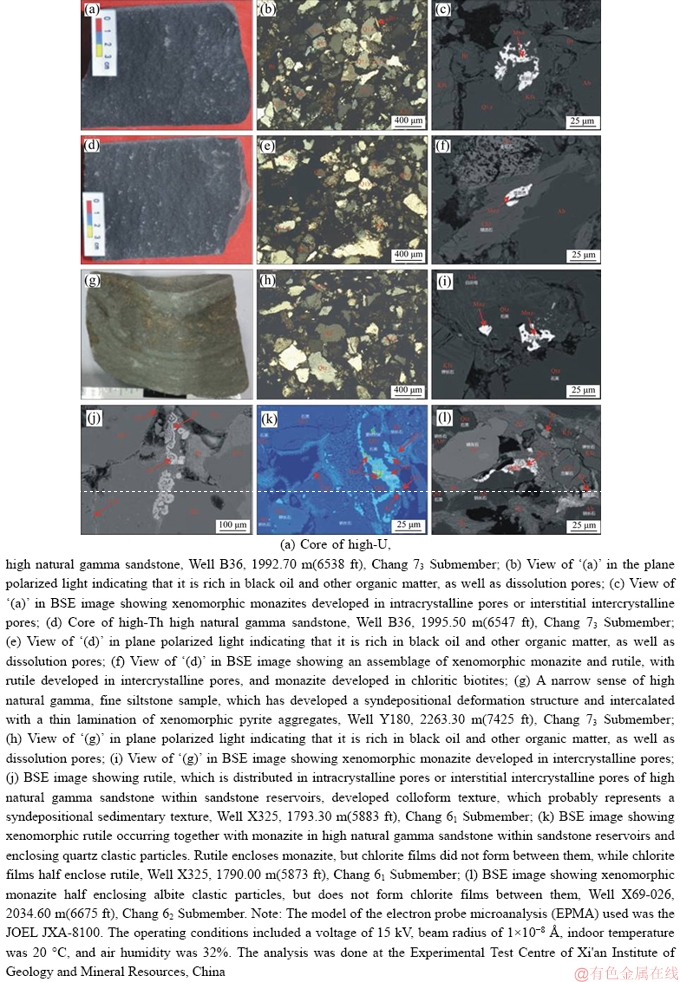

Figure 6 Photographs showing sedimentary, textural, and mineralogical characteristics in macro (in core), petrographic and backscattered electron (BSE) images of high gamma sandstones in the Yanchang Formation:
High natural gamma sandstone within a sandstone reservoir of the Chang 62 Submember of the Yanchang Formation in the northern Shaanxi Province, contains rutile that developed: 1) a colloform structure, which may belong to a relatively typical hydrothermal sedimentary structure in intracrystalline pores or interstitial, intercrystalline pores (Figure 6(j)); 2) xenomorphic rutile occurring together with xenomorphic monazite, and enclosing monazite or quartz particles, but without forming chlorite films between them (Figure 6(k)); or 3) xenomorphic rutile and monazite filling intercrystalline pores and partially enclosing albite clastic particles, but without forming chlorite films (Figure 6(l)). Therefore, monazite likely formed before rutile, and both were likely formed before early diagenesis stage A, which may be deep hydrothermal origin [26].
Overall, the type and textural characteristics of the minerals that are rich in radioactive elements, are likely in the narrow sense between high natural gamma sandstone in the Chang 73 Submember and high natural gamma sandstone within sandstone reservoirs in other members of the Yanchang Formation, such as the Chang 6, Chang 4+5, Chang 2, and Chang 3. The above minerals are probably of deep hydrothermal origin and formed in the syndepositional period or before early diagenesis stage A.
In-situ microanalytical dating and tracing were not carried out because the diameters of the above individual radioactive minerals are smaller than 10 μm, such as for monazite and rutile. Therefore, the genesis of the high natural gamma sandstone needs further study.
5.2 Distribution characteristics of high natural gamma sandstone
A large amount of conventional well logging data, when viewed in the cross-section, indicates that there are many relatively high radioactive zones in the Chang 73 Submember of the Yanchang Formation of the Ordos Basin, such as in the Heshui Block, Baima Block, Tiebiancheng Block, and Zhengning Block, whose natural gamma ray values are generally between 300 and 700 American Petroleum Institute units (Figure 1). In the above blocks, both oil shales corresponding to high quality source rocks and high natural gamma sandstone of the target source rocks are developed, and their degree of development has a positive correlation with the radioactivity of the Chang 73 Submember. Taking the highest radioactive zone of the Chang 73 Submember in the cross-sections of the Ordos Basin as an example, such as in the Heshui Block, whose natural gamma ray value can reach 1000 American Petroleum Institute units, the high natural gamma sandstones of the target source rocks are developed on a relatively large scale and oil shales corresponding to high quality source rocks are also developed, such as in Well B36, Well Z233, and Well N138 (Figures 2-4).
6 Prediction of high natural gamma sand-stone
6.1 Basic principle
On the basis of the above sedimentary, lithological, and well logging characteristics of the Chang 73 Submember and the study of genetic characteristics of the high natural gamma sandstones, a prediction method for the high natural gamma sandstones of the Chang 73 Submember is proposed.
The Chang 732 Sublayer, where oil shales corresponding to high quality source rocks are the most developed, is taken as an example. The basic principle of the prediction method of high natural gamma sandstone of the Chang 73 Submember has five main points. Firstly, the lithologies of the Chang 732 Sublayer are mainly oil shales corresponding to high quality source rocks that mostly formed in a deep lake environment and correspond to terrigenous detrital rock with particle sizes ranging from silt to sand, belonging to turbidite deposits. Secondly, there are many relatively high and low radioactive zones in the Chang 732 Sublayer when viewed in cross-sections of the Ordos Basin. Thirdly, the high natural gamma sandstone of the target source rocks of the Chang 732 Sublayer are only developed in the relatively high radioactive zones of Chang 732 Sublayer. Fourthly, many turbidite sand bodies are developed, which should have a continuous distribution in the cross-section, but appear to have a discontinuous distribution when using conventional well log analyses, such as natural gamma ray well logging, in the relatively high radioactive zones of the Chang 732 Sublayer. Finally, on the basis of the above amentioned apparent discontinuous distribution of turbidite sand bodies in the cross- section, their continuous distribution can be predicted, and it is obvious that the prediction of areas of continuous turbidite sand bodies corresponds to areas where high natural gamma sandstones are usually developed in large quantities.
6.2 A forecast instance
The Heshui Block, which has the highest radioactive zone in the Chang 73 Submember in cross-sections of the Ordos Basin, was used as an example (Figures 1, 7, 8) for the prediction method on a high natural gamma sandstone of the Chang 732 Sublayer. The results show that a large quantity of high natural gamma sandstones of the target source rocks in the Chang 732 Sublayer are developed in Xuanma to Qingcheng (such as the area of Well B36), the west side of Chengguan (such as the area of Well Z80), the south side of Banqiao (such as the area of Well N138), Panke (such as the area of Well Z233), and that this is basically reflected in the core samples, such as from Well B36, Well Z80, Well N138, and Well Z233.

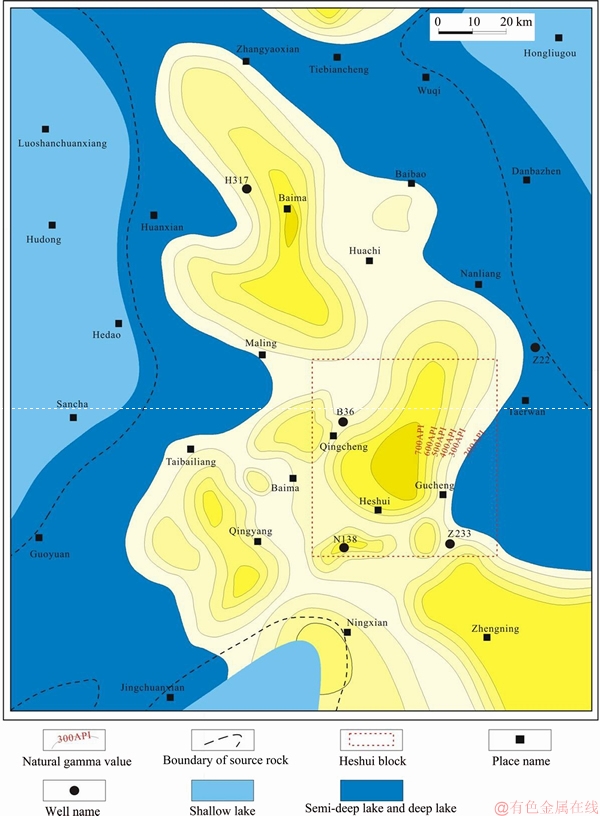

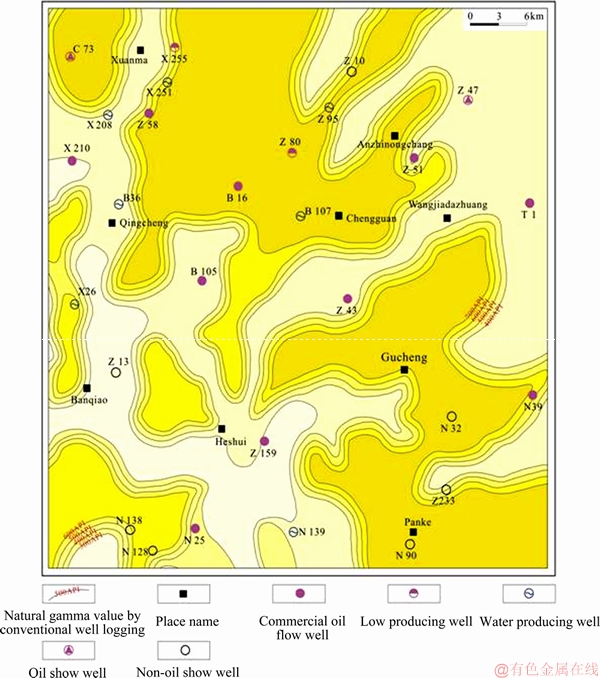

Figure 7 Natural gamma ray value isopleth map of Chang 732 Sublayer in Heshui Block

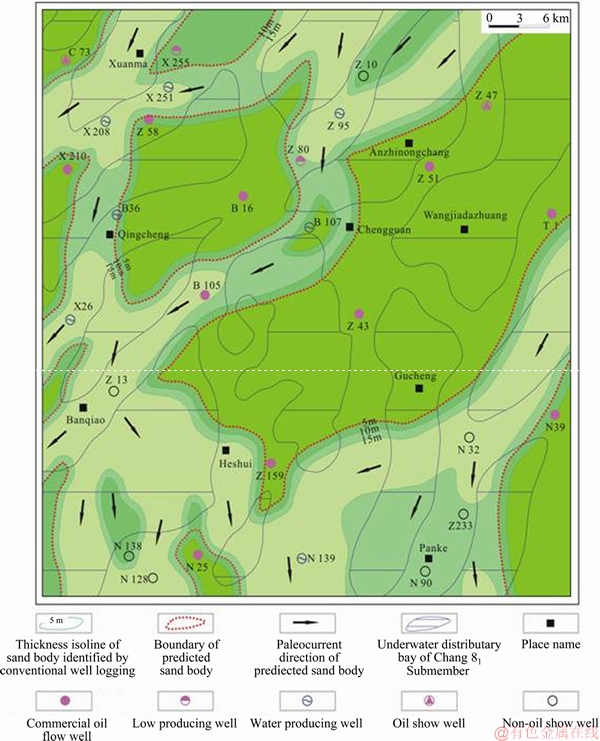

Figure 8 High natural gamma sandstones prediction map of Chang 732 Sublayer in Heshui Block
The Chang 81 Submember, which belongs to the deposition of the southwestern provenance system, closely underlies the bottom of the Chang 732 Sublayer, and its reservoir is mainly developed in underwater distributary channels in braided river delta front subfacies, whereas the non-reservoirs are mainly developed in underwater distributary bays [10, 52]. A large amount of work practice data indicates that the degree of development of oil shales corresponding to high quality source rocks has a positive correlation with the degree of oil enrichment in the main sand body of the Chang 81 Submember. Therefore, the oil enrichment area of the main sand body of the Chang 81 Submember is often not developed in areas of development of high natural gamma sandstone target source rocks in the Chang 73 Submember. They often develop low producing wells (e.g. Well Z80), water producing wells (e.g. Well B36, Well B107, Well N139 and Well X251), and non-oil showing wells (e.g. Well N32, Well N138 and Well Z233) (Figures 7, 8). However, the oil enrichment area of the main sand body of the Chang 81 Submember often develops in undeveloped areas of high natural gamma sandstone of the target source rocks in the Chang 73 Submember, and they often develop commercial oil flow wells, such as Well Z51, Well Z43, and Well B16 (Figures 7 and 8).
7 Conclusions
In this paper, the genetic characteristics and the prediction of the distribution of high natural gamma sandstones in the Chang 73 Submember of the Triassic Yanchang Formation in the Ordos Basin were studied. A novel method for predicting a continuous distribution of turbidite sand bodies in a cross-section, based on apparent discontinuous distri-butions, was proposed and tested. Based on the results obtained in the study, the following conclusions can be drawn:
1) Many so-called oil shales corresponding to high-quality source rocks of the Chang 7 Member, which are identified by conventional well log analysis and whose natural gamma ray value is greater than 180 American Petroleum Institute units, are actual terrigenous detrital rocks with particle sizes ranging from silt to sand, or a mixture of terrigenous detrital rocks with particle sizes ranging from silt to sand, black mudstones, and oil shales, which formed interbedded layers, slump layers, seismicity layers, and muddy gravel-bearing layers.
2) The formation of relatively high and low radioactive zones in the Chang 7 Member of the Yanchang Formation in cross-sections of the Ordos Basin is probably related to deep hydrothermal activity, which carried thorium (Th), uranium (U), and other radioactive elements. In relatively high radioactive zones in the cross-section, high natural gamma sandstones of the target source rocks and oil shales corresponding to high quality source rocks are developed. On the basis of the apparent discontinuous distribution of turbidite sand bodies in the cross-section, which is identified by conventional well log analysis, a continuous distribution of turbidite sand bodies and high natural gamma sandstones in the cross-section can be predicted.
References
[1] YANG Hua, DOU Wei-tan, LIU Xian-yang, ZHANG Cai-li. Analysis on sedimentary facies of Member 7 in Yanchang Formation of Triassic in Ordos Basin [J]. Acta Sedimentologica Sinica, 2010, 28(2): 254-263. DOI: 10.14027/j.cnki.cjxb. 2010.02.014. (in Chinese)
[2] LIU Qun, YUAN Xuan-jun, LIN Sen-hu, GUO Hao, CHENG Da-wei. Depositional environment and characteristic comparison between lacustrine mudstone and shale: A case study from the Chang 7 Member of the Yanchang Formation, Ordos Basin [J]. Oil & Gas Geology, 2018, 91(3): 531-540. DOI: 10.11743/ogg20180310. (in Chinese)
[3] LV Qi-qi, LUO Shun-she, FU Jin-hua, XIANG Ji, NIU Xiao-bing, GONG Chen, XU Li-ming, FENG Sheng-bin, LI Shi-xiang. Outcrop-based analysis of a deep-water gravity flow sediments in lake: A case study from the Chang 7 of Yaoqu Section, Ordos Basin [J]. Acta Geologica Sinica, 2017, 91(3): 617-628. (in Chinese)
[4] SUN Ning-liang, ZHONG Jian-hua, WANG Shu-bao, LIU Shao-guang, NI Liang-tian, QU Jun-li, HAO Bing, LIU Chuang. Sedimentary characteristics and petroleum geologic significance of deep-water gravity flow of the Triassic Yanchang Formation in southern Ordos Basin [J]. Journal of Palaeogeography, 2017, 19(2): 299-314. DOI: 10.7605/ gdlxb.2017.02.023. (in Chinese)
[5] YANG Ren-chao, YIN Wei, FAN Ai-ping, HAN Zuo-zhen, van LOON A J (Tom). Fine-grained, lacustrine gravity-flow deposits and their hydrocarbon significance in the Triassic Yanchang Formation in southern Ordos Basin [J]. Journal of Palaeogeography, 2017, 19(5): 791-806. DOI: 10.7605/ gdlxb.2017.05.062. (in Chinese)
[6] WANG Jian-min, WANG Jia-yuan. Deep-water turbidite characte-ristics and its reservoir development of Chang 7 Oil Layers in southwestern Ordos Basin [J]. Lithologic Reservoirs, 2017, 29(4): 11-19. DOI: 10.3969/j.issn.1673- 8926.2017.04.002. (in Chinese)
[7] ZHANG Wen-zheng, YANG Hua, YANG Wei-wei, WU Kai, LIU Fei. Assessment of geological characteristics of lacustrine shale oil reservoir in Chang 7 Member of Yanchang Formation, Ordos Basin [J]. Geochimica, 2015, 44(5): 505-515. DOI: 10.19700/j.0379-1726. 2015. 05.010. (in Chinese)
[8] LIU Fen, ZHU Xiao-min, LI Yang, XU Li-ming, NIU Xiao-bing, ZHU Shi-fa, LIANG Xiao-wei, XUE Meng-ge, HE Jing-cong. Sedimentary characteristics and facies model of gravity flow deposits of Late Triassic Yanchang Formation in southwestern Ordos Basin, NW China [J]. Petroleum Exploration and Development Online, 2015, 42(5): 633-645. DOI: 10.1016/S1876-3804(15)30058-6.
[9] YANG Hua, LI Shi-xiang, LIU Xian-yang. Characteristics and resource prospects of tight oil and shale oil in Ordos Basin [J]. Acta Petrolei Sinica, 2013, 34(1): 1-11. DOI: 10.7623/syxb201301001. (in Chinese)
[10] LI Wen-hou, PANG Jun-gang, CA Hong-xia, XIAO Li, WANG Ruo-gu. Depositional system and paleogeographic evolution of the Late Triassic Yanchang Stage in Ordos Basin [J]. Journal of Northwest University: Natural Science Edition, 2009, 39(3): 501-506. DOI: 10.16152/j.cnki.xdxbzr. 2009.03.011. (in Chinese)
[11] ZHENG Qing-hua, FENG Sheng-bin. The application of the similar hydrodynamic positioning method in the prediction of lithologic reservoir in Yanchang Formation, Ordos Basin [J]. Reservoir Evaluation & Development, 2011, 1(6): 1-6. DOI:10.13809/j.cnki.cn32-1825/te.2011.06.001.(inChinese)
[12] YANG Hua, NIU Xiao-bing, XU Li-ming, FENG Sheng-bin, YOU Yuan, LIANG Xiao-wei, WANG Fang, ZHANG Dan-dan. Exploration potential of shale oil in Chang 7 Member, Upper Triassic Yanchang Formation, Ordos Basin, NW China [J]. Petroleum Exploration and Development Online, 2016, 43(4): 560-569. DOI: 10.1016/S1876- 3804(16)30066-0.
[13] LIU Hua-qing, LI Xiang-bo, LIAO Jian-bo, LIU Xian-yang. Genesis of the high gamma sandstone of the Yanchang Formation in the Ordos Basin, China [J]. Petroleum Science, 2013, 10(1): 50-54. DOI: 10. 1007/s12182-013-0248-7.
[14] ZHANG Xiao-li, FENG Qiao, FENG Qiang-han, LIU Jing-jing, LIU Guang-wei, YAN Yuan-zi. Genesis of the high gamma sandstone of the Yanchang Formation in the Ordos Basin, China: A reply [J]. Petroleum Science, 2013, 10(1): 55-57. DOI: 10.1007/s12182-013-0249-6.
[15] ZHANG Xiao-li, FENG Qiao, SUN Pei, LI Wei. Characteristics of high-gamma-ray sandstone reservoirs for Yanchang Formation in Ordos Basin [J]. Chinese Journal of Geophysics, 2010, 53(1): 154-163. DOI: 10.1002/cjg2.1482.
[16] SUN Pei, ZHANG Xiao-li, GUO Lan, SHEN Yi-bo. Genesis of the sandstone with higher radioactivity and the qualitative evaluation of its reservoir property: Taking Chang 6 Oil-bearing Strata in Zhidan Oilfield, Ordos Basin as an example [J]. Journal of Xi’an Shiyou University, 2010, 25(2): 18-21. (in Chinese)
[17] LI Gao-ren, GUO Qing-ya, SHI Yu-jiang, MA Chang-xu. Identification of high gamma ray reservoir in Ordos Basin [J]. Well Logging Technology, 2006, 30(6): 511-515. DOI: 10.16489/j.issn.1004-1338.2006.06.007. (in Chinese)
[18] HOU Yu-ting, LI Gao-ren. Application of element capture spectroscopy logging in Changqing gas exploration [J]. China Petroleum Exploration, 2005(3): 46-50. (in Chinese)
[19] FENG Chun-zhen, LIN Wei-chuan, LIANG Chong-yang, HAN Yan-hua. Methods for recognizing natural gamma sandstones in low permeability and lithologic gas reservoirs [J]. Journal of Oil & Gas Technology, 2005, 27(1): 201-204. (in Chinese)
[20] WANG Liang, MAO Zhi-qiang, SUN Zhong-chun, LUO Xing-ping, SONG Yong. Genesis analysis of high gamma ray (GR) sandstone reservoir: Taking Toutunhe Formation of Junggar Basin, northwest China, as an example [J]. Applied Mechanics & Materials, 2013, 394(9): 585-590. DOI: 10.4028/ www.scientific.net/AMM.394.585.
[21] WANG Liang, MAO Zhi-qiang, SUN Zhong-chun, LUO Xing-ping, SONG Yong, LIU Zhen. Genesis analysis of high-gamma ray sandstone reservoir and its log evaluation techniques: A case study from the Junggar Basin, northwest China [J]. Scientific World Journal, 2013(6): 1-6. DOI: 10.1155/2013/848201.
[22] ZHANG Tao, LIN Cheng-yan, ZHANG Xian-guo, YU Jing-feng, LU Xian-rong, ZHNAG Shou-xiu. Genesis analysis of high GR reservoir and its well-log based recognition method [J]. Oil Geophysical Prospecting, 2012, 47(3): 491-495. DOI: 10.13810/j. cnki.issn.1000-7210.2012. 03.022. (in Chinese)
[23] YU Zhen-feng, CHENG Ri-hui, ZHAO Xiao-qing, SUN Feng-xian, XU Zhong-jie, SHEN Yan-jie. Genesis and identification of high gamma sandstone in the first member of Nantun Formation of Wunan Depression in Hailar Basin [J]. Journal of China University of Petroleum, 2012, 36(3): 76-83. DOI: 1673-5005 (2012) 03-0076-08. (in Chinese)
[24] PAN Hao-zhi, LI Zhou-bo, FU You-sheng, WANG Hong-jian, YANG Xiao-ling, XU Shu-mei. Application of logging data in lithology identification and reservoir evaluation of igneous rock in Songliao Basin [J]. Geophysical Prospecting for Petroleum, 2009, 48 (1): 48-52. (in Chinese)
[25] HUANG Jian-song, AN Wen-wu, BAI Wu-hou. The reservoir features and genetic analysis of high natural gamma for Member 2 of Shanxi Group in Yulin gas field of north Shanxi [J]. Mud Logging Engineering, 2007, 18(4): 74-79. (in Chinese)
[26] LIU Xing-jun, LIU Yi-qun, ZHOU Ding-wu, LI Hong, CHENG Xin-hu, NAN Yun. Deep fluid tracer in Ordos Basin: Characteristics and origin of high natural gamma sandstone in Triassic Yanchang Formation [J]. Earth Science Frontiers, 2013, 20(5): 149-165. (in Chinese)
[27] QIN Yan, ZHANG Wen-zheng, PENG Ping-an, ZHOU Zhen-ju. Occurrence and concentration of uranium in the hydrocarbon source rocks of Chang 7 Member of Yanchang Formation, Ordos basin [J]. Acta Petrologica Sinica, 2009, 25(10): 2469-2476. (in Chinese)
[28] ZHANG Wen-zheng, YANG Hua, XIE Li-qin, YANG Yi-hua. Lake-bottom hydrothermal activities and their influences on the high-quality source rock development: A case from Chang 7 source rocks in Ordos Basin [J]. Petroleum Exploration and Development, 2010, 37(4): 424-429. (in Chinese)
[29] ZHANG Ben-hao, WU Bai-lin, LIU Chi-yang, QIU Xin-wei. Occurrence of Uranium in Hydrocarbon of Chang-7 Member of Yanchang Formation of Ordos Basin [J]. Northwestern Geology, 2011, 44(2): 124-132. (in Chinese)
[30] HE Cong, JI Li-ming, WU Yuan-dong, SU Ao, ZHANG Ming-zhen. Characteristics of hydrothermal sedimentation process in the Yanchang Formation, south Ordos Basin, China: Evidence from element geochemistry [J]. Sedimentary Geology, 2016, 345(15): 33-41. DOI: 10.1016/ j.sedgeo.2016.09.001.
[31] HE Cong, JI Li-ming, SU Ao, LIU Ying, LI Jian-feng, WU Yuan-dong, ZHANG Ming-zhen. Relationship between hydrothermal sedimentation process and source rock development in the Yanchang Formation in southern Ordos Basin [J]. Earth Science Frontiers, 2017, 24(6): 277-285. DOI: 10.13745/j.esf.yx.2016-11-29. (in Chinese)
[32] CHEN Quan-hong, LI Wen-hou, GUO Yan-qin, LIANG Ji-wei, CUI Jun-ping, ZHANG Dao-feng. Turbidite systems and the significance of petroleum exploration of Yanchang Formation in the southern Ordos Basin [J]. Acta Geologica Sinica, 2006, 80(5): 656-663. (in Chinese)
[33] CHEN Quan-hong, LI Wen-hou, GAO Yong-xiang, GUO Yan-qin, FENG Juan-ping, ZHANG Dao-feng, CAO Hong-xia, LIANG Ji-wei. The deep-lake deposit in the Upper Triassic Yanchang Formation in Ordos Basin, China and its significance for oil-gas accumulation [J]. Science in China, 2007, 50(2): 47-58. DOI: 10.1007/s11430-007- 6029-7. (in Chinese)
[34] TANG Xuan, ZHANG Jin-chuan, WANG Xiang-zeng, YU Bing-song, DING Wen-long, XIONG Jin-yu, YANG Yi-ting, WANG Long, YANG Chao. Shale characteristics in the southeastern Ordos Basin, China: Implications for hydrocarbon accumulation conditions and the potential of continental shales [J]. International Journal of Coal Geology, 2014, 128-129(8): 32-46. DOI: 10.1016/j.coal.2014.03. 005.
[35] ER Chuang, LI Yang-yang, ZHAO Jing-zhou, WANG Rui, WEI Zhi-kun. Characteristics of lacustrine organic-rich shale: A case study of the Chang 7 Member, Triassic Yanchang Formation, Ordos Basin, China [J]. Journal of Natural Gas Geoscience, 2016, 1(2): 173-185. DOI: 10.1016/j.jnggs. 2016.04.001.
[36] MENG Hao, ZHONG Da-kang, ZHU Xiao-min, LIU Zi-liang, LIAO Ji-jia, ZHANG Xiu-qiang. Sequence stratigraphic framework and sedimentary facies of LSC3 of Yanchang Formation in Longdong Area, Ordos Basin [J]. Lithologic Reservoirs, 2016, 28(1): 77-87. DOI: 10.3969/ j.issn.1673-8926.2016.01.010. (in Chinese)
[37] LIN Sen-hu, WANG Meng-shi, YUAN Xuan-jun. A new quantitative method of sedimentary facies mapping of large lacustrine depression: A case from Chang 7 reservoir in central Ordos Basin [J]. Lithologic Reservoirs, 2017, 29(3): 10-17. DOI: 10.3969/j.issn.1673-8926.2017.03.002. (in Chinese)
[38] ZHANG Wen-zheng, YANG Wei-wei, XIE Li-qin. Controls on organic matter accumulation in the Triassic Chang 7 lacustrine shale of the Ordos Basin, central China [J]. International Journal of Coal Geology, 2017, 183(14): 38-51. DOI: 10.1016/j.coal.2017.11.019.
[39] FU Jin-hua, LI Shi-xiang, XU Li-ming, NIU Xiao-bing. Paleo-sedimentary environmental restoration and its significance of Chang 7 Member of Triassic Yanchang Formation in Ordos Basin, NW China [J]. Petroleum Exploration and Development Online, 2018, 45(6): 998-1008. DOI: 10.1016/S1876-3804(18)30104-6.
[40] JI Li-ming, XU Jin-li. Triassic acritarchs and its relation to hydrocarbon source rock in Ordos Basin[J]. Acta Petrolei Sinica, 2007, 28(2): 40-43. (in Chinese)
[41] JI Li-ming, XU Jin-li, SONG Zhi-guang. Lacustrine cyanobacteria from the Yanchang Formation in Ordos Basin and its implication of oil source [J]. Acta Micropalaeontologica Sinica, 2012, 29(3): 270-281. (in Chinese)
[42] LIU Guo-heng, HUANG Zhi-long, CHEN Fei-ran, JIANG Zhen-xue, GAO Xiao-yu, LI Ting-wei, CHEN Lei, XIA Lu, HAN Wei. Reservoir characterization of Chang 7 member shale: A case study of lacustrine shale in the Yanchang Formation, Ordos Basin, China [J]. Journal of Natural Gas Science and Engineering, 2016, 34: 458-471. DOI: 10.1016/ j.jngse.2016.06.071.
[43] FENG Cong-jun, YANG Hua, PU Ren-hai, WANG Ya-ning, WANG Da-xing, LIANG Xiao-wei, ZHANG Meng-bo, HUANG You-gen, FEI Shi-xiang. Lithology and oil-bearing properties of tight sandstone reservoirs: Chang 7 member of Upper Triassic Yanchang Formation, southwestern Ordos Basin, China [J]. Geosciences Journal, 2017, 21(2): 201-211. DOI: 10.1007/s12303-016-0048-3.
[44] GAO Wen-qiang, MA Su-ping, XIA Yan-qing, SHI Jian-chao, MA Xiao-feng, TIAN Chun-tao, LI Cun-lin. Oil-source correlation and the impact of oil-filling process on geochemical composition of the different states of oils in the Upper Triassic Chang 7 Formation, Ordos Basin, China [J]. Petroleum Science and Technology, 2018, 36(13): 915-922. DOI: 10.1080/10916466.2017.1409240.
[45] HUANG Zhen-kai, LIU Quan-you, LI Mao-wen, CHEN Jian-ping, LI Peng. Hydrocarbon expulsion efficiency and oil-bearing property of the shale system in Chang 7 Member, Ordos Basin [J]. Oil & Gas Geology, 2018, 39(3): 513-521. DOI: 10.11743/ogg20180308. (in Chinese)
[46] WANG Qiang, PENG Ping-an, ZHANG Wen-zheng, LIU Jin-zhong, YU Chi-li. Quantitative full-component hydrocarbon-generating simulation and crude oil mobility evaluation of shale in 7th Member of Yanchang Formation, Ordos Basin [J]. Acta Petrolei Sinica, 2018, 39(5): 541-553. DOI: 10.7623/syxb201805005. (in Chinese)
[47] HAN Wen-xue, HOU Lian-hua, YAO Jing-li, MA Wei-jiao. Characteristics and formation mechanism of Chang 7 tight sandstone reservoir in Ordos Basin [J]. Journal of China University of Mining & Technology, 2016, 45(4): 765-771. DOI: 10.13247/j.cnki.jcumt. 000447. (in Chinese)
[48] LAI Jin, WANG Gui-wen, RAN Ye, ZHOU Zheng-long, CUI Yu-feng. Impact of diagenesis on the petrophysical properties of tight oil reservoirs: The case of Upper Triassic Yanchang Formation Chang 7 Oil Layers in Ordos Basin, China [J]. Journal of Petroleum Science and Engineering, 2016, 145(9): 54-65. DOI: 10.1016/j.petrol. 2016.03.009.
[49] WU Wei-tao, DENG Jing, ZHAO Jing-zhou, SUN Bo, GUO Han-qin, DENG Xiu-qin, ER Chuang, BAI Yu-bin. Accumulation conditions and models of tight oil reservoirs in Chang-7 of Huaqing Area, the Ordos Basin [J]. Oil & Gas Geology, 2016, 37(6): 874-881. DOI: 10.11743/ ogg20160609. (in Chinese)
[50] ZHOU Zheng-long, WANG Gui-wen, RAN Ye, LAI Jin, CUI Yu-feng, ZHAO Xian-ling. A logging identification method of tight oil reservoir lithology and lithofacies: A case from Chang 7 Member of Triassic Yanchang Formation in Heshui Area, Ordos Basin, NW China [J]. Petroleum Exploration and Development Online, 2016, 43(1): 65-73. DOI: 10.1016/S1876-3804(16)30007-6.
[51] LAI Jin, WANG Gui-wen, FAN Zhuo-ying, ZHOU Zheng-long, CHEN Jing, WANG Shu-chen. Fractal analysis of tight shaly sand-stones using nuclear magnetic resonance measurements [J]. AAPG Bulletin, 2018, 102(2): 175-193. DOI: 10.1306/04251716098 17007.
[52] CHEN Lin, LU Yong-chao, WU Ji-yuan, XING Feng-cun, LIU Lu, MA Yi-quan, RAO Dan, PENG Li. Sedimentary facies and depo-sitional model of shallow water delta dominated by fluvial for Chang 8 oil-bearing group of Yanchang Formation in southwestern Ordos Basin, China [J]. Journal of Central South University, 2015, 22(12): 4749- 4763. DOI: 10.1007/s11771-015-3027-3.
(Edited by YANG Hua)
