Trans. Nonferrous Met. Soc. China 22(2012) s153-s156

Effect of Mg and Co co-doping on electrochemical properties of LiFePO₄

DING Yan-huai^{1, 2}, ZHANG Ping²

1. College of Chemical Engineering, Xiangtan University, Xiangtan 411105, China;

2. Institute of Rheology Mechanics, Xiangtan University, Xiangtan 411105, China

Received 9 July 2012; accepted 18 September 2012

Abstract: LiFePO₄ co-doped with Mg²⁺ and Co⁴⁺ ions was synthesized by a solid state reaction method. The structure and electrochemical properties of the prepared LiFe_0.99Mg_0.005Co_0.005PO₄ were investigated by X-ray diffraction (XRD), galvanostatic charge-discharge experiment and cyclic voltammograms (CV). Specific discharge capacity of LiFePO₄ co-doped with Mg and Co ions reach 147.2 mA·h/g at 0.1C and 133.3 mA·h/g at 1C. The results of CV show that the reversibility of lithium extraction/insertion in LiFePO₄ can be promoted by (Mg²⁺, Co⁴⁺) multiple-ion doping.

Key words: LiFePO₄; multiple-ion doping; Fe-site doping; solid state reaction; electrochemical performance

1 Introduction

Since they are first reported by the SONY corporation in the early 1990s, lithium-ion batteries have rapidly taken over the high-performance rechargeable battery market due to their high energy and power densities [1-3]. The improvement of the performance and cost of cathode materials is an important task in the lithium-ion batteries study. Recently, olivine-structured LiFePO₄ was investigated intensively as a potential cathode material for rechargeable Li-ion batteries because of its low cost and improved safety [4-6]. The main disadvantage of LiFePO₄ is its low electronic conductivity and diffusion coefficient of lithium ions which lead to its poor rate capability and hinder its commercialization as cathode material for lithium ion batteries.

The electronic and ionic transport limitations were overcome by doping with metal atoms [7,8], reducing the particle sizes [9] or coating electrically conductive agents [10,11]. Among them, heterogeneous doping at Li-site was widely adopted for optimization of electrochemical performance. HU et al [12] reported that LiFePO₄ turned into a good P-type semiconductor material and its electric conductivity was promoted by metal ion doping at Li-site. However, there are fewer reports on the study of LiFePO₄ doped by low-level aliovalent cation in Fe-sites [13,14]. Fe-site doped samples LiFe_0.99Mg_0.005- Co_0.005PO₄ were prepared by a solid-state reaction method using oxalate as precursor. And the effect of Mg and Co co-doping on electrochemical properties of LiFePO₄ was studied. This is the first report of LiFePO₄ doping with multiple-ion at Fe-sites. This method may open up new avenues for application of LiFePO₄ in high-performance lithium-ion batteries.

2 Experimental

LiFePO₄ (LFP) was prepared by a solid-state reaction method. A mixture of Li₂CO₃, FeC₂O₄·2H₂O and NH₄H₂PO₄ with mole ratio of 0.5:1:1 was ground and mixed by ball-milling for 5 h. The mixture was calcinated in a tube furnace at 350 °C for 10 h with flowing high-pure nitrogen gas. After being cooled down to room temperature, the sample was pressed to flake product and sintered at 700 °C for 24 h in the tube furnace under a protective atmosphere. The sample of LiFe_0.99Mg_0.005Co_0.005PO₄ (LMCFP) was prepared following the same procedures. MgC₂O₄·2H₂O and Co(C₂O₄)₂·4H₂O were used as precursors for doping samples.

X-ray diffraction (XRD) measurements were carried out with a Bruker D8 using filtered Cu K_α radiation.

The electrochemical experiments were performed using two-electrode coin-type cells. The working electrode composed of active materials, carbon black and poly (vinyl difluoride) (PVdF) with mass ratio of 80:10:10 was pasted on Nickel foam. The metallic lithium foil was used as the counter electrode, 1 mol/L LiPF₆ was dissolved in ethylene carbonate/dimethyl carbonate with volume ratio of 1:1 as electrolyte, and Celgard 2 400 as separator. Test cells were assembled in an argon-filled glove box with less than 1×10^-6 of oxygen, water and nitrogen contents. The discharge and charge measurements were carried out under an identical electrochemical condition on a Neware battery tester. Cyclic voltammograms (CV) were performed on a PARSTAT 2273 at a slow sweep rate of 0.1 mV/s and voltage between 2.7 and 4.3 V.

3 Results and discussion

XRD patterns of the prepared LiFePO₄ and LiFe_0.99Mg_0.005Co_0.005PO₄ are shown in Fig.1. XRD patterns for the samples indicate that pure phases with an ordered olivine structure indexed in orthorhombic Pnmb are exclusively formed [15]. LiFePO₄is chemically stable in the presence of Mg²⁺ and Co⁴⁺ doping. No extra diffraction peaks from related secondary phases or impurities are found. It is obvious that multiple-ion doping with a low amount does not affect the structure of the samples.

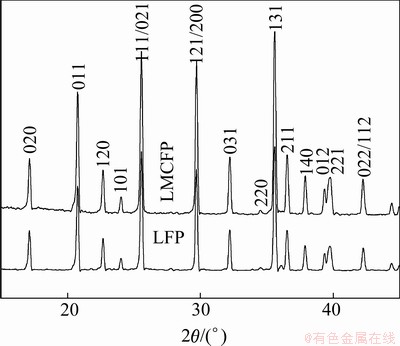

Fig. 1 XRD patterns of LiFePO₄ and LiFe_0.99Mg_0.005Co_0.005 PO₄ samples

Figure 2 displays the charge-discharge curves of LiFePO₄ and LiFe_0.99Mg_0.005Co_0.005PO₄ samples with cutoff voltages of 2.5-4.0 V (vs Li⁺/Li) at a current density of 0.1C. As can be seen from the figure, the cells show very smooth and monotonous charge-discharge curves. The initial discharge capacity of raw LiFePO₄ is 114.8 mA·h/g with a discharge efficiency of 93.1%. For doped samples, the initial discharge capacity and discharge efficiency increase to 147.2 mA·h/g and 97.8%, respectively. Mg²⁺ has approximately the same size as Fe³⁺, but is larger than Fe²⁺. So, Mg-doping causes lattice defect in LiFePO₄. The lattice defects promote the spread of lithium ions, and then improve the electrical conductivity of the LiFePO₄ [13,14]. Furthermore, Co doping makes the Li-O interaction weakened, which leads to high ionic mobility and diffusion coefficient [13]. This is probably the main reason for the dramatic increase of the initial discharge capacity from raw LiFePO₄ to doping samples.

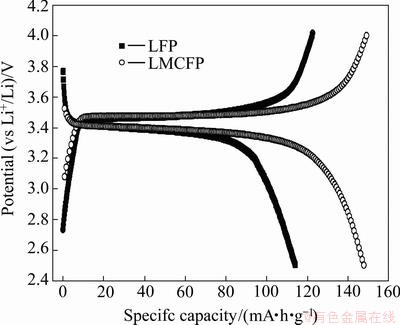

Fig. 2 Charge-discharge curves of LiFePO₄ and LiFe_0.99 Mg_0.005Co_0.005PO₄ samples

The cycling performance of raw and co-doping LiFePO₄ is shown in Fig. 3. The raw LiFePO₄ shows a poor cycling performance, with capacity fading of more than 22% after 50 cycles at the current density of 0.1C. One possible reason for this rapid capacity fade is the constantly generated inactive material causes by the structure collapse during Li⁺ insertion and extraction [16,17]. In the case of doping materials LMCFP, the discharge capacities at the 50th cycle hold at 136.5 mA·h/g with capacity retention rate of 92.3%. This indicates that the structural stability of LiFePO₄ is improved by Mg and Co co-doping.

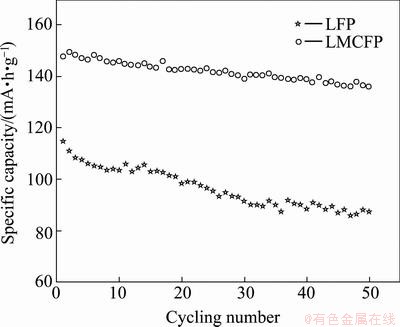

Fig. 3 Cycling performance of raw and co-doping LiFePO₄

Figure 4 shows the cyclic voltammograms of raw and doped LiFePO₄ measured at a sweep rate of 0.1 mV/s at room temperature and voltage between 2.7 and 4.3 V (vs Li/Li+). Anodic and cathodic peaks appear at about 3.6 and 3.3 V, which correspond to the two phase charge-discharge reaction of the Fe²⁺/Fe³⁺ redox couple [18]. The potential separation of doped LiFePO₄ between anodic and cathodic peaks is 0.29 V, whereas that of the virginal LiFePO₄ is 0.45 V. Furthermore, the shape of anodic/cathodic peaks of doped LiFePO₄ is more symmetrical and sharper than that of pure LiFePO₄, which indicates that the reversibility of lithium extraction/insertion in LiFePO₄ can be promoted by (Mg²⁺and Co⁴⁺) multiple-ion doping.

Fig. 4 Cyclic voltammetry profiles of undoped LFP and LMCFP

The rate capabilities of undoped LiFePO₄ and LiFe_0.99Mg_0.005Co_0.005PO₄ were measured at different discharge current densities. By increasing the discharge rate, utilization of the active material is decreased, which causes the decrease of discharge capacity [19]. As shown in Fig.5, pure LiFePO₄ has the discharge specific capacities of 78.4, 68.4, 60.1 and 51.2 mA·h/g at 1, 2, 3 and 4C, respectively. Doping samples show good rate capability compared with raw LiFePO₄, and the discharge specific capacities increase to 133.3, 121.4, 114.3 and 108.7 mA·h/g at the same discharge current density.

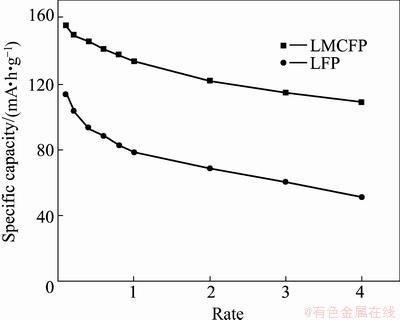

Fig. 5 Rate capability of undoped LiFePO₄ and LiFe_0.99-Mg_0.005Co_0.005PO₄

4 Conclusions

1) Mg-doping causes lattice defect in LiFePO₄, and Co-doping makes the Li-O interaction weakened, which leads to high ionic mobility and diffusion coefficient.

2) The initial discharge capacity and discharge efficiency of doping samples increase to 147.2 mA·h/g and 97.8% compared to pure LiFePO₄. The discharge capacities of LMCFP at the 50th cycle also hold at 136.5 mA·h/g with capacity retention rate of 92.3%.

3) Discharge specific capacity of doped LiFePO₄ increases to 133.3, 121.4, 114.3 and 108.7 mA·h/g at 1, 2, 3 and 4C, respectively. And cycling performance and rate capability of LiFePO₄ are improved by Mg and Co co-doping.
