Trans. Nonferrous Met. Soc. China 23(2013) 861-865

Electrodeposition of quarternary Mg-Zn-Li-Ca alloys from molten salts

Peng CAO, Mi-lin ZHANG, Wei HAN, Yong-de YAN, Li-jun CHEN

Key Laboratory of Superlight Materials and Surface Technology, Harbin Engineering University, Harbin 150001, China

Received 14 December 2011; accepted 11 June 2012

Abstract: Direct electrodeposition of quarternary Mg-Zn-Li-Ca alloys on a molybdenum electrode from LiCl-KCl-MgCl₂- ZnCl₂-CaCl₂ melts at 943 K was investigated. Cyclic voltammograms (CVs) show that the deposition potential of Li shifts in a positive direction after adding MgCl₂, ZnCl₂and CaCl₂. Chronopotentiometric measurements indicate that the codepositon of Mg, Li, Zn, and Ca occurs at current densities lower than -1.55 A/cm². X-ray diffraction (XRD) indicates that Mg-Zn-Li-Ca alloys with different phases were prepared via galvanostatic electrolysis. The microstructures of typical phase of Mg-Zn-Li-Ca alloys were characterized by optical microscopy (OM) and scanning electron microscopy (SEM). The analysis of energy dispersive spectrometry (EDS) shows that elements of Mg and Ca distribute homogeneously in the Mg-Zn-Li-Ca alloy. However, element Zn mainly locates at the edges of the domain.

Key words: Mg-Zn-Li-Ca alloys; electrolysis; cyclic voltammetry; molten salt

1 Introduction

Magnesium-lithium alloys exhibit comparable properties to other light metal alloys based on aluminum, titanium and beryllium and attract more attention in industrial application, such as in the automobile and digital gadget manufacture [1-4]. However, the further application of magnesium-lithium alloy is restricted, due to its low elevated temperature properties [5]. Researches indicated that the addition of Ca and Zn increases the strength, castability and corrosion resistance [6-8]. However, the preparation method of Mg-Zn-Li-Ca alloys has been restricted mostly to metal melting (vacuum metallurgical technique). This conventional method has many disadvantages, such as unhomogeneous alloy composition, complicated production process, serious metal oxidation, and high-energy consumption. To overcome these problems, electrochemical preparation methods for magnesium- based alloys have been investigated. Our group has successfully prepared a relatively more simple electrochemical method in which lithium was deposited and diffused to form Mg-Li alloys on a magnesium cathode from LiCl-KCl melts at 693-783 K [9,10]. Recently, we proposed a direct preparation of Mg-Zn-Li-Ca alloys via electrochemical codeposition of Mg, Li, Zn and Ca from LiCl-KCl-MgCl₂-ZnCl₂- CaCl₂ melts. The process is simpler than previous methods. With regard to deposition and electrochemical studies of pure metallic magnesium ions, CASTRILLEJO et al [11] used voltammetric techniques to characterize the Mg (II) reduction process in the equimolar CaCl₂-NaCl mixture at 550 °C. And et al [12] investigated the electrodeposition and reduction of magnesium from halide melts [12]. However, the codeposition of Mg-Zn-Li-Ca alloys has not been investigated even though the electrochemical codeposition method has been widely used to prepare other alloys. For example, IIDA et al [13,14] investigated the electrochemical formation of Sm-Ni and Sm-Co alloy films by a Li codeposition method from corresponding chloride melts. GU [15] discussed cobalt codeposited with copper and Co-Cu alloy produced on a glassy carbon electrode (GCE) from Co-rich electrolytes.

In this work, we attempt to prepare Mg-Zn-Li-Ca alloys directly from LiCl-KCl-MgCl₂-ZnCl₂-CaCl₂melts using a co-electrodeposition method by galvanostatic electrolysis and characterization of these alloys by ICP, XRD, SEM and EDS.

2 Experimental

A mixture of LiCl-KCl (50%:50%, analytical grade) was first dried under vacuum at 573 K for more than 72 h to remove excess water, and then melted in an alumina crucible placed in a quartz cell located in an electric furnace. The working temperature was measured with a thermocouple protected by an alumina tube inserted into the melt. Metal ion impurities in the melts were removed by pre-electrolysis at -2.00 V (vs Ag⁺/Ag) for 4 h. Magnesium, zinc and calcium ions were introduced into the bath in the forms of anhydrous ZnCl₂, MgCl₂ and CaCl₂ powders. All experiments were carried out under a carefully purified and dehydrated argon atmosphere.

All electrochemical techniques were performed using an Im6eX electrochemical workstation (Zahner Co., Ltd.) with a THALES 3.08 software package. The working electrodes were d1 mm molybdenum (99.99% purity), which were polished thoroughly using SiC paper, and then cleaned ultrasonically with ethanol prior to use. The active electrode surface was determined after each experiment by measuring the immersion depth of the electrode in the molten salt. The reference electrode used was a solution of LiCl-KCl-AgCl (1%) prepared in a Pyrex tube. All potentials were referred to this Ag⁺/Ag couple. A graphite rod (d=1 mm, 99.99% purity) served as a counter electrode.

The samples of Mg-Zn-Li-Ca alloys were prepared by galvanostatic electrolysis under different conditions. After electrolysis, all samples were washed in hexane (99.8% purity) in an ultrasonic bath to remove salts and stored in a glove box for analysis. These deposits were analyzed by XRD (X’ Pert Pro; Philips Co., Ltd.) using Cu K_α radiation at 40 kV and 40 mA. The samples for SEM (DFC320; Leica Microsystems) were mounted in thermosetting resins using a metallographic mounting press and then mechanically polished, and finally etched with a solution of 2% HNO₃ (volume fraction) in alcohol. The etching time was 30-60 s. The microstructure and micro-zone chemical analysis were also measured using SEM and EDS (JSM-6480A; JEOL Co., Ltd.). The specimen for SEM/EDS was polished and etched again using the former method and time. Each sample was dissolved in aqua regia V(HNO₃):V(HCl): V(H₂O)=1:3:8). The solution was diluted and analyzed using an inductively coupled plasma atomic emission spectrometer (ICP-AES, Thermo Elemental, IRIS Intrepid II XSP).

3 Results and discussion

3.1 Cyclic voltammetry

Figure 1 shows typical cyclic voltammograms of the LiCl-KCl melts on a molybdenum electrode before (curve 1) and after addition of 5.0% MgCl₂, 0.5% ZnCl₂ and 3.0% CaCl₂(curve 2). In curve 1, cyclic voltammograms in the LiCl-KCl melts, as the control, show no significant peaks within the electrochemical window, except a couple of cathodic/anodic signals (B/B') corresponding to the reduction and oxidation of Li, respectively. After the addition of 0.5% ZnCl₂ and 3.0% CaCl_2,another redox system found at a more positive potential (-0.75 V vs Ag⁺/Ag ) is characteristic of a metallic deposition and can be attributed to the reduction of Zn (II) to Zn (0) (peak A), because the deposition potential of Zn (II) ions is more positive than that of Mg(II), Li(I) and Ca (II) ions in a chloride system [16]. Peak A' shows the reoxidation of the deposited Zn metal on the molybdenum electrode. Peak C, associated with the reduction of Mg²⁺ ions, followed by the dissolution of the deposited Mg metal (peak C') first was detected at around -1.65 V (vs Ag/AgCl). Afterward, a cathodic current was slowly increased from approximately -1.80 V indicating that the formation of the Mg-Ca alloy or deposition of metallic Ca occurs. Since the decomposition potentials of calcium and lithium chloride are significantly close (the difference is only about 0.12 V) and deposition rate of lithium on Mg has high underpotential at relatively high temperature, an Mg-Li-Ca alloy is formed almost from the beginning of the formation of the magnesium phase on the molybdenum substrate. Consequently, the current peak for Mg-Ca alloys or deposition of metallic Ca is not detected easily. A similar phenomenon was observed in Ref. [17]. In addition, a clear anodic peak (labeled D') at a potential of -1.0 V is observed, which is thought to correspond to the dissolution of the Mg-Zn deposits.

Fig. 1 Typical CVs of LiCl-KCl melts before (curve 1) and after (curve 2) addition of 5.0% MgCl₂, 0.5% ZnCl₂ and 3.0% CaCl₂ on molybdenum electrode at 943 K (Scan rate: 0.1 V/s)

3. 2 Chronopotentiometry

A chronopotentiometric experiment was carried out to further study the formation of Mg-Zn-Li-Ca alloys. Figure 2 presents chronopotentiograms measured on a molybdenum electrode (S=0.322 cm²) in LiCl-KCl- MgCl₂ (5.0%) melts containing 0.5% ZnCl₂ and 3.0% CaCl₂ at different current intensities. At a cathodic current lower than -50 mA (-0.16 A/cm²), only a potential plateau corresponding to the reduction of zincum occurs. At a cathodic current more negative than -60 mA (-0.19 A/cm²), the curves exhibit two potential plateaus (plateaus A and B), which are associated with the reduction of zinc and magnesium ions to the corresponding metals, respectively. At this current intensity, codeposition of Zn and Mg occurs. According to the phase diagram of Mg-Zn system [5], Mg-Zn alloy can be formed at this temperature. When the current reaches -500 mA (-1.55 A/cm²), a third plateau appears. This plateau is caused by a reduction of lithium ions. At this current intensity, codeposition of Mg, Li and Ca occurs. It is obvious that the potential ranges for deposition of Mg, Li, and Ca are the same as those observed in the cyclic voltammograms.

Fig. 2 Chronopotentiograms obtained at different current intensities on molybdenum electrode (0.322 cm²) in LiCl-KCl-MgCl₂ (5.0%) melts containing 0.5% ZnCl₂ and 3.0% CaCl₂ at 943 K

3.3 Galvanostatic electrolysis and characterization of deposits

Based on the results obtained by CVs and chronopotentiometrys, further galvanostatic electrolysis experiments were carried out in LiCl-KCl melts containing different MgCl₂, ZnCl₂ and CaCl₂ concentrations on molybdenum electrodes at 943 K. The microstructure of a typical Mg-Zn-Li-Ca alloy, obtained by codeposition from LiCl-KCl-MgCl₂(8%) melts containing 0.5% ZnCl₂ and 3.0% CaCl₂, shows that the alloy is composed of white α phase and black eutectic structure (Fig. 3). According to the fundamentals of solidification and the binary phase diagram of Mg-Zn system, Zn acts with Mg and distributes along grain boundaries in the solidification process, which lowers the diffusion rate of atoms, and increases the number of nuclei to restrict the growth of grains. On the other hand, the enrichment of solute atoms leads to the formation of Mg-Zn phases, which mainly distribute in the grain boundary area, and thus inhibits further grain growth. A SEM and EDS mapping analysis was used to examine the general distribution of elements in Mg-Zn-Li-Ca alloys by codeposition from LiCl-KCl-ZnCl₂ (0.5%)- CaCl₂ (3.0%) melts containing 8.0% MgCl₂ (Fig. 4). The result confirms that the Mg and Ca elements distribute homogeneously throughout the Mg-Zn-Li- Ca alloy. However, Zn distribution is not uniform and mainly located in grain boundary. Figure 5 shows the complex XRD patterns of Mg-Zn-Li-Ca alloys obtained by galvanostatic electrolysis from LiCl-KCl melts with different concentrations of MgCl₂, ZnCl₂ and CaCl₂at -6.21 A/cm² for 2.5 h, respectively. In patterns in Figs. 4(a)–(c), most of the strong peaks are identified from α Mg phase. For patterns in Figs. 4(a) and (b), peaks for a new phase, Mg₇Zn₃, are recognized in pattern (a) with a high concentration of ZnCl₂, because enough Zn atoms concentrate at the grain boundaries to react with Mg, forming the compound, Mg₇Zn₃ phase, in the Mg-Zn-Li-Ca alloy. In addition, peaks for a new phase LiMgZn are recognized in pattern (c) because of the relatively high content of lithium in Mg-Zn-Li-Ca alloy. Moreover, with the decrease of MgCl₂ concentration in LiCl-KCl-ZnCl₂ (0.5%)-CaCl₂ (3.0%) melt, the lithium content of Mg-Zn-Li-Ca alloys increases at the constant current intensity. However, for patterns (a), (b) and (c), Ca has no apparent effect on the phase structure of Mg-Zn-Li-Ca alloys because of the relatively low Ca content in the Mg-Zn Li-Ca alloys. EDS is a qualitative and semi-quantitative estimate of elemental concentration, and element Li cannot be detected in the EDS. Therefore, we carried out the ICP analysis of alloys. The ICP analyses of all samples obtained by galvanostatic electrolysis are listed in Table 1. The ICP results show that the chemical compositions of Mg-Zn-Li-Ca alloys are consistent with the phase structures of the XRD patterns, Under galvanostatic electrolysis, the lower the MgCl₂ concentration in the LiCl-KCl melts with equivalent ZnCl₂ and CaCl₂concentration at a constant current intensity, the higher the lithium content of Mg-Zn-Li-Ca alloys. With the increasing ZnCl₂ concentration of LiCl-KCl-MgCl₂ melts, the zincum content of Mg-Zn-Li-Ca alloys increases, while calcium is opposite. Based on these results, it can be concluded that the lithium, zincum and calcium contents of Mg-Zn-Li-Ca alloys can be adjusted by changing the MgCl₂ and ZnCl₂ concentrations.

Fig. 3 Optical micrograph of Mg-Zn-Li-Ca alloy by codeposition from LiCl-KCl-MgCl₂ (8%) melts containing 0.5% ZnCl₂ and 3.0% CaCl₂

Fig. 4 SEM image (a) and EDS mapping analysis Mg(b), Zn(c) and Ca(d) of Mg-Zn-Li-Ca alloys by codeposition from LiCl-KCl-MgCl₂ (8%) melts containing 0.5% ZnCl₂ and 3.0% CaCl₂

Fig. 5 XRD patterns of deposits obtained by codeposition on Mo electrodes in LiCl-KCl melts containing 0.5% ZnCl₂, 3.0% CaCl₂, 10.0% MgCl₂ (a), 0.2% ZnCl₂, 3.0% CaCl₂, 10.0% MgCl₂ (b) and 0.5% ZnCl₂, 3.0% CaCl₂ and 8.0% MgCl₂ (c)

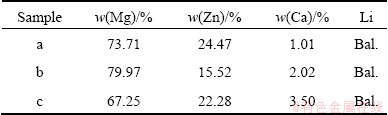

Table 1 ICP analyses of samples obtained by galvanostatic electrolysis (-2 A) on Mo electrode (S=0.322 cm²) from LiCl-KCl melts containing 0.5% ZnCl₂, 3.0% CaCl₂ and 10.0% MgCl₂ (a), 0.2% ZnCl₂, 3.0% CaCl₂ and 10.0% MgCl₂ (b) and 0.5% ZnCl₂, 3.0% CaCl₂ and 8.0% MgCl₂(c)

4 Conclusions

1) From the CVs, the deposition potential of Li shifts in a positive direction after adding MgCl₂, ZnCl₂, and CaCl₂. The codepositon of Mg, Li, Zn and Ca occurs at current densities lower than -0.31 A/cm² in LiCl-KCl-MgCl₂ (5%) melts containing 3.0% CaCl₂ and 0.5% ZnCl₂.

2) When the concentration of ZnCl₂ is 0.2% in LiCl-KCl-MgCl₂(10.0%), Zn has no apparent effect on the phase structure of Mg-Li alloys. A new Mg₇Zn₃ phase occurs in Mg-Zn-Li-Ca alloy when the concentration of ZnCl₂ is increased from 0.2% to 0.5% in LiCl-KCl-MgCl₂ (10%) melts. A new LiMgZn phase occurs in Mg-Zn-Li-Ca alloy when the concentration of MgCl₂ is decreased to 8.0%. The lithium, zinc, and calcium contents of Mg-Zn-Li-Ca alloys can be controlled by MgCl₂, ZnCl₂, and CaCl₂concentrations.

3) The EDS results show that element Zn concentrates at the edges of domain to react with Mg and Ca which distribute homogeneously in the Mg-Zn-Li- Ca alloy.
