Effect of oxalate on seed precipitation of gibbsite from sodium aluminate solution

YU Hai-yan(于海燕)^{1, 2}, ZHANG Bai-yong(张佰永)², PAN Xiao-lin(潘晓林)^{1, 2}, TU Gan-feng(涂赣峰)^{1, 2}

1. Key Laboratory for Ecological Metallurgy of Multimetallic Mineral of Ministry of Education,Northeastern University, Shenyang 110819, China;

2. School of Metallurgy, Northeastern University, Shenyang 110819, China

Central South University Press and Springer-Verlag GmbH Germany, part of Springer Nature 2020

Abstract: The precipitation performance and kinetics of gibbsite from sodium aluminate solution with different sodium oxalate concentrations as well as the corresponding influence mechanism of oxalate during the seed precipitation process were systematically investigated by physicochemical properties test, using SEM and Raman spectra. As the concentration of sodium oxalate increases, both the precipitation rate and particle size of gibbsite decrease. The presence of sodium oxalate not only increases the viscosity of sodium aluminate solution, but also promotes the transformation of Al(OH)₄^- to Al₂O(OH)₆^2-. The overall reaction rate constant decreases and the apparent activation energy of gibbsite increases with the increasing sodium oxalate concentration, the rate controlling step of which is chemical reaction. The needle-like sodium oxalate precipitates on the gibbsite crystals and covers the active Al(OH)₃ seed sites, which leads to the lower precipitation rate and the finer particle size of gibbsite during the seed precipitation process.

Key words: sodium oxalate; sodium aluminate solution; gibbsite precipitation; kinetics; Raman spectra

Cite this article as: YU Hai-yan, ZHANG Bai-yong, PAN Xiao-lin, TU Gan-feng. Effect of oxalate on seed precipitation of gibbsite from sodium aluminate solution [J]. Journal of Central South University, 2020, 27(3): 772-779. DOI: https://doi.org/10.1007/s11771-020-4330-1.

1 Introduction

As significant impurities in the Bayer plant liquors, the effects of organic compounds which were mainly decomposed from bauxite during digestion on the Bayer process have been widely researched during the past decades [1-3]. Among all the organic compounds, oxalate was considered to be one of the most harmful impurities to the Bayer process, which increases the soda losses and impurity contents of the final alumina product, refines the granularity of precipitated gibbsite, and deteriorates the settling performance of bauxite residue as well as the scaling on the heating pipes [4, 5]. Therefore, lots of researches focused on the removal technologies of oxalate, including crystallization [6], oxidation [7], ion exchange [8], adsorption [9] and lime causticization [10]. KONIGSBERGER et al [11] developed several thermodynamic models to calculate the equilibrium solubility of oxalate in sodium aluminate solution. LOH et al [12] found that sodium oxalate is the main degradation product of organic compounds from the Bayer liquor by wet oxidation. LIU et al [13] and ZHANG et al [14] investigated the reaction behavior and removal mechanism of oxalate in sodium aluminate solution during the lime causticization process.

The seed precipitation of gibbsite (Al(OH)₃) from supersaturated sodium aluminate solution is one of the key steps in the Bayer process, which includes three crystallization processes, i.e. secondary nucleation, agglomeration and crystal growth [15-17]. Some researchers studied the co-precipitation mechanism of oxalate and gibbsite in synthetic sodium aluminate solution [18, 19], but the effects of oxalate on seed precipitation of gibbsite from sodium aluminate solution are still lack of systematic research. In this work, the precipitation rate and the particle size distribution of gibbsite during the seed precipitation process from synthetic sodium aluminate solution with different sodium oxalate concentrations were systematically investigated, and the corresponding precipitation kinetics and mechanism were also discussed.

2 Experimental

The gibbsite seeds used in this study were provided by Shandong Branch of China Aluminum Co., Ltd., and the other chemical reagents were of analytical grade purchased from National Pharmaceutical Group, China. Sodium aluminate solutions were prepared by dissolving Al(OH)₃ into heated NaOH solution at atmospheric pressure. The caustic alkali concentration of sodium aluminate solution for seed precipitation was 140 g/L (in form of Na₂O) and the molar ratio of Na₂O to Al₂O₃ was 1.4. The concentrations of sodium oxalate in sodium aluminate solutions were 0, 2, 4 and 6 g/L, respectively.

The seed precipitation experiments were carried out in batch tanks, the temperature of which was controlled by a thermostatical water bath. The sodium aluminate solutions were firstly added into the tanks, and then the calculated sodium oxalate was added to dissolve when the solution reached the predetermined temperature respectively. In order to simulate the two-stage decomposition process of industrial production, the gibbsite seeds with two different particle sizes were added into the preheated solution by two steps: 125 g/L at the beginning with the fine seeds, and then 400 g/L after 8 h with the coarse seeds. The particle size distributions of fine seeds and coarse seeds added to sodium aluminate solution are listed in Table 1. The precipitation experiments were carried out under the uniform cooling condition for 48 h. The initial precipitation temperatures were 55, 60, 65 and 70 °C respectively, while all the final precipitation temperatures were 50 °C.

Table 1 Particle size distribution of gibbsite seeds added to sodium aluminate solution

The precipitation rate of gibbsite was calculated by the following equation:

h=(1-α₀/α_t)×100%                        (1)

where α₀ and α_t are the molar ratio of caustic alkali to alumina in sodium aluminate solution before and after precipitation respectively.

The solutions after precipitation were determined by the volumetric method. The Raman spectra of sodium aluminate solution were obtained by a Raman spectroscopy (HR800) with the scanning wavenumbers from 200 to 1200 cm^-1. The viscosity of sodium aluminate solution was determined by the capillary method. The precipitated products were washed with hot deionized water and dried at 80 °C for 24 h. The morphology of precipitated products was observed by a field scanning electron microscope (SU8010). The particle size distribution of gibbsite was measured by a laser scattering mastersizer (Malvern 3000).

3 Results and discussion

3.1 Precipitation rate and particle size of gibbsite

The precipitation results of gibbsite from sodium aluminate solution with different sodium oxalate concentrations at different initial temperatures for different time are shown in Figure 1. All the precipitation rates of gibbsite increase with the increasing precipitation time. As seen from Figure 2, the precipitation rates of gibbsite increase with the decreasing temperature because of the relatively larger supersaturation at lower temperature, both in the presence and absence of sodium oxalate. However, at the same temperature, the precipitation rate of gibbsite decreases as the sodium oxalate concentration increases, which demonstrates that the presence of sodium oxalate reduces the final precipitation rate of gibbsite from sodium aluminate solution.

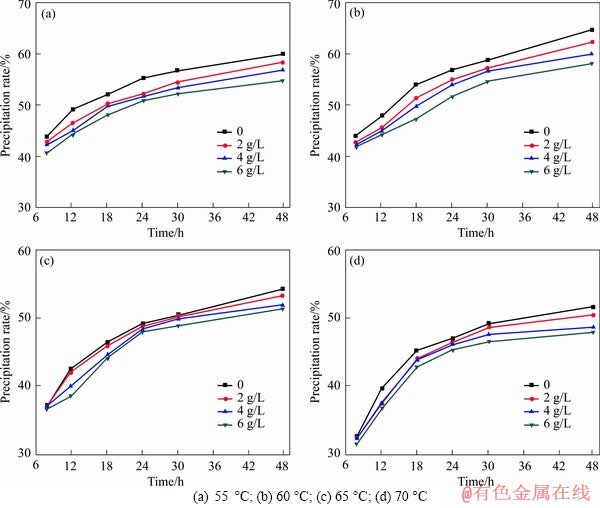

Figure 1 Precipitation rate of gibbsite from sodium aluminate solution at different initial temperatures:

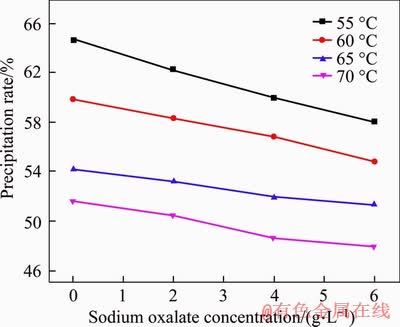

Figure 2 Precipitation rate of gibbsite from sodium aluminate solution with different sodium oxalate concentrations at different initial temperatures for 48 h

Figure 3 shows the medium particle size of gibbsite with different sodium oxalate concentrations when the initial precipitation temperature is 60 °C and the time is 48 h. As the sodium oxalate concentration increases, the particle size of gibbsite decreases at the final precipitation stage. The particle size results indicate that the presence of sodium oxalate hinders the crystal growth of gibbsite during the seed precipitation process.

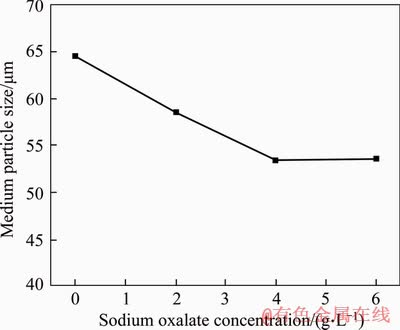

Figure 3 Medium particle size of gibbsite with different sodium oxalate concentrations at initial precipitation temperature 60 °C for 48 h

3.2 Precipitation kinetics of gibbsite

The precipitation kinetics of gibbsite crystals depend on several factors, including solution supersaturation, reaction temperature, stirring rate, solid-liquor interface structure and impurities [17, 20]. The supersaturation of sodium aluminate solution is one of the most important factors, which directly influences the operations of crystallizer. The surface reaction was believed to be the controlling step and Eq. (2) given by MISRA et al [21] according to the power-law equations is the most classical for estimating the growth rate of gibbsite.

G=K₀exp(–E/(RT))(C_A-C_Ae)²                         (2)

where C_A and C_Ae are the supersaturated and equilibrium concentrations of Al₂O₃, g/L; E is the growth activation energy of gibbsite crystals, J/mol; K₀ is the growth rate constant, m/h; G is the linear growth rate, mm/h.

According to the published equations for the linear growth rate of gibbsite, FARHADI et al [22] modified the linear growth rate equation, and concluded that the polynuclear model is the most probable mechanism for the surface growth of gibbsite crystals.

It is feasible to determine the main control step of seed precipitation by calculating the activation energy. Eq. (2) can be written as follows:

dC_A/dt=K(C_A-C_Ae)²                                     (3)

where K is the overall reaction rate constant; t is the reaction time, h.

The equilibrium concentration of Al₂O₃ can be estimated from the empirical relation proposed by MISRA [23] for synthetic solutions as follows:

C_Ae=C_Kexp(6.2106-2486.7/T+1.0876C_K/T)    (4)

where C_K is the caustic alkali concentration of sodium aluminate solution (in form of Na₂O), 1/L; T is the thermodynamic temperature, K.

The plots of 1/(C_A-C_Ae) versus t after seed precipitation from sodium aluminate solution with different sodium oxalate concentrations are shown in Figure 4. The overall reaction rate constants at different precipitation temperatures can be calculated by the slopes of curves, as listed in Table 2. Based on the reaction rate constants at different initial temperatures, the apparent activation reaction energies with different sodium oxalate concentrations can be calculated according to the Arrhenius equation:

K=Aexp(-E/RT)                          (5)

where A is the pre-exponential factor; E is the apparent activation energy, J/mol; R is the molar gas constant, 8.314 J/(mol·K); T is the reaction temperature, K. Thus, Eq. (5) can be transformed as follows:

lnK=-E/(RT)+lnA                         (6)

The plots of reaction rate constants versus different initial temperatures are shown in Figure 5. Based on the slopes of curves, the apparent activation energies with different sodium oxalate concentrations were calculated according to Eq. (6), which are 77.8, 97.6, 102.9 and 107.1 kJ/mol when the sodium oxalate concentrations are 0, 2, 4 and 6 g/L, respectively. The apparent activation energy increases with the increasing sodium oxalate concentration. Furthermore, it can be concluded that the chemical reaction is the rate controlling step during the seed precipitation process.

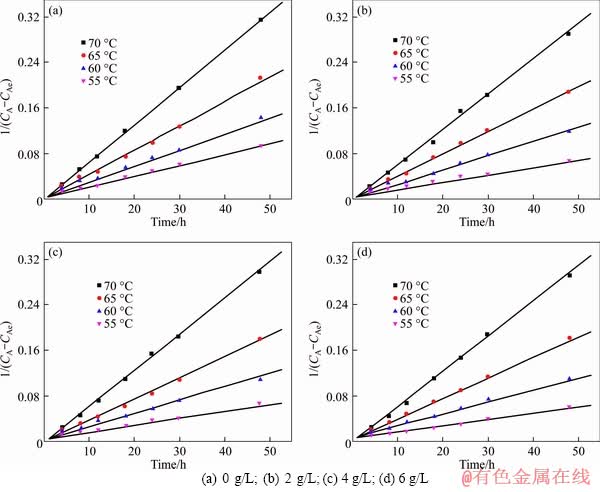

Figure 4 Relationship between 1/(C_A-C_Ae) and t with different sodium oxalate concentrations:

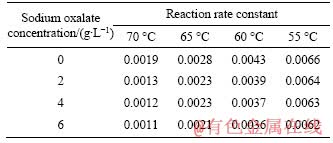

Table 2 Overall reaction rate constant (K) during seed precipitation at different initial temperatures with different sodium oxalate concentrations

Figure 5 Relationship between lnK and 1/T

3.3 Influence mechanism of oxalate

The gibbsite precipitation from sodium aluminate solution during the seed precipitation process is listed in Eq. (7). It shows that Al(OH)₄^- is the main ion for the decomposition of sodium aluminate solution, which transforms into gibbsite during the seed precipitation process.

xAl(OH)₃+Al(OH)₄^-=(x+1)Al(OH)₃+OH^-         (7)

The Raman spectra of synthetic sodium aluminate solution with different sodium oxalat concentrations are shown in Figure 6. The peaks at 625 and 540 cm^-1 belong to the vibrations of Al-OH bond in Al(OH)₄^- tetrahedron and Al-O-Al bond in Al₂O(OH)₆^2- dimer respectively [24], while the peak at 918 cm^-1 belongs to the characteristic peak of C₂O₄^2- [25]. The peak intensity of 540 cm^-1 and the intensity ratio of 540 to 625 cm^-1 gradually increase with the increase of sodium oxalate concentration, indicating that the amounts of Al₂O(OH)₆^2- increase with the increasing sodium oxalate concentration. Therefore, the presence of sodium oxalate promotes the transformation of Al(OH)₄^- to Al₂O(OH)₆^2-.

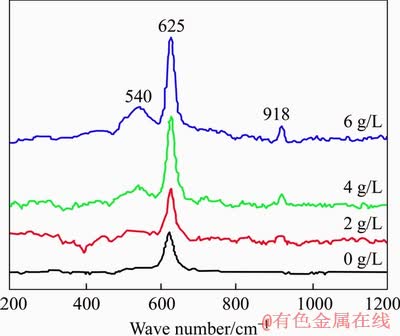

Figure 6 Raman spectra of sodium aluminate solution with different sodium oxalate concentrations

Figure 7 shows the viscosity of sodium aluminate solution with different sodium oxalate concentrations at different temperatures. The viscosity of sodium aluminate solution decreases greatly as the temperature increases. The presence of sodium oxalate increases the viscosity of sodium aluminate solution at the same temperature. As the sodium oxalate concentration increases, the polymerization degree of aluminate ions increases, which hinders the precipitation of gibbsite from sodium aluminate solution.

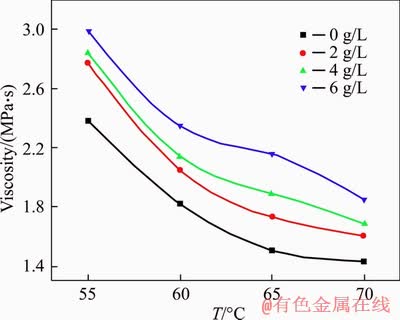

Figure 7 Viscosity of sodium aluminate solution with different oxalate concentrations at different temperatures

The morphologies of gibbsite precipitated from sodium aluminate solution without and with sodium oxalate are shown in Figures 8 and 9 respectively. The gibbsites precipitated from sodium aluminate solution without oxalate were found to be of agglomerates (Figure 8(a)), with well-formed hexagonal basal faces, prismatic faces and chamfered faces (Figure 8(b))

Figure 8 Morphology of gibbsite precipitated from sodium aluminate solution without oxalate

Figure 9 Morphology of gibbsite precipitated from sodium aluminate solution when sodium oxalate concentration is 6 g/L

The surface of gibbsite crystals is relatively smooth as shown in Figure 8(c). The particle size of gibbsite crystals precipitated from sodium aluminate solution with sodium oxalate is much smaller (Figure 9(a)) than those in Figure 8(a), which is consistent with the results in Figure 3. Meanwhile, the fine particles grown on the crystal faces of gibbsite (Figure 9(b)) are much more than those in Figure 8(b). The needle-like crystals referring to sodium oxalate were observed to precipitate on the gibbsite crystals, which is similar to FU’s results [18].

According to the above results, the presence of sodium oxalate in sodium aluminate solution promotes the transformation of Al(OH)₄^- to Al₂O(OH)₆^2-, increases the corresponding viscosity of sodium aluminate solution and the apparent activation energy during the seed precipitation process, and thus decreases the precipitation rate of gibbsite. Meanwhile, as the precipitation process proceeds, sodium oxalate is precipitated with gibbsite, attached to the surface and covered some active sites of Al(OH)₃ seeds, which decreases the final particle size of precipitated products.

4 Conclusions

1) As the sodium oxalate concentration in sodium aluminate solution increases, both the precipitation rate and the final particle size of gibbsite decrease during the seed precipitation process.

2) The overall reaction rate constant decreases and the apparent activation energy of gibbsite increases with the increasing sodium oxalate concentration, and the chemical reaction is the rate controlling step.

3) The presence of sodium oxalate increases the viscosity of sodium aluminate solution, and promotes the transformation of Al(OH)₄^- to Al₂O(OH)₆^2-.

4) The sodium oxalate with a needle-like morphology precipitates on the gibbsite crystals and covers the active Al(OH)₃ seed sites, which leads to the lower precipitation rate and the finer particle size of gibbsite.
