文章编号:1004-0609(2013)S1-s0477-03
时效处理对Ti65高温钛合金性能的影响
王 旭,李四清,李臻熙,黄 旭,刘晶南
(北京航空材料研究院,北京 100095)
摘 要:研究Ti65高温钛合金的时效处理工艺,分析不同时效处理的固溶态Ti65高温钛合金的室温拉伸性能和650 °C拉伸性能、持久性能、抗蠕变性能以及热稳定性能。结果表明:时效温度为700 °C时,Ti65高温钛合金具有良好的热稳定性能;延长时效保温时间,可以提高合金的抗蠕变性能;提高时效温度和延长时效保温时间,均降低Ti65高温钛合金的持久性能。
关键词:Ti65合金;时效温度;时效时间;力学性能;热稳定性
中图分类号:TG156.1 文献标志码:A
Effects of aging treatment on properties of Ti65 high-temperature titanium alloy
WANG Xu, LI Si-qing, LI Zhen-xi, HUANG Xu, LIU Jing-nan
(Beijing Institute of Aeronautical Materials, Beijing 100095, China)
Abstract: The aging treatment process of Ti65 high-temperature tianium alloy was studied. The tersile property at room temperature and ternsile property, endurance property, creep property and thermal stability at 650 °C of the alloy were tested. The results show that Ti65 high-temperature titanium alloy has good thermal stability by aging treatment at 700 °C. By increasing the aging time, the creep porperty of the alloy is improved. By increasing the aging time and aging temperature, the properties of Ti65 alloy are reduced.
Key words: Ti65 alloy; aging temperature; aging time; mechanical property; thermal stability
高温钛合金作为航空发动机重要的结构材料已经成为研究的热点[1-3]。目前,已使用的高温钛合金的服役温度最高可达600 °C,其中以英国的IMI834合金和美国的Ti-1100合金等为600 °C钛合金的典型代表[4-8]。但随着航空发动机推动比的不断提高,发动机高压压气机后段的工作温度将超过600 °C,IMI834合金和Ti-1100合金已经无法满足航空发动机的设计要求。为满足航空发动机对高温钛合金的需求,国内在600 °C钛合金的基础上,研发了最高使用温度达到650 °C的高温钛合金(称为Ti65高温钛合金),并开展了许多工作[9-10]。其中北京航空材料研究院开展了对Ti65合金的性能优化研究。本文作者通过调节时效处理参数控制合金的力学性能,最终优化时效处理参数,使锻件获得良好的热强度和热稳定性匹配。
1 实验
本研究中使用三次真空自耗熔炼Ti65高温钛合金,名义成分为Ti-6.5A1-2Sn-4Zr-2.5Mo-1.4W-0.2Si (质量分数)。试样坯料为经过预制坯锻造和热模锻制备的航空锻件。为研究时效处理对合金性能的影响,对经过1 030 °C保温2 h油冷(OQ)固溶处理(ST)后的试样毛坯分别于700和750 °C两个时效温度和2、5、7 h 3个时效时间进行处理,具体时效处理参数如表1所列。将不同时效处理后的材料加工成拉伸、持久和蠕变试样。其中热稳定性拉伸试样为固溶时效处理后的毛坯料于650 °C热暴露100 h空冷后按照标准加工的室温拉伸试样。

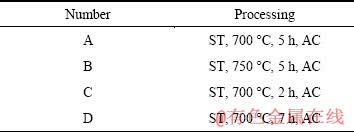

表1 时效处理工艺
Table 1 Aging processes of Ti65 alloy
2 结果与讨论
2.1 时效温度对Ti65高温钛合金性能的影响
经时效处理后的Ti65高温钛合金拉伸性能如表2所列。由表2可知,时效温度由700 °C提高到750 °C,合金的室温拉伸强度有所降低,而塑性略有提高。合金在650 °C高温下保持较好的拉伸性能,且性能水平基本相当。两种时效制度下,热暴露后的拉伸性能与未经热暴露试样的性能无明显差异,说明两种时效处理后的合金于650 °C均具有良好的热稳定性,但700 °C时效后的热稳定性比750 °C时效温度工艺的性能稍好。
表2 时效处理后Ti65合金的拉伸性能
Table 2 Tensile properties of Ti65 alloy after aging processes
时效温度对Ti65高温钛合金于650 °C的持久性能的影响如图1所示。由图1可知,700 °C时效后Ti65高温钛合金的650 °C持久性能优于750 °C时效处理的试样。时效温度对合金在650 °C的蠕变性能的影响如表3所示。由表3可知,Ti65高温钛合金在两种不同时效温度处理后的高温蠕变性能无明显差异,均保持较高的抗蠕变性。
2.2 时效时间对Ti65高温钛合金性能的影响
时效时间对Ti65高温钛合金的室温拉伸性能、650 °C拉伸性能以及650 °C热稳定性能的影响如表4所示。从表4可以看出,Ti65高温钛合金的室温和650 °C拉伸性能以及650 °C热稳定性能对时效时间的变化不敏感,各时效时间下获得的性能基本相当。

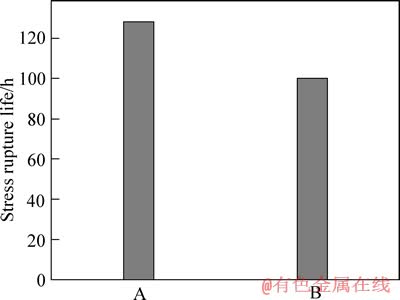

图1 不同时效温度条件下Ti65合金的高温持久性能
Fig. 1 High temperatures stress rupture properties of Ti65 alloy aged at different temperatures
表3 不同时效温度条件下Ti65合金的高温蠕变性能
Table 3 High temperature creep properties of Ti65 alloy aged at different temperatures

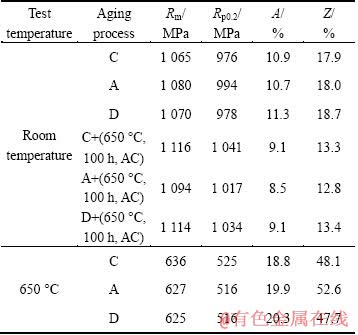

表4 不同时效时间条件下Ti65合金的高温拉伸性能和热稳定性能
Table 4 High temperature tensile properties and thermal stability of Ti65 alloy aged for different time
时效时间对Ti65高温钛合金的650 °C持久性能的影响如图2所示。由图2可知,随着时效时间的延长,Ti65高温钛合金的650 °C持久性能略有降低。
时效时间对Ti65高温钛合金的650 °C蠕变性能的影响如表5所示,从表5可知,随着时效时间的延长,Ti65高温钛合金的650 °C蠕变性能有一定的提高。

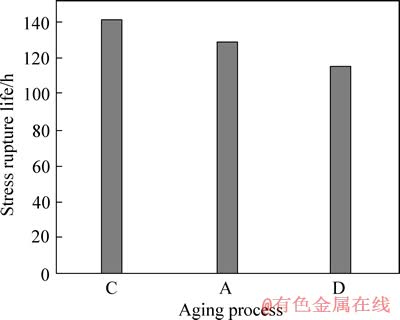

图2 不同时效时间下Ti65合金的高温持久性能
Fig. 2 Stress rupture properties of Ti65 alloy aged for different time at 650 °C and 240 MPa
表5 不同时效时间条件下Ti65合金的高温蠕变性能
Table 5 Creep properties of Ti65 alloy at 650 °C aged for different time
3 结论
1) 随时效温度的提高,Ti65高温钛合金室温拉伸强度和持久性能有所降低,塑性升高;650 °C高温拉伸性能、热稳定性能和蠕变性能变化不大。
2) 随时效时间的延长,Ti65高温钛合金的拉伸性能变化不大,持久性能降低,抗蠕变性能提高。
REFERENCES
[1] 蔡建明, 李臻熙, 马济民, 黄 旭, 曹春晓. 航空发动机用 600 °C高温钛合金的研究与发展[J]. 材料导报, 2005, 19(1): 50-53.
CAI Jian-ming, LI Zhen-xi, MA Ji-min, HUANG Xu, CAO Chun-xiao. Research and development of 600 °c high temperature titanium alloys for aeroengine[J]. Materials Review, 2005, 19(1): 50-53.
[2] 付艳艳, 宋月请, 惠松骁, 米绪军. 航空用钛合金的研究与应用进展[J]. 稀有金属, 2006, 30(6): 850-856.
FU Yan-yan, SONG Yue-qing, HUI Song-xiao, MI Xu-jun. Research and application of typical aerospace titanium alloys[J]. Chinese Journal of Rare Metals, 2006, 30(6): 850-856.
[3] 曾立英, 赵永庆, 洪 权, 毛小南, 戚运莲. 600 °C高温钛合金的研发[J]. 钛工业进展, 2012, 29(5): 1-5.
ZENG Li-ying, ZHAO Yong-qing, HONG Quan, MAO Xiao-nan, QI Yun-lian. Research and development of high temperature titanium alloys at 600 °C[J]. Titanium Industry Progress, 2012, 29(5): 1-5.
[4] MESHRAM S D, MOHANDAS T. Influence of matrix microstructure on aging response of near alpha titanium alloy (IMI 834) parent metal and welds on toughness[J]. Materials Science & Technology, 2011, 27(1): 235-239.
[5] NIDHI S, GOUTHAMA, VAKIL S. Low cycle fatigue behavior of Ti alloy IMI834 at room temperature[J]. Materials Science and Engineering A, 2002, 325(1/2): 324-332.
[6] MISHRA H, GHOSAL P, NANDY T K SAGAR P K. Influence of Fe and Ni on creep of near α-Ti alloy IMI834[J]. Materials Science and Engineering A, 2005, 399(1/2): 222-231.
[7] BAXTER G J, RAINFORTH W M, GRABOWSKI. TEM observations of fatigue damage accumulation at the surface of the near-α titanium alloy IMI834[J]. Acta Mater, 1996, 44(9): 3453-3463.
[8] VO P, JAHAZI M, YUE S. Recrystallization during thermomechanical processing of IMI834[J]. Metallurgical and Transactions A, 2008, 39(12): 2965-2980.
[9] 卢 斌, 杨 锐. 热处理对650 °C短时用Ti650板材显微组织和力学性能的影响[J]. 宇航材料工艺, 2007, 37(6): 77-81.
LU Bin, YANG Rui. Heat treatment on microstructure and mechanical properties of Ti650 alloy sheet for short-term use at 650 °C[J]. Aerospace Materials & Technology, 2007, 37(6): 77-81
[10] 王 永, 卢 斌, 杨 锐. 热处理对Ti650钛合金显微组织和相组成的影响[J]. 稀有金属材料与工程, 2008, 37(s3): 704-707.
WANG Yong, LU Bin, YANG Rui. Effects of heat treatment on the microstructure and phase evolution of Ti650 titanium alloy[J]. Rare Metal Materials and Engineering, 2008, 37(s3): 704-707.
(编辑 方京华)
收稿日期:2013-07-28;修订日期:2013-10-10
通信作者:王 旭,助理工程师;电话:010-62496630,传真:010-62496640;E-mail:wangxu621@gmail.com
