Thermodynamics of removing impurities from crude lead by vacuum distillation refining
Xiang-feng KONG1,2, Bin YANG1,2, Heng XIONG1,2, Ling-xin KONG1,2, Da-chun LIU1,2, Bao-qiang XU1,2
1. National Engineering Laboratory for Vacuum Metallurgy, Kunming University of Science and Technology, Kunming 650093, China;
2. State Key Laboratory of Complex Nonferrous Metals Resources Clear Utilization, Kunming University of Science and Technology, Kunming 650093, China
Received 8 July 2013; accepted 1 April 2014
Abstract: A novel technique was developed to remove impurities from crude lead by vacuum distillation. The thermodynamics on vacuum distillation refining process of crude lead was studied by means of saturated vapor pressure of main components of crude lead, separation coefficients and vapor-liquid equilibrium composition of Pb-i (i stands for an impurity) system at different temperatures. The behaviors of impurities in the vacuum distillation refining process were investigated. The results show that the vacuum distillation should be taken to obtain lead from crude lead, in which Zn, As and partial Sb are volatilized at lower temperature of 923-1023 K. Lead is distilled from the residue containing Cu, Sn, Ag and Bi at higher temperature of 1323-1423 K, but the impurity Bi is also volatilized along with lead and cannot be separated from lead.
Key words: crude lead; vacuum distillation; refining; removal; thermodynamics
1 Introduction
Crude lead produced by the traditional pyrometallurgy processes usually needs to refine so that it can be used widely. The refining of crude lead has fire refining process and electrolytic process [1,2]. At present, the fire refining has been used in more lead smelters, accounting for about 70% of the production of refined lead in the world, only some smelters use electrolytic process in Canada, Peru, Japan and China [3-5]. The refining of crude lead is aimed to remove the impurities to obtain the refined lead (purity over 99%), and to recover copper, silver and bismuth and other precious metals in the crude lead. Cu, Sn, Ag, Zn, As, Sb and Bi are the common impurities of crude lead. Whether fire refining process or electrolytic process, all that could obtain naturally the requirements to the quality of pure lead. But there are some serious problems in conventional refining process of crude lead. The fire refining process has some disadvantages, such as procedure complex, low direct rate of lead, bad state of operation and evident environment pollution [6-9]. The electrolytic process has some disadvantages, such as long production period, large investment, high energy consumption and low economic profits [10,11]. Vacuum metallurgy has many advantages, such as short flow, low pollution and low energy consumption [12,13], and can eliminate the disadvantages of traditional refining processes. Vacuum distillation has been studied and successfully used in separation of various elements from binary alloys, crude nickel and crude indium [14-18]. The investigation on the refining of crude lead by vacuum distillation has not been reported. Herein, in this work, the thermodynamic performance of components of crude lead in the vacuum distillation process was investigated systemically in order to provide a simple, clean, efficient and referential way for the removal of Cu, Sn, Ag, Zn, As and Sb from crude lead.
2 Relationship between saturated vapor pressure of main components and temperature
The impurity components can be removed from crude lead by vacuum distillation based on the different properties of components of crude lead when vaporizing and condensing. The difference in saturated vapor pressure of main components is the basic principle for vacuum distillation of crude metal at different temperatures. Relationship between saturated vapor pressure of main components and temperature is shown in Eq. (1), and the evaporation constants A, B, C and D for different components are shown in Table 1.
lg p*=AT-1+Blg T+CT+D (1)
where p* is the saturated vapor pressure; T is the temperature.

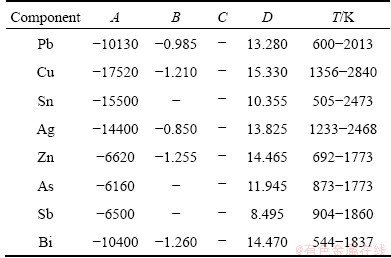

Table 1 Evaporation constants A, B, C and D for different components [16]
According to Eq. (1) and Table 1, the saturated vapor pressure can be calculated as shown in Fig. 1.
Figure 1 shows that the saturated vapor pressure of As or Zn are much higher than that of Pb at 873-1073 K. At 823 K, As begins to sublimate, which indicates that As and Zn are easily to volatilize into vapor phase and can be removed from crude lead completely. The saturated vapor pressure of Sb is also high in comparison with Pb, which can be partially removed at an appropriate temperature. The saturated vapor pressure of Cu, Sn or Ag is much lower than that of Pb at 1273-1523 K, which shows that Cu, Sn and Ag are difficult to volatilize into vapor phase and were concentrated in residual phase. It also can be seen that the saturated vapor pressure of Bi is close to that of Pb, which indicates that Bi cannot be separated from lead by vacuum distillation.

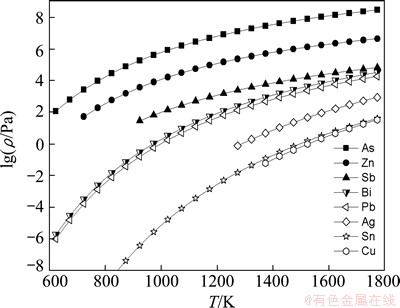

Fig. 1 lg p-T diagram of main components in crude lead with each element in pure state
3 Possibility of impurities removal
The reason of refining of crude metal or separation of alloys by vacuum distillation is the composition difference between distilled vapor phase and liquid phase. As for crude lead, considering the effect of impurity composition and its component activities on separation efficiency, a concept β, i.e., separation coefficient, was introduced from theoretical derivation for Pb-i system, that is [16]
(2)
where γi and γPb are activity coefficients of i and Pb components in crude lead, respectively.
Crude lead contains more than 92 % of Pb and other impurities including Cu, Sn, Ag, Zn, As, Sb and Bi. The composition i is less than 2 %. In the dilute solution, the impurity component i is considered the solute, and the activity coefficient of Pb is supposed as 1.
When βi>1 or βi<1, the separation of impurity component i from crude lead can be achieved. And the larger or smaller the value of βi is, the better the removal efficiency will be. But when βi=1 or close to 1, it could not happen. Therefore, the separation coefficient of impurity component i, i.e. βi, can be used to estimate whether the impurity component i can be separated by vacuum distillation for crude lead. When βi>1, impurity component i is concentrated in vapor phase, and Pb component is concentrated in liquid phase; when βi<1, impurity component i is concentrated in liquid phase, and Pb component is concentrated in vapor phase.
According to Eqs. (1) and (2), the separation coefficient of impurity component i can be calculated in the temperature range of 723-1773 K, as shown in Fig. 2.
Figure 2 shows that βZn and βSb are much more than 1 at 873-1073 K, which indicates that Zn and Sb are preferentially volatilized into vapor phase and Pb remains in residue. ΒCu, βSn and βAg are much less than 1 at 1273-1523 K, especially for βCu reaching 10-4, which means that Cu, Sn and Ag are concentrated in residual phase and Pb is volatilized into vapor phase. These conclude that Cu, Sn, Ag, Zn and Sb are excellently removed from crude lead. It also can be seen from Fig. 2 that βBi approaches 1 and it further confirms that Bi cannot be separated from lead by vacuum distillation. Due to the fact that the activity coefficient of As is not available, the thermodynamics could not be discussed regrettably.

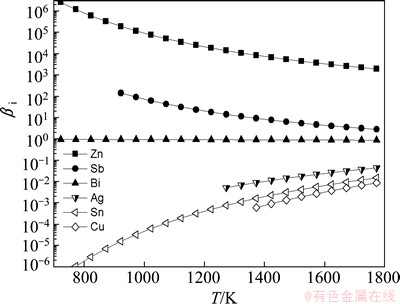

Fig. 2 Separation coefficient βi of impurity component i in crude lead
4 Vapor-liquid equilibrium composition of Pb-i system
Equilibrium composition is significant to estimate the separation effect, conditions of operation and the products composition quantitatively. The purity of distilled lead can also be predicted by the vapor-liquid equilibrium composition. The content of impurity component i in vapor phase is expressed as[16]
(3)
where Ci(g) and Ci(l) are the contents of component i in vapor and liquid phase, respectively; CPb(l) is the content of component Pb in liquid phase.

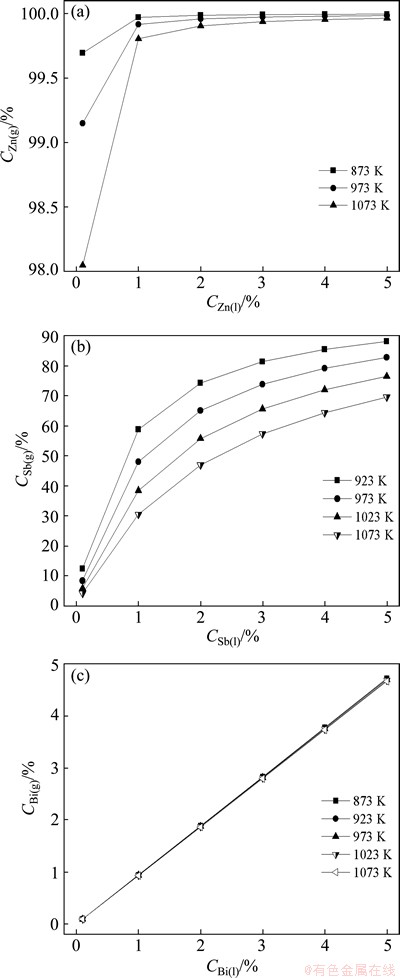

Fig. 3 Vapor-liquid equilibrium composition of Pb-Zn system (a), Pb-Sb system (b) and Pb-Bi system (c) at 873-1073 K
Substituting the γi, γPb, and into Eq. (3), the relationship diagram of Ci(g)-Ci(l) can be developed as shown in Fig. 3 and Fig. 4 at the required temperatures, that is the vapor-liquid equilibrium composition for Pb-i system. It shows the change of equilibrium composition of vapor and liquid at different temperatures.
It can be seen from Fig. 3 that the impurities of Zn and Sb can be easily removed from lead by vacuum distillation at 873-1073 K from the view of thermodynamics, while Bi can hardly be removed from crude lead. For the sake of achieving better removal of Zn and Sb from lead and ensuring less loss of lead, vacuum distillation should be proceeded in an appropriate temperature range of 923-1023 K. Figure 4 shows that Cu, Sn and Ag are easy to remove completely from lead in thermodynamics by vacuum distillation only one time at 1273-1473 K, in which Cu, Sn and Ag are concentrated in the distilled residual liquid while lead is concentrated in vapor phase, but Bi cannot be removed at a higher temperature. In order to attain a high distilling rate of lead and remove Cu, Sn and Ag completely, vacuum distillation should be performed in the proper temperature range of 1323-1423 K.

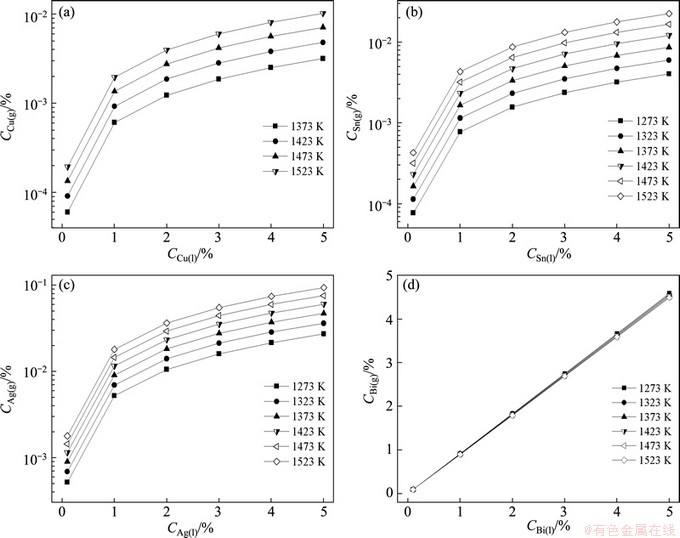

Fig. 4 Vapor-liquid equilibrium composition of Pb-Cu system (a), Pb-Sn system (b), Pb-Ag system (c) and Pb-Bi system (d) at 1273-1523 K
5 Conclusions
1) The impurities of Cu, Sn, Ag, Zn, As and Sb in the crude lead can be easily removed by vacuum distillation in thermodynamics, but Bi cannot be removed.
2) The vacuum distillation should be taken to obtain lead from crude lead. Zn, As and Sb are removed at lower temperature of 923-1023 K. Lead is distilled from the residual liquid containing Cu, Sn, Ag and Bi at higher temperature of 1323-1423 K, and Cu, Sn and Ag are concentrated and remain in the residual liquid.
3) The sufficient thermodynamic calculations are helpful to choose the conditions of operation and acquire reliable results in vacuum distillation refining process for crude lead.
References
[1] SOHN H Y. Nonferrous metals: Production and history [M]// Encyclopedia of Materials: Science and Technology. Elsevier Science Ltd, 2001: 6191-6197.
[2] SONG Zan. Practice of refining lead bullion with high impurity [J]. China Nonferrous Metallurgy, 2010(6): 17-19. (in Chinese)
[3] LIU Shen-ning. Industrial practice of lead bullion fire refining [J]. China Nonferrous Metallurgy, 2004(4): 22-24. (in Chinese)
[4] PENG Rong-qiu. Lead metallurgy [M]. Changsha: Central South University Press, 2004: 102-103. (in Chinese)
[5] TIMOTHY W E, ABBAS H M. The refining of secondary lead for use in advanced lead-acid batteries [J]. Journal of Power Sources, 2010, 195(14): 4525-4529.
[6] ZHOU Jian-lin. Comprehensive production of impurity control in the process of lead bullion fire refining [J]. Hunan Nonferrous Metals, 2005, 21(2): 17-19. (in Chinese)
[7] KIRCHER J. Lead recycling technology [J]. Journal of Power Sources, 1989, 28(1-2): 85-91.
[8] LEGARTH J B. Environmental decision making for recycling options [J]. Resources, Conservation and Recycling, 1997, 19(2): 109-135.
[9] BAN Li-li, LIU Zhong-hua, YONG Qi-long, CHEN Wen, SUN Bao-hua, GU Xiao-ming. Study on the application of a new decoppering technique in refining of lead bullion [J]. Journal of Kunming University of Science and Technology: Science and Technology, 2006, 31(4): 10-13. (in Chinese)
[10] LIU Bin-lian, WANG Bao-jun, LI Liang-dong. Production practice of removing tin in crude lead in refining process of lead electrolysis [J]. Nonferrous Mining and Metallurgy, 2013, 29(2): 35-37. (in Chinese)
[11] PAN Jun-qing, YU Liang, NIU Yin-jian, SUN Yan-zhi. A method of electrolytic refining of crude lead: CN102534662A [P]. 2012-07-04. (in Chinese)
[12] KONG Ling-xin, LI Yi-fu, YANG Bin, XU Bao-qiang, LIU Da-chun, DAI Yong-nian. Application of molecular interaction volume model in separation of Pb-Sb, Pb-Ag and Sb-Cu alloys by vacuum distillation [J]. Transactions of Nonferrous Metals Society of China, 2013, 23(2): 535-542.
[13] YANG Hong-wei, YANG Bin, XU Bao-qiang, LIU Da-chun, TAO Dong-ping. Application of molecular interaction volume model in vacuum distillation of Pb-based alloys [J]. Vacuum, 2012, 86(9): 1296-1299.
[14] YANG Bin, DAI Yong-nian, ZHANG Guo-jing. A study on vacuum distillation laws of antimony/lead alloy [J]. Yunnan Metallurgy, 1999, 28(1): 40-43. (in Chinese)
[15] JIA Guo-bin, YANG Bin, LIU Da-chun. Deeply removing lead from Pb-Sn alloy with vacuum distillation [J]. Transactions of Nonferrous Metals Society of China, 2013, 23(6): 1822-1831.
[16] DAI Yong-nian, YANG Bin. Vacuum metallurgy for nonferrous metals and materials [M]. Beijing: Metallurgical Industry Press, 2009, 34-90. (in Chinese)
[17] LIU Da-chun, YANG Bin, WANG Fei, YU Qing-chun, WANG Lin, DAI Yong-nian. Research on the removal of impurities from crude nickel by vacuum distillation physics [J]. Physics Procedia, 2012, 32: 363-371.
[18] LI Dong-sheng, YANG Bin, LIU Da-chun, DENG Yong, XU Bao-qiang. Removal of metal impurities from crude indium by vacuum distillation [J]. Chinese Journal of Vacuum Science and Technology, 2012, 32(4): 296-300. (in Chinese).
